Presentation Transcript

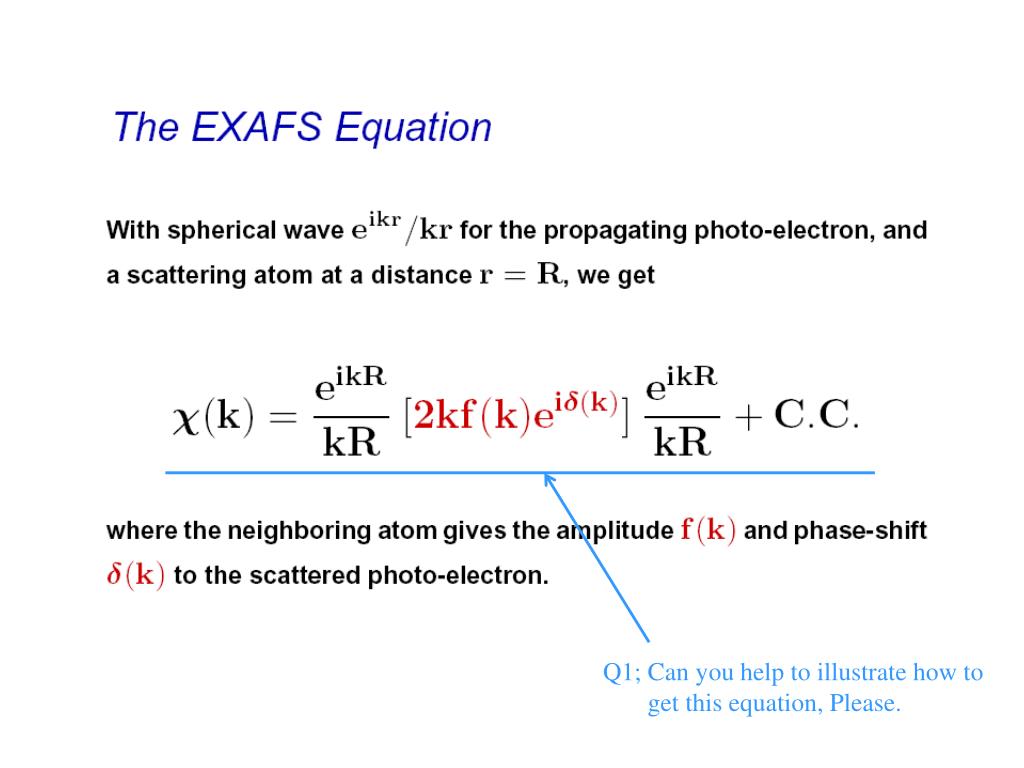

  1. Q1; Can you help to illustrate how to get this equation, Please.

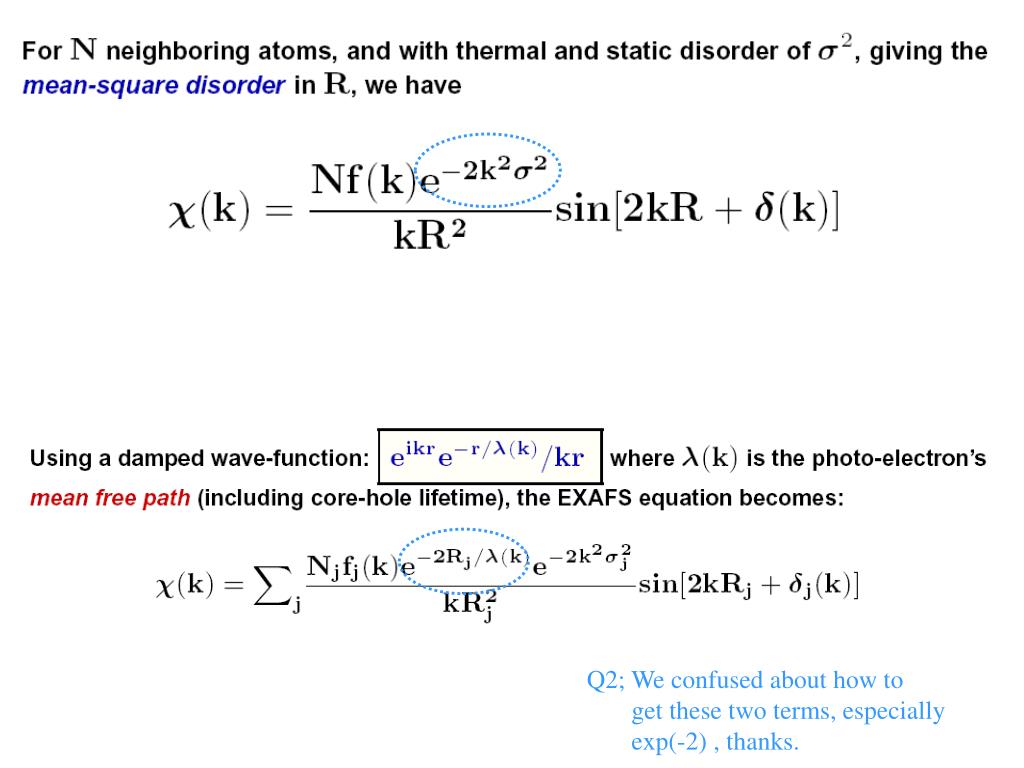

  2. Q2; We confused about how to get these two terms, especially exp(-2) , thanks.

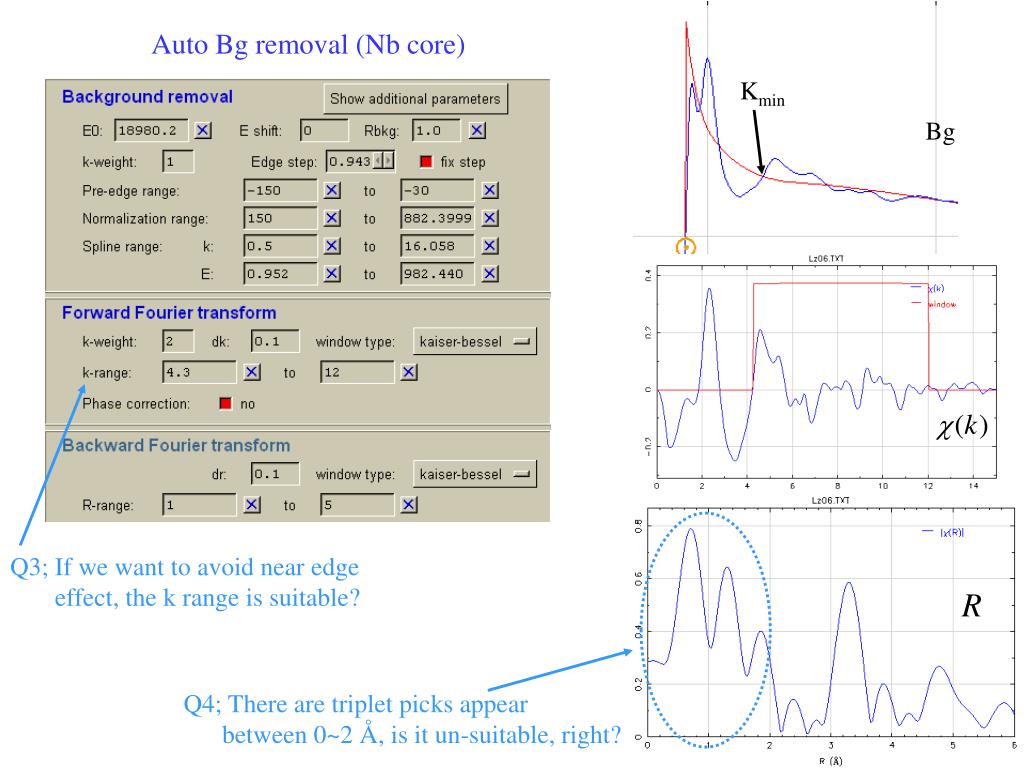

  3. Auto Bg removal (Nb core) Kmin Bg Q3; If we want to avoid near edge effect, the k range is suitable? Q4; There are triplet picks appear between 0~2 Å, is it un-suitable, right?

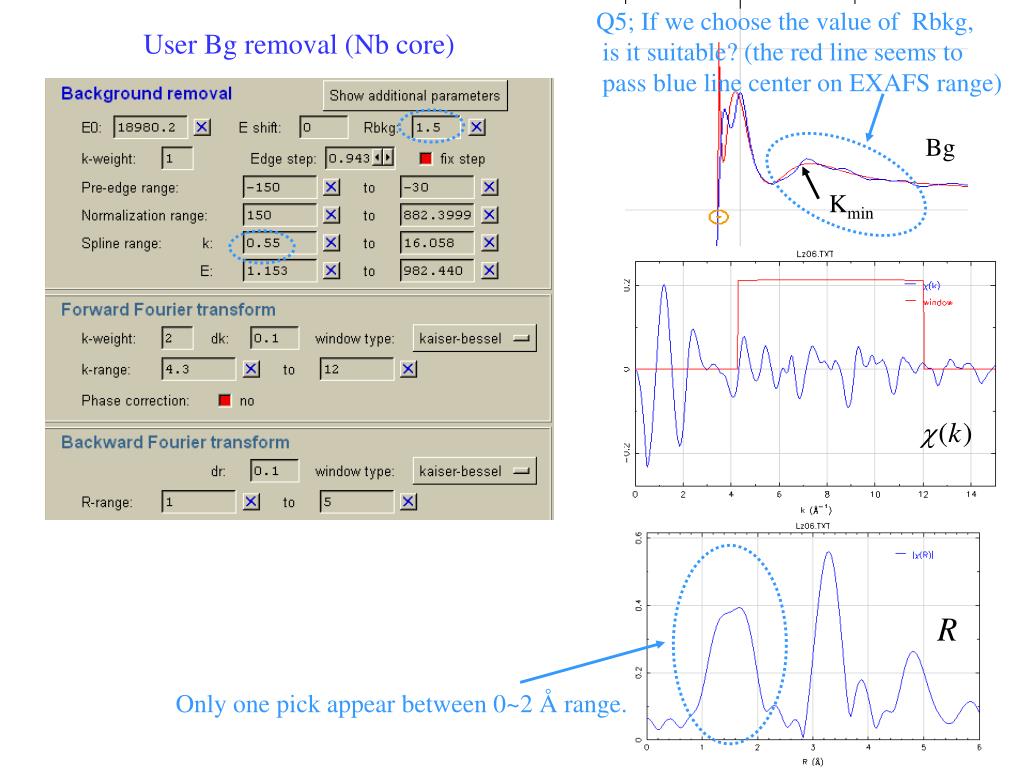

  4. Q5; If we choose the value of Rbkg, is it suitable? (the red line seems to pass blue line center on EXAFS range) User Bg removal (Nb core) Bg Kmin Only one pick appear between 0~2 Å range.
