  1. Basic G500H Operation

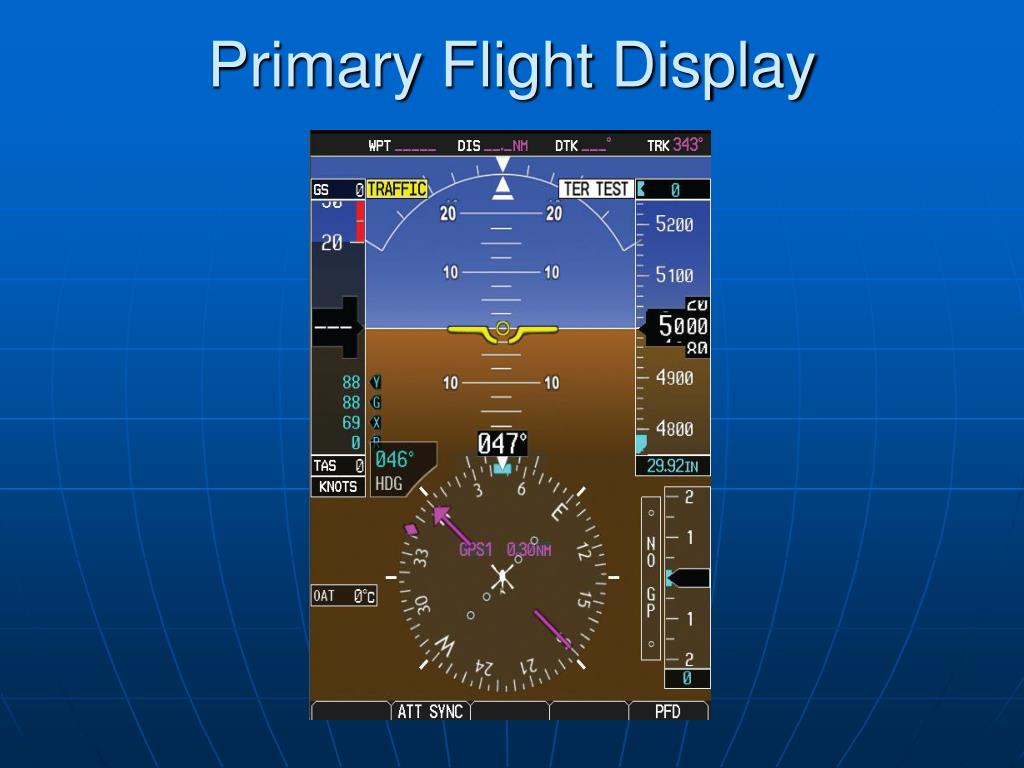

  2. Primary Flight Display

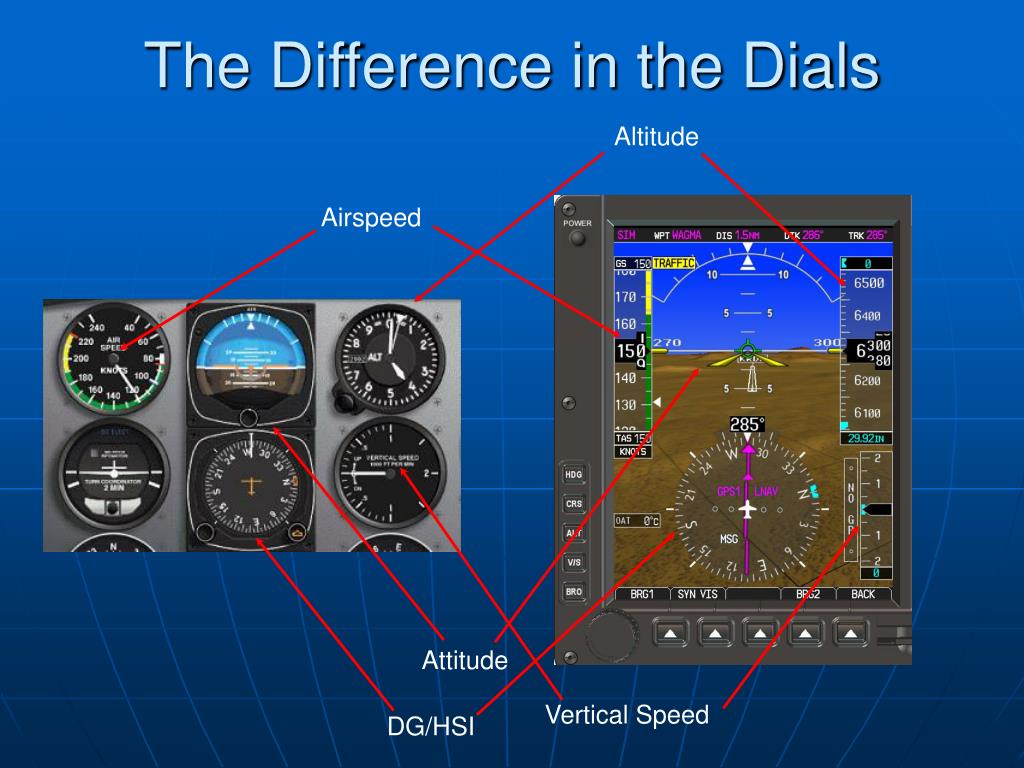

  3. The Difference in the Dials Altitude Airspeed Attitude Vertical Speed DG/HSI

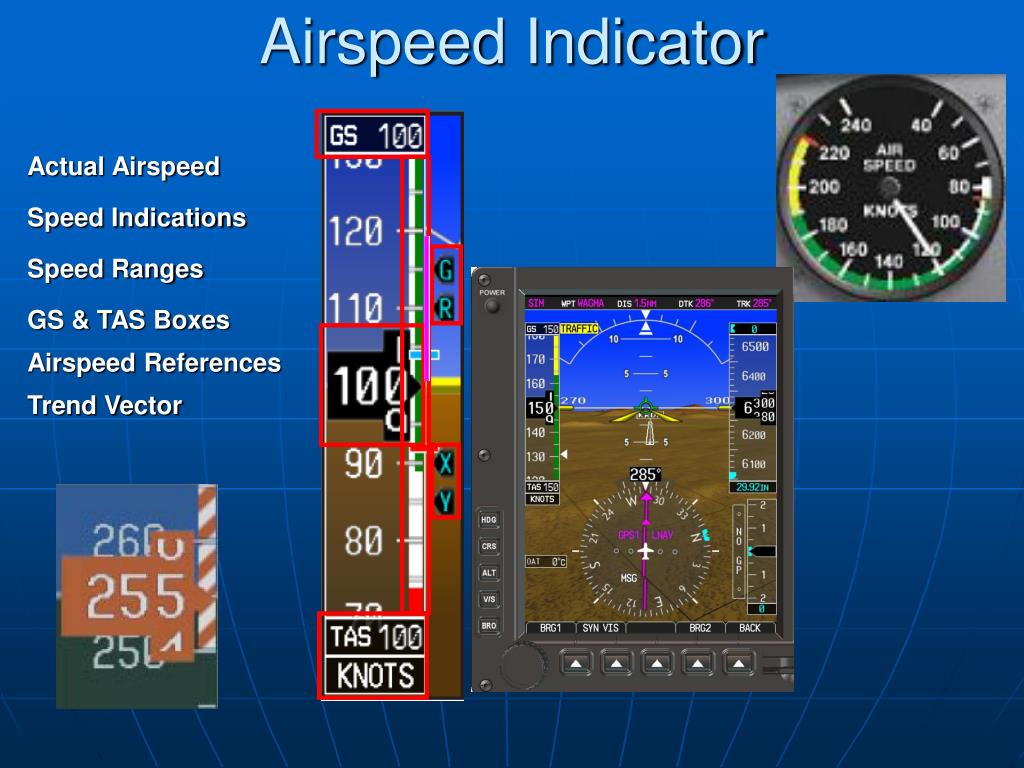

  4. Airspeed Indicator Actual Airspeed Speed Indications Speed Ranges GS & TAS Boxes Airspeed References Trend Vector

  5. Attitude Indicator Sky Representation Roll Scale Roll Pointer Aircraft Wingtips Horizon Aircraft Symbol Pitch Scale Land Representation

  6. Altimeter Current Altitude Altitude Values Altitude Reference Bug Altitude Reference Box Trend Vector Barometric Setting Box

  7. Vertical Speed Indicator Vertical Speed Bug is set Climb or descend To guide the Needle Into the bug

  8. Horizontal Situation Indicator Digital Heading Heading Trend Vector Heading Box Nav Source Flight Phase Course Box Lateral Deviation Scale Heading Bug TO/FROM Indicator Compass Rose Course Pointer Airplane Symbol OBS Mode

  9. Where are the needle and ball? “Step on the Bar” Slip & Skid Turn Rate Indicator Half Standard Rate Standard Rate If rate of turn >25 degrees….

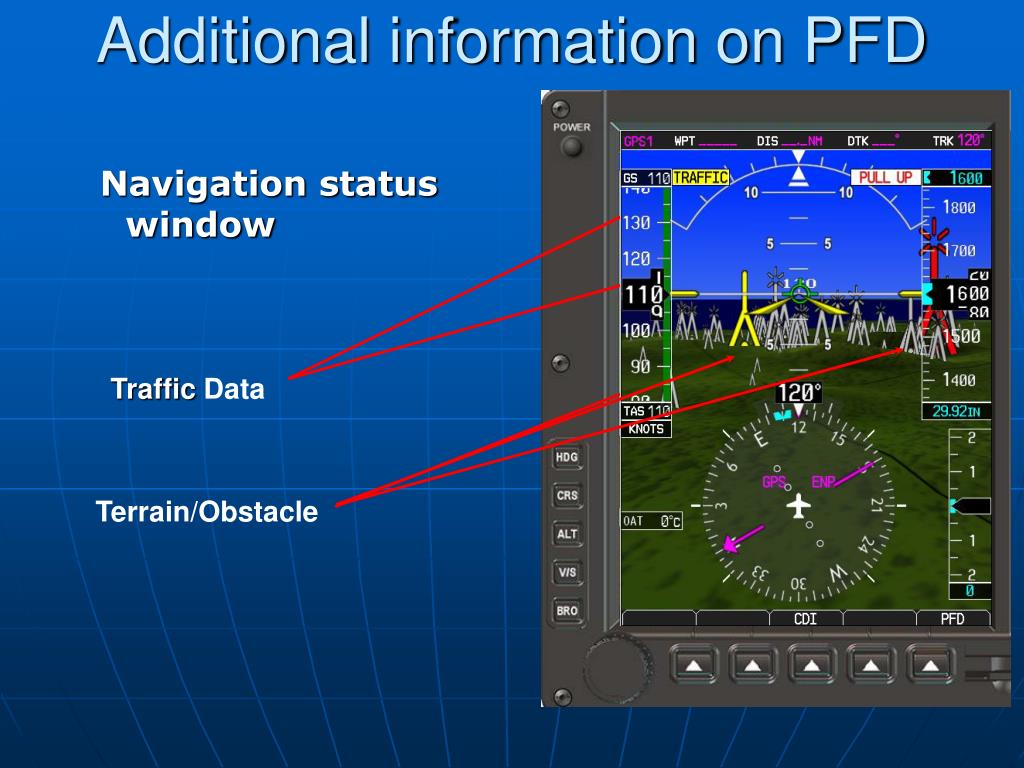

  10. Additional information on PFD Navigation status window Traffic Data Terrain/Obstacle

  11. Primary Flight Display (PFD) Bezel Controls Heading Bug Course Selection Altitude Selection Vertical Speed Bug Barometric Adjustment

  12. Vertical Deviation Indicator

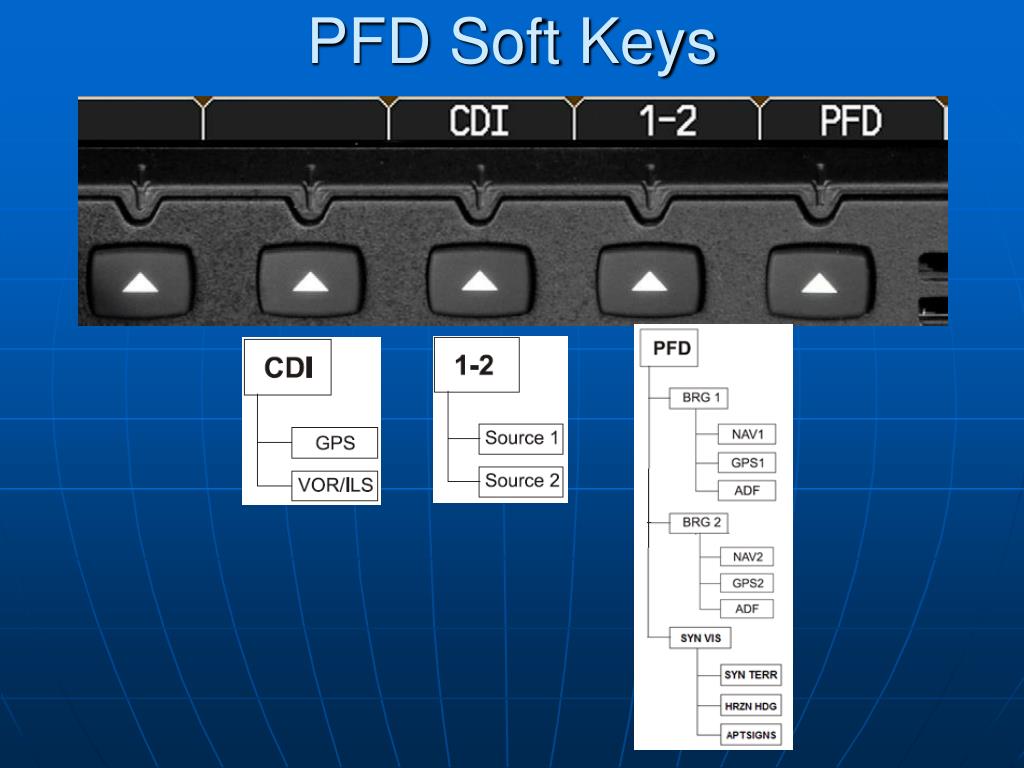

  13. PFD Soft Keys

  14. Unusual Attitude Recovery

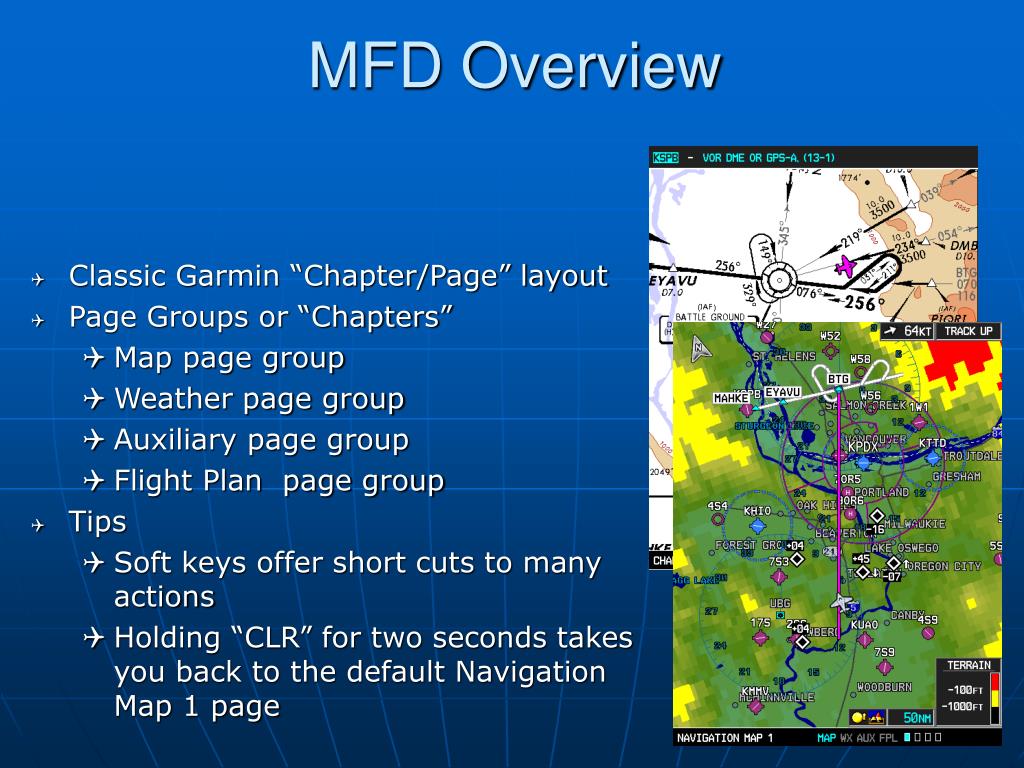

  15. MFD Overview • Classic Garmin “Chapter/Page” layout • Page Groups or “Chapters” • Map page group • Weather page group • Auxiliary page group • Flight Plan page group • Tips • Soft keys offer short cuts to many actions • Holding “CLR” for two seconds takes you back to the default Navigation Map 1 page

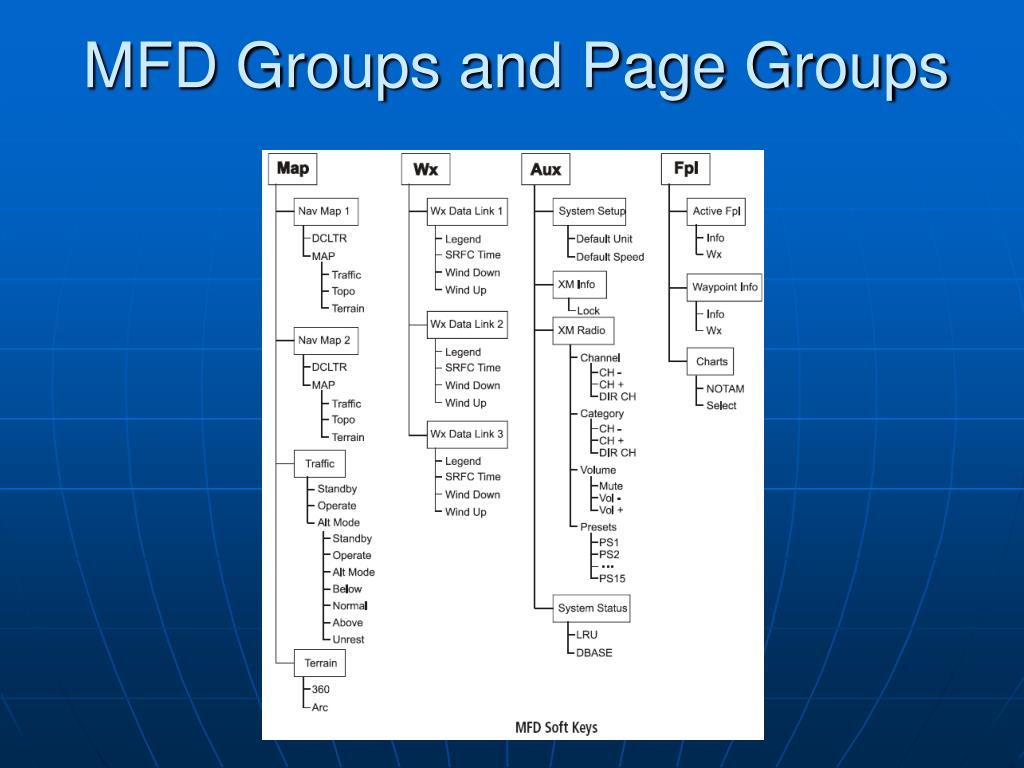

  16. MFD Groups and Page Groups

  17. Page Group Icon The Page Group Icon shows which page group and page you are viewing. Page group indicator Selected page indicator Selected page group is highlighted Map page group Weather page group Auxiliary page group Flight Plan page group

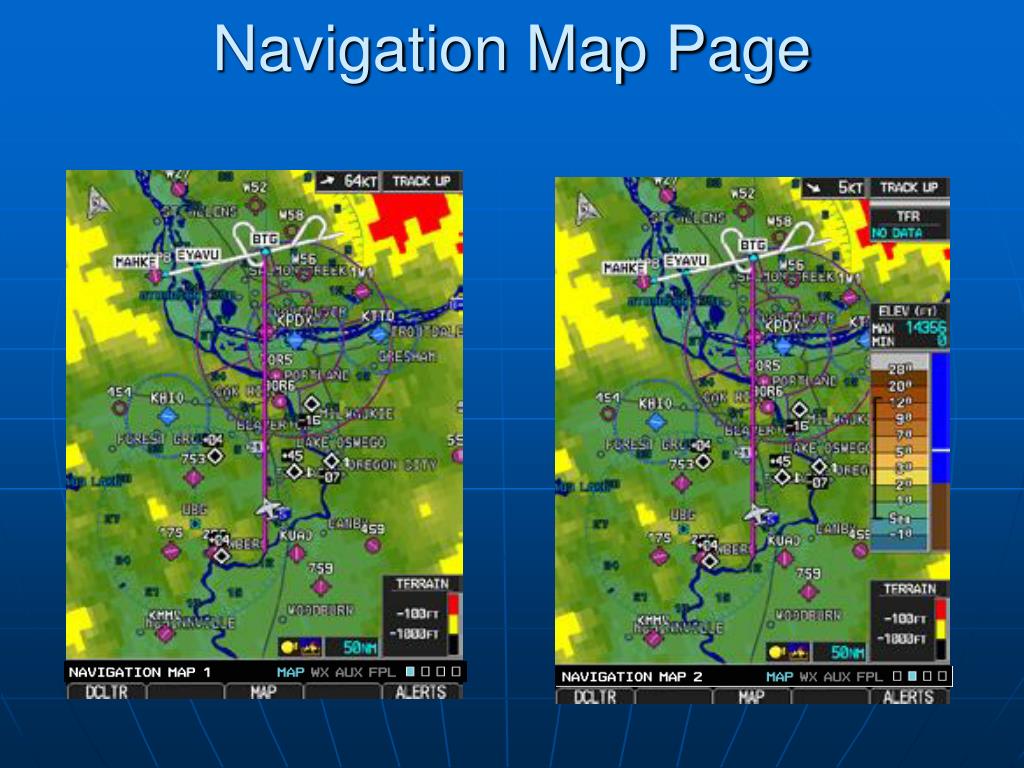

  18. Navigation Map Page

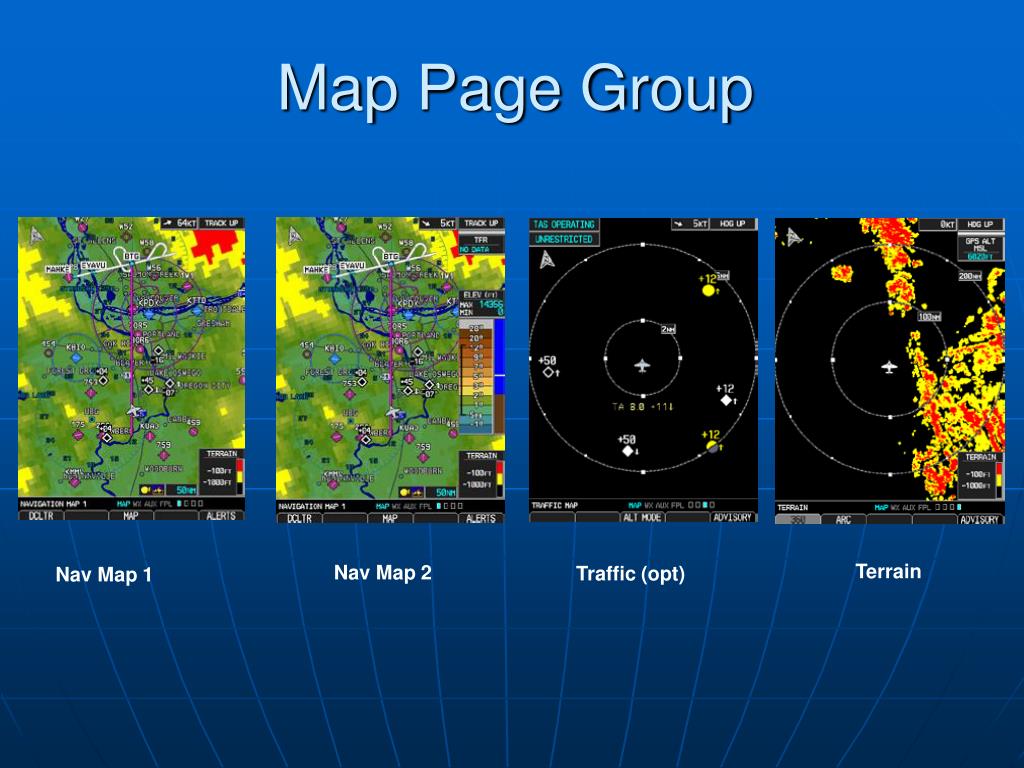

  19. Map Page Group Terrain Nav Map 2 Traffic (opt) Nav Map 1

  20. Weather (WX) Page Group (opt) 3. Wx Data Link Map 3 1. Wx Data Link Map 1 2. Wx Data Link Map 2

  21. AUX Page Group 3. XM Radio (opt) 1. System Setup 2. XM Information (opt) 4. System Status

  22. Flight Plan Page Group 3. Chart Page (Opt) 2. Waypoint Information 1. Active Flight Plan

  23. Active Flight Plan

  24. Waypoint Information

  25. SafeTaxi • Features: • Display of full airport terminal diagrams seamlessly integrated on main navigation map • Geo-referenced data with selectable attributes including: • All current runways and taxiways • FBO names and locations • Public services (terminal locations, fire dept., post office, etc.) • Display of diagram data on PFD inset map • Database: • U.S. coverage only - limited to 653 airport diagrams defined by NACO • 56 day database update cycle to be combined with current obstacle DB cycle • Activation: • Functionality display enabled if appropriate database is present - no unlock card required • $35 per cycle or $195 per year subscription • Available on Garmin website

  26. Safe Taxi

  27. Safe Taxi

  28. Terrain Awareness • Forward Looking Terrain Avoidance (FLTA) function • Premature Descent Alert (PDA) function • Excessive Decent Rates (EDR) function • Negative Climb Rate (NCR) (or Altitude Loss After Take-off) function • Visual caution and warning alerts

  29. Terrain Awareness

  30. Terrain Alerts

  31. Terrain Awareness • Yellow = aircraft within 1000’ AGL of terrain • Red = aircraft within 100’ or below elevation of terrain • Does not account for trees, power-lines, etc.

  32. Obstacle Awareness

  33. Obstacle Symbols The following symbols are used to represent different forms of obstacles:

  34. Victor Airways and Jetways • Victor ( V ) Low altitude airways (below 18,000 feet [5,500m] MSL) • Jetways ( J ) High Altitude Airways (above 18,000 feet [5,500] MSL)

  35. ARINC 424 Leg Types displayed

  36. (Opt) GDL 69(A) Capabilities for the G500H High-resolution NEXRAD weather data METARs (graphical and textual format) TAFs, TFRs, Winds aloft (at altitude) Echo tops, Cloud tops Freezing Levels, Lightning Storm-cell data (size, speed and direction) AIRMETs SIGMETs County Warnings Surface Analysis, City Forecast XM Radio with purchase of the GDL69A

  37. Weather Legends Weather Legends

  38. GDL-69 Weather Nexrad Broadcast rate: 5 minutes

  39. GDL-69 WeatherEcho Tops Broadcast rate: 7.5 minutes

  40. GDL-69 WeatherCloud Tops Broadcast rate: 15 minutes

  41. GDL-69 WeatherLightning Broadcast rate: 5 minutes

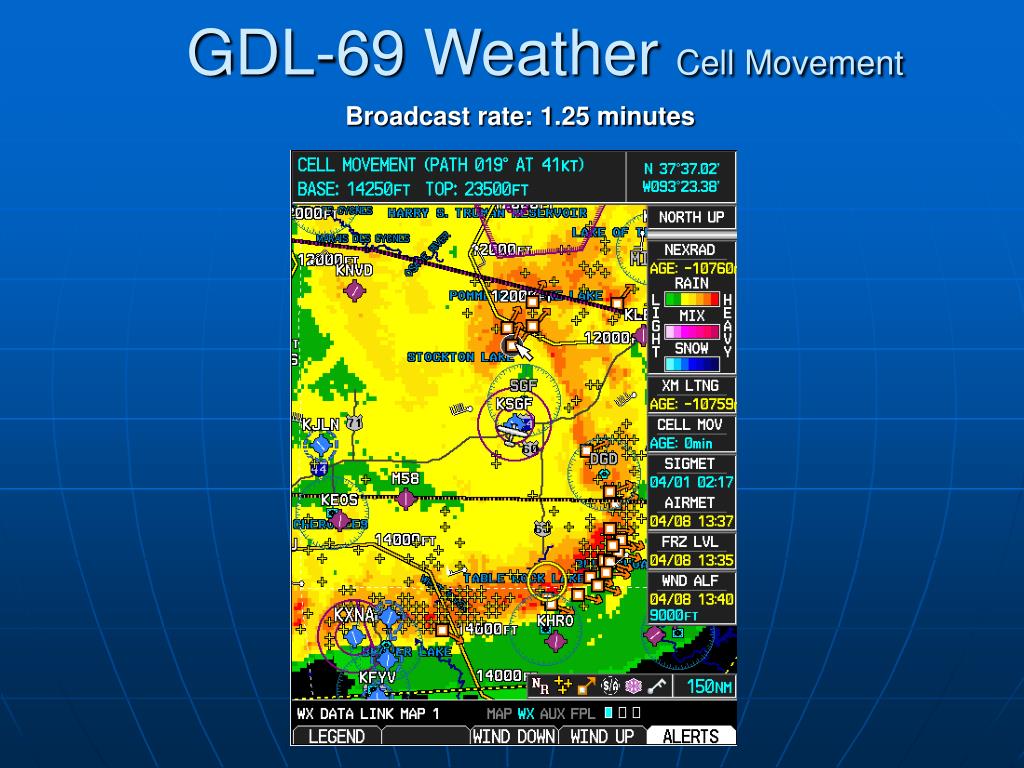

  42. GDL-69 Weather Cell Movement Broadcast rate: 1.25 minutes

  43. GDL-69 WeatherAIRMETs / SIGMETs Broadcast rate: 12 minutes

  44. METARs Graphical METAR Broadcast rate: 12 minutes

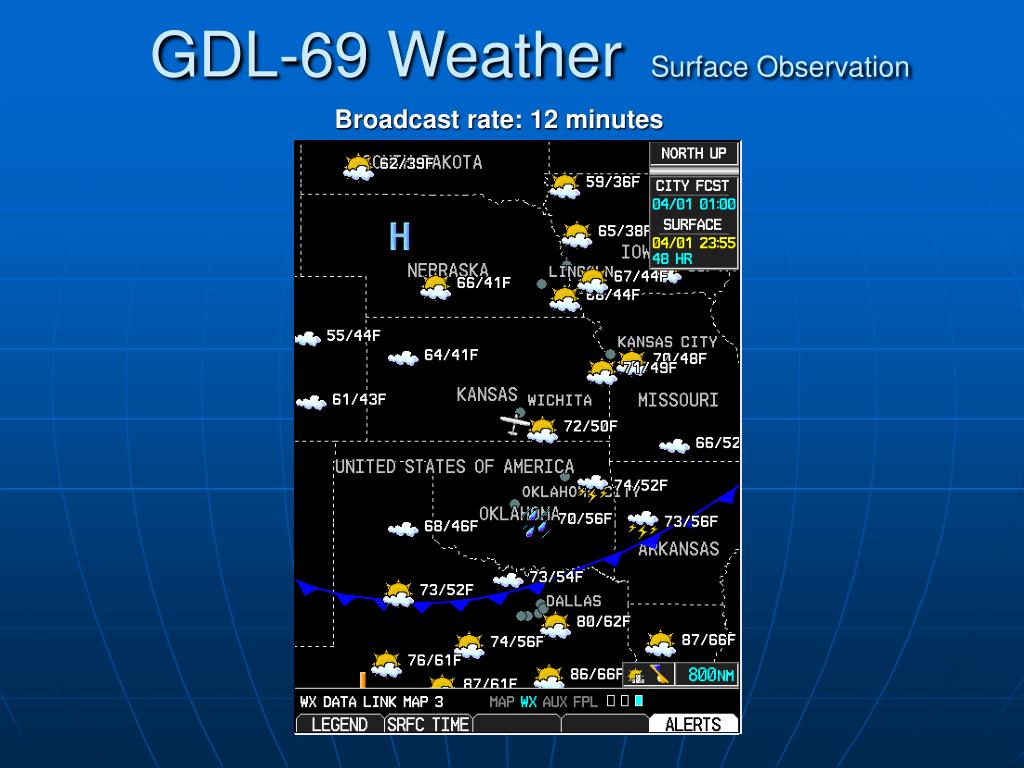

  45. GDL-69 WeatherSurface Observation Broadcast rate: 12 minutes

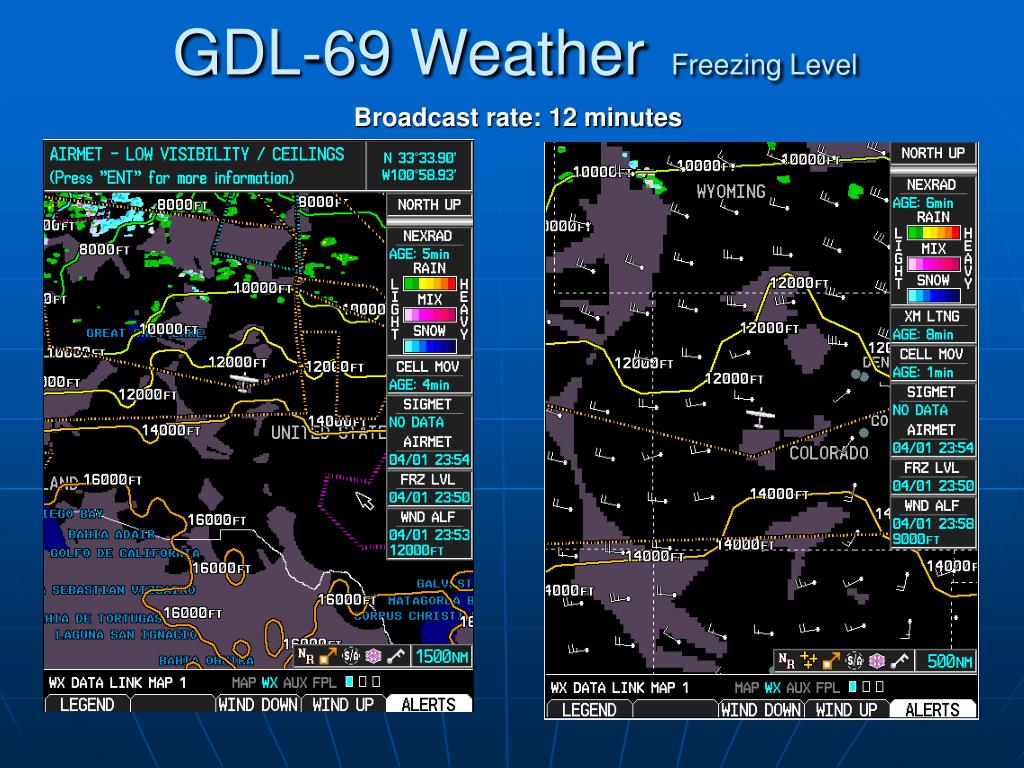

  46. GDL-69 WeatherFreezing Level Broadcast rate: 12 minutes

  47. GDL-69 WeatherWinds Aloft Broadcast rate: 12 minutes

  48. GDL-69 Weather County Warnings Broadcast rate: 5 minutes

  49. GDL-69 Weather TFR Broadcast rate: 5 minutes

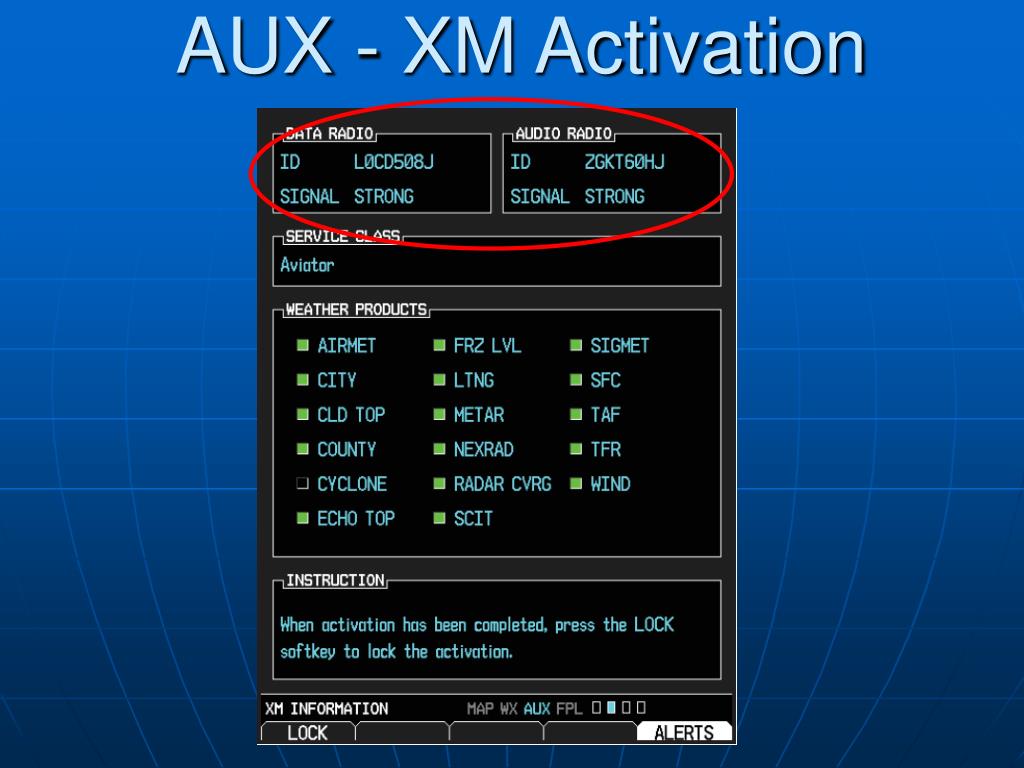

  50. AUX - XM Activation
