External Rear and Side-View

HARMAN E-mirrors enhance or replace traditional rear and side-view mirrors. The mirrors are further augmented by valuable information such as distance to other vehicles or their speed.<br>

harman5
Download Presentation

External Rear and Side-View

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

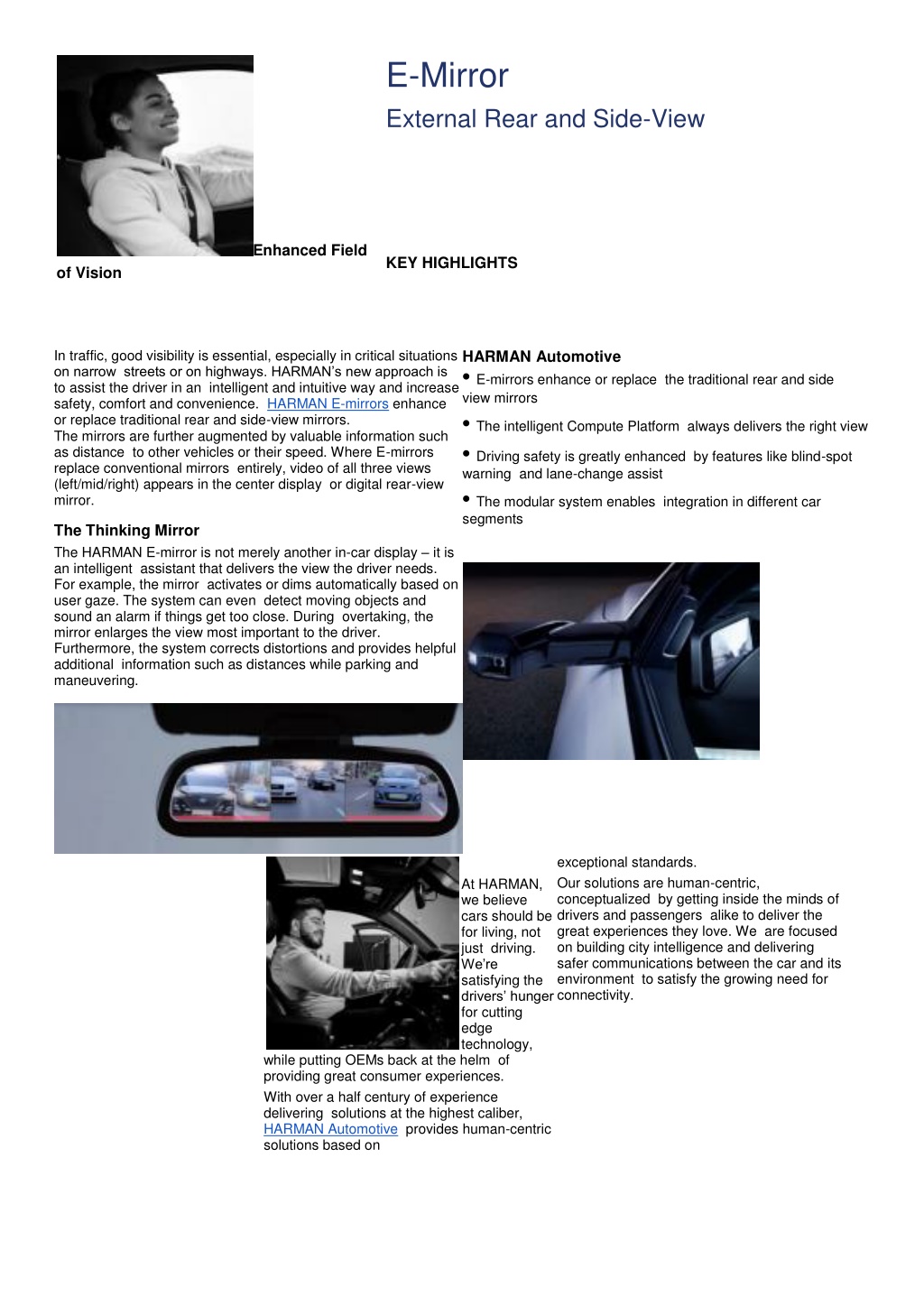

  1. E-Mirror External Rear and Side-View Enhanced Field KEY HIGHLIGHTS of Vision HARMAN Automotive • E-mirrors enhance or replace the traditional rear and side view mirrors • The intelligent Compute Platform always delivers the right view • Driving safety is greatly enhanced by features like blind-spot warning and lane-change assist • The modular system enables integration in different car segments In traffic, good visibility is essential, especially in critical situations on narrow streets or on highways. HARMAN’s new approach is to assist the driver in an intelligent and intuitive way and increase safety, comfort and convenience. HARMAN E-mirrors enhance or replace traditional rear and side-view mirrors. The mirrors are further augmented by valuable information such as distance to other vehicles or their speed. Where E-mirrors replace conventional mirrors entirely, video of all three views (left/mid/right) appears in the center display or digital rear-view mirror. The Thinking Mirror The HARMAN E-mirror is not merely another in-car display – it is an intelligent assistant that delivers the view the driver needs. For example, the mirror activates or dims automatically based on user gaze. The system can even detect moving objects and sound an alarm if things get too close. During overtaking, the mirror enlarges the view most important to the driver. Furthermore, the system corrects distortions and provides helpful additional information such as distances while parking and maneuvering. exceptional standards. Our solutions are human-centric, conceptualized by getting inside the minds of drivers and passengers alike to deliver the great experiences they love. We are focused on building city intelligence and delivering safer communications between the car and its environment to satisfy the growing need for connectivity. At HARMAN, we believe cars should be for living, not just driving. We’re satisfying the drivers’ hunger for cutting edge technology, Consumer Experiences. Automotive Grade. while putting OEMs back at the helm of providing great consumer experiences. With over a half century of experience delivering solutions at the highest caliber, HARMAN Automotive provides human-centric solutions based on

  2. We’re staying ahead of drivers and passengers – and the world around them. Consumer Experiences. Automotive Grade. © 2022 HARMAN INTERNATIONAL INDUSTRIES, INCORPORATED. All rights reserved. Features, specifications and appearance are subject to change without notice. All company and product names used herein may be trademarks of their respective owners. HARMAN E-MIRROR SYSTEM Compute Platform Augmented Side-View Mirror With Speed/Distance COMPONENTS Side-View TECHNICAL DETAILS Cameras Rear-View Mirror During Overtaking Rear-View Camera Intelligent HARMAN • Mirror fully integrated into compute platform or using a standalone ECU • Option A: single camera, single display for internal rear-view mirror replacement (1:1:1 configuration) • Option B: left/right rear-view mirror and two displays (2:1:2 or 2:2:2 configuration) • Option C: 3:1:3 configuration • Image distortion correction • Mirror augmentation • Curbside view Options • ASIL B compliant • Blind spot warning • Lane change assist • Rear collision warning Technical Features Safety Features

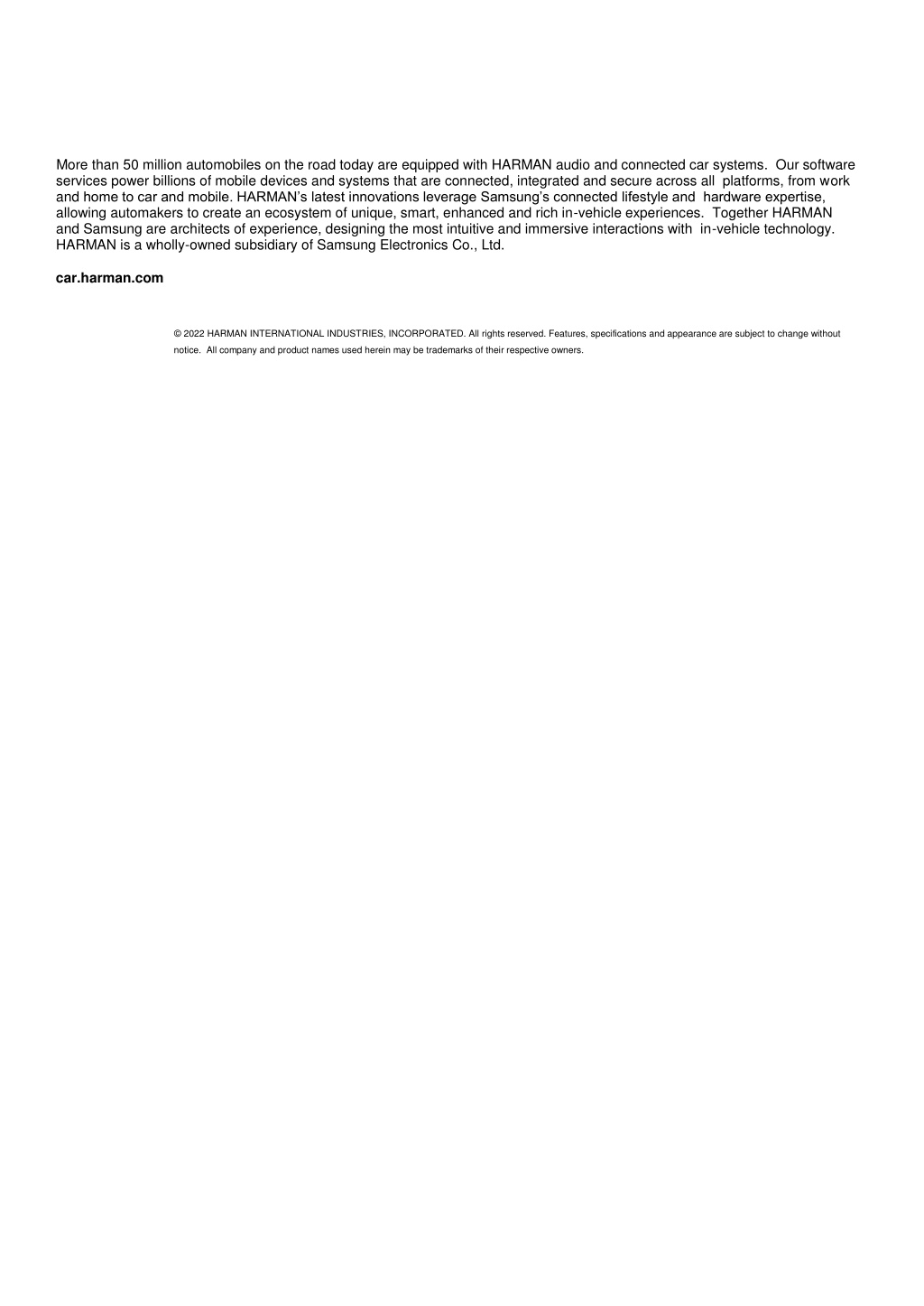

  3. More than 50 million automobiles on the road today are equipped with HARMAN audio and connected car systems. Our software services power billions of mobile devices and systems that are connected, integrated and secure across all platforms, from work and home to car and mobile. HARMAN’s latest innovations leverage Samsung’s connected lifestyle and hardware expertise, allowing automakers to create an ecosystem of unique, smart, enhanced and rich in-vehicle experiences. Together HARMAN and Samsung are architects of experience, designing the most intuitive and immersive interactions with in-vehicle technology. HARMAN is a wholly-owned subsidiary of Samsung Electronics Co., Ltd. car.harman.com © 2022 HARMAN INTERNATIONAL INDUSTRIES, INCORPORATED. All rights reserved. Features, specifications and appearance are subject to change without notice. All company and product names used herein may be trademarks of their respective owners.
