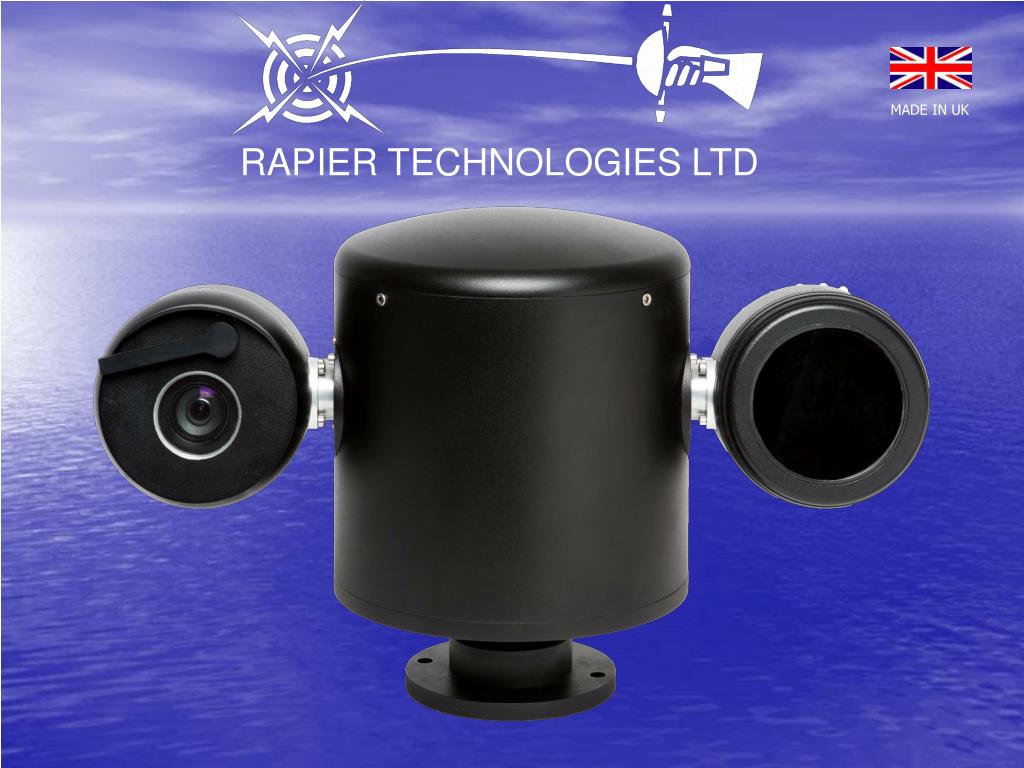

  1. RAPIER TECHNOLOGIES LTD MADE IN UK

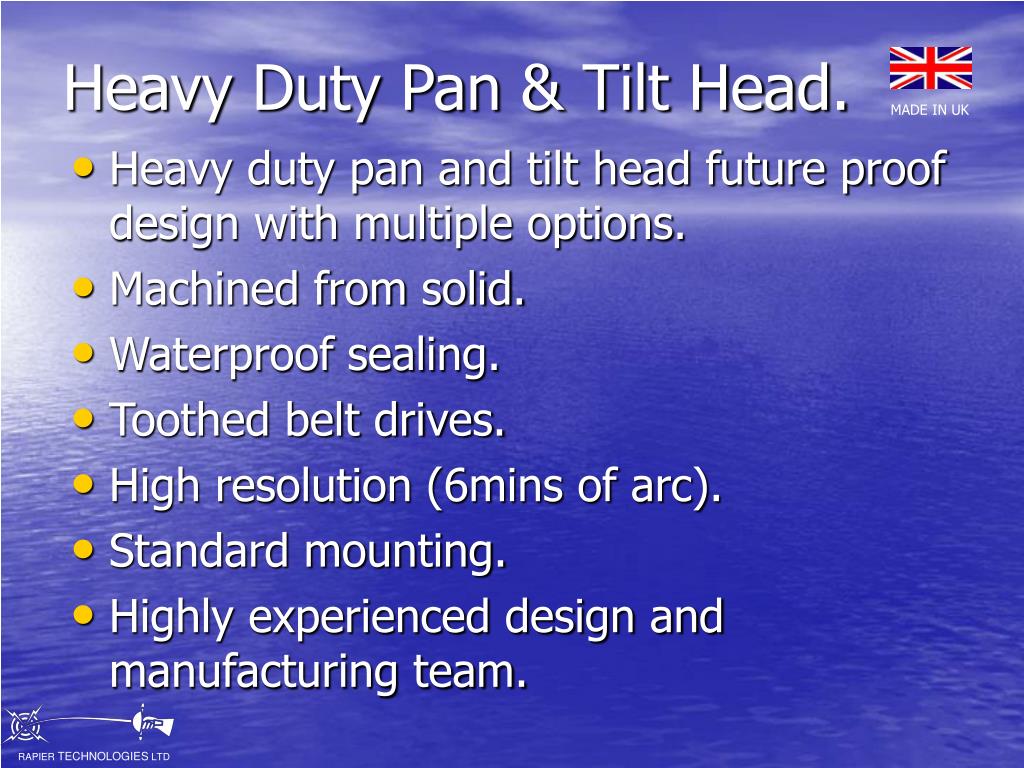

  2. RAPIER TECHNOLOGIES LTD Heavy Duty Pan & Tilt Head. MADE IN UK Heavy duty pan and tilt head future proof design with multiple options. Machined from solid. Waterproof sealing. Toothed belt drives. High resolution (6mins of arc). Standard mounting. Highly experienced design and manufacturing team.

  3. Heavy Duty Pan & Tilt Head. Unit can carry a single side pod, dual side pods, one either side or Quad side pods, two each side. Pods can be of varying sizes dependant on internal equipment integration. Camera pre-set accuracy 6 mins of arc. RAPIER TECHNOLOGIES LTD MADE IN UK

  4. Heavy Duty Pan & Tilt Head. All components are machined. No castings used. Aluminium parts are made from 6082, hard anodised or alocrom and painted. High Grade Stainless steel parts. Camera is fully IP68. RAPIER TECHNOLOGIES LTD MADE IN UK

  5. Waterproof Sealing. O-ring seals used between all joining surfaces. Double silicon rubber lip seals used for all rotating joints. RAPIER TECHNOLOGIES LTD MADE IN UK

  6. Toothed Belt Driven. Belt drive to Pan and Tilt axis, no backlash giving smooth operation. RAPIER TECHNOLOGIES LTD MADE IN UK

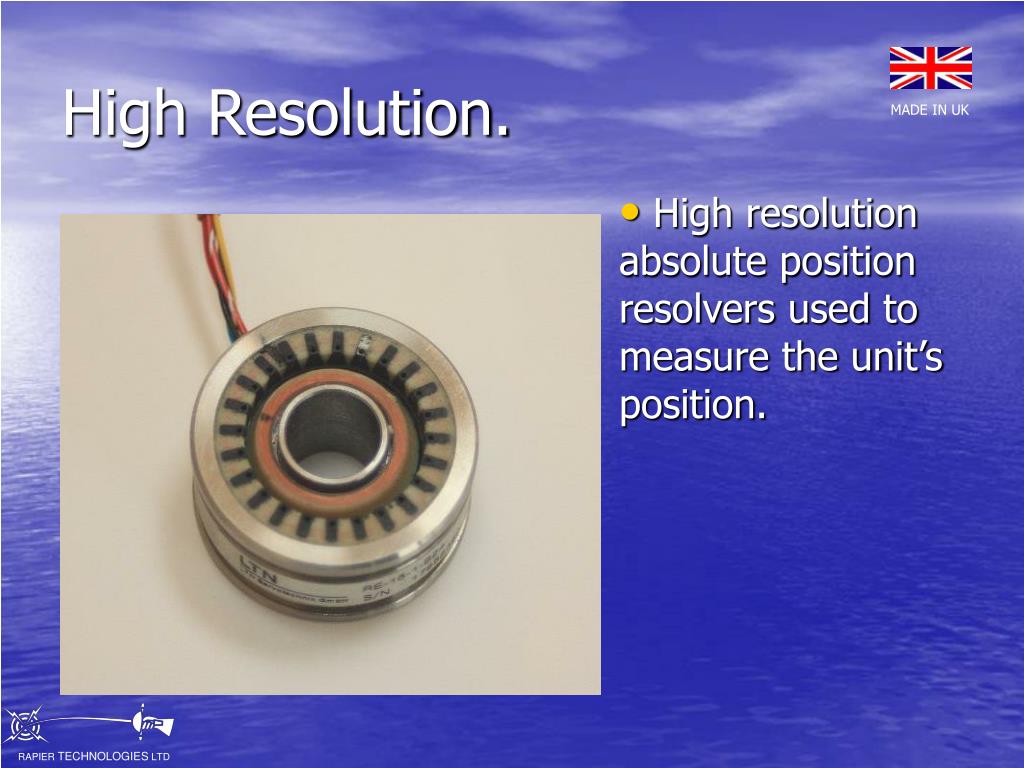

  7. High Resolution. RAPIER TECHNOLOGIES LTD MADE IN UK • High resolution absolute position resolvers used to measure the unit’s position.

  8. Standard Mounting. Standard 4” PCB mounting base. Plastic Bayonet connector, no corroding parts. 31 way connector allowing simultaneous dual Video output. RAPIER TECHNOLOGIES LTD MADE IN UK

  9. External Upgrade. Supports software upgrades whilst installed. RAPIER TECHNOLOGIES LTD MADE IN UK

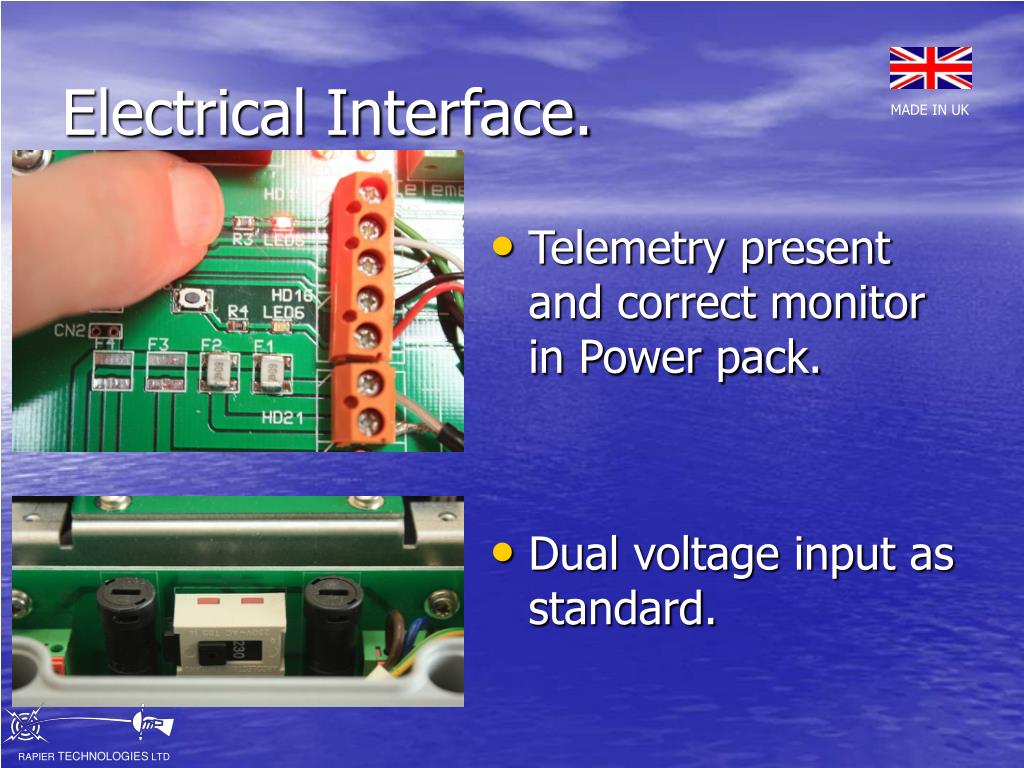

  10. Electrical Interface. Telemetry present and correct monitor in Power pack. Dual voltage input as standard. RAPIER TECHNOLOGIES LTD MADE IN UK

  11. Protection. Static and limited lightning protection built into Power pack. Easy User connection terminals in the Power Pack. RAPIER TECHNOLOGIES LTD MADE IN UK

  12. Side Pods. Pods can be machined to various sizes so user sensors can be easily fitted. RAPIER TECHNOLOGIES LTD MADE IN UK

  13. Insulation. Internal cables within the unit are all PTFE insulation. RAPIER TECHNOLOGIES LTD MADE IN UK

  14. O. S. D. On Screen Display for all camera parameters and set up. RAPIER TECHNOLOGIES LTD MADE IN UK

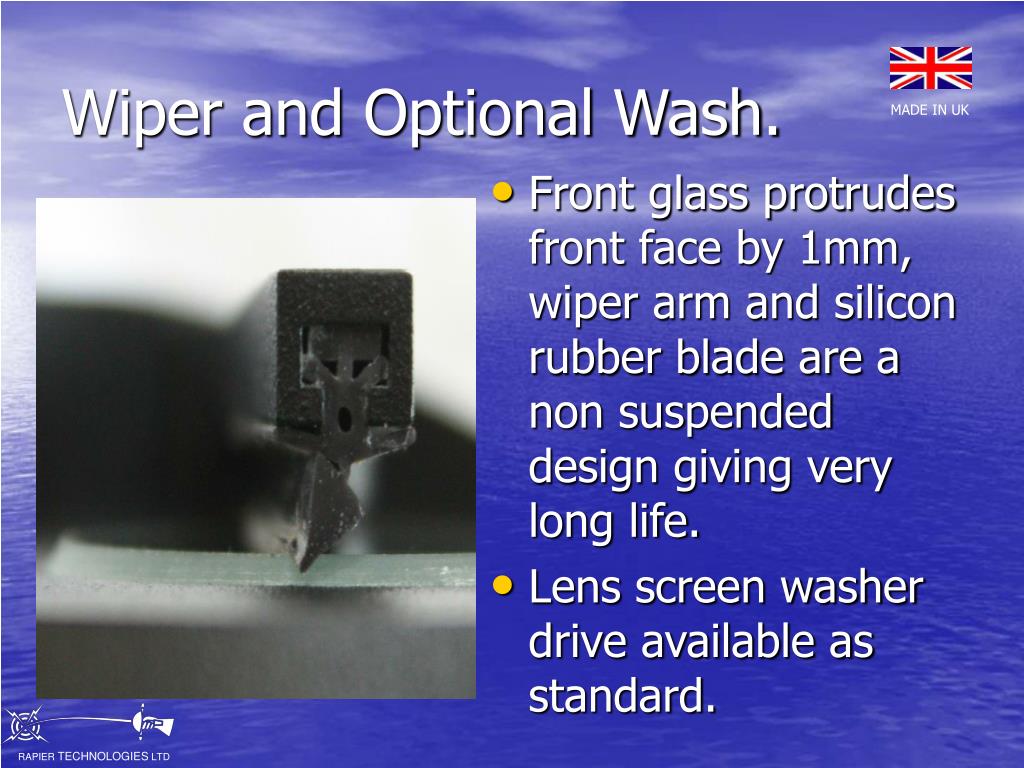

  15. Wiper and Optional Wash. Front glass protrudes front face by 1mm, wiper arm and silicon rubber blade are a non suspended design giving very long life. Lens screen washer drive available as standard. RAPIER TECHNOLOGIES LTD MADE IN UK

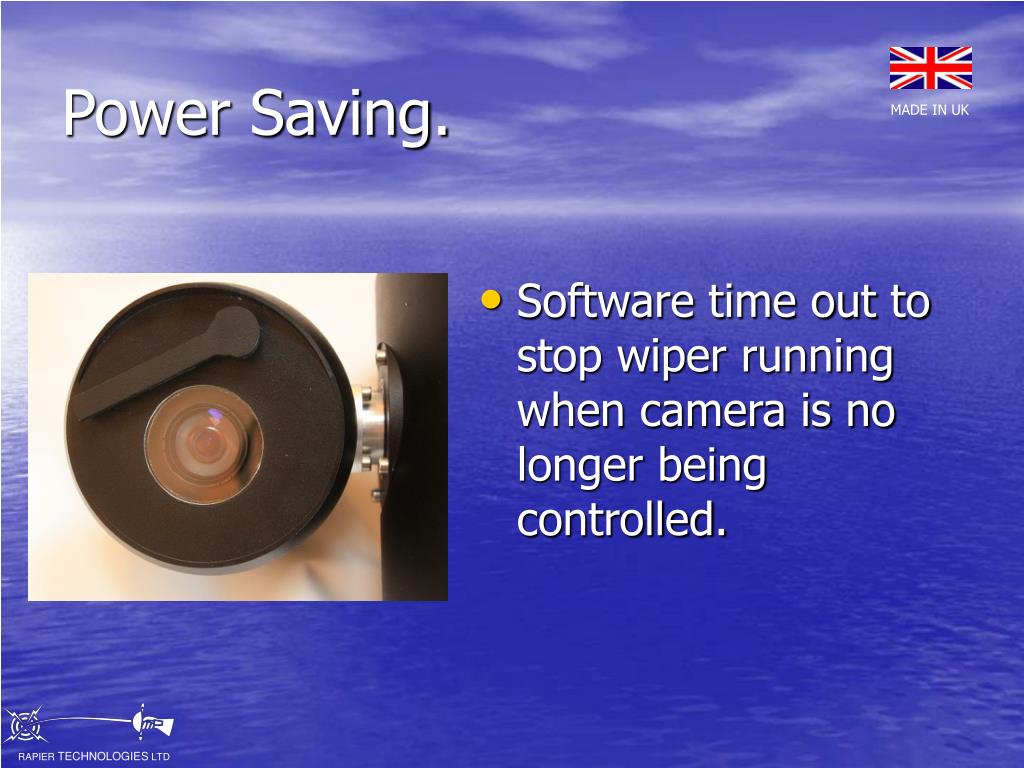

  16. Power Saving. Software time out to stop wiper running when camera is no longer being controlled. RAPIER TECHNOLOGIES LTD MADE IN UK
