  1. SATINOX SATINOX TUBI INOX S.P.A. TUBI INOX S.P.A. Stainless Values Stainless Values

  2. SATINOX TUBI INOX S.P.A. T.I.G. Welding only (Tungsten Inert Gas) Since 1970 SATINOX is a major Italian company in the T.i.g. welded stainless steel tubes industry Stainless Values

  3. SATINOX TUBI INOX S.P.A. The Company • 6 plants (total area 100.000 m2) • 150 workers • 44 welding lines • 9 polishing lines Stainless Values

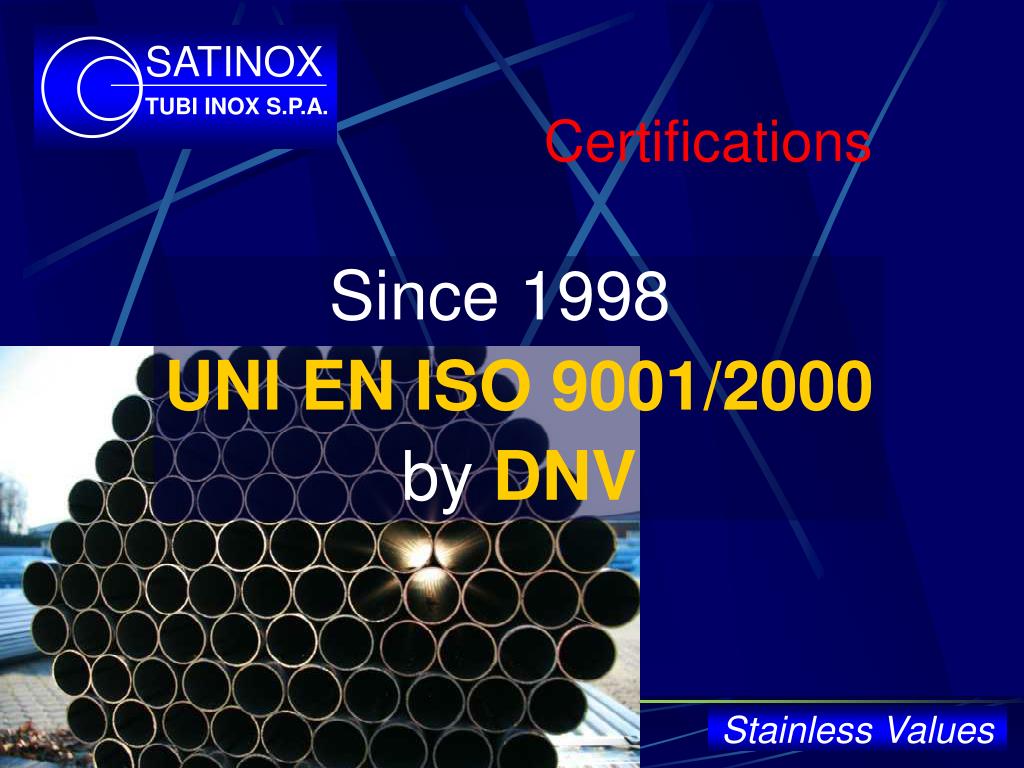

  4. SATINOX TUBI INOX S.P.A. Certifications Since 1998 UNI EN ISO 9001/2000 by DNV Stainless Values

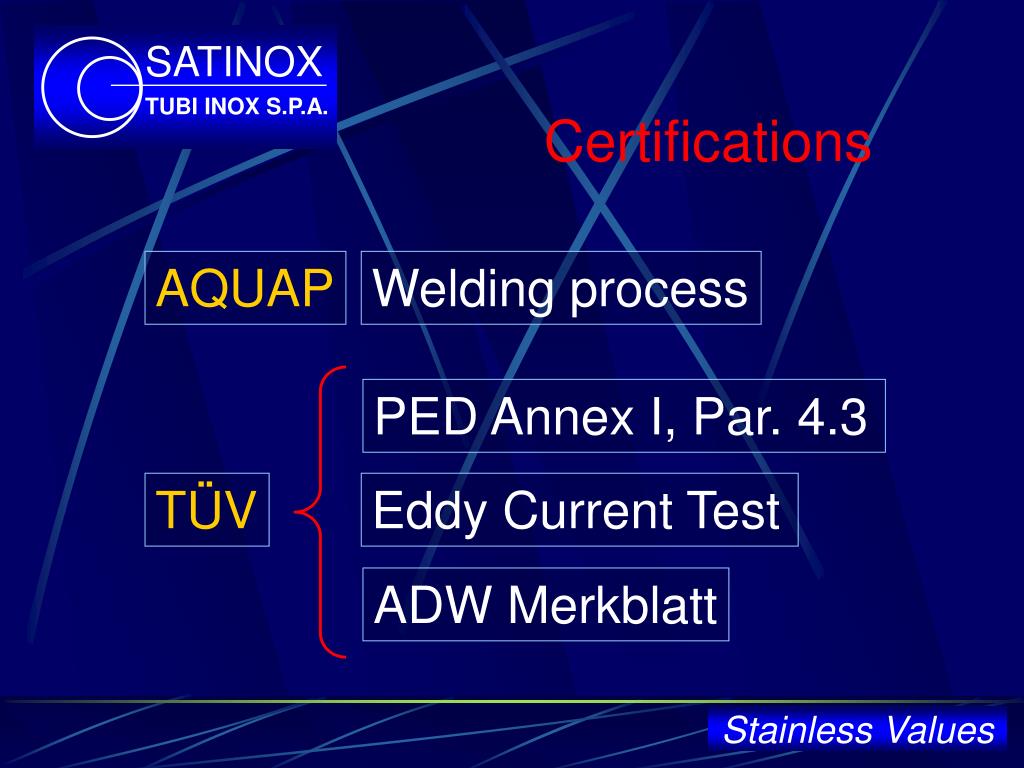

  5. SATINOX TUBI INOX S.P.A. Certifications AQUAP Welding process PED Annex I, Par. 4.3 TÜV Eddy Current Test ADW Merkblatt Stainless Values

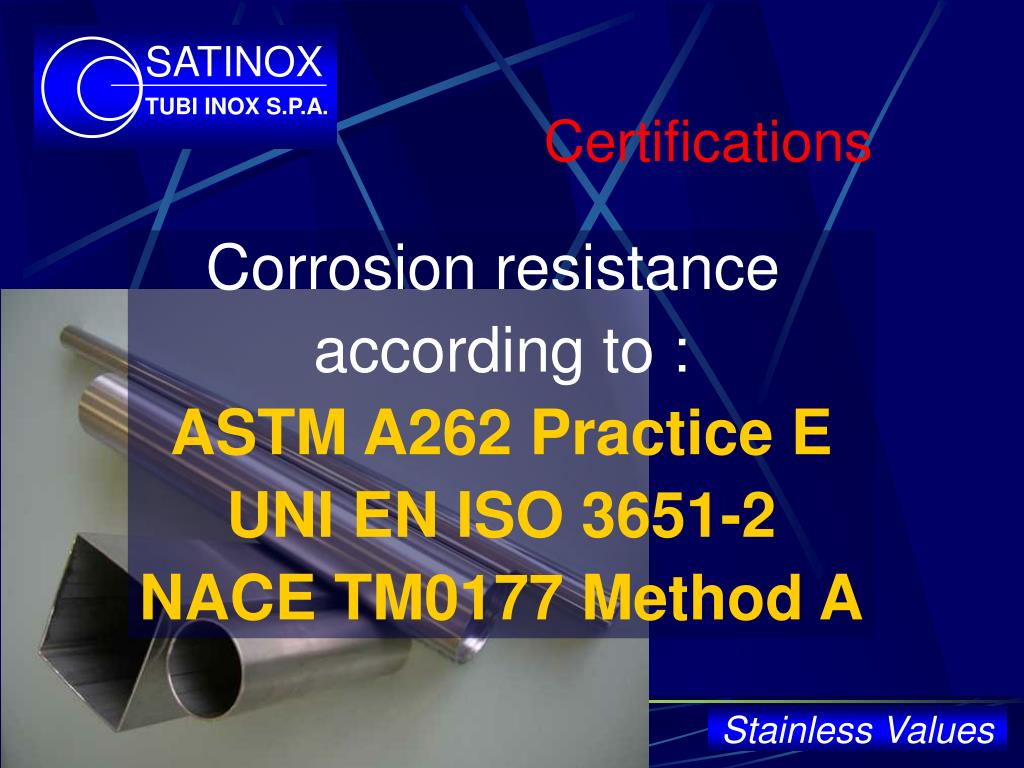

  6. SATINOX TUBI INOX S.P.A. Certifications Corrosion resistance according to : ASTM A262 Practice E UNI EN ISO 3651-2 NACE TM0177 Method A Stainless Values

  7. SATINOX TUBI INOX S.P.A. Production Standards EN 10217-7 10296-2 DIN 17455 17457 11850 11866 AFNOR NFA 49-647 NFA 49-249 ASTM A249 A269 A270 A312 A554 A778 Stainless Values

  8. SATINOX TUBI INOX S.P.A. Steel Grades AISI DIN WST. Tickness 304 1.4301 1 ÷ 5 304L 1.4307 1 ÷ 5 316L 1.4404 1 ÷ 3,2 316Ti 1.4571 1 ÷ 3,2 321 1.4541 1 ÷ 3 Other grades on demand Stainless Values

  9. SATINOX TUBI INOX S.P.A. Dimensions Not annealed 6 ÷ 219,1 Annealed 6 ÷ 104 10x10 ÷ 150x150 20x10 ÷ 250x100 Stainless Values

  10. SATINOX TUBI INOX S.P.A. Outside finish 2B / as welded Brushed Bright annealed Mirror polished Polished gr. 180÷400 Stainless Values

  11. SATINOX TUBI INOX S.P.A. Working process Coils’ cutting Working Finished product on line out line Forming Mirror polishing S T O C K I N G D E L I V E R I E S Welding Polishing gr. Annealing Controls Gauging Sheating Brushing Packing Controls Packing Stainless Values

  12. SATINOX TUBI INOX S.P.A. ok ok ok ok Diagram of Controls Coils’ entry Dimensions, visual, chemical analysis Coils’ slitting Dimensions, visual On welding line Dimensions, Eddy Current 100% Out of welding line Destructive / non destructive tests On finishing line Dimensions, visual, roughness Stainless Values

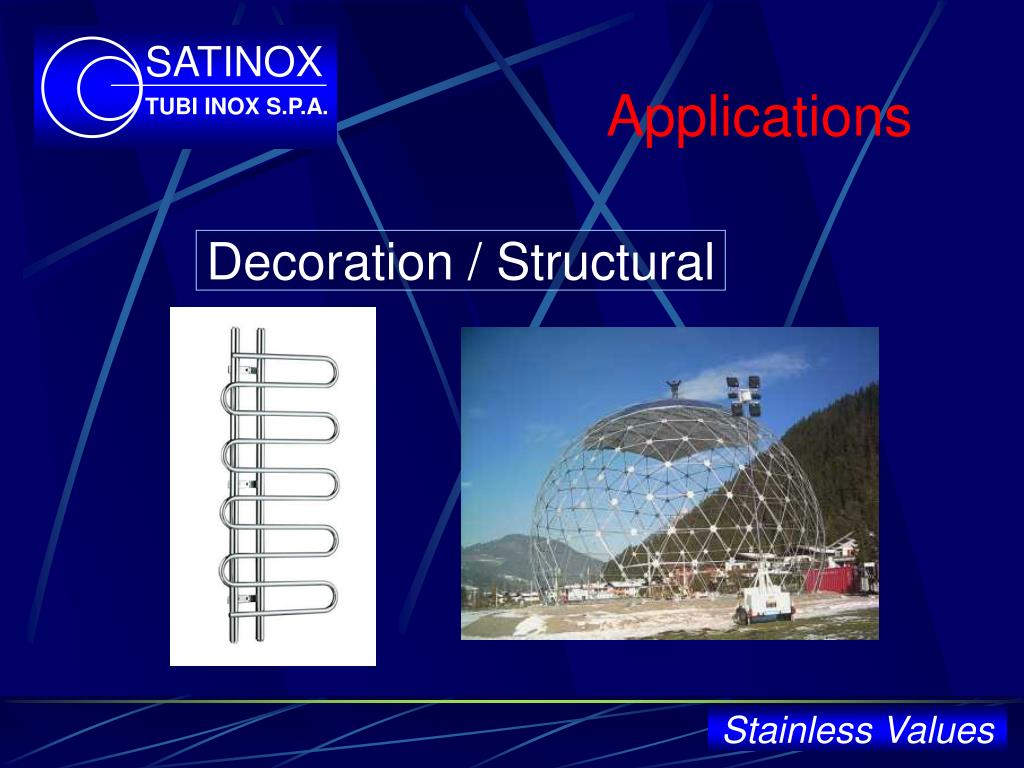

  13. SATINOX TUBI INOX S.P.A. Applications Decoration / Structural Stainless Values

  14. SATINOX TUBI INOX S.P.A. Applications Boat Industry Stainless Values

  15. SATINOX TUBI INOX S.P.A. Applications Automotive Stainless Values

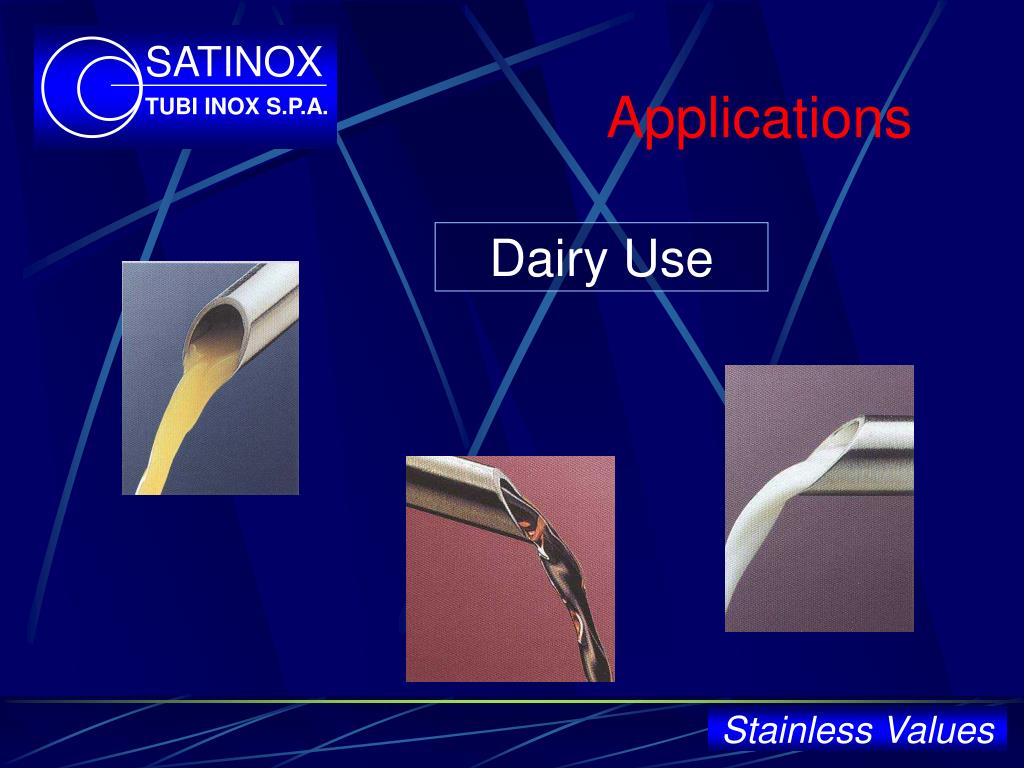

  16. SATINOX TUBI INOX S.P.A. Applications Dairy Use Stainless Values

  17. SATINOX TUBI INOX S.P.A. Applications Chemical process Stainless Values

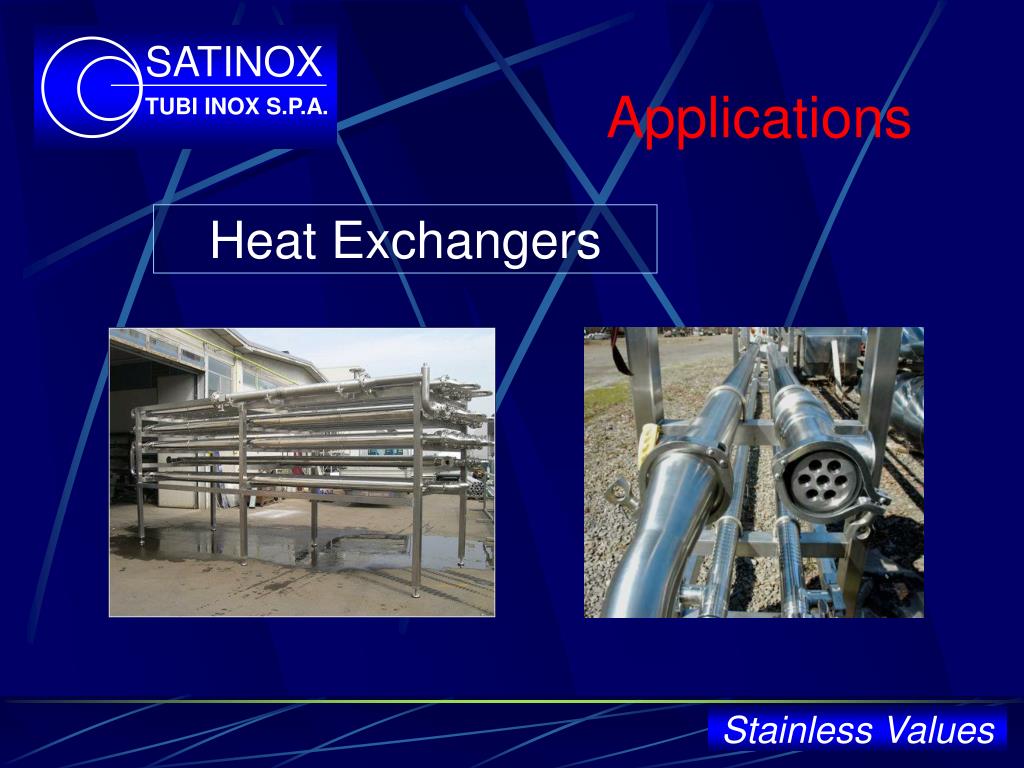

  18. SATINOX TUBI INOX S.P.A. Applications Heat Exchangers Stainless Values

  19. SATINOX TUBI INOX S.P.A. Key Factors of our success Industry Leadership Top Quality Standards Learning Organization Knowledge and Listening skills Stainless Values

  20. SATINOX TUBI INOX S.P.A. Key Factors Industry Leadership Continuous and significant investments make Satinox a leading company in technological innovation Stainless Values

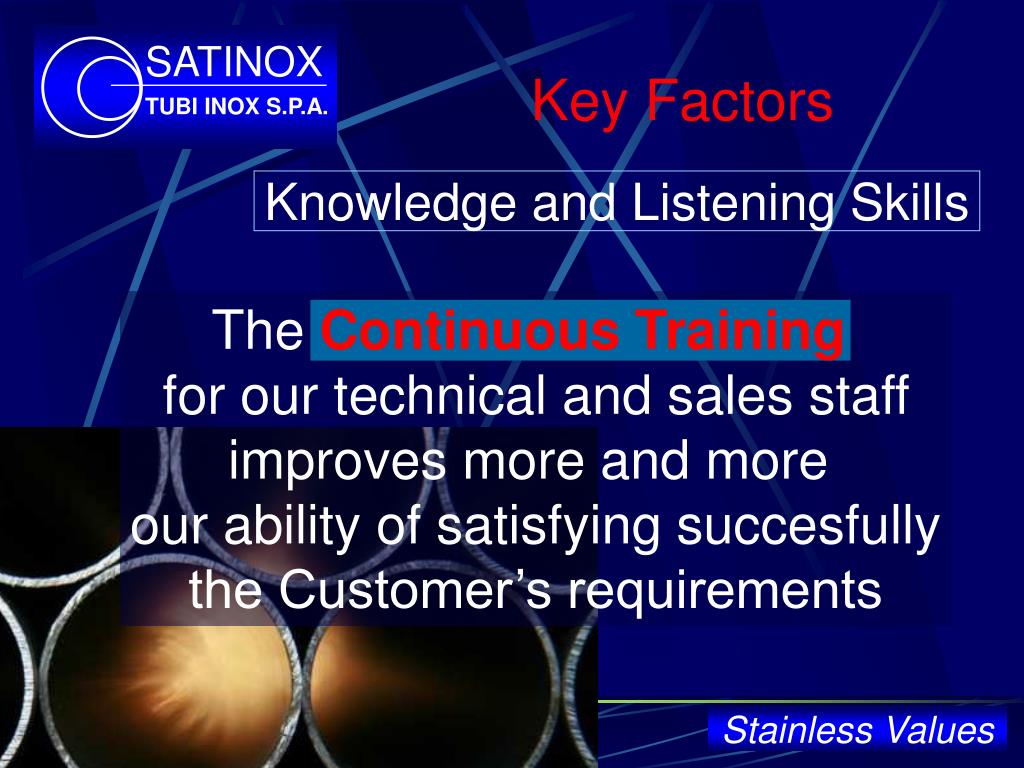

  21. SATINOX TUBI INOX S.P.A. Key Factors Knowledge and Listening Skills The Continuous Training for our technical and sales staff improves more and more our ability of satisfying succesfully the Customer’s requirements Stainless Values

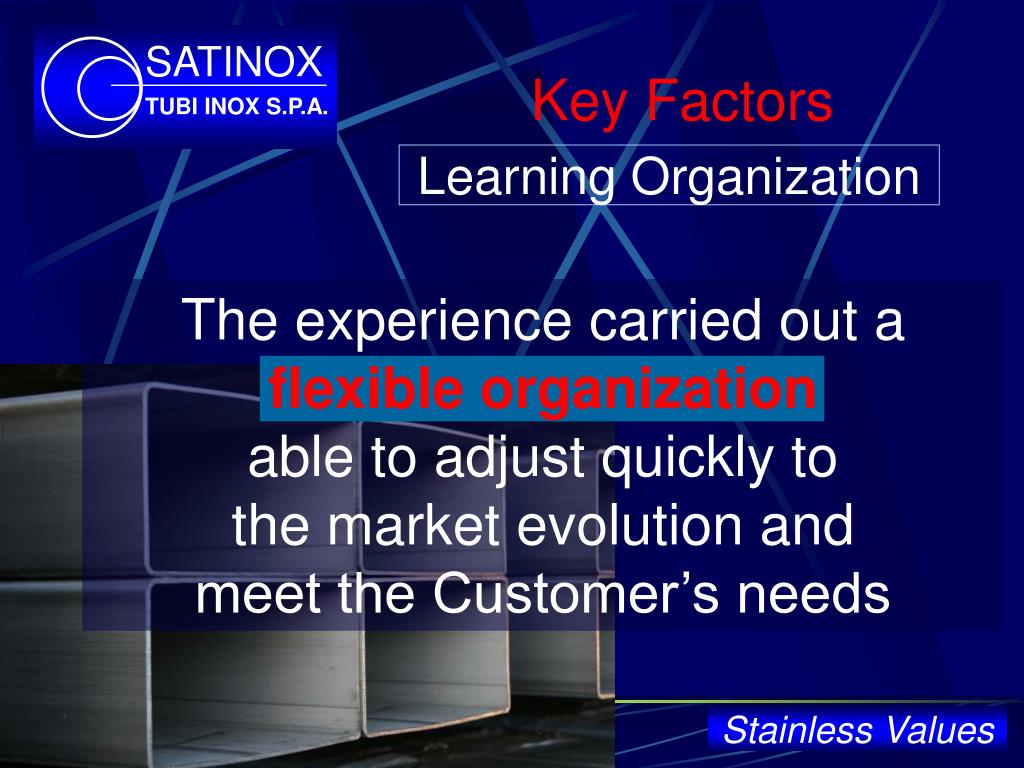

  22. SATINOX TUBI INOX S.P.A. Key Factors Learning Organization The experience carried out a flexible organization able to adjust quickly to the market evolution and meet the Customer’s needs Stainless Values

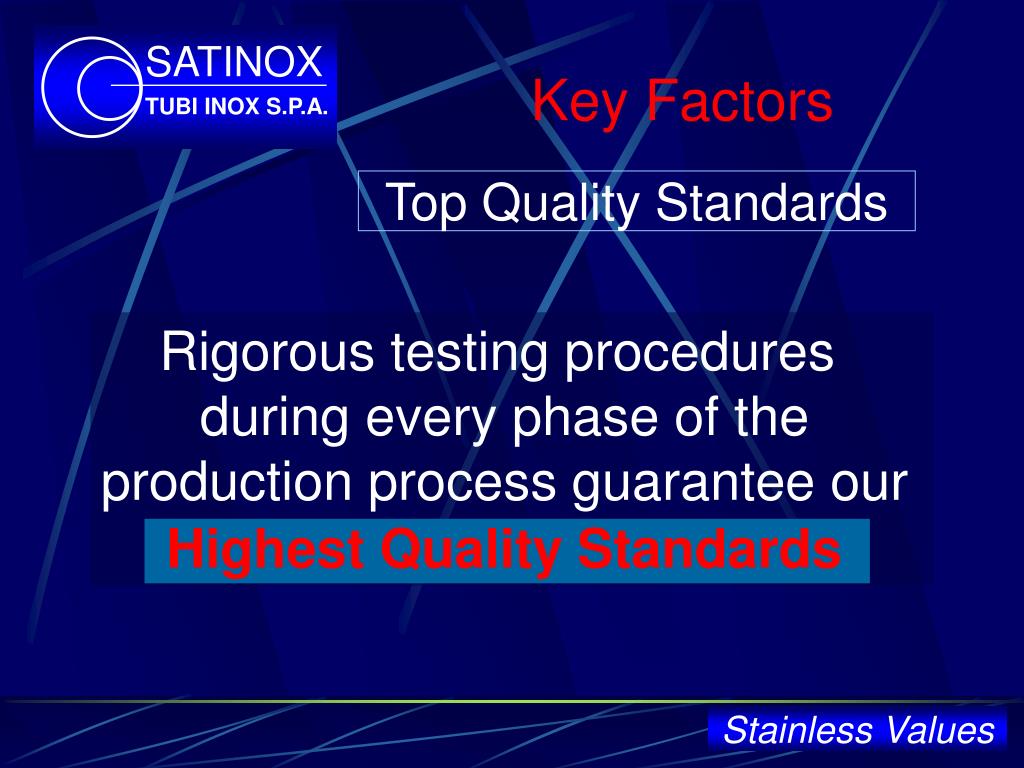

  23. Key Factors SATINOX TUBI INOX S.P.A. Top Quality Standards Rigorous testing procedures during every phase of the production process guarantee our Highest Quality Standards Stainless Values

  24. SATINOX TUBI INOX S.P.A. PASSION FOR THE EXCELLENCE THE REASON OF OUR COMMITMENT Stainless Values
