  1. Delayed Stability and Performance of Distributed Congestion Control Yueping Zhang, Seong-Ryong Kang, Dmitri Loguinov Texas A&M Univ. College Station

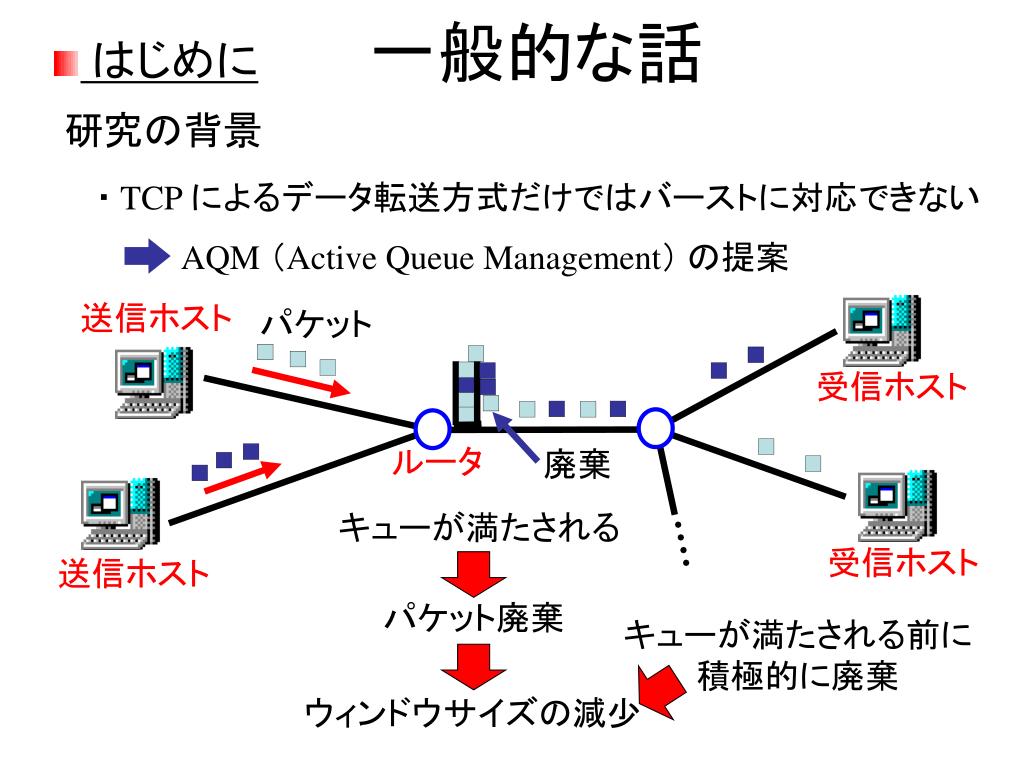

  2. パケット 廃棄 キューが満たされる パケット廃棄 キューが満たされる前に 積極的に廃棄 ウィンドウサイズの減少 一般的な話 • はじめに 研究の背景 ・ TCP によるデータ転送方式だけではバーストに対応できない AQM (Active Queue Management) の提案 送信ホスト 受信ホスト ルータ 受信ホスト 送信ホスト

  3. q w ACK 送信ホスト ルータ 受信ホスト パケットを積極的に廃棄 AQM q w ACK 送信ホスト ルータ 受信ホスト p AQM Fig. 2: TCP/AQM のブロック図 Fig. 1: TCP のブロック図

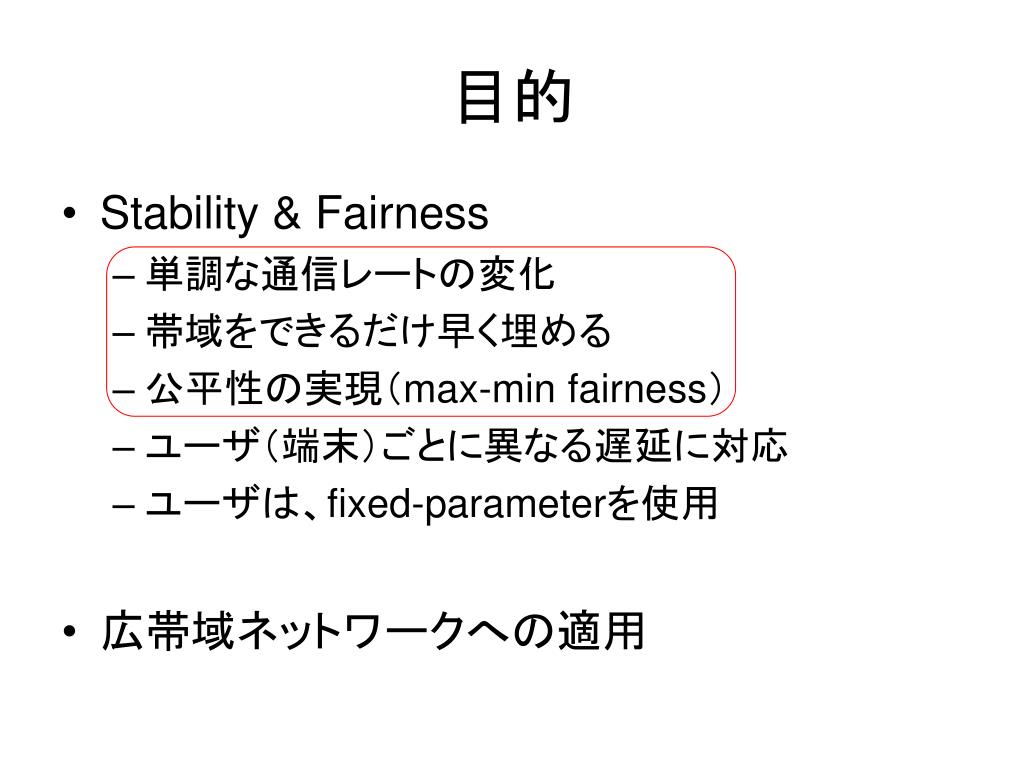

  4. 目的 • Stability & Fairness • 単調な通信レートの変化 • 帯域をできるだけ早く埋める • 公平性の実現(max-min fairness) • ユーザ(端末)ごとに異なる遅延に対応 • ユーザは、fixed-parameterを使用 • 広帯域ネットワークへの適用

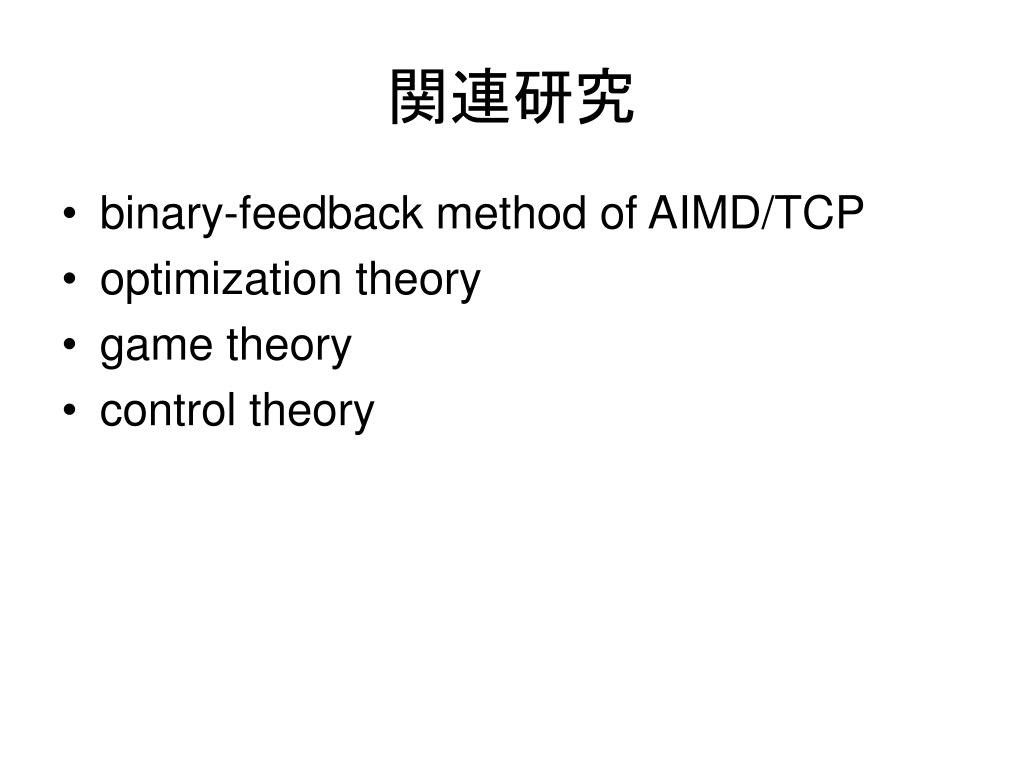

  5. 関連研究 • binary-feedback method of AIMD/TCP • optimization theory • game theory • control theory

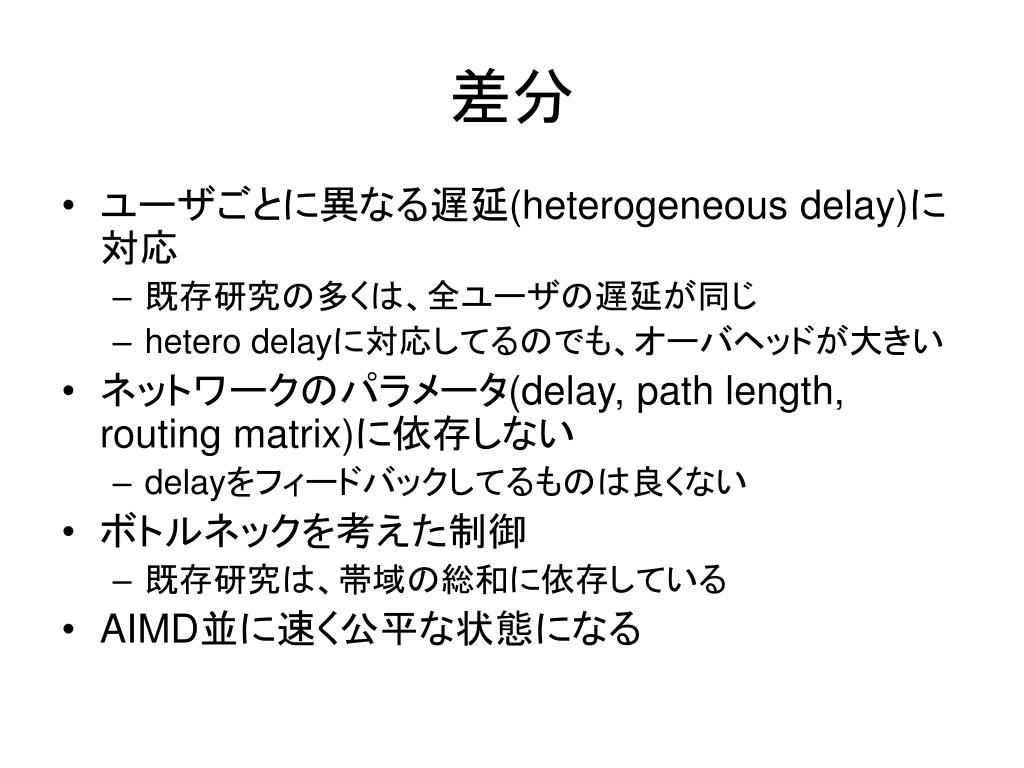

  6. 差分 • ユーザごとに異なる遅延(heterogeneous delay)に対応 • 既存研究の多くは、全ユーザの遅延が同じ • hetero delayに対応してるのでも、オーバヘッドが大きい • ネットワークのパラメータ(delay, path length, routing matrix)に依存しない • delayをフィードバックしてるものは良くない • ボトルネックを考えた制御 • 既存研究は、帯域の総和に依存している • AIMD並に速く公平な状態になる

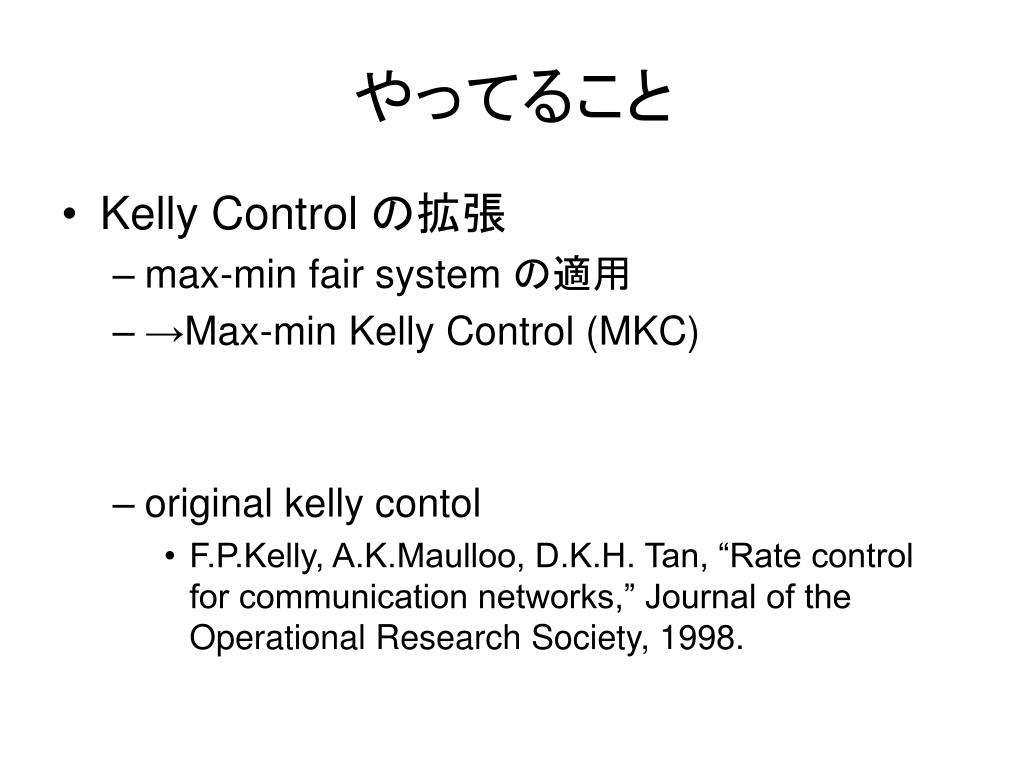

  7. やってること • Kelly Control の拡張 • max-min fair system の適用 • →Max-min Kelly Control (MKC) • original kelly contol • F.P.Kelly, A.K.Maulloo, D.K.H. Tan, “Rate control for communication networks,” Journal of the Operational Research Society, 1998.

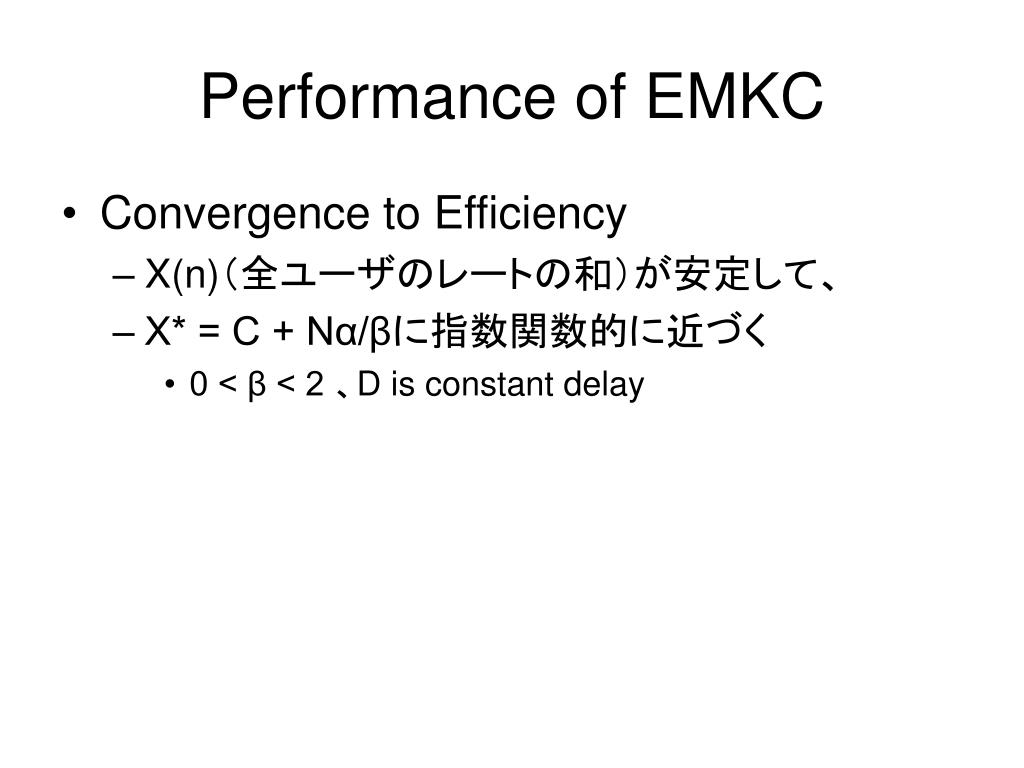

  8. Performance of EMKC • Convergence to Efficiency • X(n)(全ユーザのレートの和)が安定して、 • X* = C + Nα/βに指数関数的に近づく • 0 < β < 2 、D is constant delay

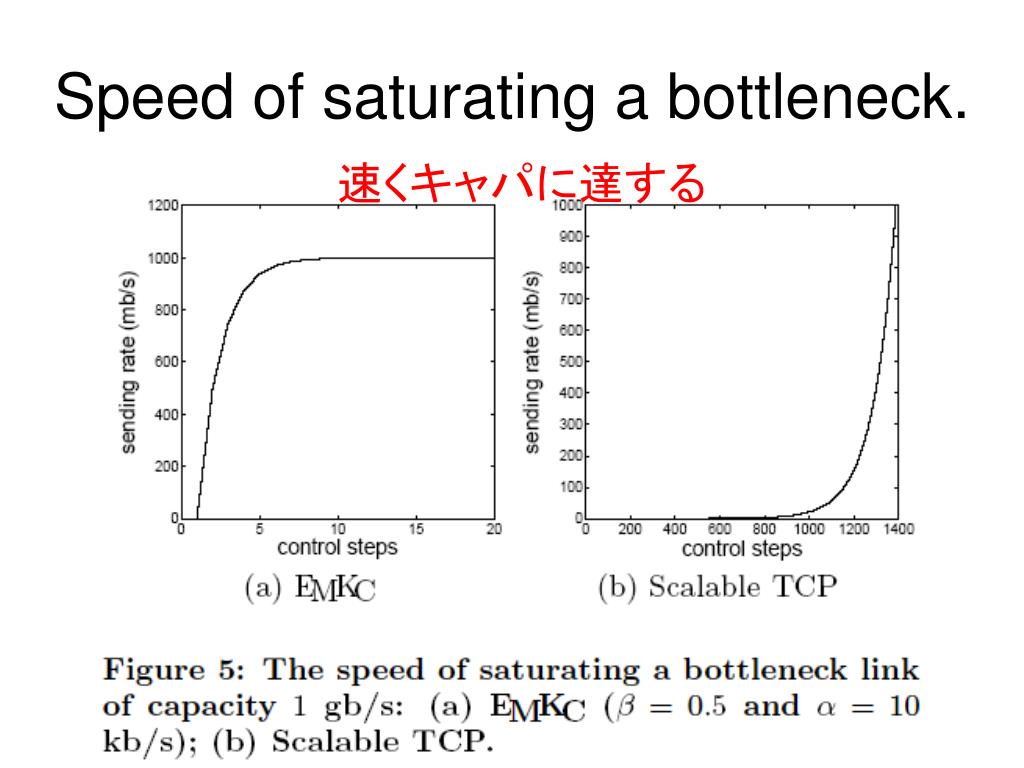

  9. Speed of saturating a bottleneck. 速くキャパに達する

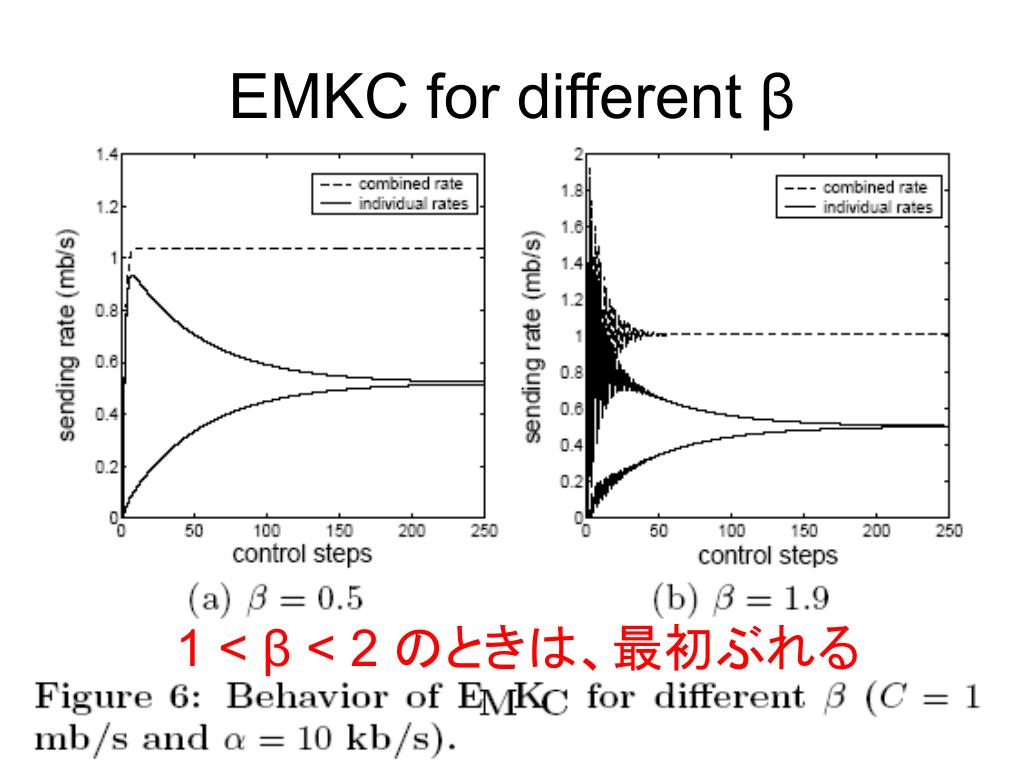

  10. EMKC for different β 1 < β < 2 のときは、最初ぶれる

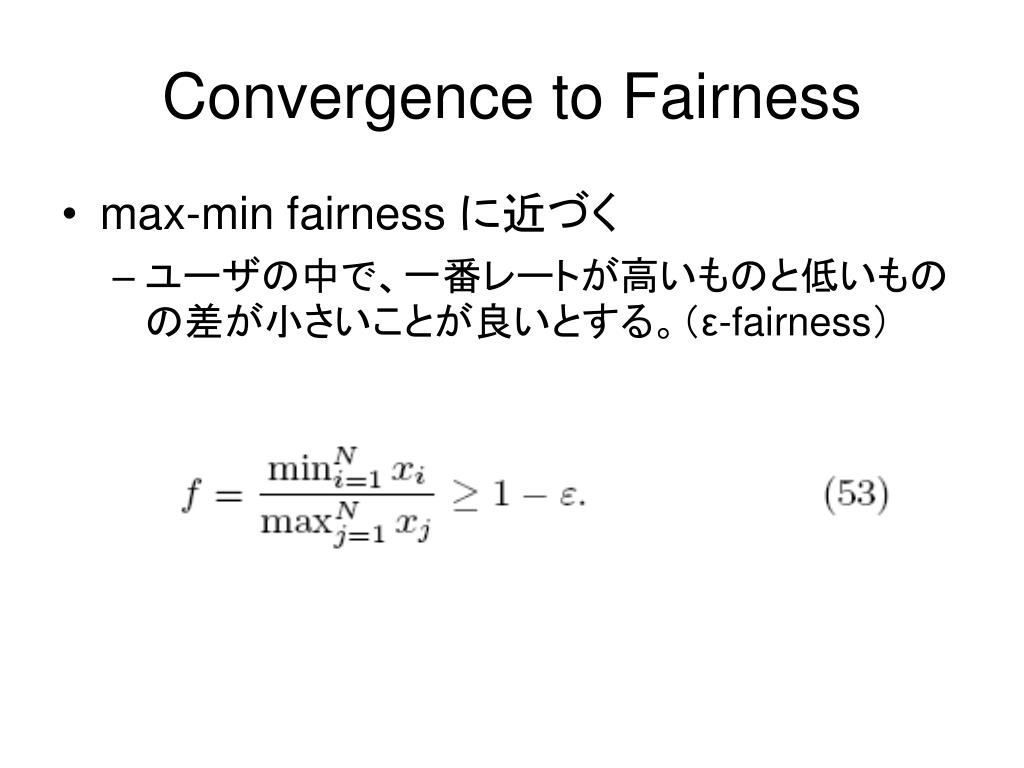

  11. Convergence to Fairness • max-min fairness に近づく • ユーザの中で、一番レートが高いものと低いものの差が小さいことが良いとする。(ε-fairness)

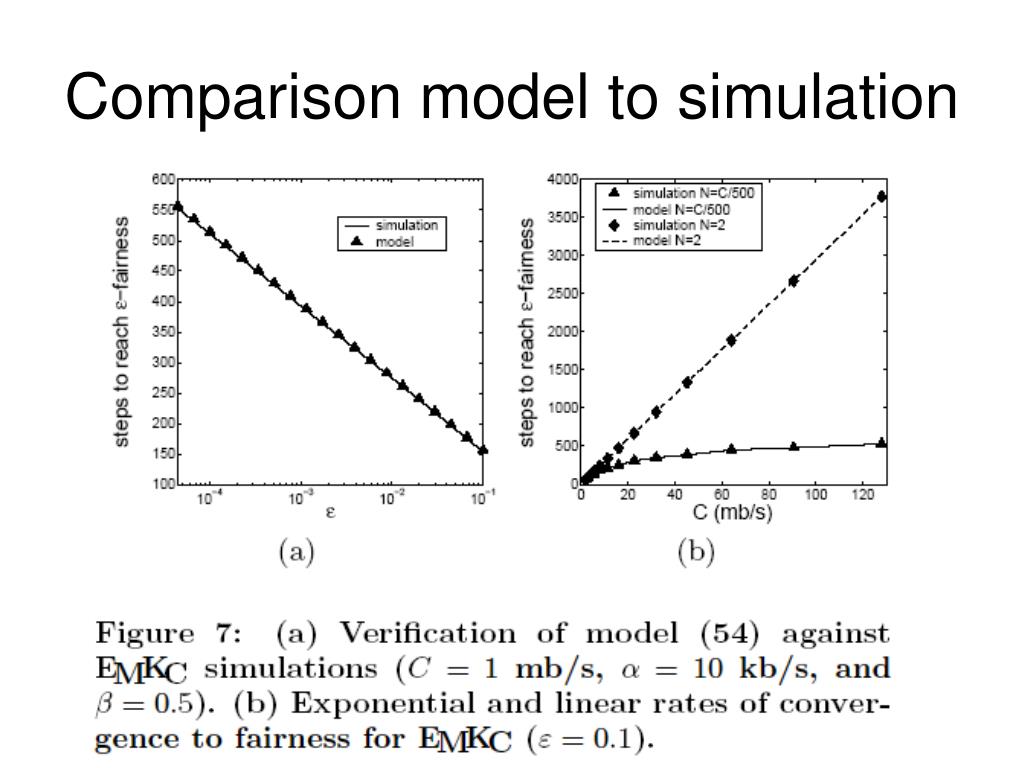

  12. Comparison model to simulation

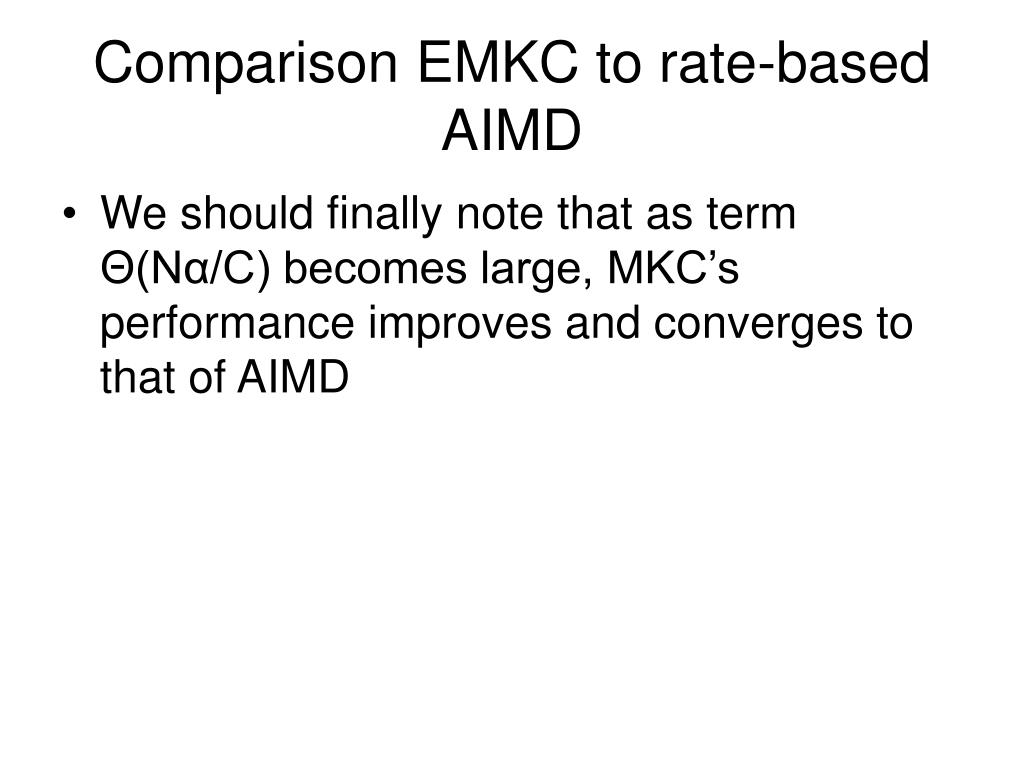

  13. Comparison EMKC to rate-based AIMD • We should finally note that as term Θ(Nα/C) becomes large, MKC’s performance improves and converges to that of AIMD

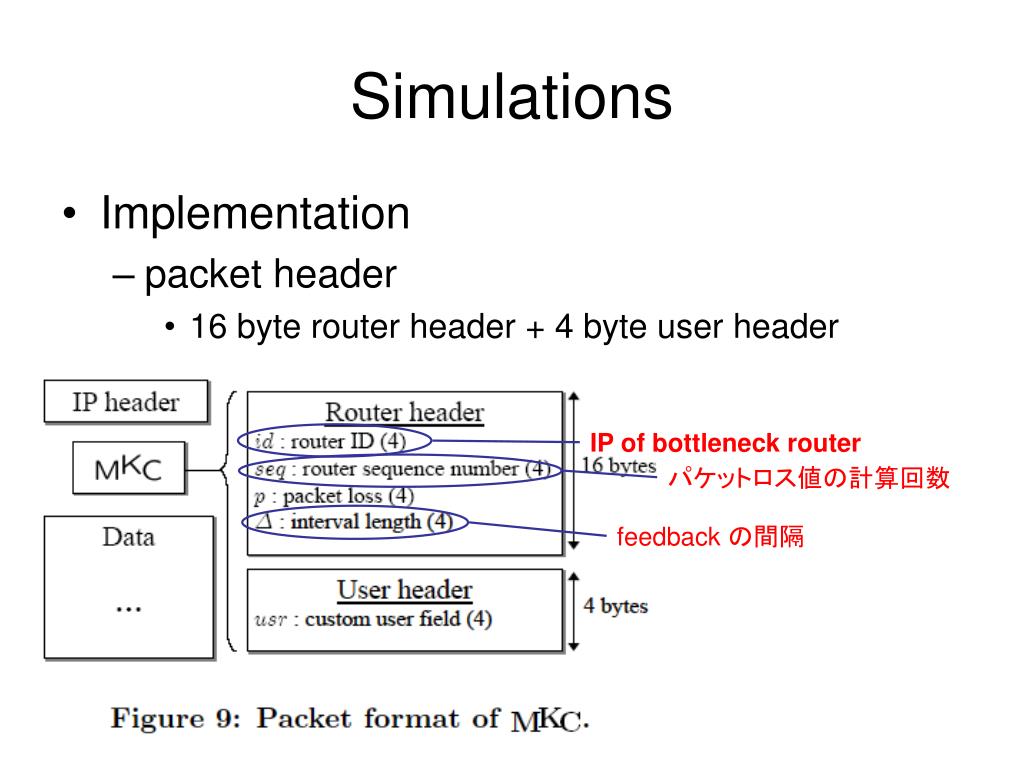

  14. Simulations • Implementation • packet header • 16 byte router header + 4 byte user header IP of bottleneck router パケットロス値の計算回数 feedback の間隔

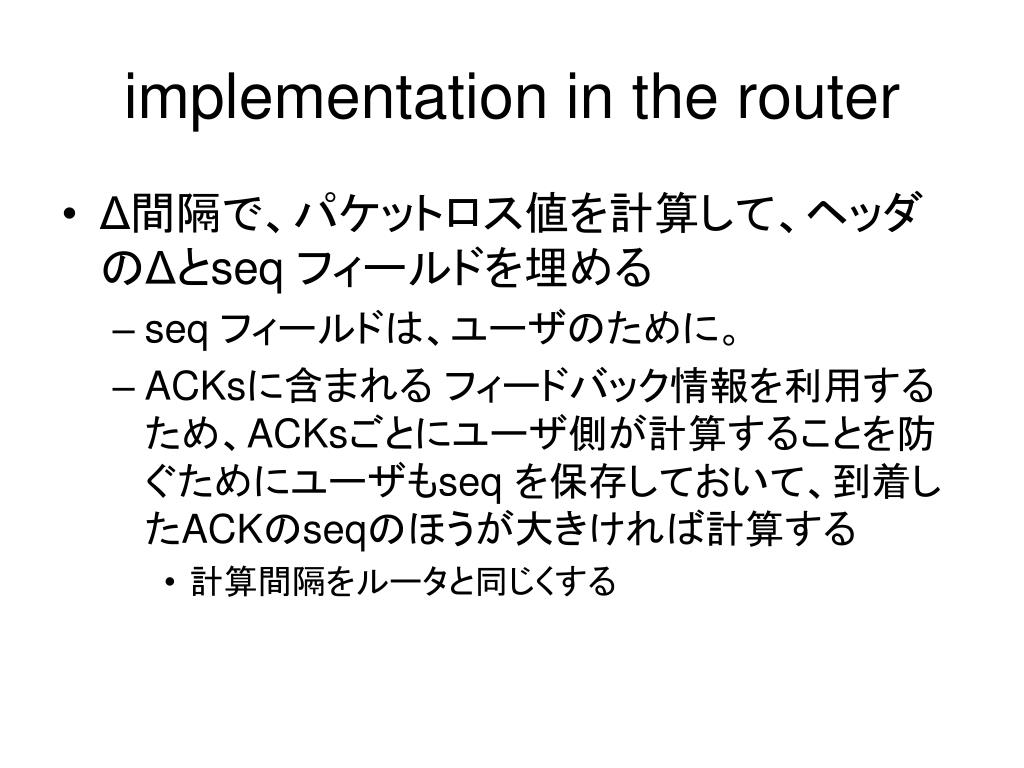

  15. implementation in the router • Δ間隔で、パケットロス値を計算して、ヘッダのΔとseq フィールドを埋める • seq フィールドは、ユーザのために。 • ACKsに含まれる フィードバック情報を利用するため、ACKsごとにユーザ側が計算することを防ぐためにユーザもseq を保存しておいて、到着したACKのseqのほうが大きければ計算する • 計算間隔をルータと同じくする

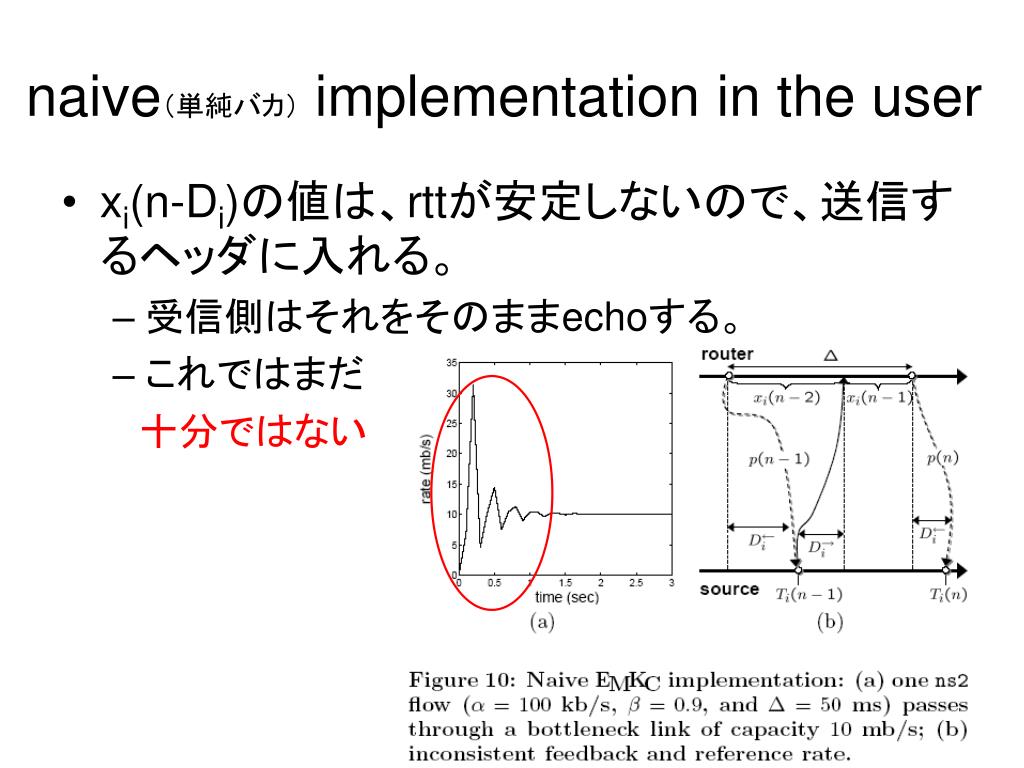

  16. naive(単純バカ)implementation in the user • xi(n-Di)の値は、rttが安定しないので、送信するヘッダに入れる。 • 受信側はそれをそのままechoする。 • これではまだ  十分ではない

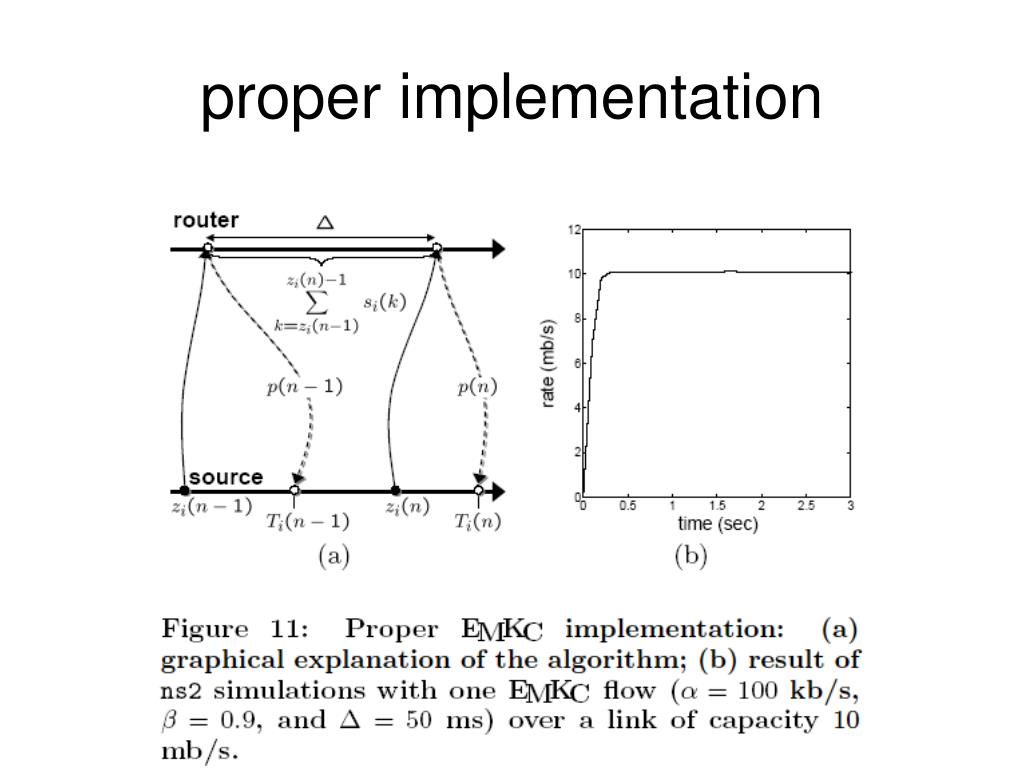

  17. proper implementation

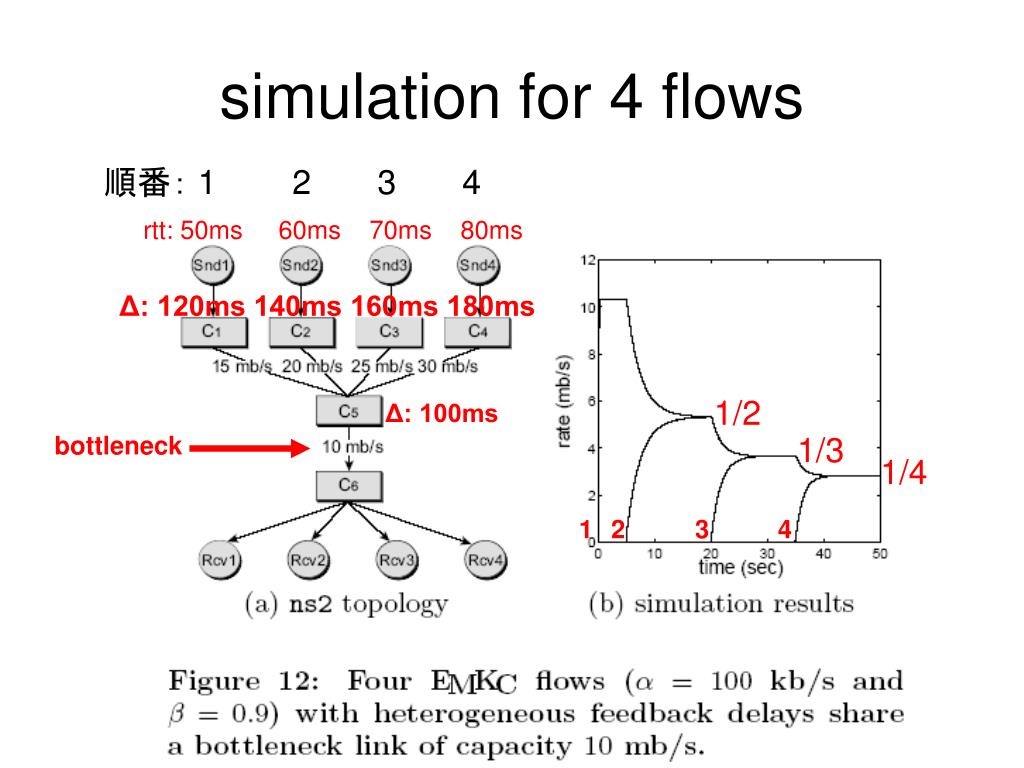

  18. simulation for 4 flows 順番: 1 2 3 4 rtt: 50ms 60ms 70ms 80ms Δ: 120ms 140ms 160ms 180ms 1/2 Δ: 100ms 1/3 bottleneck 1/4 1 2 3 4
