Dual Flow Airborne Particle Counter

Labmate Dual Flow Airborne Particle Counter offers dual flow rates (2.83 L/min or 50 ml/min) and 0.3 u00b5m sensitivity for precise air quality monitoring. It features a built-in pump, six-channel particle counting, and easy data management with downloadable, viewable, and printable results.

hannacurry
Download Presentation

Dual Flow Airborne Particle Counter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

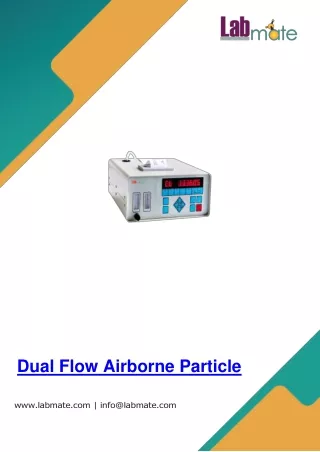

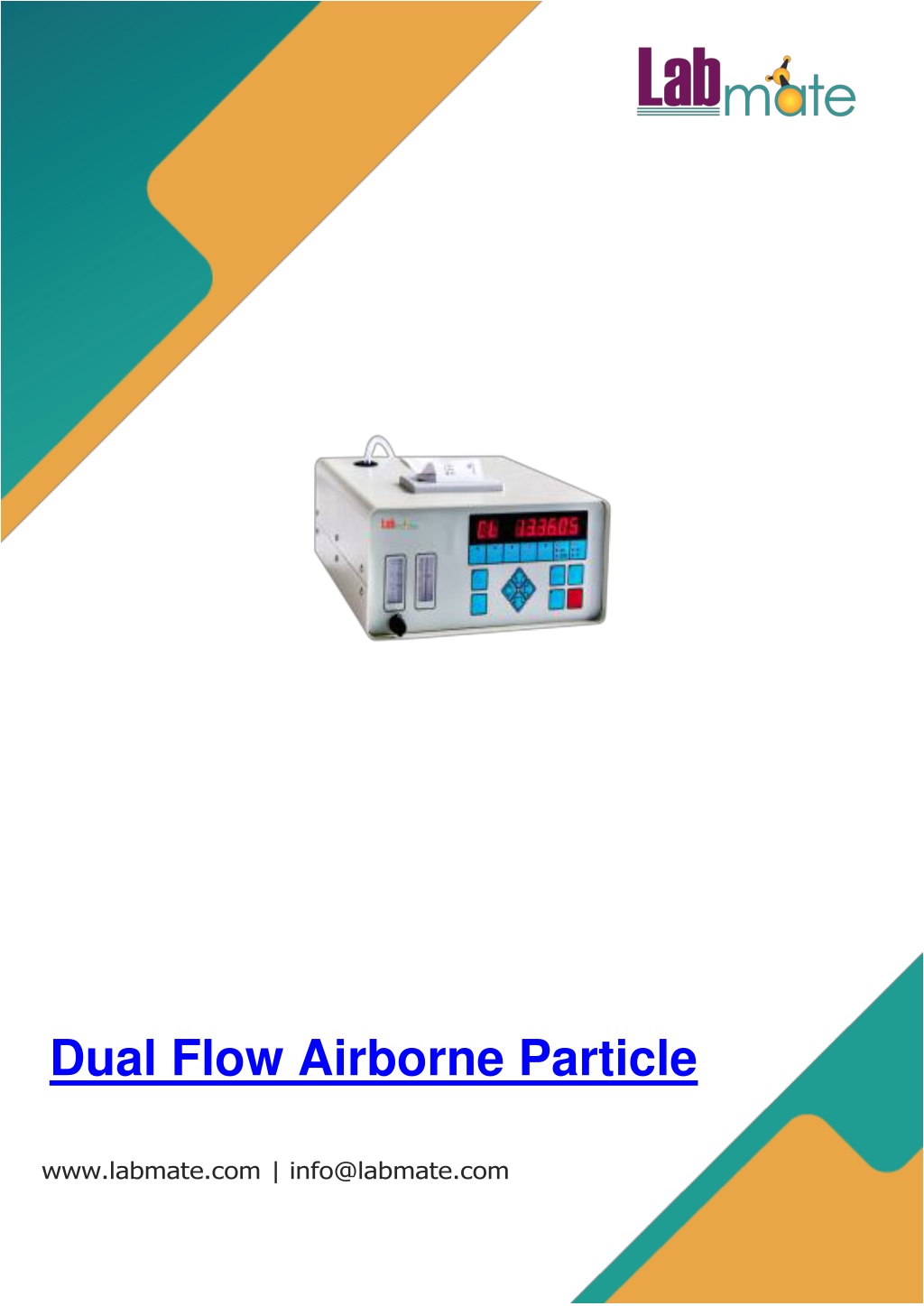

  1. Dual Flow Airborne Particle www.labmate.com | info@labmate.com

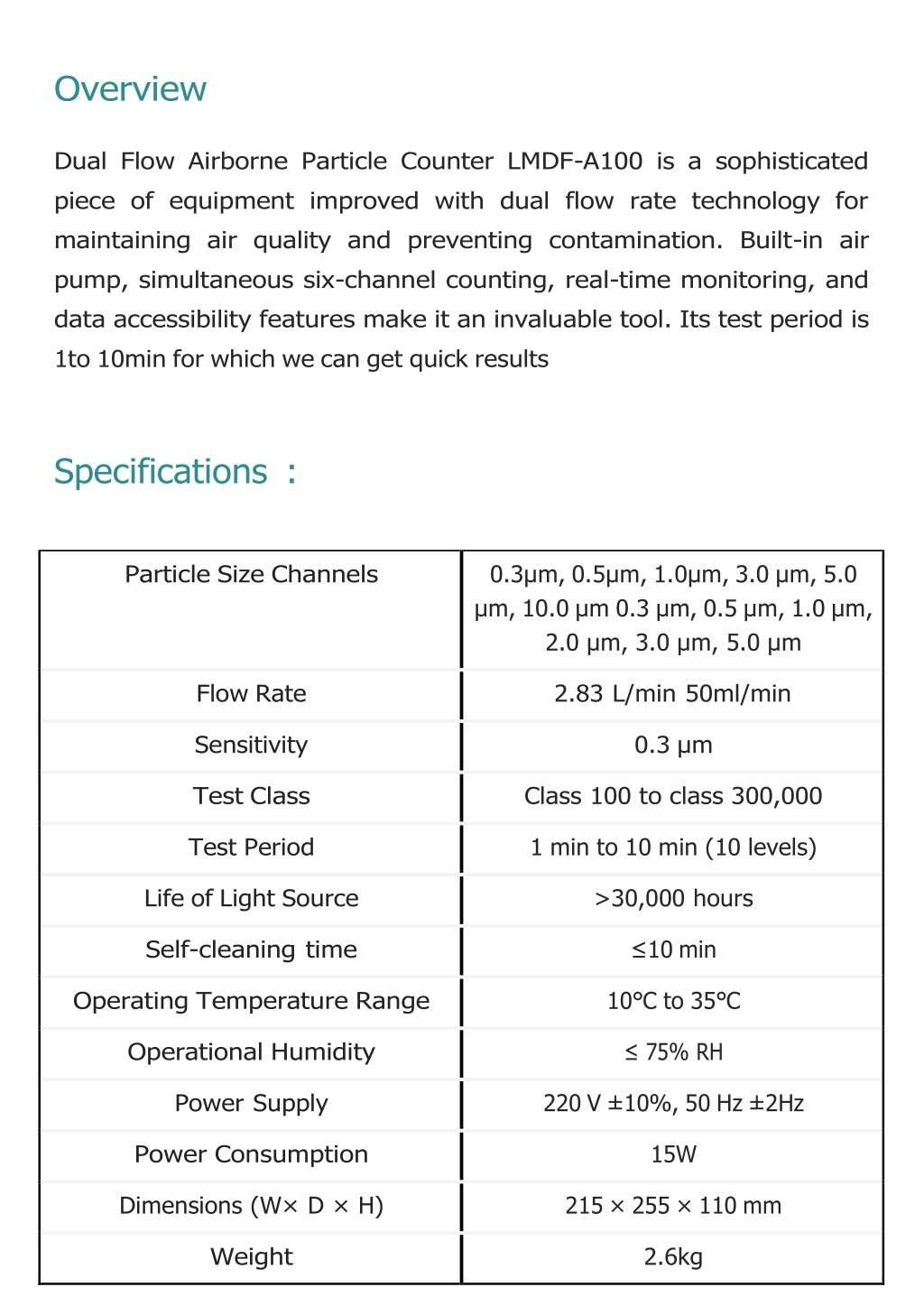

  2. Overview Dual Flow Airborne Particle Counter LMDF-A100 is a sophisticated piece of equipment improved with dual flow rate technology for maintaining air quality and preventing contamination. Built-in air pump, simultaneous six-channel counting, real-time monitoring, and data accessibility features make it an invaluable tool. Its test period is 1to 10min for which we can get quick results Specifications : Particle Size Channels 0.3µm, 0.5µm, 1.0µm, 3.0 µm, 5.0 µm, 10.0 µm 0.3 µm, 0.5 µm, 1.0 µm, 2.0 µm, 3.0 µm, 5.0 µm Flow Rate 2.83 L/min 50ml/min Sensitivity 0.3 µm Test Class Class 100 to class 300,000 Test Period 1 min to 10 min (10 levels) Life of Light Source >30,000 hours Self-cleaning time ≤10 min Operating Temperature Range 10℃ to 35℃ Operational Humidity ≤ 75% RH Power Supply 220 V ±10%, 50 Hz ±2Hz Power Consumption 15W Dimensions (W× D × H) 215 × 255 × 110 mm Weight 2.6kg

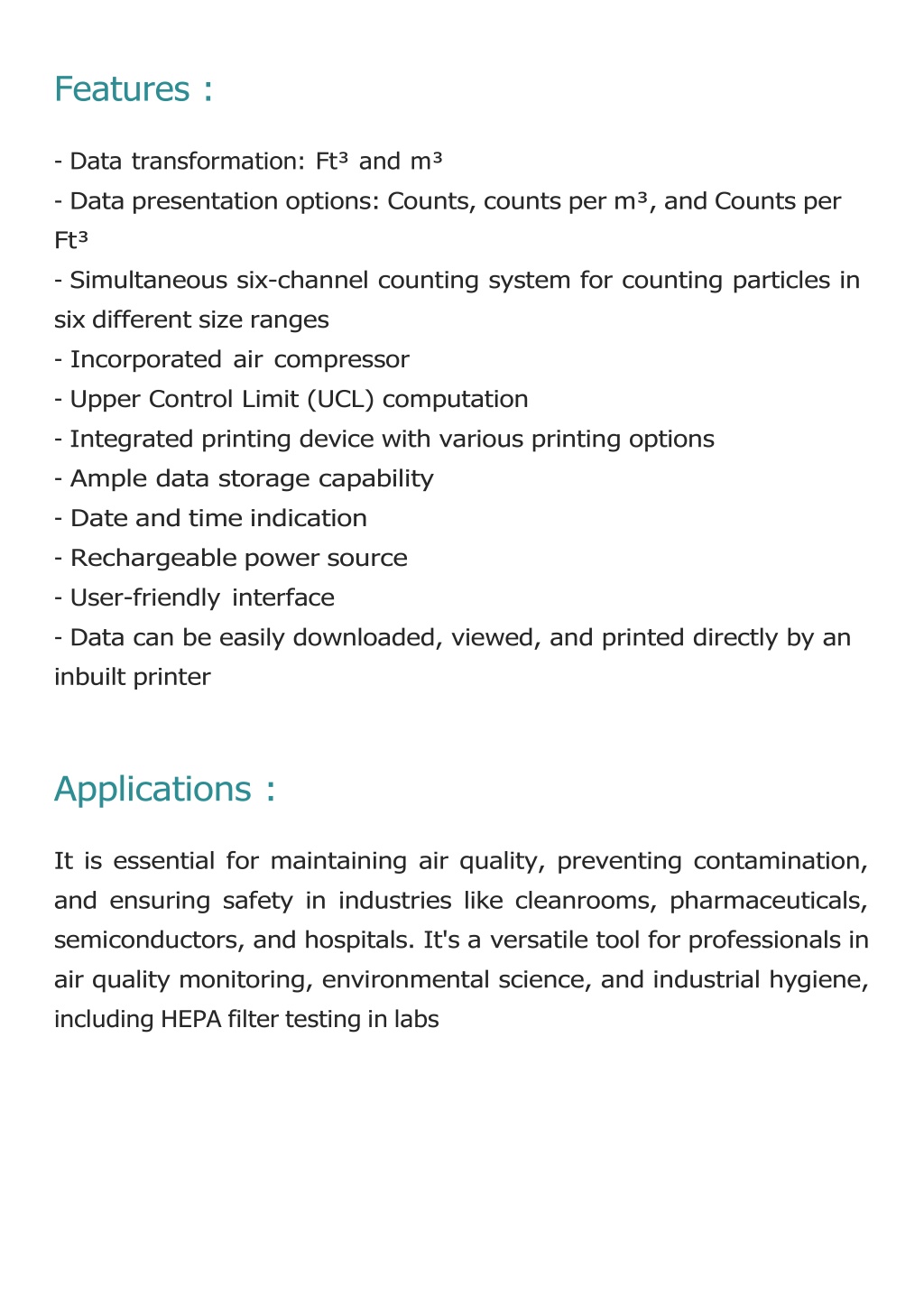

  3. Features : -Data transformation: Ft³ and m³ -Data presentation options: Counts, counts per m³, and Counts per Ft³ -Simultaneous six-channel counting system for counting particles in six different size ranges -Incorporated air compressor -Upper Control Limit (UCL) computation -Integrated printing device with various printing options -Ample data storage capability -Date and time indication -Rechargeable power source -User-friendly interface -Data can be easily downloaded, viewed, and printed directly by an inbuilt printer Applications : It is essential for maintaining air quality, preventing contamination, and ensuring safety in industries like cleanrooms, pharmaceuticals, semiconductors, and hospitals. It's a versatile tool for professionals in air quality monitoring, environmental science, and industrial hygiene, including HEPA filter testing in labs

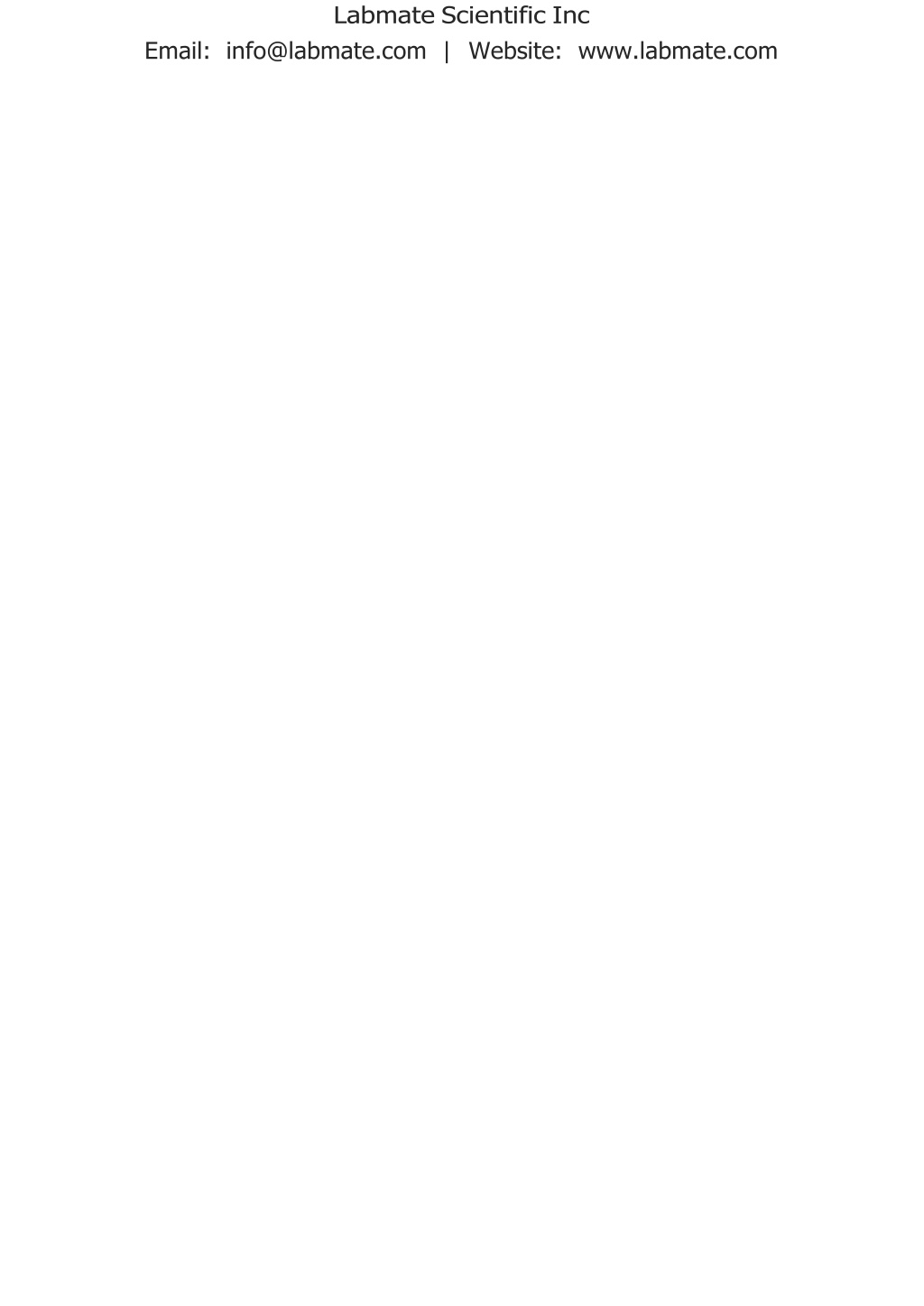

  4. Labmate Scientific Inc Email: info@labmate.com | Website: www.labmate.com
