  1. Mobile Patrons: Better Services on the Go Vincci Kwong and Gary Browning Indiana University South Bend 13th Annual LITA National Forum

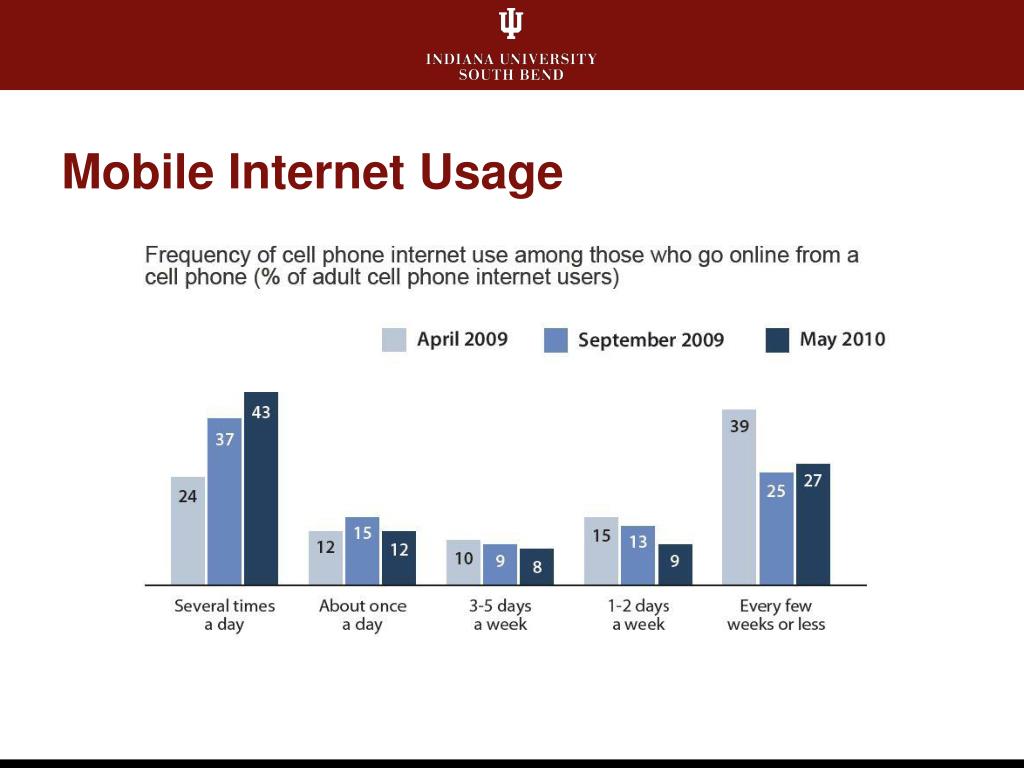

  2. Mobile Internet Usage

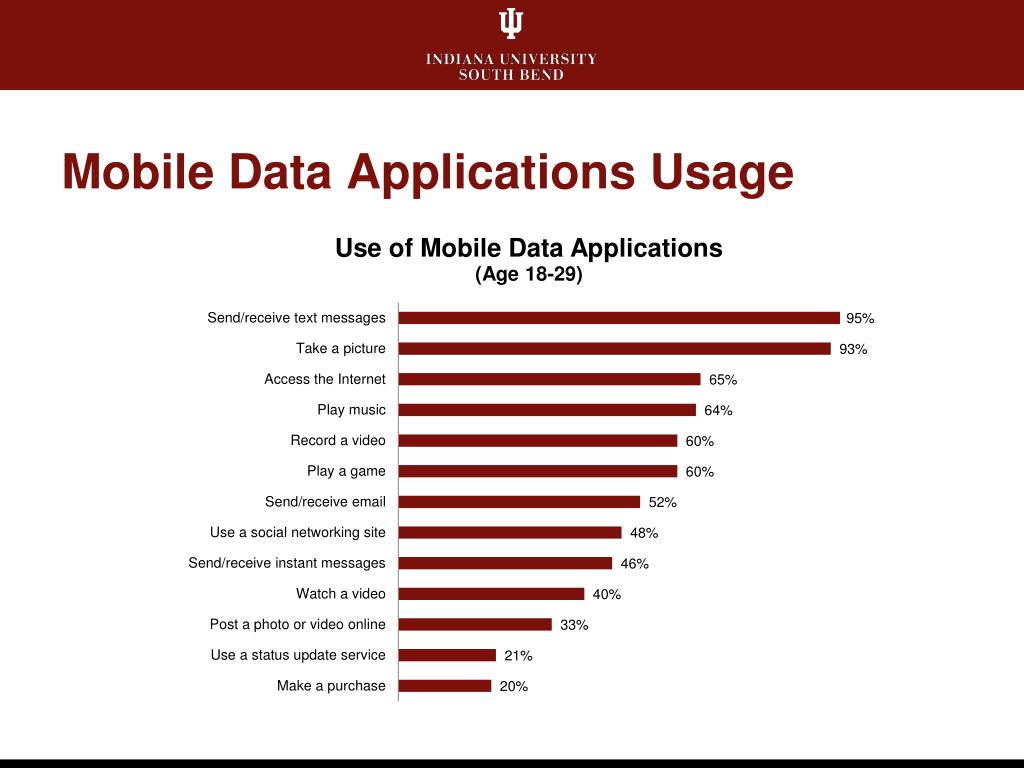

  3. Mobile Data Applications Usage

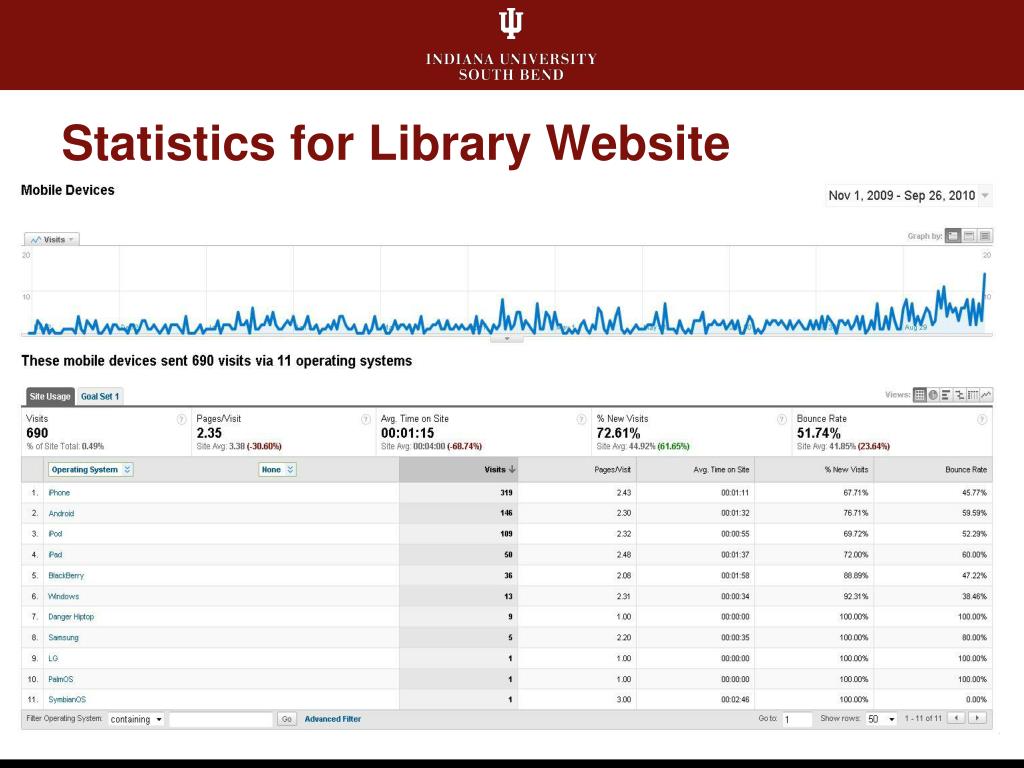

  4. Statistics for Library Website

  5. First Version of Library Mobile Site

  6. Mobile Library Site Homepage • Ask a Librarian • WorldCat • RefWorks • Hours • Contact • Address • IU Mobile • Schurz Library Homepage

  7. IU Mobile Initiative https://m.iu.edu/miu-prd/about/index.shtml

  8. Graphic Icon for Mobile

  9. Schurz Library Mobile Interface http://m.library.iusb.edu

  10. Statistics for Library Mobile Website

  11. Mobile Friendly Authentication Remote access to subscription databases is done through OCLC’s EZproxy Authentication and Access software. EZproxy does not have built-in support for mobile devices.

  12. How to make EZproxy Mobile Friendly Incorporate a mobile device detection library? http://detectmobilebrowsers.mobi/

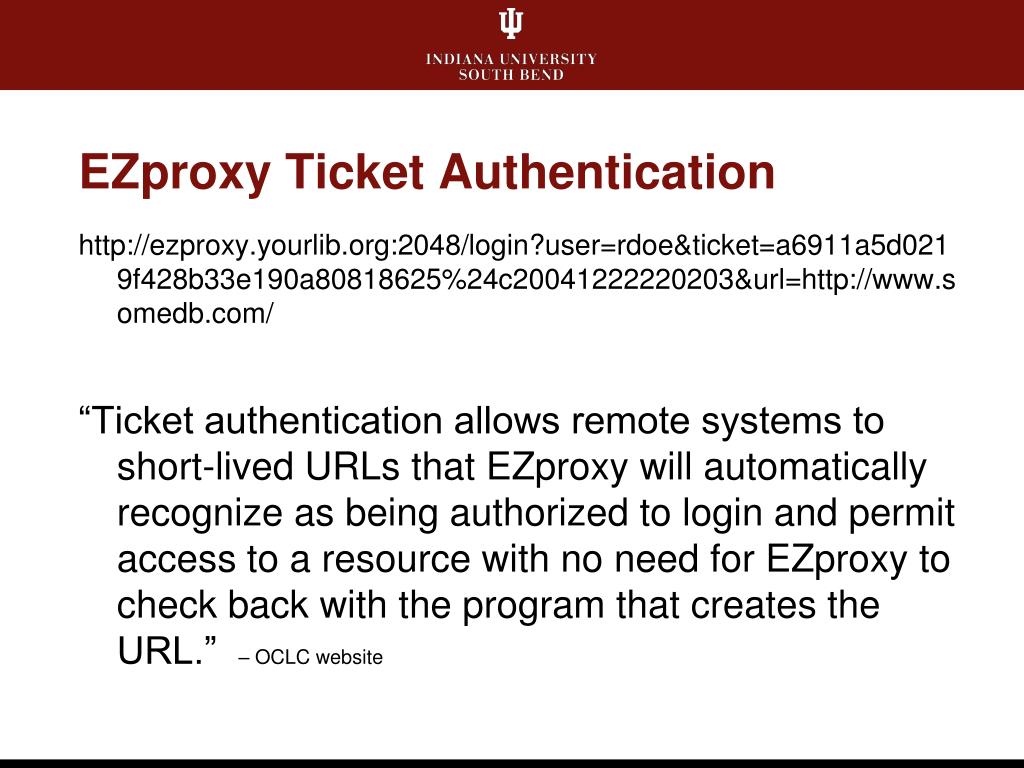

  13. EZproxy Ticket Authentication http://ezproxy.yourlib.org:2048/login?user=rdoe&ticket=a6911a5d0219f428b33e190a80818625%24c20041222220203&url=http://www.somedb.com/ “Ticket authentication allows remote systems to short-lived URLs that EZproxy will automatically recognize as being authorized to login and permit access to a resource with no need for EZproxy to check back with the program that creates the URL.” – OCLC website

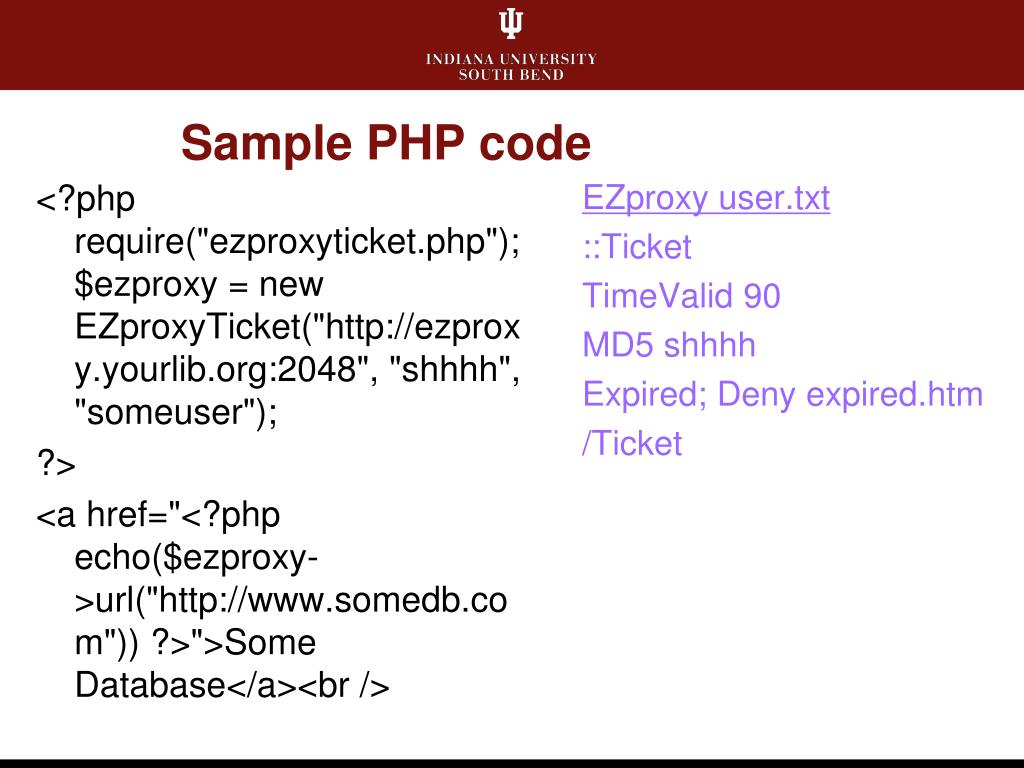

  14. Sample PHP code <?php require("ezproxyticket.php"); $ezproxy = new EZproxyTicket("http://ezproxy.yourlib.org:2048", "shhhh", "someuser"); ?> <a href="<?php echo($ezproxy->url("http://www.somedb.com")) ?>">Some Database</a><br /> EZproxy user.txt ::Ticket TimeValid 90 MD5 shhhh Expired; Deny expired.htm /Ticket

  15. Central Authentication System (CAS) Central Authentication Service (CAS) is a login service that allows you to access multiple password-protected web systems after logging in once on a central authentication server; this is often referred to as single sign-on. http://www.jasig.org/cas

  16. CAS vs IU CAS Standard CAS response – XML <cas:serviceResponse xmlns:cas='http://www.yale.edu/tp/cas'> <cas:authenticationSuccess> <cas:user>username</cas:user> <cas:proxyGrantingTicket>PGTIOU-84678-8a9d... </cas:proxyGrantingTicket> </cas:authenticationSuccess> </cas:serviceResponse> IU CAS response – If validation is successful, CAS sends back a two-line response with 'yes' on the first and 'username' on the second.

  17. Connecting Ezproxy with IU CAS • Detect mobile or desktop • If mobile, set CASSVC to mobile • Check with CAS to see if already authenticated • If authenticated, display database; otherwise present a login screen

  18. Sample Code – login.php <?php include('mobile_device_detect.php'); if(mobile_device_detect(true,true,true,true,true,true,false,false)){ header("Location: https://cas.iu.edu/cas/login?cassvc=MOBIU&casurl=https://www.domain.edu/~site/cas/casauth.php"); }else{ header("Location: https://cas.iu.edu/cas/login?cassvc=IU&casurl=https://www.domain.edu/~site/cas/casauth.php"); } ?>

  19. Sample Code – casauth.php <?php session_start(); //start session if( isset($_GET['casticket']) ){ //check to see if a ticket has been passed $ticket = $_GET['casticket']; } else { $ticket = ""; }

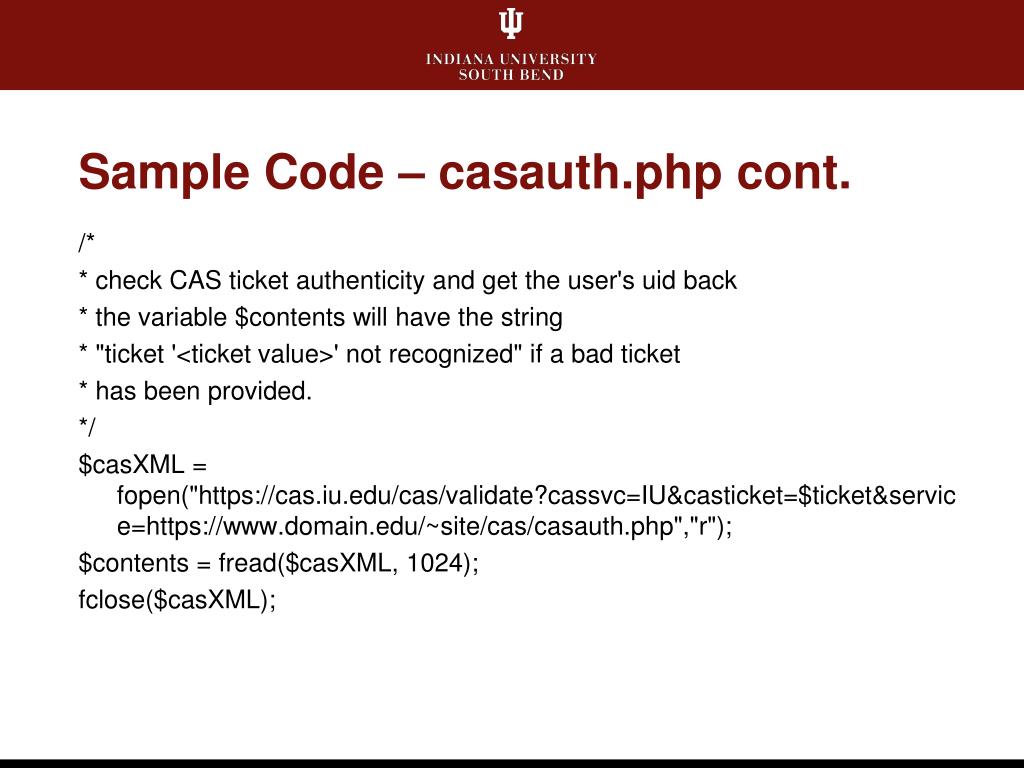

  20. Sample Code – casauth.php cont. /* * check CAS ticket authenticity and get the user's uid back * the variable $contents will have the string * "ticket '<ticket value>' not recognized" if a bad ticket * has been provided. */ $casXML = fopen("https://cas.iu.edu/cas/validate?cassvc=IU&casticket=$ticket&service=https://www.domain.edu/~site/cas/casauth.php","r"); $contents = fread($casXML, 1024); fclose($casXML);

  21. Sample Code – casauth.php cont. list($yesno, $netid) = split("\n", $contents, 2); $authok = trim($yesno); $iuid = trim($netid); if ($authok == "no") { header("Location: https://www.domain.edu/~site/cas/login.php"); } else { $_SESSION['auth'] = $iuid; header("Location: https://www.domain.edu/~site/cas/success.php"); } ?>

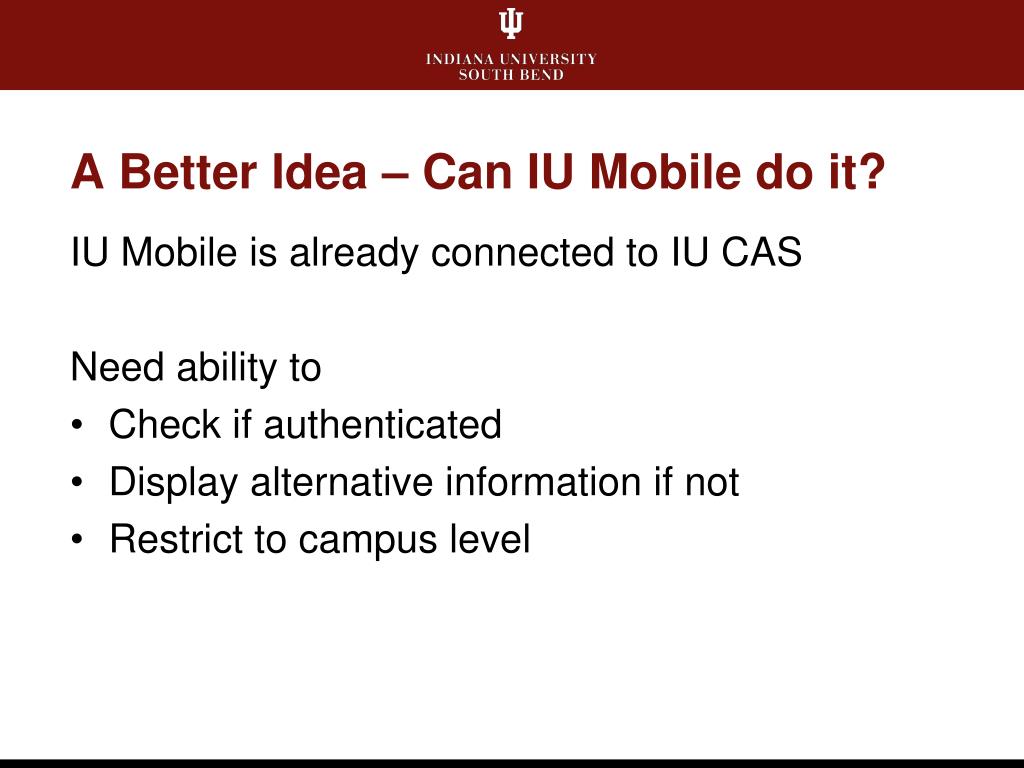

  22. A Better Idea – Can IU Mobile do it? IU Mobile is already connected to IU CAS Need ability to • Check if authenticated • Display alternative information if not • Restrict to campus level

  23. Yes, IU Mobile Can do it! <authenticated> <list-item> <link type="xml" xml="http://it.iusb.edu/demo2.php" title="Subscription Databases" /> </list-item> </authenticated> <not-authenticated> <list-item> <link type="xml" xml="http://library.iusb.edu/miuxml/oopsSubscribed.xml" title="Subscription Databases" /> </list-item> </not-authenticated>

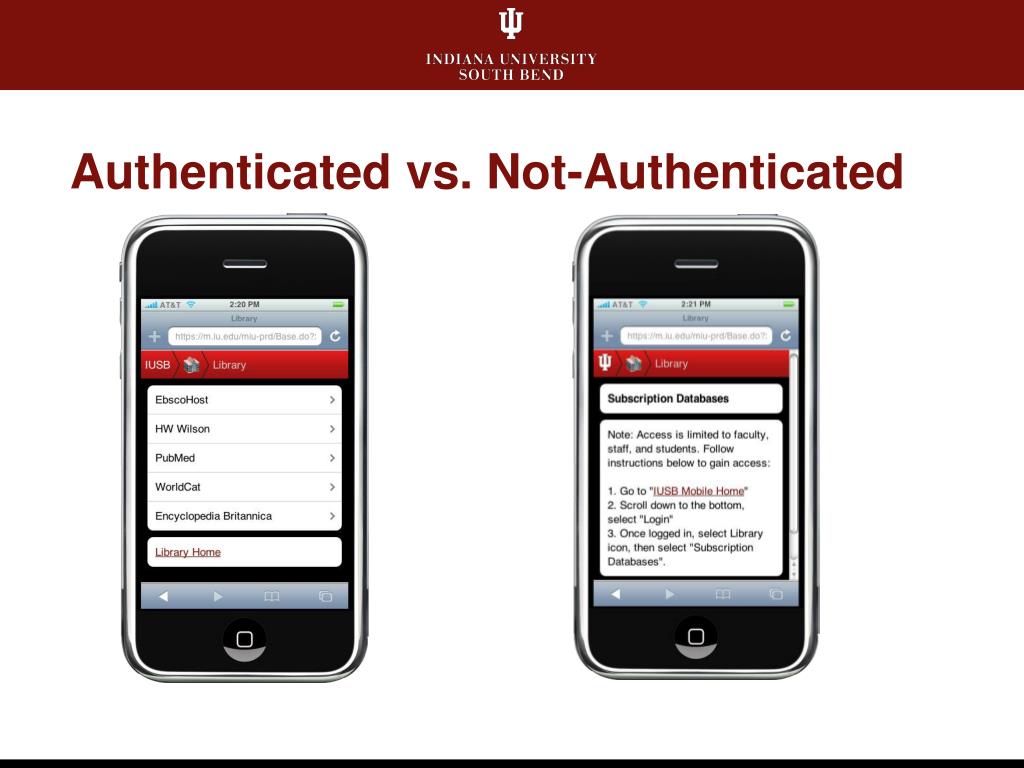

  24. Authenticated vs. Not-Authenticated

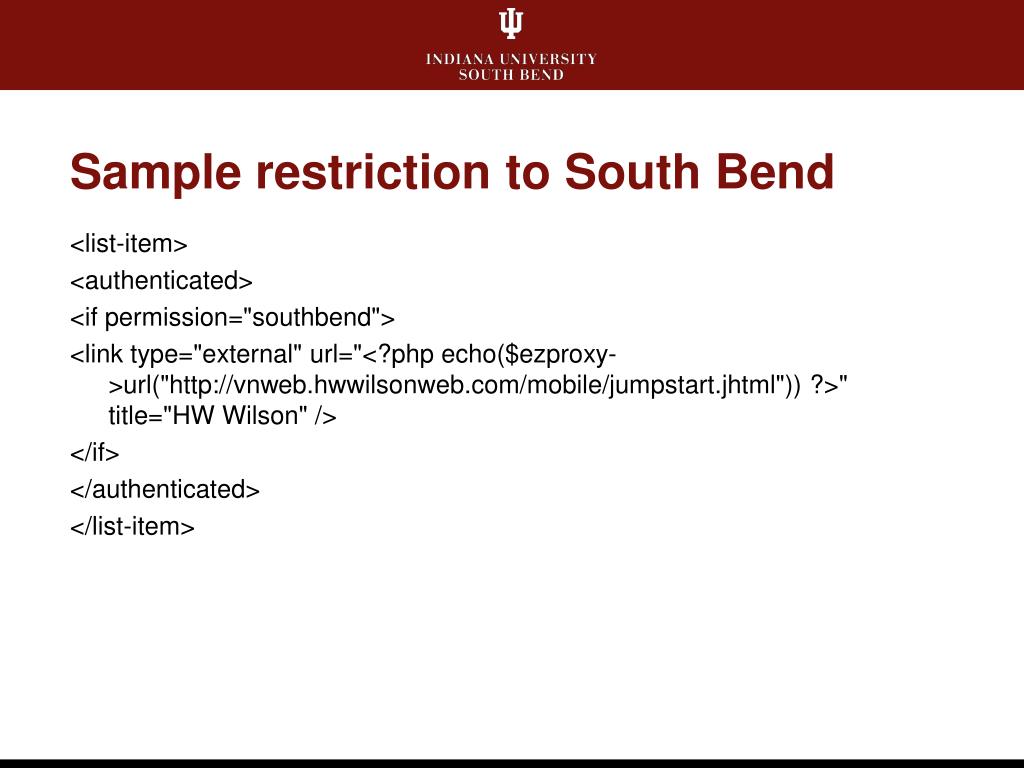

  25. Sample restriction to South Bend <list-item> <authenticated> <if permission="southbend"> <link type="external" url="<?php echo($ezproxy->url("http://vnweb.hwwilsonweb.com/mobile/jumpstart.jhtml")) ?>" title="HW Wilson" /> </if> </authenticated> </list-item>

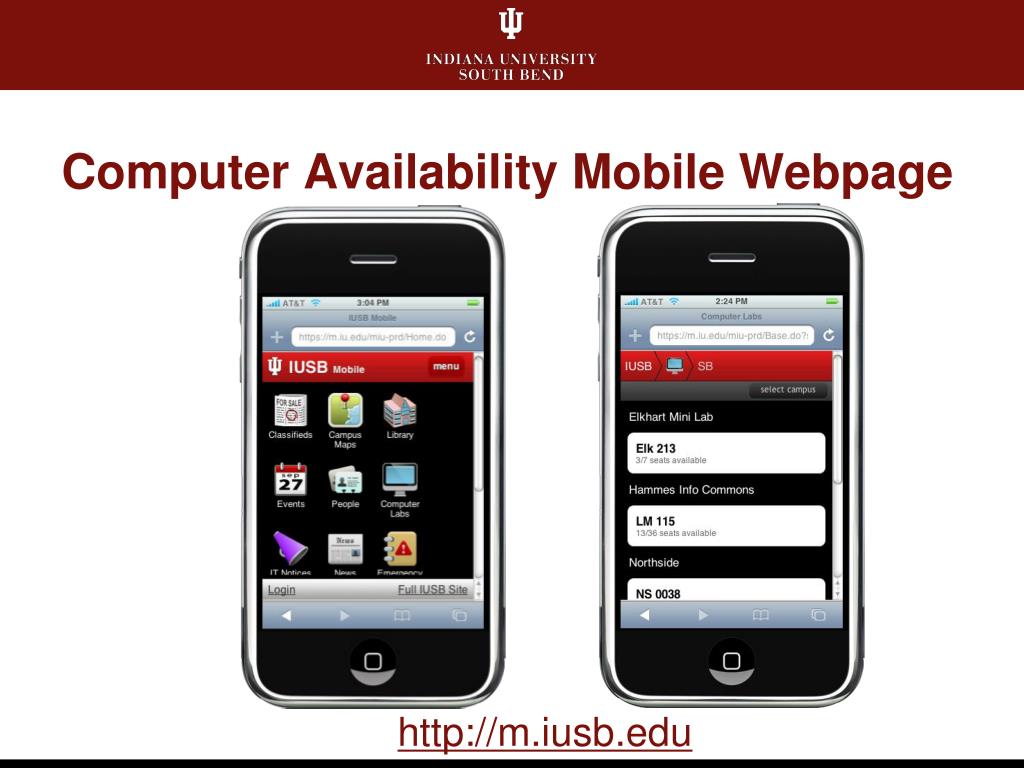

  26. Computer Availability Mobile Webpage http://m.iusb.edu

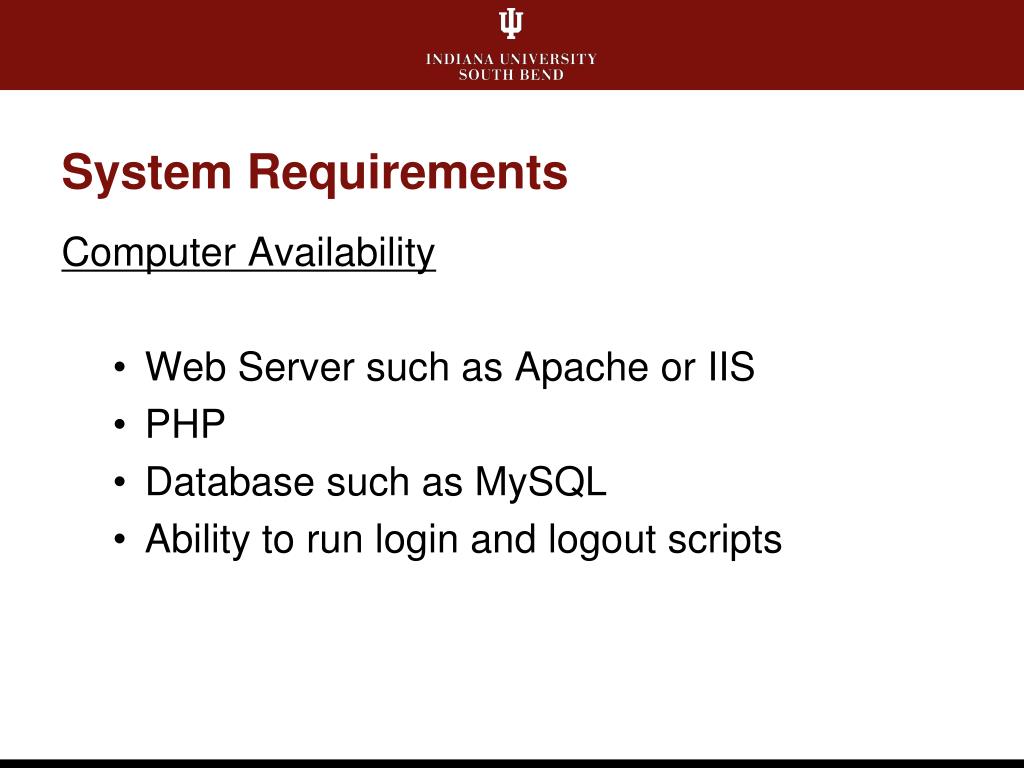

  27. System Requirements Computer Availability • Web Server such as Apache or IIS • PHP • Database such as MySQL • Ability to run login and logout scripts

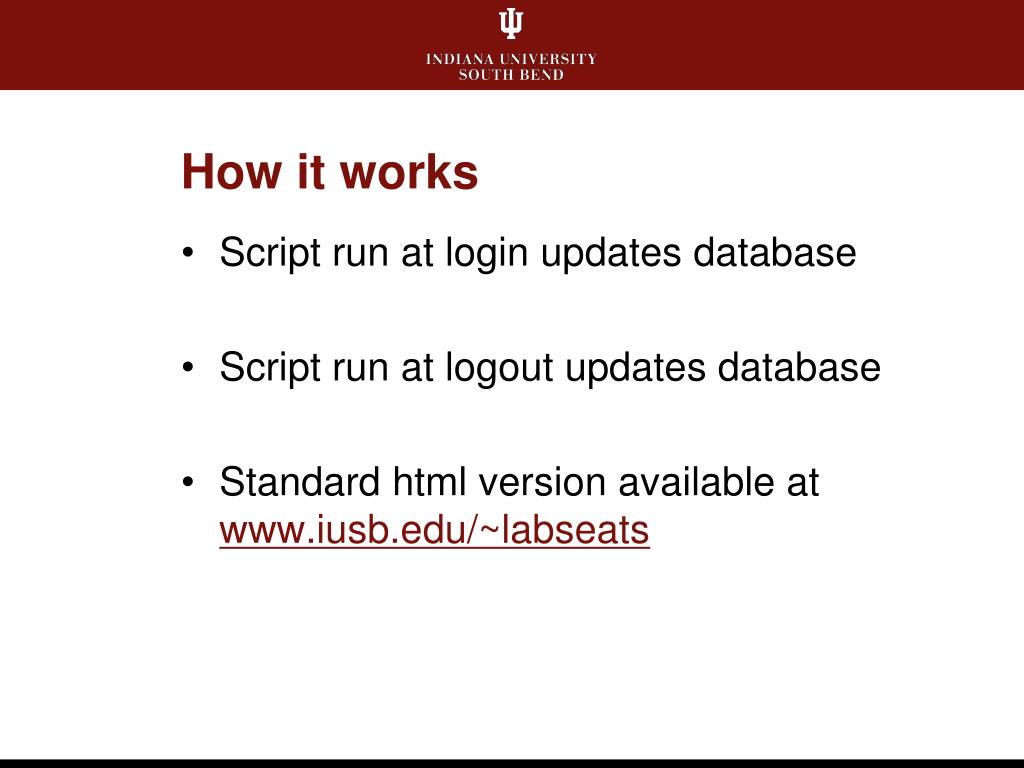

  28. How it works • Script run at login updates database • Script run at logout updates database • Standard html version available at www.iusb.edu/~labseats

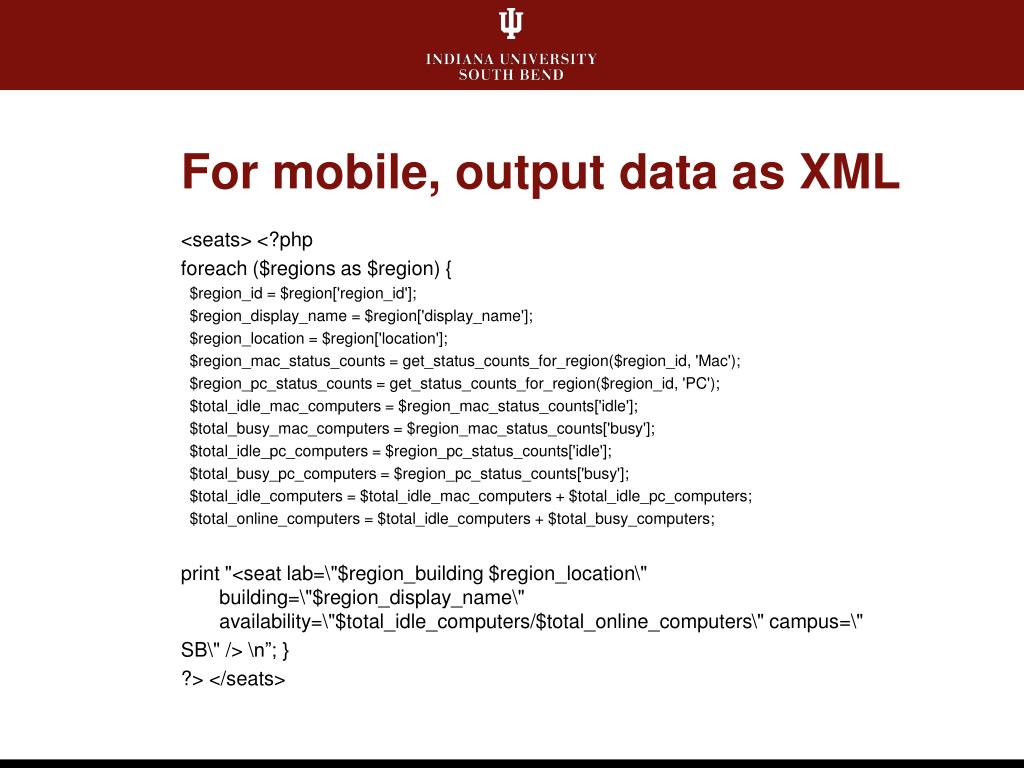

  29. For mobile, output data as XML <seats> <?php foreach ($regions as $region) { $region_id = $region['region_id']; $region_display_name = $region['display_name']; $region_location = $region['location']; $region_mac_status_counts = get_status_counts_for_region($region_id, 'Mac'); $region_pc_status_counts = get_status_counts_for_region($region_id, 'PC'); $total_idle_mac_computers = $region_mac_status_counts['idle']; $total_busy_mac_computers = $region_mac_status_counts['busy']; $total_idle_pc_computers = $region_pc_status_counts['idle']; $total_busy_pc_computers = $region_pc_status_counts['busy']; $total_idle_computers = $total_idle_mac_computers + $total_idle_pc_computers; $total_online_computers = $total_idle_computers + $total_busy_computers; print "<seat lab=\"$region_building $region_location\" building=\"$region_display_name\" availability=\"$total_idle_computers/$total_online_computers\" campus=\" SB\" /> \n”; } ?> </seats>

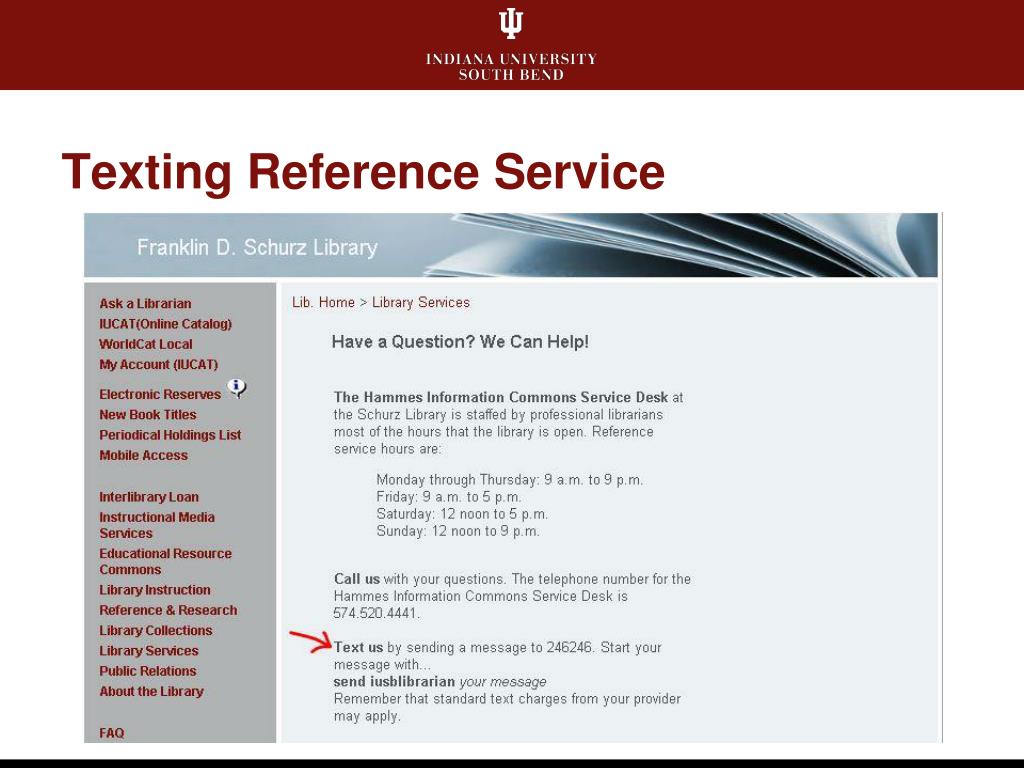

  30. Texting Reference Service

  31. Planning for Mobile Website • Needs assessments • Integrate with existing library services • Project planning • Build the site • Testing, marketing, launching • Keeping up

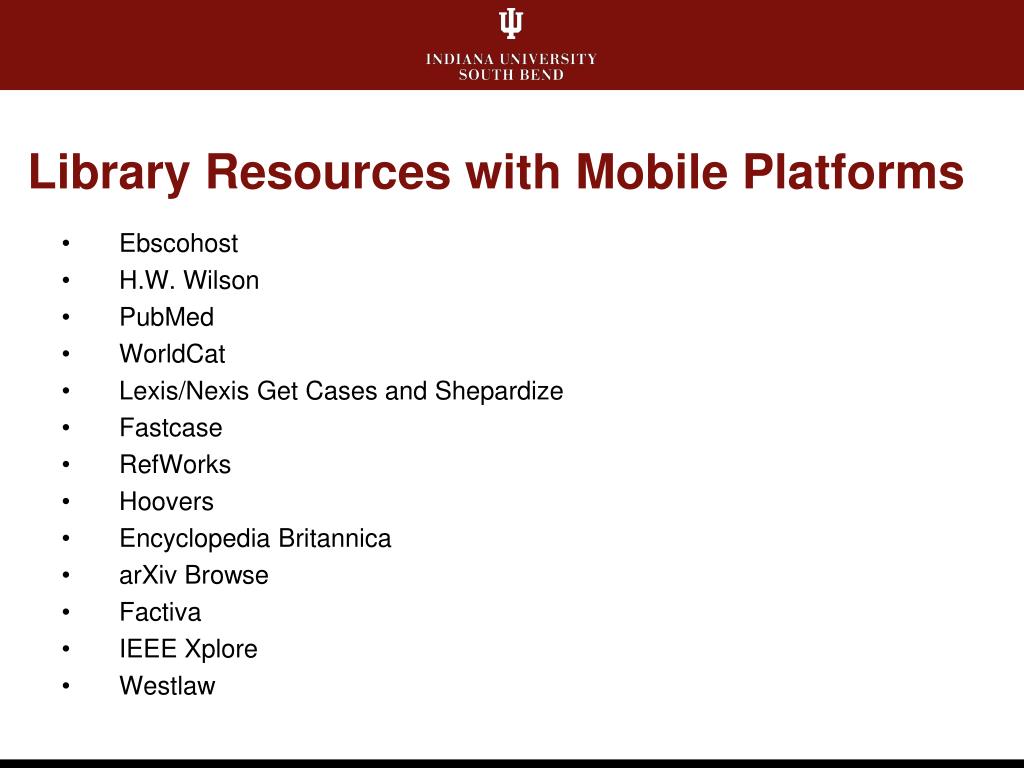

  32. Library Resources with Mobile Platforms • Ebscohost • H.W. Wilson • PubMed • WorldCat • Lexis/Nexis Get Cases and Shepardize • Fastcase • RefWorks • Hoovers • Encyclopedia Britannica • arXiv Browse • Factiva • IEEE Xplore • Westlaw

  33. Mobile Services Offered by Other Libraries SMS notification services • Kansas State University Libraries Mobile collections • Duke University Mobile instruction • Open University Library • LibGuides Library tour • Temple Universities Libraries • University of Illinois at Urbana-Champaign

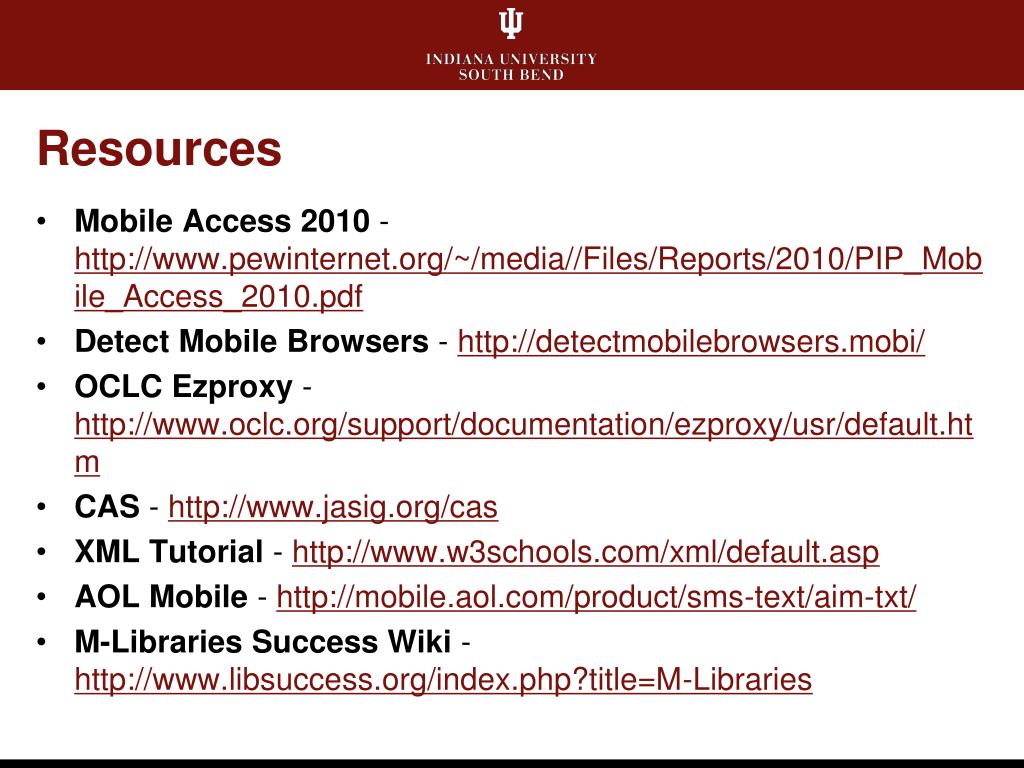

  34. Resources • Mobile Access 2010 - http://www.pewinternet.org/~/media//Files/Reports/2010/PIP_Mobile_Access_2010.pdf • Detect Mobile Browsers - http://detectmobilebrowsers.mobi/ • OCLC Ezproxy - http://www.oclc.org/support/documentation/ezproxy/usr/default.htm • CAS - http://www.jasig.org/cas • XML Tutorial - http://www.w3schools.com/xml/default.asp • AOL Mobile - http://mobile.aol.com/product/sms-text/aim-txt/ • M-Libraries Success Wiki - http://www.libsuccess.org/index.php?title=M-Libraries

  35. Questions? Feel free to contact us at • Vincci Kwong • Email: vkwong@iusb.edu • Phone: 574-520-4444 • Gary Browning • Email: gary@iusb.edu • Phone: 574-520-5516
