Understanding Angular Rotation and the Cross Product in Vector Mechanics

DESCRIPTION

This chapter delves into the concept of vector products, particularly the cross product and its significance in angular rotation. It explores how the result of the vector product ( A times B ) is a vector perpendicular to both ( A ) and ( B ), adhering to the right-hand rule. Key relationships such as ( A times B = -B times A ) and the magnitude given by ( |A times B| = AB sin(theta) ) are discussed. Furthermore, we connect linear momentum and torque with rotational dynamics through vector operations and determinants.

1 / 5

Download Presentation

Understanding Angular Rotation and the Cross Product in Vector Mechanics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 10 More with angular rotatoin

  2. Cross product(Vector Product) • The solution of a vector product AxB is a vector in a direction that is perpendicular to the two vectors A and B. (Right hand rule) • A X B = -B X A • [A XB] = AB sin (theta) • ixj =-jxi = k • jxk = -kxj = i • kxi = -ixk = j • ixi = jxj = kxk = 0

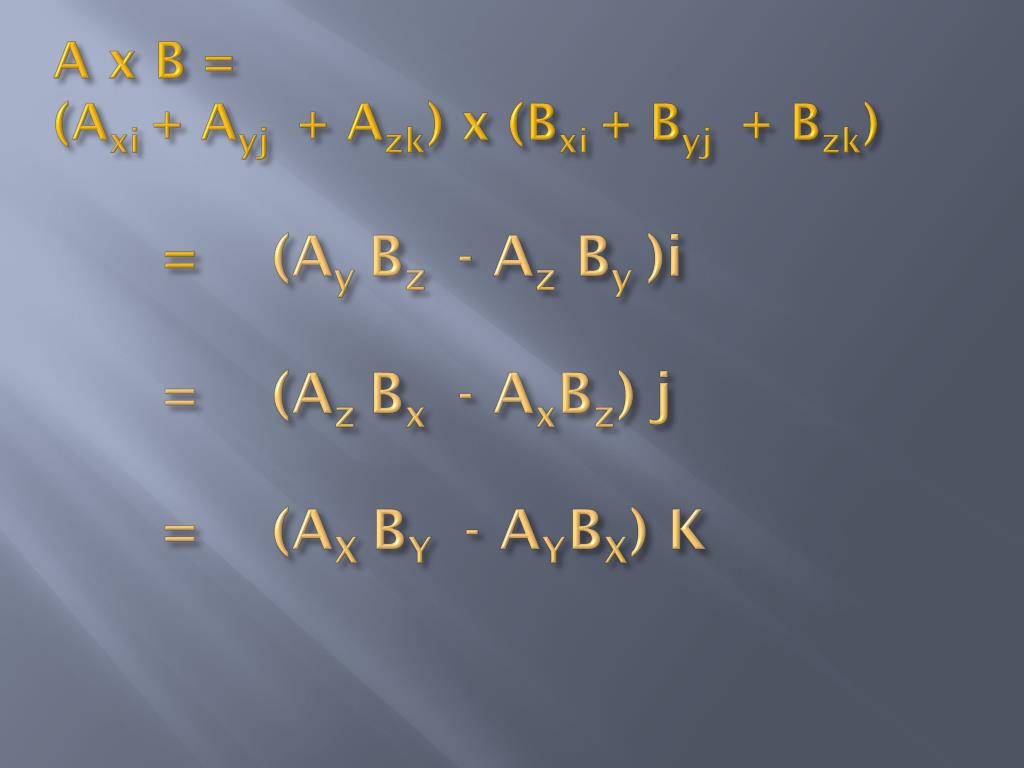

  3. A x B = (Axi+ Ayj + Azk) x (Bxi+ Byj+ Bzk) = (Ay Bz - Az By )i = (AzBx - AxBz) j = (AX BY - AYBX) K

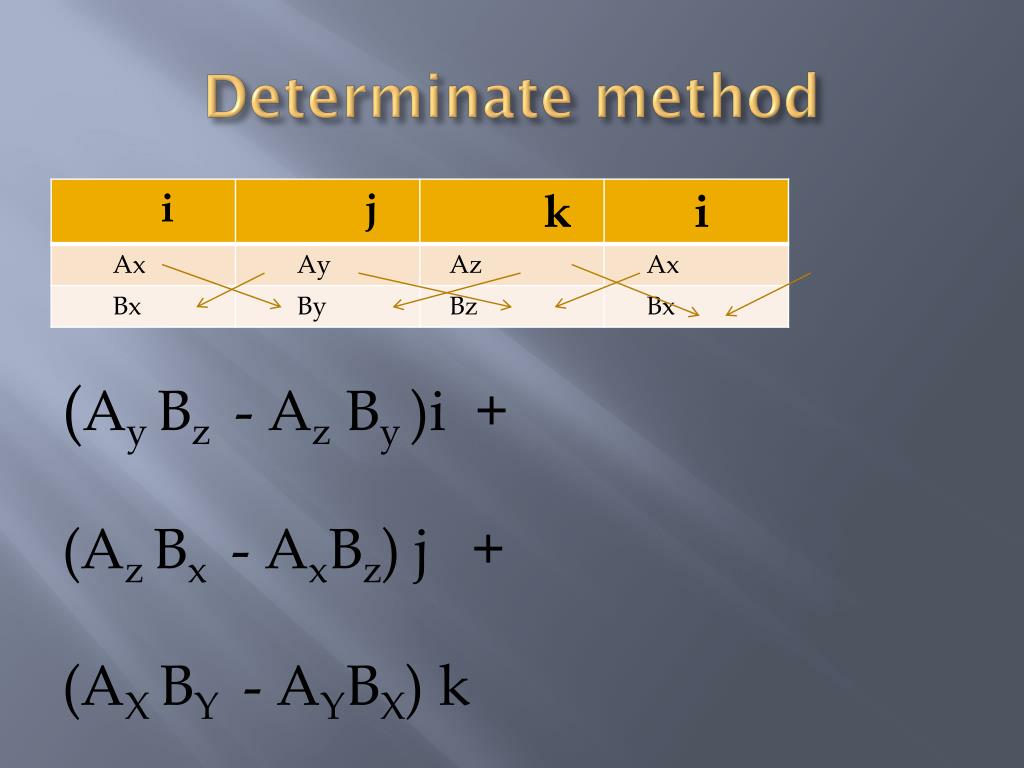

  4. Determinate method (Ay Bz - Az By )i + (AzBx - AxBz) j + (AX BY - AYBX) k

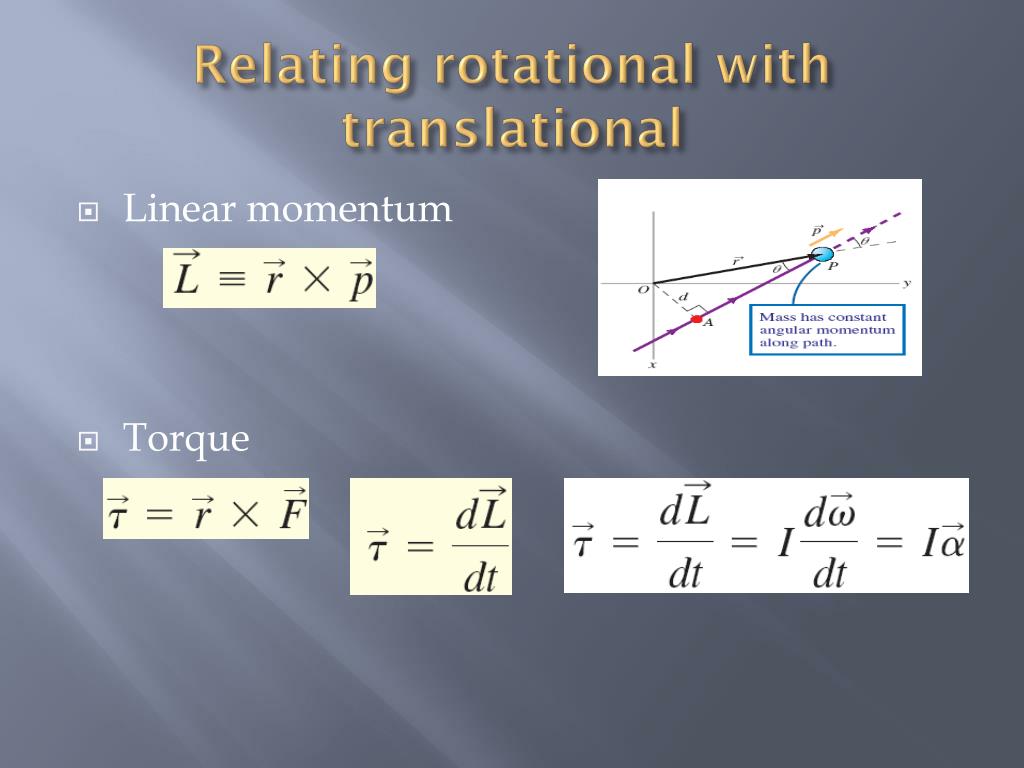

  5. Relating rotational with translational • Linear momentum • Torque
