  1. PLC-XK2200 SANYO Sales & Marketing Europe GmbH

  2. Technical Specifications • Model: PLC-XK2200 • Category: Business & Education • Panel: 3 x 0.55" TFT p-Si (4 : 3) • Resolution: XGA (1,024 x 768) • Brightness: 2,200 ANSI lumens • Standard lens: F = 2.00 – 2.15/f = 18.38 – 22.06 mm • Throw distance ratio: 1.62 – 1.92 : 1 • Throw distance: 1.3 – 11.8 m • Contrast ratio: 2,000 : 1 • Image size min. - max. (diagonal): 40” – 300” • Lamp: 215 W UHP (LMP-142) • Lamp life: 6,000 h (eco mode)/4,000 h (normal mode) • Fan noise: 29 dB (eco mode)/34 dB (normal mode) • Keystone correction: vertical +/–30° • Dimensions (W x H x D): 333.5 x 104,6 x 247.0 mm • Weight (Net): 2.9 kg

  3. Input 1: D-Sub15 (RGB/component/S-Video) Input 2: D-Sub15 (RGB) or monitor out Input 3: RCA (composite) Audio: 3.5 mm stereo jack Audio: 2 x RCA (R/L mono) Audio output : 3.5 mm stereo jack Control input jack 1: D-Sub9 (RS232) Control input jack 2: RJ45 (LAN) Connections

  4. Automatic set-up enables operation within seconds Network control via RJ45 (LAN) Color-board mode for optimised projections onto coloured surfaces Direct Power On/Off allows switching the projector on/off without delay Increased lamp life of 6,000 hours (eco-mode) Brightness: 2,200 ANSI lumens, contrast ratio: 2,000 : 1 XGA Resolution (1,024 x 768 pixels) in 4 : 3 format Fan noise: 29 dB (eco mode) Economical: power consumption 0.7 W (stand-by mode) Keystone Correction: vertical +/- 30° 3 years warranty, 1 year lamp warranty (max. 2,000 hours) Highlights

  5. Standard Accessories IR remote control Batteries User manual Power cable D-Sub15 cable PIN code label Lens cover with cord Optional Accessories SCART/D-Sub 15 cable (POA-CA-SCART) Components/D-Sub15 cable (POA-CACOMPVGA) Ceiling mounts: 15 cm (POA-CM01), 40–70 cm (POA-CM02), 70–110 cm (POA-CM03) Accessories

  6. 6.000 h Lamp life • The new lamp increases the overall lamp life in eco-mode by 100% compared to the predecessor PLC-XW200 • Reduced maintenance translates to lower cost of operation 6.000 hours lamp life PLC-XK2200 100% more lamp life PLC-XW200 4.000 0 2.000 6.000 3.000 5.000 Lamp life in hours 1.000 • PLC-XK2200 operates environmentally-friendly and cost-efficient

  7. blue red green yellow Further highlights • Color board mode • For projections on color boards, this mode adapts the • Image colors to those of the board for best picture quality. • There are 4 color settings to chose from.

  8. Further highlights Automatic Set-up • The projector automatically recognizes the input and adapts settings such as keystone correction pc adjustment • Enables operation within seconds

  9. Further highlights Automatic Keystone Correction • The projector automatically recognizes and corrects any trapezoid distortions of the projected image. • PLC-XK2200: vertical +/- 30°

  10. Eco-friendliness With its high-quality technologies, functions and production methods, SANYO is making a substantial contribution to environmental protection, thereby also complying with important laws and regulations. • Environmental management standard ISO 14001 • Avoids environmentally-harmful chemicals; reduces transport costs through intelligent product design; incorporates recycled and recyclable materials; covers logistics along the entire value-added chain. • REACh regulation • Refers to the legal registration, evaluation and authorisation of chemicals when manufacturing products, in order to keep the negative effects on humans and nature to an absolute minimum. • RoHS – Restriction for the use of hazardous substances in electronic and electrical equipment • As part of environmentally friendly product development, the amount of chemically harmful materials and components in end products is reduced.

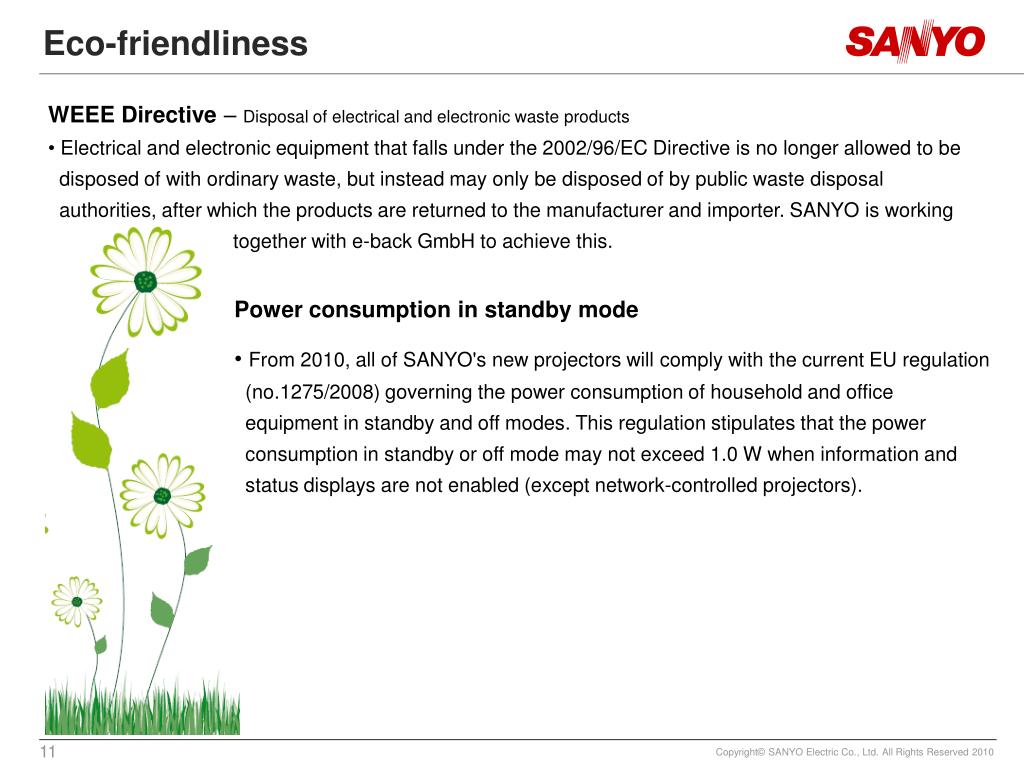

  11. Eco-friendliness • WEEE Directive – Disposal of electrical and electronic waste products • Electrical and electronic equipment that falls under the 2002/96/EC Directive is no longer allowed to be disposed of with ordinary waste, but instead may only be disposed of by public waste disposal authorities, after which the products are returned to the manufacturer and importer. SANYO is working together with e-back GmbH to achieve this. • Power consumption in standby mode • From 2010, all of SANYO's new projectors will comply with the current EU regulation (no.1275/2008) governing the power consumption of household and office equipment in standby and off modes. This regulation stipulates that the power consumption in standby or off mode may not exceed 1.0 W when information and status displays are not enabled (except network-controlled projectors).

  12. Eco-friendliness • Eco mode • This is an environmentally friendly, energy-saving function that reduces the projector's illumination by up to 20%, thereby cutting power consumption. It also minimises fan noise and increases the lamp life. • Direct Power Off • This function enables the projector to be unplugged immediately after it has been switched off. This prevents power being used whilst the projector interior is cooling down. • Energy-saving function • To reduce power consumption and to ensure longer lamp life, the lamp is automatically switched off when no input signal has been detected for a relatively long period of time or when the device is not operated.
