Fish Fight

Angela DiCicco 10/3/05. Fish Fight. FW Server. Fish. Located in. energy level Scene position (x,y) size of fish food intake (digestion) fight(). Prompt Fight. Communicates fight, change of fish x and fish y. Communicates fight, change of fish x and fish y. Rendered as Fighting.

halden
Download Presentation

Fish Fight

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Angela DiCicco 10/3/05 Fish Fight FW Server Fish Located in energy level Scene position (x,y) size of fish food intake (digestion) fight() Prompt Fight Communicates fight, change of fish x and fish y Communicates fight, change of fish x and fish y Rendered as Fighting Fish World Scene[] Requests position, size, energy level Fights

  2. Joe:Fish energy level Scene position (x,y)size of fish food intake (digestion) fight() Fish Fight Collaboration Diagram :FW Server << communicate fight # #>> << communicate Fish locations >> fight(Lee,energyloss) Location render(Scene*) :Fish World Scene[] Lee:AutomatedFish Location render(Scene*) energy level Scene position (x,y)size of fish food intake (digestion) fight() fight(Joe,energyloss) {current scene that user is viewing}

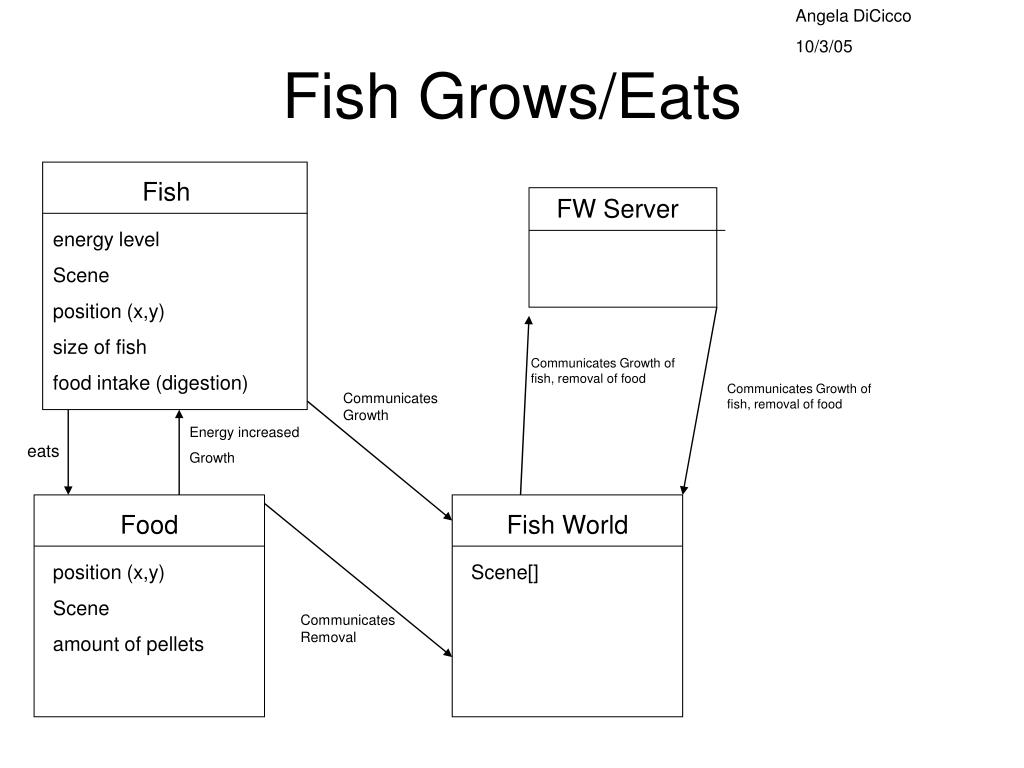

  3. Angela DiCicco 10/3/05 Fish Grows/Eats Fish FW Server energy level Scene position (x,y) size of fish food intake (digestion) Communicates Growth of fish, removal of food Communicates Growth of fish, removal of food Communicates Growth Energy increased Growth eats Food Fish World position (x,y) Scene amount of pellets Scene[] Communicates Removal

  4. :FW Server Convert to Fish Grows/Eats to a Collaboration Diagram :Fish energy level Scene position (x,y) size of fish food intake (digestion) <<send remove food ##>> <<send state fish ##>> State: eatFood(FoodAmt) render(scene) :Fish World :Food remove( ) Scene[] position (x,y) Scene amount of pellets :Food :Fish World :Food remove( ) remove( ) position (x,y) Scene amount of pellets

  5. Class Diagram: G a m e S t a r t s Hazard BottmoDweller Pos (x,y) SceNumber Pos (x,y) SceNumber Creates, positions Creates, positions Fish Assign image set Energy level Scene Pos (x,y) Color FishWorld Assign position Fish[] Scene[] or scene[] [] AbstractView Creates Assign color to all fishes andcommunicate position of the fish and the other fishes Located Scene Creates, Draws Contaiins SceNumber Foregroundbackground FWServer Felix Rosen

  6. Class Diagram: G a m e S t a r t s {Location = x,y,scene#)} Hazard BottmoDweller {Most Hazards are created after game start} Pos (x,y) SceNumber Pos (x,y) {Hazard type is embodied in each specific subclass} SceNumber Hazard(Location,) start() Location:render(scene#) BottomDweller(Location, ID) start() Fish Location:render(scene#) Fish(Location, ID, color) FishWorld Energy level Scene Pos (x,y) Color start() Fish[] Scene[] or scene[] [] AbstractView Location:render(scene#) <<prompt create Fish (color, ID), Hazards(type, ID) , BottomDweller(ID)>> Scene( imageName) Scene renderForeground() SceNumber Foregroundbackground renderBackground() FWServer Felix Rosen

  7. :FWServer sendSocketInput(update_message) <<sendUpdate Message>> {Server Side} :SocketListener :SocketListener <<sendUpdate Message>> sendSocketInput(update_message) {Client Side} :FishWorld {show update}
