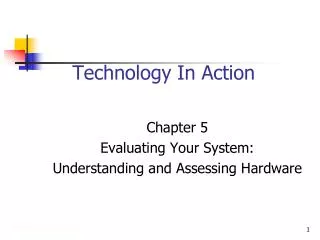

  1. Technology In Action Chapter 5 Evaluating Your System: Understanding and Assessing Hardware

  2. Chapter Topics • To buy or upgrade? • Evaluating your system: • CPU • RAM • Storage devices • Video output • Sound systems • Computer ports • System reliability

  3. Common Byte Measurements Patterns of binary digits represent both the computer instructions and computer data 1 byte = 8 bits 1 KiloByte = 2^10 bytes = 1024 bytes 1 MegaByte = 2^20 bytes = 1024 KB = ~1 million bytes 1 GigaByte = 2^30 bytes = 1024 MB = ~1 billion bytes 1 TeraByte = 2^40 bytes = 1024 GB = ~1 trillion bytes 1 PetaByte = 2^50 bytes = 1024 TB = ~1000 trillion bytes 1 ExaByte = 2^60 bytes = 1024 PB = ~ 1 quintillion bytes 3

  4. To Buy or To Upgrade? • Things to consider: • Moore’s Law • Cost of upgrading vs. buying • Time installing software and files • Needs and wants

  5. Moore’s Law • Moore’s Law • Gordon Moore, co-founder of Intel • Want your computer to be twice as fast? Wait two years, buy a new one… • In other words, amount of circuitry on a particular chip approximately doubles every eighteen months. • Laws of Physics say this must end soon • Electrical Components have a limit to how small they can be • Will Moore’s Law give out in your lifetime? • Moore speaks about Moore's Law

  6. The CPU: Processing Digital Information • The CPU is the brain of the computer • Different types of CPUs • Intel and AMD chips: Used in Windows-based PCs • Apple systems use different CPU design • Differentiating CPUs • Processing power • Clock speed • Electricity needed

  7. Evaluating the CPU • What can you do to the CPU to improve performance? • System Clock Speed: • MHz • GHz

  8. How busy is your CPU? • Windows • Task Manager • Performance tab

  9. Upgrading the CPU • Expensive • Easy to install (ZIF socket) • Motherboard compatibility

  10. Today’s Microprocessors • The more powerful a CPU is, the more circuitry is needed to make the CPU work • Such a large amount of circuitry in such a small, concentrated area generates A LOT of heat!!! • Most modern processors require heat sinks and/or fans to keep their temperature in a safe range • Keep your computer in cool, clean area, vacuum it out once in a while, don’t block ventilation vents

  11. Evaluating Other Features • CPU speed is not the only factor in your computer's performance • Amount of RAM • Hard drive speed and size • Speed of video card • Speed of Internet connection

  12. How Much Ram is Needed? • All running processes need RAM including the operating system • PF Usage rate (virtual memory) • if high, need more real RAM • Look at Available Physical Memory to see how much real RAM you have

  13. Adding RAM • will increase system performance • Things to consider: • Type of RAM module • Amount of RAM: • Number of slots - Motherboard • Operating system - how much can it handle? • how many applications running at the same time?

  14. Evaluating Storage • Types of storage devices: • Hard drive • Floppy drive • CD/DVD • Flash memory • All are Nonvolatile storage

  15. The Hard Disk Drive • Storage capacity up to 500 GB • Access time is measured in milliseconds • Data transfer rate is measured in megabits or megabytes per second • Spindle speed is measured in thousands of revolutions per minute (rpm) • Subject to head crashes!

  16. Hard Disk Controllers • controller = electronics that transfer instructions and data to and from the disk • EIDE, SCSI - older • SATA - newer, faster - 3 Gb/sec serial advanced technology attachment • drive must be compatible with controller on motherboard

  17. RAM vs. Hard drive speeds • RAM speed is often expressed in nanoseconds (one billionth of a second) • Amount of time required to access data in RAM • Hard Drive speed is often measured in milliseconds (one thousandth of a second) • Amount of time required to access data on disk • Typical RAM is millions of times faster!

  18. Cache Memory Small amount of memory located on the CPU chip or near it Stores recent or frequently used instructions and data Used for quick access by the CPU Different levels of cache Distance from CPU

  19. Memory / Storage Pyramid • Fastest data access at the top of the pyramid, slower as you go down • Most expensive at the top of the pyramid, cheaper as you go down • RAM / cache = "memory"

  20. Optical Storage • Optical media: • -ROM • -R • -RW • Laser beam • "Pits" scatter laser light equaling a 1 • "Lands" (nonpitted area) reflects laser light equaling a 0

  21. Different Optical Formats • CD vs. DVD • High Density DVD • Blu-Ray • named for color of laser used • most Blu-Ray readers can read other DVDs • higher capacity than HD DVD, 50 GB

  22. Portable Storage • Gives the ability to move data from one computer to another • Types of portable storage devices: • Floppy disk: • Capacity 1.44 MB • CD-R, CD-RW, DVD-R, DVD-RW: • Capacity 700 MB to 9.4 GB • Flash drive and cards: • Capacity 256 MB to 32 GB

  23. Treatment of media • Floppies / Zip Disks / Hard drives • Watch out for magnets! • heat, contaminants • CDs/DVDs • scratches • heat, contaminants • Flash sticks • static electricity - keep cap on when not in use

  24. Evaluating Ports • Ports are used to connect peripheral devices to the computer • Things to consider: • Devices you want to use • Ports needed for the devices

  25. Universal serial bus • hot swapping • 1.1 and 2.0 versions 1.1 = 12 Mbits/s 2.0 = 480 Mbits/s • Powered vs. non-powered • can chain together USB hub USB Connector USB Port

  26. FireWire • High speed transfer of audio and video data (Apple created) • First version 400 Mbits/s, newer version 800 Mbits/s • Comparable with USB in speeds FireWire Port FireWire Connector

  27. Types of Ports • Ethernet • Transfer rates range from 10 Mbps to 100 Mbps; newest 1Gbps • connects computers to LAN or cable modem • created at Xerox PARC 1973-75 Ethernet jack Ethernet Port

  28. IrDA • Uses infrared light waves • Transfer rate of 4 Mbps • being replaced by Bluetooth and Wi-Fi • useful where radio would cause interference IrDA

  29. Bluetooth • Radio waves send data over short distances • meant to replace cables, 1-2 Mbits/s • security risk of instant connection when within range Bluetooth

  30. Make a system more reliable • Clean out your Startup folder • Delete unnecessary files - Disk cleanup • Use anti-spyware and antivirus software • Use the disk defragmenter • Keep software updated • OS, browser, antivirus, device drivers • Keep your system cool and clean

  31. Computers in the Environment • Green Computing • Adopting policies which conserve and recycle resources as well as have minimal impact on the environment • Turn your computer off • Don’t put old computers in landfills • Donate old equipment • Recycle printer cartridges and paper • Buy "Green Star" equipment • Telecommute

  32. Computers in the Environment • Chip manufacture • Computer chips and CPUs are made of silicon • Intel "How chips are made" • Acids, powerful lasers, and hazardous chemicals are used to etch circuitry onto silicon wafers • Chip production takes place in a clean room to keep chips from being contaminated and to keep hazardous materials from escaping • Chip production is largely done by robots to keep from exposing humans to the hazards of the plant

  33. A Clean Room
