Carbon Footprint Analysis of Danforth Campus Students at Washington University

This report delves into the carbon footprint of Danforth Campus students at Washington University, examining energy consumption, transportation emissions, and campus infrastructure from 1990 to 2007. It highlights the significant trends in carbon emissions, with a 70% increase attributed to buildings and transportation, while emissions from student commuting have decreased. The analysis utilizes a causality framework to establish relationships between various factors influencing carbon output. This comprehensive study aims to inform sustainability initiatives for reducing the university's carbon footprint.

hagop
Download Presentation

Carbon Footprint Analysis of Danforth Campus Students at Washington University

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Class Project ReportSustainable Air Quality, EECE 449/549, Spring 2008Washington University, St. Loui, MO Carbon Footprint of Danforth Campus Students: Devki Desai Martin Groenewegen Tyler Nading Kate Nelson Matt Sculnick Alyssa Smith Varun Yadav Instructors: Professor Rudolf B. Husar, Erin M. Robinson For more details see the class wiki

  2. Washington University Carbon Footprint heat On Campus cool appliances Transportation Students Fac/Staff

  3. Causality Framework for University Carbon Footprint - Buildings Carbon/BTU Fuel Cons.BTU/yr C EmissionTon C/yr $/Student Sq. Ft./$ BTU/Sq.Ft. PopulationStudents Activities$ Expend./yr Buildings Sq. Ft Kw-hr/Sq.Ft. Electr. ConsKw-Hr/yr Fuel Cons. BTU/yr C Emission Ton C/yr BTU/Kw-hr Carbon/BTU • Each of the boxes is a physical quantity that can be measured and tracked • Looking at the causality factor trends the relationship between the parameters is established.

  4. Causality Framework for University Carbon Footprint - Buildings Carbon/BTU Fuel Cons.BTU/yr C EmissionTon C/yr $/Student Sq. Ft./$ BTU/Sq.Ft. PopulationStudents Activities$ Expend./yr Buildings Sq. Ft Kw-hr/Sq.Ft. Electr. ConsKw-Hr/yr Fuel Cons. BTU/yr C Emission Ton C/yr BTU/Kw-hr Carbon/BTU

  5. Causality Framework for University Carbon Footprint - Buildings Carbon/BTU Fuel Cons.BTU/yr C EmissionTon C/yr Sq. Ft./$ $/Student BTU/Sq.Ft. PopulationStudents Activities$ Expend./yr Buildings Sq. Ft Kw-hr/Sq.Ft. Electr. ConsKw-Hr/yr Fuel Cons. BTU/yr C Emission Ton C/yr BTU/Kw-hr Carbon/BTU • The campus size in sq. ft. and expenditures increased at about the same rate. • Therefore the 1990-2005 change was insignificant.

  6. Causality Framework for University Carbon Footprint - Buildings Carbon/BTU Fuel Cons.BTU/yr C EmissionTon C/yr BTU/Sq.Ft. $/Student Sq. Ft./$ PopulationStudents Activities$ Expend./yr Buildings Sq. Ft Kw-hr/Sq.Ft. Electr. ConsKw-Hr/yr Fuel Cons. BTU/yr C Emission Ton C/yr BTU/Kw-hr Carbon/BTU • The on campus fuel: coal, oil, natural gas • The fuel used/sq ft. has fluctuated. The dip after 1993 was caused by system upgrades

  7. Causality Framework for University Carbon Footprint - Buildings Carbon/BTU Fuel Cons.BTU/yr C EmissionTon C/yr $/Student Sq. Ft./$ BTU/Sq.Ft. PopulationStudents Activities$ Expend./yr Buildings Sq. Ft Kw-hr/Sq.Ft. Electr. ConsKw-Hr/yr Fuel Cons. BTU/yr C Emission Ton C/yr BTU/Kw-hr Carbon/BTU

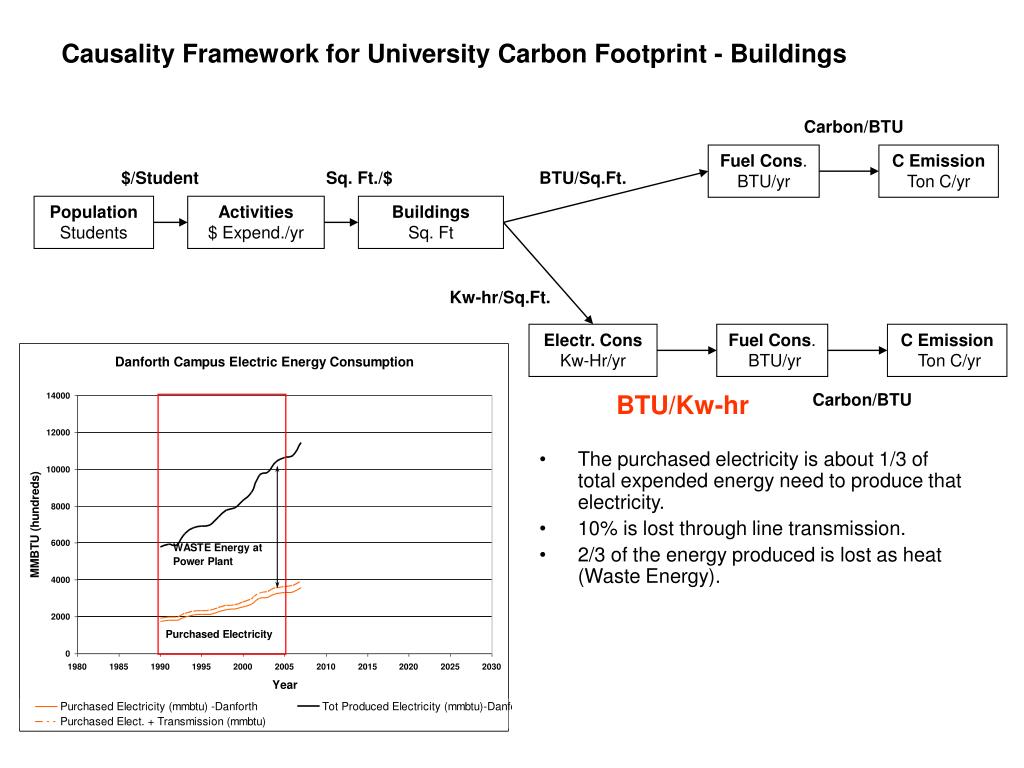

  8. Causality Framework for University Carbon Footprint - Buildings Carbon/BTU Fuel Cons.BTU/yr C EmissionTon C/yr $/Student Sq. Ft./$ BTU/Sq.Ft. PopulationStudents Activities$ Expend./yr Buildings Sq. Ft Kw-hr/Sq.Ft. Electr. ConsKw-Hr/yr Fuel Cons. BTU/yr C Emission Ton C/yr BTU/Kw-hr Carbon/BTU • The purchased electricity is about 1/3 of total expended energy need to produce that electricity. • 10% is lost through line transmission. • 2/3 of the energy produced is lost as heat (Waste Energy).

  9. Causality Framework for University Carbon Footprint - Buildings Carbon/BTU Fuel Cons.BTU/yr C EmissionTon C/yr $/Student Sq. Ft./$ BTU/Sq.Ft. PopulationStudents Activities$ Expend./yr Buildings Sq. Ft Kw-hr/Sq.Ft. Electr. ConsKw-Hr/yr Fuel Cons. BTU/yr C Emission Ton C/yr BTU/Kw-hr Carbon/BTU • Each fuel has Carbon/BTU ratio • The overall carbon emission for buildings has increased 70% from 1990-2007

  10. Causality Framework for University Carbon Footprint - Buildings Carbon/BTU Fuel Cons.BTU/yr C EmissionTon C/yr $/Student Sq. Ft./$ BTU/Sq.Ft. PopulationStudents Activities$ Expend./yr Buildings Sq. Ft Kw-hr/Sq.Ft. Electr. ConsKw-Hr/yr Fuel Cons. BTU/yr C Emission Ton C/yr BTU/Kw-hr Carbon/BTU • Each fuel has Carbon/BTU ratio • The overall carbon emission for buildings has increased 60% from 1990-2007

  11. Causality Framework for University Carbon Footprint - Transportation Miles/Person Gal./Mile Carbon/Gal PopulationPeople Transportation Miles Fuel Cons. Gal./yr C Emission Ton C/yr • Overall Transportation emissions have stayed constant • The student commuters’ emissions have dropped because more students are living closer to campus • The faculty/staff emissions are increasing as people are living farther away due to housing availability/costs

  12. Carbon Emission – University • Cumulative plot of campus emissions. Electricity is the main component followed by on campus fuel usage and transportation. • Carbon Emissions have increased almost 60% from 1990 to 2005.
