DNA Damage and Repair

  • Why do we care?
    • Genetic diseases
    • Cancer
cellular responses to dna damage
Cellular Responses to DNA Damage
  • Reversal of DNA Damage
    • Enzymatic photoreactivation
    • Ligation of DNA strands
    • Repair of photoproduct
  • Tolerance of DNA Damage
    • Replicative bypass of template damage with gap formation and recombination (gap repair)
  • Excision of DNA Damage
    • Base excision repair
    • Nucleotide excision repair
    • Mismatch repair

Mutagens and Carcinogens

  • Essentially all mutagens are carcinogens
  • Most carcinogens are mutagens

Somatic vs. germ line mutations

  • Somatic mutations can lead to cancer
  • Germ line mutations can lead to birth defects
  • Most mutations cause neither
    • Some fall in non-coding DNA
    • Others are silent

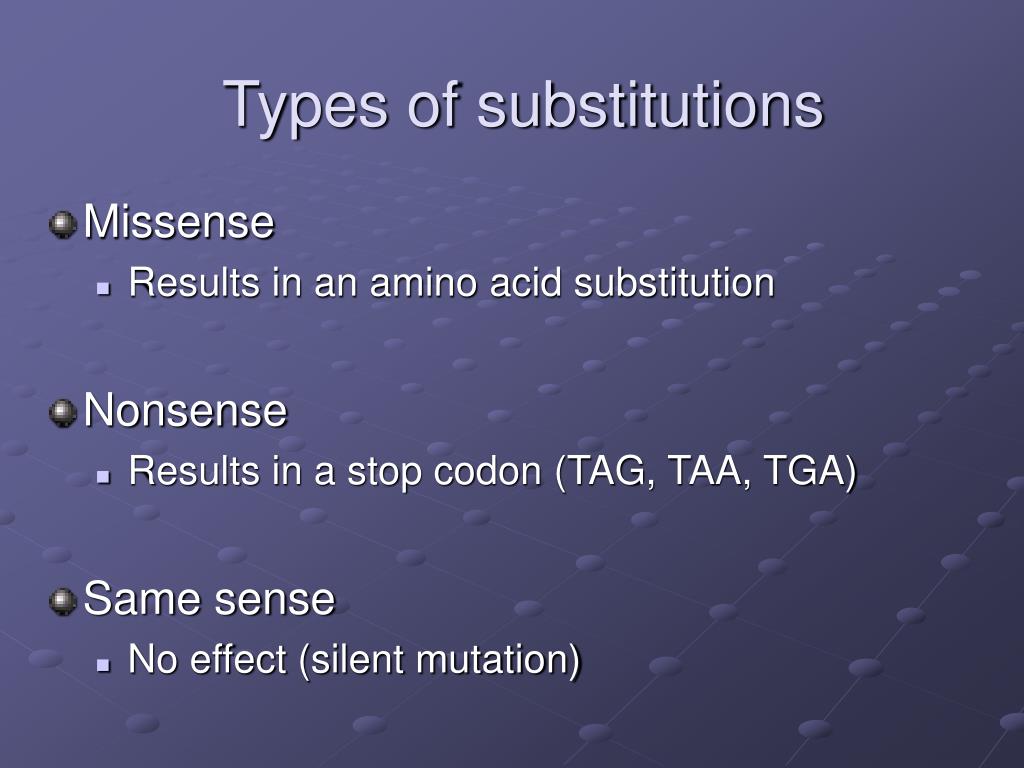

Types of substitutions

  • Missense
    • Results in an amino acid substitution
  • Nonsense
    • Results in a stop codon (TAG, TAA, TGA)
  • Same sense
    • No effect (silent mutation)

Types of mutations

  • Multisite
  • Point mutations

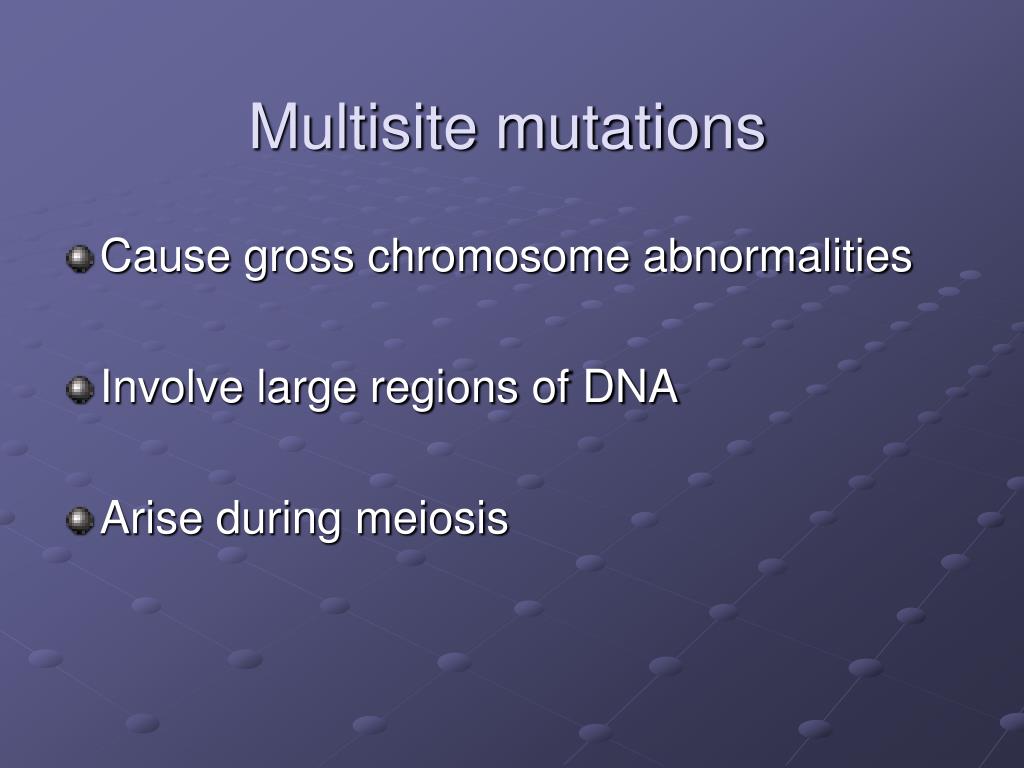

Multisite mutations

  • Cause gross chromosome abnormalities
  • Involve large regions of DNA
  • Arise during meiosis

Types of multisite mutations

  • Inversions: ACBDEF
  • Duplications ABCDEEF
  • Deletions: ABCDF
  • Insertions: ABCDSEF
  • Substitutions: ATCDEF

Point mutations

  • Involve only one or a few nucleotides
  • Arise during DNA replication
  • Require two errors
    • An error during DNA replication
    • Failure to correct that error

Types of point mutations

  • Substitutions: GATC CATC
  • Insertion: GATC GGATC
  • Deletion: GATC GTC
  • Duplication: GATC GAGATC
  • Inversion: GATC GTAC

What is the first defense against mutations?

  • 3’ to 5’ exonuclease activity of the polymerases

Natural causes of mutations

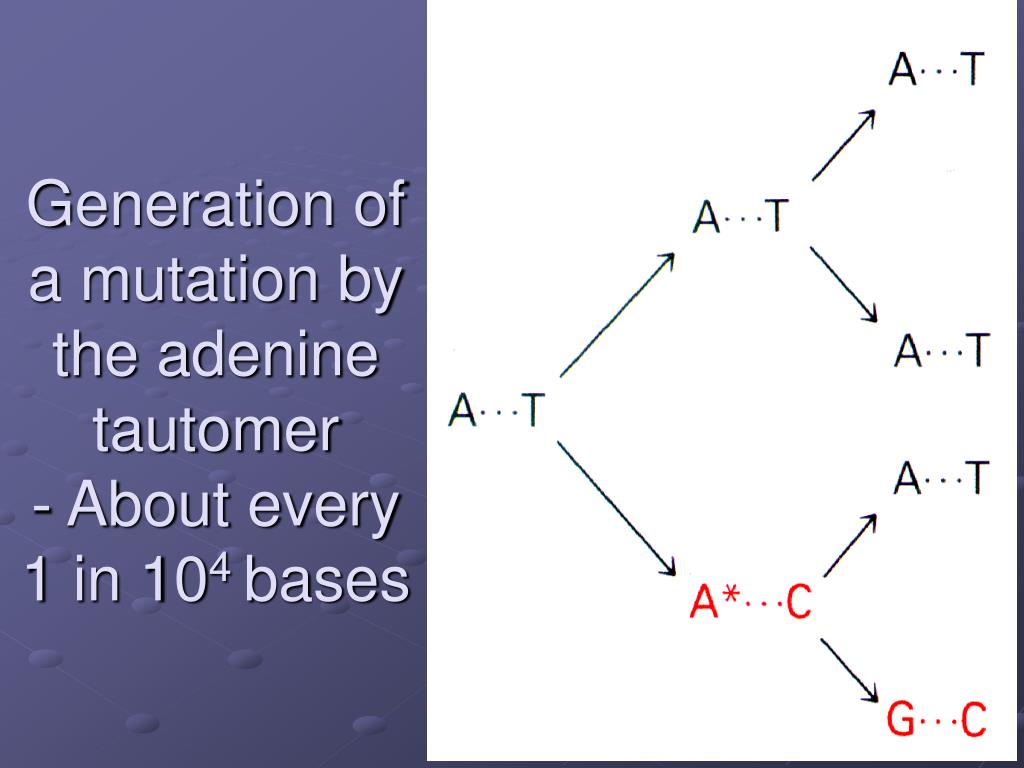

  • Base tautomerization
  • UV damage
  • Spontaneous deamination

Spontaneous deamination

  • Three of the four bases have exocyclic amino groups

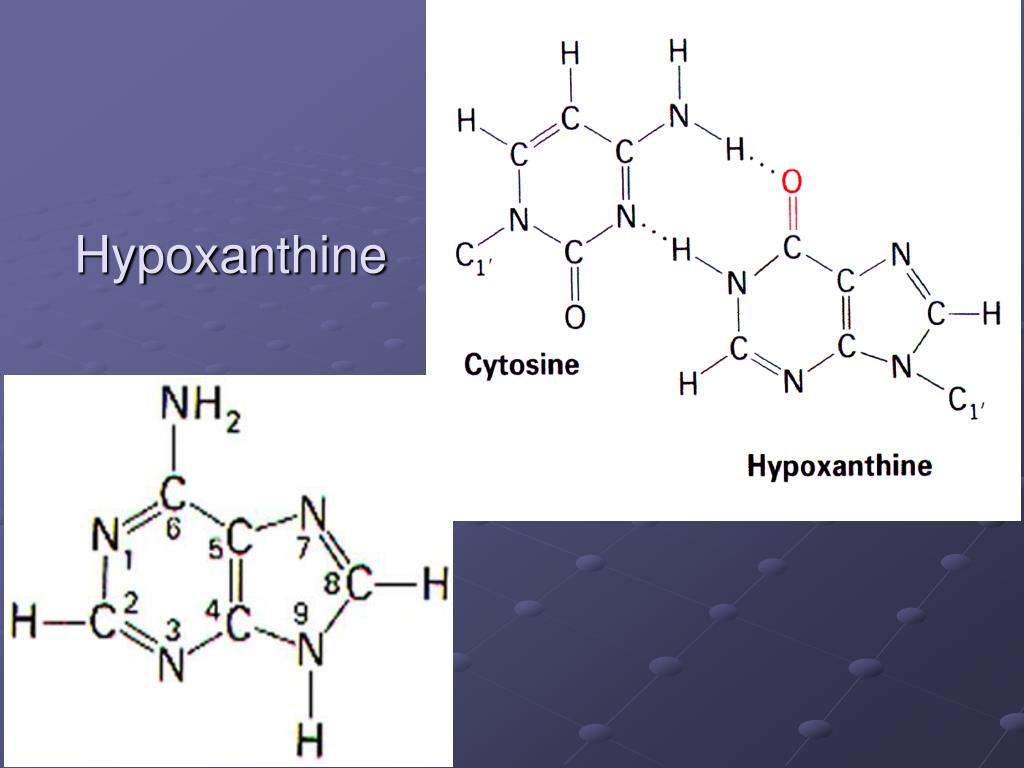

  • Adenosine produces hypoxanthine
  • Guanine produces xanthine
  • Cytosine produces uracil


  • The reason cells use thymine in their DNA
    • Is to allow recognition of uracil formed from cytosine
  • But what about RNA?
    • RNA is short lived and in many copies.

Chemical mutagens

  • Chemicals that accelerate the deamination reaction
  • Base analogues
  • Alkylating agents
  • Intercalation agents

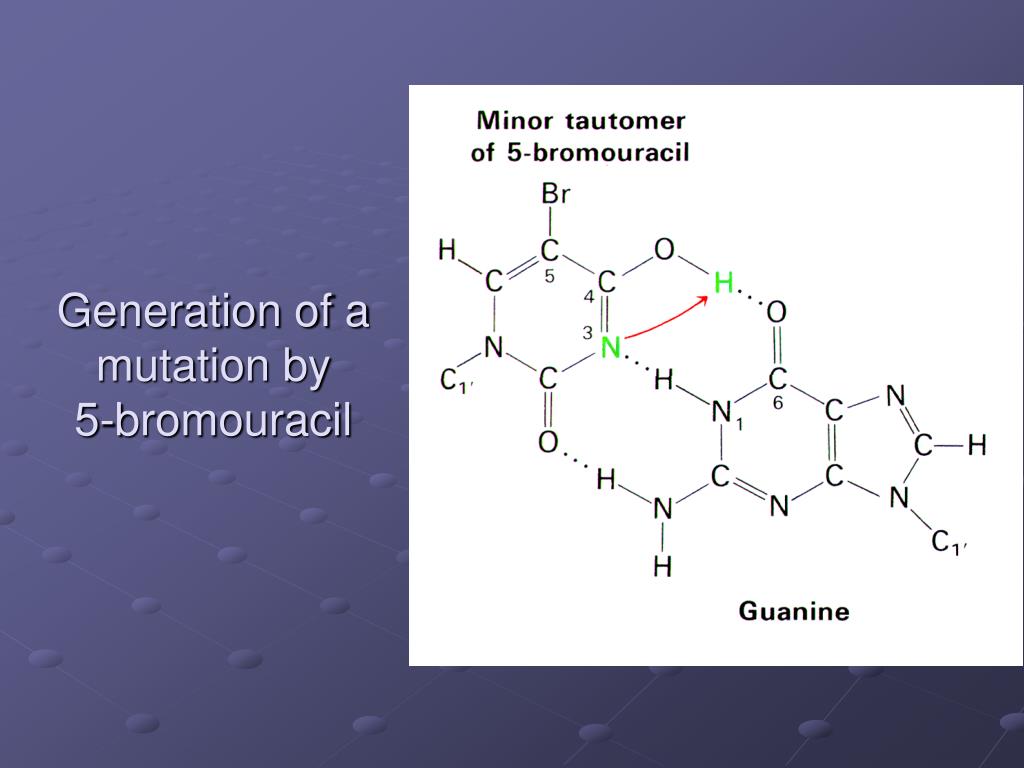

Base analogues

  • 5-bromouracil
  • Goes in as T
  • Can base pair with A but also G to a smaller degree


  • Flat aromatic compounds
  • Acridine dyes
  • Ethidium bromide
  • Cause frame-shifting

Repair mechanisms

  • We are exposed to mutagens all the time
    • you would expect repair mechanisms to exist
  • A number of different repair mechanisms do exist

Repair Mechanisms

  • In mismatch repair
    • Incorrect base is identified
    • On short section of a newly synthesized DNA
    • Removed, and replaced
      • by DNA synthesis directed by the correct template.
  • In excision repair
    • bulky lesions in DNA
      • exposure to UV light
      • removed by specialized nuclease systems
      • DNA polymerase fills gap
      • DNA ligase joins the free ends.

Intro to DNA Mismatch Repair

  • Mismatch Repair Genes
    • recognition and repair of certain types of DNA damage or replication errors
  • Function to help preserve the fidelity of the genome
    • through successive cycles of cell division

Mismatch repair

  • Occurs just after replication
  • Improves accuracy 102 - 103 fold
  • Must distinguish the parent from the daughter strand

History of MMR

  • System first discovered in bacteria
  • Partially homologous system in yeast
  • Marked homology between yeast and higher order organisms
  • Human MMR genes first described 1993.

DNA Mismatches

  • Damage to nucleotides in ds-DNA
  • Misincorporation of nucleotide
  • Missed or added nucleotides

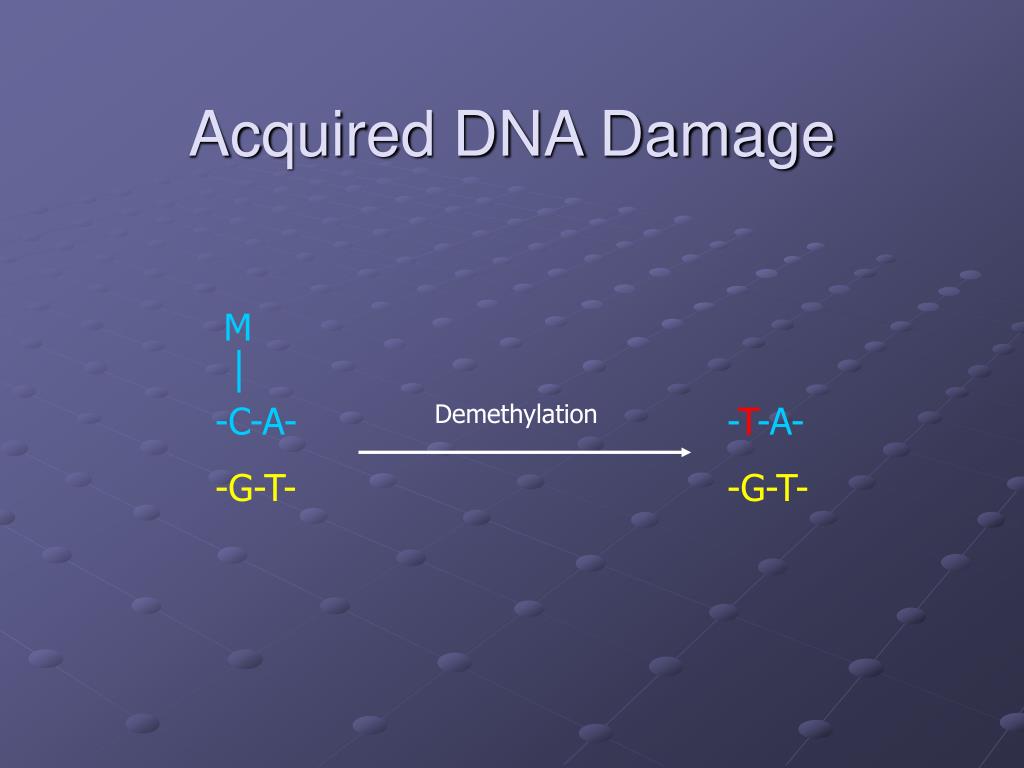

Acquired DNA Damage


-C-A- -T-A-

-G-T- -G-T-



Nucleotide Misincorporation



CT substitution







correctly copied


nucleotide added


-G-T-C C-A-




correctly copied

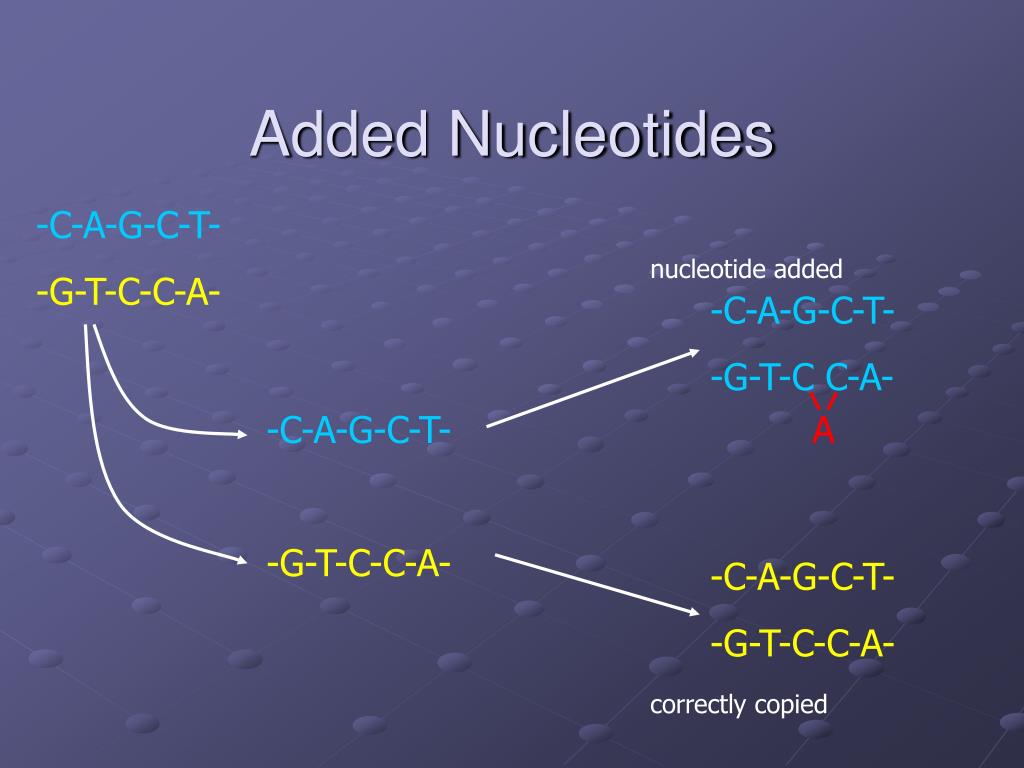

Added Nucleotides






Mismatch Repair Genes

  • Recognition and repair of mismatches
  • Other functions
    • Repair of branched DNA structures
    • Prevent recombination of divergent sequences
    • Direct non-MMR proteins in nucleotide excision and other forms of DNA repair
    • MSH4 & MSH5 involved (with MLH1) in meiotic crossover

Human Mismatch Repair Genes

  • MLH1 (3p21)
  • PMS1 (2q31-33)
  • PMS2 (7p22)
  • MSH2 (2p16)
  • MSH3 (5q3)
  • MSH6 (2p16) (=GT Binding Protein)

Mismatch Repair Function

  • MMR Proteins combine as heterodimers
  • Recognise and bind mismatches
  • ATP consumption
  • Recruit other proteins
  • Separate, destroy and resynthesise new DNA strand
  • Mechanism works for up to 20 base pairs

MSH Protein Complexes

  • MutS (MSH2-MSH6)
    • GT mispairs and short (1 base pair) loops/deletions
  • MutS (MSH2-MSH3)
    • Larger mispair loops and deletions
  • Some overlap in function
  • MSH2 loss is greater cancer risk

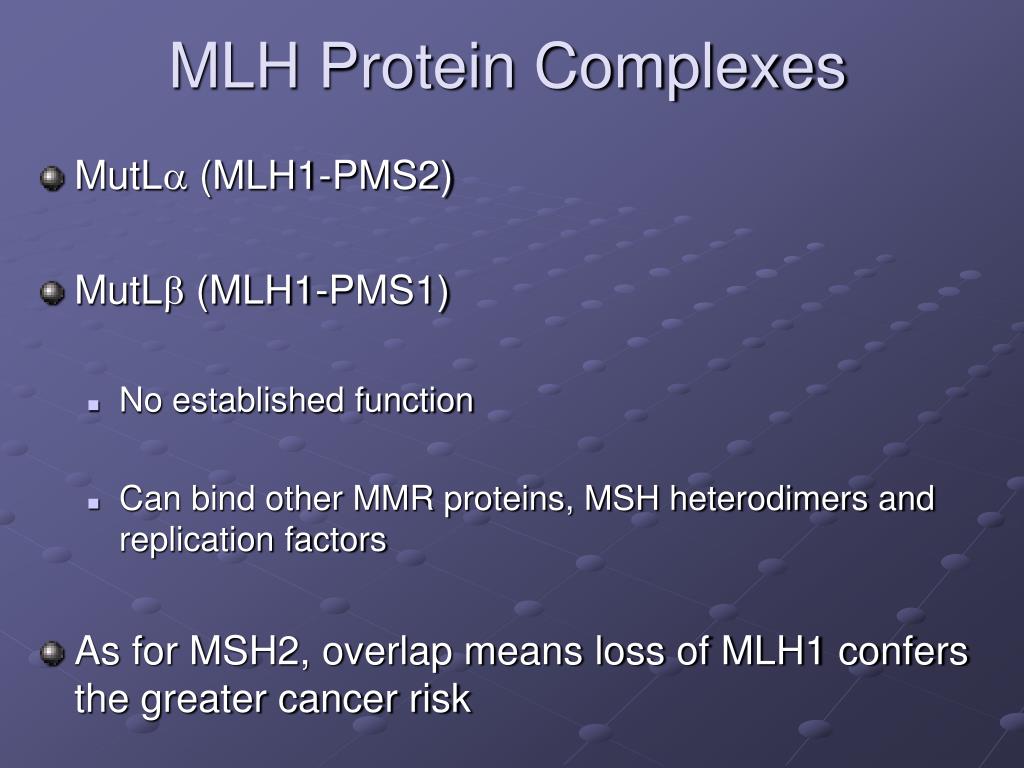

MLH Protein Complexes

  • MutL (MLH1-PMS2)
  • MutL (MLH1-PMS1)
    • No established function
    • Can bind other MMR proteins, MSH heterodimers and replication factors
  • As for MSH2, overlap means loss of MLH1 confers the greater cancer risk

Other MMR Proteins

  • DNA ligase
  • Replication protein A
  • Replication factor C
  • Proliferating Cell Nuclear Antigen
  • Exonucleases
  • DNA polymerase 

Defective Mismatch Repair

  • Defects in MMR Genes and Function
  • Microsatellite Instability
  • Cancer development

Defects in MMR Genes

  • Control sequences  Nonexpression
  • Premature stop codon  Truncated protein
  • Point mutations  Altered sequence
  • Insertions/Deletions  Frameshift effects
  • Somatic loss of second allele

Microsatellite Instability

  • Simple nucleotide repeat sequences
  • Length should be stable at any one locus
  • Poly-A and poly-CA repeat sequences particularly prone to mismatch errors
  • Alterations in length are a sign of deficient mismatch repair
  • Also called RER (Replication ERror)

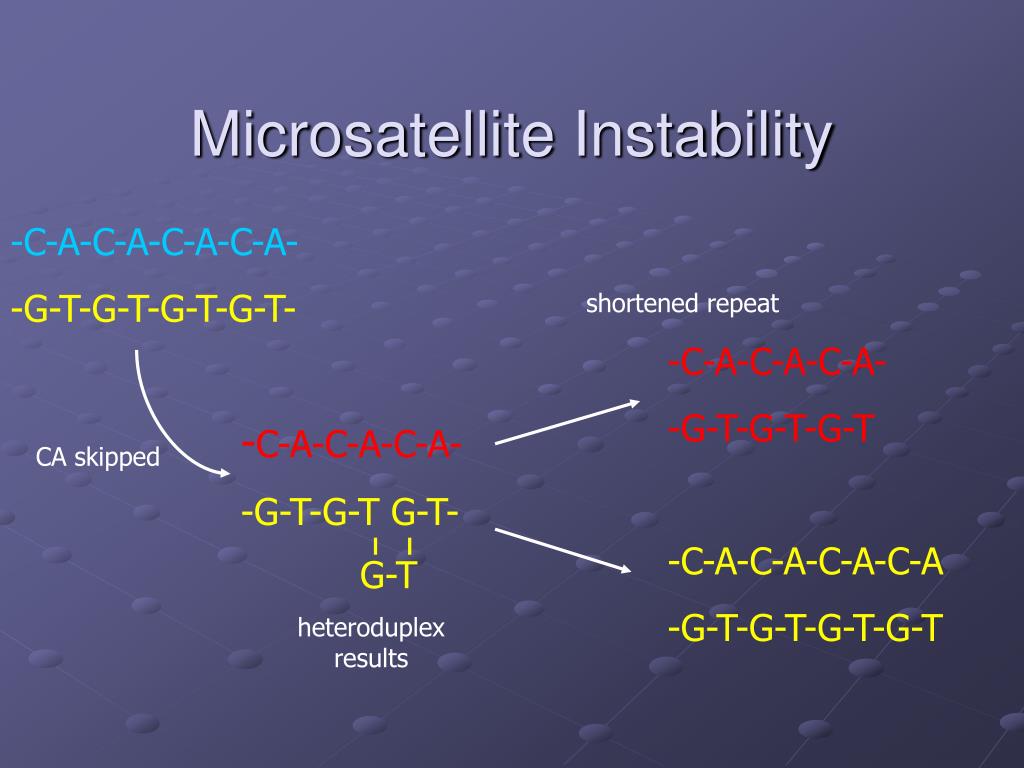

Microsatellite Instability



shortened repeat






-G-T-G-T G-T-

CA skipped


heteroduplex results

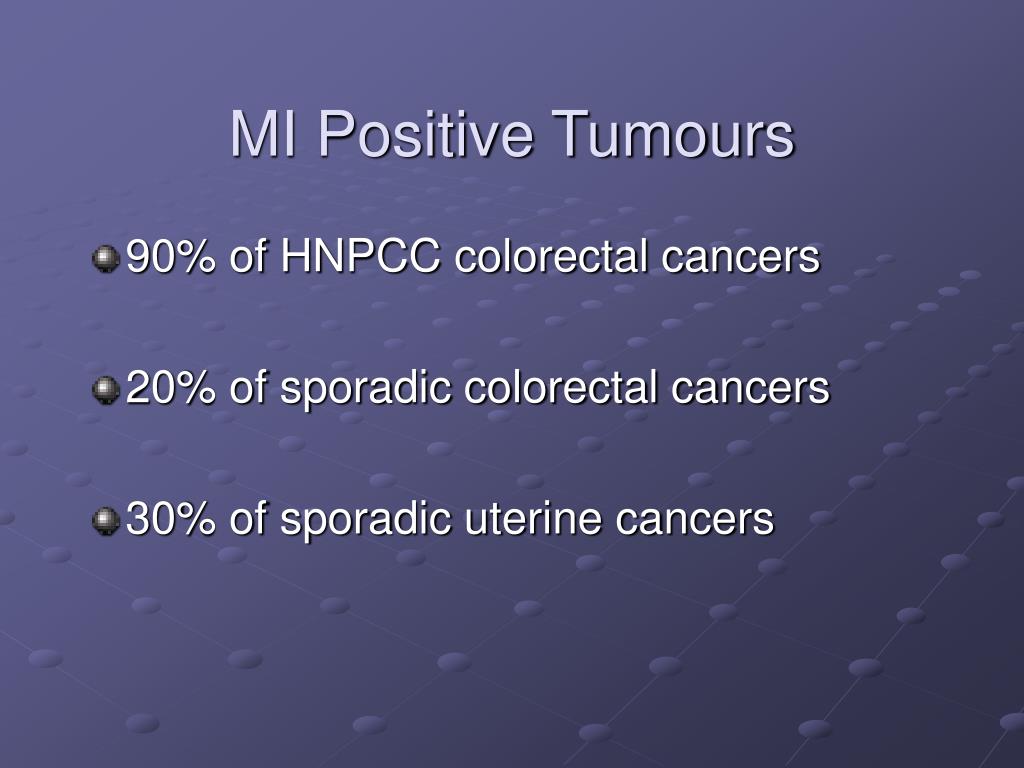

MI Positive Tumours

  • 90% of HNPCC colorectal cancers
  • 20% of sporadic colorectal cancers
  • 30% of sporadic uterine cancers

Cancer Development

  • Activation of Oncogenes
  • Inactivation of Tumour Suppressor Genes
  • Repeat sequences are common in both of these classes of gene
  • Susceptible to mutation

Cancer Genes

  • Cell Cycle Control
  • Cellular differentiation
  • Cell Death
  • Other Genes


  • Inherited mutations of MMR genes lead to high relative and absolute risk of cancer
  • Colorectal and endometrial cancers
  • Cancer at early age
  • High risk of further cancers
  • Identification of families and individuals
    • Amsterdam criteria
amsterdam criteria
Amsterdam criteria
  • One patient should be a first degree relative of the other two
  • At least two successive generations should be affected
  • At least one tumor should be diagnosed <50 years of age
  • Tumors should be verified by histopathology

How to distinguish the mother and daughter strands

  • Strands are methylated at GATC sequences on A

What happens when mismatch repair fails in humans?

  • Missing enzymes homologous to MutS and MutL
  • Patients usually die by age 30
  • Disease: hereditary nonpolyposis colorectal cancer (HPCC)
  • 1 in 200 people affected
excision repair in eukaryotes1
Excision Repair in Eukaryotes
  • Mechanism responsible for most of the DNA repair in eukaryotes
  • Damaged or incorrect bases are excised from the DNA and replaced with the correct nucleotide
  • 5-step pathway
base excision repair
Base excision repair
  • Base excision involves removal of DNA damage such as:
    • Deaminated bases
    • Alkylated or oxidized bases
    • Bases with open rings
    • Apurinic/apyrimidinic sites
  • Pathway removes the types of DNA damage that occur spontaneously in all living cells
steps in excision repair
Steps in excision repair
  • Damage recognition
  • Incision of the lesion containing the DNA strand on both sides of the lesion
  • Excision of the damaged nucleotide(s)
  • Synthesis of new DNA by a DNA polymerase using the complementary strand as template
  • Ligation

Direct repair (Nucleotide excision repair)

  • Pyrimidine dimers
    • Repaired only in the presence of light
    • Requires a DNA photolyase enzyme
  • M6Guanine
    • Requires a methyl transferase

Chemically modified bases, such as thymine-thymine dimers, are corrected by nucleotide excision repair


DNA damage and repair and the role in carcinogenesis

  • A DNA sequence can be changed by copying errors introduced by DNA polymerase during replication and by environmental agents such as chemical mutagens or radiation
  • If uncorrected, such changes may interfere with the ability of the cell to function
  • DNA damage can be repaired by several mechanisms
  • All carcinogens cause changes in the DNA sequence and thus DNA damage and repair are important aspects in the development of cancer
  • Prokaryotic and eukaryotic DNA-repair systems are analogous

Chemical carcinogens react with DNA directly or after activation, and the carcinogenic effect of a chemical correlates with its mutagenicity


Mutations in the DNA repair machinery

  • Almost all mutations in genes encoding repair proteins are lethal
  • There are a few rare exceptions to this and the best characterized is Xeroderma pigmentosa

Xeroderma pigmentosa

  • Rare skin disease in humans
  • Patients are very sensitive to sunlight
  • Usually they develop skin cancer and die before the age of 30
  • Frequent neurological abnormalities

Distribution of Xeroderma pigmentosa

  • 1 in 100,000 in Europe and the US
  • 1 in 40,000 in Japan

What causes Xeroderma pigmentosa?

  • Autosomal recessive trait
  • Fibroblasts from patients are unable to excise pyrimidine dimers
  • In one case, cells were missing the endonuclease activity
  • Mutations in seven other genes will cause the same effect

Mutations and Cancer

What is the evidence that many cancers arise from mutations -- usually multiple mutations?

  • Cancers are common in animals with damaged DNA repair machinery
  • Most cancers arise as clones of a single cell
  • Mutagens are carcinogenic
  • Most carcinogens are also mutagenic
