  1. APPROACH TO WIDE QRS COMPLEX TACHYCARDIA Dr HA TUAN KHANH Dr DAVID TRAN

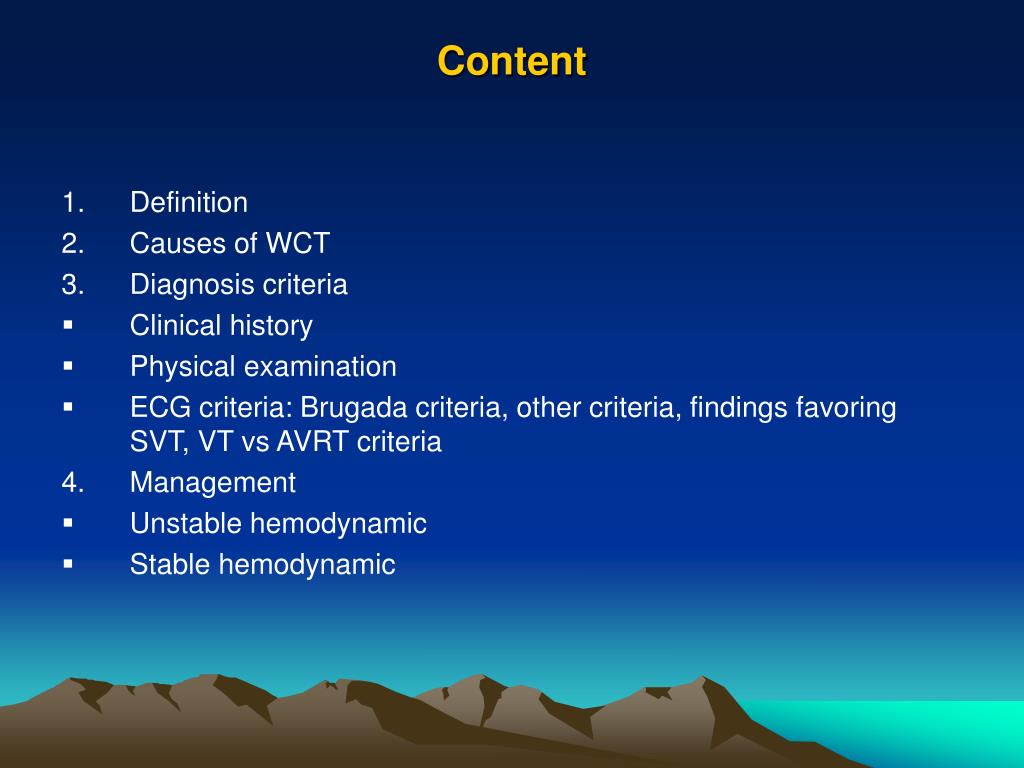

  2. Content • Definition • Causes of WCT • Diagnosis criteria • Clinical history • Physical examination • ECG criteria: Brugada criteria, other criteria, findings favoring SVT, VT vs AVRT criteria • Management • Unstable hemodynamic • Stable hemodynamic

  3. Definition Wide QRS complex tachycardia is a rhythm with a rate of more than 100 b/m and QRS duration of more than 120 ms SVT (20%) VT (80%) Stewart RB. Ann Intern Med 1986

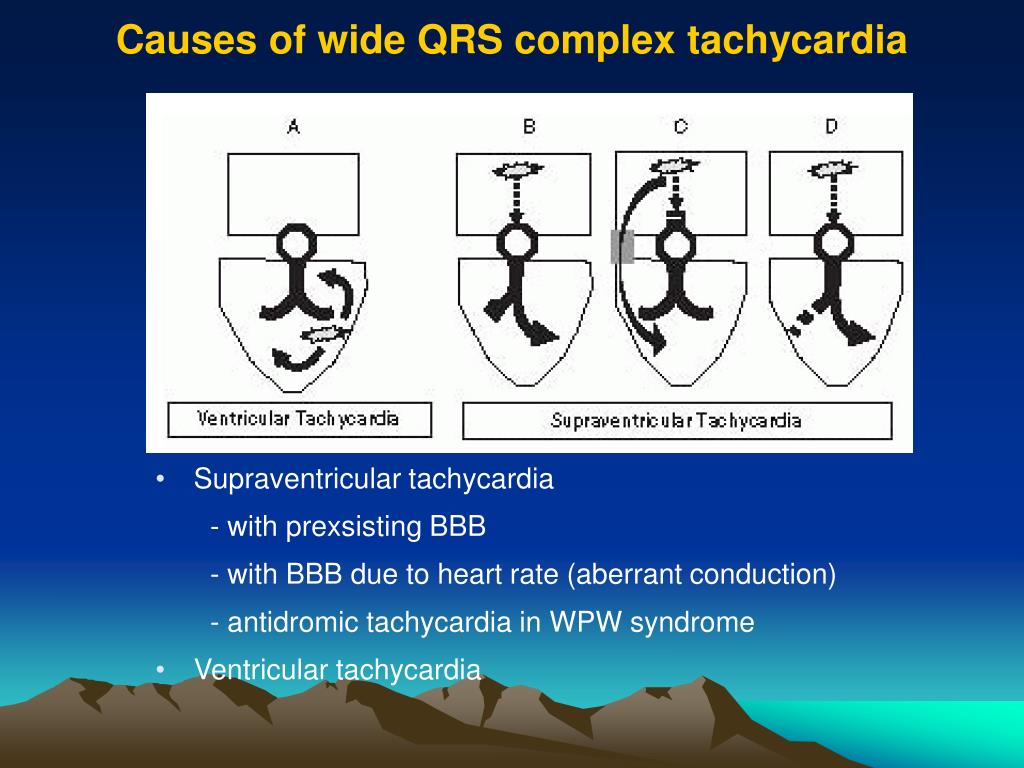

  4. Causes of wide QRS complex tachycardia • Supraventricular tachycardia - with prexsisting BBB - with BBB due to heart rate (aberrant conduction) - antidromic tachycardia in WPW syndrome • Ventricular tachycardia

  5. SVT vs VT Clinical history

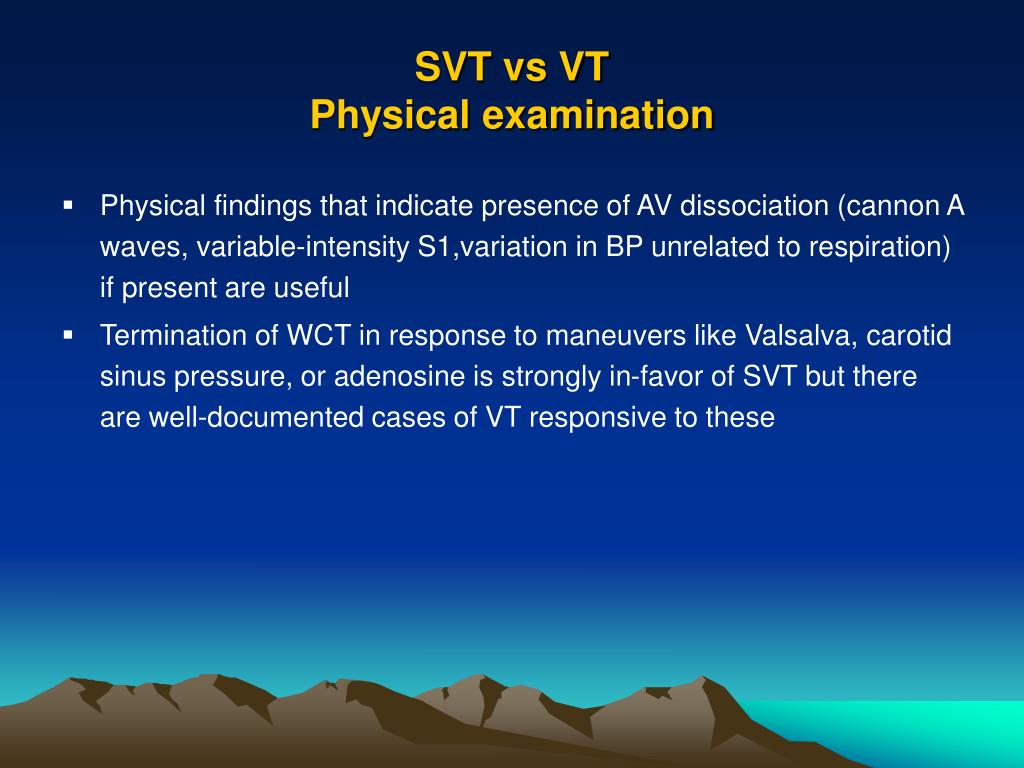

  6. SVT vs VTPhysical examination • Physical findings that indicate presence of AV dissociation (cannon A waves, variable-intensity S1,variation in BP unrelated to respiration) if present are useful • Termination of WCT in response to maneuvers like Valsalva, carotid sinus pressure, or adenosine is strongly in-favor of SVT but there are well-documented cases of VT responsive to these

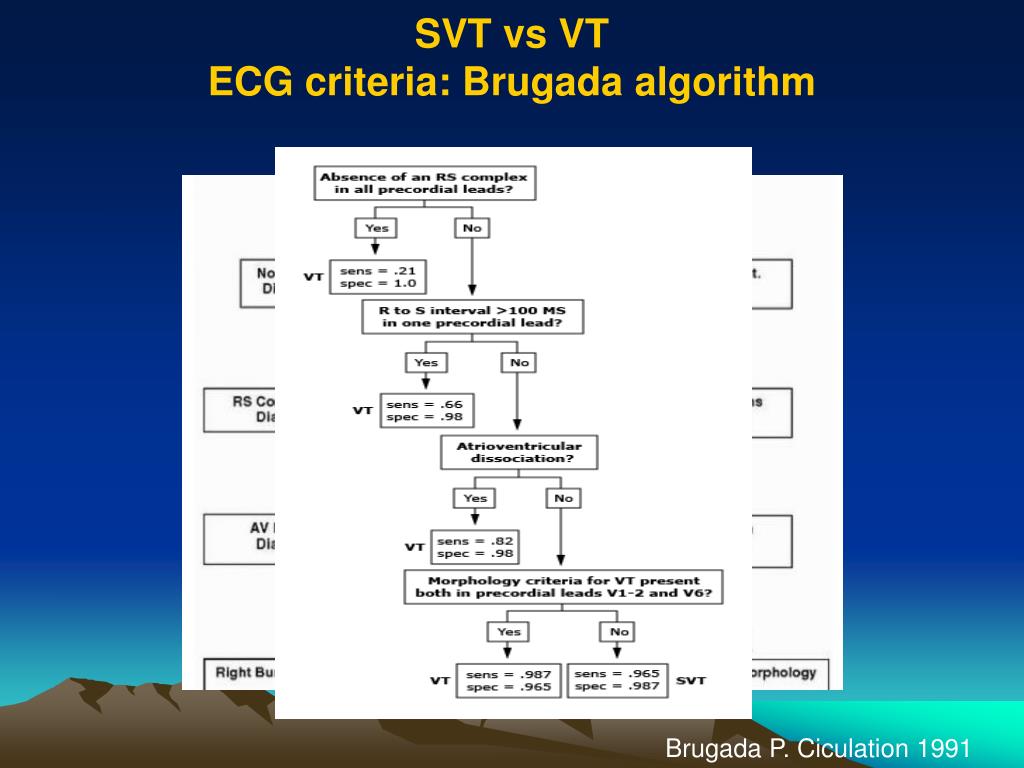

  7. SVT vs VTECG criteria: Brugada algorithm Brugada P. Ciculation 1991

  8. Step 1

  9. Step 2

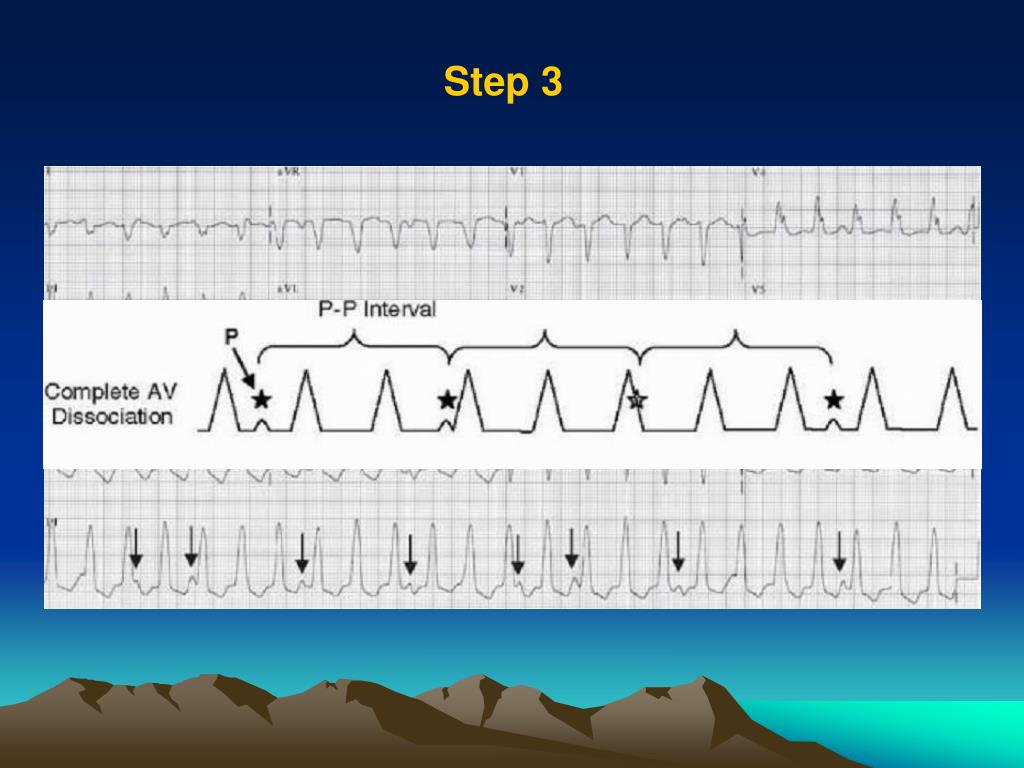

  10. Step 3

  11. Step 4: LBBB - type wide QRS complex VT SVT R wave >40ms notching of S wave small R wave V1 fast downslope of S wave > 70ms Q wave V6 no Q wave

  12. Step 4: RBBB - type wide QRS complex VT SVT qR (or Rs) complex monophasic R wave rSR’ configuration V1 or R/S > 1 R/S ratio < 1 QS complex V6 or

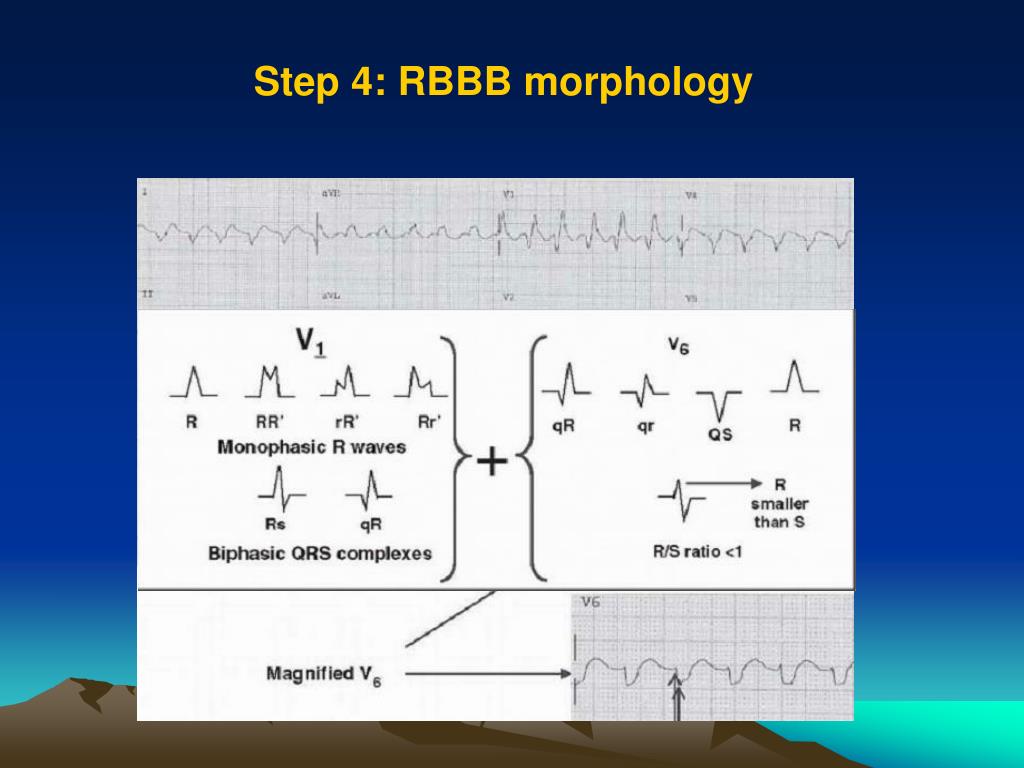

  13. Step 4: RBBB morphology

  14. Step 4: LBBB morphology

  15. Other ECG criteria • North - west QRS axis deviation • Negative or positive concordance • Fusion beats, capture beats • Ventriculoatrial conduction with block • RBBB morphology with LAD > - 300 • LBBB morphology with RAD > + 900 • Previous ECG show MI or previous ECG show that during sinus rhythm, bifascular block is present, which changes in configuration during tachycardia

  16. Concordance and Northwest Axis

  17. Fusion beat and capture beat

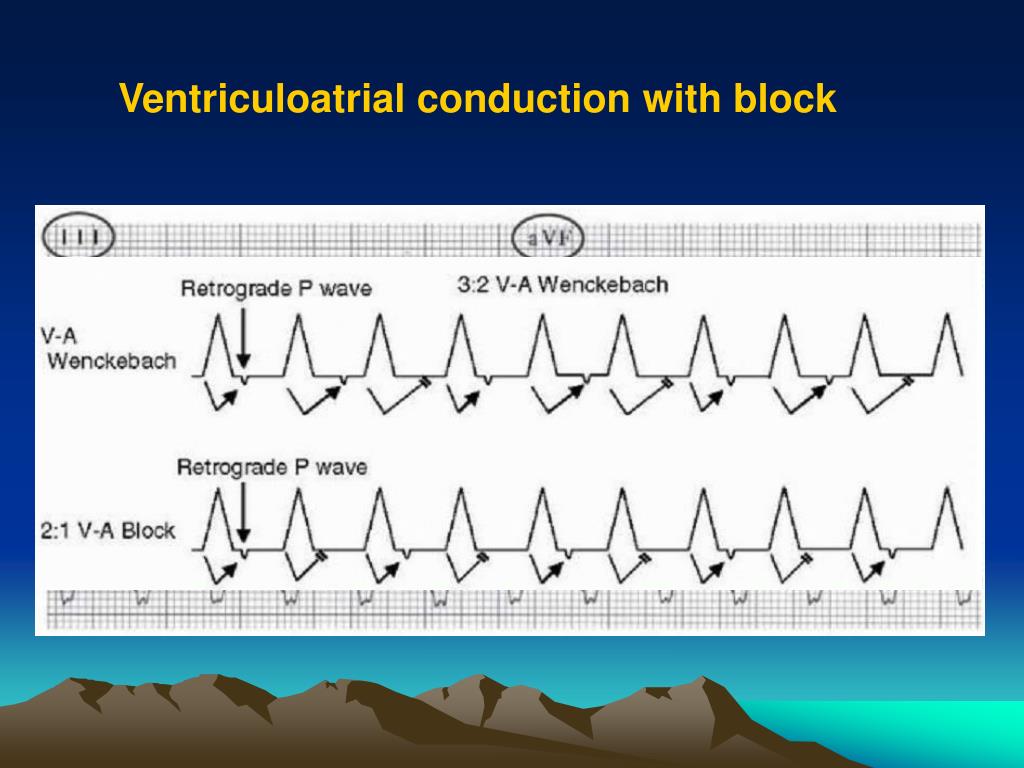

  18. Ventriculoatrial conduction with block

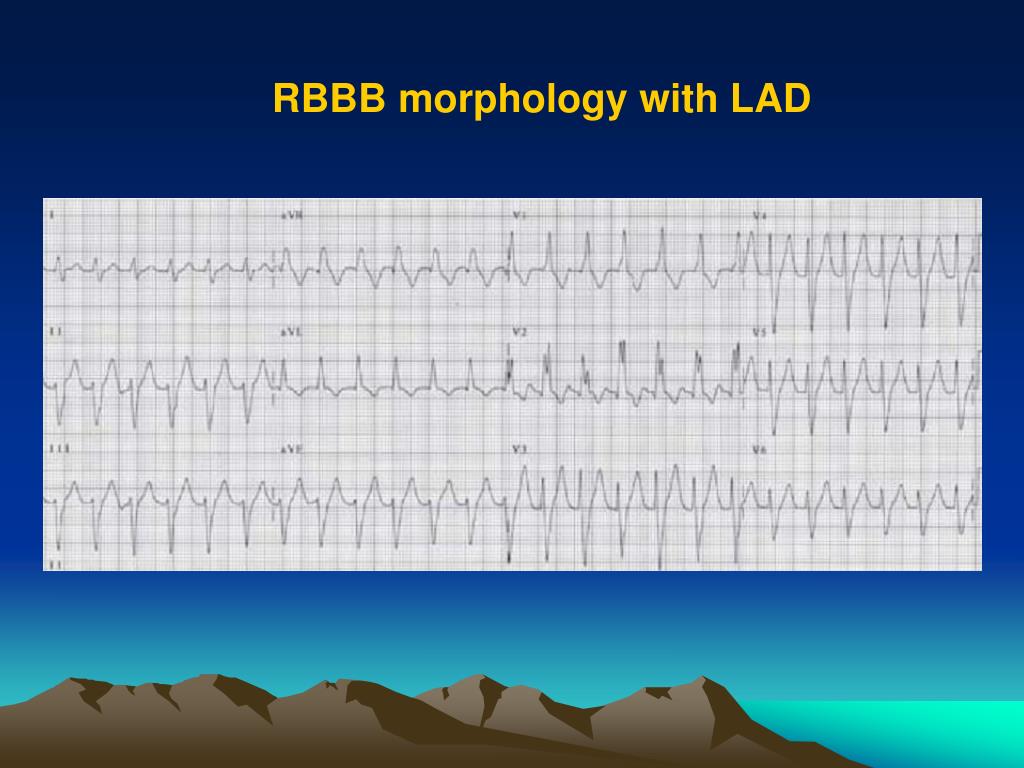

  19. RBBB morphology with LAD

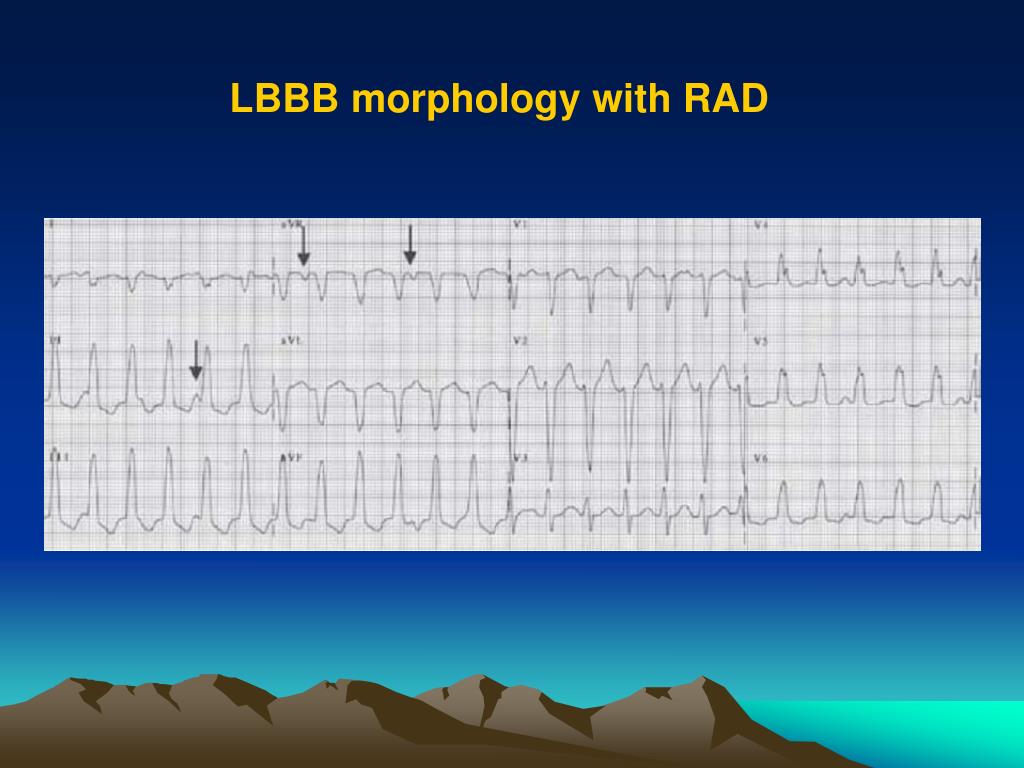

  20. LBBB morphology with RAD

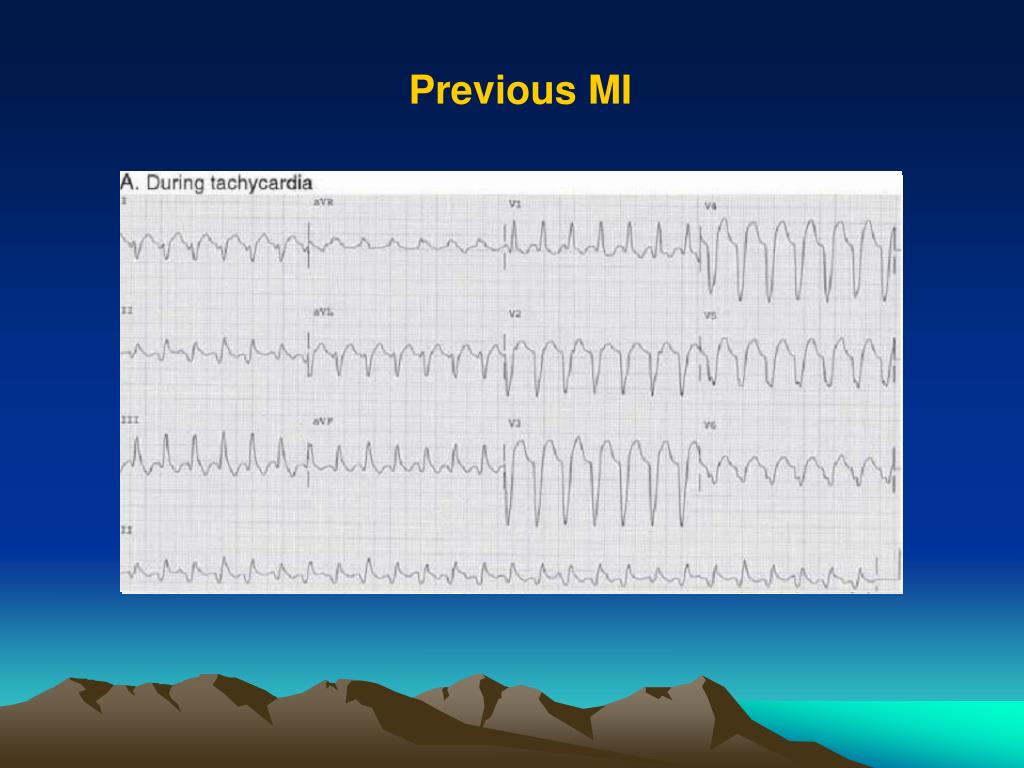

  21. Previous MI

  22. Previous LBBB

  23. Findings favoring SVT • Triphasic pattern in V1 and V6 • Rabbit’s ear • Previous ECG: Preexistent BBB or preexcitation

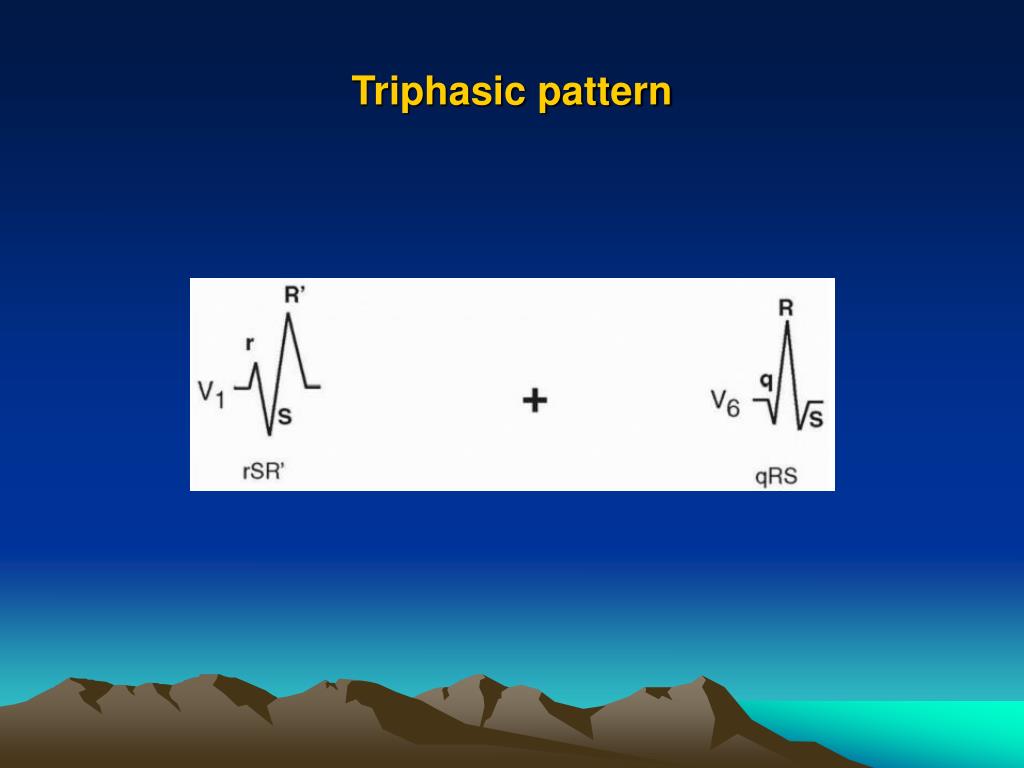

  24. Triphasic pattern

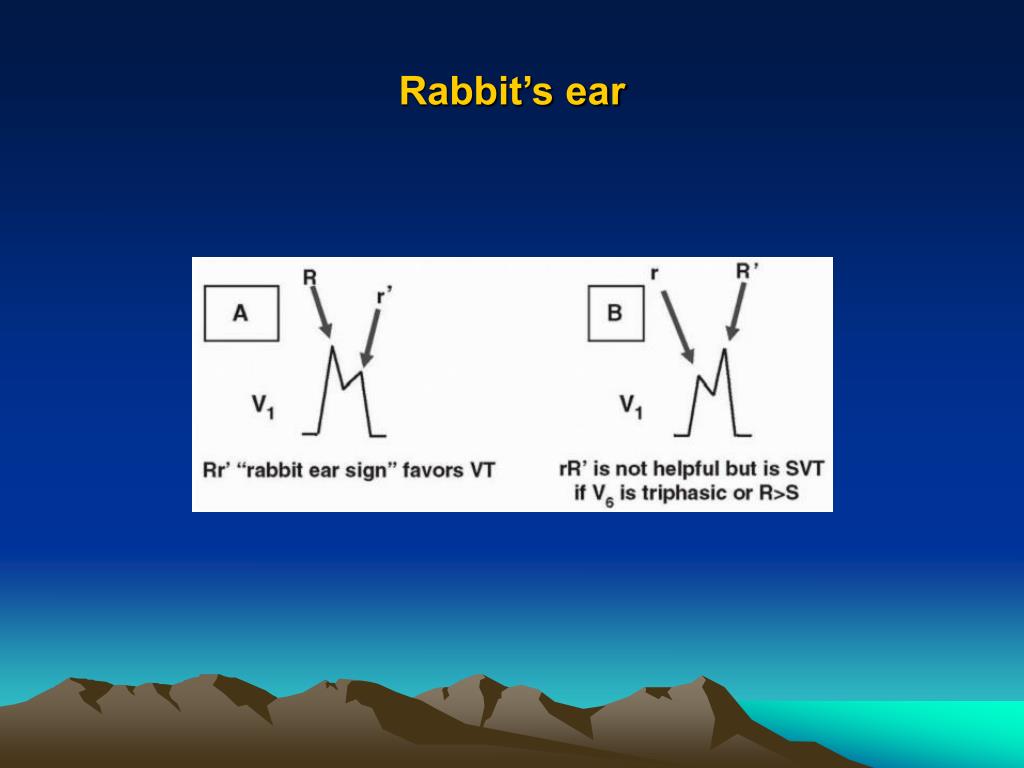

  25. Rabbit’s ear

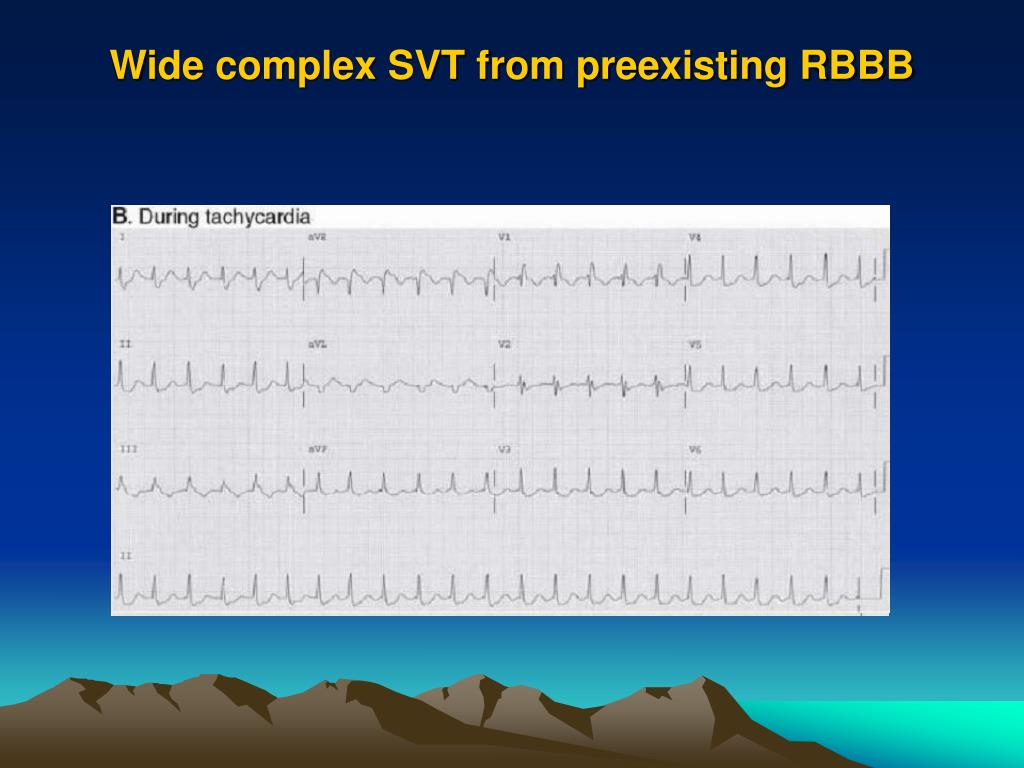

  26. Wide complex SVT from preexisting RBBB

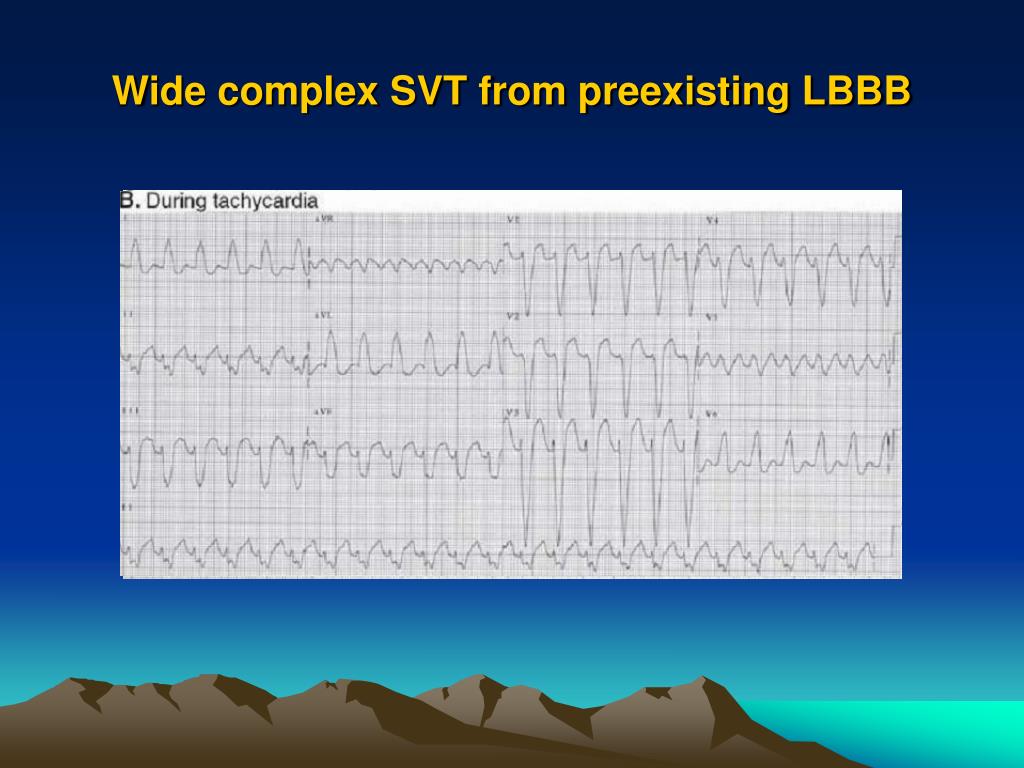

  27. Wide complex SVT from preexisting LBBB

  28. VT vs AVRTECG criteria Brugada P. Ciculation 1991

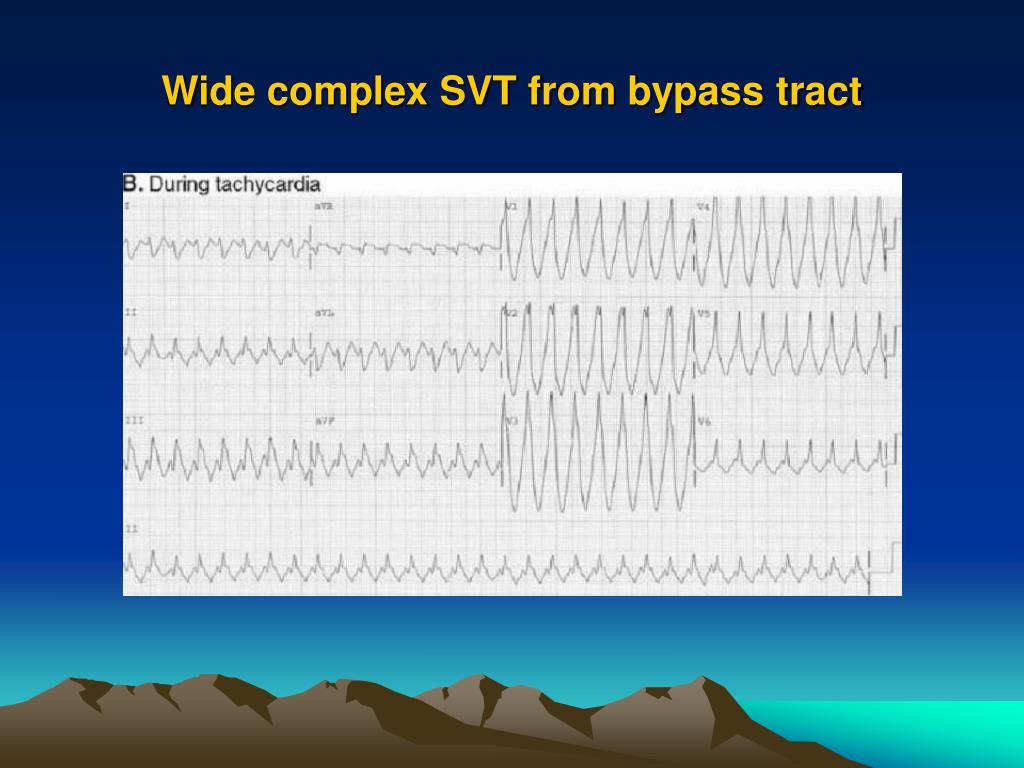

  29. Wide complex SVT from bypass tract

  30. Summary : diagnosis evaluation ACC/AHA/ESC guidelines for management of pt with SVT. Circulation 2003

  31. Management – Hemodynamic compromise • Unstable patient, but still responsible with a discernible BP and/or pulse: - Emergent synchronized cardioversion - If the QRS complex and T wave cannot be distinguished accurately → immediate defibrillation • Unstable patient, unresponsive or pulseless → standard ACLS resusciation algorithms

  32. ACLS pulseless arrest algorithm AHA Guidelines for Cardiopulmonary Resuscitation and Emergency Cardiovascular Care. Ciurculation 2005

  33. Management – Stable hemodynamic • VT or WCT of uncertain etiology: • Any associated conditions (cardiac ischemia, heart failure, electrolyte abnormalities or drug toxicities) • Class I and III antiarrhythmic drugs - Amiodarone: 150mg IV/10mins followed by an infusion of 1mg/min for 6 hours, then 0,5mg/min - Procainamide: 15-18mg/kg infusion over 25-30mins, followed by 1-4mg/min by continuous infusion - Lidocaine: 1-1,5mg/kg IV/2-3mins followed by an infusion of 1-4mg/min • Urgent or elective cardioversion

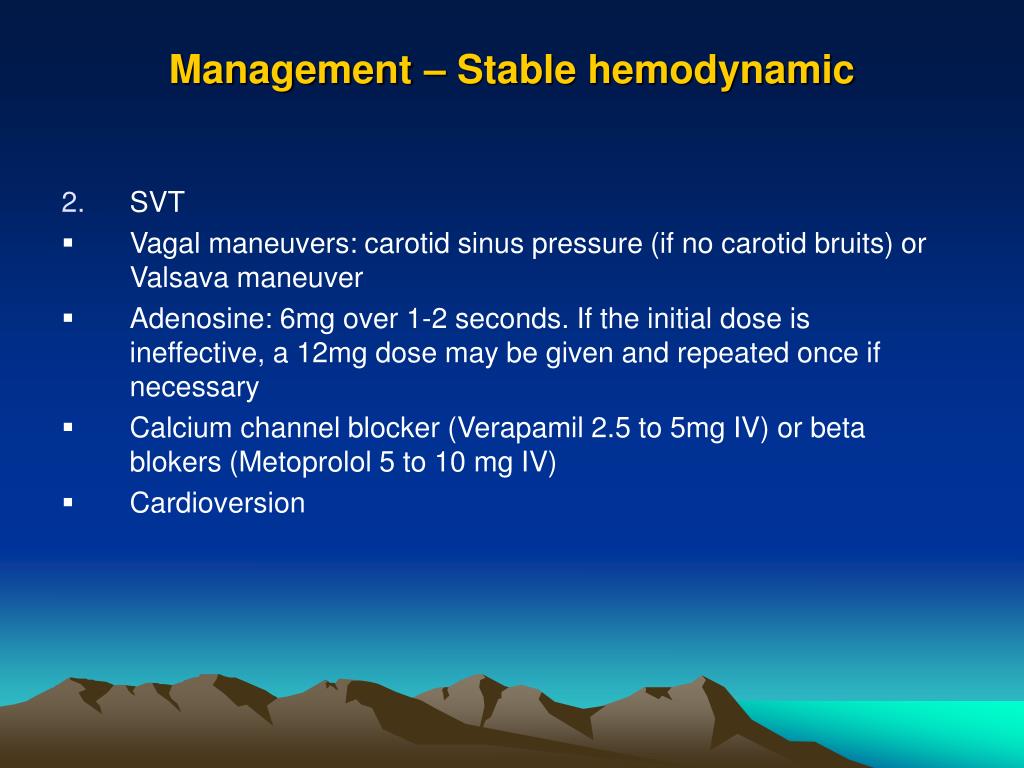

  34. Management – Stable hemodynamic • SVT • Vagal maneuvers: carotid sinus pressure (if no carotid bruits) or Valsava maneuver • Adenosine: 6mg over 1-2 seconds. If the initial dose is ineffective, a 12mg dose may be given and repeated once if necessary • Calcium channel blocker (Verapamil 2.5 to 5mg IV) or beta blokers (Metoprolol 5 to 10 mg IV) • Cardioversion

  35. Acute management hemodynamically stable and regular tachycardia ACC/AHA/ESC guidelines for management of pt with SVT. Circulation 2003

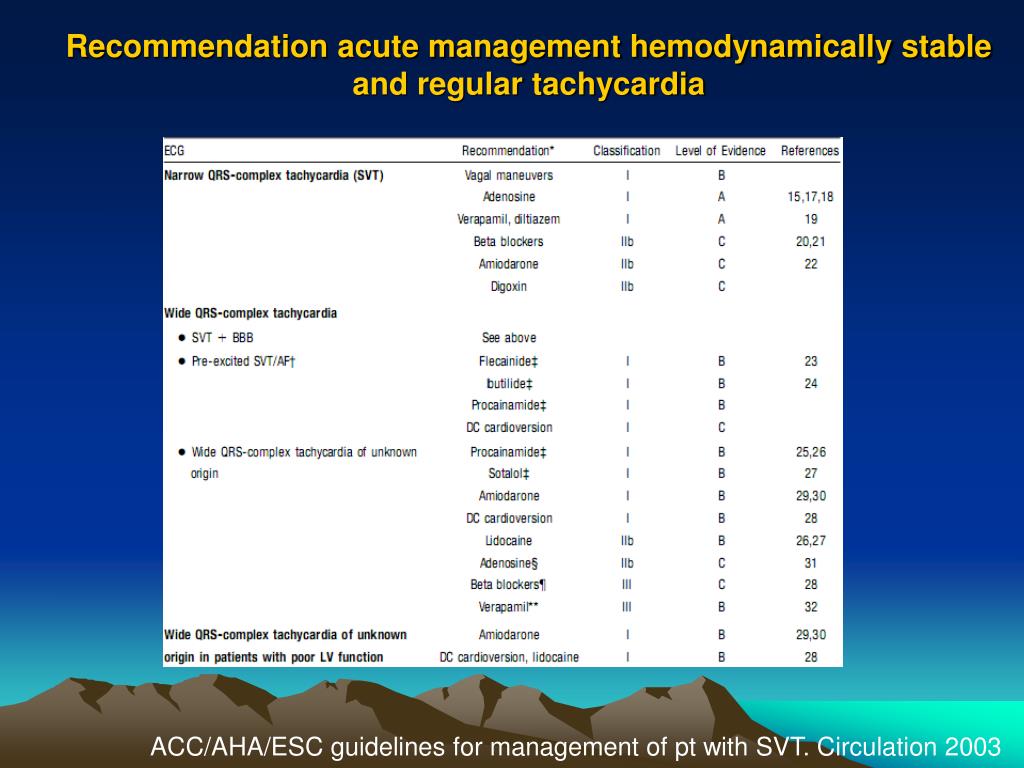

  36. Recommendation acute management hemodynamically stable and regular tachycardia ACC/AHA/ESC guidelines for management of pt with SVT. Circulation 2003

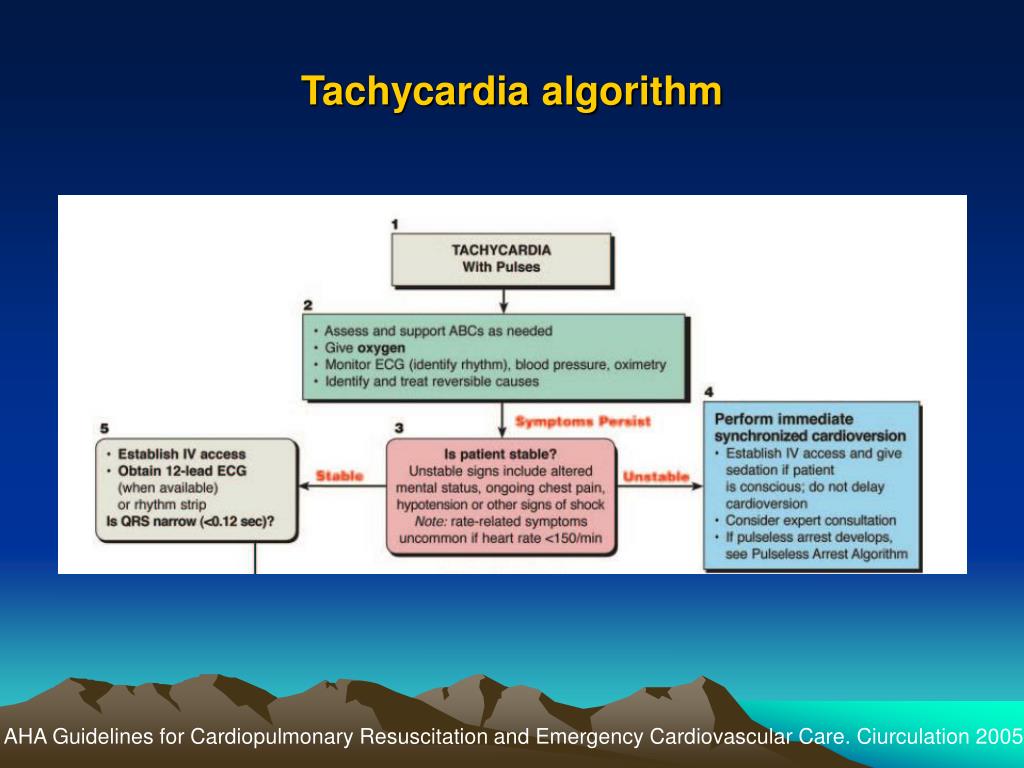

  37. Tachycardia algorithm AHA Guidelines for Cardiopulmonary Resuscitation and Emergency Cardiovascular Care. Ciurculation 2005

  38. Tachycardia algorithm

  39. Thank you for your attention
