Understanding Simple Machines: Types and Examples Explained

Simple machines are basic mechanical devices that ease work by reducing effort and modifying force direction. They have few or no moving parts and include six primary types: inclined plane, wedge, screw, lever, pulley, and wheel and axle. Each type has unique applications: an inclined plane includes ramps and stairs; wedges like knives and axes split objects; screws are used in tools and fasteners; levers help lift heavy loads; pulleys change force direction in cranes; the wheel and axle appear in various everyday items. Together, these machines form the foundation for complex machinery.

gyala
Download Presentation

Understanding Simple Machines: Types and Examples Explained

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Simple Machines

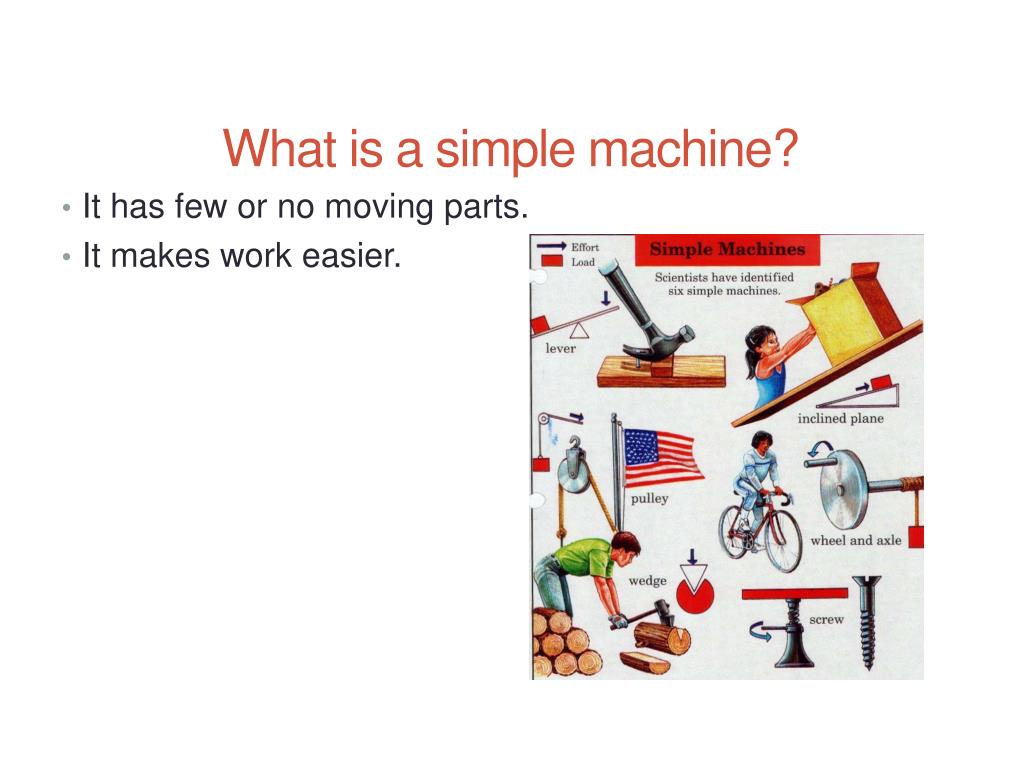

  2. What is a simple machine? • It has few or no moving parts. • It makes work easier.

  3. Types of Simple Machines • Inclined Plane • Wedge • Screw • Lever • Pulley • Wheel and Axle

  4. Inclined Plane – a slanted surface to make lifting easier. Examples: Boat Ramp, Bottom of a bath tub, Stairs, Ladder

  5. Wedge – two inclined planes together, back to back. Usually used to split an object. Examples: knife, ax, zipper, door wedge

  6. Screw – the combination of a wedge at the bottom and an inclined plane around it. Examples: drill bits, screws

  7. Lever – most things with a handle attached; used to lift heavy objects; fulcrum Examples: Seesaw, Crowbar, Rake

  8. Pulley – a wheel with a groove running around it with a rope, cable or chain to change the direction of a force, usually gravity Examples: fishing reel, crane, flag pole, clothes line

  9. Wheel and Axle – a rod or post secured to a wheel Examples: Steering Wheel, Wheel Barrel, Faucet Handle, Door Knob, Fan, Screw Driver

  10. Simple machines can be used together to make complex machinery.
