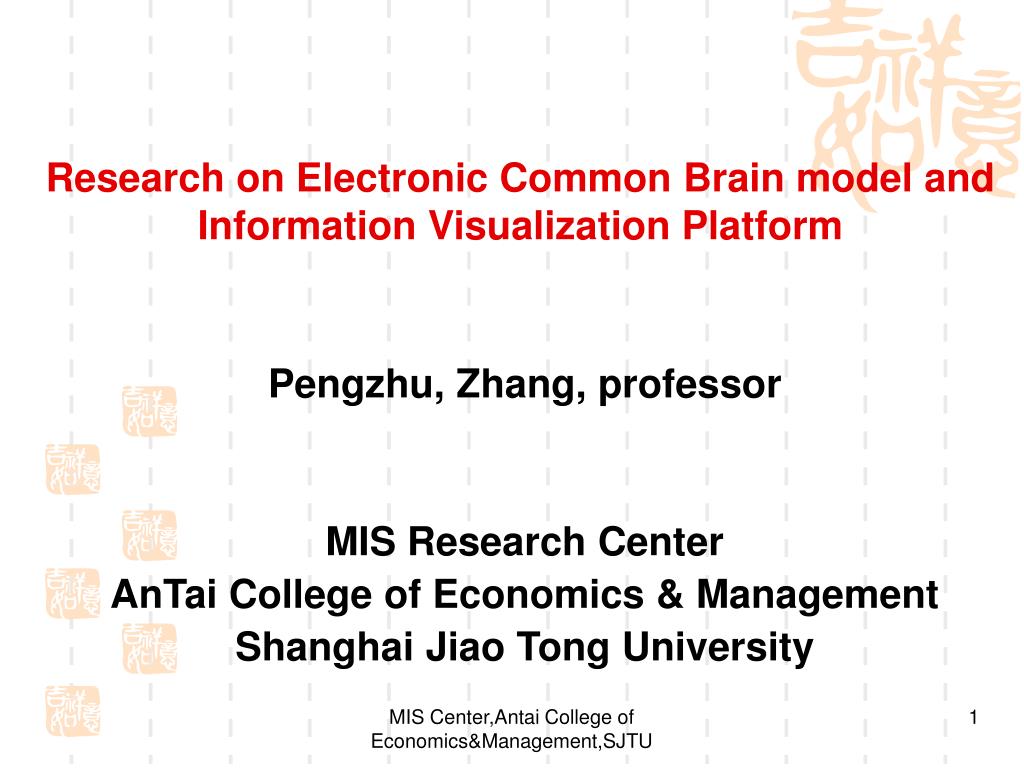

  1. Research on Electronic Common Brain model and Information Visualization Platform Pengzhu, Zhang, professor MIS Research Center AnTai College of Economics & Management Shanghai Jiao Tong University MIS Center,Antai College of Economics&Management,SJTU

  2. Outlines • Open Group Argument Support Platform • Electronic Common Brain: ECB • Argument Platform (Synchronization) • Argument Platform (Asynchronism) • Visualization Research MIS Center,Antai College of Economics&Management,SJTU

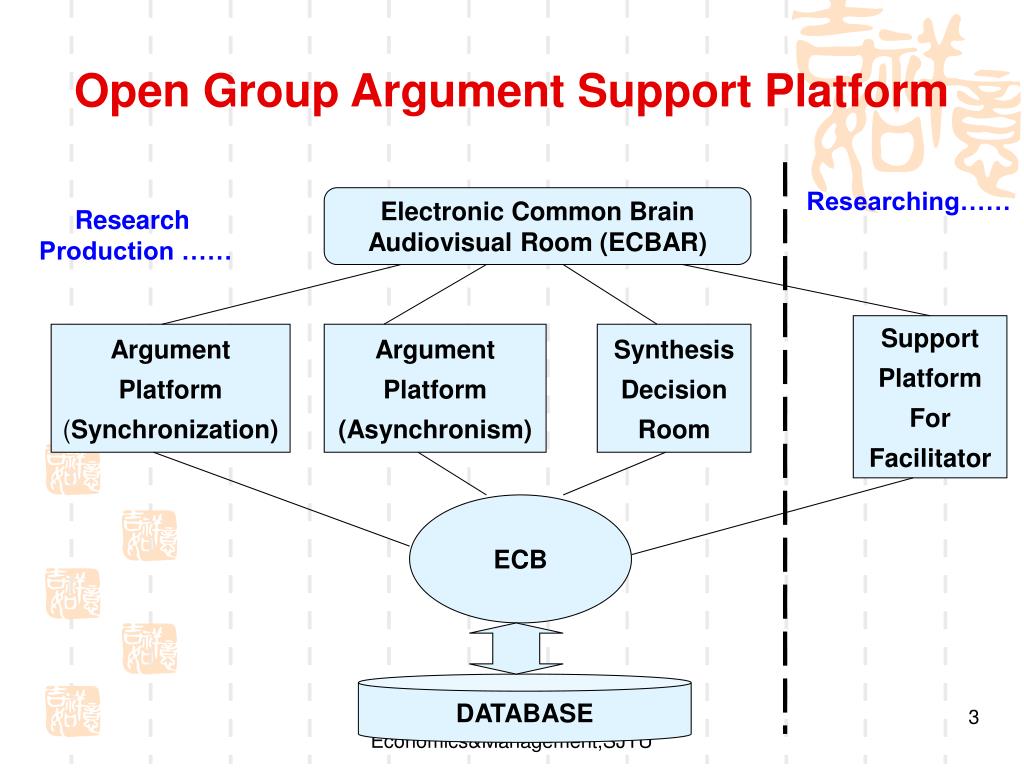

  3. Open Group Argument Support Platform Researching…… Electronic Common Brain Audiovisual Room (ECBAR) Research Production …… Support Platform For Facilitator Argument Platform (Synchronization) Argument Platform (Asynchronism) Synthesis Decision Room ECB DATABASE MIS Center,Antai College of Economics&Management,SJTU

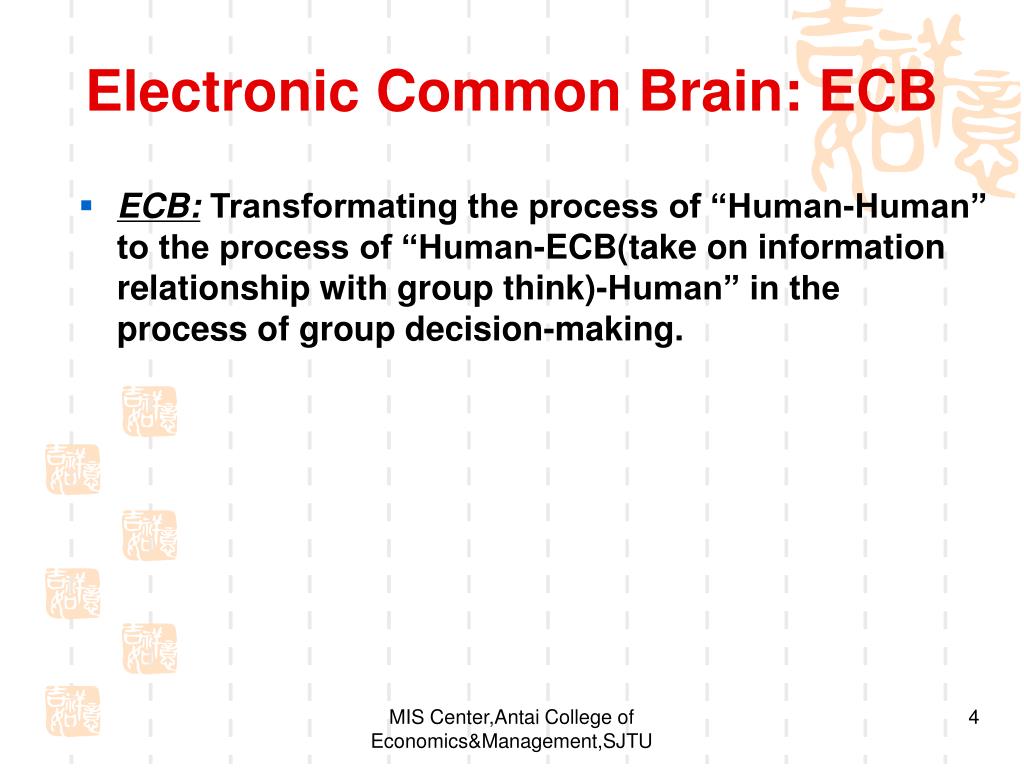

  4. Electronic Common Brain: ECB • ECB: Transformating the process of “Human-Human” to the process of “Human-ECB(take on information relationship with group think)-Human” in the process of group decision-making. MIS Center,Antai College of Economics&Management,SJTU

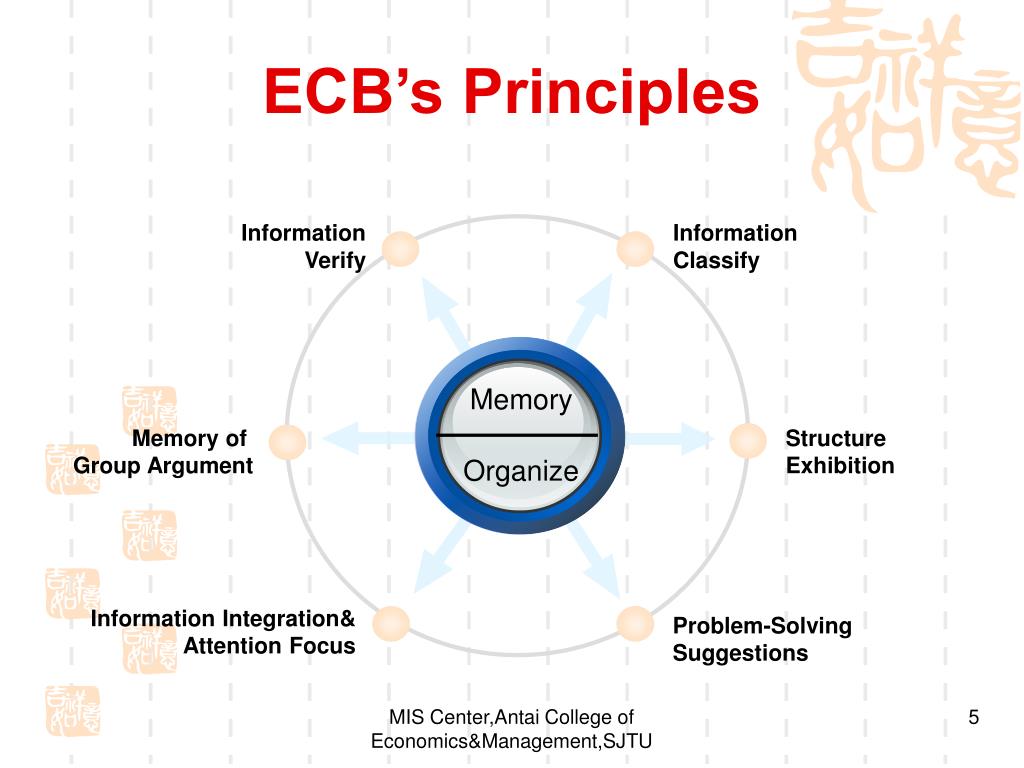

  5. Information Verify Information Classify Memory Memory of Group Argument Structure Exhibition Organize Information Integration& Attention Focus Problem-Solving Suggestions ECB’s Principles MIS Center,Antai College of Economics&Management,SJTU

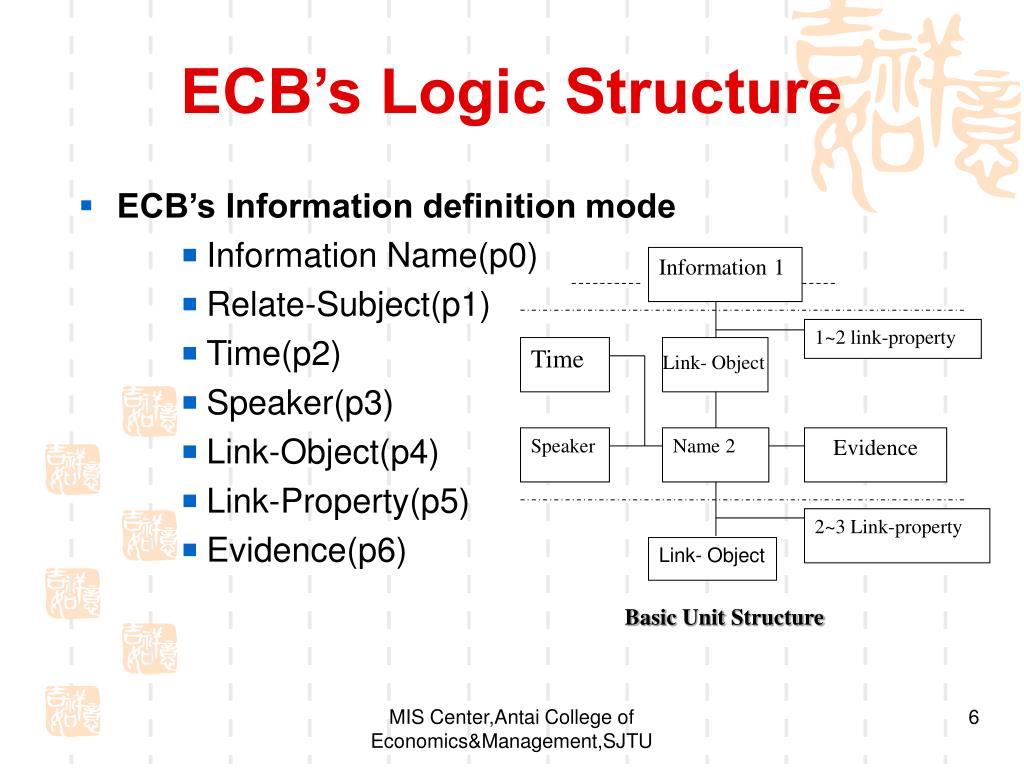

  6. Information 1 1~2 link-property Time Link- Object Speaker Name 2 Evidence 2~3 Link-property Link- Object Basic Unit Structure ECB’s Logic Structure • ECB’s Information definition mode • Information Name(p0) • Relate-Subject(p1) • Time(p2) • Speaker(p3) • Link-Object(p4) • Link-Property(p5) • Evidence(p6) MIS Center,Antai College of Economics&Management,SJTU

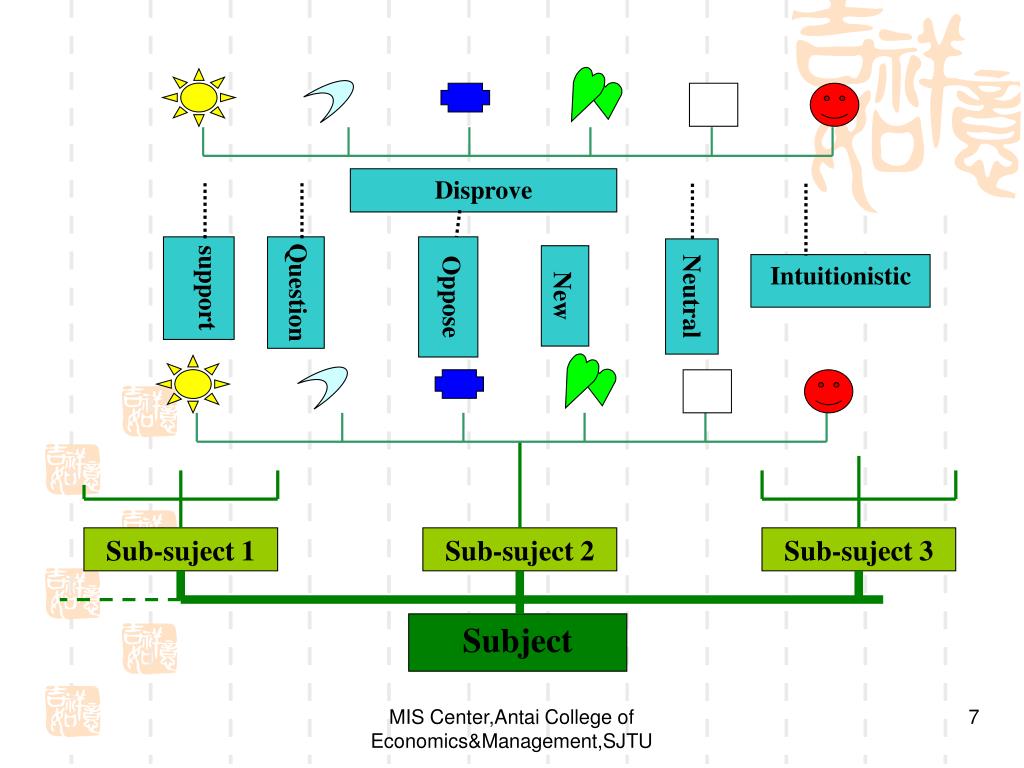

  7. Disprove support Question Oppose Neutral New Intuitionistic Sub-suject 1 Sub-suject 2 Sub-suject 3 Subject MIS Center,Antai College of Economics&Management,SJTU

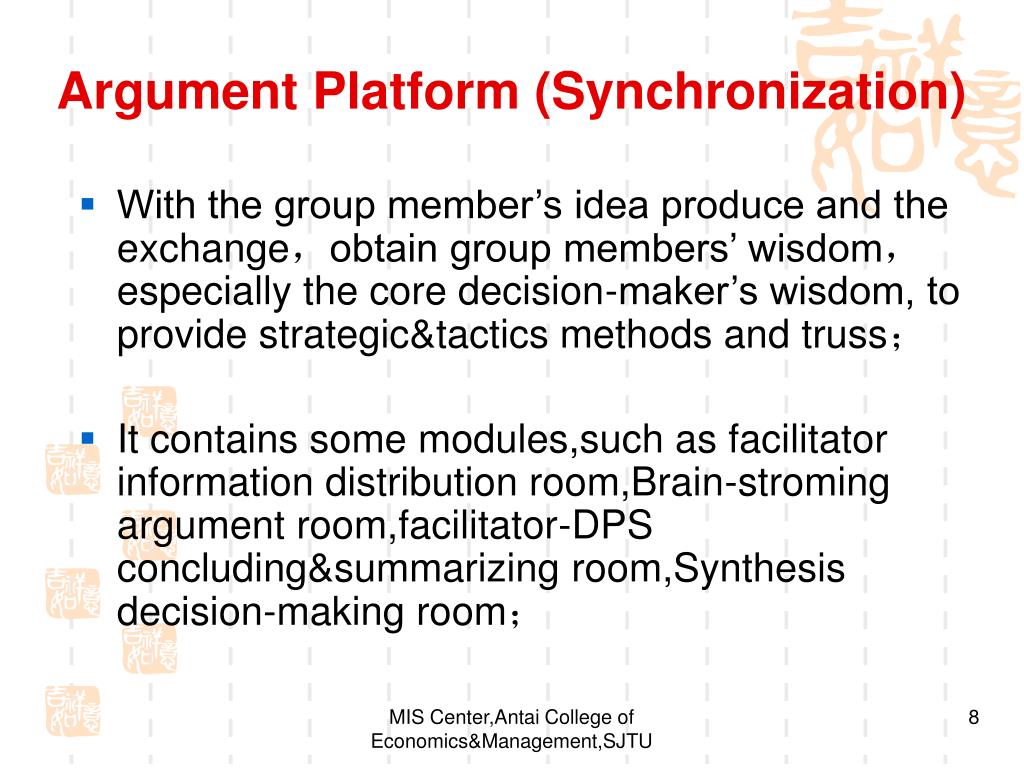

  8. Argument Platform (Synchronization) • With the group member’s idea produce and the exchange，obtain group members’ wisdom，especially the core decision-maker’s wisdom, to provide strategic&tactics methods and truss； • It contains some modules,such as facilitator information distribution room,Brain-stroming argument room,facilitator-DPS concluding&summarizing room,Synthesis decision-making room； MIS Center,Antai College of Economics&Management,SJTU

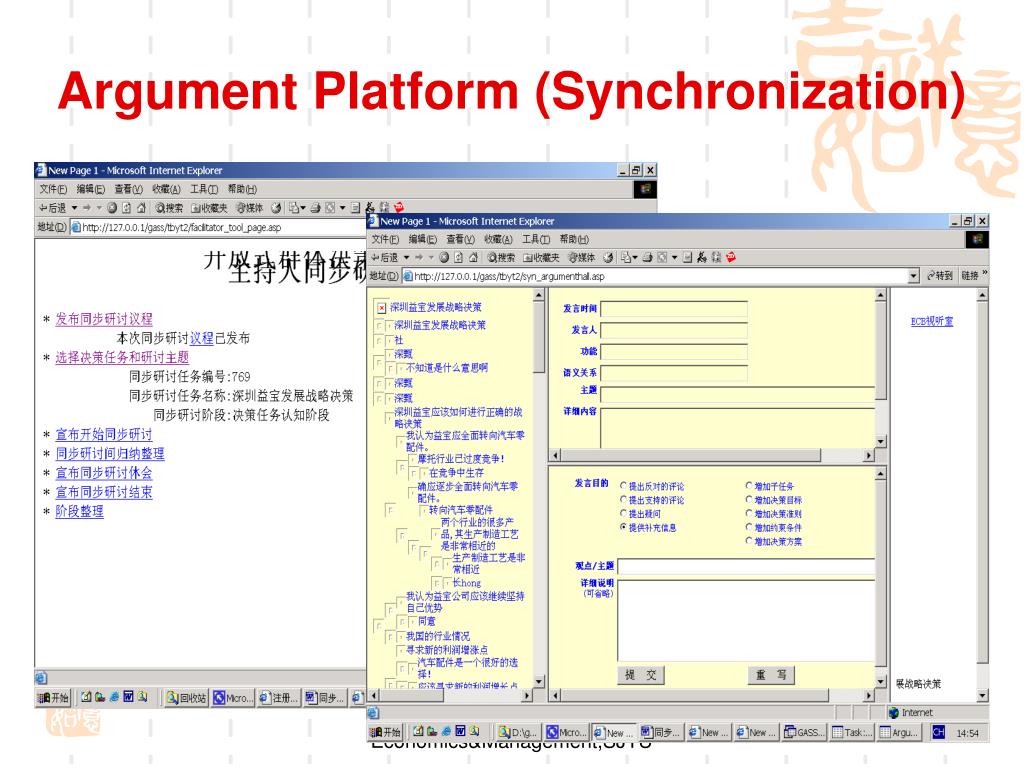

  9. Argument Platform (Synchronization) MIS Center,Antai College of Economics&Management,SJTU

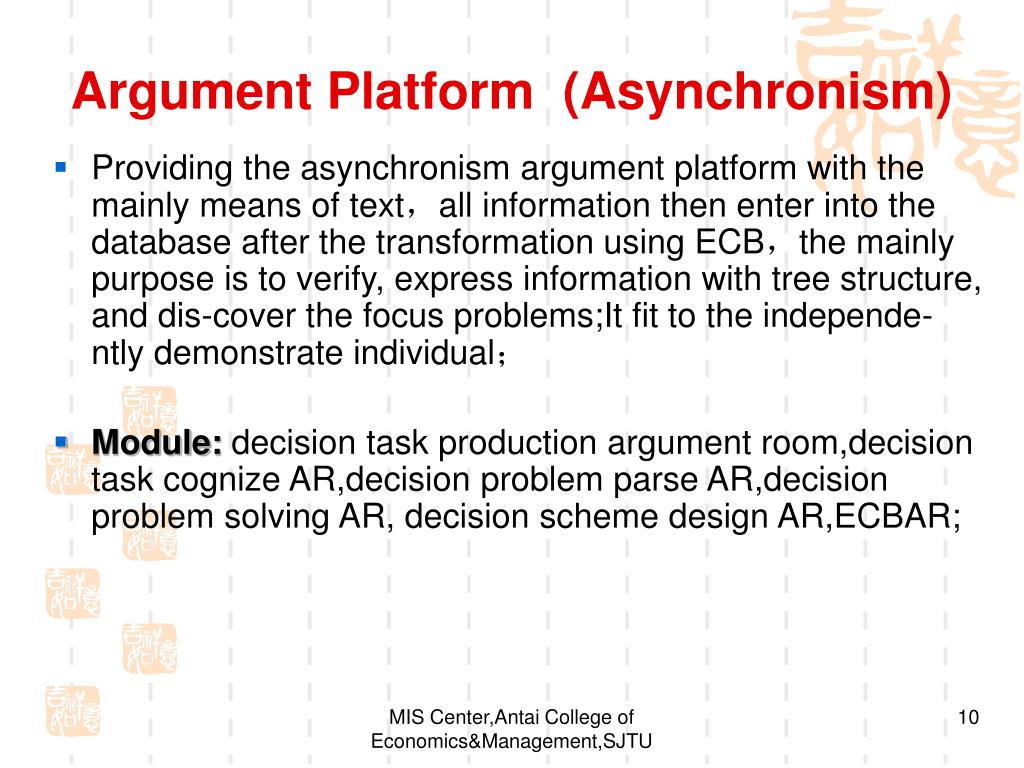

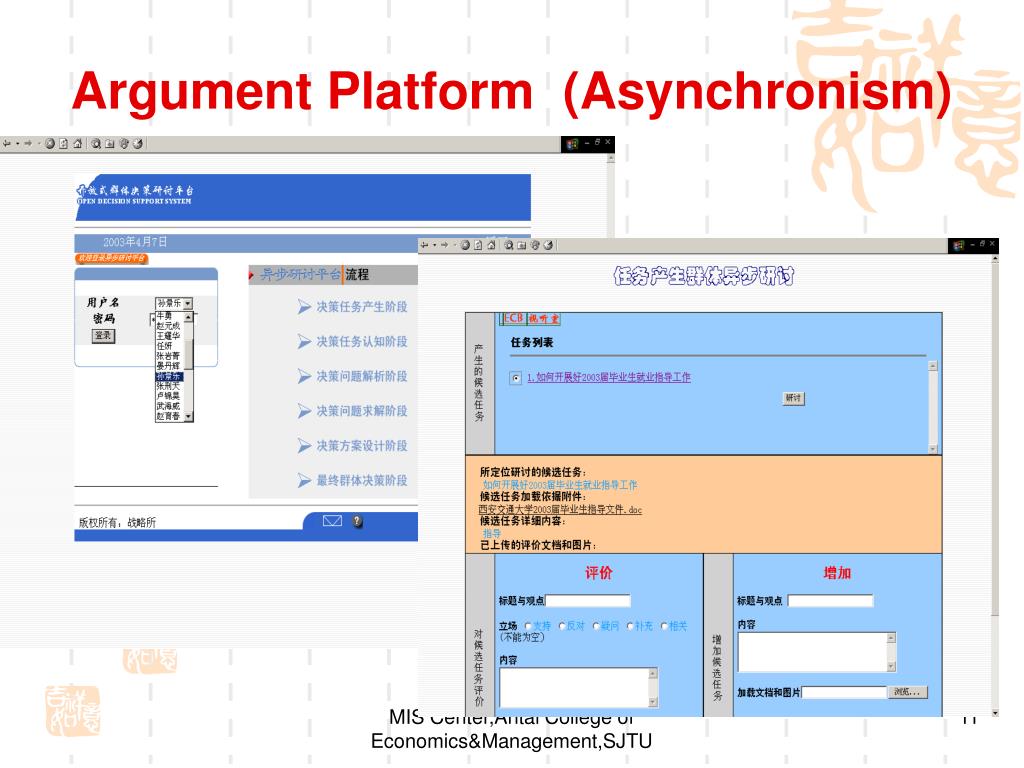

  10. Argument Platform (Asynchronism) • Providing the asynchronism argument platform with the mainly means of text，all information then enter into the database after the transformation using ECB，the mainly purpose is to verify, express information with tree structure, and dis-cover the focus problems;It fit to the independe- ntly demonstrate individual； • Module: decision task production argument room,decision task cognize AR,decision problem parse AR,decision problem solving AR, decision scheme design AR,ECBAR; MIS Center,Antai College of Economics&Management,SJTU

  11. Argument Platform (Asynchronism) MIS Center,Antai College of Economics&Management,SJTU

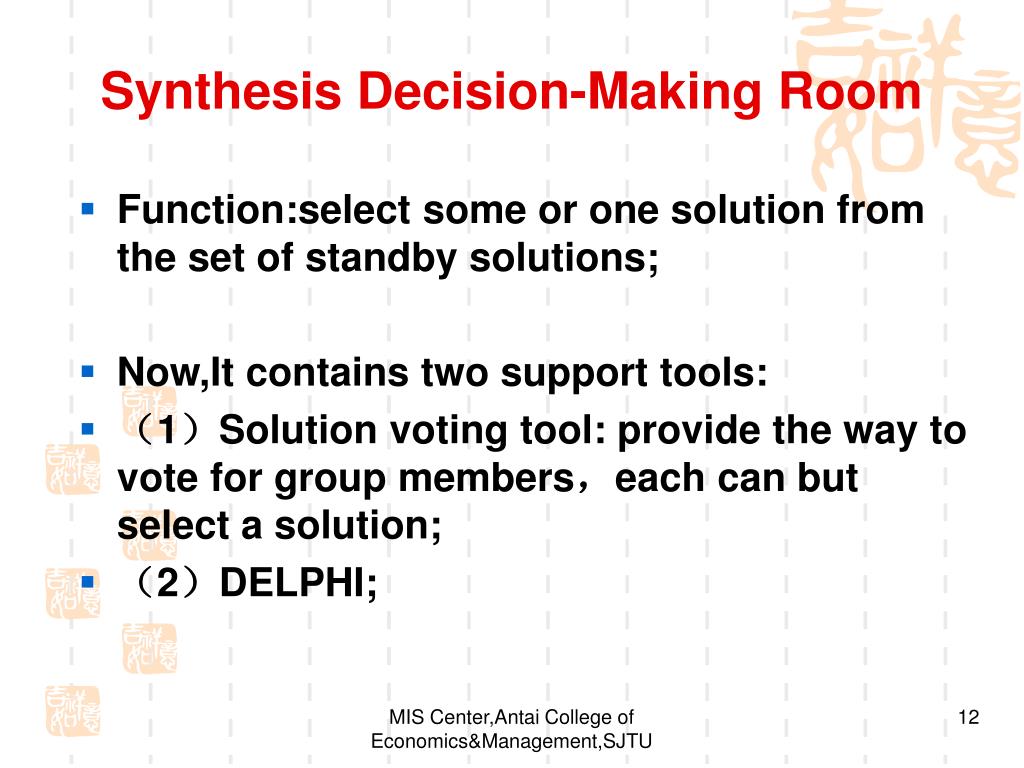

  12. Synthesis Decision-Making Room • Function:select some or one solution from the set of standby solutions; • Now,It contains two support tools: • （1）Solution voting tool: provide the way to vote for group members，each can but select a solution; • （2）DELPHI; MIS Center,Antai College of Economics&Management,SJTU

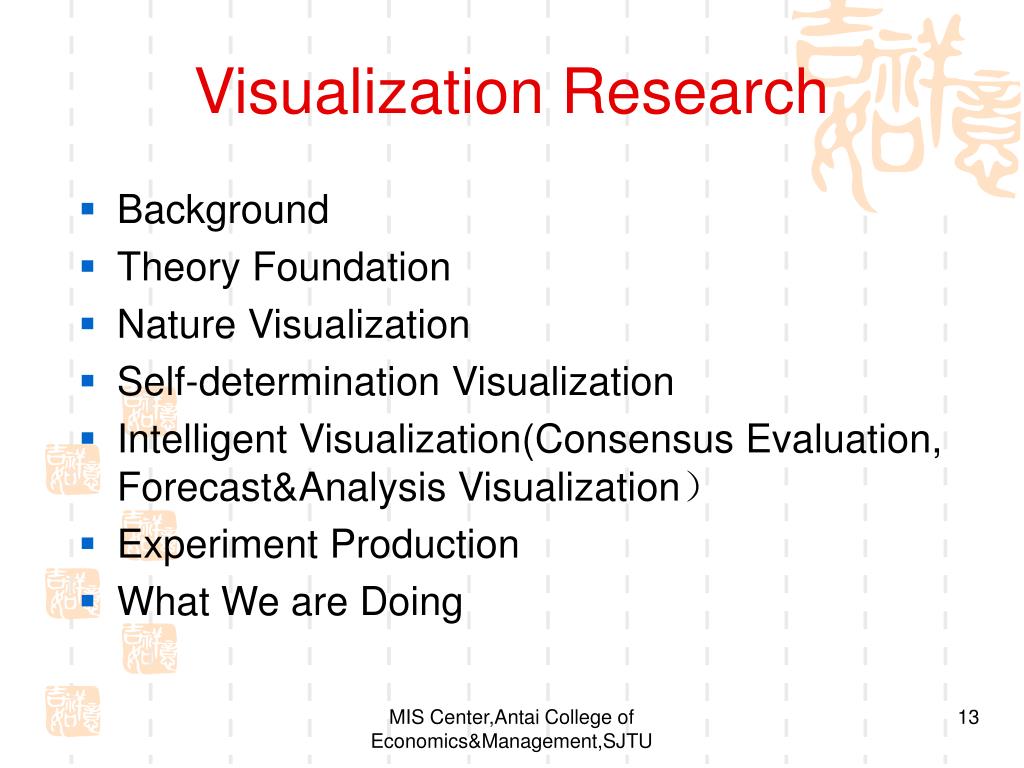

  13. Visualization Research • Background • Theory Foundation • Nature Visualization • Self-determination Visualization • Intelligent Visualization(Consensus Evaluation, Forecast&Analysis Visualization） • Experiment Production • What We are Doing MIS Center,Antai College of Economics&Management,SJTU

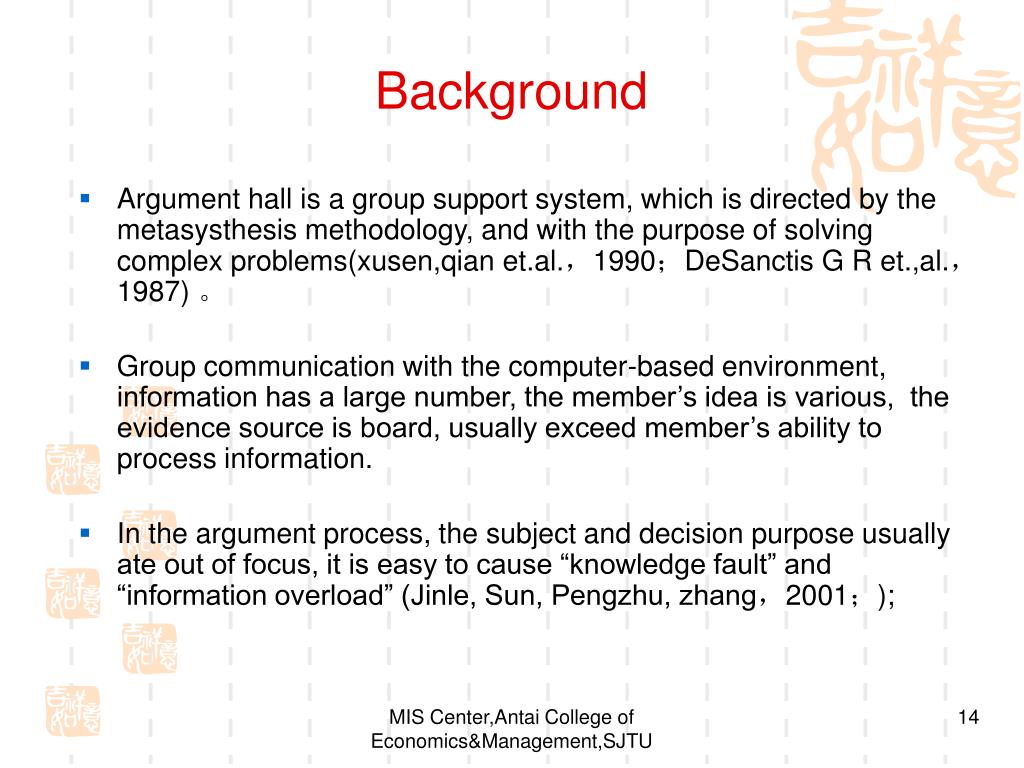

  14. Background • Argument hall is a group support system, which is directed by the metasysthesis methodology, and with the purpose of solving complex problems(xusen,qian et.al.，1990；DeSanctis G R et.,al.，1987) 。 • Group communication with the computer-based environment, information has a large number, the member’s idea is various, the evidence source is board, usually exceed member’s ability to process information. • In the argument process, the subject and decision purpose usually ate out of focus, it is easy to cause “knowledge fault” and “information overload” (Jinle, Sun, Pengzhu, zhang，2001；); MIS Center,Antai College of Economics&Management,SJTU

  15. Background • Traditional group argument, only by the way of individual memory, text record, sound record and so on, not depend on the tools of multi-media and web visualization,lots of information and their relation are lack of visual expression, group members are easy to submerge into the great number information； • Meanwhile, argument process can’t divert with the members’ purpose, individual has large limit about information grasp, understand, memory and apply, it is difficult to form group focus in the argument process; MIS Center,Antai College of Economics&Management,SJTU

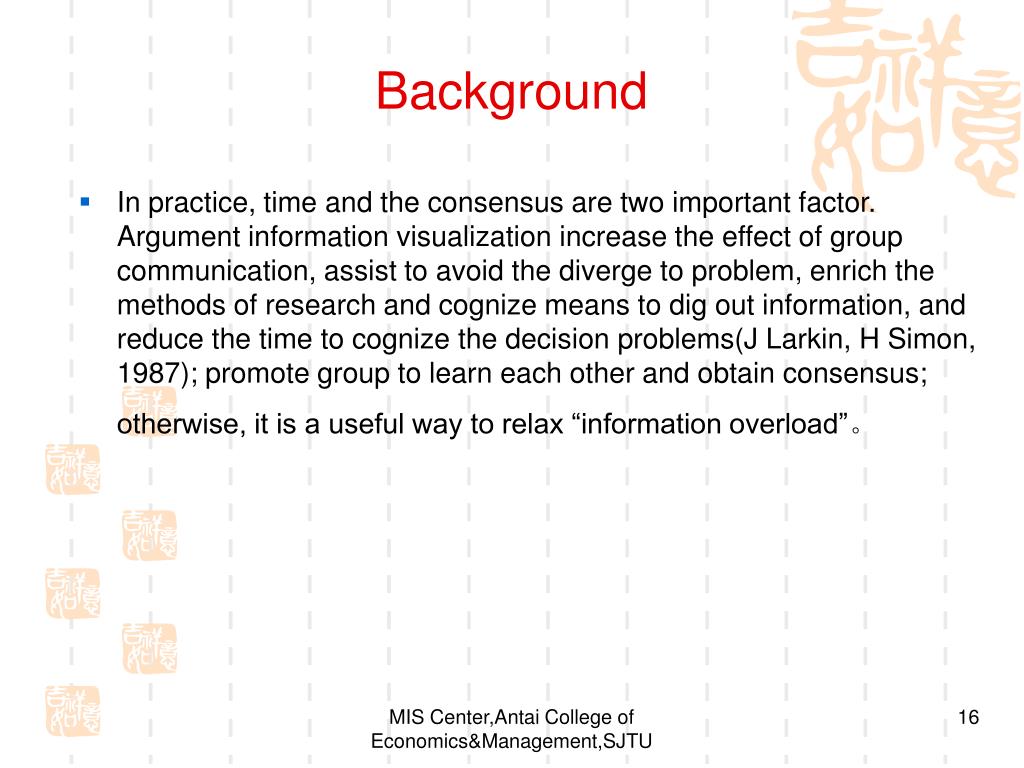

  16. Background • In practice, time and the consensus are two important factor. Argument information visualization increase the effect of group communication, assist to avoid the diverge to problem, enrich the methods of research and cognize means to dig out information, and reduce the time to cognize the decision problems(J Larkin, H Simon, 1987); promote group to learn each other and obtain consensus; otherwise, it is a useful way to relax “information overload”。 MIS Center,Antai College of Economics&Management,SJTU

  17. Background • Visualization provide a efficiency data structure, it gives a well support to overcome information overload, cognize burden, increase group output and innovation ability; visualization can assist to shorten group cognitive time of decision problems, promote members to learn each other to obtain consensus, then explode group’s visualize thought, and give a effect information sharing mode and information statistic function; MIS Center,Antai College of Economics&Management,SJTU

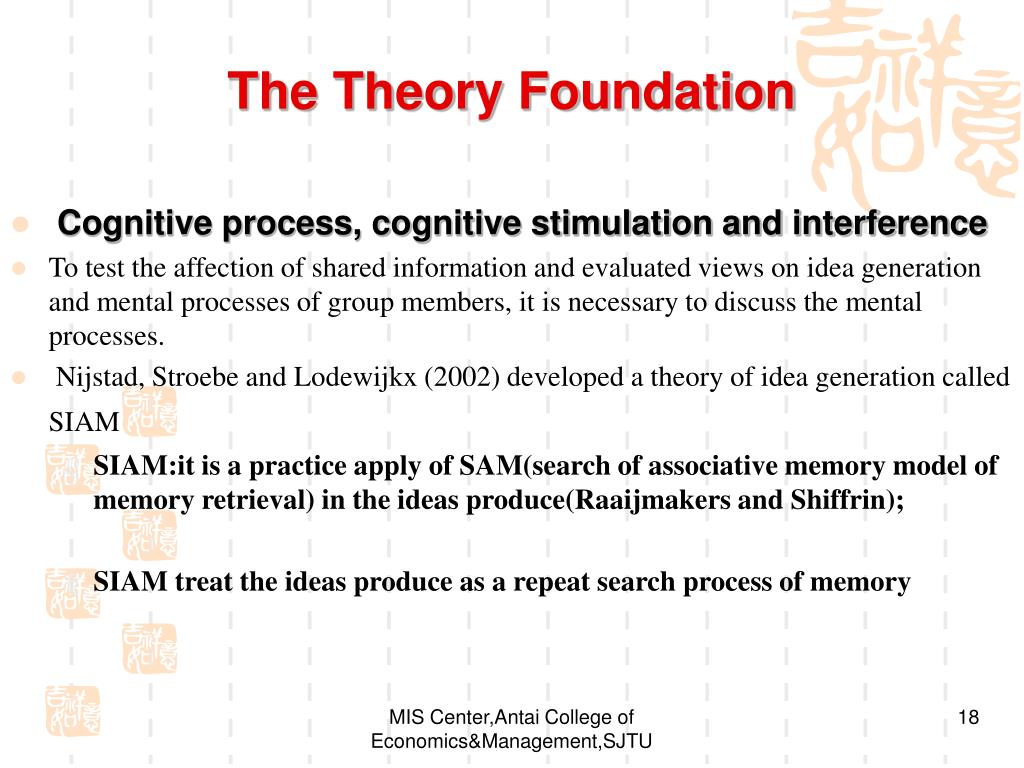

  18. The Theory Foundation • Cognitive process, cognitive stimulation and interference • To test the affection of shared information and evaluated views on idea generation and mental processes of group members, it is necessary to discuss the mental processes. • Nijstad, Stroebe and Lodewijkx (2002) developed a theory of idea generation called SIAM • SIAM:it is a practice apply of SAM(search of associative memory model of memory retrieval) in the ideas produce(Raaijmakers and Shiffrin); • SIAM treat the ideas produce as a repeat search process of memory MIS Center,Antai College of Economics&Management,SJTU

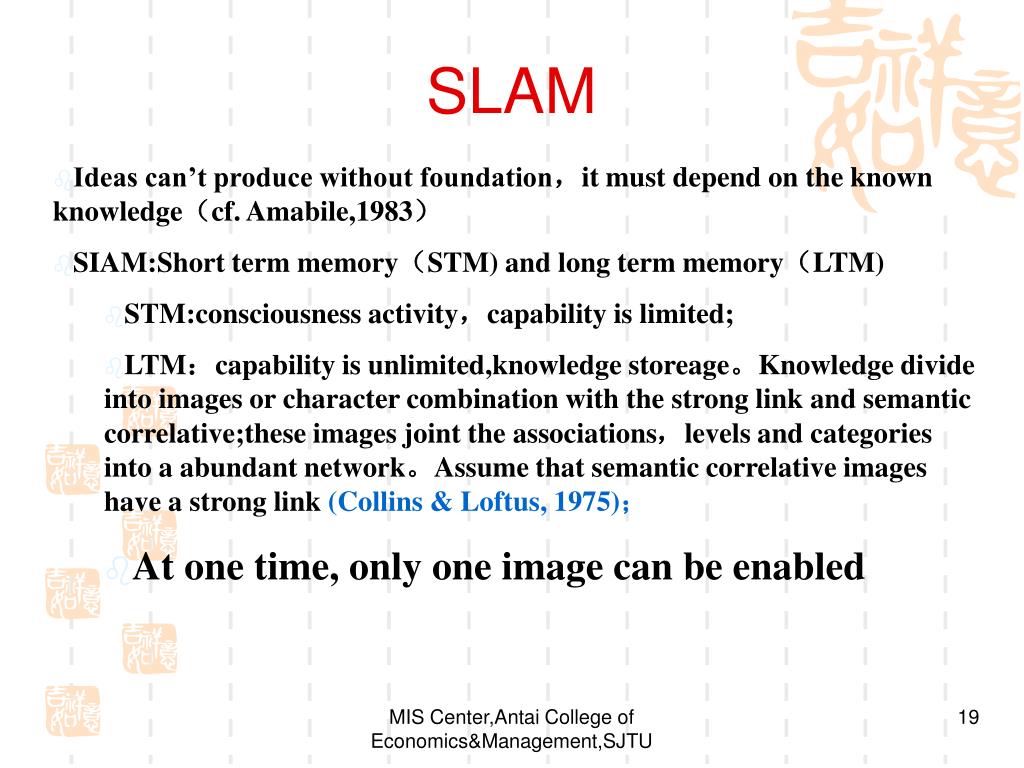

  19. SLAM • Ideas can’t produce without foundation，it must depend on the known knowledge（cf. Amabile,1983） • SIAM:Short term memory（STM) and long term memory（LTM) • STM:consciousness activity，capability is limited; • LTM：capability is unlimited,knowledge storeage。Knowledge divide into images or character combination with the strong link and semantic correlative;these images joint the associations，levels and categories into a abundant network。Assume that semantic correlative images have a strong link (Collins & Loftus, 1975)； • At one time, only one image can be enabled MIS Center,Antai College of Economics&Management,SJTU

  20. The theory Foundation • Two basic graph:influence diagra-mming） and cognitive mapping。 • The two methods all are the expression of the relationship of conceptions，Consist of many nodes and arc; node:Concepts; Arc:Semantic relationships; MIS Center,Antai College of Economics&Management,SJTU

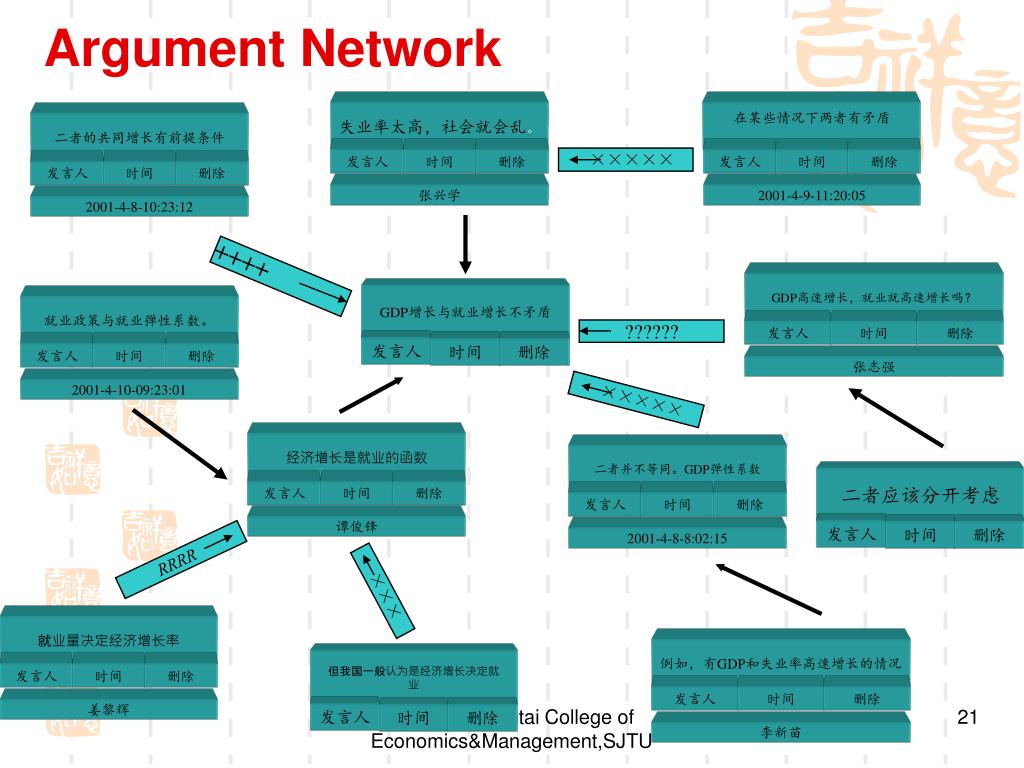

  21. ××××× ××× ××××× GDP高速增长，就业就高速增长吗？ 经济增长是就业的函数 例如，有GDP和失业率高速增长的情况 就业政策与就业弹性系数。 二者的共同增长有前提条件 在某些情况下两者有矛盾 二者并不等同。GDP弹性系数 失业率太高，社会就会乱。 就业量决定经济增长率 发言人 发言人 发言人 发言人 发言人 发言人 发言人 发言人 发言人 时间 时间 时间 时间 时间 时间 时间 时间 时间 删除 删除 删除 删除 删除 删除 删除 删除 删除 2001-4-10-09:23:01 姜黎辉 谭俊锋 李新苗 2001-4-8-8:02:15 张志强 2001-4-9-11:20:05 张兴学 2001-4-8-10:23:12 ++++ 但我国一般认为是经济增长决定就业 二者应该分开考虑 GDP增长与就业增长不矛盾 发言人 发言人 发言人 时间 时间 时间 删除 删除 删除 ?????? RRRR Argument Network MIS Center,Antai College of Economics&Management,SJTU

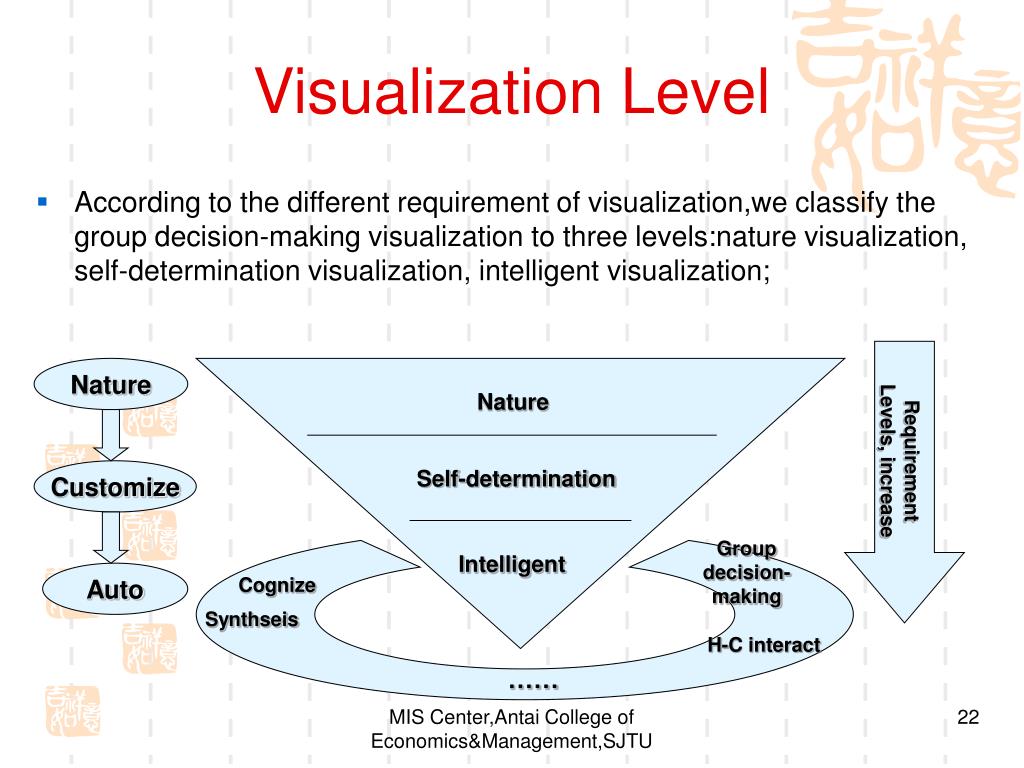

  22. Visualization Level • According to the different requirement of visualization,we classify the group decision-making visualization to three levels:nature visualization, self-determination visualization, intelligent visualization; Nature Requirement Levels, increase Nature Self-determination Customize Intelligent Group decision-making Auto Cognize Synthseis H-C interact …… MIS Center,Antai College of Economics&Management,SJTU

  23. Nature Visualization Contains single information visualization, the relation of information visualization，obtain “nature argument tree” MIS Center,Antai College of Economics&Management,SJTU 图4-1 ECBAR自然可视化界面

  24. 不同显示方式 其它自主可视化：研讨层级可视化、每层节点数可视化…… 基于时间流程的可视化 凸现某发言人的可视化 Self-dertermination Visualization • Self-determination visualization obtains argument tree with different exhibit methods that called “self-determination argument tree” in terms of group members’ requirement； • Contains: ①different exhibit methods,such as “subject” ,”speaker”,”node power”,”consensus status” ,”attention status”； ②time-based process visualization; ③speaker-based visualization, it contains:stand out the speaker and only show the speaker’s information； others:different levels of argument tree;how many nodes to exhibit,an so on； 仅某发言人的可视化 MIS Center,Antai College of Economics&Management,SJTU

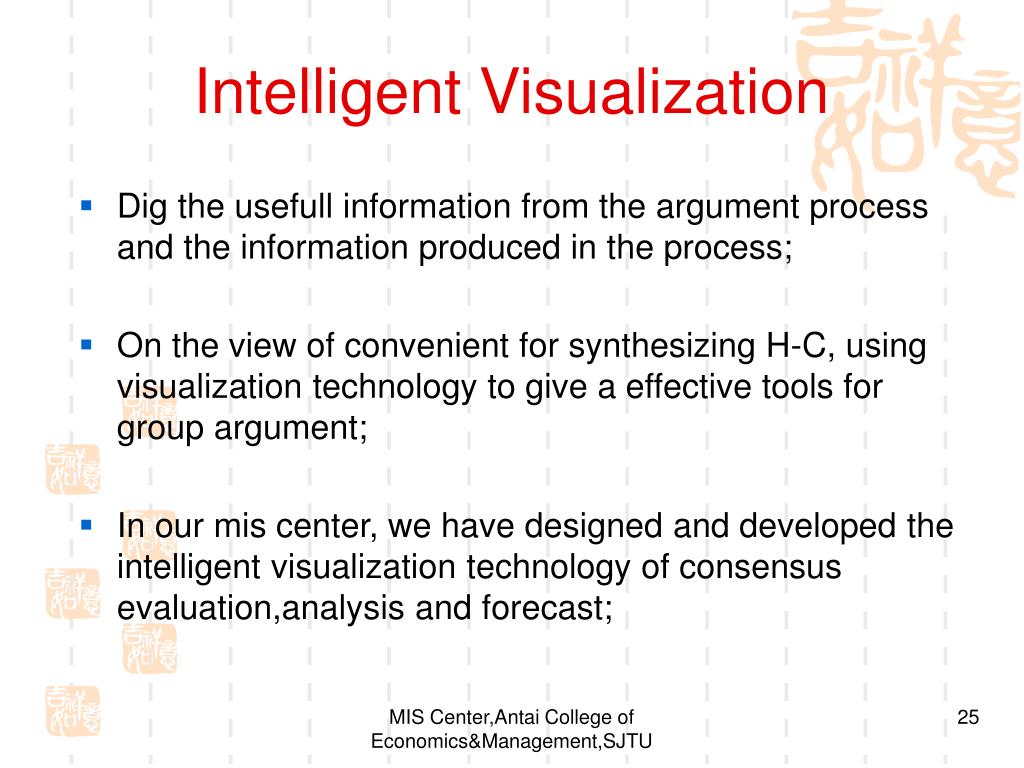

  25. Intelligent Visualization • Dig the usefull information from the argument process and the information produced in the process; • On the view of convenient for synthesizing H-C, using visualization technology to give a effective tools for group argument; • In our mis center, we have designed and developed the intelligent visualization technology of consensus evaluation,analysis and forecast; MIS Center,Antai College of Economics&Management,SJTU

  26. 关注水平 共识水平 Consensus Evaluation&Forecast Visualization MIS Center,Antai College of Economics&Management,SJTU

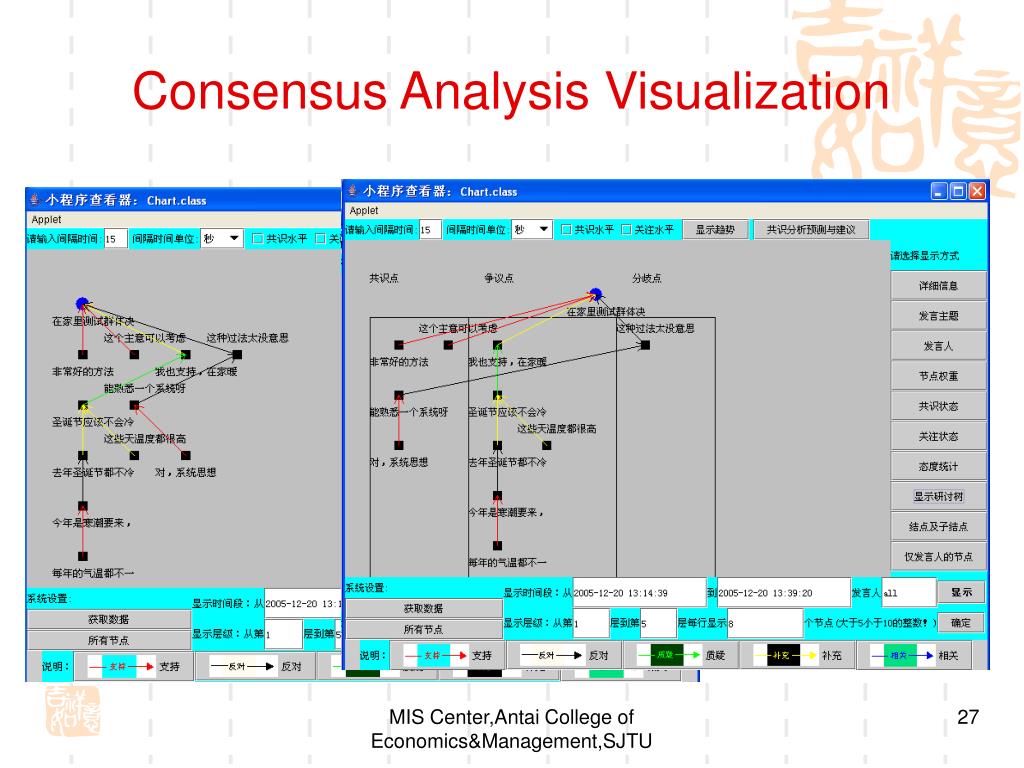

  27. Consensus Analysis Visualization MIS Center,Antai College of Economics&Management,SJTU

  28. Experiment Results: • （1）hold the argument process； • （2）argument interest and positivity of group members； • （3）understand other members’ ideas； • （2）get rid of information load strongly； • （3）argument sufficiency； • （4）more quick to gain consensus； • （5）the higher consensus level； MIS Center,Antai College of Economics&Management,SJTU

  29. What we are Doing… • Information tracking • Information exhibit & intelligent visualization methods; • The design and development of support platform for facilitator • GASS-based knowledge management • GASS apply in the finance-watch MIS Center,Antai College of Economics&Management,SJTU

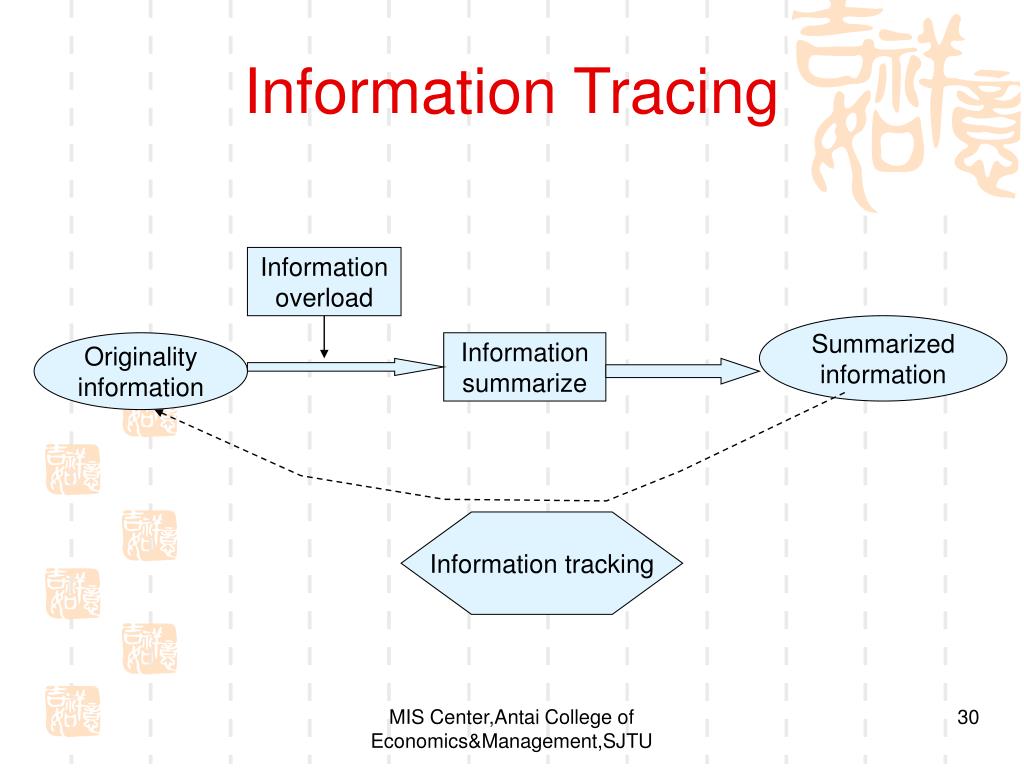

  30. Information Tracing Information overload Summarized information Originality information Information summarize Information tracking MIS Center,Antai College of Economics&Management,SJTU

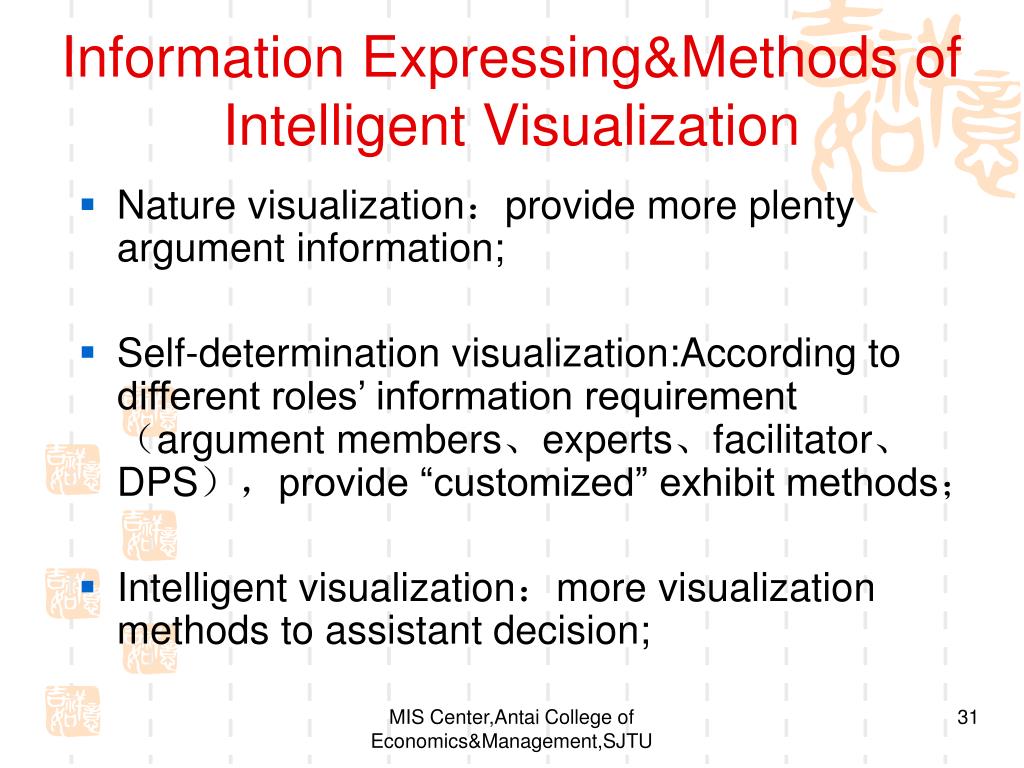

  31. Information Expressing&Methods of Intelligent Visualization • Nature visualization：provide more plenty argument information; • Self-determination visualization:According to different roles’ information requirement（argument members、experts、facilitator、DPS），provide “customized” exhibit methods； • Intelligent visualization：more visualization methods to assistant decision; MIS Center,Antai College of Economics&Management,SJTU

  32. Thank You！Question？ MIS Center,Antai College of Economics&Management,SJTU
