  1. Chapter 8Libraries Course T314

  2. Libraries Overview • Objectives After this chapter you should be able to: • Explain the concept of libraries and types • Describes the standard libraries provided by ABB • Identify the libraries that are used in a project • Handle libraries • Reference Documentation • 3BSE035981 IndustrialIT800xA - Control and I/O Extended Control Software - Binary and Analog Handling • 3BSE038018 IndustrialIT800xA - System System Guide - Functional Description

  3. Libraries Libraries • Library Concept • ABB Fundamental libraries • ABB Continuous Control libraries • ABB Process Object libraries • ABB Hardware Libraries • Available Help • Library Handling

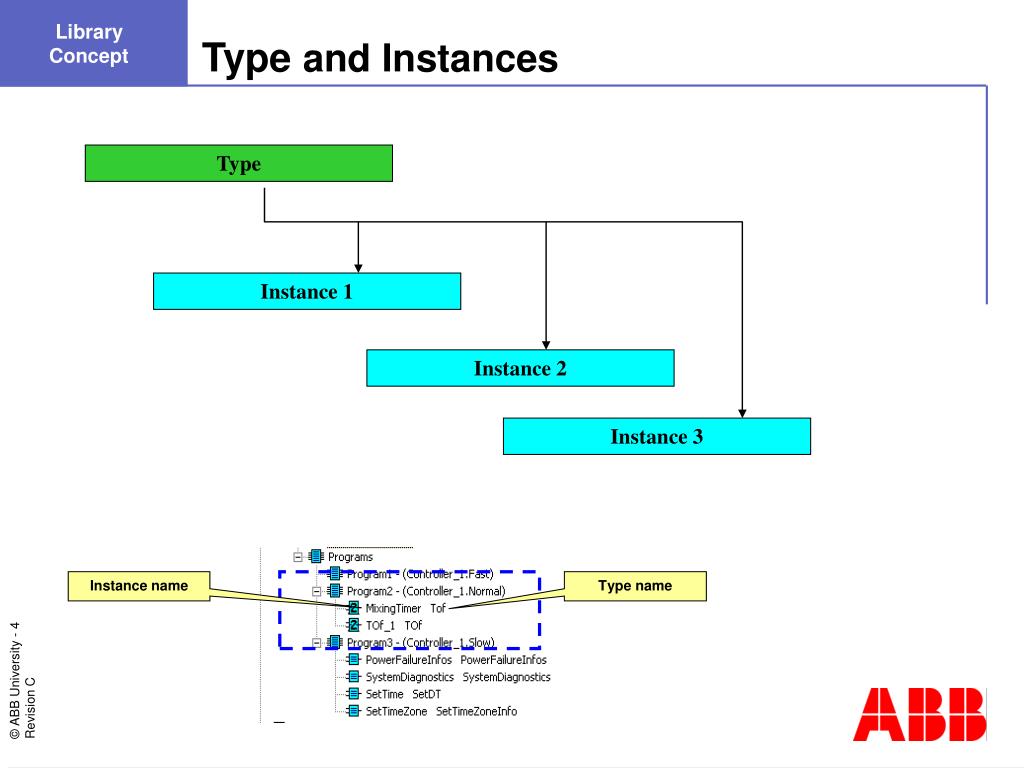

  4. LibraryConcept Type Instance 1 Instance 2 Instance 3 Type and Instances Instance name Type name

  5. LibraryConcept Functions Distinguish between functions and functions blocks: • Functions return a single result immediately on execution of the function call. • Functions do not retain values from previous calls, unlike function blocks It is not possible for the user to define his own functions.

  6. LibraryConcept Library Dependencies A library may use types from another library. ProcessObjExtLib ProcessObjBasicLib AlarmEventLib BasicLib IconLib

  7. LibraryConcept ABB Standard Libraries Batch Applications Fundamental Continuous Control Hardware Communication Process Objects

  8. Libraries Libraries • Library Concept • ABB Fundamental libraries • ABB Continuous Control libraries • ABB Process Object libraries • ABB Hardware Libraries • Available Help • Library Handling

  9. FundamentalLibraries “System” - Data Types Contains the basic data types

  10. FundamentalLibraries “System” - Functions Note: Those functions having a „2“ in the icon are SIL 2 certified

  11. FundamentalLibraries “BasicLib” - Function Block Types Note: Those functions having a „2“ in the icon are SIL 2 certified

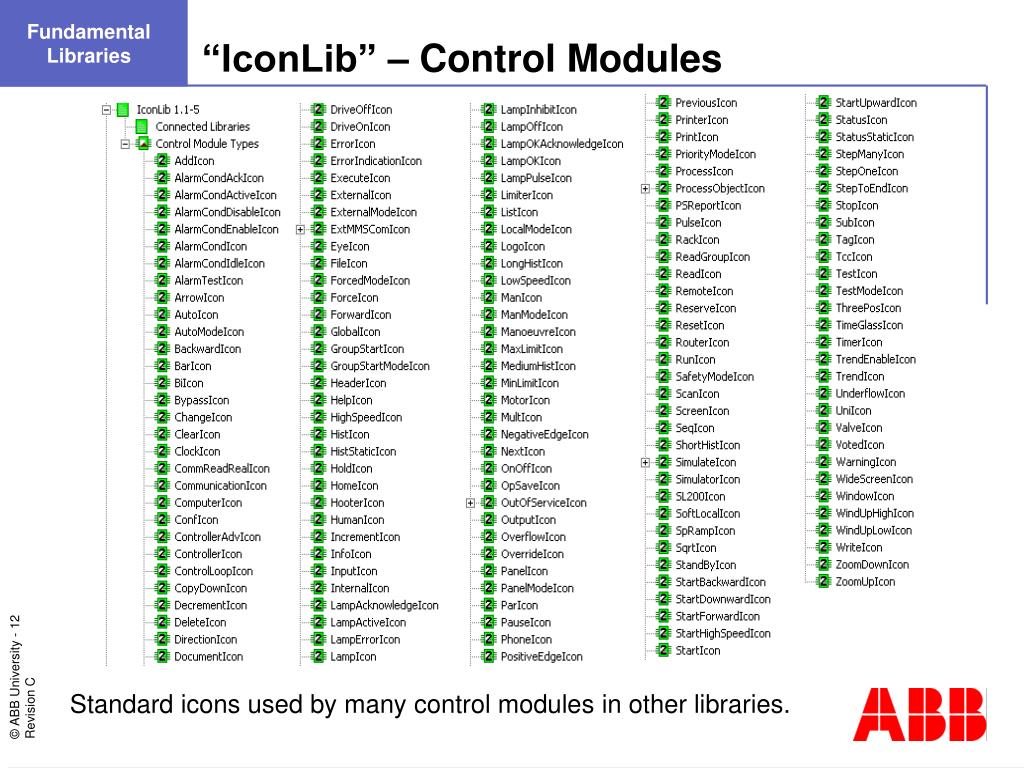

  12. FundamentalLibraries “IconLib” – Control Modules Standard icons used by many control modules in other libraries.

  13. FundamentalLibraries “AlarmEventLib” Hardware / System alarms Printing on line printer connected to controller Alarm Detection Event Detection

  14. Libraries Libraries • Library Concept • ABB Fundamental libraries • ABB Continuous Control libraries • ABB Process Object libraries • ABB Hardware Libraries • Available Help • Library Handling

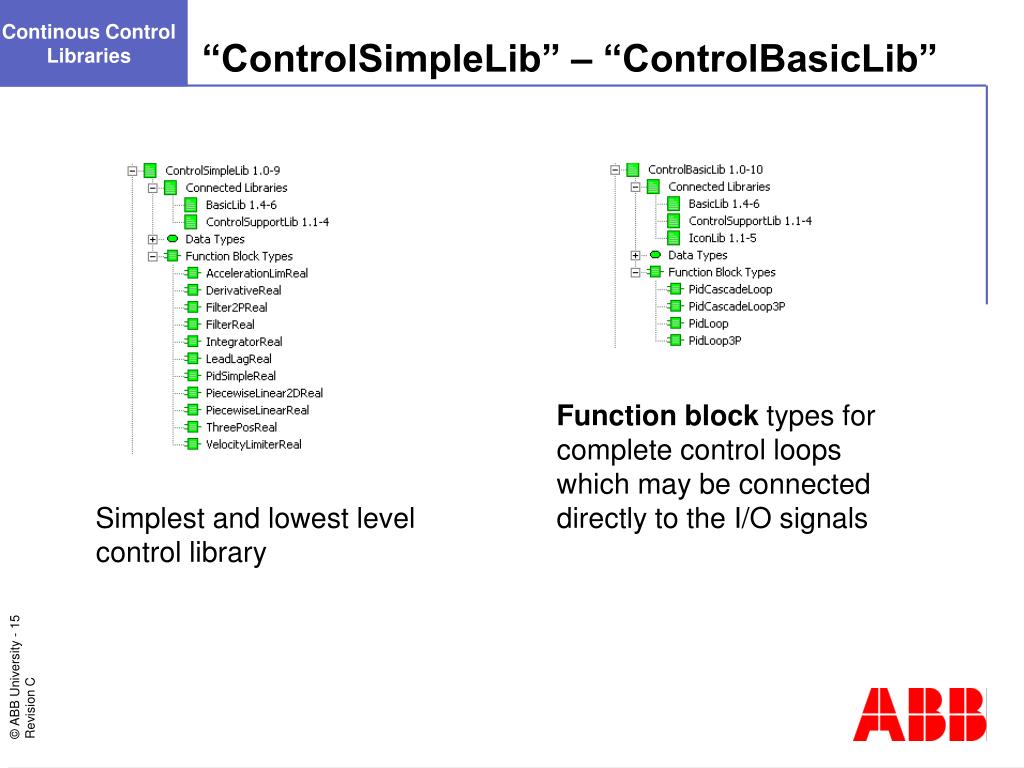

  15. Continous ControlLibraries “ControlSimpleLib” – “ControlBasicLib” Function block types for complete control loops which may be connected directly to the I/O signals Simplest and lowest level control library

  16. Continous ControlLibraries “ControlStandardLib” Control module types use to create PID loops in the CMD editor. All modules in this library may be connected using graphical connections. Data type Control Connection (represented by CC) is used to connect between control modules.

  17. Continous ControlLibraries Extended Functionality ControlSolutionLib ControlExtendedLib ControlAdvancedLib ControlFuzzyLib

  18. Libraries Libraries • Library Concept • ABB Fundamental libraries • ABB Continuous Control libraries • ABB Process Object libraries • ABB Hardware Libraries • Available Help • Library Handling

  19. Process ObjectsLibraries Process Objects ProcessObjBasicLib ProcessObjExtLib

  20. Process ObjectsLibraries Drives and Motor Control ProcessObjDriveLib ProcessObjINSUMLib Standard Drives Engineered Drives

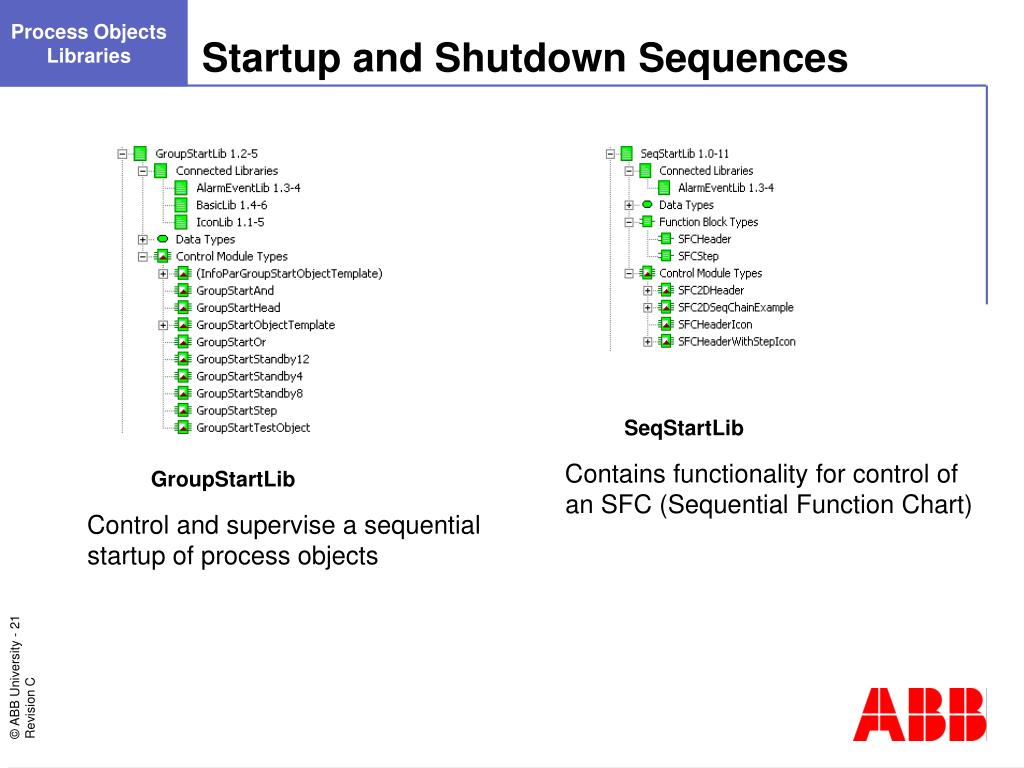

  21. Process ObjectsLibraries Startup and Shutdown Sequences SeqStartLib Contains functionality for control ofan SFC (Sequential Function Chart) GroupStartLib Control and supervise a sequential startup of process objects

  22. Process ObjectsLibraries Signal Detection and Supervision

  23. Libraries Libraries • Library Concept • ABB Fundamental libraries • ABB Continuous Control libraries • ABB Process Object libraries • ABB Hardware Libraries • Available Help • Library Handling

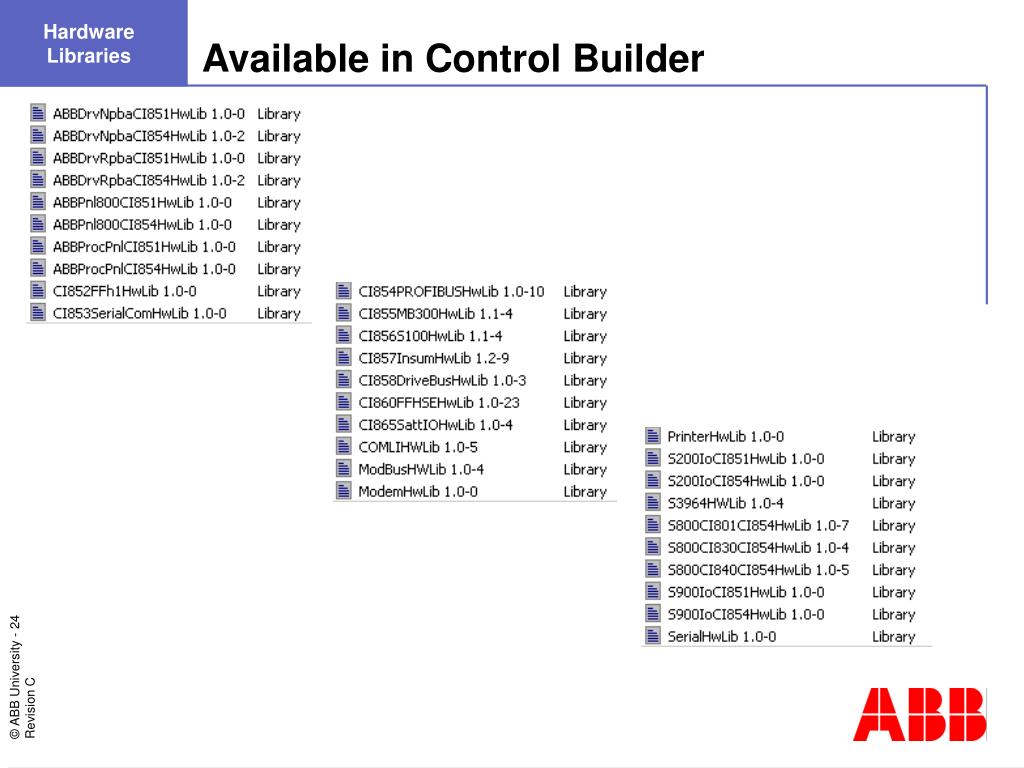

  24. HardwareLibraries Available in Control Builder

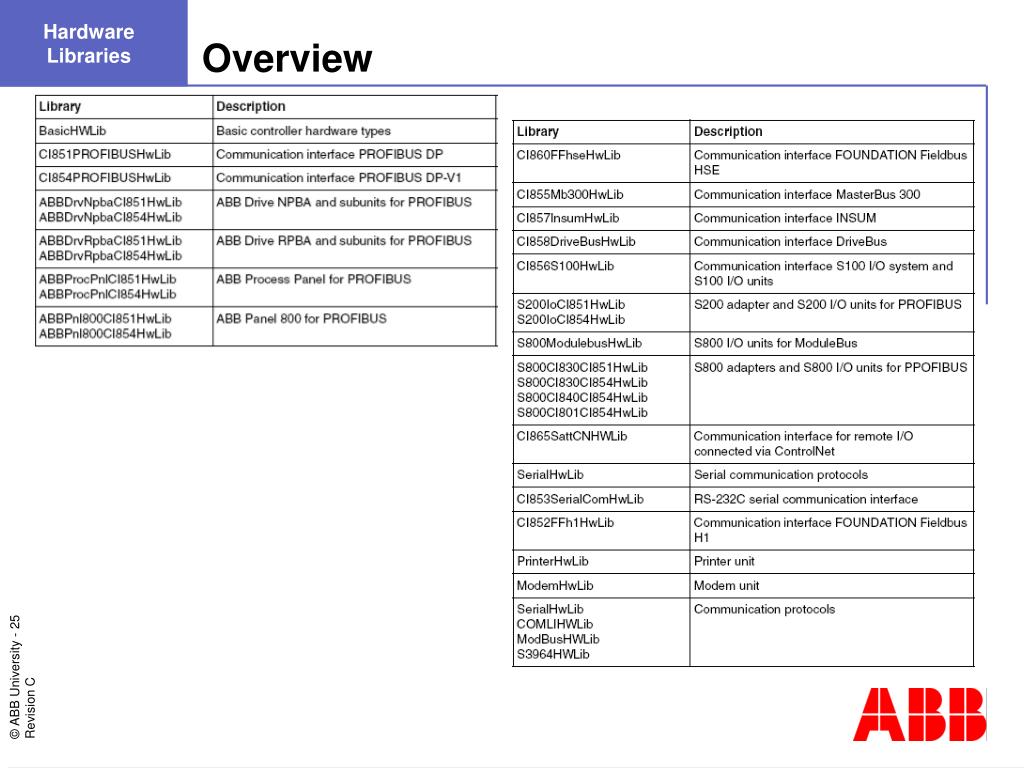

  25. HardwareLibraries Overview

  26. Libraries Libraries • Library Concept • ABB Fundamental libraries • ABB Continuous Control libraries • ABB Process Object libraries • ABB Hardware Libraries • Available Help • Library Handling

  27. AvailableHelp Online Help Press „F1“ to get context sensitive help!

  28. AvailableHelp Library Objects Overview

  29. Libraries Libraries • Library Concept • ABB Fundamental libraries • ABB Continuous Control libraries • ABB Process Object libraries • ABB Hardware Libraries • Available Help • Library Handling

  30. Library Handling Insert Libraries

  31. Library Handling Connect Libraries to Application Similar than how to connect Hardware libraries to Controllers.
