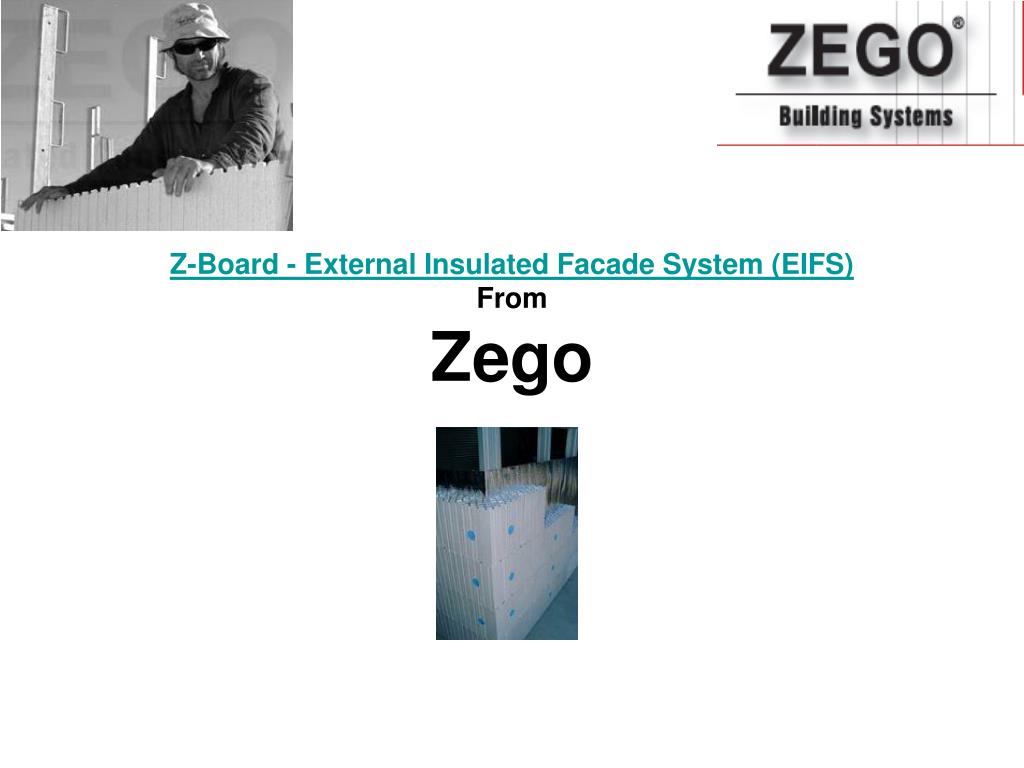

Z-Board - External Insulated Facade System

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Z-Board - External Insulated Facade System' - guest13673


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

Products l.jpg

Products

ZEGO 100mm Z-Board EIFS

ZEGO 60mm Z-Board EIFS

ZEGO 52mm Z-Board EIFS


Zego 100mm z board eifs l.jpg

ZEGO 100mm Z-Board EIFS

ZEGO® Z-Board - External Insulated Facade System (EIFS) is a versatile and Economical wall cladding system designed for any new or old structural surfaces, including timber frame, steel frame and brickwork.

Available in different thicknesses for thermal and architectural requirements.

Flat packed EIFS Panels 100mm x 300mm x 1143mm

2.9 Panels per m2

13.716m2 / 40 Panels / 40kgs per cube

6.858m2 / 20 Panel / 20kg per 1/2 cube / Pallet

Cube dimension 1200 x 1143 x 1000

1/2 cube / pallet 1210 x 1144 x 500

With Patented Dovetail surface for mechanical connection of render to walls.

Screw or nail fix with 50mm diameter plastic washers


Zego 60mm z board eifs l.jpg

ZEGO 60mm Z-Board EIFS

ZEGO® Z-Board - External Insulated Facade System (EIFS) is a versatile and Economical wall cladding system designed for any new or old structural surfaces, including timber frame, steel frame and brickwork.

Available in different thicknesses for thermal and architectural requirements.

Flat packed EIFS Panels 60mm x 300mm x 1143mm

2.9 Panels per m2

27.432m2 / 80 Panels / 40kgs per cube

13.716m2 / 40 Panel / 20kg per 1/2 cube / Pallet

Cube dimension 1210 x 1143 x 1200

1/2 cube / pallet 1210 x 1144 x 600

With Patented Dovetail surface for mechanical connection of render to walls.

Screw or nail fix with 50mm diameter plastic washers


Zego 52mm z board eifs l.jpg

ZEGO 52mm Z-Board EIFS

ZEGO® Z-Board - External Insulated Facade System (EIFS) is a versatile and Economical wall cladding system designed for any new or old structural surfaces, including timber frame, steel frame and brickwork.

Available in different thicknesses for thermal and architectural requirements.

Flat packed EIFS Panels 52mm x 300mm x 1143mm

2.9 Panels per m2

27.432m2 / 80 Panels / 40kgs per cube

13.716m2 / 40 Panel / 20kg per 1/2 cube / Pallet

Cube dimension 1210 x 1143 x 1040

1/2 cube / pallet 1210 x 1144 x 520

With Patented Dovetail surface for mechanical connection of render to walls.

Screw or nail fix with 50mm diameter plastic washers


Contact us l.jpg

Contact us

ZEGO Pty Limited

GPO Box 4774

Sydney

New South Wales

Australia 2001

http://www.zego.com.au/
