Moonracker YG5-4 transformations

Moonracker YG5-4 transformations. 1/ Original Moonracker YG5-4 2/ YU7EF transformations 3/ SWR meas. Original Moonracker YG5-4. Measures at 70.2 MHz using Mmana simulator. Whole aspect. Dimensions. F/B ratio. SWR. Original Moonracker YG5-4. Original Moonracker design.

griffin-townsend
Download Presentation

Moonracker YG5-4 transformations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Moonracker YG5-4 transformations 1/ Original Moonracker YG5-4 2/ YU7EF transformations 3/ SWR meas

  2. Original Moonracker YG5-4 Measures at 70.2 MHz using Mmana simulator Whole aspect Dimensions F/B ratio SWR

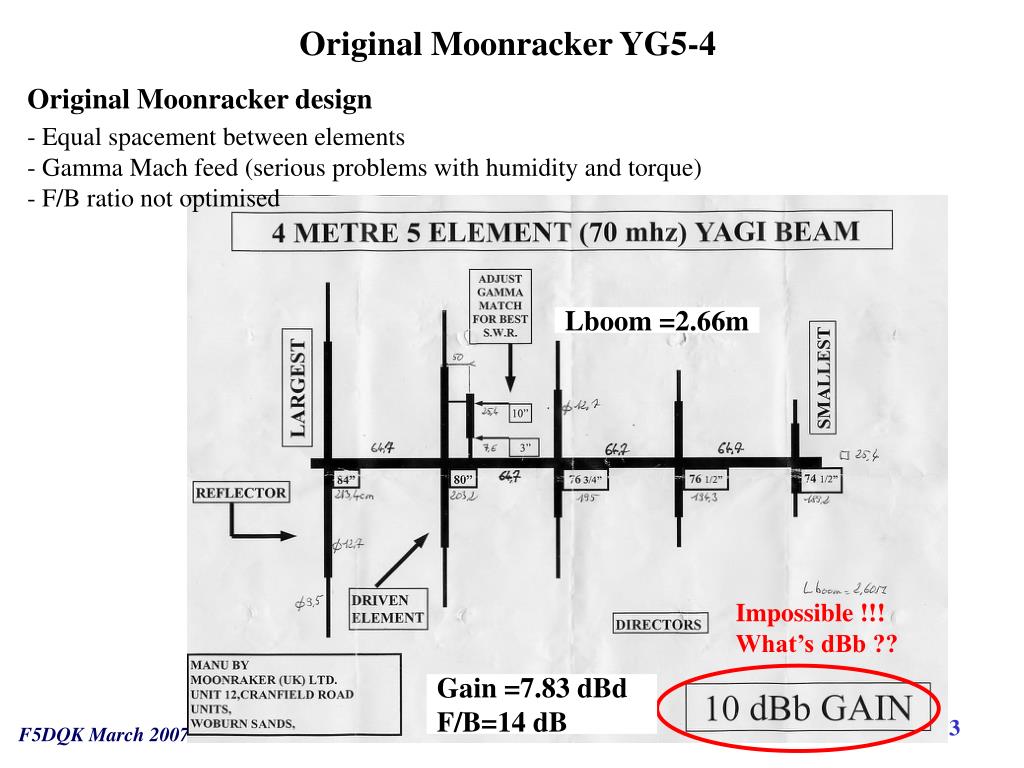

  3. Original Moonracker YG5-4 Original Moonracker design • Equal spacement between elements • Gamma Mach feed (serious problems with humidity and torque) • F/B ratio not optimised Lboom =2.66m Impossible !!! What’s dBb ?? Gain =7.83 dBd F/B=14 dB

  4. Original Moonracker YG5-4 Gamma mach feeding Gamma capacitor

  5. Original Moonracker YG5-4 Zoom on gamma mach feeding : too much distance !! Difference between diameters 19,85 – 19,07 = 0.78 mm, that’s far too much !!

  6. Original Moonracker YG5-4 Zoom on rear of feeding box Silicon compound Plastic cap

  7. Original Moonracker YG5-4 Zoom on front of the feeding box : All the water can enter here !! Shield contact NOT reliable in the time ! Metal screw WITHOUT dedicated nut part (very ugly) !! Box front (UHF feeding)

  8. Original Moonracker YG5-4 Initial elements fixing on boom and adjusting

  9. Moonracker YG5-4 transforming from YU7EF Measures at 70.2 MHz using Mmana simulator Whole aspect Dimensions F/B ratio SWR

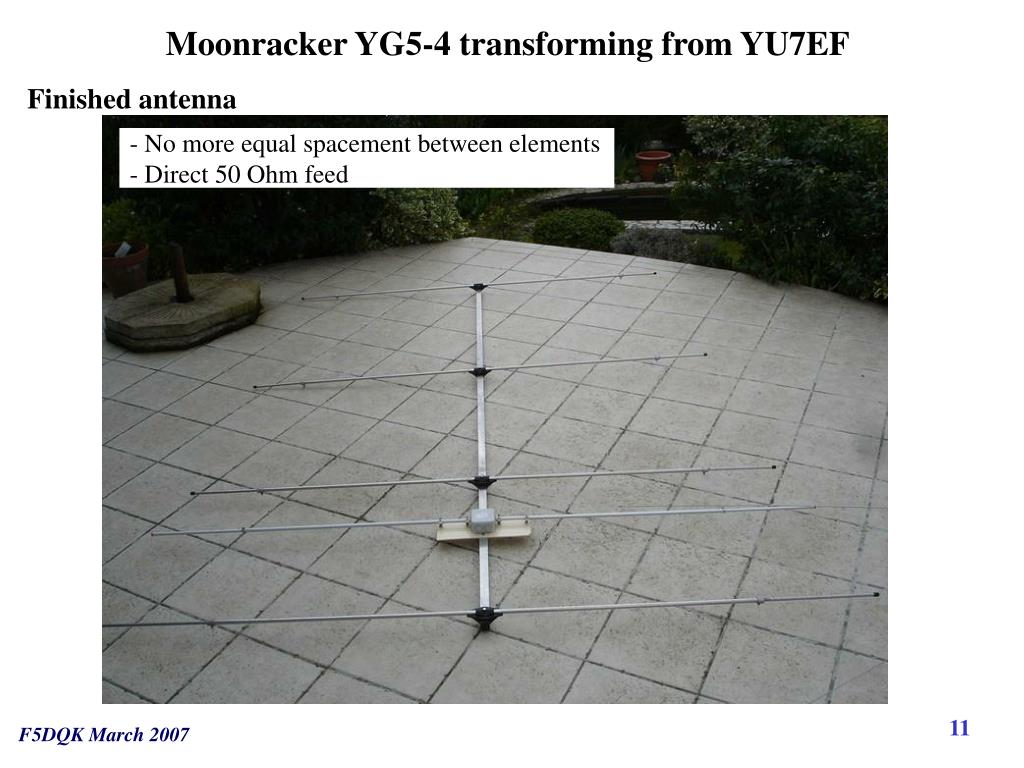

  10. Moonracker YG5-4 transforming from YU7EF Finished antenna • No more equal spacement between elements • Direct 50 Ohm feed

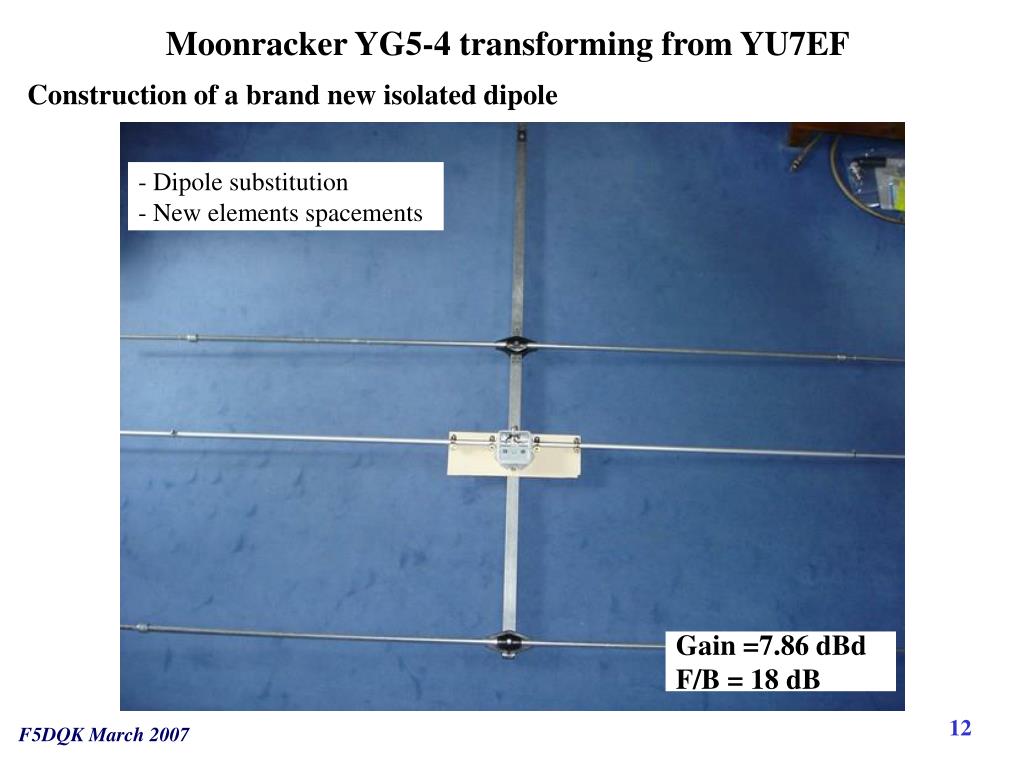

  11. Moonracker YG5-4 transforming from YU7EF Construction of a brand new isolated dipole - Dipole substitution - New elements spacements Gain =7.86 dBd F/B = 18 dB

  12. Moonracker YG5-4 transforming from YU7EF Dipole feeding details Lucoflex plate 300x100 h=4 mm No rain can enter Diam 12/10 mm N connector Plastic box 70x70 h=40 Dipole fixing parts

  13. Moonracker YG5-4 transforming from YU7EF 50 Ohm dipole ends Split on length 30 mm No rain coming from both ends Diam 12 Diam 10

  14. Moonracker YG5-4 : last improvements against rain Aluminium Scotch on all previous holes (here dipole and gamma feeding)

  15. Moonracker YG5-4 measures
