slide1

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification for Small Wastewater Treatment Facilities

Tenth Annual

Vail Professional Wastewater Operators Seminar

Friday, October 29, 2004

Zachary J. Matyja, E.I.T.

Jacobson Helgoth Consultants, Inc.

slide2

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Presentation Outline
        • Denitrification Process
        • Improvements at Genesee Water and Sanitation District
        • Implementation Process
        • Questions

2

slide3

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

Denitrification Process

3

slide4

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Denitrification Process
        • Ammonia (NH3)
          • In WW Process, Nitrogen bonds to Organic Molecules to form Ammonia-Nitrogen (NH3 & NH4)
          • NH3 Converted to Nitrates in Aeration Process
        • Nitrates (NO3)
          • Common in Natural Water
          • Sources include: Ag Runoff, Organic Matter, WWTF Discharges
          • 10 mg/L Limit for Drinking Water
          • Can Cause “blue baby syndrome”

4

slide5

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Denitrification Process
        • Denitrification
          • The biological conversion of nitrate-nitrogen to nitrogen gas (N2), nitrous oxide (N2O), and nitric oxide (NO)
          • Occurs under anoxic conditions (no free oxygen available)
        • Various Denitrification Processes
          • Attached Growth
          • Proprietary Processes
          • Single-Sludge Nitrification/Denitrification

5

slide6

N2 Gas

Influent

Effluent

Anoxic Zone

(Denitrification)

Aeration Zone

(Nitrification)

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Single-Sludge Nitrification / Denitrification
        • All modifications to existing nitrification facility take place in aeration basin
        • Anoxic Zone precedes Aeration
        • Internal Water Recycle (400-500% of Influent Flow)

RECYCLE

6

slide7

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

Effect of Recycle on Nitrate Reduction

7

slide8

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Denitrification Chemistry
      • Ammonia First Passes Through Anoxic Zone
      • Ammonia is Converted to Nitrate in Aeration Zone
      • Nitrate are Recycled to Anoxic Zone
      • Nitrate are Converted to Nitrogen gas in Anoxic Zone

NO3 Converted to N2

NH3 Converted to NO3

N2 Gas

RECYCLE

Effluent

Influent

Anoxic Zone

(Denitrification)

Aeration Zone

(Nitrification)

8

slide9

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Denitrification Calculations
        • Conventional Nitrification Calculations Required First
        • Denitrification Calculations, Solve For
          • Recycle Ratio
          • Aerobic / Anoxic Residence Times
          • Aerobic / Anoxic Tank Volumes
          • Aerobic / Anoxic Ratio

9

slide10

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

Genesee Water and Sanitation District

Wastewater Treatment Facility

10

slide11

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Project Background
        • In Foothills West of Denver, Near I-70
        • District Serves 4,000+ People
        • Activated Sludge Facility
        • Discharge to Bear Creek

11

slide12

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Need for Project
        • 2002 Drought – Low Flows in Bear Creek
        • Bear Creek Water Quality for Downstream Users
        • Potential District Water Quality Problems
        • Potential Water Reuse
        • “Stay Ahead of the Game”
        • Potential Future Nitrate Effluent Regulations

12

slide13

Grit

Screening

D

I

S

C

H

A

R

G

E

Sand

Filter

Clarifier

Clarifier

Clarifier

Aeration Basins

(typ.)

RAS

Chlorine

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Existing Wastewater Process Schematic
    • Two Aeration Basins Operated in Parallel (0.25 MGD Capacity, Each)
    • Three Secondary Clarifiers Operated in Series

13

slide14

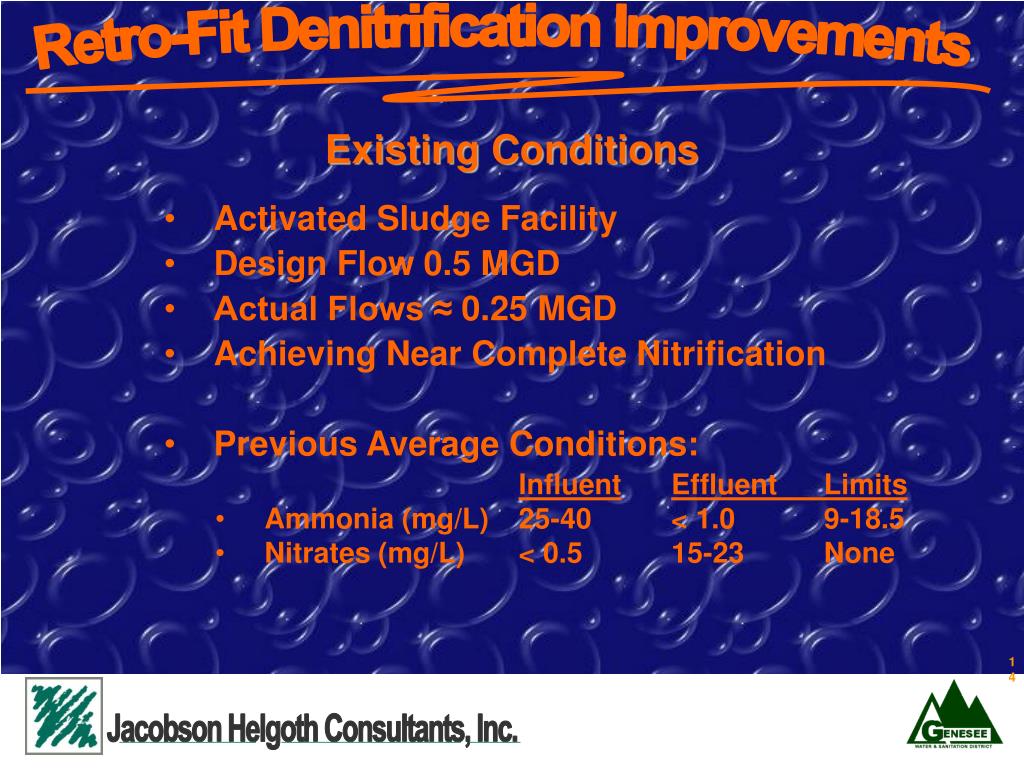

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Existing Conditions
        • Activated Sludge Facility
        • Design Flow 0.5 MGD
        • Actual Flows ≈0.25 MGD
        • Achieving Near Complete Nitrification
        • Previous Average Conditions:
          • InfluentEffluent Limits
          • Ammonia (mg/L) 25-40 < 1.0 9-18.5
          • Nitrates (mg/L) < 0.5 15-23 None

14

slide15

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Denitrification Calculation Results
        • Estimated Recycle Ratio = 295%
        • Aerobic Residence Time Required = 4.8 hours
        • Anoxic Residence Time Required = 2.0 hours
        • Aerobic Tank Volume Fraction = 71%
        • Anoxic Tank Volume Fraction = 29%

15

slide16

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

Denitrification Design Drawings

16

slide17

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Denitrification Design
        • Baffle Wall in Aeration Basin
          • Install Reinforced Flexible Baffle Curtain to Divide Basins
          • Attached on all sides to Basin
          • 3’ x 4’ Hole in Bottom Corner
          • Furnished and Installed by Lange Containment Systems, Inc.

17

slide18

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

Baffle Wall Installation

18

slide19

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Denitrification Design
        • Submersible Mixer
          • Ensure Successful Mixing of Entire Anoxic Basin
          • Primary purpose to keep all solids in suspension, and prevent settling in Anoxic Basin
          • Evaluated Two Mixers, Flygt required two mixers to accomplish same mixing
          • Selected USFilter EMU Uniprop

19

slide20

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

Mixer Installation

20

slide21

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

Denitrification Design Drawings

21

slide22

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Denitrification Design Drawings
        • Piping Design From Pump

22

slide23

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Denitrification Design
        • Submersible Pump
          • Designed for 900 gpm, 10’ TDH
          • 5 hp, 1750 rpm, submersible motor
          • Guide Rails to Raise Pump
          • ITT Flygt Submersible Sewage Pump Purchased

23

slide24

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

Pump Installation

24

slide25

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Denitrification Design
        • Flow Measurement
          • Electromagnetic Flow Meter –
          • Endress + Hauser, Promag 50W
        • Flow Control
          • Ballcentric Plug Valve with Handwheel Gear – Pratt
        • Piping and Related Equipment
          • C900 PVC Pipe, Fittings, and Glue
          • Ductile Iron Pipe, Fittings, and Hardware
          • Pipe Hangers, Support Brackets, and Hardware

25

slide26

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

Flow and Piping Installation

26

slide27

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Denitrification Design
        • Electrical Modifications
          • Breakers, Starters, Controls
          • Installed for Pump, Meter, Mixer
          • Installed by Sub-Contractor

27

slide28

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Denitrification Installation
        • Aeration Basin Offline
        • Basin Power Washed
        • Diffusers Removed / Plugged
        • Baffle Wall Installed by Sub-Contractor
        • Pump, Piping, Mixer Installed
        • Electrical Hook-up by Sub-Contractor
        • 200 Man-Hours by District Staff
        • 100 Man-Hours Electrical Sub-Contractor
        • 300 Man-Hours Total

28

slide29

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Denitrification Results at Genesee
        • Current Recycle Rate set at ≈230%
        • Effluent Nitrate Levels 3-5 mg/L (78% Reduction)

29

slide30

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Additional Benefits found at Genesee
        • A Substantial Decrease in Added Alkalinity Requirements has been Noted
          • Alkalinity is recovered in Recycled Water in Anoxic Zone
        • Better Settling and Clarity has been Noted in Clarifiers
        • A Decrease in Aluminum Sulfate Usage has been Noted
          • Due to Increased Biological Phosphorous Uptake
        • More Effective Dewatering Process (Centrifuge)
        • Reduced Air Requirement in Aeration Basins

30

slide31

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Negatives to Denitrification found at Genesee
        • Initial Electrical Consumption has increased 15%
          • From Pump, Mixer, and Meter Usage
          • May Decrease because of Reduced Air Requirements
        • Initial Operation Requirements to Determine Recycle Ratio
        • More Frequent Monitoring for Filamentous Control in the Anoxic Zone

31

slide32

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Total Costs
        • $46,000 for One (0.25 MGD) Aeration Basin Conversion
          • Engineering – $ 6,500
          • Baffle Wall – $ 6,200
          • Pump & Equip. – $ 4,900
          • Jib Crane & Trolley – $ 1,400
          • Mixer & Equip. – $10,300
          • Flow Meter – $ 2,900
          • Plug Valve – $ 500
          • Pipe, Supports, Etc. – $ 3,300
          • Electrical – $ 9,900

32

slide33

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

Design Implementation

33

slide34

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

  • Design Implementation
        • Determine Need
        • Establish Funding
        • Engineering Calculations / Design
        • Equipment / Materials Selection
        • Determine Resources Available
        • Installation
        • Financial / Chemical Changes

34

slide35

Jacobson Helgoth Consultants, Inc.

Retro-Fit Denitrification Improvements

Questions?

Zach Matyja

zmatyja@jacobsonhelgoth.com

Jacobson Helgoth Consultants, Inc.

www.jhcinc.com

(303) 986-0733

35
