Presentation Transcript
Transformations l.jpg

Transformations

Jehee Lee

Seoul National University

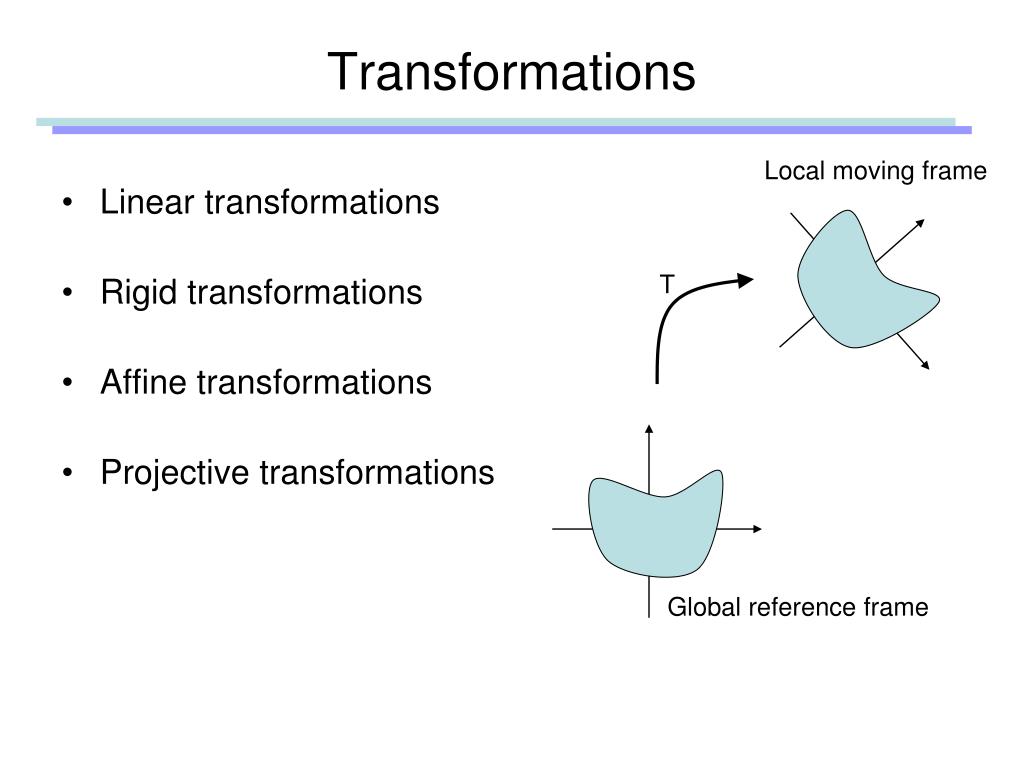

Transformations2 l.jpg
Transformations

Local moving frame

  • Linear transformations

  • Rigid transformations

  • Affine transformations

  • Projective transformations

T

Global reference frame


Linear transformations l.jpg
Linear Transformations

  • A linear transformationT is a mapping between vector spaces

    • T maps vectors to vectors

    • linear combination is invariant under T

  • In 3-space, T can be represented by a 3x3 matrix


Examples of linear transformations l.jpg
Examples of Linear Transformations

  • 2D rotation

  • 2D scaling

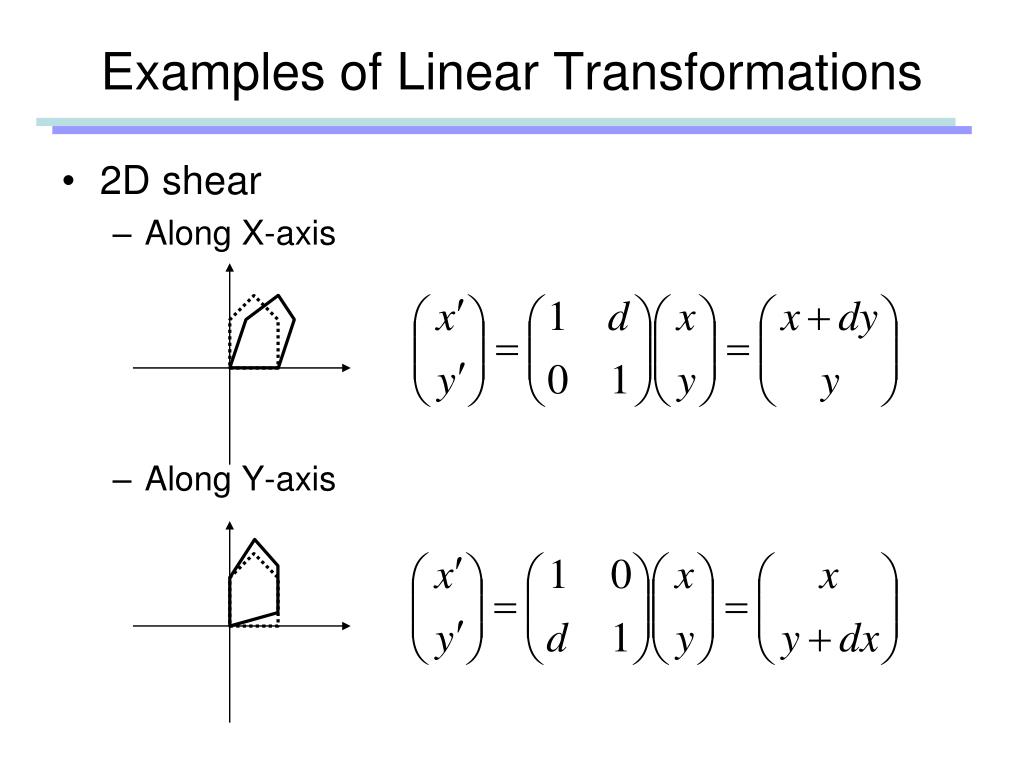

Examples of linear transformations5 l.jpg
Examples of Linear Transformations

  • 2D shear

    • Along X-axis

    • Along Y-axis

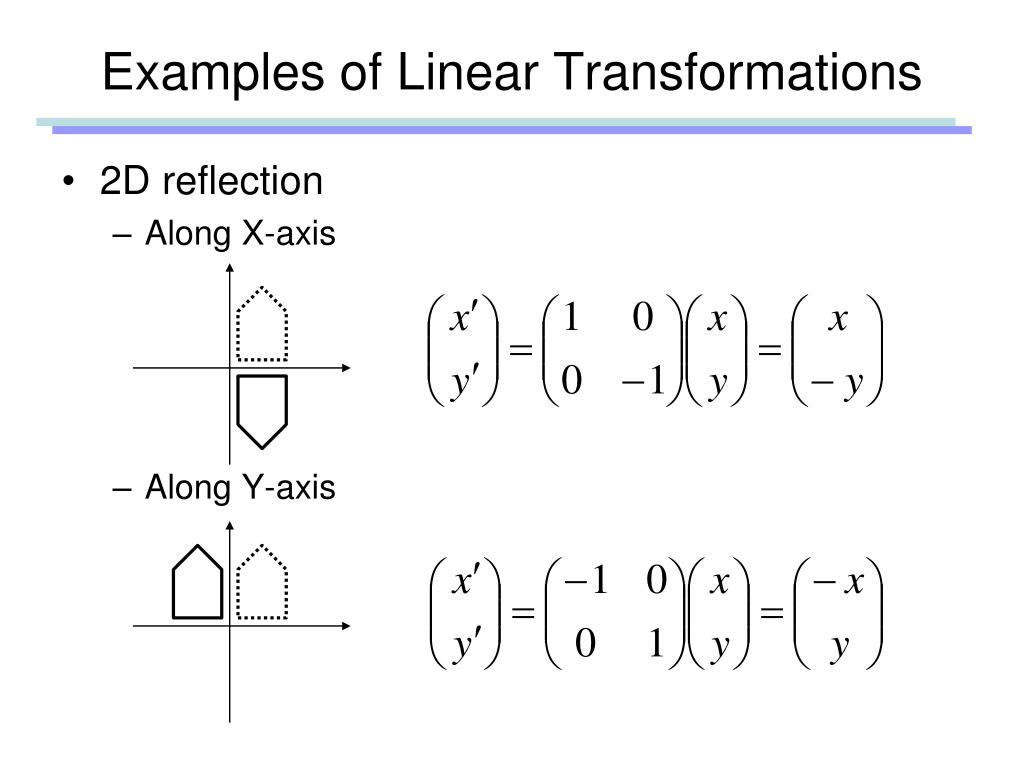

Examples of linear transformations6 l.jpg
Examples of Linear Transformations

  • 2D reflection

    • Along X-axis

    • Along Y-axis


Properties of linear transformations l.jpg
Properties of Linear Transformations

  • Any linear transformation between 3D spaces can be represented by a 3x3 matrix

  • Any linear transformation between 3D spaces can be represented as a combination of rotation, shear, and scaling

  • Rotation can be represented as a combination of scaling and shear

    • Is this combination unique ?


Properties of linear transformations8 l.jpg
Properties of Linear Transformations

  • Rotation can be computed as two-pass shear transformations

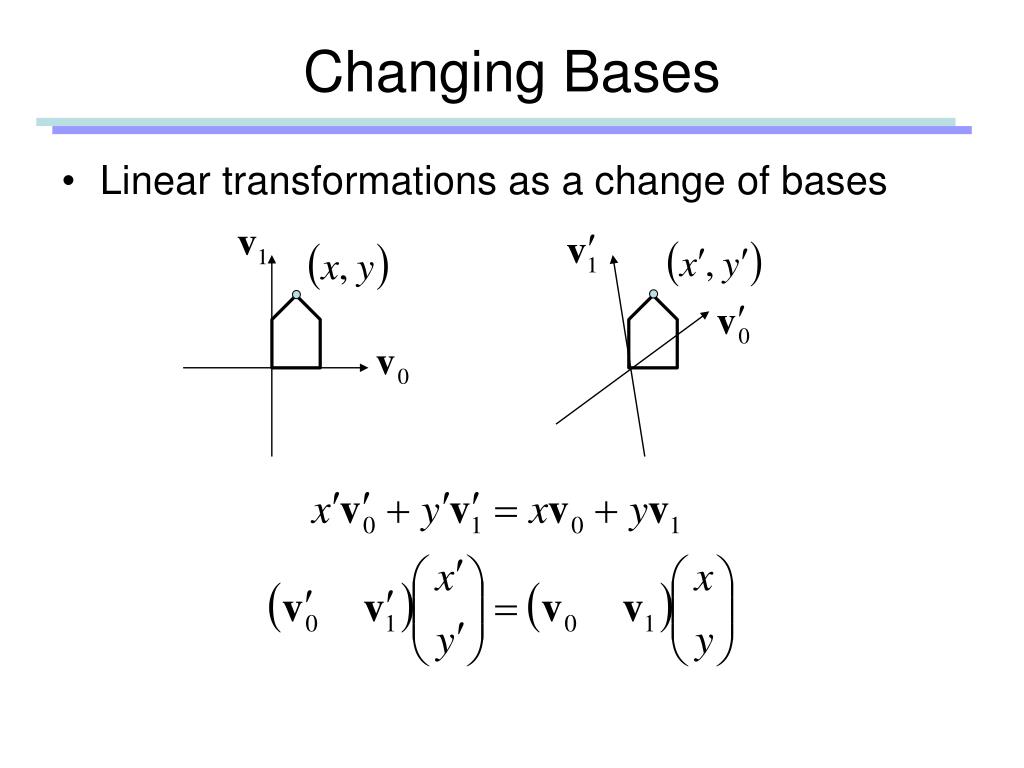

Changing bases l.jpg
Changing Bases

  • Linear transformations as a change of bases

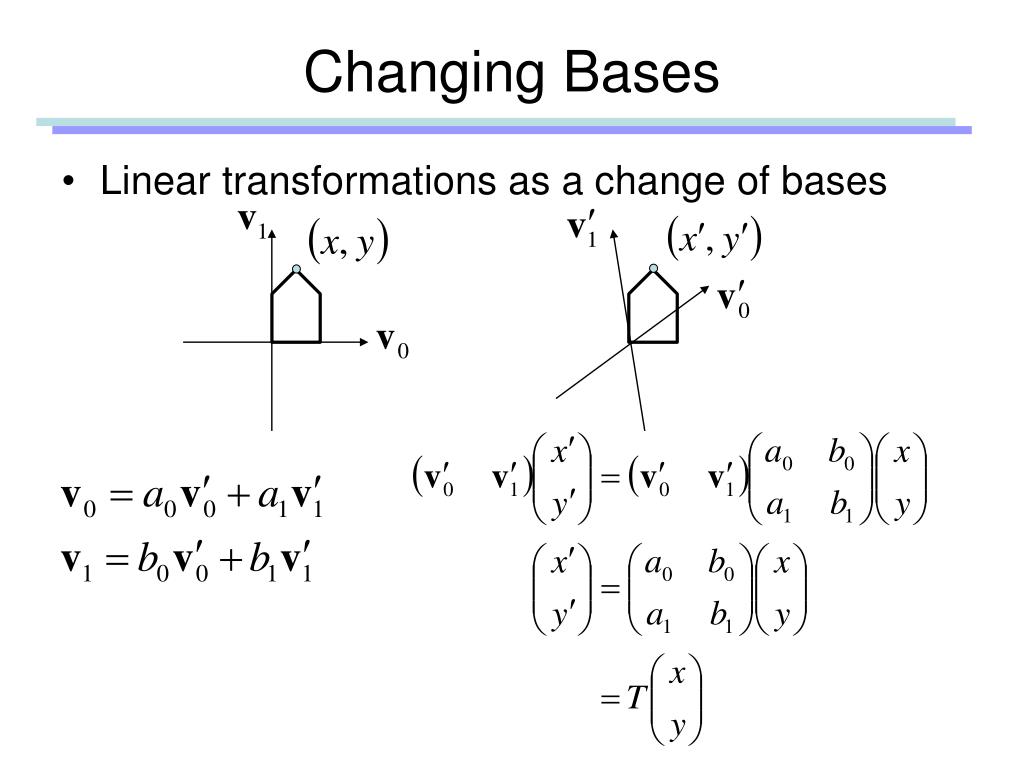

Changing bases10 l.jpg
Changing Bases

  • Linear transformations as a change of bases


Affine transformations l.jpg
Affine Transformations

  • An affine transformationT is a mapping between affine spaces

    • T maps vectors to vectors, and points to points

    • T is a linear transformation on vectors

    • affine combination is invariant under T

  • In 3-space,T can be represented by a 3x3 matrix together with a 3x1 translation vector

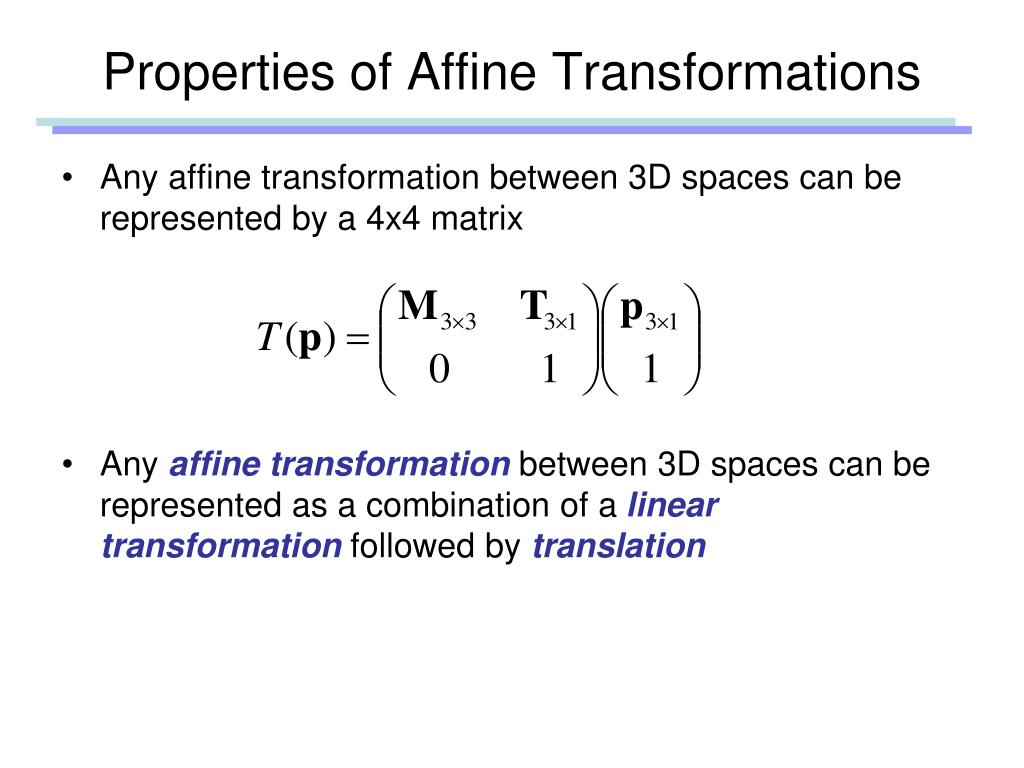

Properties of affine transformations l.jpg
Properties of Affine Transformations

  • Any affine transformation between 3D spaces can be represented by a 4x4 matrix

  • Any affine transformation between 3D spaces can be represented as a combination of a linear transformation followed by translation


Properties of affine transformations13 l.jpg
Properties of Affine Transformations

  • An affine transf. maps lines to lines

  • An affine transf. maps parallel lines to parallel lines

  • An affine transf. preserves ratios of distance along a line

  • An affine transf. does not preserve absolute distances and angles


Examples of affine transformations l.jpg
Examples of Affine Transformations

  • 2D rotation

  • 2D scaling


Examples of affine transformations15 l.jpg
Examples of Affine Transformations

  • 2D shear

  • 2D translation


Examples of affine transformations16 l.jpg
Examples of Affine Transformations

  • 2D transformation for vectors

    • Translation is simply ignored


Examples of affine transformations17 l.jpg
Examples of Affine Transformations

  • 3D rotation

How can we rotate about an arbitrary line ?

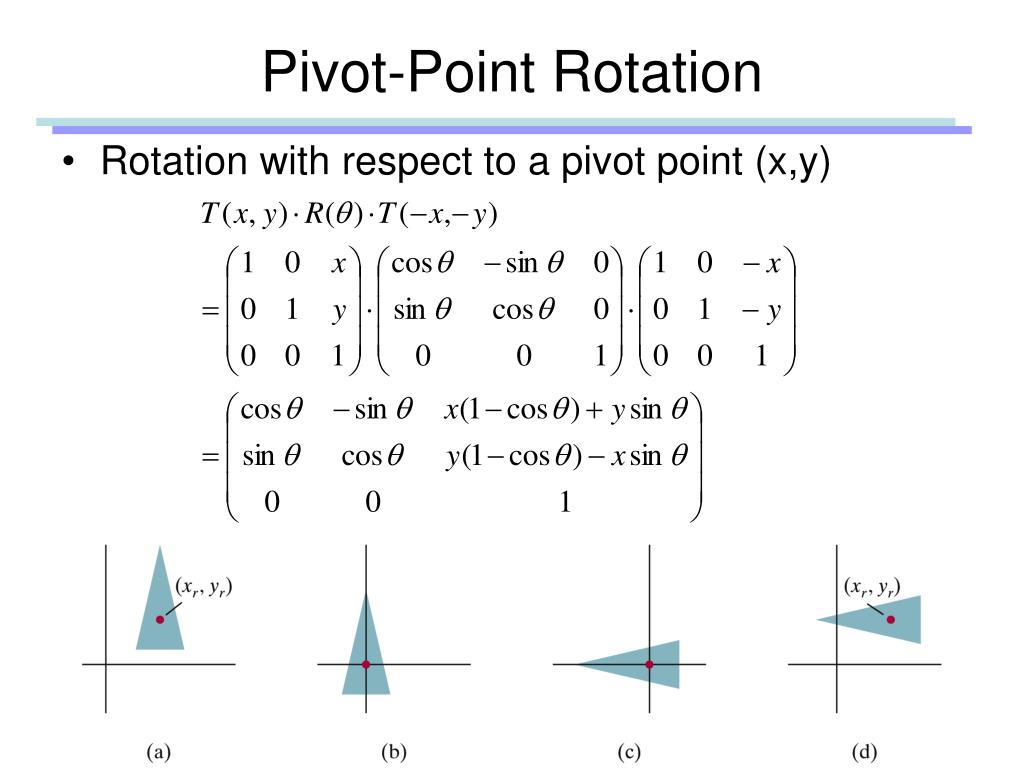

Pivot point rotation l.jpg
Pivot-Point Rotation

  • Rotation with respect to a pivot point (x,y)


Fixed point scaling l.jpg
Fixed-Point Scaling

  • Scaling with respect to a fixed point (x,y)


Scaling direction l.jpg
Scaling Direction

  • Scaling along an arbitrary axis


Composite transformations l.jpg
Composite Transformations

  • Composite 2D Translation


Composite transformations22 l.jpg
Composite Transformations

  • Composite 2D Scaling

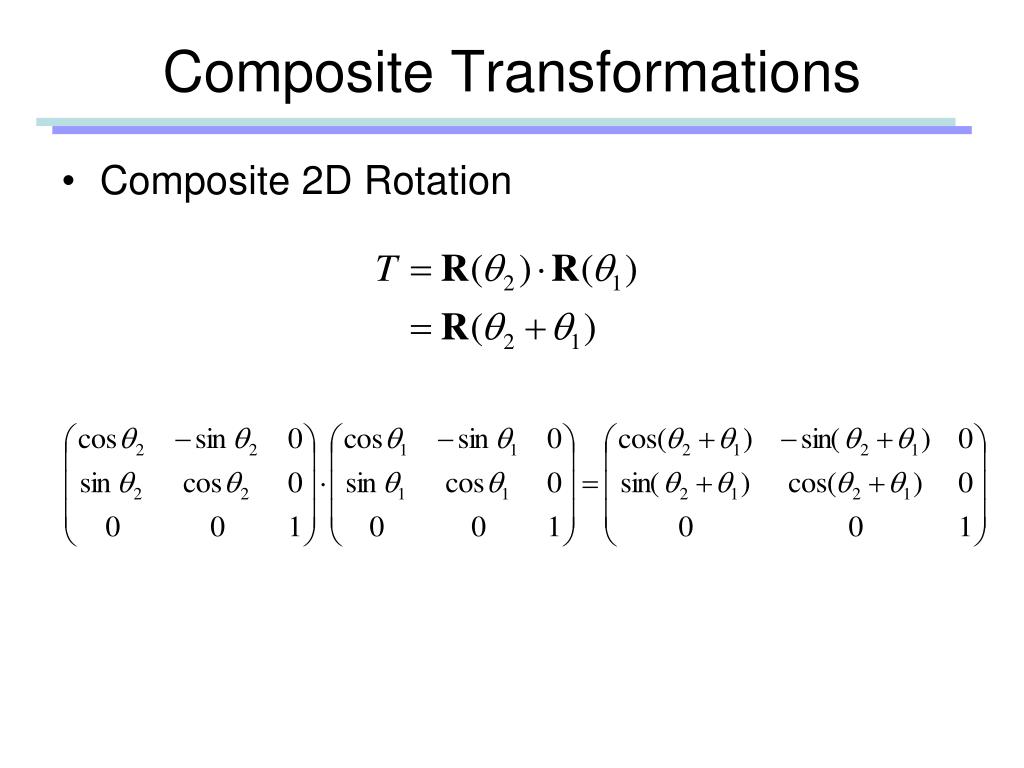

Composite transformations23 l.jpg
Composite Transformations

  • Composite 2D Rotation


Composing transformations l.jpg
Composing Transformations

  • Suppose we want,

  • We have to compose two transformations


Composing transformations25 l.jpg
Composing Transformations

  • Matrix multiplication is not commutative

Translation

followed by

rotation

Translation

followed by

rotation


Composing transformations26 l.jpg
Composing Transformations

  • R-to-L : interpret operations w.r.t. fixed coordinates

  • L-to-R : interpret operations w.r.t local coordinates

(Column major convention)


Review of affine frames l.jpg
Review of Affine Frames

  • A frame is defined as a set of vectors {vi | i=1, …, N} and a point o

    • Set of vectors {vi} are bases of the associate vector space

    • o is an origin of the frame

    • N is the dimension of the affine space

    • Any point p can be written as

    • Any vector v can be written as


Changing frames l.jpg
Changing Frames

  • Affine transformations as a change of frame


Changing frames29 l.jpg
Changing Frames

  • Affine transformations as a change of frame


Rigid transformations l.jpg
Rigid Transformations

  • A rigid transformationT is a mapping between affine spaces

    • T maps vectors to vectors, and points to points

    • T preserves distances between all points

    • T preserves cross product for all vectors (to avoid reflection)

  • In 3-spaces, T can be represented as


Rigid body transformations l.jpg
Rigid Body Transformations

  • Rigid body transformations allow only rotation and translation

  • Rotation matrices form SO(3)

    • Special orthogonal group

(Distance preserving)

(No reflection)

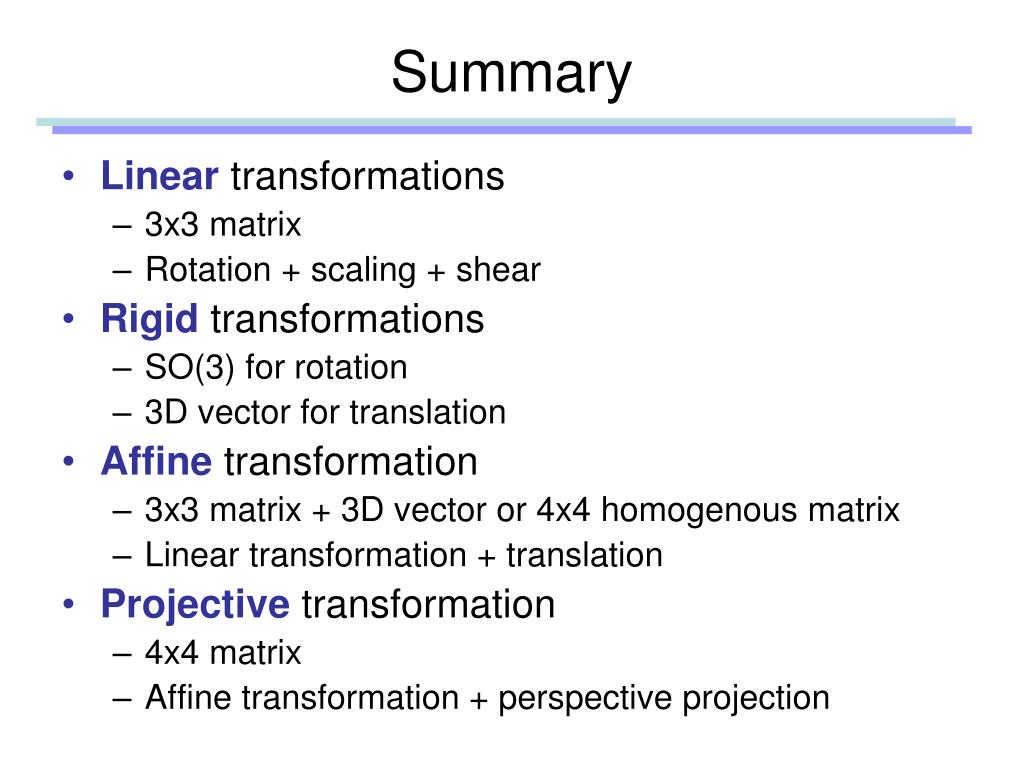

Summary l.jpg
Summary

  • Linear transformations

    • 3x3 matrix

    • Rotation + scaling + shear

  • Rigid transformations

    • SO(3) for rotation

    • 3D vector for translation

  • Affine transformation

    • 3x3 matrix + 3D vector or 4x4 homogenous matrix

    • Linear transformation + translation

  • Projective transformation

    • 4x4 matrix

    • Affine transformation + perspective projection


Questions l.jpg
Questions

  • What is the composition of linear/affine/rigid transformations ?

  • What is the linear (or affine) combination of linear (or affine) transformations ?

  • What is the linear (or affine) combination of rigid transformations ?
