Aim: How can we determine the x (horizontal) and y (vertical) components of a vector?

Aim: How can we determine the x (horizontal) and y (vertical) components of a vector?. Do Now: Draw a vector that is 35 m/s 30° North of West Scale: 1 cm = 5 m/s. N. 35 m/s. 30°. W. E. S. Measure the x and y components.

grady-reyes
Download Presentation

Aim: How can we determine the x (horizontal) and y (vertical) components of a vector?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Aim: How can we determine the x (horizontal) and y (vertical) components of a vector? Do Now: Draw a vector that is 35 m/s 30° North of West Scale: 1 cm = 5 m/s N 35 m/s 30° W E S

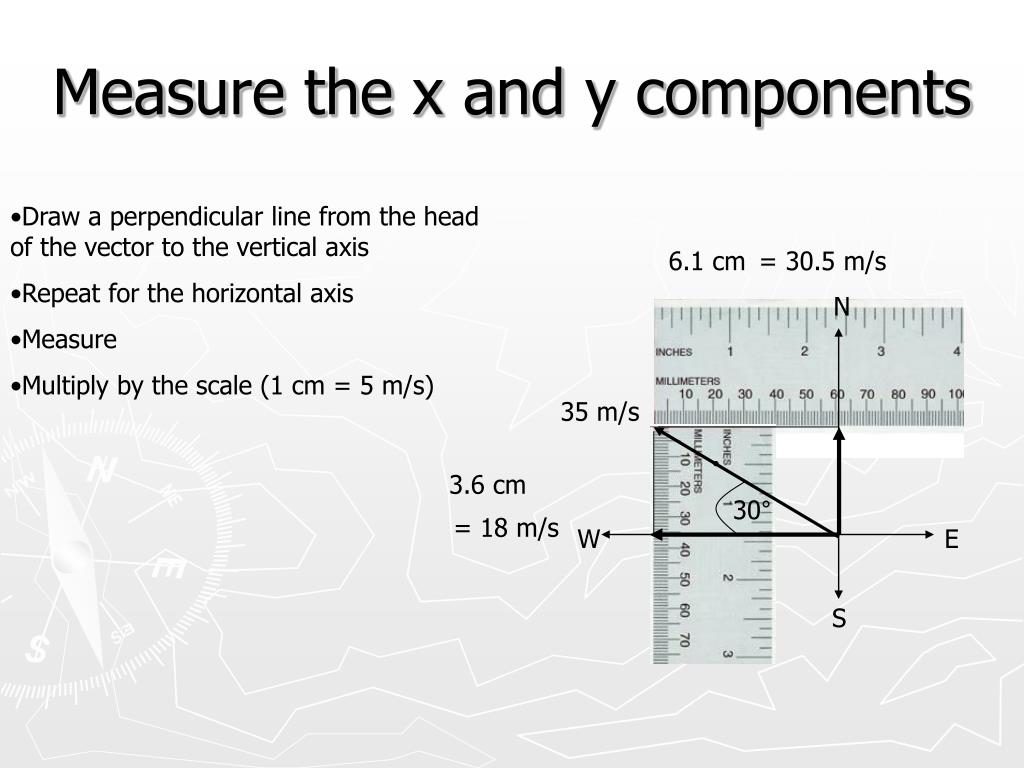

  2. Measure the x and y components • Draw a perpendicular line from the head of the vector to the vertical axis • Repeat for the horizontal axis • Measure • Multiply by the scale (1 cm = 5 m/s) 6.1 cm = 30.5 m/s N 35 m/s 3.6 cm 30° = 18 m/s W E S

  3. Solving Mathematically • Use trigonometry SOHCAHTOA Solving for the vertical (y) component: Solving for the horizontal (x) component: N x 35 m/s y 30° W S

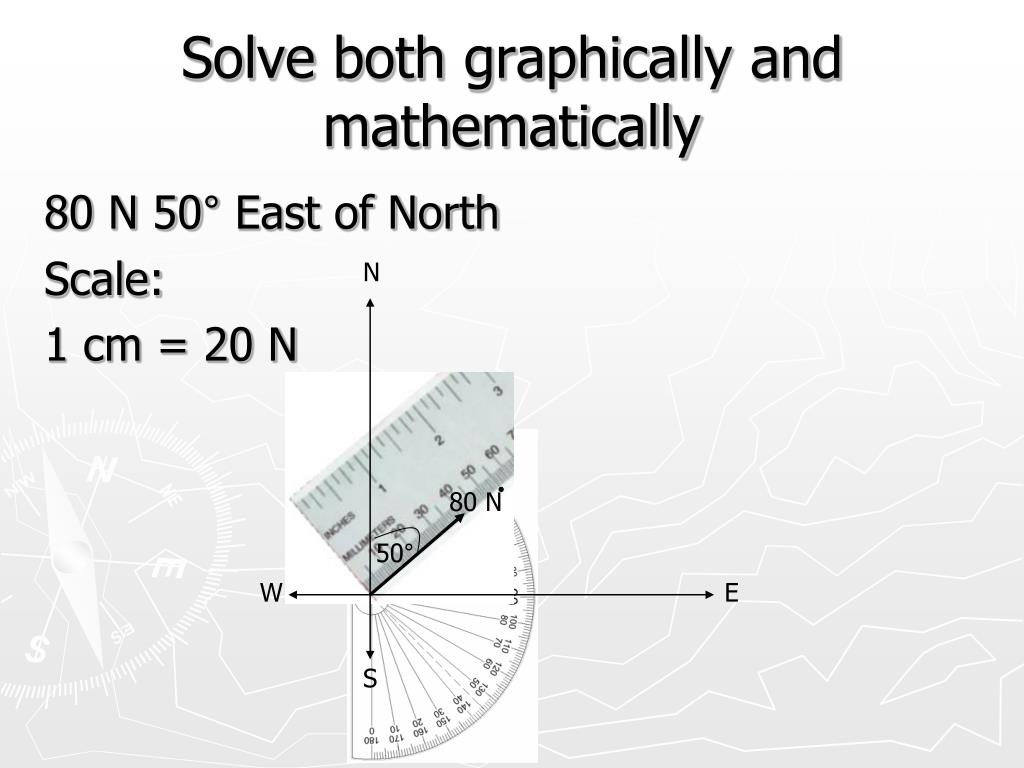

  4. Solve both graphically and mathematically 80 N 50° East of North Scale: 1 cm = 20 N N 80 N 50° W E S

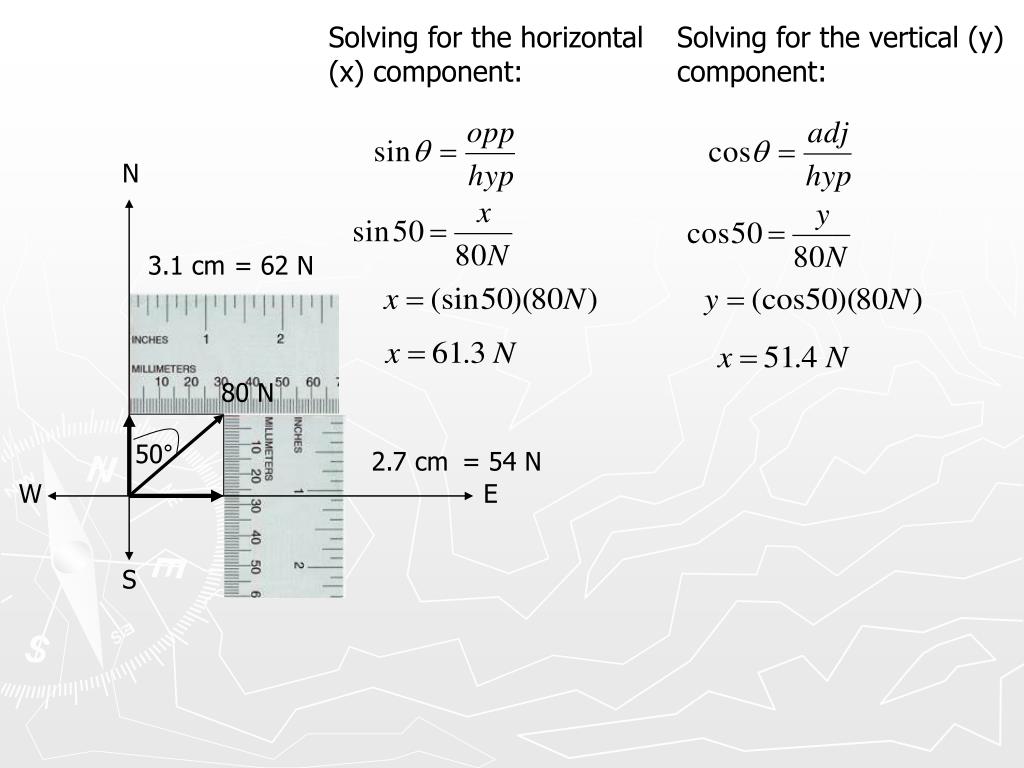

  5. Solving for the horizontal (x) component: Solving for the vertical (y) component: N 3.1 cm = 62 N 80 N 50° 2.7 cm = 54 N W E S

  6. So which method of obtaining the horizontal and vertical components is more accurate and why?
