shipbreaking

Shipbreaking

Module 4: Heavy Equipment

& Material Movement

4.2 Winch rig, Cables, Hooks, & Clamps

Susan Harwood Grant Number SH-17820-08-60-F-23

disclaimer

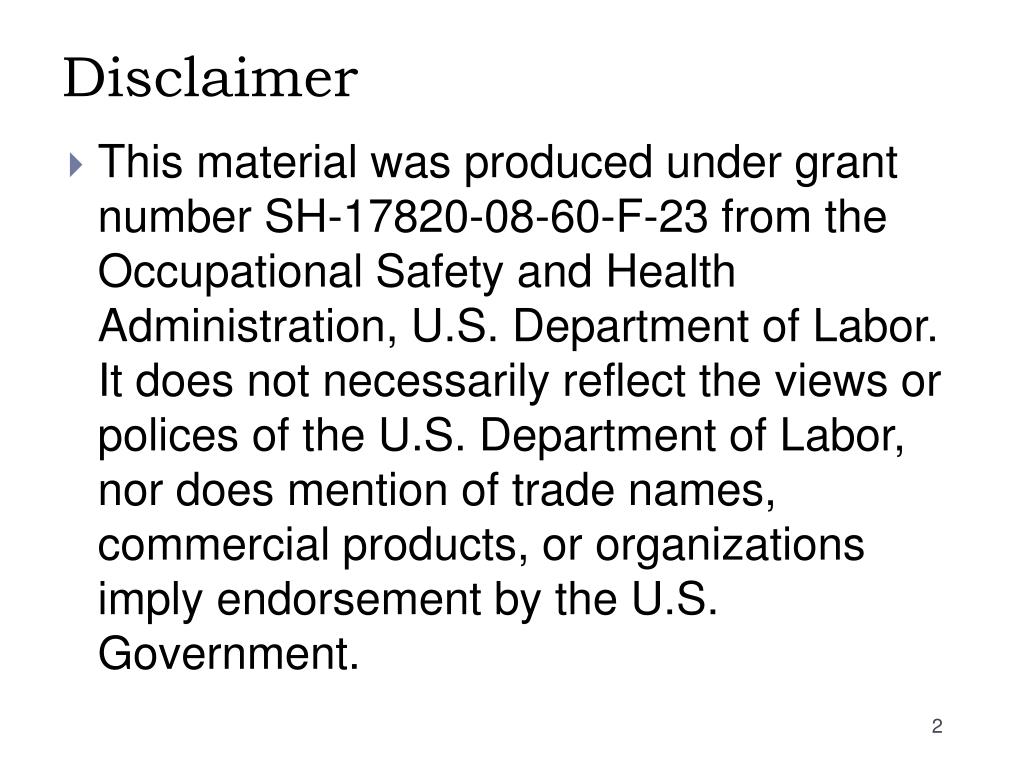

Disclaimer
  • This material was produced under grant number SH-17820-08-60-F-23 from the Occupational Safety and Health Administration, U.S. Department of Labor. It does not necessarily reflect the views or polices of the U.S. Department of Labor, nor does mention of trade names, commercial products, or organizations imply endorsement by the U.S. Government.
objectives

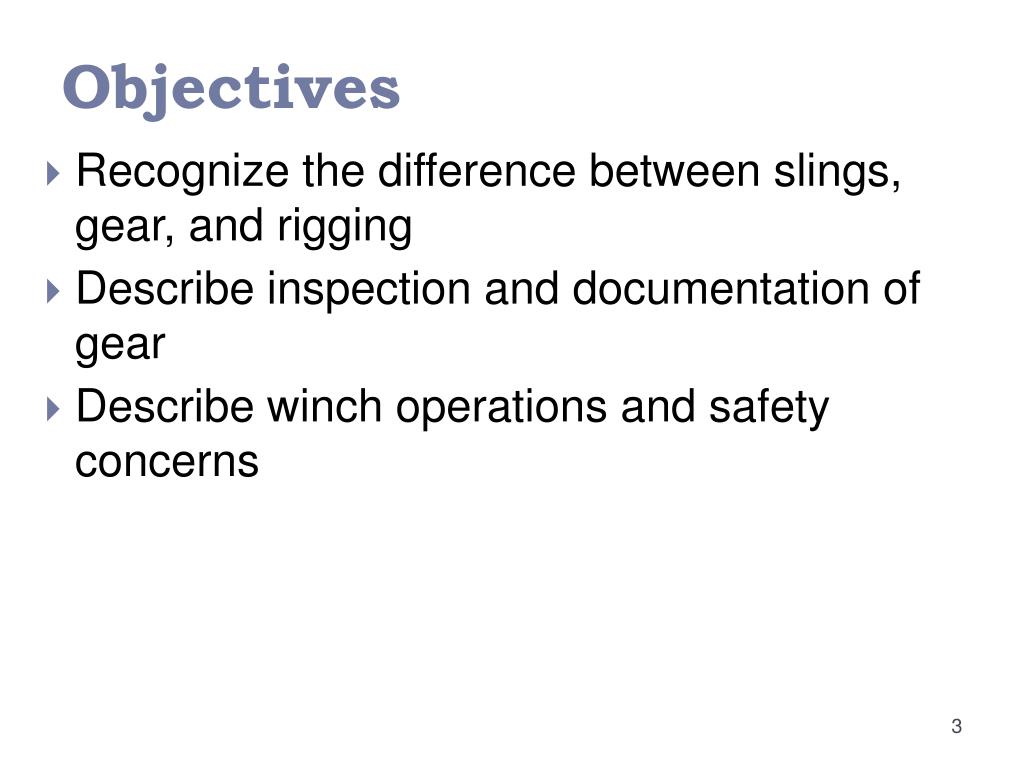

Objectives
  • Recognize the difference between slings, gear, and rigging
  • Describe inspection and documentation of gear
  • Describe winch operations and safety concerns
rigging and gear is just as important as the equipment itself

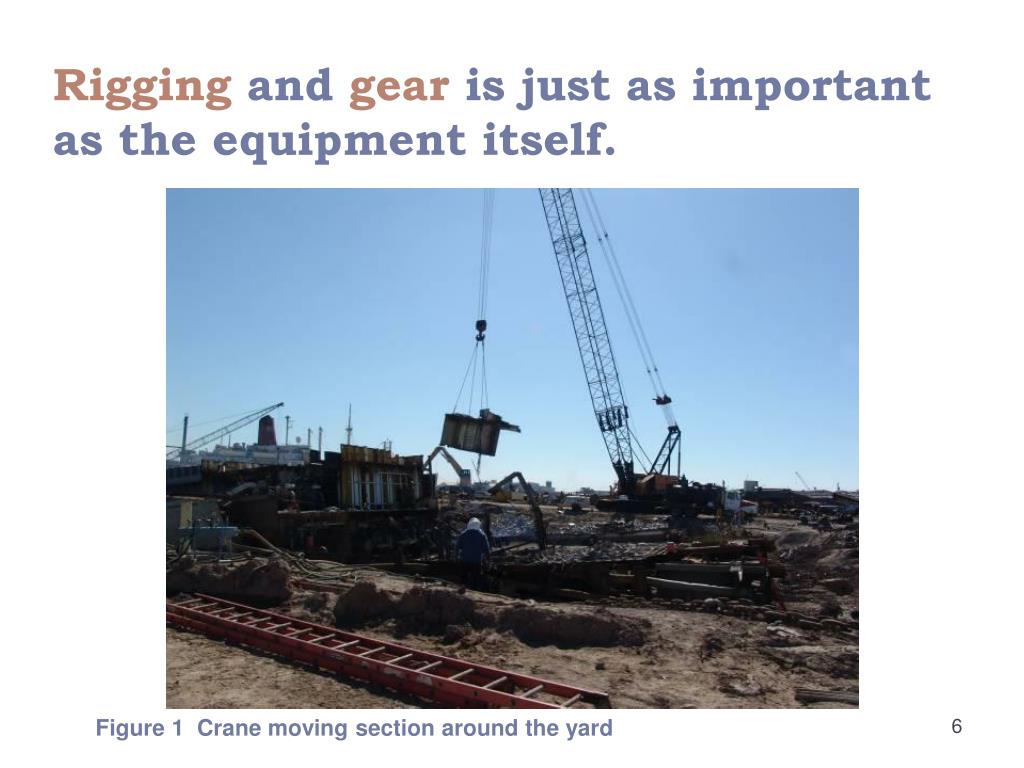

Rigging and gear is just as important as the equipment itself.

Figure 1 Crane moving section around the yard

slide7
Gear is the working part of the operations that constantly comes in contact with the material and hoist.

Figure 2 Cargo boom and rigging on vessel

there should be a regular visual and documented inspection on all working gear and rigging

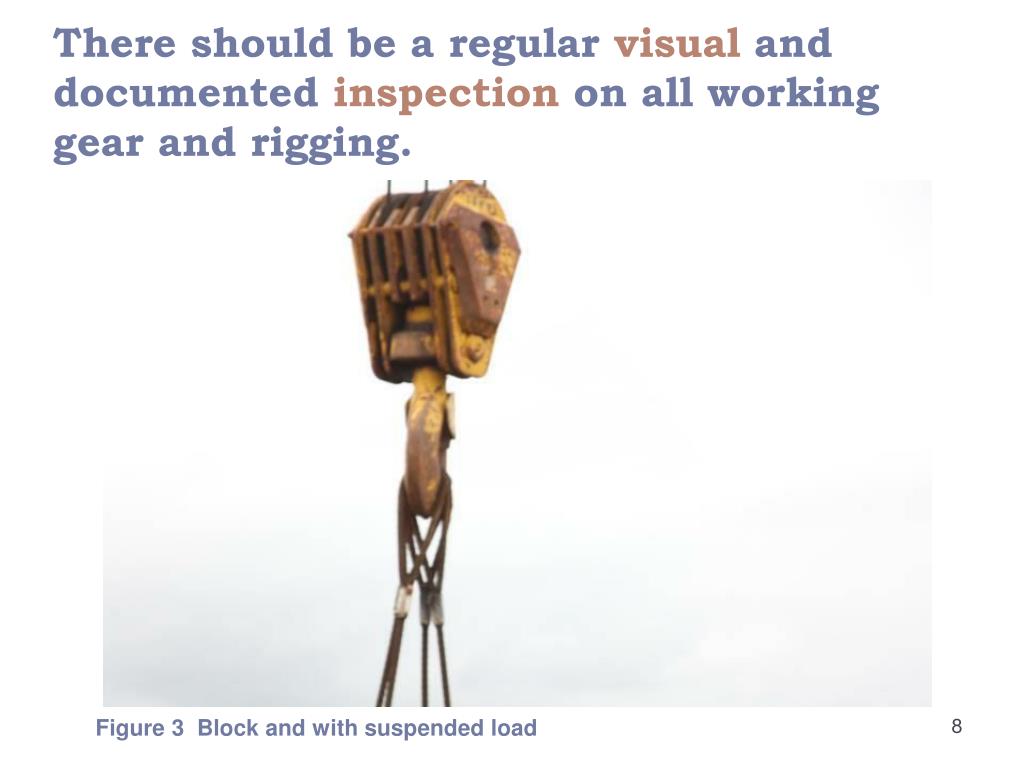

There should be a regular visual and documented inspection on all working gear and rigging.

Figure 3 Block and with suspended load

inspect synthetic and natural rope and slings for abrasions wear and cuts
Inspectsyntheticandnatural rope and slings for abrasions, wear, and cuts.

Figure 4 Natural and synthetic rope

knots can not replace splices and clamps must be designed for the application

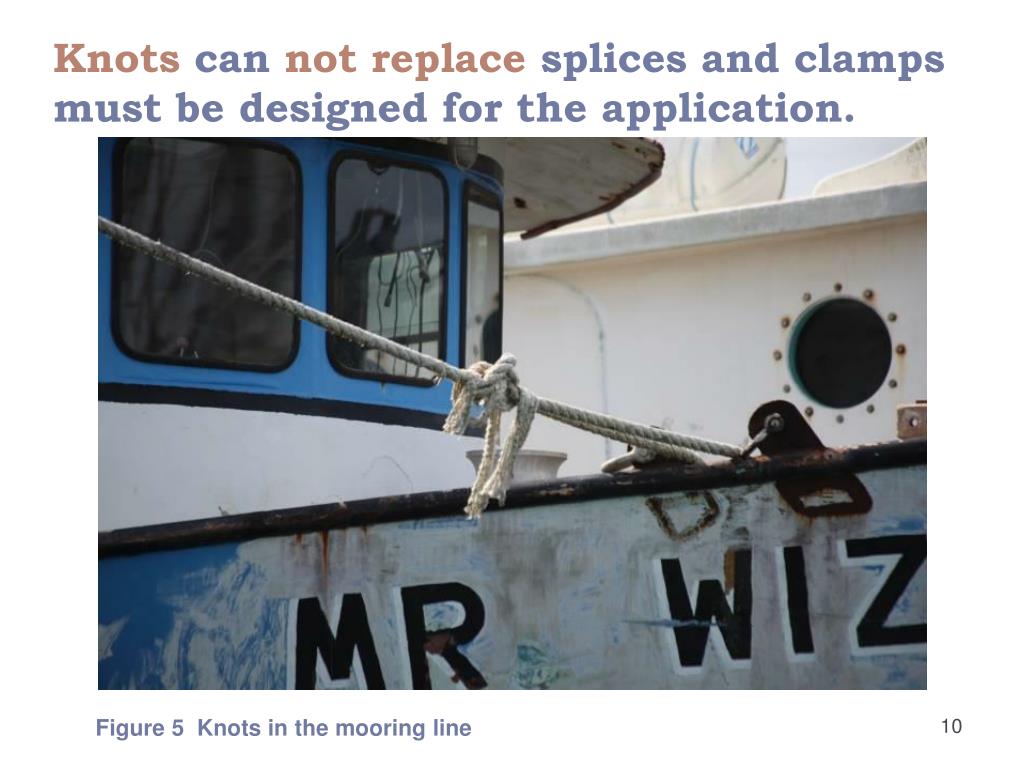

Knots can not replace splices and clamps must be designed for the application.

Figure 5 Knots in the mooring line

wire rope and slings become damaged by kinks crushing and overloading

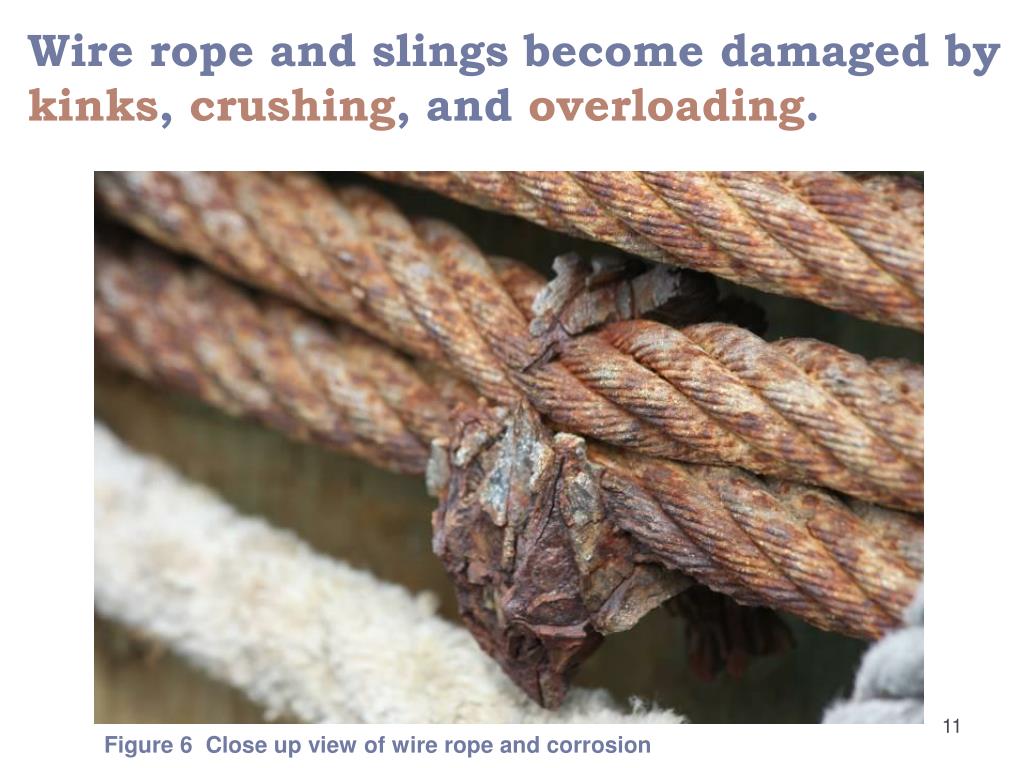

Wire rope and slings become damaged by kinks, crushing, and overloading.

Figure 6 Close up view of wire rope and corrosion

slide12

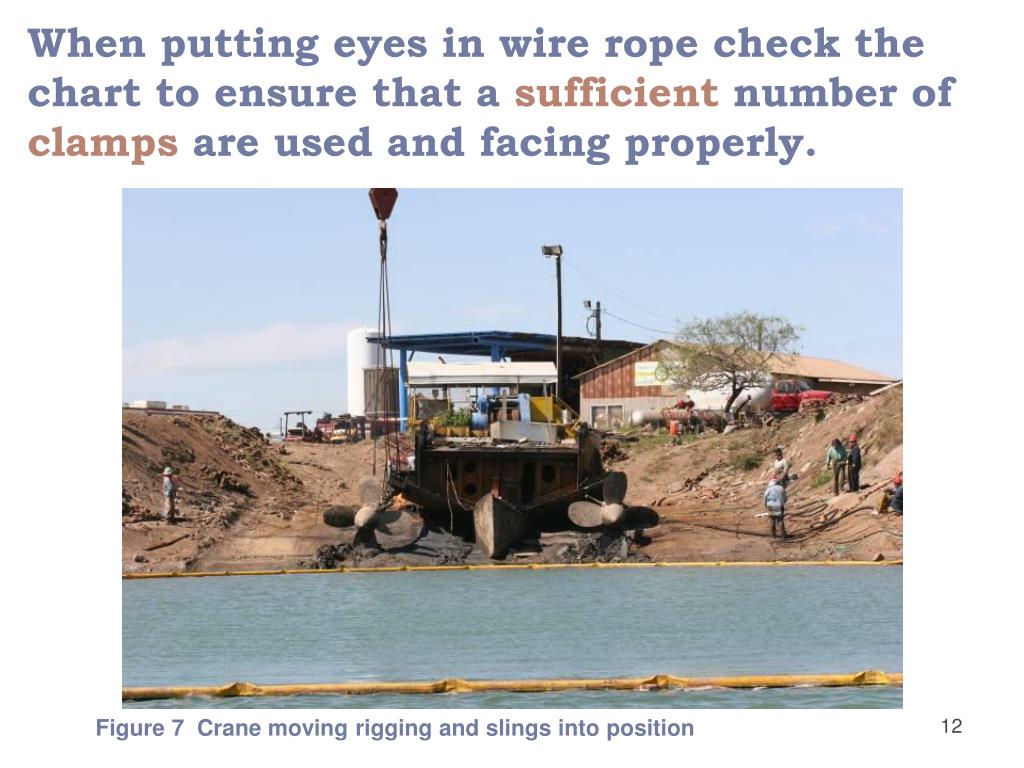

When putting eyes in wire rope check the chart to ensure that a sufficient number of clamps are used and facing properly.

Figure 7 Crane moving rigging and slings into position

common phase never saddle a dead horse

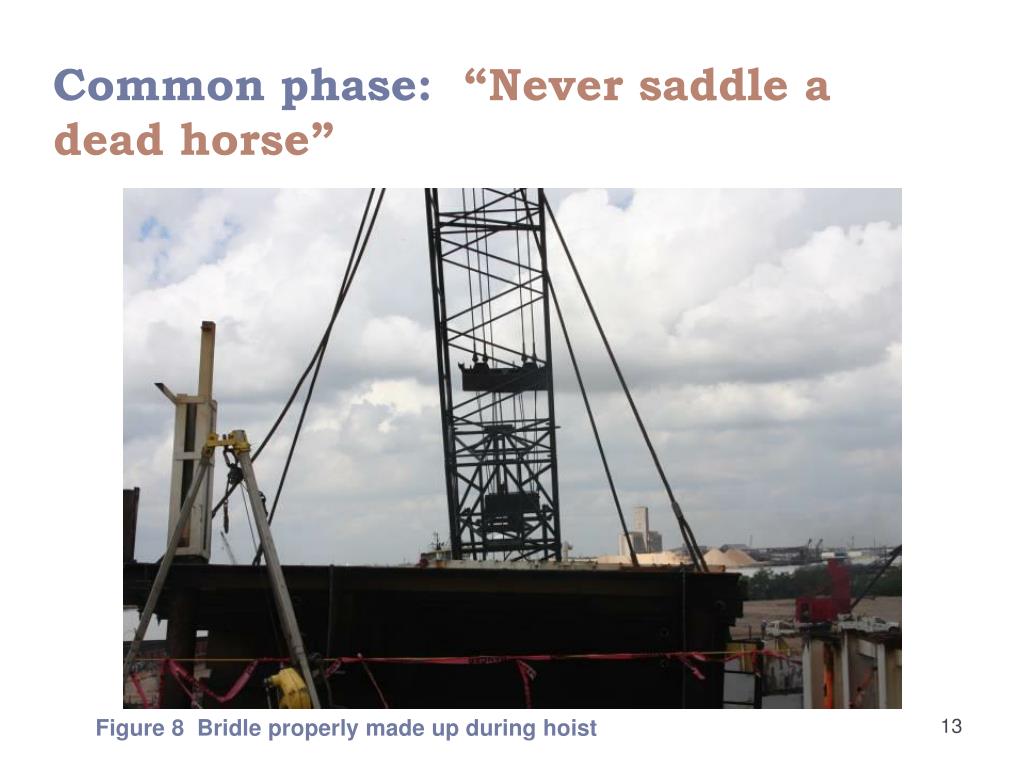

Common phase: “Never saddle a dead horse”

Figure 8 Bridle properly made up during hoist

remove wire rope from service if damage is observed from heat deformity or corrosion

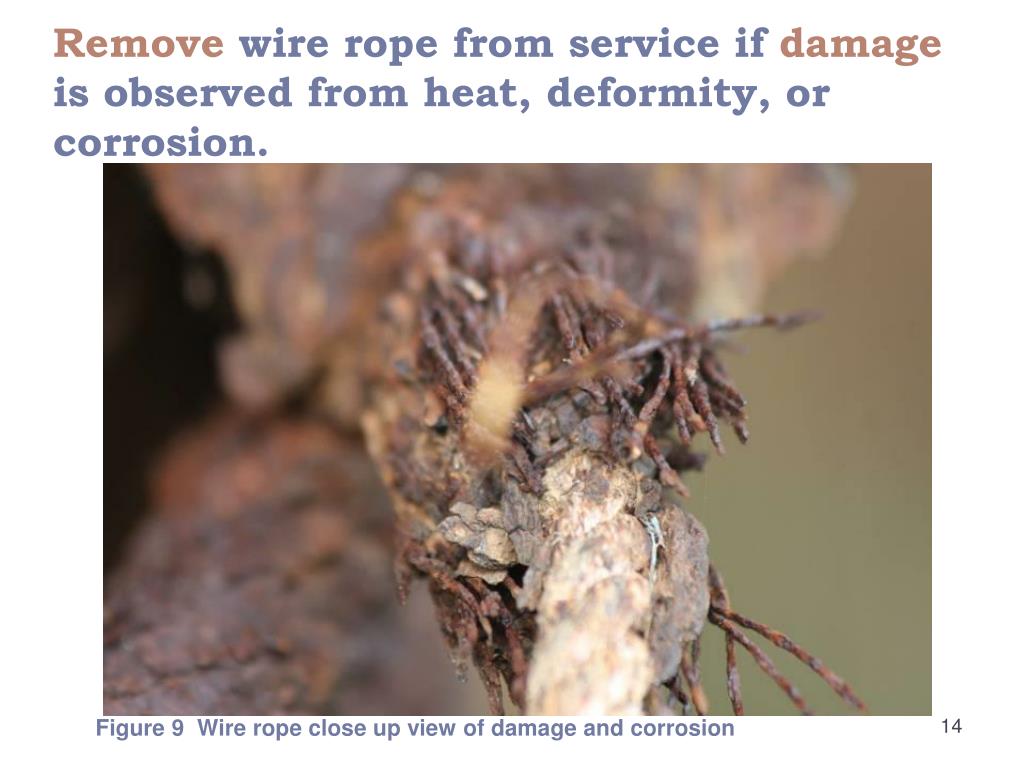

Remove wire rope from service if damage is observed from heat, deformity, or corrosion.

Figure 9 Wire rope close up view of damage and corrosion

hooks have to be replaced if the opening is more than 15 percent of the original diameter

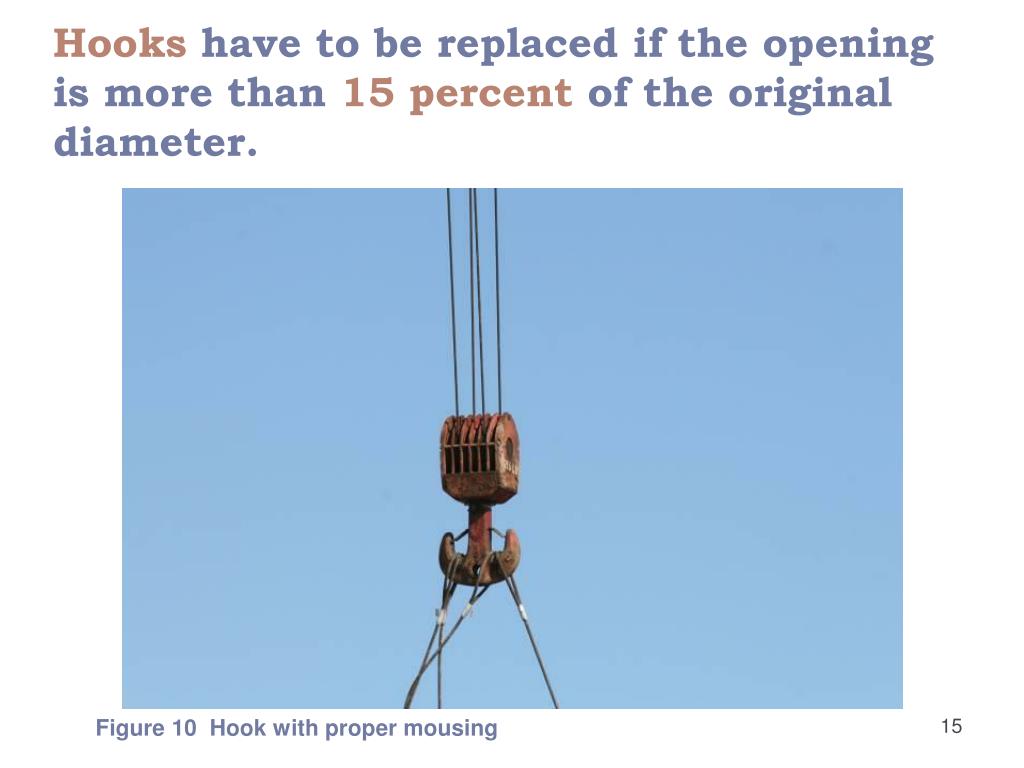

Hooks have to be replaced if the opening is more than 15 percent of the original diameter.

Figure 10 Hook with proper mousing

chains must be visually inspected prior to being used
Chains must be visually inspected prior to being used.

Figure 11 Chain and shackles on pallets in the yard

slide17
Chains and slings must be thoroughly inspected every three months and tagged. Written documentation must be kept.

Figure 12 Used wire rope being surveyed

slide18

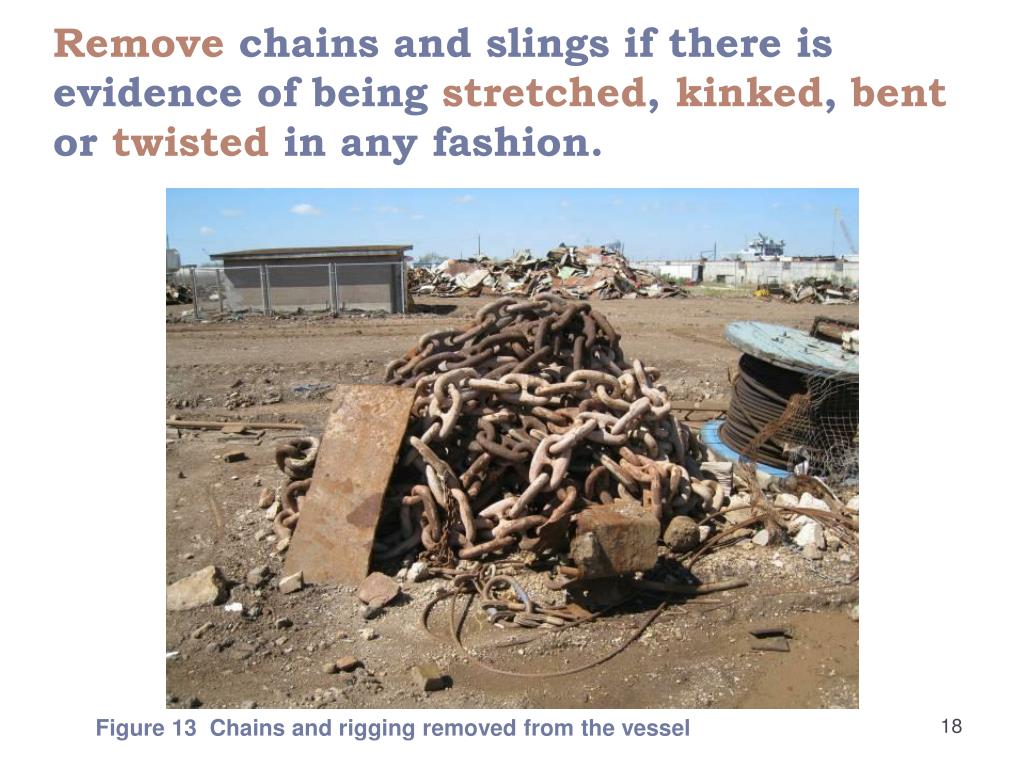

Removechains and slings if there is evidence of being stretched,kinked, bentor twisted in any fashion.

Figure 13 Chains and rigging removed from the vessel

do not shorten chain by means of bolting wiring or knotting

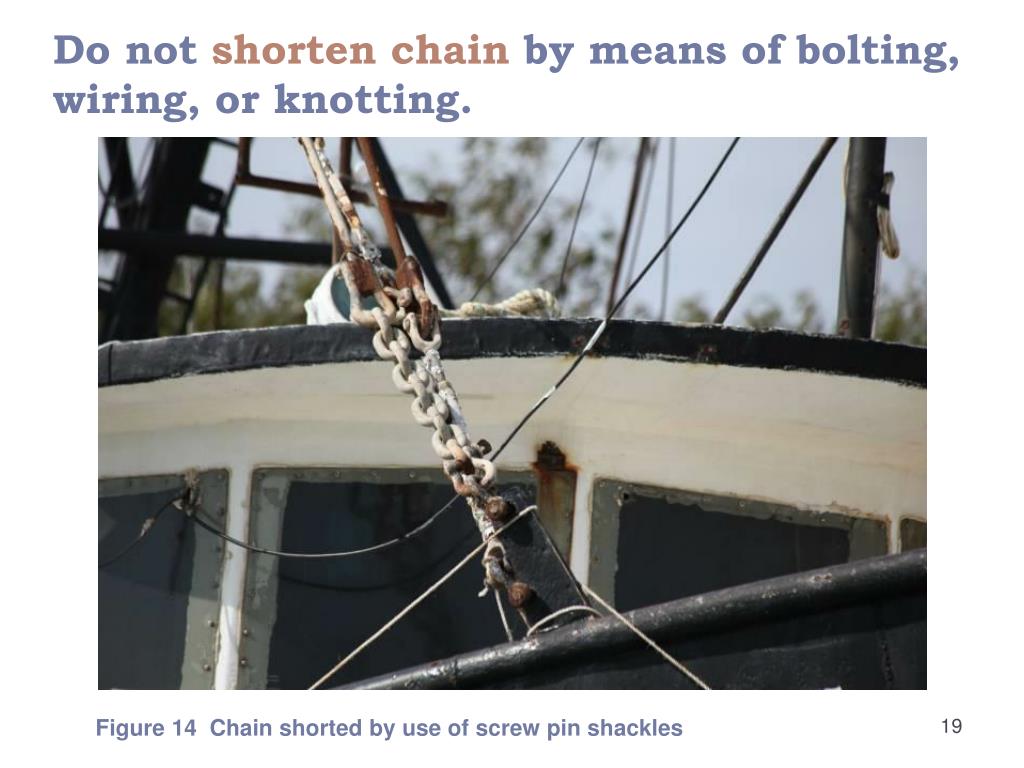

Do not shorten chain by means of bolting, wiring, or knotting.

Figure 14 Chain shorted by use of screw pin shackles

do not use any gear or rigging that is questionable report immediately to the supervisor

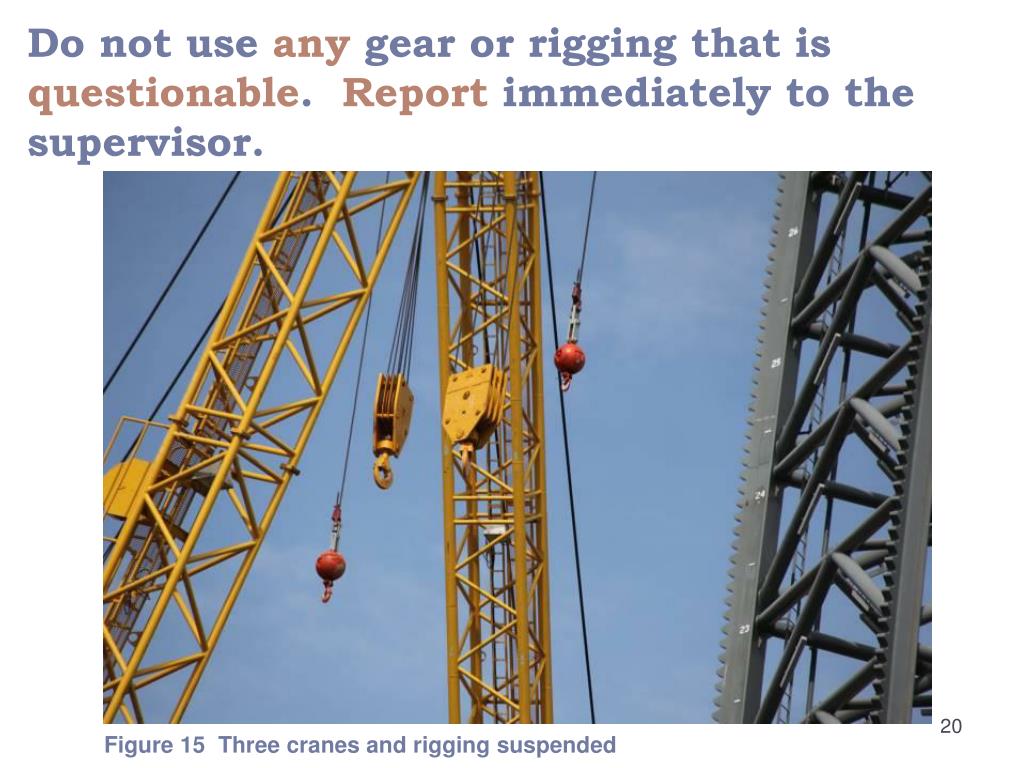

Do not use any gear or rigging that is questionable. Report immediately to the supervisor.

Figure 15 Three cranes and rigging suspended

the winch is the work horse of the operation

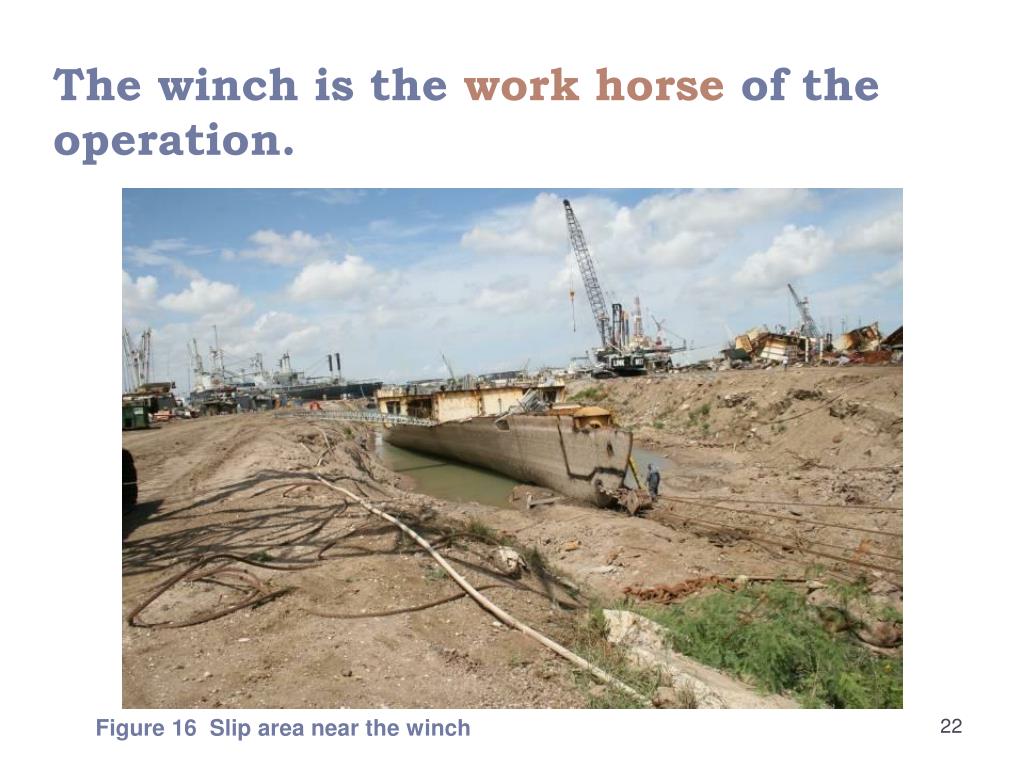

The winch is the work horse of the operation.

Figure 16 Slip area near the winch

as the vessel is being lightened the winch continues pulling the vessel to the bank

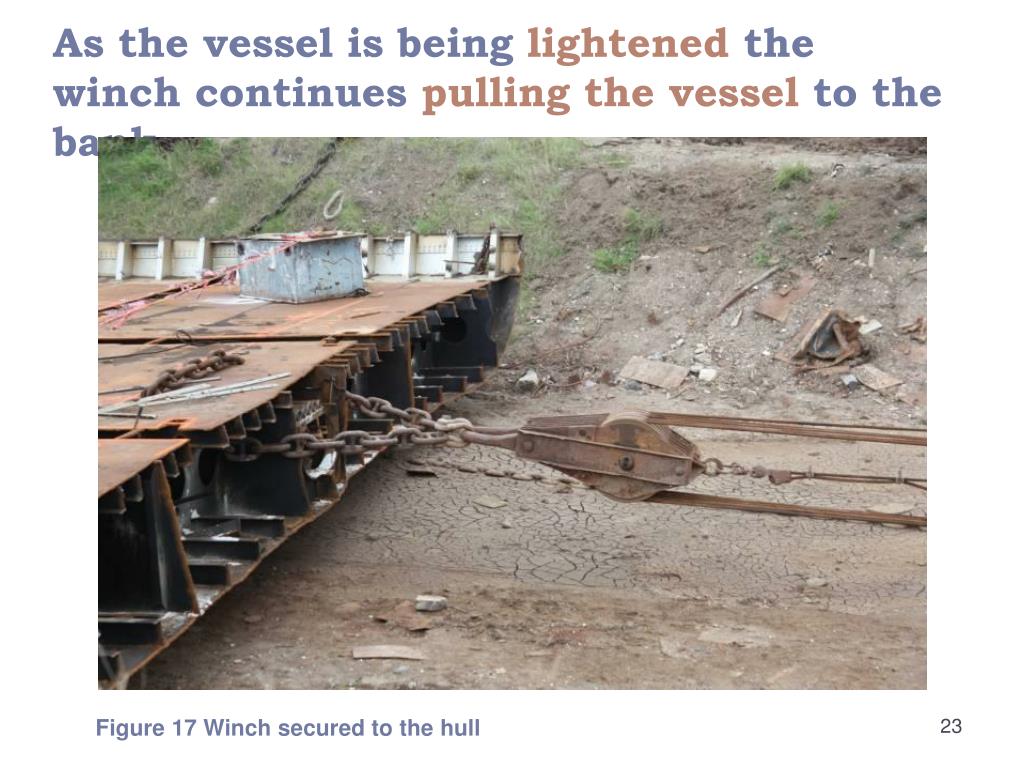

As the vessel is being lightened the winch continues pulling the vessel to the bank.

Figure 17 Winch secured to the hull

potential problems are centered around personnel getting crushed in the moving parts of the rigging

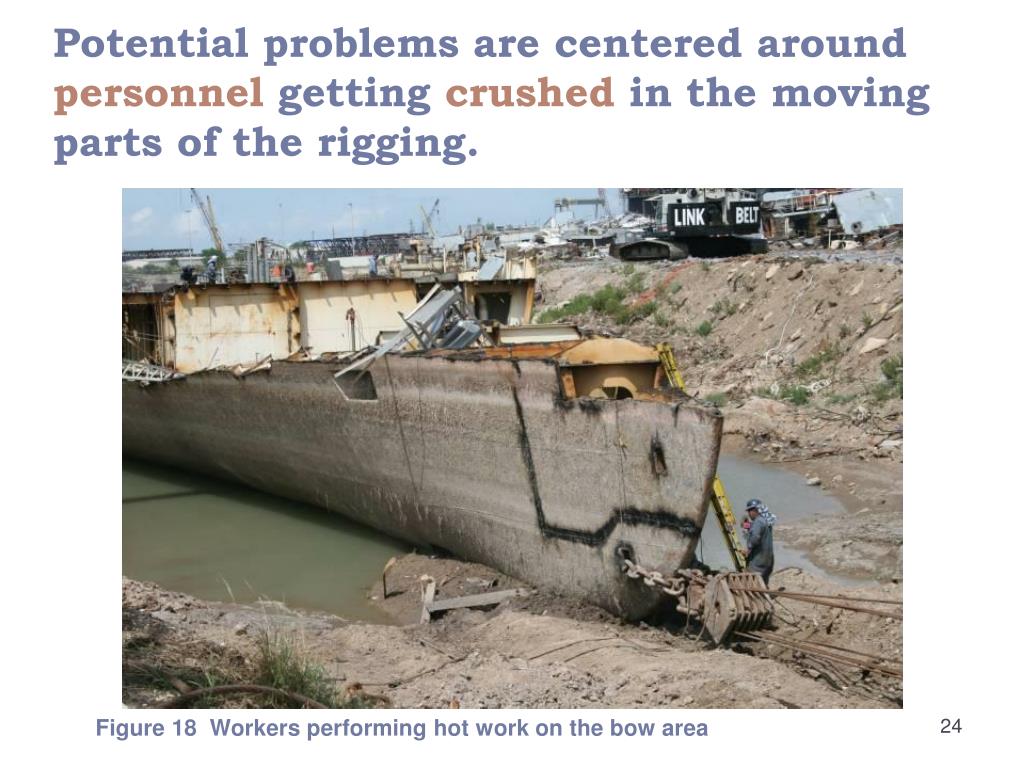

Potential problems are centered around personnel getting crushed in the moving parts of the rigging.

Figure 18 Workers performing hot work on the bow area

failure of the rigging can severely injure or cause death by gear snapping back after failure

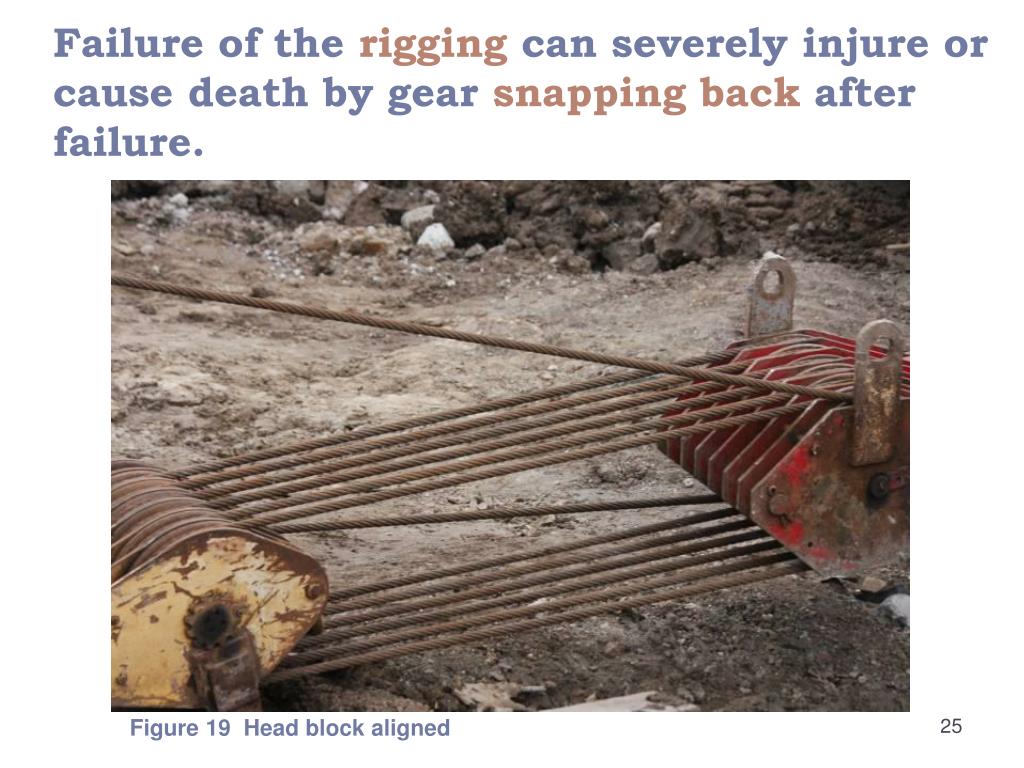

Failure of the rigging can severely injure or cause death by gear snappingback after failure.

Figure 19 Head block aligned

slide26
When making the connection to the vessel ensure that workers have been briefed and minimize workers in the area.

Figure 20 Close up view of attachment point

watch overhead as the crane moves the rigging in place and that personnel have the appropriate ppe
Watch overhead as the crane moves the rigging in place and that personnel have the appropriate PPE.

Figure 21 View from the cargo hold to the winch area

slide28
The supervisor must carefully watch the operation and look for safety violations or problems with the rigging.

Figure 22 Winch at the head of the slip

slide29
Priorto operating the winch checkthe rigging foralignment, proper connections, and personnel are clear of the area.

Figure 23 Cables are aligned with the winch and block

during hauling in watch the rigging from a safe distance for overloading or problems

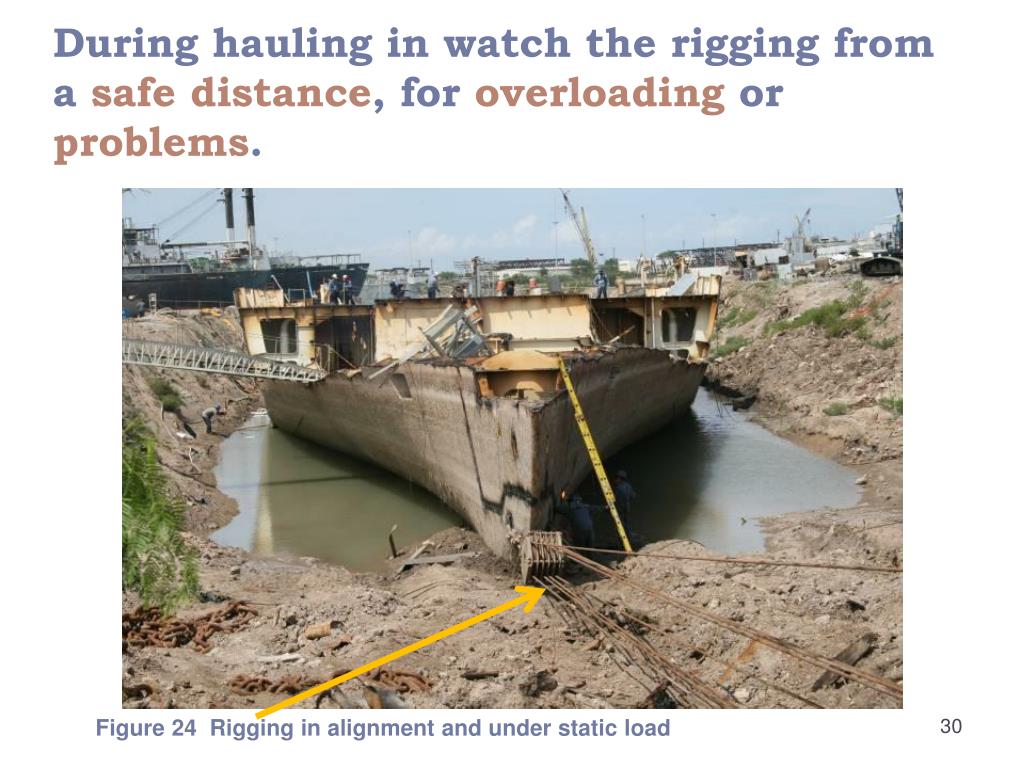

During hauling in watch the rigging from a safe distance, for overloading or problems.

Figure 24 Rigging in alignment and under static load

after the operation is completed block the rigging in place and secure the winch

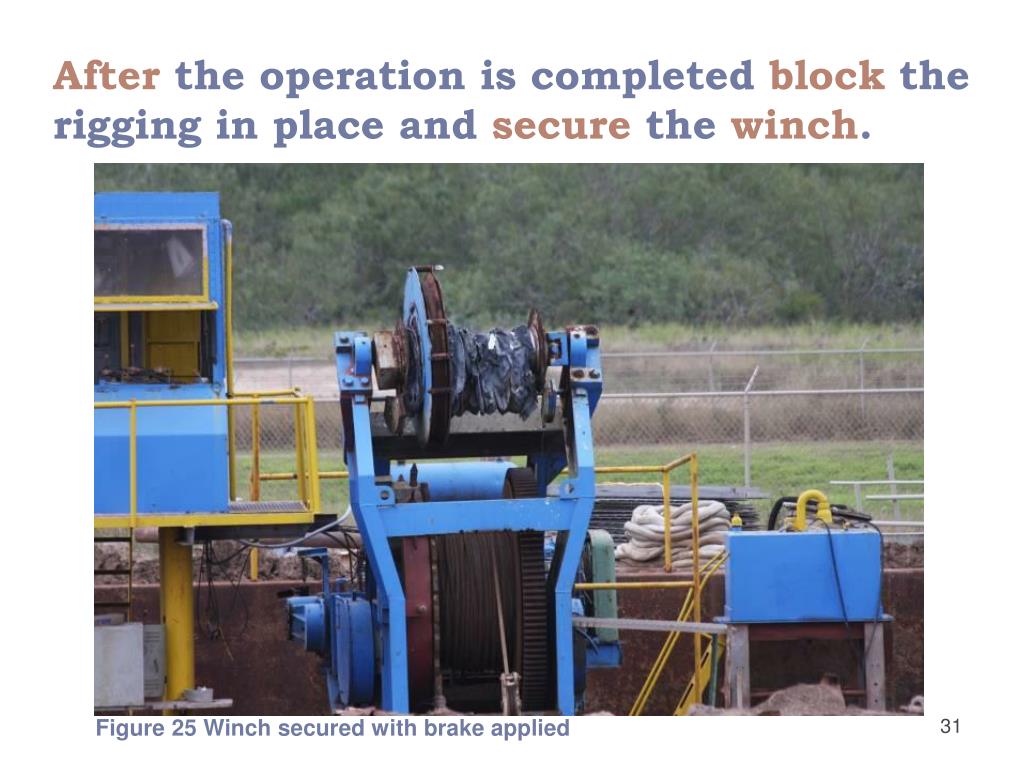

Afterthe operation is completed blockthe rigging in place and securethewinch.

Figure 25 Winch secured with brake applied

slide33

Action Discussion

What are the potential affects if the winch is improperly used?
