scripting approaches for java application test automation

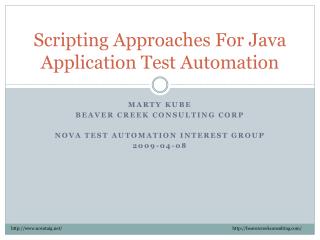

Scripting Approaches For Java Application Test Automation

Marty Kube

Beaver Creek Consulting Corp

NoVa Test Automation Interest Group

2009-04-08

http://www.novataig.net/

http://beavercreekconsulting.com/

scripting and test automation
Scripting and Test Automation
  • Scripting is the way to go for test automation
    • “High Level” languages - More functionality with less code
  • How scripting interacts with the application
    • External interfaces
      • Win runner
      • JMeter
    • Expose Internals
      • JavaScript in the Browser
      • SQL
survey a few dsl approaches
Survey a Few DSL Approaches
  • Small example application
  • Use scripting and Domain Specific Language to drive application
    • Groovy
    • JavaScript
    • JavaCC
  • Hands on with code examples
contrasting the dsl approaches
Contrasting the DSL approaches
  • Focus on Strategy – Using Java as an example – similar tactics should apply for other environments.
  • Three types of resources
    • Expertise for set-up, Integration effort, Expertise for test authoring
  • Trade offs:
    • General Trade offs
      • Less front end setup
      • More complex test authoring
      • More front end setup
      • Less complex test authoring
scripting languages
Scripting Languages
  • Type-less or easy to use type system
  • High Level – more productive and less defects
  • Interpreted
  • Interactive shell for rapid exploration or development
    • Text processing - AWK, SED
    • General Purpose - Perl, Python, TCL, Emacs LISP

http://en.wikipedia.org/wiki/Scripting

domain specific languages dsl
Domain Specific Languages (DSL)
  • Smaller language dedicated to a particular situation
    • SQL
    • Second Life/MORPHS
    • Spotted in the wild
  • Less general
  • Lack low level functionality
  • More expressive in the particular domain
  • Really blurry line between scripting language and DSL

http://en.wikipedia.org/wiki/Domain_specific_language

the java code
The Java Code

package com.beavercreekconsulting.novataig;

public class TestLedger {

public static void main(String[] args) {

Ledger subLedger = new Ledger();

// Open the period

subLedger.setBalance(Account.CHECKING, 1000.00);

subLedger.setBalance(Account.TRAVEL_AND_ENTERTAINMENT, 200.00);

subLedger.setBalance(Account.SLUSH_FUND, -500.00);

// Post activity

JournalEntry [] activity = {

new JournalEntry(Account.CHECKING, Ind.CREDIT, 100.00),

new JournalEntry(Account.TRAVEL_AND_ENTERTAINMENT, Ind.DEBIT, 100.00),

new JournalEntry(Account.CHECKING, Ind.CREDIT, 2000.00),

new JournalEntry(Account.SLUSH_FUND, Ind.DEBIT, 2000.00)};

for(inti = 0; i < activity.length; i++) subLedger.post(activity[i]);

// Check ending balances

if (subLedger.getBalance(Account.CHECKING) != -1100.00) throw new TestFailure();

if (subLedger.getBalance(Account.TRAVEL_AND_ENTERTAINMENT) != 300.00) throw new TestFailure();

if (subLedger.getBalance(Account.SLUSH_FUND) != 1500.00) throw new TestFailure();

System.out.println("Happy Day!");

}

}

the groovy code
The Groovy Code

package com.beavercreekconsulting.novataig;

public class TestLedger {

public static void main(String[] args) {

Ledger subLedger = new Ledger();

// Open the period

subLedger.setBalance(Account.CHECKING, 1000.00);

subLedger.setBalance(Account.TRAVEL_AND_ENTERTAINMENT, 200.00);

subLedger.setBalance(Account.SLUSH_FUND, -500.00);

// Post activity

JournalEntry [] activity = [

new JournalEntry(Account.CHECKING, Ind.CREDIT, 100.00),

new JournalEntry(Account.TRAVEL_AND_ENTERTAINMENT, Ind.DEBIT, 100.00),

new JournalEntry(Account.CHECKING, Ind.CREDIT, 2000.00),

new JournalEntry(Account.SLUSH_FUND, Ind.DEBIT, 2000.00)];

for(inti = 0; i < activity.length; i++) subLedger.post(activity[i]);

// Check ending balances

if (subLedger.getBalance(Account.CHECKING) != -1100.00) throw new TestFailure();

if (subLedger.getBalance(Account.TRAVEL_AND_ENTERTAINMENT) != 300.00) throw new TestFailure();

if (subLedger.getBalance(Account.SLUSH_FUND) != 1500.00) throw new TestFailure();

System.out.println("Happy Day!");

}

}

groovy up close
Groovy Up Close
  • Super set of Java
  • Plus
    • Dynamic typing
    • Enhanced API Java Classes
    • String interpolation
      • def x = “Bob”; print “Hello ${x}”;
    • Closures
      • square = {it * it}
      • [1..9].collect(square);
    • XML builders and groovy SQL
    • Script MS Office with COM Bridge (Scriptom)

http://groovy.codehaus.org/Tutorial+2+-+Code+as+data,+or+closures

groovy architecture what s in the jvm
Groovy Architecture – What’s in the JVM

>groovy.bat -classpath bin TestLedger.groovy

really groovy code
Really Groovy Code

import com.beavercreekconsulting.novataig.*;

def subLedger = new Ledger();

[ [Account.CHECKING, 1000.00],

[Account.TRAVEL_AND_ENTERTAINMENT, 200.00],

[Account.SLUSH_FUND, -500.00]

].each() {subLedger.setBalance(it[0], it[1]);}

[ new JournalEntry(Account.CHECKING, Ind.CREDIT, 100.00),

new JournalEntry(Account.TRAVEL_AND_ENTERTAINMENT, Ind.DEBIT, 100.00),

new JournalEntry(Account.CHECKING, Ind.CREDIT, 2000.00),

new JournalEntry(Account.SLUSH_FUND, Ind.DEBIT, 2000.00)

].each() {je -> subLedger.post(je);}

[ [Account.CHECKING, -1100.00],

[Account.TRAVEL_AND_ENTERTAINMENT, 300.00],

[Account.SLUSH_FUND, 1500.00]

].each() { expected ->

if(subLedger.getBalance(expected[0]) != expected[1]) throw new TestFailure();

}

println "Happy Day!"

javascript
JavaScript
  • JavaScript is a small language – ECMA Script
  • Easy to integrate
  • Easy to find JavaScript Fan boys
  • Rhino is a JavaScript interpreter written in Java
  • Other JavaScript Engines, Mozilla, V8

http://www.mozilla.org/rhino/

http://en.wikipedia.org/wiki/Javascript

rhino architecture
Rhino Architecture

>java -classpath lib\js.jar;bin org.mozilla.javascript.tools.shell.Main

-f TestLedger.js

the javascript code
The JavaScript Code

importPackage(com.beavercreekconsulting.novataig)

function assertEquals(a, b) {

if(a != b) throw new TestFailure()

}

varsubLedger = new Ledger()

subLedger.setBalance(Account.CHECKING, 1000.00)

subLedger.setBalance(Account.TRAVEL_AND_ENTERTAINMENT, 200.00)

subLedger.setBalance(Account.SLUSH_FUND, -500.00)

activity = [

new JournalEntry(Account.CHECKING, Ind.CREDIT, 100.00),

new JournalEntry(Account.TRAVEL_AND_ENTERTAINMENT, Ind.DEBIT, 100.00),

new JournalEntry(Account.CHECKING, Ind.CREDIT, 2000.00),

new JournalEntry(Account.SLUSH_FUND, Ind.DEBIT, 2000.00)]

for(i = 0; i < activity.length; i++) subLedger.post(activity[i])

assertEquals(subLedger.getBalance(Account.CHECKING), -1100.00)

assertEquals(subLedger.getBalance(Account.TRAVEL_AND_ENTERTAINMENT), 300.00)

assertEquals(subLedger.getBalance(Account.SLUSH_FUND), 1500.00)

print("Happy Day!")

javacc create a dsl
JavaCC – Create a DSL

#

# Test case: #16,678

# Author: Marty

#

Checking set 1000.00;

travel_and_entertainment set 200.00;

slush_fund set -500.00;

checking post credit 100.00;

travel_and_entertainment post debit 100.00;

checking post credit 2000.00;

slush_fund post debit 2000.00;

Checking verify -1100.00;

travel_and_entertainment verify 300.00;

slush_fund verify 1500.00;

print happy day!;

https://javacc.dev.java.net/

javacc lexer
JavaCC Lexer

SKIP: {" "}

TOKEN: { < CHECKING: "checking" >}

TOKEN: { < OP_SET : "set" > }

TOKEN: { < NUMBER : (["0"-"9"])+ > }

TOKEN: { < EOL: ";" >}

<CHECKING> <OP_SET> <NUMBER> <EOL>

Checking set 1000.00;

javacc parser
JavaCC Parser

Accepts the token stream:

<CHECKING> <OP_SET> <NUMBER> <EOL>

<TRAVEL> <OP_POST> <NUMBER> <EOL>

<EOF>

And enforces order – the grammar:

(<CHECKING> <OP_SET> <NUMBER> <EOL> )*

<EOF>

recognize statements invoke application
Recognize Statements – Invoke Application

{(

<CHECKING>

<OP_SET>

t=<NUMBER>

{ amount = new Double(t.image); }

<EOL>

{System.out.println("Posting: " + amount); }

{ledger.setBalance(Account.CHECKING, amount);

})*

<EOF>

{System.out.println("Happy Day");}

}

running
Running
  • >javaccTestLedger.jj
  • >javac -d bin -cp "../bin" gen\*.java
  • >java -classpath "bin;../bin" LedgerLanguage TestCase.txt
honorable mentions
Honorable mentions
  • SWIG
  • Antlr
  • JavaScript – Mozilla – v8
  • Most scripting languages cross language interfaces, Perl, Python, etc.
  • Bean Shell
  • Jython
wrap up
Wrap up
  • JVM is a target for many scripting languages
  • Using a JVM based language make integration easy
  • DSL can make it easy to author test cases
  • Setup can be a hurdle
