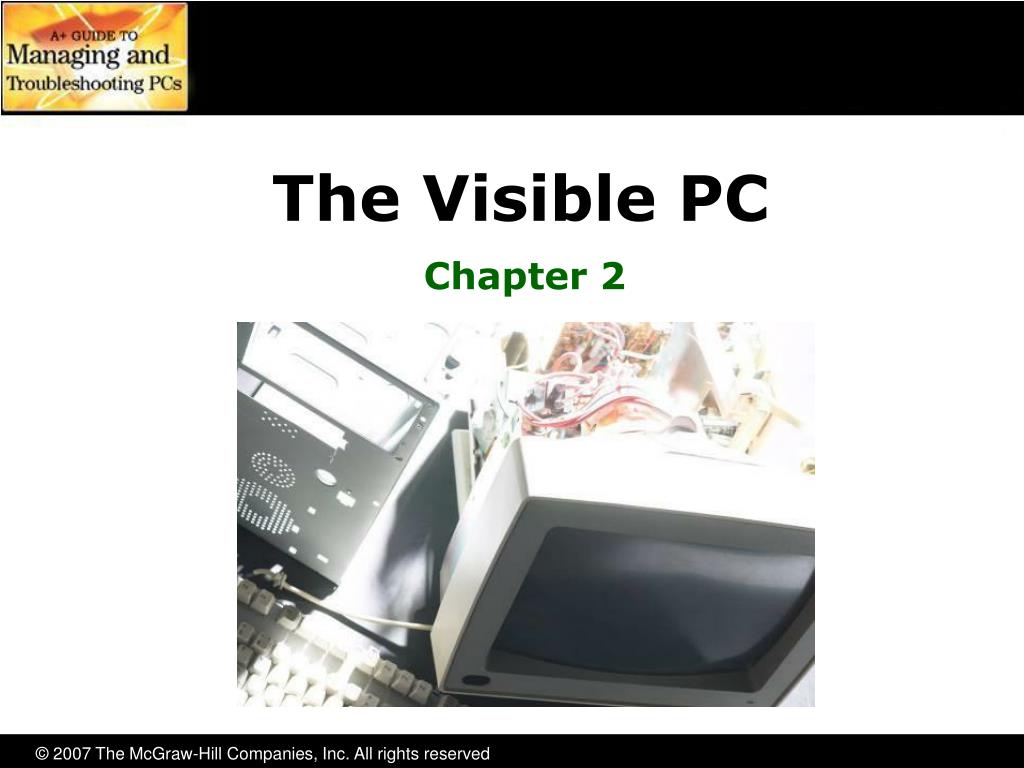

The Visible PC. Chapter 2. Overview. In this chapter, you will learn to Describe how the PC works Identify the essential tools of the trade and avoid electrostatic discharge (ESD) Identify the major internal and external components of a PC

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'The Visible PC' - gore


Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
overview
Overview
  • In this chapter, you will learn to
    • Describe how the PC works
    • Identify the essential tools of the trade and avoid electrostatic discharge (ESD)
    • Identify the major internal and external components of a PC
    • Identify the different connectors on a typical PC system unit
how the pc works

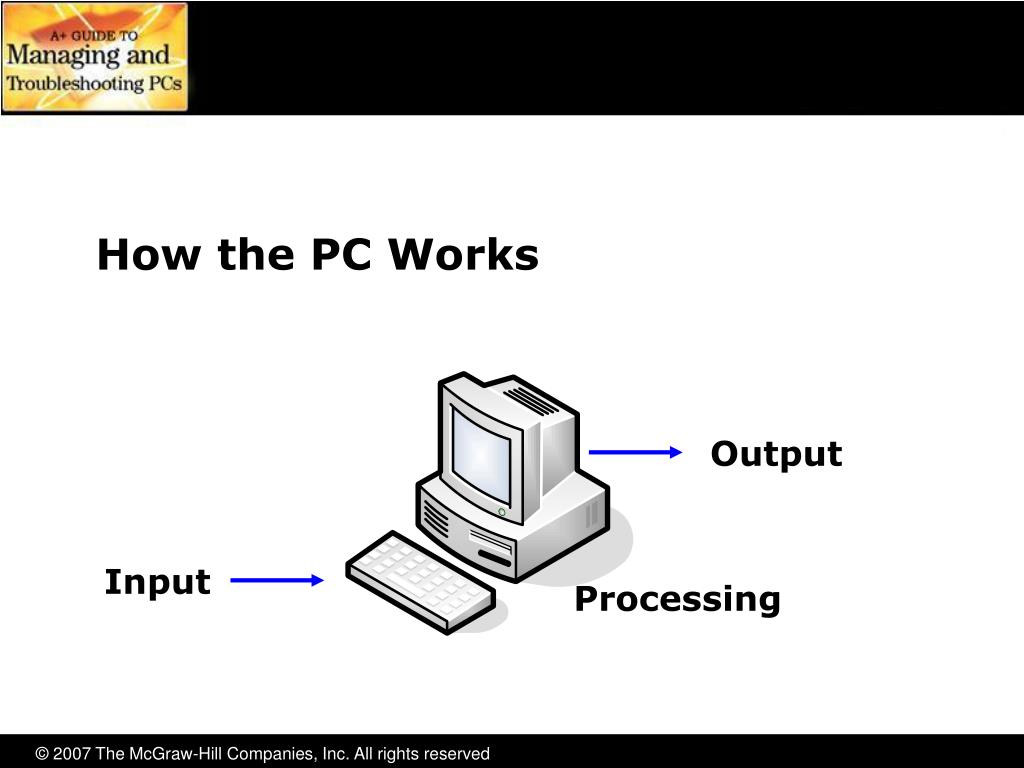

How the PC Works

Output

Input

Processing

how the pc works4
How the PC Works
  • Software
    • Operating system (Windows, MAC OS X, Linux)
    • Applications (PowerPoint, Word, Outlook, Internet Explorer)
  • Hardware
    • Pieces you can touch (mouse, monitor, motherboard, etc.)
how the pc works5

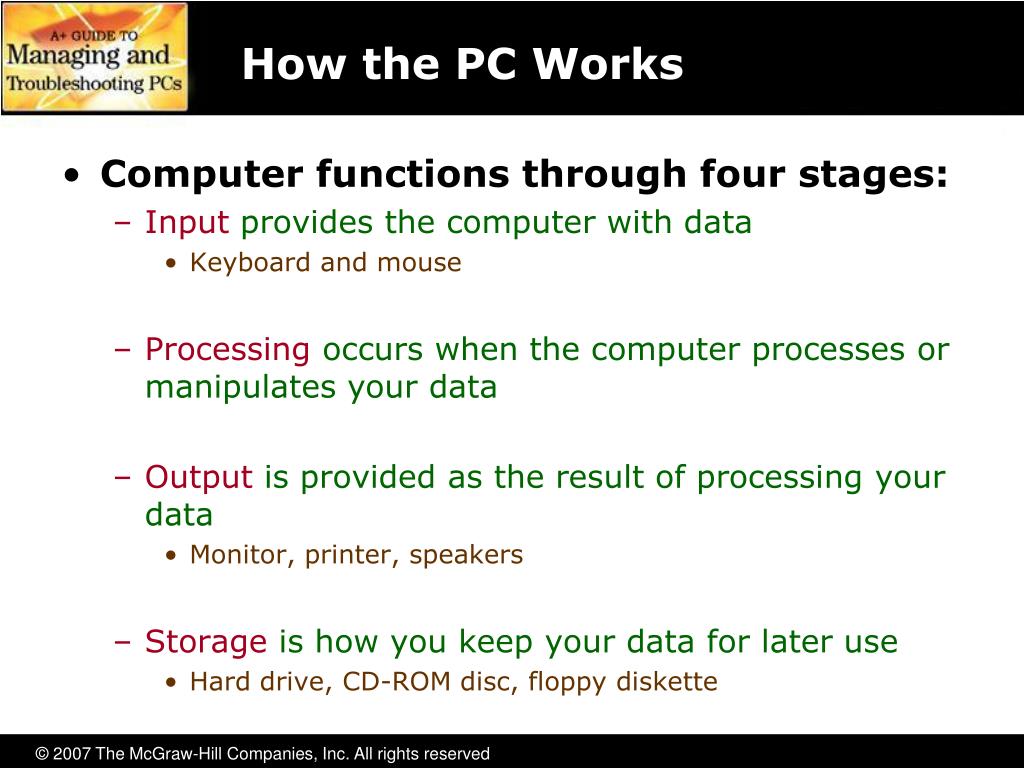

How the PC Works
  • Computer functions through four stages:
    • Input provides the computer with data
      • Keyboard and mouse
    • Processing occurs when the computer processes or manipulates your data
    • Output is provided as the result of processing your data
      • Monitor, printer, speakers
    • Storage is how you keep your data for later use
      • Hard drive, CD-ROM disc, floppy diskette
how the pc works6

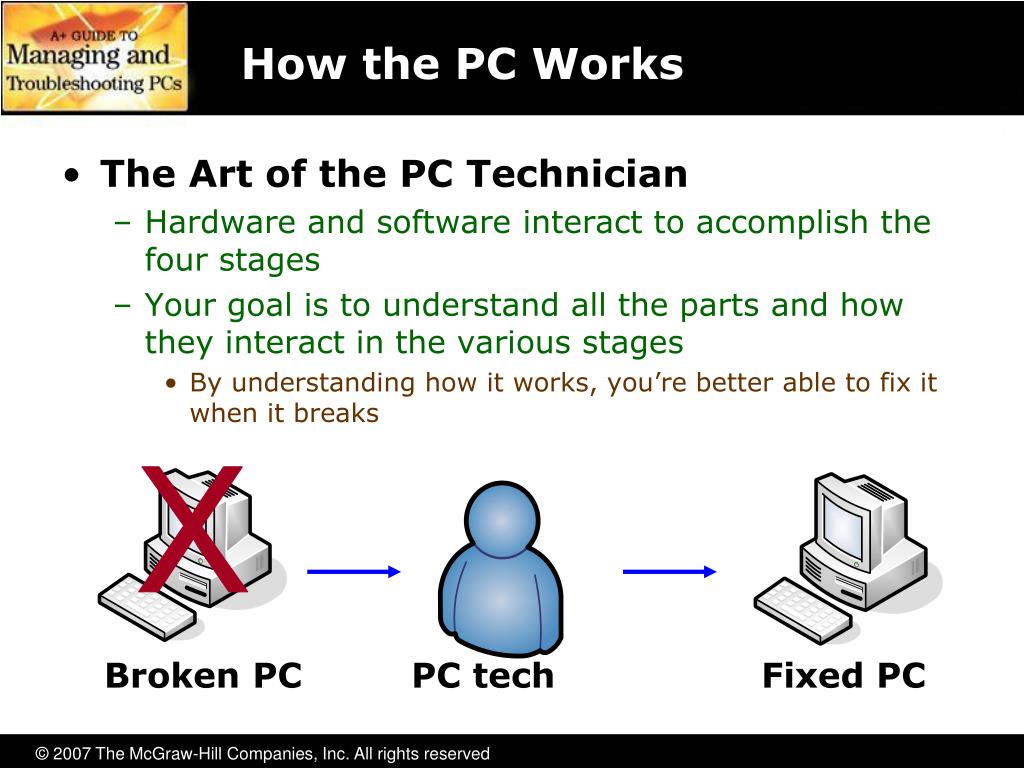

How the PC Works
  • The Art of the PC Technician
    • Hardware and software interact to accomplish the four stages
    • Your goal is to understand all the parts and how they interact in the various stages
      • By understanding how it works, you’re better able to fix it when it breaks

X

Broken PC

PC tech

Fixed PC

pc tool kit

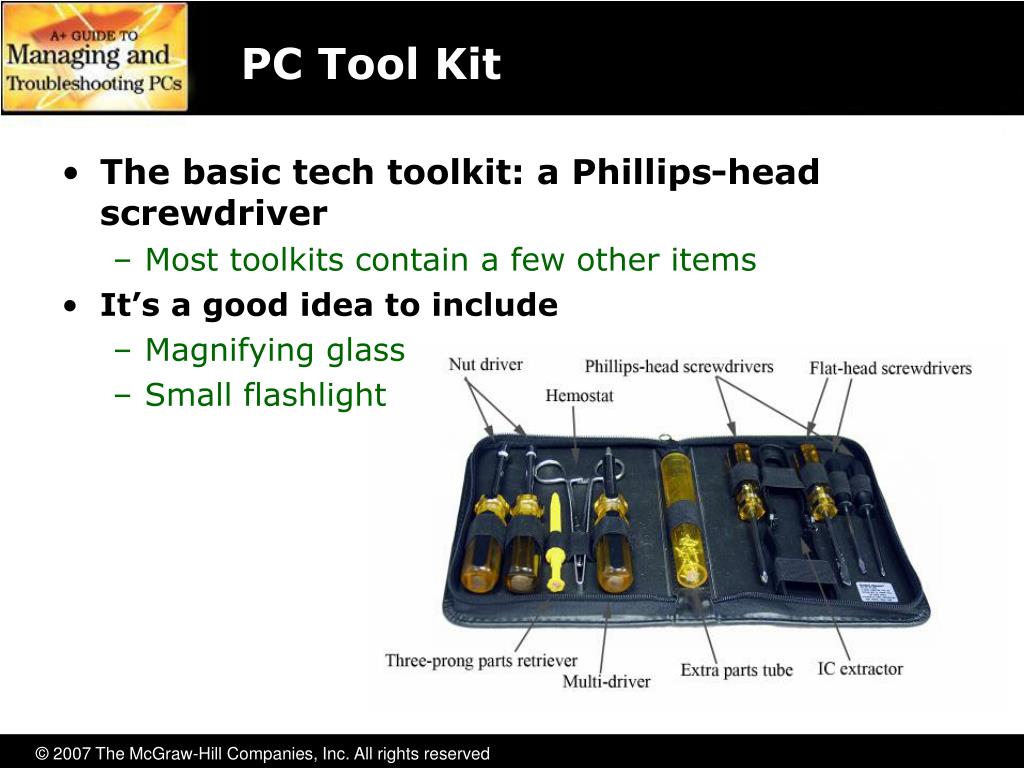

The basic tech toolkit: a Phillips-head screwdriver

Most toolkits contain a few other items

It’s a good idea to include

Magnifying glass

Small flashlight

PC Tool Kit
electrostatic discharge
Electrostatic Discharge
  • Electrostatic discharge (ESD) is the passage of a static electrical charge into your PC or a PC component such as a RAM stick
    • Static electricity can destroy sensitive parts of a PC
    • ESD damage is much more prevalent in dry, cool environments
anti static tools
Anti-static Tools
  • Anti-static wrist strap
    • Keeps you and the PC at the same electrical potential to prevent ESD
  • Anti-static mats
    • Used temporarily to place parts taken out of your PC
  • Anti-static bags
    • Used to store electrical components from your PC
  • Always unplug a PC when you work on it. Don’t just turn it off.
external connections
External Connections
  • Plug goes into a port
  • Port/jack accepts a plug
  • Connector can be either a port or a plug
din connectors
DIN Connectors
  • DIN connectors are round and come in two sizes:
    • DIN
    • Mini-DIN
  • Always a female connector
  • Used frequently by a keyboard or mouse
usb connectors
USB Connectors
  • Universal Serial Bus (USB)
    • Used by many devices today
    • Devices are hot-swappable
      • You can insert or remove the device while the PC is powered on
    • USB B plugs into devices
    • USB A plugs into computers

USB B

USB A

firewire connectors
FireWire Connectors
  • FireWire connectors move data at incredibly high speeds
    • Also known as IEEE 1394
    • Popular with video applications
    • Uses 6-wire connector (note the rounded edge)
    • Hot-swappable
db connectors
DB Connectors
  • DB connectors have a slight D-shape
    • Male DB connectors have pins
    • Female DB connectors have sockets
    • Oldest type of connector in the PC
rj connectors

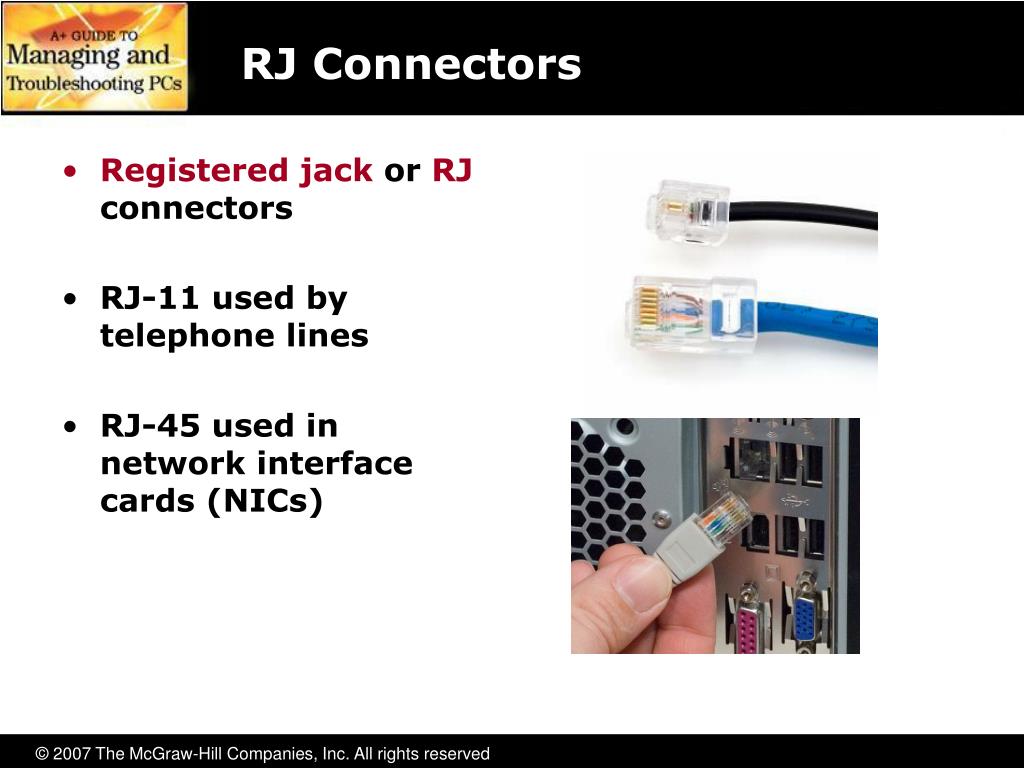

RJ Connectors
  • Registered jack or RJ connectors
  • RJ-11 used by telephone lines
  • RJ-45 used in network interface cards (NICs)
audio connectors
Audio Connectors
  • Audio connectors are used on sound cards
    • Used to connect speakers, microphones, and other audio devices
cards vs onboard

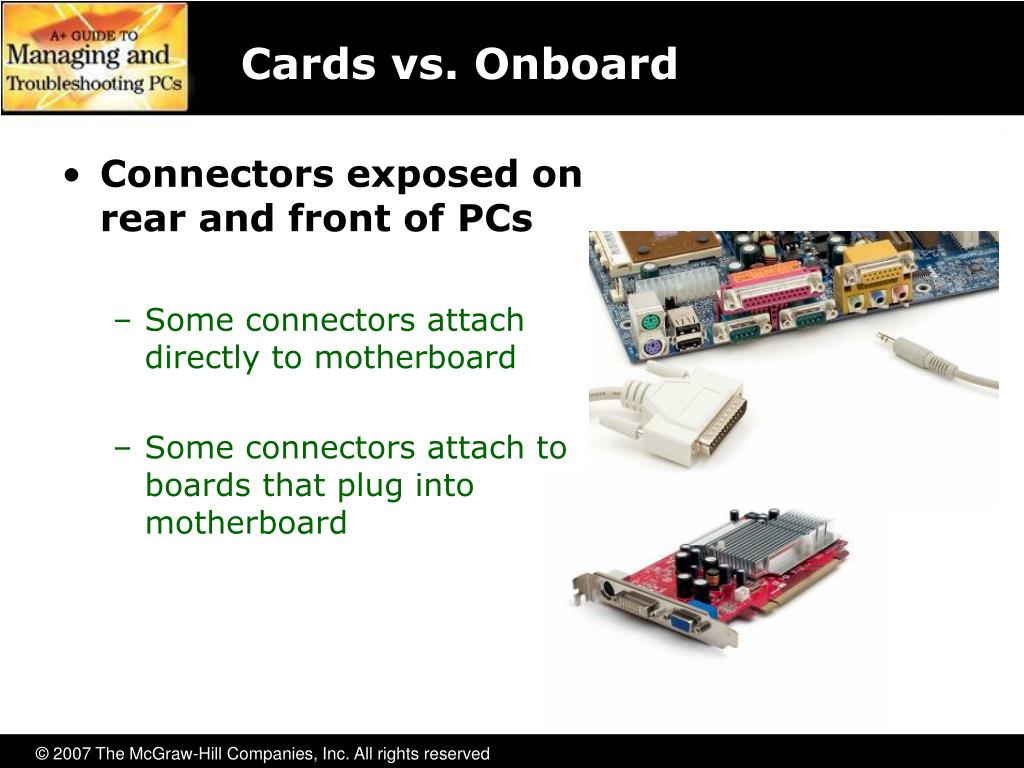

Cards vs. Onboard
  • Connectors exposed on rear and front of PCs
    • Some connectors attach directly to motherboard
    • Some connectors attach to boards that plug into motherboard
keyboard

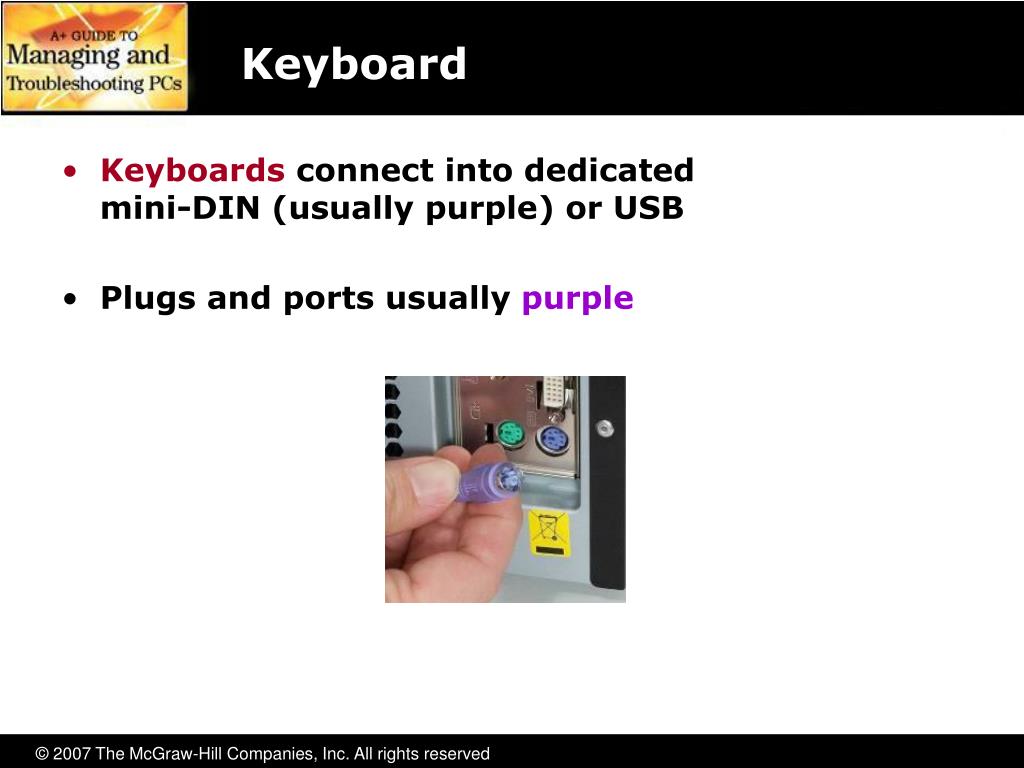

Keyboard
  • Keyboards connect into dedicated mini-DIN (usually purple) or USB
  • Plugs and ports usually purple
video cards
Video Cards
  • Video cards connect to monitors
    • S-Video connector (left)
    • Digital video interface (DVI) connector (center)
    • 15-pin female DB connector (right)
    • Newer High-Definition Multimedia Interface (HDMI)
sound cards

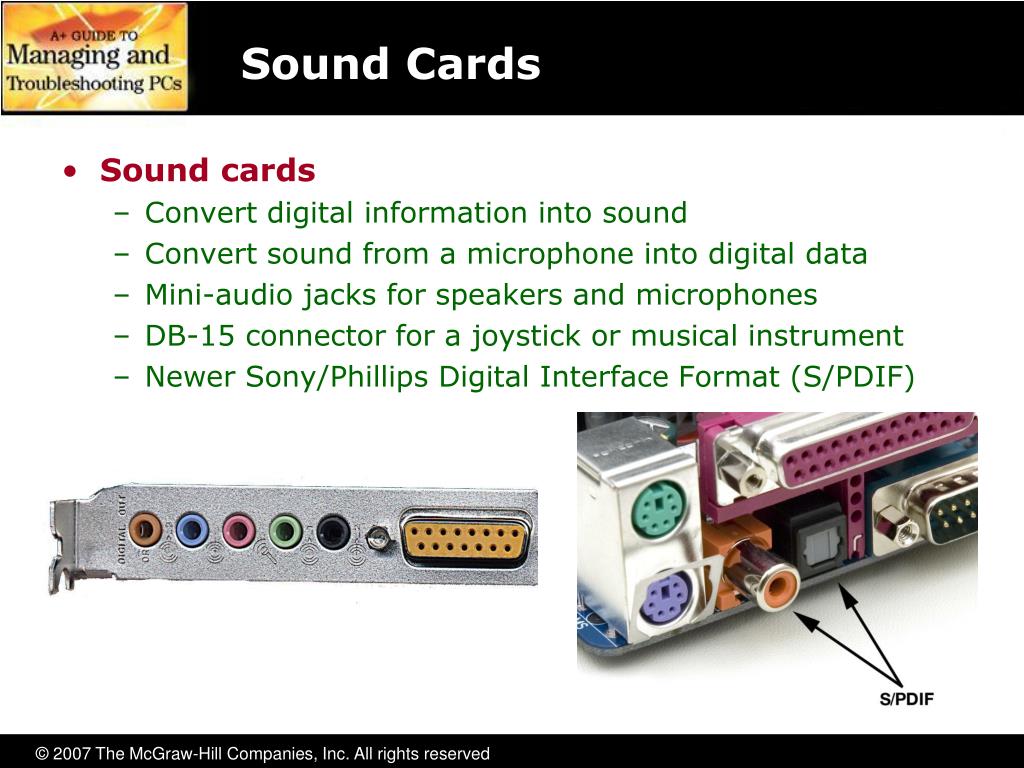

Sound Cards
  • Sound cards
    • Convert digital information into sound
    • Convert sound from a microphone into digital data
    • Mini-audio jacks for speakers and microphones
    • DB-15 connector for a joystick or musical instrument
    • Newer Sony/Phillips Digital Interface Format (S/PDIF)
network cards
Network Cards
  • Networks: groups of PCs connected together
    • Network interface cards (NICs) typically on motherboard (can be expansion card)
    • Typical connector is RJ-45
mouse

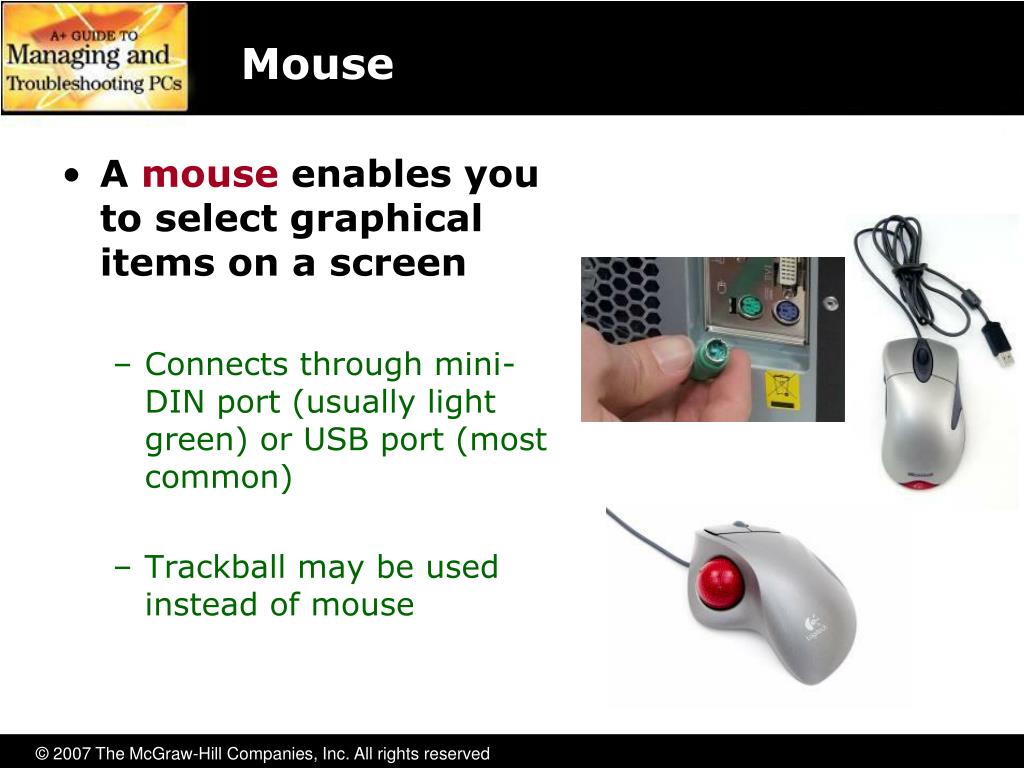

Mouse
  • A mouse enables you to select graphical items on a screen
    • Connects through mini-DIN port (usually light green) or USB port (most common)
    • Trackball may be used instead of mouse
modem
Modem
  • Modems convert analog telephone signals into digital data and vice versa
    • Internal modems are expansion cards
    • External modems connect to a serial port
    • Uses two RJ-11 sockets
      • One to the telephone jack in the wall
      • One to a telephone if you wish
serial ports

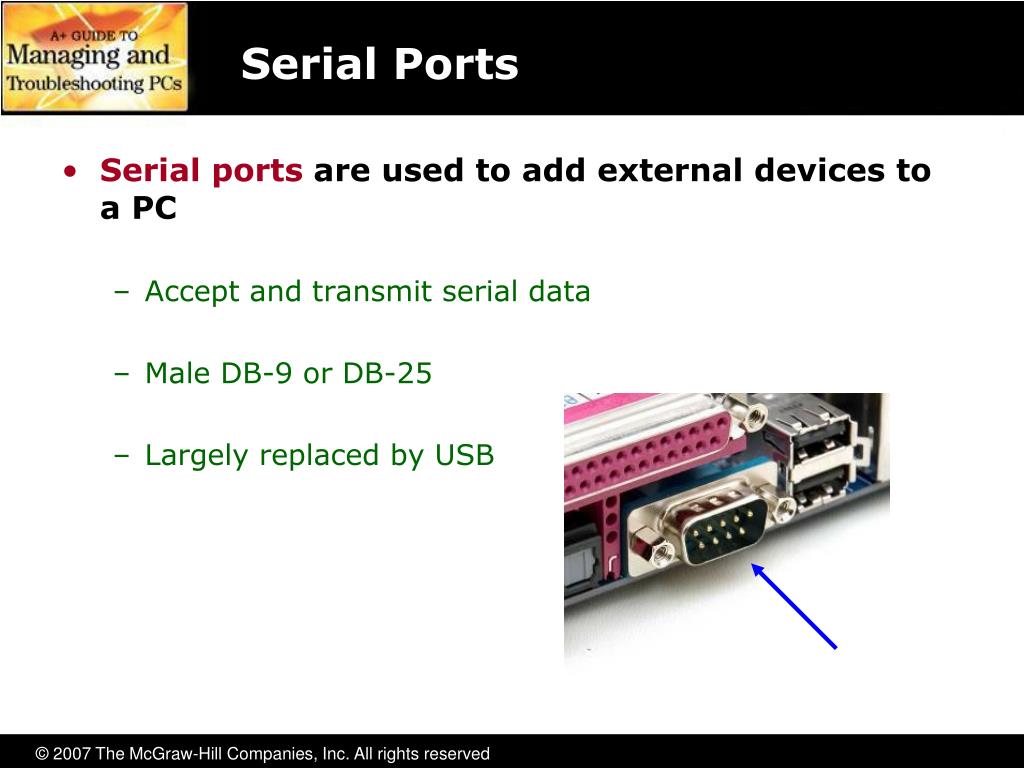

Serial Ports
  • Serial ports are used to add external devices to a PC
    • Accept and transmit serial data
    • Male DB-9 or DB-25
    • Largely replaced by USB
printer
Printer
  • Printers output data from the PC onto paper
    • Historically used a female DB-25
    • Today printers almost exclusively use a USB or FireWire port
joystick

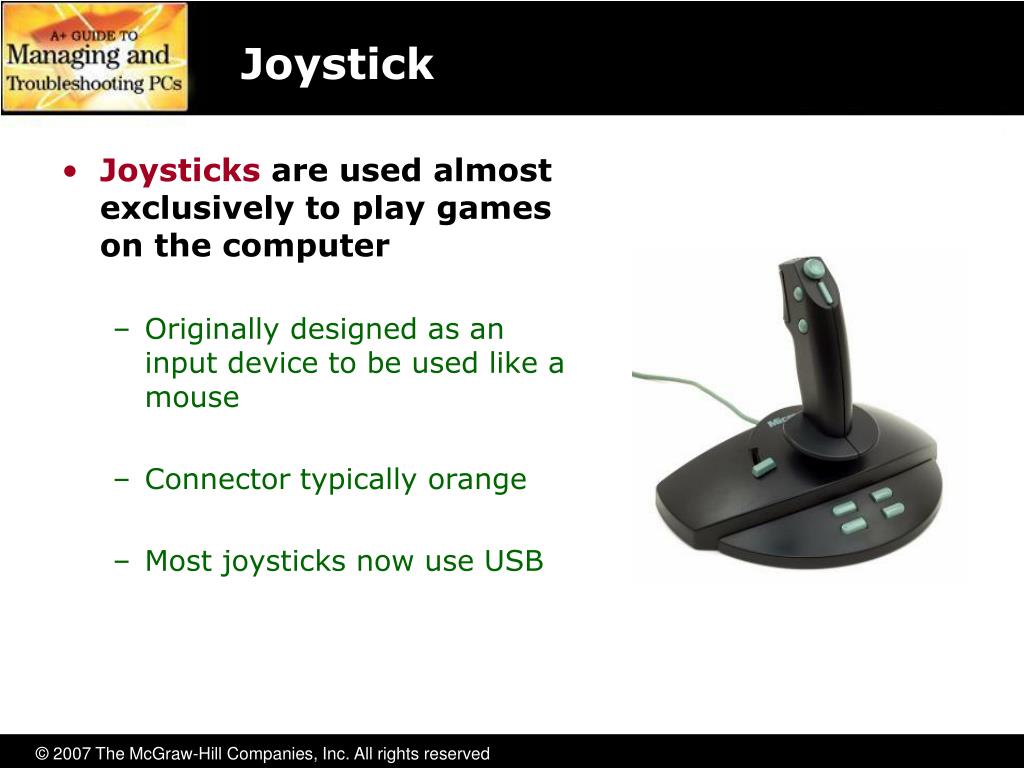

Joystick
  • Joysticks are used almost exclusively to play games on the computer
    • Originally designed as an input device to be used like a mouse
    • Connector typically orange
    • Most joysticks now use USB
slide32
Case
  • The case houses all of the internal components
    • Protects internal components
    • External connections in front and rear
    • Provides access to storage devices such as CDs
slide33

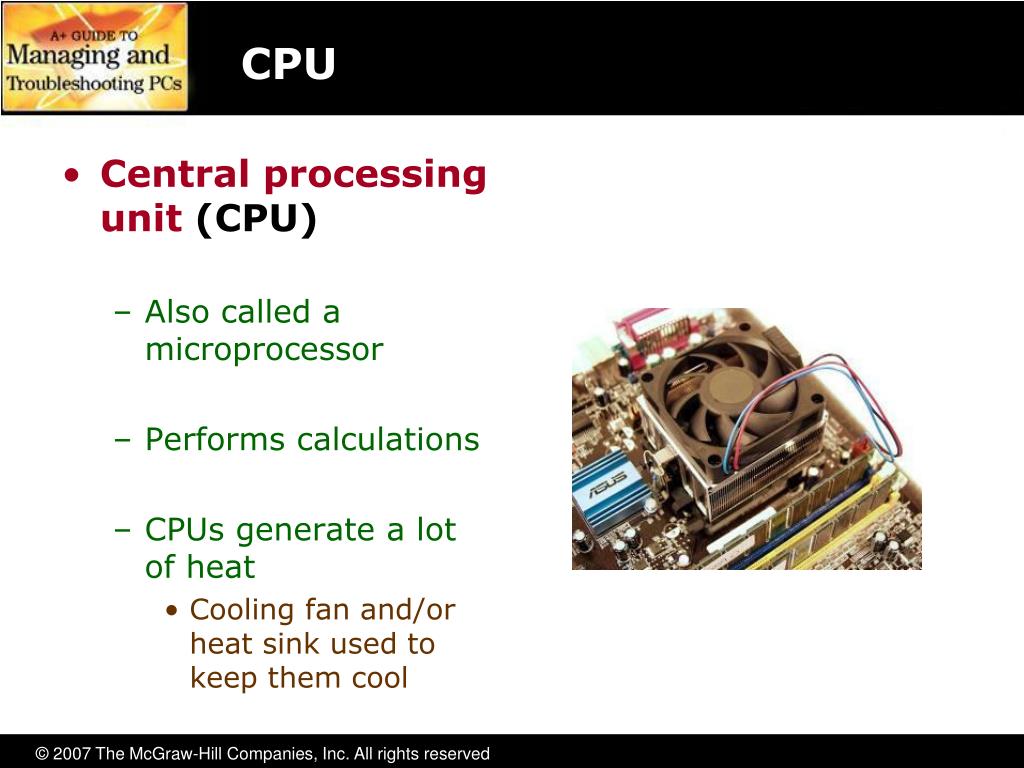

CPU
  • Central processing unit (CPU)
    • Also called a microprocessor
    • Performs calculations
    • CPUs generate a lot of heat
      • Cooling fan and/or heat sink used to keep them cool
slide34

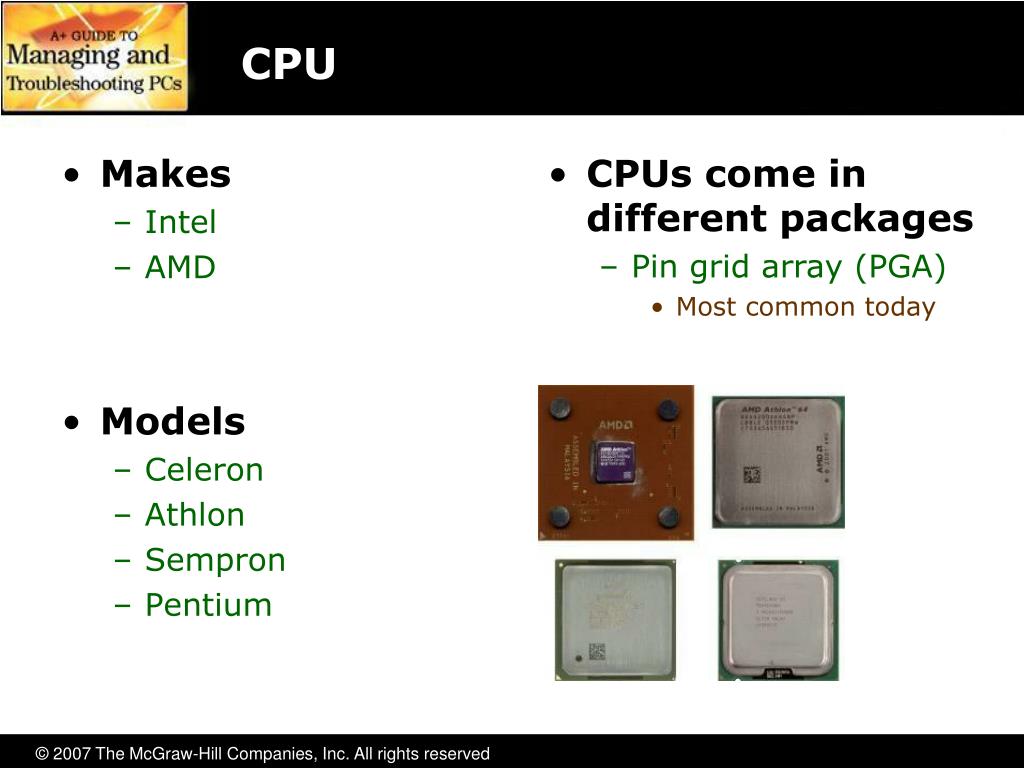

Makes

Intel

AMD

Models

Celeron

Athlon

Sempron

Pentium

CPU
  • CPUs come in different packages
    • Pin grid array (PGA)
      • Most common today
slide35

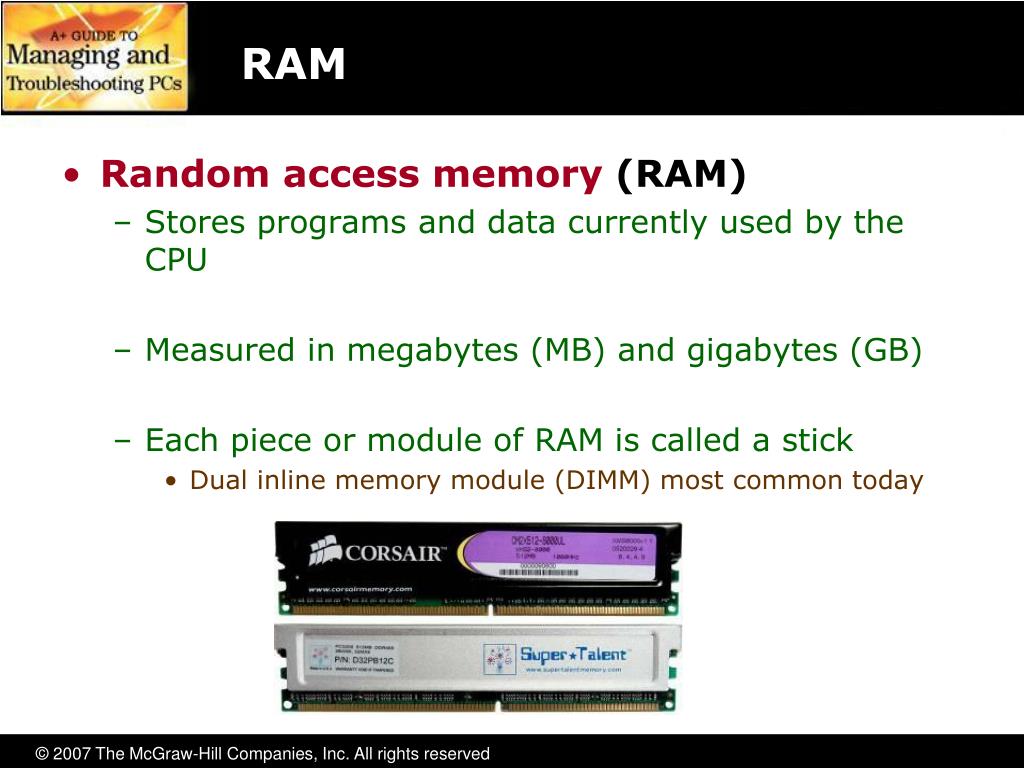

RAM
  • Random access memory (RAM)
    • Stores programs and data currently used by the CPU
    • Measured in megabytes (MB) and gigabytes (GB)
    • Each piece or module of RAM is called a stick
      • Dual inline memory module (DIMM) most common today
motherboard

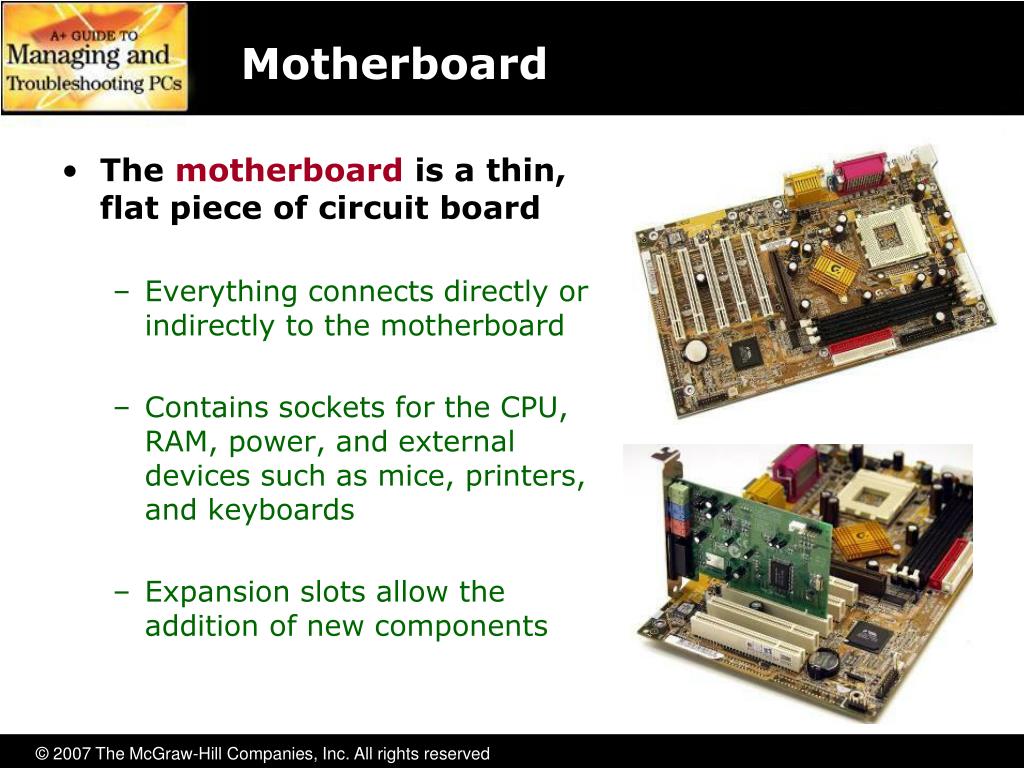

Motherboard
  • The motherboard is a thin, flat piece of circuit board
    • Everything connects directly or indirectly to the motherboard
    • Contains sockets for the CPU, RAM, power, and external devices such as mice, printers, and keyboards
    • Expansion slots allow the addition of new components
power supply

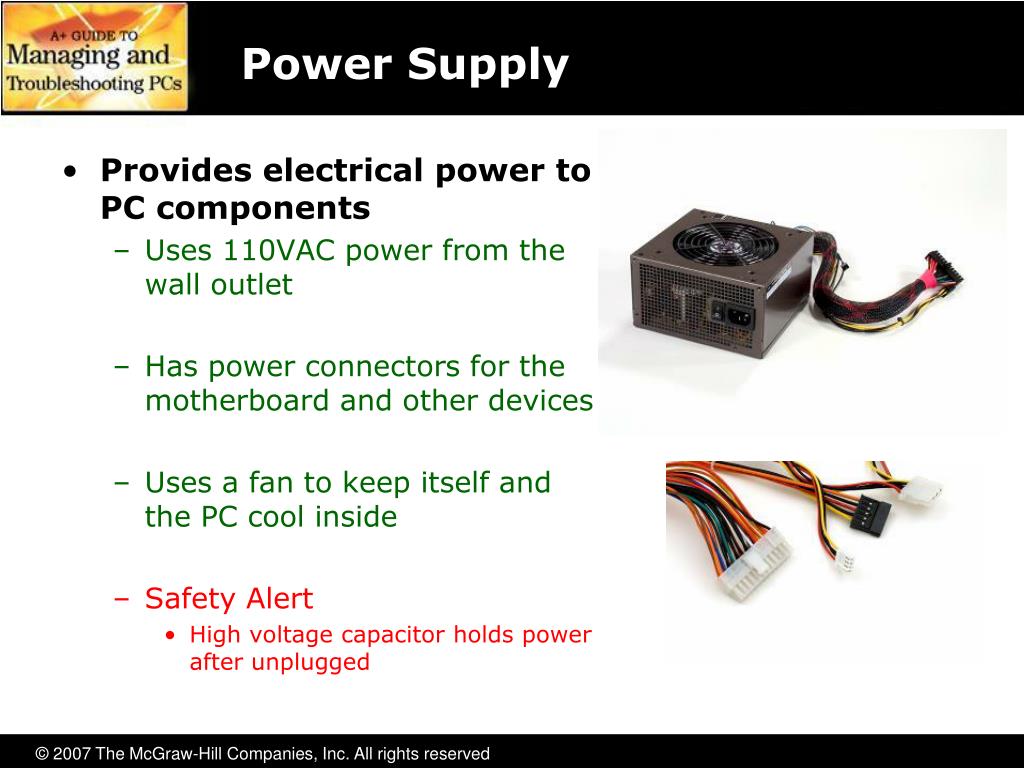

Power Supply
  • Provides electrical power to PC components
    • Uses 110VAC power from the wall outlet
    • Has power connectors for the motherboard and other devices
    • Uses a fan to keep itself and the PC cool inside
    • Safety Alert
      • High voltage capacitor holds power after unplugged
floppy drive

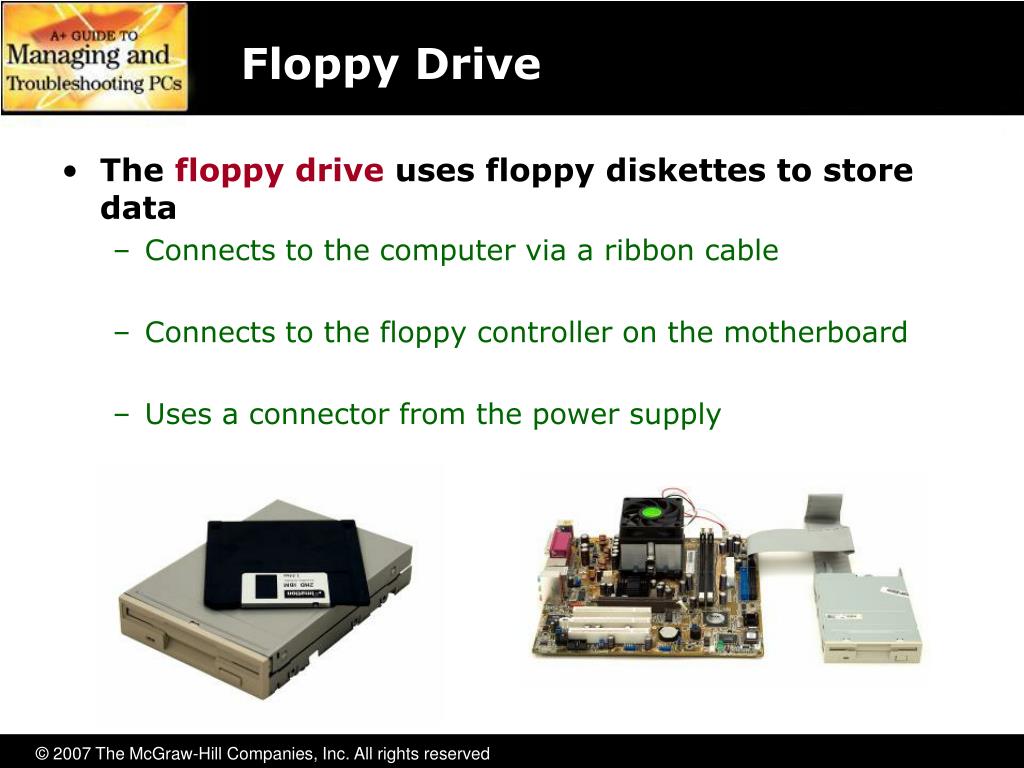

Floppy Drive
  • The floppy drive uses floppy diskettes to store data
    • Connects to the computer via a ribbon cable
    • Connects to the floppy controller on the motherboard
    • Uses a connector from the power supply
hard drive

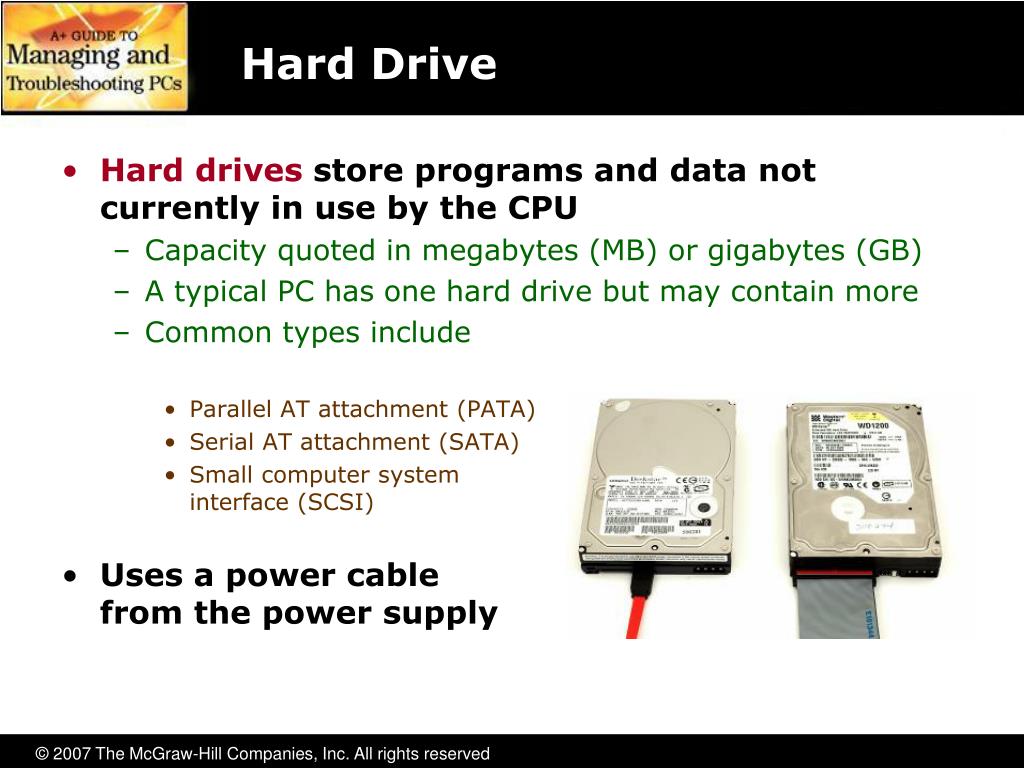

Hard Drive

Hard drives store programs and data not currently in use by the CPU

Capacity quoted in megabytes (MB) or gigabytes (GB)

A typical PC has one hard drive but may contain more

Common types include

Parallel AT attachment (PATA)

Serial AT attachment (SATA)

Small computer systeminterface (SCSI)

Uses a power cable from the power supply

optical media

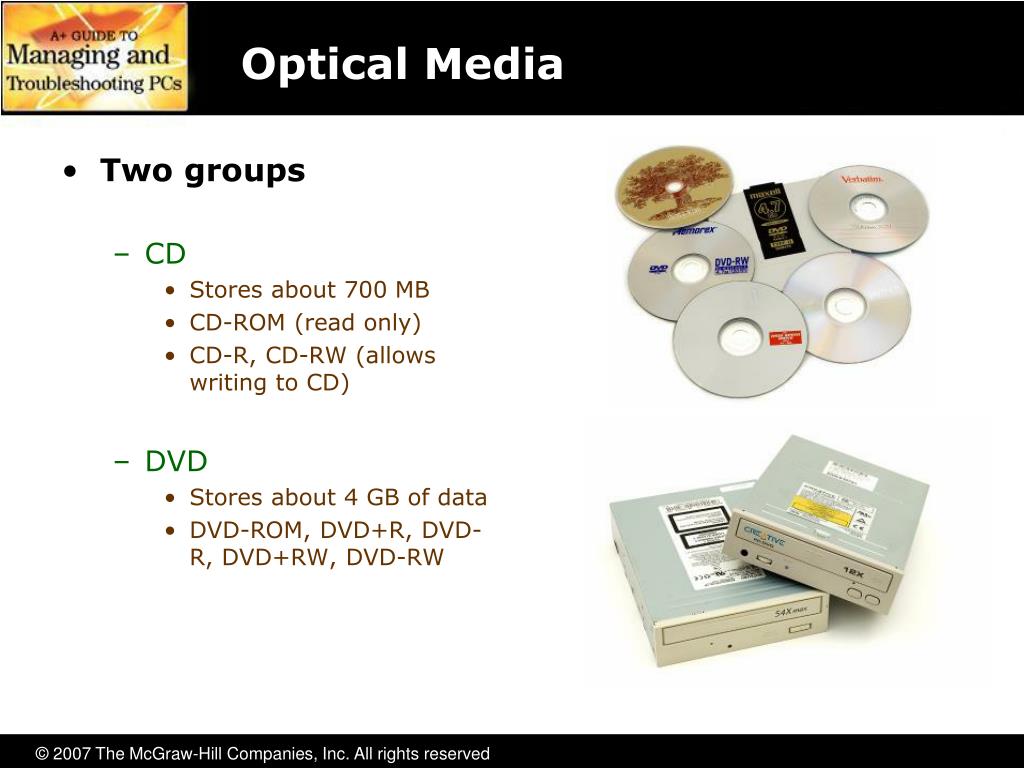

Optical Media
  • Two groups
    • CD
      • Stores about 700 MB
      • CD-ROM (read only)
      • CD-R, CD-RW (allows writing to CD)
    • DVD
      • Stores about 4 GB of data
      • DVD-ROM, DVD+R, DVD-R, DVD+RW, DVD-RW
