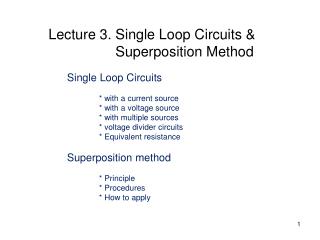

Lecture 3. Single Loop Circuits &

Superposition Method

Single Loop Circuits * with a current source * with a voltage source * with multiple sources

* voltage divider circuits

* Equivalent resistance

Superposition method

* Principle

* Procedures * How to apply

single loop circuits

I

R1

R2

+

VS

Rn

Single Loop Circuits
  • The same current flows through each element of the circuit—the elements are in series.

V1

V1

I

R1

V2

V2

R2

IS

V3

V3

Rn

With an independent voltage source

With an independent current source

single loop circuits with a current source
Single Loop Circuits – with a Current Source
  • What is I?

V1

I

  • In terms of I, what is the voltage across each resistor?

R1

V2

R2

IS

V3

Rn

single loop circuits with a voltage source

I R1

I

+

+

R1

R2

I R2

+

VS

+

Rn

I Rn

Single Loop Circuits – with a Voltage Source
  • In terms of I, what is the voltage across each resistor?
  • To solve for I, apply KVL around the loop.

IR1 + IR2 + … + IRn– VS = 0

with multiple voltage sources
With Multiple Voltage Sources
  • The current i(t) is:
  • Resistors in series
voltage division

+

+

Voltage Division
  • Consider two resistors in series with a voltage v(t) across them:

R1

v1(t)

v(t)

+

R2

v2(t)

  • If n resistors in series:
voltage divider a practical example
Voltage Divider: A Practical Example

Electrochemical Fabrication of

Molecular Junction

QuantumPoint Contact

or Atomic-scale wire

voltage divider an example

E

-

-

+

+

Voltage Divider: An Example
  • Anode:Etching delocalized, but
  • Cathode:Deposition localized at sharpest point,
  • due to:
  • Self-focusing – directional growth
  • Decreasing Gap!
voltage divider an example9

Initially, Rgap >> Rext, Vgap ~ V0full speed deposition.

  • Finally, Rgap << Rext, Vgap ~ 0deposition terminates.
Voltage Divider: An Example
  • The gap resistance is determined by Rext.
voltage divider an example10

3

1

  • Growth starts
  • after applying 1.5 V
  • Self-terminates after
  • forming a tunneling gap
  • Two electrodes with
  • 10 mm initial separation

2

Voltage Divider: An Example
example two resistors in parallel

+

I1

I2

I

R1

R2

V

Example: Two Resistors in Parallel

How do you find I1 and I2?

example two resistors in parallel13

+

I1

I2

I

R1

R2

V

Example: Two Resistors in Parallel
  • Apply KCL with Ohm’s Law
equivalent resistance of parallel resistors
Equivalent Resistance of Parallel Resistors
  • Two parallel resistors is often equivalent to a single resistor with resistance value of:
  • n-Resistors in parallel:
what are i 1 and i 2
What are I1 and I2 ?
  • This is the current divider formula
  • It tells us how to divide the current through parallel resistors
circuits with more than one source

+

I1

I2

Is1

Is2

R1

R2

V

Circuits with More Than One Source

How do we find I1 or I2?

what if more than one source

+

I1

I2

Is1

Is2

R1

R2

V

What if More Than One Source?
  • Apply KCL at the Top Node
class examples
Class Examples
  • Example: P1-33 (page 43).
  • Drill Problem P1-34 (page 43).
superposition method a more general approach to multiple sources
Superposition Method – A More General Approach to Multiple Sources

“In any linear circuit containing multiple independent sources, the current or voltage at any point in the circuit may be calculated as the algebraic sum of the individual contributions of each source acting alone.”

how to apply superposition
How to Apply Superposition
  • To find the contribution due to an individual independent source, zero out the other independent sources in the circuit
    • Voltage source  short circuit
    • Current source  open circuit
  • Solve the resulting circuit using your favorite technique(s)
superposition of summing circuit

1kW

1kW

1kW

1kW

1kW

1kW

+

+

+

+

+

V1

+

+

+

V2

V’out

1kW

1kW

V’’out

V1

Vout

1kW

V2

Superposition of Summing Circuit
slide22

1kW

1kW

1kW

1kW

+

+

+

+

V1

+

V2

V’out

1kW

1kW

V’’out

Superposition of Summing Circuit (cont’d)

V’out = V1/3

V’’out = V2/3

Vout = V’out + V’’out = V1/3 + V2/3

superposition procedure
Superposition Procedure
  • For each independent voltage and current source (repeat the following):
    • Replace the other independent voltage sources with a short circuit (i.e., V = 0).
    • Replace the other independent current sources with an open circuit (i.e., I = 0).

Note: Dependent sources are not changed!

    • Calculate the contribution of this particular voltage or current source to the desired output parameter.

2. Algebraically sum the individual contributions (current and/or voltage) from each independent source.

class examples24
Class Examples
  • Example 2-9 (page 70).
  • Drill Problem 2.7.
