Review of Important AM Receiver Concepts

Review of Important AM Receiver Concepts. Receiver Sensitivity: P SB,MIN ( dBm ) - N EFF ( dBm ) > SNR MIN (dB) P SB,MIN ( dBm ) = P SENS ( dBm ) - 10log 10 (2/m 2 + 1) N EFF ( dBm ) = kT 0 B( dBm ) + NF(dB) + 3 dB (if no image rejection after first amp)

gomer
Download Presentation

Review of Important AM Receiver Concepts

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

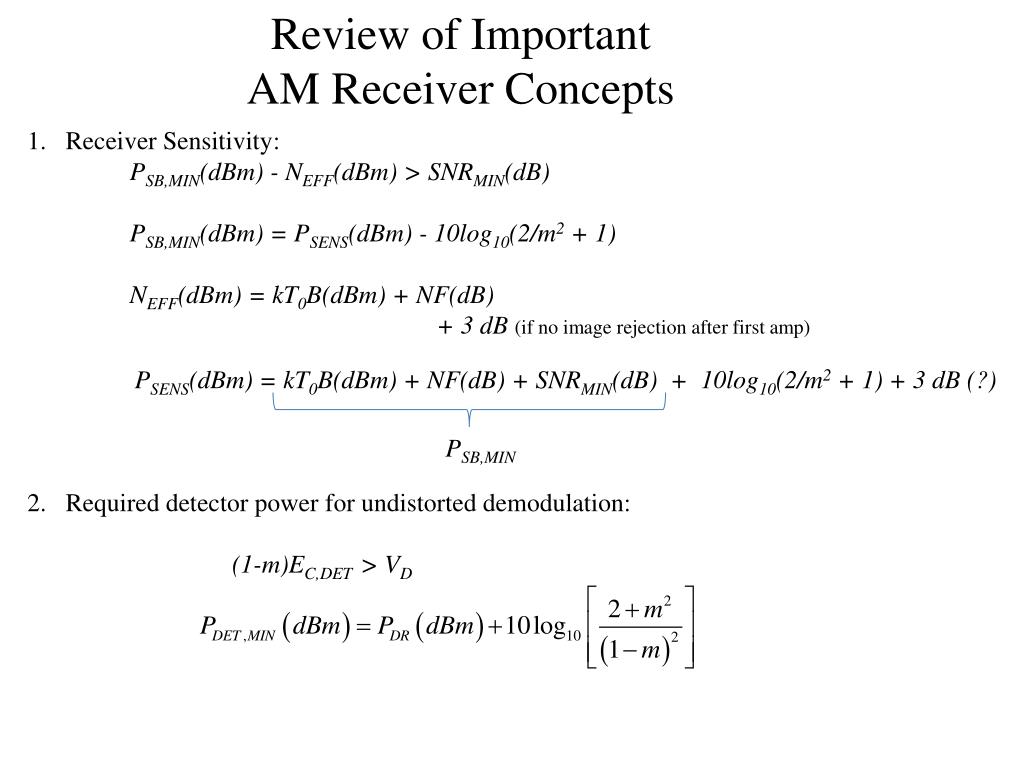

  1. Review of Important AM Receiver Concepts • Receiver Sensitivity: • PSB,MIN(dBm) - NEFF(dBm) > SNRMIN(dB) • PSB,MIN(dBm) = PSENS(dBm) - 10log10(2/m2 + 1) • NEFF(dBm) = kT0B(dBm) + NF(dB) • + 3 dB (if no image rejection after first amp) • PSENS(dBm) = kT0B(dBm) + NF(dB) + SNRMIN(dB) + 10log10(2/m2 + 1) + 3 dB (?) • Required detector power for undistorted demodulation: • (1-m)EC,DET > VD PSB,MIN

  2. Review of Important AM Receiver Concepts • Total Gain Required (RF and IF) • GMIN(dB) = PDET,MIN(dBm) – PSENS(dBm) • Image Rejection - Preselectors • fIM = fCH+ 2fIF (…depending upon high/low injection) • Worst Case – Highest channel frequency for Low Side Injection • Lowest channel frequency for High Side Injection • Adjacent Channel Rejection – IF Filters • Channel spacing includes guard band • Center Frequency is IF Frequency • Bandwith (B) extends to guard band edges • Required rejection must be exhibited at edge of adjacent channel guard band

  3. Build a Radio!! Frequency Range 161 – 174 Mhz (Land Mobile Band) Channel Spacing: 30 kHz, Guard Band: 5 kHz IF filter: crystal filter with Qu = 20,000 (want 40 dB adjacent channel rejection) Pre-selectors: LC filters with Qu= 180 (want 40 dB image rejection) Detector: VD = 0.2 v, RDC = 500 ohms Mixer: Conversion loss = 6 dB Want 1.5 uV sensitivity for ma = 0.7 (SNR = 12 dB) Design Tradeoff: The higher the IF frequency, the easier it is to get image rejection, but the harder it is to achieve adjacent channel rejection. • Tasks • Determine Pre-selector characteristics • Determine IF Frequency and filter characteristics • Determine Required Gain • Determine PSENS, noise figure/loss requirements • Determine PDET,MIN
