Everything about PDC Bits by Global Tungsten

PDC Bit is not widely talked about, which is why there is so little information about there. Its prominent features include blades and cutters. Different types of cutting structures are concentrated along the cone, nose, shoulder, and measure the areas of the top orbit. Moreover, the nozzles or junk slots and fluid courses aid in the removal of cuttings from the bit face. If you are interested to know more about PDC bits, then make sure to visit our official website https://www.globaltungstens.com/tungsten-carbide/tungsten-carbide-nozzles.php now.

globaltungsten
Download Presentation

Everything about PDC Bits by Global Tungsten

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

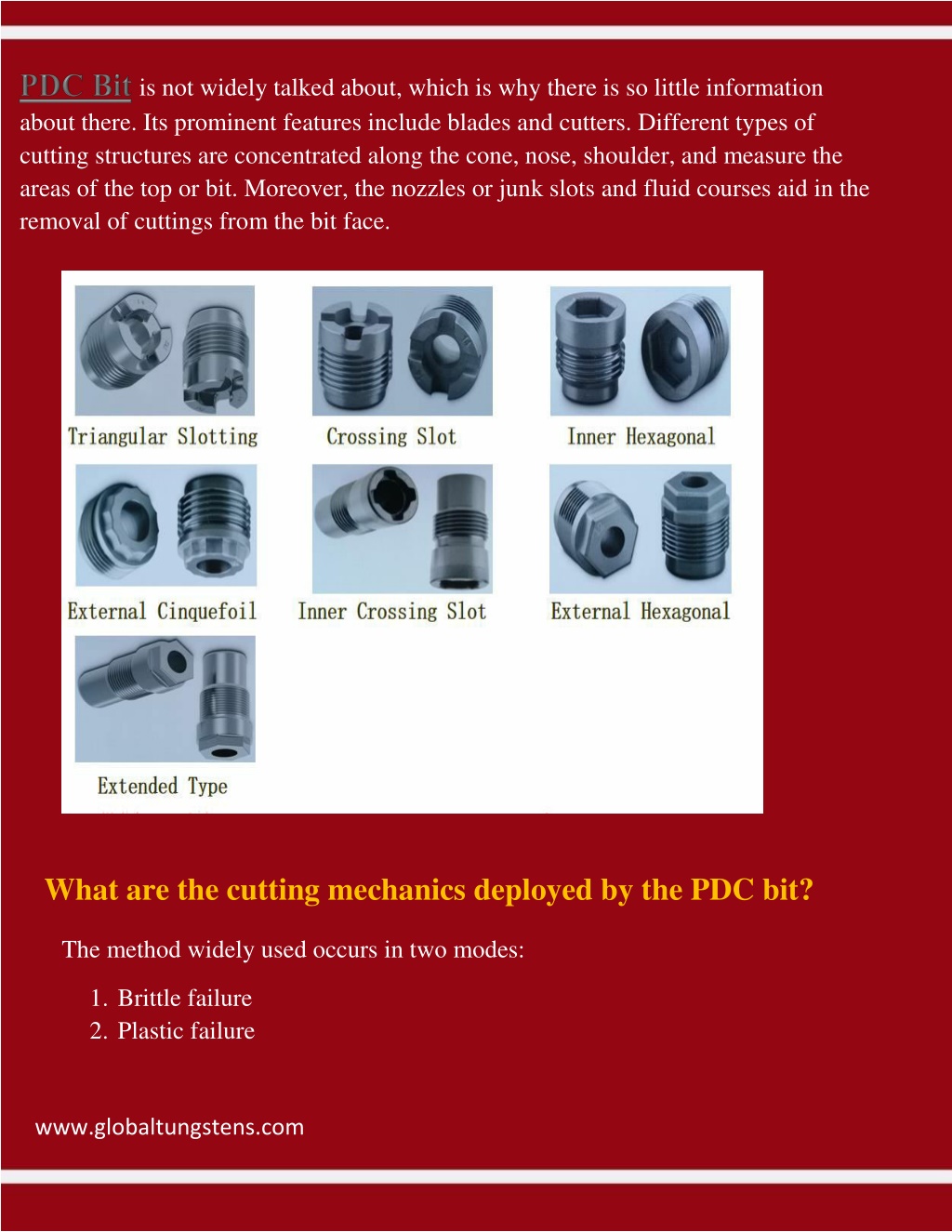

  1. is not widely talked about, which is why there is so little information about there. Its prominent features include blades and cutters. Different types of cutting structures are concentrated along the cone, nose, shoulder, and measure the areas of the top or bit. Moreover, the nozzles or junk slots and fluid courses aid in the removal of cuttings from the bit face. What are the cutting mechanics deployed by the PDC bit? The method widely used occurs in two modes: 1.Brittle failure 2.Plastic failure www.globaltungstens.com

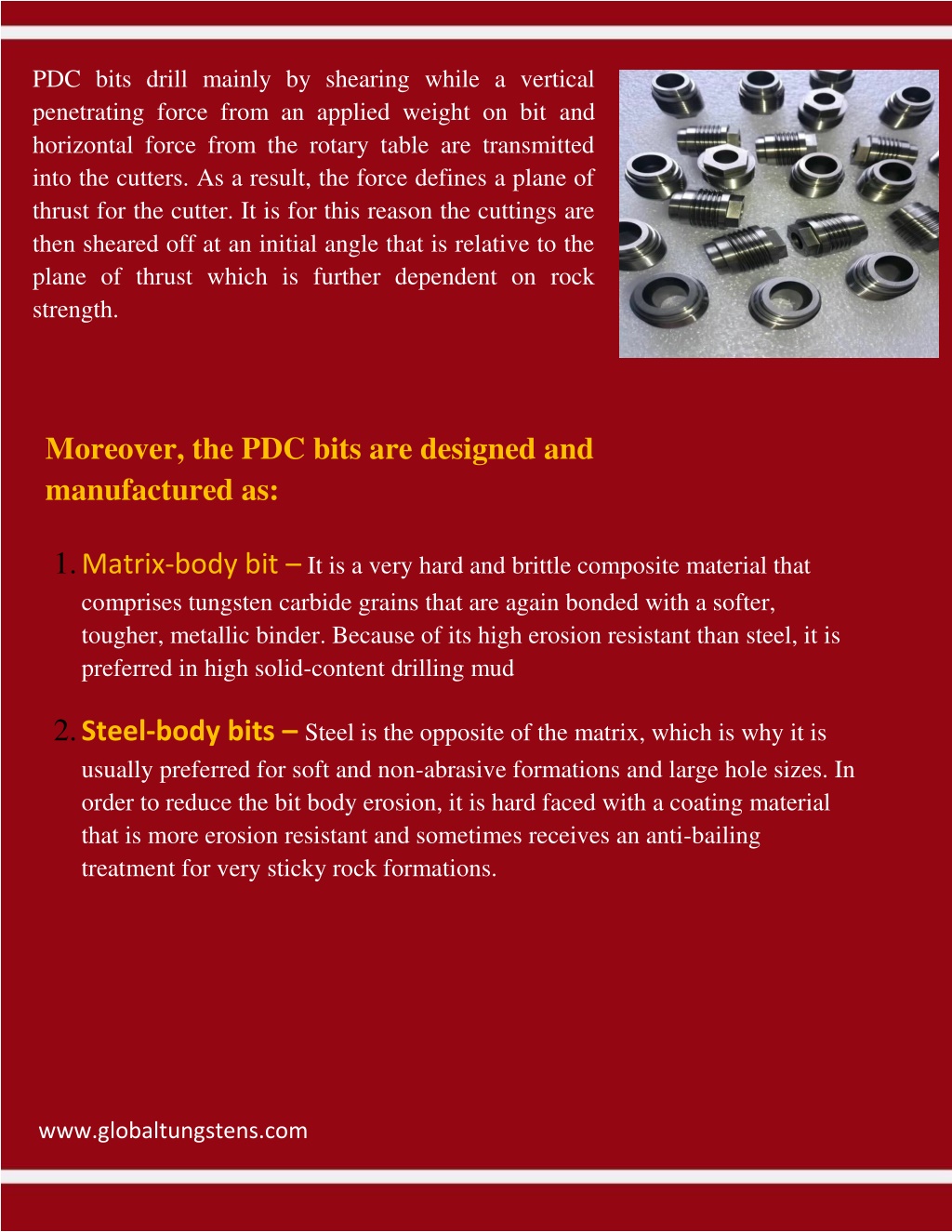

  2. PDC bits drill mainly by shearing while a vertical penetrating force from an applied weight on bit and horizontal force from the rotary table are transmitted into the cutters. As a result, the force defines a plane of thrust for the cutter. It is for this reason the cuttings are then sheared off at an initial angle that is relative to the plane of thrust which is further dependent on rock strength. Moreover, the PDC bits are designed and manufactured as: 1.Matrix-body bit – It is a very hard and brittle composite material that comprises tungsten carbide grains that are again bonded with a softer, tougher, metallic binder. Because of its high erosion resistant than steel, it is preferred in high solid-content drilling mud 2.Steel-body bits –Steel is the opposite of the matrix, which is why it is usually preferred for soft and non-abrasive formations and large hole sizes. In order to reduce the bit body erosion, it is hard faced with a coating material that is more erosion resistant and sometimes receives an anti-bailing treatment for very sticky rock formations. www.globaltungstens.com

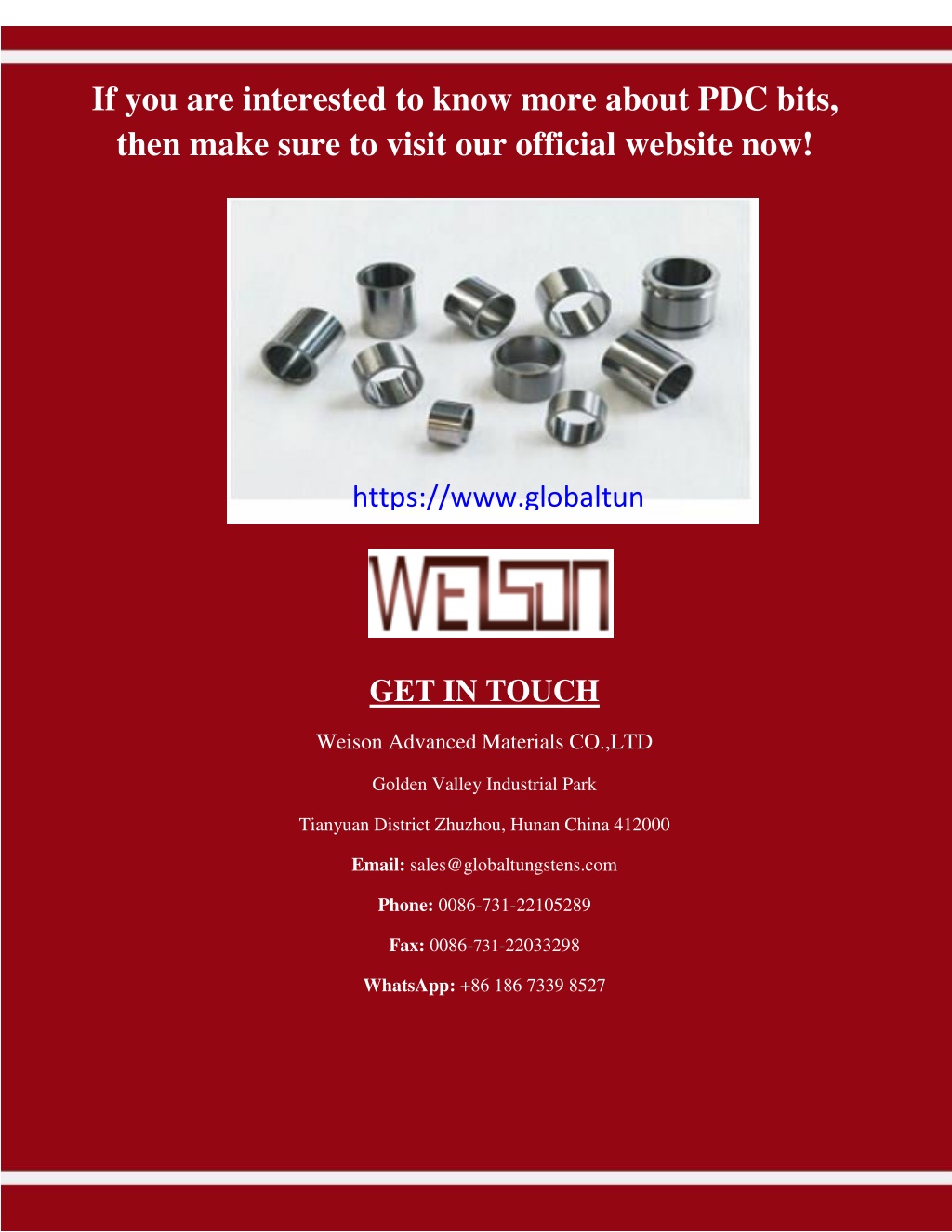

  3. If you are interested to know more about PDC bits, then make sure to visit our official website now! https://www.globaltun GET IN TOUCH Weison Advanced Materials CO.,LTD Golden Valley Industrial Park Tianyuan District Zhuzhou, Hunan China 412000 Email: sales@globaltungstens.com Phone: 0086-731-22105289 Fax: 0086-731-22033298 WhatsApp: +86 186 7339 8527
