Innovative Painting Therapy for Individuals with Disabilities: ADEC's Hand-Over-Hand Solution

DESCRIPTION

This paper explores an innovative approach to art therapy designed for individuals with developmental and physical disabilities, focusing on ADEC's hand-over-hand painting therapy. Through the integration of user-friendly technology like joysticks, LED indicators, and LCD messages, the proposed system enables greater autonomy in creative expression. The system utilizes T-Slot frames controlled by Arduino and incorporates advanced paint dispensing methods, ensuring a therapeutic and engaging experience for users.

1 / 9

Download Presentation

Innovative Painting Therapy for Individuals with Disabilities: ADEC's Hand-Over-Hand Solution

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Paint by Bits Tim Bontrager, Sarah Divel, Kelsey Han, Elizabeth Huschke EE 41430 November 4, 2014

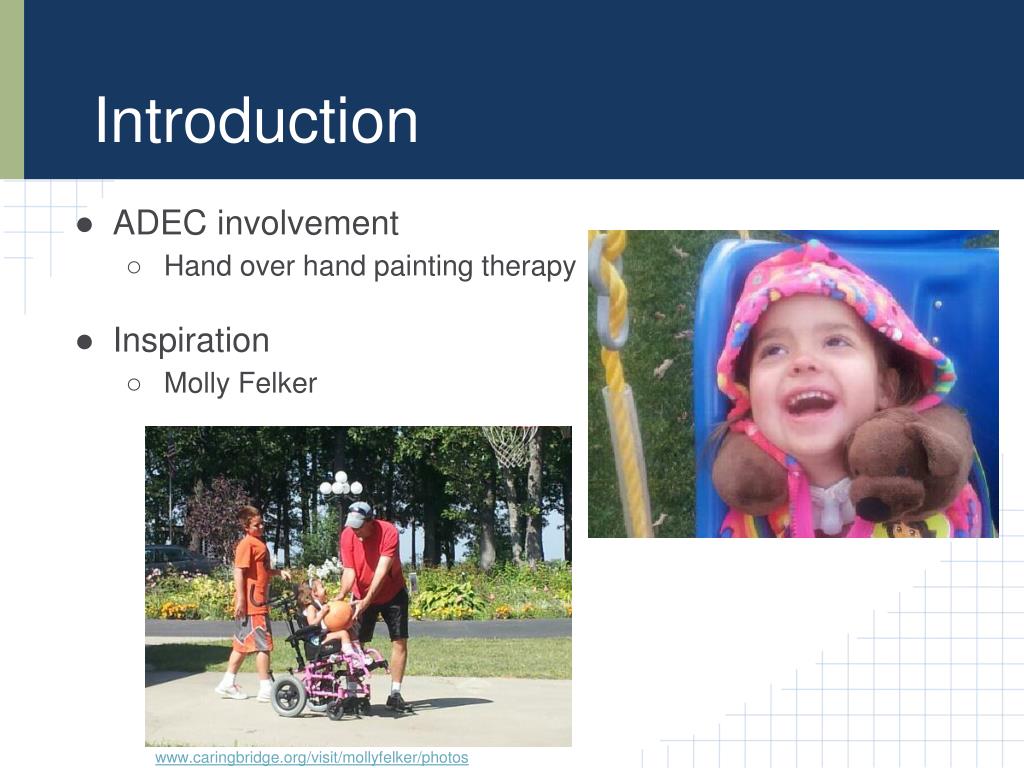

  2. Introduction • ADEC involvement • Hand over hand painting therapy • Inspiration • Molly Felker www.caringbridge.org/visit/mollyfelker/photos

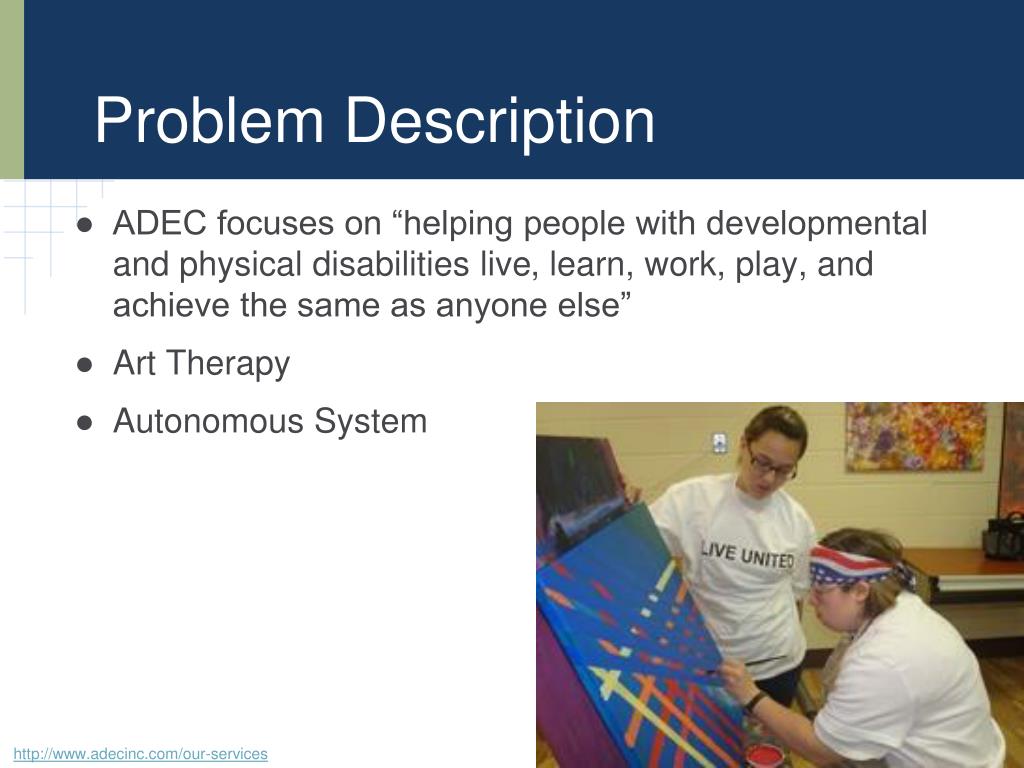

  3. Problem Description • ADEC focuses on “helping people with developmental and physical disabilities live, learn, work, play, and achieve the same as anyone else” • Art Therapy • Autonomous System http://www.adecinc.com/our-services

  4. Proposed Solution

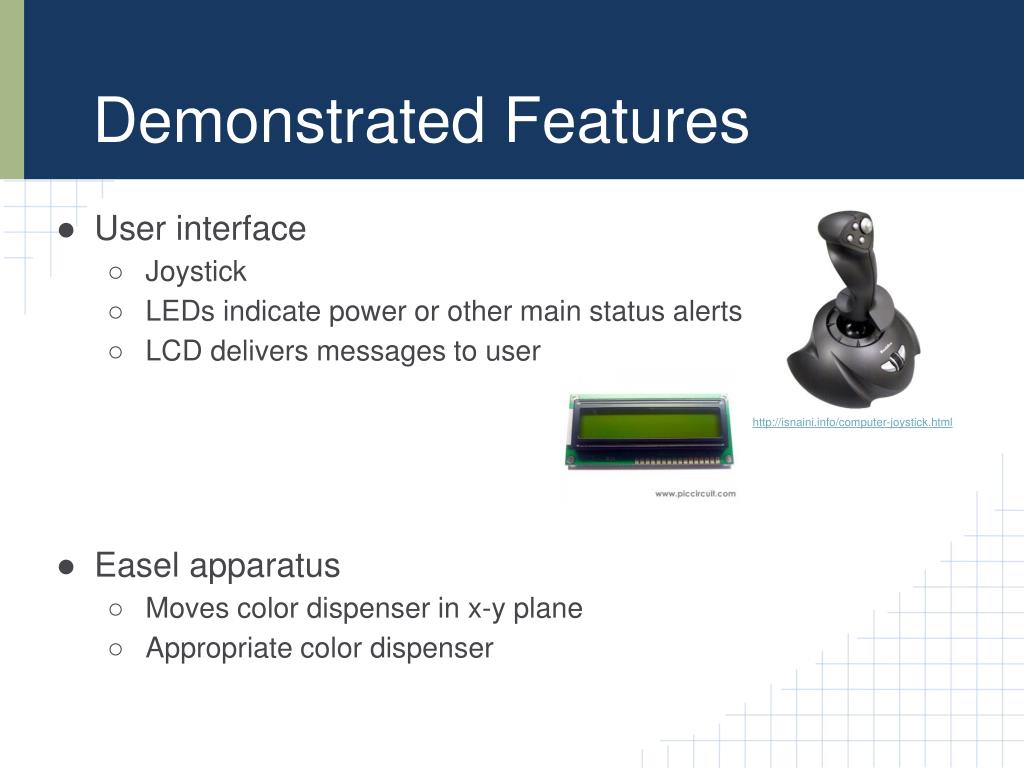

  5. Demonstrated Features • User interface • Joystick • LEDs indicate power or other main status alerts • LCD delivers messages to user • Easel apparatus • Moves color dispenser in x-y plane • Appropriate color dispenser http://isnaini.info/computer-joystick.html

  6. Available Technologies Frame and Position Control: • T-Slot frames controlled by Arduino Linear Motors • Brushless DC or Stepper • Open- or Closed- Loop Control http://www.instructables.com/id/Internet-Arduino-Controlled-T-Slot-XY-Table/

  7. Available Technologies • Paint Dispensing: Dragging a Paintbrush • Ink Jet Printer conversion • Physical Printing http://www.fubiz.net/en/2013/07/10/robot-painting/ http://spritesmods.com/?art=inker&page=2 http://reprap.org/wiki/Reprappable-inkjet

  8. Engineering! • Joystick interface • Color dispensing • Position control- linear motor drive • Implementation of T-slot frames

  9. Questions?
