BAJAJ DISCOVER 125 Disc

"Have More Fun on Daily Rides<br>Discover 125 delivers a powerful yet economical ride to ensure you get your daily dose of fun.<br>Design and Styling<br>Discover is designed to appeal to the stylish commuter with key design elements such as chiselled fairing , DRL headlamps , sculpted tank and LED Tail lamps<br>WHAT POWERS THE DISCOVER 125<br>Spider Mag-Wheels<br>Roll your wheels in style with spider mag-wheels that will get heads turning.<br>Double-LED DRLs 12V DC Headlamps<br>Arrive in style with double LED DRLs that are hard to miss. A 12V DC headlamp so you can go exploring city sights by night too.<br>Digital Instrument Cluster<br>One glance at the digital dashboard and youu2019ll have all vital riding information, with accurate speed readings, and essentials on headlamps, fuel, battery and mileage.<br>Twin-Spark 4-Stroke Air-Cooled DTS-i Engine<br>An even more powerful engine than before, with the same surprising mileage that will put a smile on every ride.<br>Front Disc or Drum with Rear Drum Brakes<br>Safely tackle congested city streets by choosing between a 240mm Disc or 130mm Drum brake on the front with a 130mm rear drum brake.<br>

globalbajajbd
Download Presentation

BAJAJ DISCOVER 125 Disc

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

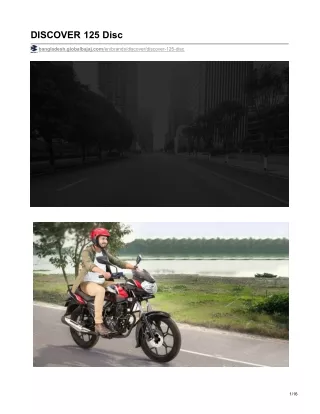

  1. DISCOVER 125 Disc bangladesh.globalbajaj.com/en/brands/discover/discover-125-disc 1/16

  2. Have More Fun on Daily Rides Discover 125 delivers a powerful yet economical ride to ensure you get your daily dose of fun. Performance at a Glance 0nm MAX TORQUE 0cc ENGINE CAPACITY 0ps ENGINE OUTPUT 0L 2/16

  3. FUEL TANK 0kgs KERB WEIGHT Design and Styling Discover is designed to appeal to the stylish commuter with key design elements such as chiselled fairing , DRL headlamps , sculpted tank and LED Tail lamps WHAT POWERS THE DISCOVER 125 3/16

  4. Spider Mag-Wheels Roll your wheels in style with spider mag-wheels that will get heads turning. 4/16

  5. Double-LED DRLs 12V DC Headlamps Arrive in style with double LED DRLs that are hard to miss. A 12V DC headlamp so you can go exploring city sights by night too. 5/16

  6. Digital Instrument Cluster One glance at the digital dashboard and you’ll have all vital riding information, with accurate speed readings, and essentials on headlamps, fuel, battery and mileage. 6/16

  7. Twin-Spark 4-Stroke Air-Cooled DTS-i Engine An even more powerful engine than before, with the same surprising mileage that will put a smile on every ride. 7/16

  8. Front Disc or Drum with Rear Drum Brakes Safely tackle congested city streets by choosing between a 240mm Disc or 130mm Drum brake on the front with a 130mm rear drum brake. 8/16

  9. Telescopic Front Forks with Superior Rear Suspension Explore the roughest parts of your city with excellent suspension that leaves you to concentrate on the ride. 9/16

  10. Spider Mag-Wheels Roll your wheels in style with spider mag-wheels that will get heads turning. 10/16

  11. Double-LED DRLs 12V DC Headlamps Arrive in style with double LED DRLs that are hard to miss. A 12V DC headlamp so you can go exploring city sights by night too. 11/16

  12. Digital Instrument Cluster One glance at the digital dashboard and you’ll have all vital riding information, with accurate speed readings, and essentials on headlamps, fuel, battery and mileage. 12/16

  13. Twin-Spark 4-Stroke Air-Cooled DTS-i Engine An even more powerful engine than before, with the same surprising mileage that will put a smile on every ride. 13/16

  14. Front Disc or Drum with Rear Drum Brakes Safely tackle congested city streets by choosing between a 240mm Disc or 130mm Drum brake on the front with a 130mm rear drum brake. 14/16

  15. Telescopic Front Forks with Superior Rear Suspension Explore the roughest parts of your city with excellent suspension that leaves you to concentrate on the ride. THE COMPLETE SPECIFICATIONS Engine Type: Single cyl, 2-valve, DTS-i with ExhausTEC Max Power: 11 @ 8000 (Ps @ RPM) Max Torque: 11 @ 5500 (NM @ RPM) Displacement: 124.5 cc Starting:Kick & Electric Brakes & Tyres 15/16

  16. Brake Size Front: 240 mm Disc/130 mm Drum Brake Size Rear: 130 mm Drum Tyre Front: 2.75 *17 Die cast aluminum alloy wheel Tyre Rear: 100/90-17 (Disc), 3.00*17 (Drum) Die cast aluminum alloy wheel VEHICLE Wheel Base: 1305mm Length x Width x Height: 2035mm x 760mm x 1085mm Ground Clearance: 165mm Suspension Front: Telescopic, 140 mm Fork Travel Kerb Weight: 123 kg (Drum), 125 kg (Disc) Fuel Tank (Reserve / Usable): 8 L (Reserve 1.5 L) Suspension Rear: Twinshocks, Nitrox (Gas filled), 120 mm rear wheel travel ELECTRICALS System: Digital Head Lamp (High Beam): 12 volt (DC), 35W/ 35W- HS-1 (Halogen) Battery: 12V-5Ah MF Type DRL: Double LED DRL DOWNLOAD BROCHURE 16/16
