COMFEN 4.0: Curtain Wall System - Floor to Ceiling

COMFEN 4.0: Curtain Wall System - Floor to Ceiling. W. S. E. N. ► Chicago Curtain Wall Energy Analysis ● Double-Glazing + Solarban 70(#2) + Argon Fill + Lighting Controls. COMFEN 4.0: Curtain Wall System - Floor to Ceiling. W. S. E. N.

glenda
Download Presentation

COMFEN 4.0: Curtain Wall System - Floor to Ceiling

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

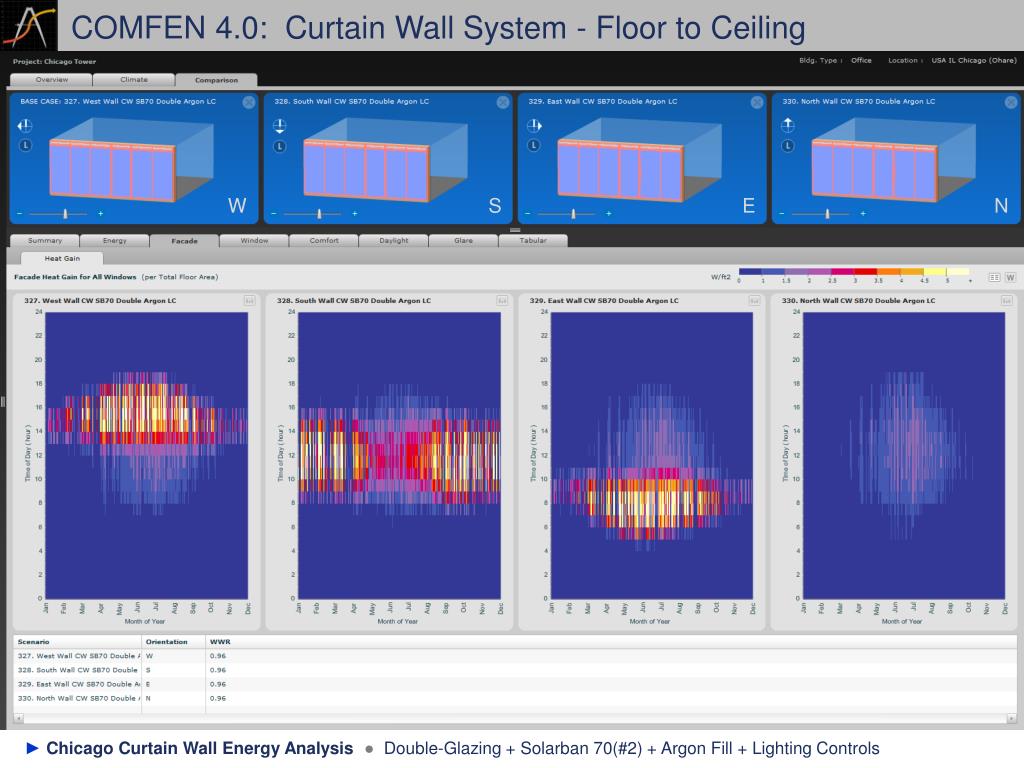

  1. COMFEN 4.0: Curtain Wall System - Floor to Ceiling W S E N ► Chicago Curtain Wall Energy Analysis ● Double-Glazing + Solarban 70(#2) + Argon Fill + Lighting Controls

  2. COMFEN 4.0: Curtain Wall System - Floor to Ceiling W S E N ► Chicago Curtain Wall Energy Analysis ●Double-Glazing + Solarban 70(#2) + Argon Fill + Lighting Controls

  3. COMFEN 4.0: Curtain Wall System - Floor to Ceiling W S E N 40.16 kBtu/ft2-yr Base Case 32.10 kBtu/ft2-yr -20.07% 40.54 kBtu/ft2-yr -0.95% 39.45 kBtu/ft2-yr -1.75% 38.06 kBtu/ft2-yr Average West Wall South Wall East Wall North Wall ► Chicago Curtain Wall Energy Analysis ●Double-Glazing + Solarban 70(#2) + Argon Fill + Lighting Controls

  4. COMFEN 4.0: Curtain Wall System - Floor to Ceiling W S E N ► Chicago Curtain Wall Energy Analysis ●Double-Glazing + Solarban 70(#2) + Argon Fill + Lighting Controls

  5. COMFEN 4.0: Curtain Wall System - Floor to Ceiling W S E N ► Chicago Curtain Wall Energy Analysis ● Triple-Glazing + Solarban 70(#2) + Argon Fill + Lighting Controls

  6. COMFEN 4.0: Curtain Wall System - Floor to Ceiling W S E N ► Chicago Curtain Wall Energy Analysis ● Triple-Glazing + Solarban 70(#2) + Argon Fill + Lighting Controls

  7. COMFEN 4.0: Curtain Wall System - Floor to Ceiling W S E N 38.88 kBtu/ft2-yr Base Case 31.12 kBtu/ft2-yr -19.94% 39.33 kBtu/ft2-yr +1.15% 38.23 kBtu/ft2-yr -1.67% 36.89 kBtu/ft2-yr Average West Wall South Wall East Wall North Wall ► Chicago Curtain Wall Energy Analysis ● Triple-Glazing + Solarban 70(#2) + Argon Fill + Lighting Controls

  8. COMFEN 4.0: Curtain Wall System - Floor to Ceiling W S E N ► Chicago Curtain Wall Energy Analysis ● Triple-Glazing + Solarban 70(#2) + Argon Fill + Lighting Controls

  9. COMFEN 4.0: IECC 2009 Baseline Energy Performance W S E N ► Chicago Baseline Energy Performance by Wall Orientation ● 40% Window to Wall Ratio

  10. COMFEN 4.0: IECC 2009 Baseline Energy Performance W S E N ► Chicago Baseline Energy Performance by Wall Orientation ● 40% Window to Wall Ratio

  11. COMFEN 4.0: IECC 2009 Baseline Energy Performance W S E N 38.99 kBtu/ft2-yr Base Case 33.99 kBtu/ft2-yr -12.82% 39.08 kBtu/ft2-yr +0.24% 37.93 kBtu/ft2-yr -2.72% 37.49 kBtu/ft2-yr Average West Wall South Wall East Wall North Wall ► Chicago Baseline Energy Performance by Wall Orientation ● 40% Window to Wall Ratio

  12. COMFEN 4.0: IECC 2009 Baseline Energy Performance W S E N ► Chicago Baseline Energy Performance by Wall Orientation ● 40% Window to Wall Ratio

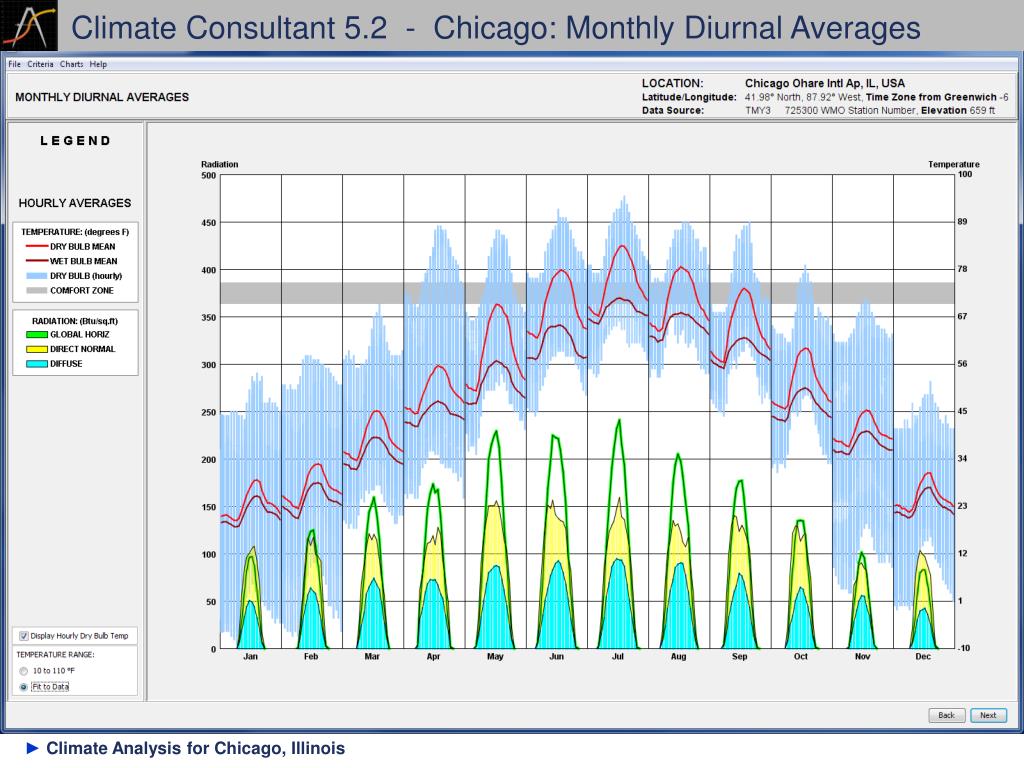

  13. Climate Consultant 5.2 - Chicago: Monthly Diurnal Averages ► Climate Analysis for Chicago, Illinois
