pc modem control
PC Modem Control
  • The 8250 UART supplied with the PC supports a limited number of RS-232-C modem functions:
  • The UART can be programmed to interrupt the PC when modem status changes occur.

- The ability to control modem conditions (through Modem

Control Register).

- The ability to determine the modem’s status (from the Modem

Status Register).

uart port addresses and functions
UART Port Addresses and Functions

Port 1 Port 2 Address Offset Uses

0x3F8 0x2F8 Base address + 0 Transmission Register Buffer

Receive Register Buffer

Line Speed (LSB)

0x3F9 0x2F9 Base address + 1 Interrupt Enable

Line Speed (MSB)

0x3FA 0x2FA Base address + 2 Interrupt Identification Register

0x3FB 0x2FB Base address + 3 Line Control Register

0x3FC 0x2FC Base address + 4 Modem Control Register

0x3FD 0x2FD Base address + 5 Line Status Register

0x3FE 0x2FE Base address + 6 Modem Status Register

modem control register

7 6 5 4 3 2 1 0

0

0

0

DTR

RTS

Out1

Out2

Loop

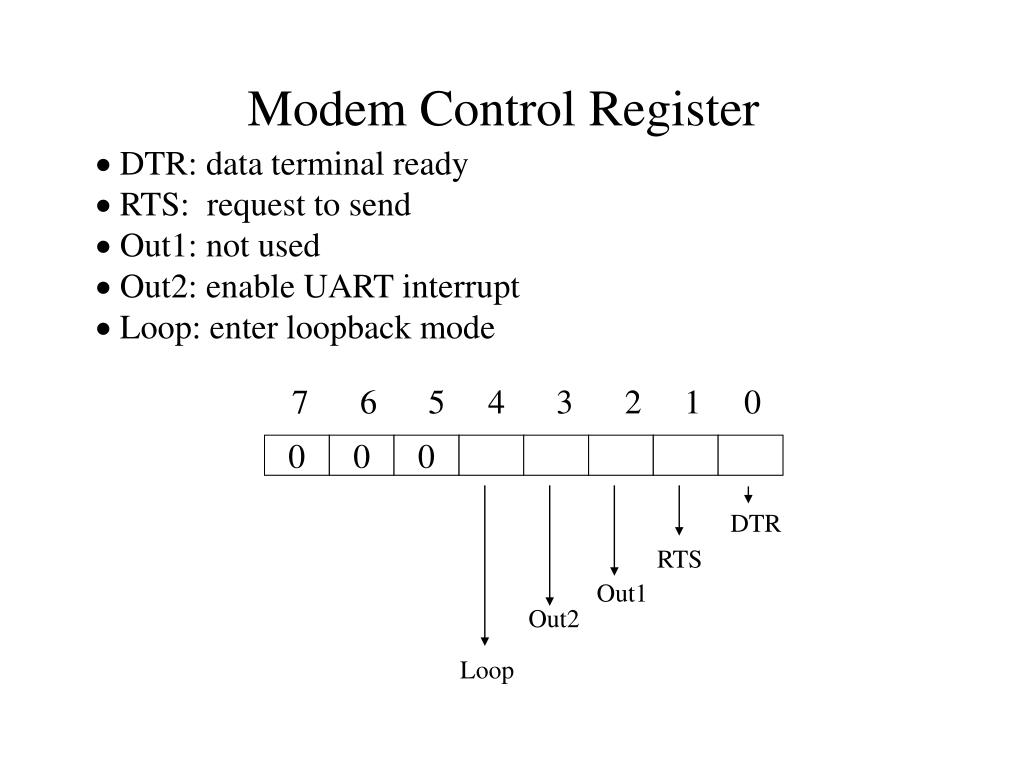

Modem Control Register
  • DTR: data terminal ready
  • RTS: request to send
  • Out1: not used
  • Out2: enable UART interrupt
  • Loop: enter loopback mode
mcr example
MCR Example

#define MCR 0x3FC

#define DTR 0x01

#define RTS 0x02

#define OUT2 0x08

- To signal the modem that the PC is connected to the channel and has

data to send:

outportb(MCR, DTR+RTS+OUT2);

- To clear the modem:

outportb(MCR, OUT2);

modem status register

7 6 5 4 3 2 1 0

CTS

DSR

RI

CD

CTS

DSR

RI

CD

Modem Status Register

- CTS: There has been a change in the Clear to Send signal

since the last time the MSR was read.

- CTS: The value of the Clear to Send signal

modem interrupts

7 6 5 4 3 2 1 0

Data available

Tx holding reg. empty

Receive Line Status

Modem status change

Modem Interrupts

- UART generates 4 types of interrupts (interrupt enable

register).

- Modem status changes can be made to cause interrupts

by setting IER to 0x08.

#define IER 0x3F9

#define DATA_AV 0x01

#define TX_HR_MT 0x02

#define RVC_LS 0x04

#define MDM_CHG 0x08

outportb(IER, MDM_CHG),

modem interrupts7

7 6 5 4 3 2 1 0

Interrupt pending

Interrupt id (b0)

Interrupt id (b1)

Modem Interrupts

- Interrupt identification register indicates the cause

of the interrupt.

IIR Interrupt

6 Receive line status (overrun, parity error, etc.)

4 Received data available

2 TX holding Reg. empty

0 Modem status change

Interrupt identification register

- The status of modem can be

obtained by reading the MSR

status = inportb(MSR);

example commkit external modem
Example: Commkit External Modem

- Extends the point-to-point utility to handle modems.

- The following modem status changes are recognized:

CTS, DSR, RI, RLSD (CD)

- Once carrier is detected, the modem enters the DSR state

and signals both DSR and RLSD to the UART.

- Upon detection of DSR and DLSD, the DTE responds with

DTR and RTS.

- At this point, DTE is connected DCE and communications

can commence.

implementation

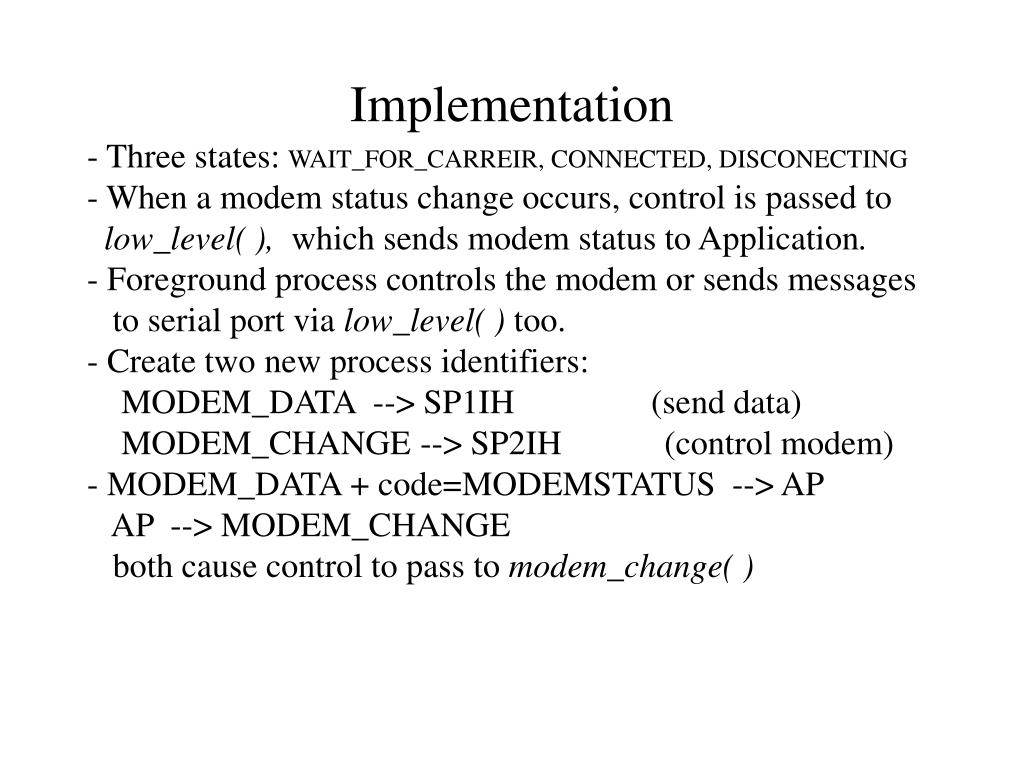

Implementation

- Three states: WAIT_FOR_CARREIR, CONNECTED, DISCONECTING

- When a modem status change occurs, control is passed to

low_level( ), which sends modem status to Application.

- Foreground process controls the modem or sends messages

to serial port via low_level( ) too.

- Create two new process identifiers:

MODEM_DATA --> SP1IH (send data)

MODEM_CHANGE --> SP2IH (control modem)

- MODEM_DATA + code=MODEMSTATUS --> AP

AP --> MODEM_CHANGE

both cause control to pass to modem_change( )

implementation10
Implementation

do_modem( )

KEYIH

keyboard_data()

XMITDONE

MODEM_DATA

(SP1IH)

do_rmt_scr()

MODEM_CHANGE

(SP2IH)

hayes commands
Hayes’ Commands

- Not all UART Manufacturers conform to RS-232-C signals.

- Programs may not be portable across different modems.

- Many modems support Hayes’ commands, a set of textual

strings that are recognized and interpreted by the modem.

- Hayes modem has a front-end that interprets the modem

commands issued by the application software, converting

them into the signals required by the modem.

- When first initialized, the front-end is in “command” state,

interpreting any data supplied to it.

- Once a connection is established with another modem, the

front-end enters the “on-line” state, passing data directly to

modem.

hayes commands12
Hayes’ Commands

- +++ : from “on-line” to “command”.

- AT: command prefix

- DTxxxx: dial phone number xxxx.

- H : hang up

- O : from “command” to “on-line”

- &Zn=x: assign a phone number, x, to an internal register n.

- S=n: dial phone number stored in register n.

hayes modem state diagram

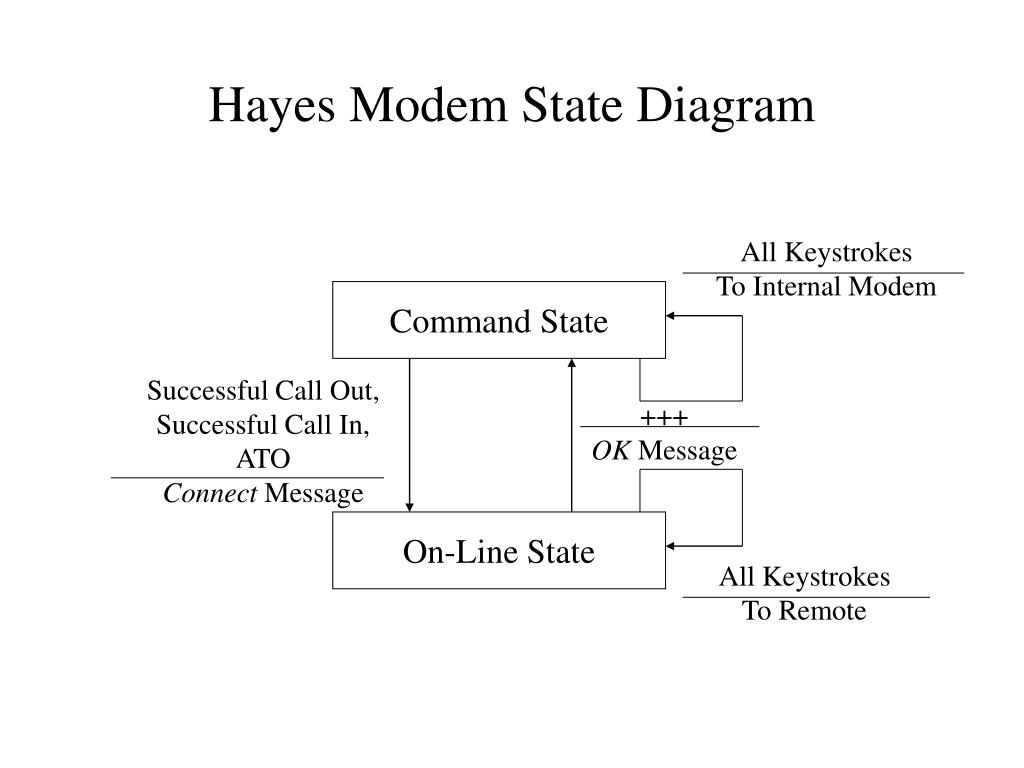

Hayes Modem State Diagram

All Keystrokes

To Internal Modem

Command State

Successful Call Out,

Successful Call In,

ATO

Connect Message

+++

OK Message

On-Line State

All Keystrokes

To Remote

example commkit internal modem
Example: Commkit Internal Modem

- Internal Modem is installed as a card in PC.

- Most internal modems support Hayes’ AT commands.

- For a Hayes modem,

- The control software is not in direct communication with

UART; rather, all modem control signals are via the AT

Commands.

- All modem status changes are interpreted by the internal

modem and returned to the control software as text via

the UART’s data-available interrupt.
