Model Editing (Continued)

1. Model Editing (Continued) Copy & Paste Copy & Paste Special (Transformation) Copy & Paste Special (Rotation) Scale Model Fill Pattern Curve Pattern Table Pattern Reference Pattern

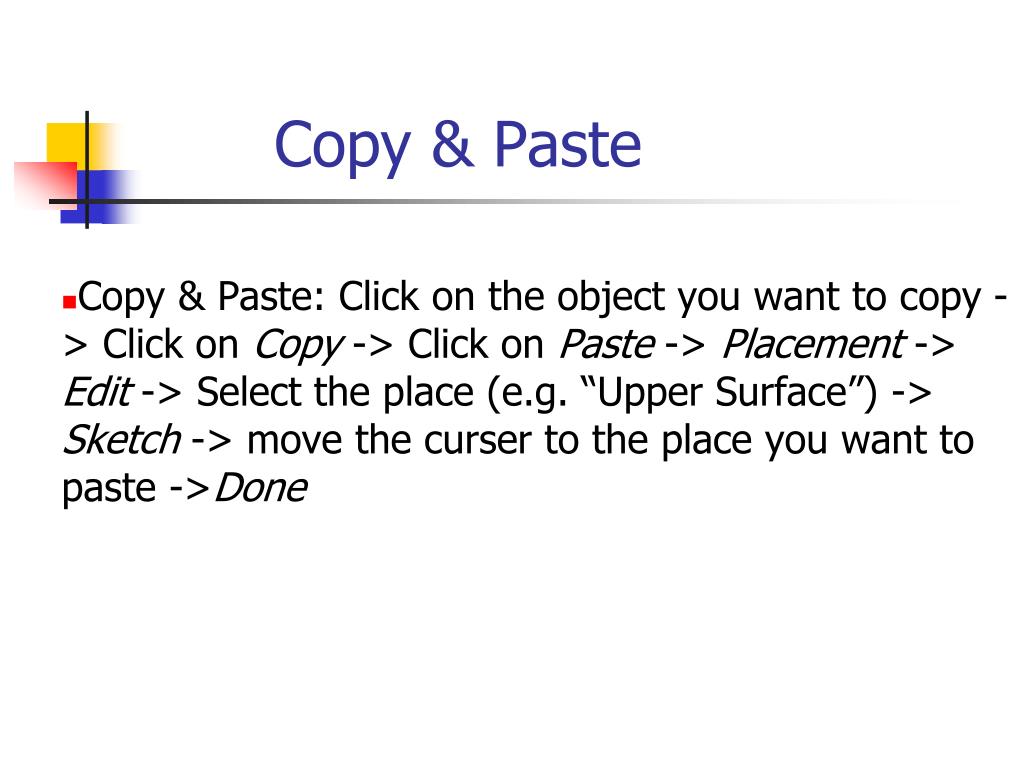

2. Copy & Paste Copy & Paste: Click on the object you want to copy -> Click on Copy -> Click on Paste -> Placement -> Edit -> Select the place (e.g. “Upper Surface”) -> Sketch -> move the curser to the place you want to paste ->Done

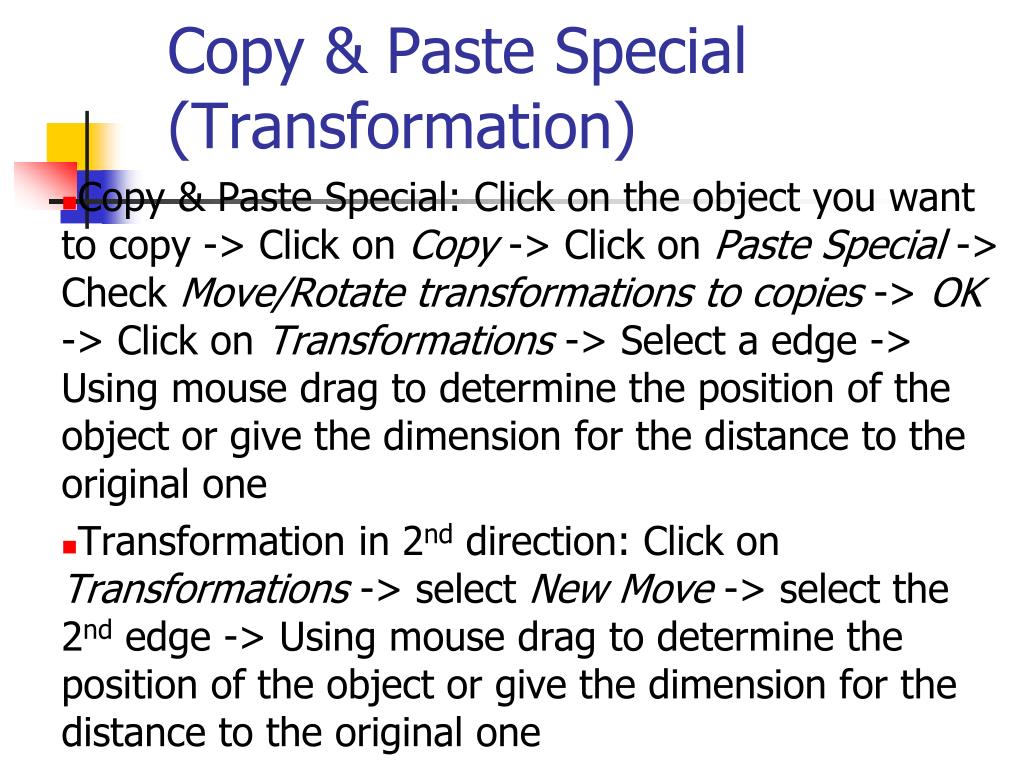

3. Copy & Paste Special(Transformation) Copy & Paste Special: Click on the object you want to copy -> Click on Copy -> Click on Paste Special -> Check Move/Rotate transformations to copies -> OK -> Click on Transformations -> Select a edge -> Using mouse drag to determine the position of the object or give the dimension for the distance to the original one Transformation in 2nd direction: Click on Transformations -> select New Move -> select the 2nd edge -> Using mouse drag to determine the position of the object or give the dimension for the distance to the original one

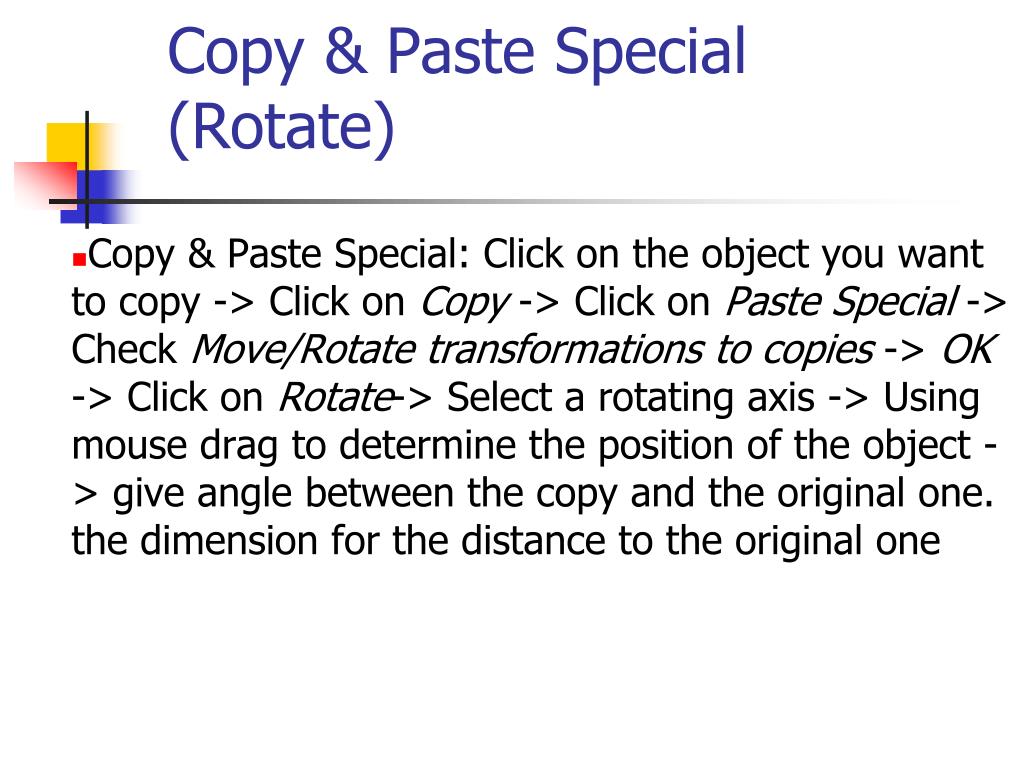

4. Copy & Paste Special(Rotate) Copy & Paste Special: Click on the object you want to copy -> Click on Copy -> Click on Paste Special -> Check Move/Rotate transformations to copies -> OK -> Click on Rotate-> Select a rotating axis -> Using mouse drag to determine the position of the object -> give angle between the copy and the original one. the dimension for the distance to the original one

5. Scale Model Scale Model: Click on the object you want to scale -> Edit -> Scale Model -> Enter the scale -> Done -> Yes

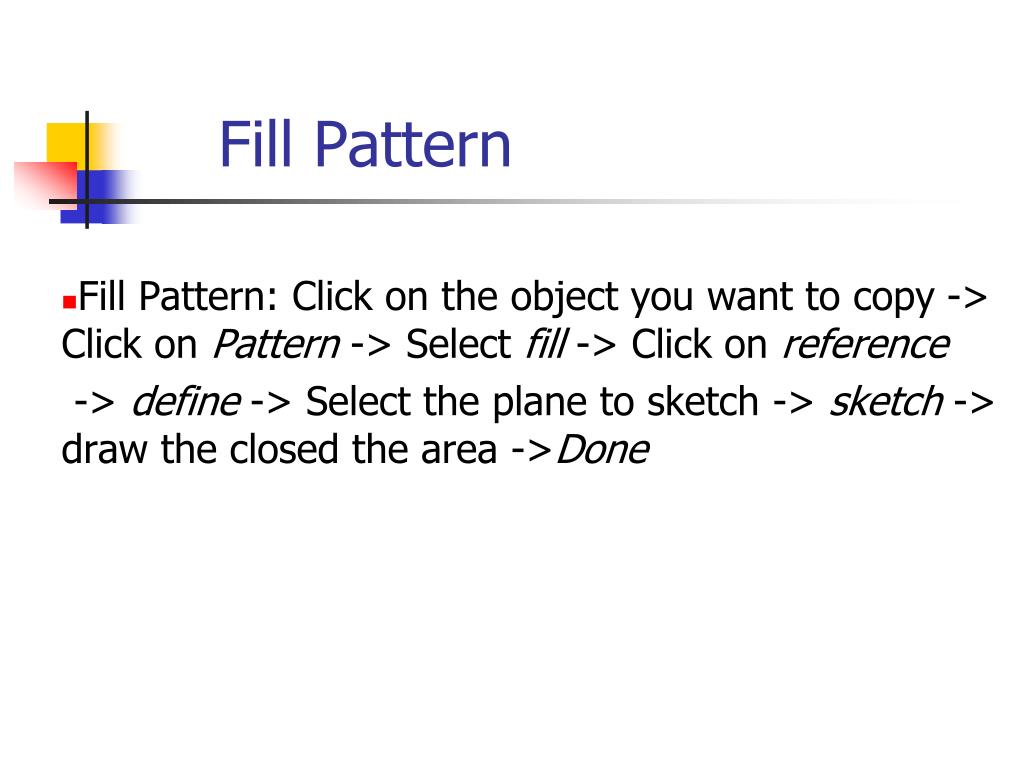

6. Fill Pattern Fill Pattern: Click on the object you want to copy -> Click on Pattern -> Select fill -> Click on reference -> define -> Select the plane to sketch -> sketch -> draw the closed the area ->Done

7. Curve Pattern Fill Pattern: Click on the object you want to copy -> Click on Pattern -> Select Curve -> Click on reference -> define -> Select the plane to sketch -> sketch -> draw the curve ->Done Note: the start point needs to be determined

8. Table Pattern Fill Pattern: Click on the object you want to copy -> Click on Pattern -> Select Table -> Select the dimensions about the object -> Create the table -> Save -> Exit (Don’t use Quit)

9. Reference Pattern Reference Pattern: Click on the object you want to copy -> Click on Pattern -> Select Reference -> Done
