1. International Workshop on Continuum Modeling of Biomolecules September 14-16, 2009 in Beijing, China An image-based reaction field method for electrostatic interactions in molecular dynamics simulations Presented By: Yuchun Lin Department of Mathematics & Statistics Department of Physics & Optical Science University of North Carolina at Charlotte

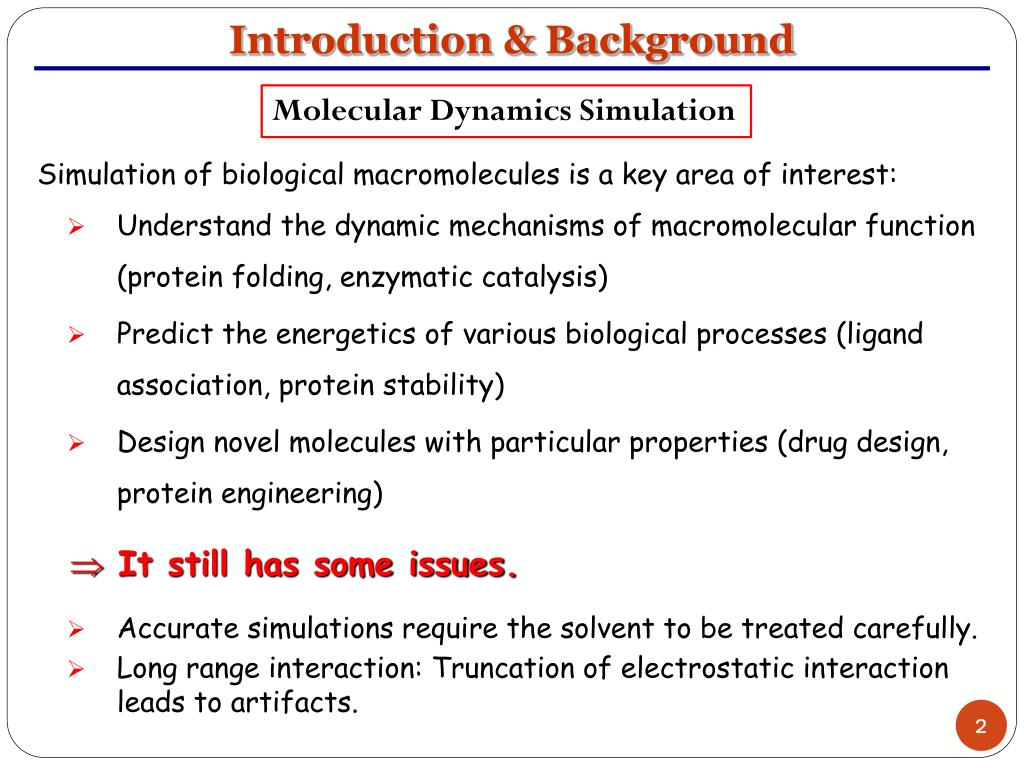

2. Introduction & Background Molecular Dynamics Simulation Simulation of biological macromolecules is a key area of interest: • Understand the dynamic mechanisms of macromolecular function (protein folding, enzymaticcatalysis) • Predict the energetics of various biological processes (ligand association, protein stability) • Design novel molecules with particular properties (drug design, protein engineering) • It still has some issues. • Accurate simulations require the solvent to be treated carefully. • Long range interaction: Truncation of electrostatic interaction leads to artifacts.

3. Introduction & Background e Reaction Field Hybrid implicit/explicit e Explicit Implicit More Accurate & Less Efficient More Efficient & Less Accurate

4. Hybrid Solvation Models • Kirkwood expansion • --- slow convergence at boundary Friedman image expression --- approximated & less accurate accurate up to O(1/ε) • Repulsive potential applied • --- strong surface effect • Exact solution of PB in particular geometries • Arbitrary geometry Numerical Solution: D. Beglov, et al, J. Chem. Phys. 100(1994) 9050 H. Alper, et al, J. Chem. Phys.,99(1993) 9847 G. Brancato, et al, J. Chem. Phys. 122(2005) 154109 Image Approximation: P. K. Yang, et al, J. Phys. Chem. B, 106 (2002) 2973. G. Petraglio, et al, J. Chem. Phys. 123(2005) 044103 A. Wallqvist, Mol. Sim. 10(1993) 13–17. Numerical Solution: W. Im, et al., J. Chem. Phys. 114(2001) 2924 Generalized Born Model: M. S. Lee, et al, J. Comput. Chem. 25 (2004) 1967 D. Bashford, et al., Annu. Rev. Phys. Chem. 51 (2000) 129–152

5. Basic Idea Image-based method to compute reaction field Known Drawbacks Friedman expression for reaction field is approximate Surface effects are non-negligible or not removed easily Our Solutions Periodic boundary conditions for non-electrostatic Multiple image charges method Y. Lin, A. Baumketner, S. Deng, Z. Xu, D. Jacob, W. Cai, An image-based reaction field method for electrostatic interactions in molecular dynamics simulations of aqueous solutions, J. Chem. Phys., 2009, under review

6. Theory: RF in multiple-image charges approach Poisson-Boltzmann equations: H. L. Friedman, Mol. Phys. 29 (1975) 1533–1543 W. Cai, S. Deng, D. Jacobs, J. Comput. Phys., 223(2007), 846-864 S. Deng, W. Cai, Comm. Comput. Phys., 2(2007), 1007-1026

7. Theory: RF in multiple-image charges approach With Kirkwood expansion on pure solution case For using image method, let , , Where and First series is the potential of Kelvin image: Using the integral identity and rewrite second series as:

8. Theory: RF in multiple-image charges approach Now the reaction field inside the cavity is: Next, we construct discrete image charge by Gauss-Radauquadrature: Here are the Gauss-Radauquadrature weights and points. Since s1=-1 and then x1=rK, the classical Kelvin image charge and the first discrete image charge can be combined, leading to:

9. Theory: Integration of the RF model with MD Role of a buffer layer between explicit and implicit solvents : A. Wallqvist, Mol. Sim. 10(1993) 13–17 L.Wang, J. Hermans, J. Phys. Chem. 99(1995) 12001

10. Theory: Integration of the RF model with MD Choice of boundary conditions: d L Choice of box type: For Cubic Box: For L = 45Å, τ = 5Å box, Cube allows only 2 Å for d

11. Model • Three parameters: • Number of image charge (Ni) • Ni=0, 1, 2, 3 • Thickness of buffer layer (τ) • τ=2Å, 4Å, 6Å, 8Å • Box size (L) • L=30Å, 45Å, 60Å d Fast Multipole Method is applied L. Greengard, V. Rokhlin, J. Comput. Phys. 73 (1987) 325–348 For L=45Å, τ=5Å box, TO allows 17 Å for d For Truncated Octahedron:

12. Results: Relative Density L=30Å Standard Deviation L=45Å • A buffer layer of at least 6 Å is required to yield uniform density. • Large surface effect at low τ. L=60Å

13. Results: Radial Distribution Function Number of image charges (Ni) is not critical Effect of buffer layer thickness (τ) is unnoticeable Effect of box size (L), converges on L=60Å with PME

14. Results: Diffusion Coefficient Reaction field is critical for the proper description of diffusion (Unit: 10-9m2s-1)

15. Results: Dielectric Constant The convergence with the number of image charges occurs at Ni = 1 V. Ballenegger, J. P. Hansen, J. Chem. Phys. 122(2005) 114711 L=60Å, τ=4Å

16. Results: Dielectric Constant The dependence of ε on the thickness of buffer layer is week Å Å Å Å Å

17. Results: Dielectric Constant Dielectric properties require large simulation boxes and RF corrections PME: ε = 90± 10

18. Summary & Conclusions • Summary: • Large enough buffer layer is important • Large box size produces good bulk • properties of simulated water • Reaction field is essential for proper • description of dielectric permittivity • Conclusion: • A new solvation model is proposed. Static, structural and dynamic properties of water are well reproduced compared to PME. • Applications to biological system are our future work. Optimal parameters L = 60Å, τ= 6Å, Ni = 1. W. Cai, S. Deng, D. Jacobs, J. Comput. Phys., 223(2007), 846-864 S. Deng, W. Cai, Comm. Comput. Phys., 2(2007), 1007-1026 S. Deng, W. Cai, J. Comput. Phys. 227 (2007) 1246–1266. Y. Lin, A. Baumketner, S. Deng, Z. Xu, D. Jacobs, W. Cai, J. Chem. Phys., 2009, under review
