  1. Evaluation of Travel Information and Prediction System (TIPS) for Work Zone Operations University of Maryland, College Park

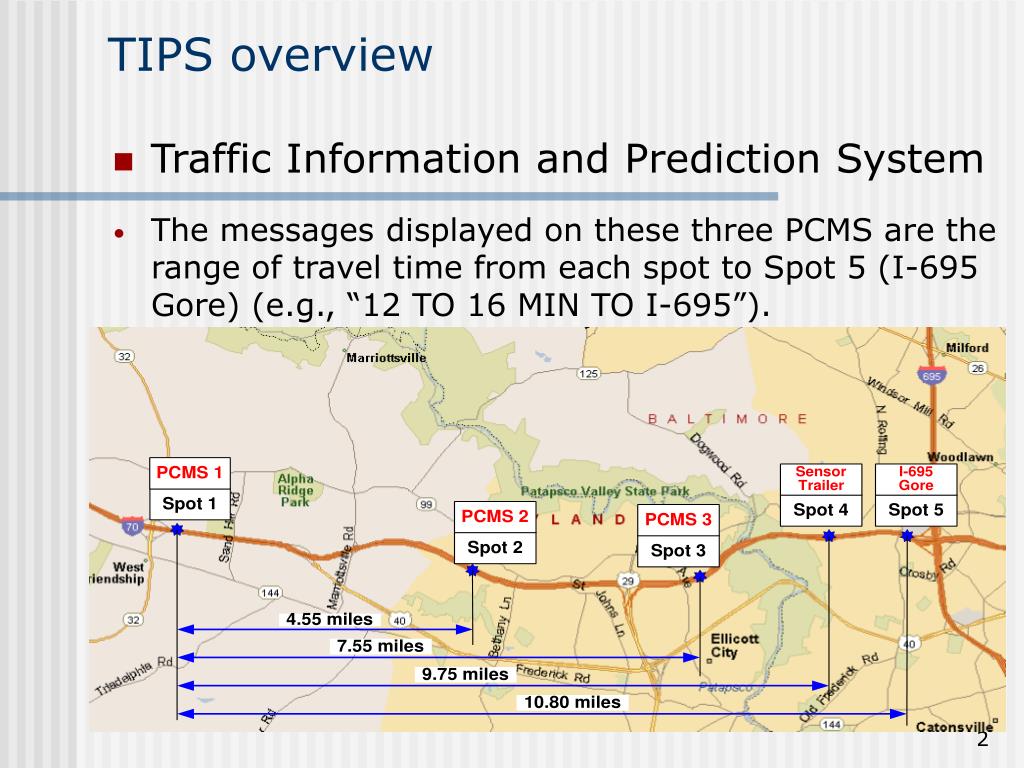

  2. TIPS overview • The messages displayed on these three PCMS are the range of travel time from each spot to Spot 5 (I-695 Gore) (e.g., “12 TO 16 MIN TO I-695”). • Traffic Information and Prediction System

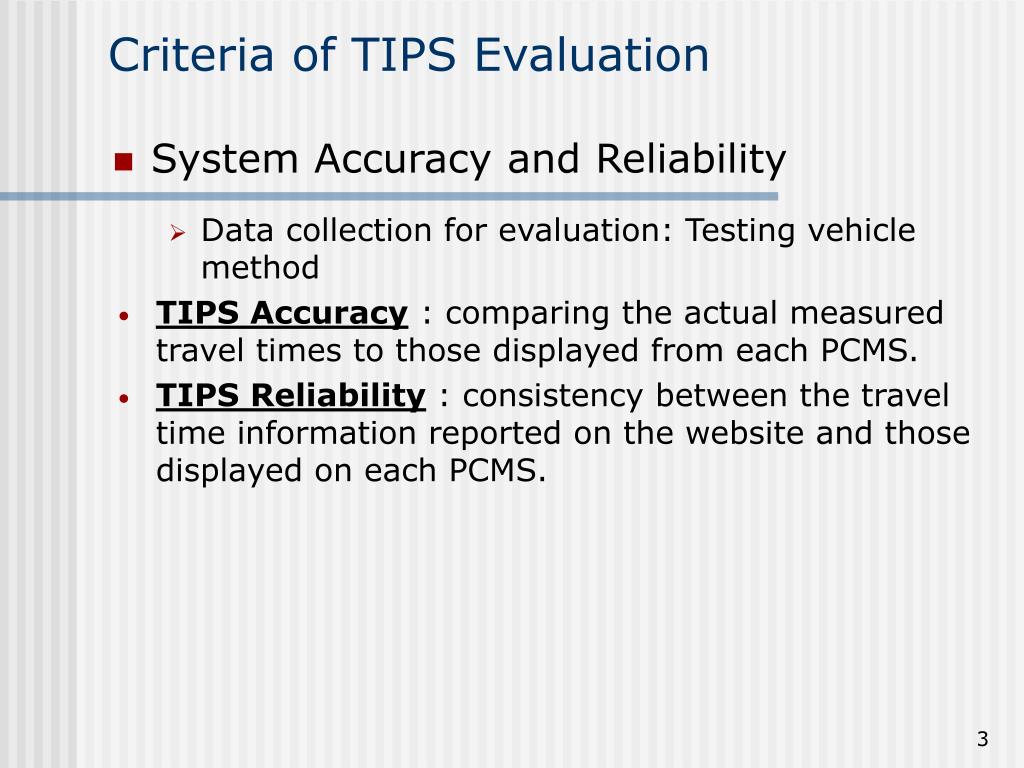

  3. Criteria of TIPS Evaluation • Data collection for evaluation: Testing vehicle method • TIPS Accuracy : comparing the actual measured travel times to those displayed from each PCMS. • TIPS Reliability : consistency between the travel time information reported on the website and those displayed on each PCMS. • System Accuracy and Reliability

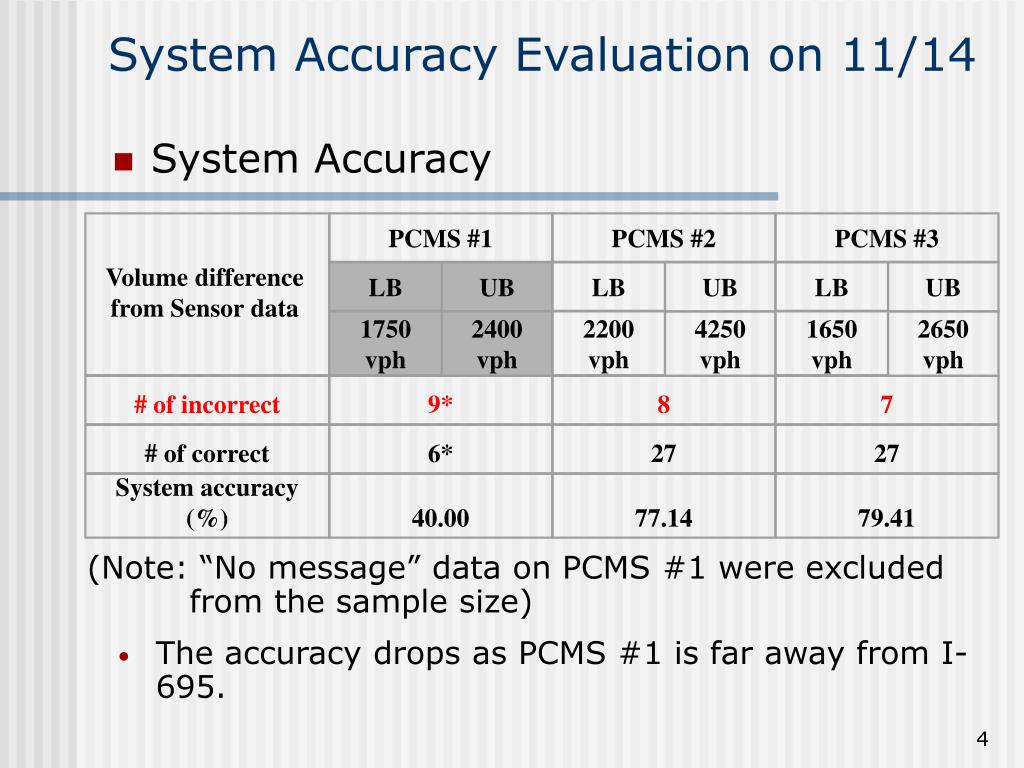

  4. PCMS #1 PCMS #2 PCMS #3 UB UB UB LB LB LB 2400 vph 4250 vph 2650 vph 1750 vph 2200 vph 1650 vph # of incorrect 9* 8 7 # of correct 6* 27 27 System accuracy (%) 40.00 77.14 79.41 System Accuracy Evaluation on 11/14 • System Accuracy Volume difference from Sensor data (Note: “No message” data on PCMS #1 were excluded from the sample size) • The accuracy drops as PCMS #1 is far away from I-695.

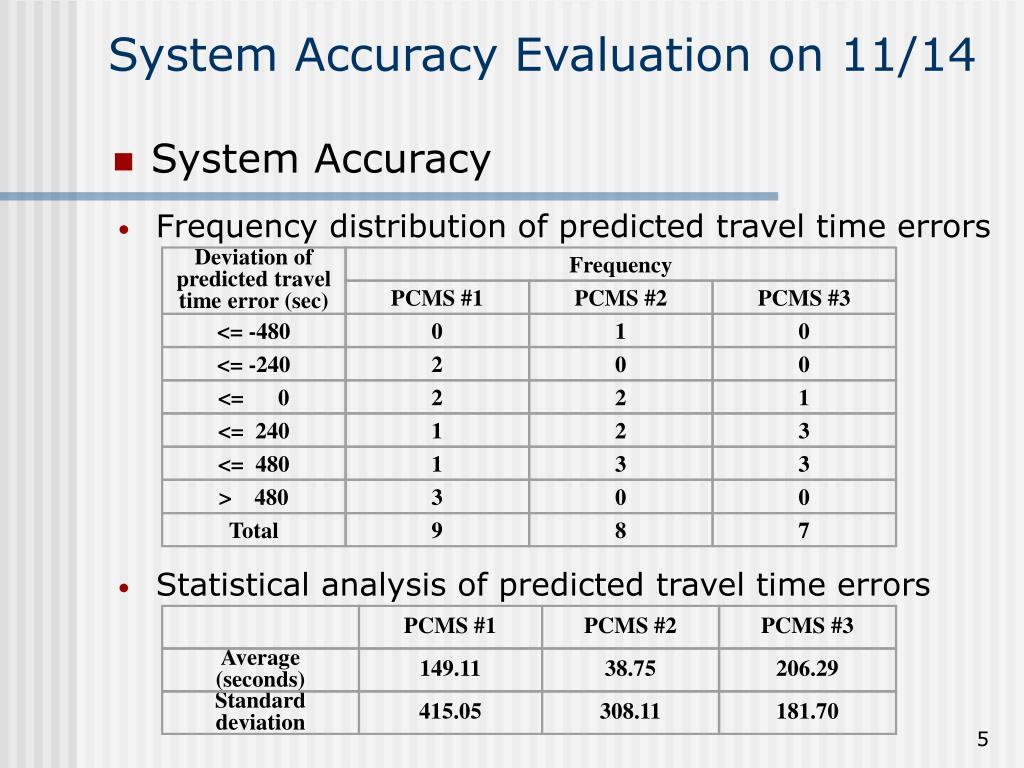

  5. Deviation of predicted travel time error (sec) Frequency PCMS #1 PCMS #2 PCMS #3 PCMS #1 PCMS #2 PCMS #3 Average (seconds) 149.11 38.75 206.29 <= -480 0 1 0 Standard deviation 415.05 308.11 181.70 <= -240 2 0 0 <= 0 2 2 1 <= 240 1 2 3 <= 480 1 3 3 > 480 3 0 0 Total 9 8 7 System Accuracy Evaluation on 11/14 • Frequency distribution of predicted travel time errors • System Accuracy • Statistical analysis of predicted travel time errors

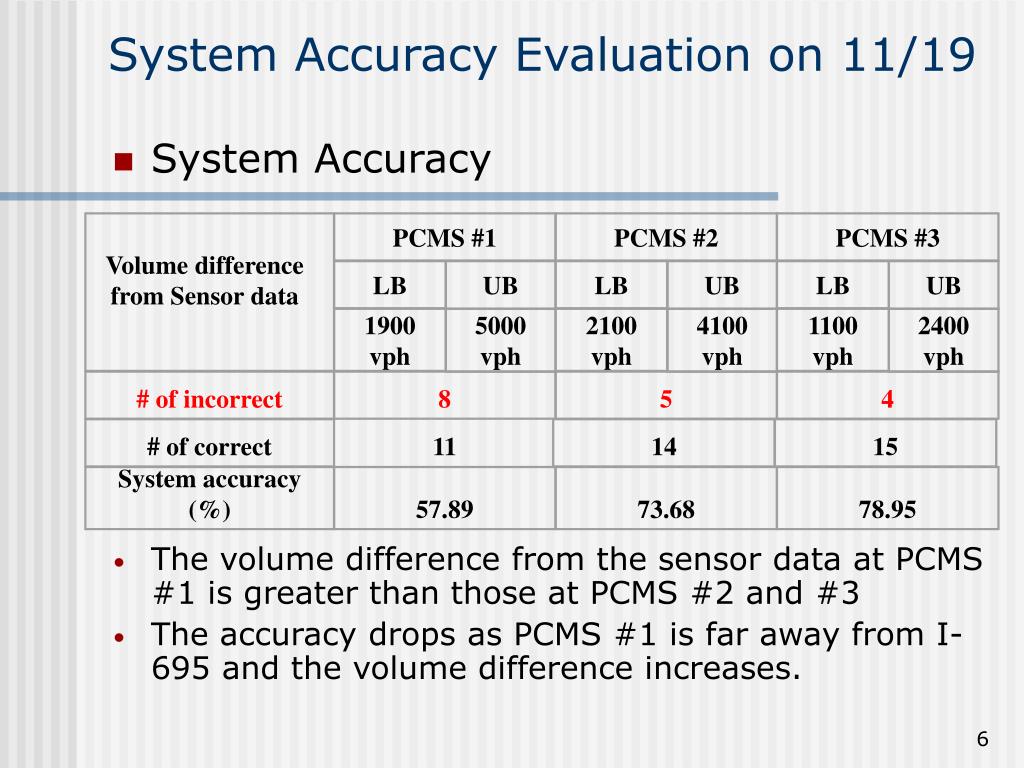

  6. PCMS #1 PCMS #2 PCMS #3 UB UB UB LB LB LB 5000 vph 4100 vph 2400 vph 1900 vph 2100 vph 1100 vph # of incorrect 8 5 4 # of correct 11 14 15 System accuracy (%) 57.89 73.68 78.95 System Accuracy Evaluation on 11/19 • System Accuracy Volume difference from Sensor data • The volume difference from the sensor data at PCMS #1 is greater than those at PCMS #2 and #3 • The accuracy drops as PCMS #1 is far away from I-695 and the volume difference increases.

  7. Deviation of predicted travel time error (sec) Frequency PCMS #1 PCMS #2 PCMS #3 PCMS #1 PCMS #2 PCMS #3 Average (seconds) -21.00 85.40 87.25 <= -480 0 0 1 Standard deviation 315.37 268.95 401.38 <= -240 1 0 0 <= 0 4 2 0 <= 240 1 2 2 <= 480 1 1 1 > 480 1 0 0 Total 8 5 4 System Accuracy Evaluation on 11/19 • Frequency distribution of predicted travel time errors • System Accuracy • Statistical analysis of predicted travel time errors

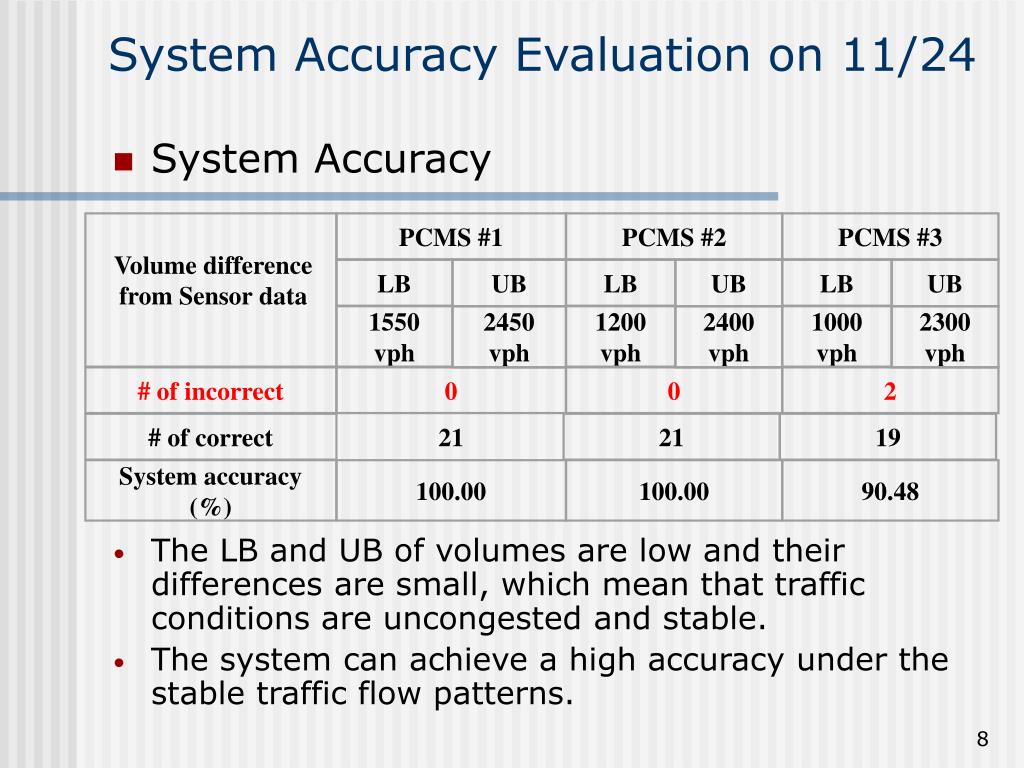

  8. PCMS #1 PCMS #2 PCMS #3 UB UB UB LB LB LB 2450 vph 2400 vph 2300 vph 1550 vph 1200 vph 1000 vph # of incorrect 0 0 2 # of correct 21 21 19 System accuracy (%) 100.00 100.00 90.48 System Accuracy Evaluation on 11/24 • System Accuracy Volume difference from Sensor data • The LB and UB of volumes are low and their differences are small, which mean that traffic conditions are uncongested and stable. • The system can achieve a high accuracy under the stable traffic flow patterns.

  9. Deviation of predicted travel time error (sec) Frequency PCMS #1 PCMS #2 PCMS #3 PCMS #1 PCMS #2 PCMS #3 Average (seconds) N/A N/A 148.00 <= -480 0 0 0 Standard deviation N/A N/A 16.97 <= -240 0 0 0 <= 0 0 0 0 <= 240 0 0 2 <= 480 0 0 0 > 480 0 0 0 Total 0 0 2 System Accuracy Evaluation on 11/24 • Frequency distribution of predicted travel time errors • System Accuracy • Statistical analysis of predicted travel time errors

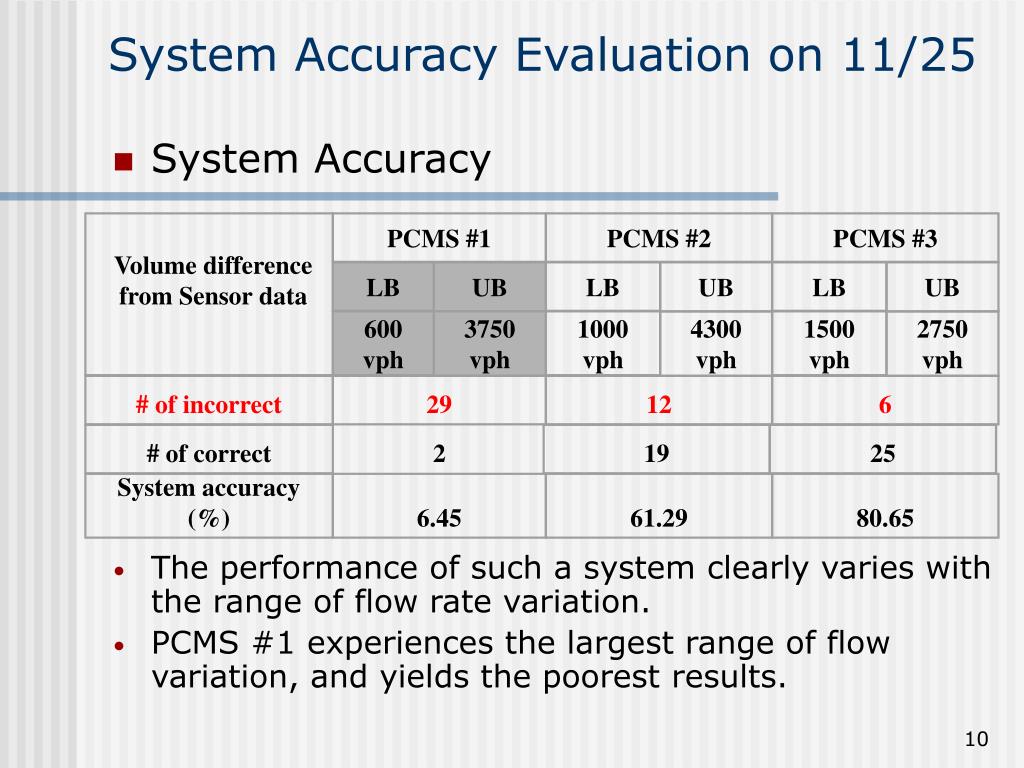

  10. PCMS #1 PCMS #2 PCMS #3 UB UB UB LB LB LB 3750 vph 4300 vph 2750 vph 600 vph 1000 vph 1500 vph # of incorrect 29 12 6 # of correct 2 19 25 System accuracy (%) 6.45 61.29 80.65 System Accuracy Evaluation on 11/25 • System Accuracy Volume difference from Sensor data • The performance of such a system clearly varies with the range of flow rate variation. • PCMS #1 experiences the largest range of flow variation, and yields the poorest results.

  11. Deviation of predicted travel time error (sec) Frequency PCMS #1 PCMS #2 PCMS #3 PCMS #1 PCMS #2 PCMS #3 Average (seconds) -185.52 103.92 157.50 <= -480 12 0 0 Standard deviation 792.84 224.49 168.95 <= -240 4 0 0 <= 0 1 4 1 <= 240 1 5 4 <= 480 1 2 1 > 480 10 1 0 Total 29 12 6 System Accuracy Evaluation on 11/25 • Frequency distribution of predicted travel time errors • System Accuracy • Statistical analysis of predicted travel time errors

  12. UB PCMS #1 PCMS #2 PCMS #3 4400 vph UB UB UB LB LB LB 3000 vph 4400 vph 2700 vph 1200 vph 1100 vph 1500 vph # of incorrect 3 0 1 # of correct 10 13 12 System accuracy (%) 76.92 100.00 92.31 System Accuracy Evaluation on 12/04 • System Accuracy Volume difference from Sensor data • The accuracy drops as PCMS #1 is far away from I-695 and the volume difference increases.

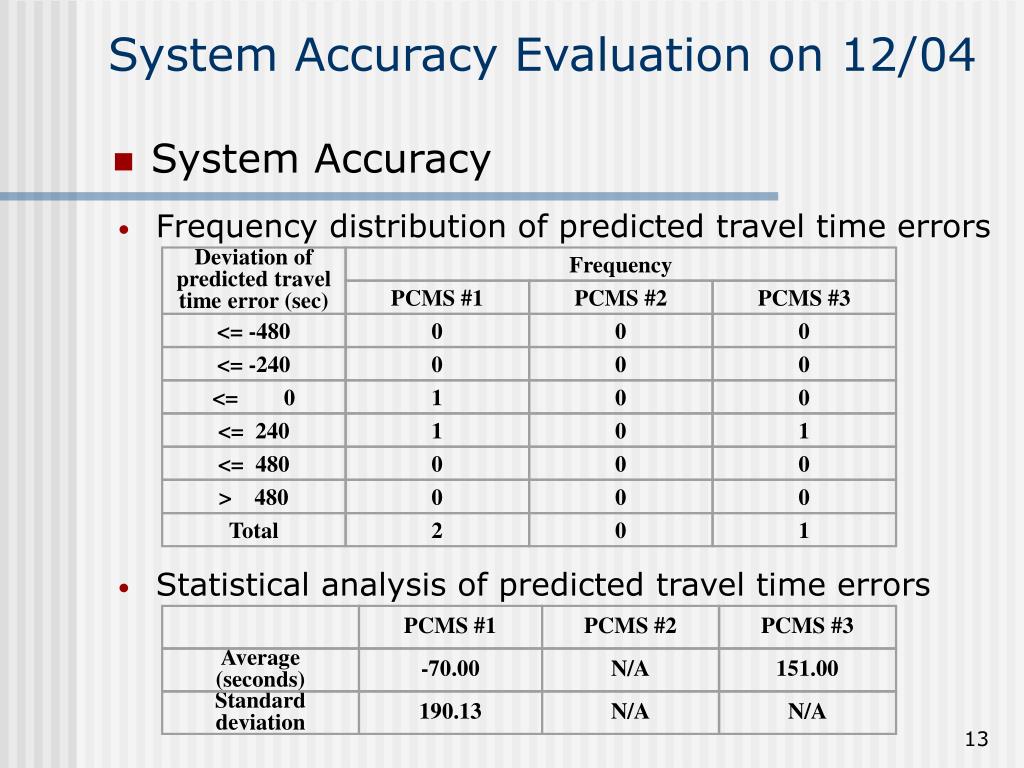

  13. Deviation of predicted travel time error (sec) Frequency PCMS #1 PCMS #2 PCMS #3 PCMS #1 PCMS #2 PCMS #3 Average (seconds) -70.00 N/A 151.00 <= -480 0 0 0 Standard deviation 190.13 N/A N/A <= -240 0 0 0 <= 0 1 0 0 <= 240 1 0 1 <= 480 0 0 0 > 480 0 0 0 Total 2 0 1 System Accuracy Evaluation on 12/04 • Frequency distribution of predicted travel time errors • System Accuracy • Statistical analysis of predicted travel time errors

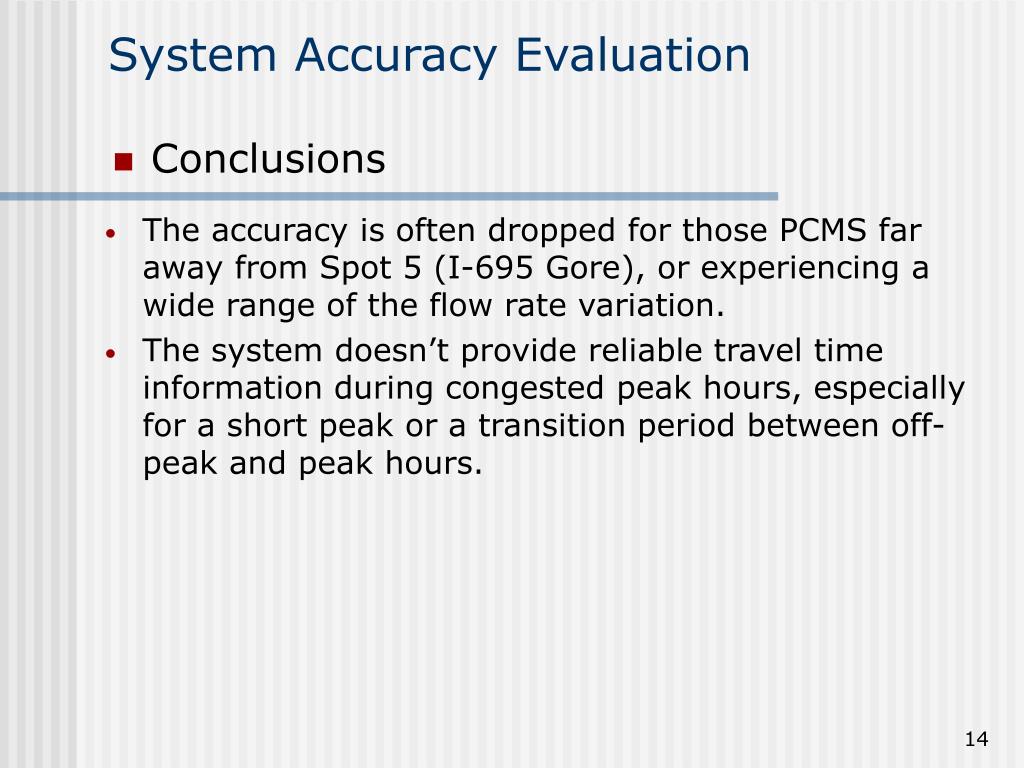

  14. System Accuracy Evaluation • The accuracy is often dropped for those PCMS far away from Spot 5 (I-695 Gore), or experiencing a wide range of the flow rate variation. • The system doesn’t provide reliable travel time information during congested peak hours, especially for a short peak or a transition period between off-peak and peak hours. • Conclusions

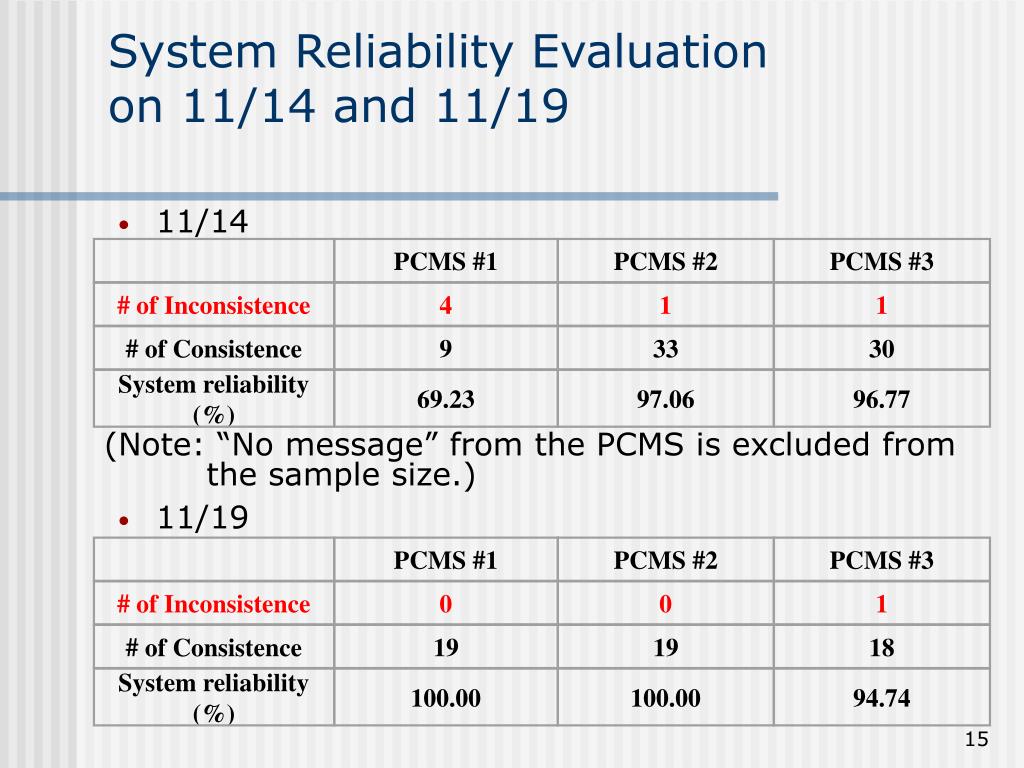

  15. PCMS #1 PCMS #1 PCMS #2 PCMS #2 PCMS #3 PCMS #3 # of Inconsistence # of Inconsistence 0 4 0 1 1 1 # of Consistence # of Consistence 9 19 19 33 18 30 System reliability (%) System reliability (%) 100.00 69.23 97.06 100.00 96.77 94.74 System Reliability Evaluation on 11/14 and 11/19 • 11/14 (Note: “No message” from the PCMS is excluded from the sample size.) • 11/19

  16. PCMS #1 PCMS #1 PCMS #2 PCMS #2 PCMS #3 PCMS #3 # of Inconsistence # of Inconsistence 24 0 1 0 1 0 # of Consistence # of Consistence 21 9 33 21 30 21 System reliability (%) System reliability (%) 100.00 27.27 97.06 100.00 100.00 96.77 System Reliability Evaluation on 11/24 and 11/25 • 11/24 • 11/25 (Note: “Blank” from the website is included from the sample size.)

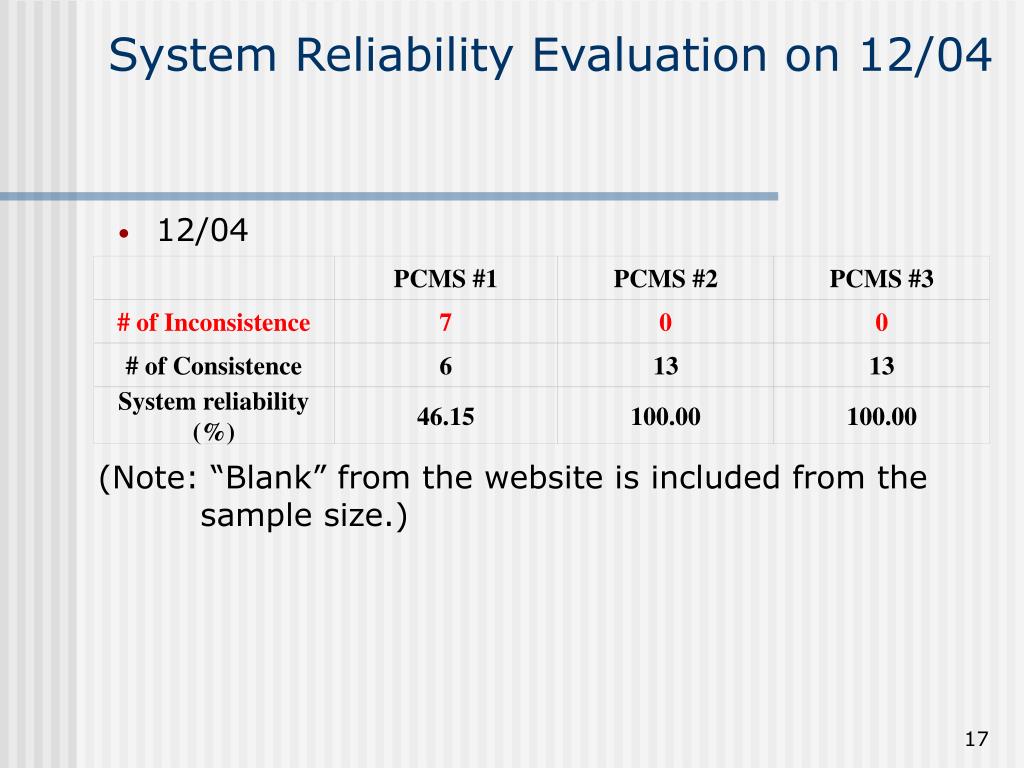

  17. PCMS #1 PCMS #2 PCMS #3 # of Inconsistence 7 0 0 # of Consistence 6 13 13 System reliability (%) 46.15 100.00 100.00 System Reliability Evaluation on 12/04 • 12/04 (Note: “Blank” from the website is included from the sample size.)

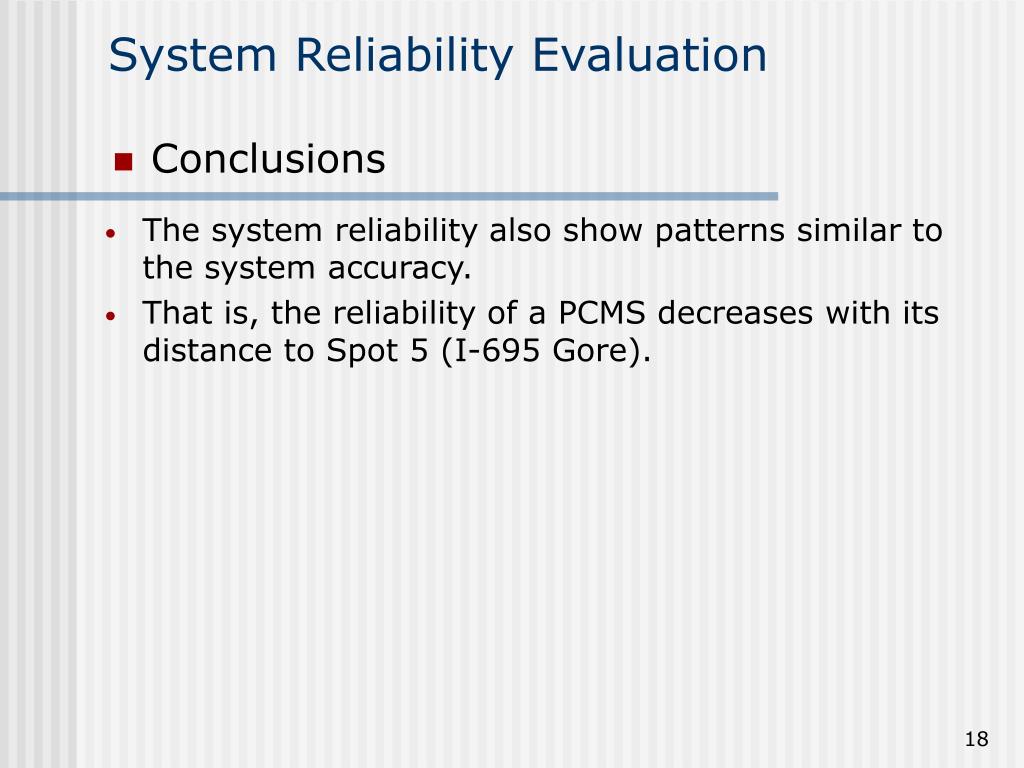

  18. System Reliability Evaluation • The system reliability also show patterns similar to the system accuracy. • That is, the reliability of a PCMS decreases with its distance to Spot 5 (I-695 Gore). • Conclusions
