Presentation Transcript

  1. Better Air. Better Lives. URG-9000 Series Ambient Ion Monitor • Time-resolved direct measurements of: • Nitrate • Sulfate • Ammonium • HCl • HNO3 • HNO2 • SO2 • NH3 116 S. Merritt Mill Rd. Chapel Hill, NC 27516, USA www.urgcorp.com

  2. Better Air. Better Lives. Measurement Capabilities of the URG-9000 Ambient Ion Monitor The most widely used: • URG-9000D-Ambient Ion Monitor (AIM) Time-Resolved Direct Measurements of Nitrate, Sulfate, Nitrite, Phosphate and Chloride, Ammonium, Sodium, Calcium, Potassium, Magnesium, Hydrogen Chloride, Nitric Acid, Sulfur Dioxide and Ammonia URG-9000D 116 S. Merritt Mill Rd. Chapel Hill, NC 27516, USA www.urgcorp.com

  3. Better Air. Better Lives. Measurement Capabilities of the URG-9000 Ambient Ion Monitor The 9000 Series Ambient Ion Monitors is available in three additional configurations: • URG-9000A Ambient Ion Monitor (AIM) Time-Resolved Direct Measurements of Nitrate, Sulfate, Nitrite, Phosphate and Chloride • URG-9000B Ambient Ion Monitor (AIM) Time-Resolved Direct Measurements of Nitrate, Sulfate, Nitrite, Phosphate, Chloride, Ammonium, Sodium, Calcium, Potassium and Magnesium • URG-9000C Ambient Ion Monitor (AIM) Time-Resolved Direct Measurements of Nitrate, Sulfate, Nitrite, Phosphate, Chloride, Hydrogen Chloride, Nitric Acid, Nitrous Acid and Sulfur Dioxide 116 S. Merritt Mill Rd. Chapel Hill, NC 27516, USA www.urgcorp.com

  4. Better Air. Better Lives. Advanced multi-pollutant monitoring URG-9000 Ambient Ion Monitor is a scientifically advanced multi-pollutant monitoring method that: • Provides a timely data stream of multi-pollutants that influence atmospheric chemistry and air quality • Operates and collects multi-pollutant data continuously • Provides gases and particles as time-resolved measurements • Allows for continuous improvement in source apportionment analyses • Helps to improve modeling necessary for determining the relative contributions of various emission sources 116 S. Merritt Mill Rd. Chapel Hill, NC 27516, USA www.urgcorp.com

  5. Better Air. Better Lives. Advanced multi-pollutant monitoring URG-9000 Ambient Ion Monitor is a scientifically advanced multi-pollutant monitoring method that: • Helps better characterize the extent of regional transport of Pollutants • Provides improved regional dry deposition estimates • Improves understanding of visibility degradation • Provides inputs into various ecosystems • Helps in the development and validation of air quality models 116 S. Merritt Mill Rd. Chapel Hill, NC 27516, USA www.urgcorp.com

  6. Better Air. Better Lives. Analysis Method • Analysis method is Ion Chromatography. • Requires as little as 4 liters of deionized water for 10 sampling days. • Detection limit is .05ug/m3 and can be less depending on which ion is being measured. • Separates the nitrate and sulfate ions. • Losses due to volatilization are eliminated. 116 S. Merritt Mill Rd. Chapel Hill, NC 27516, USA www.urgcorp.com

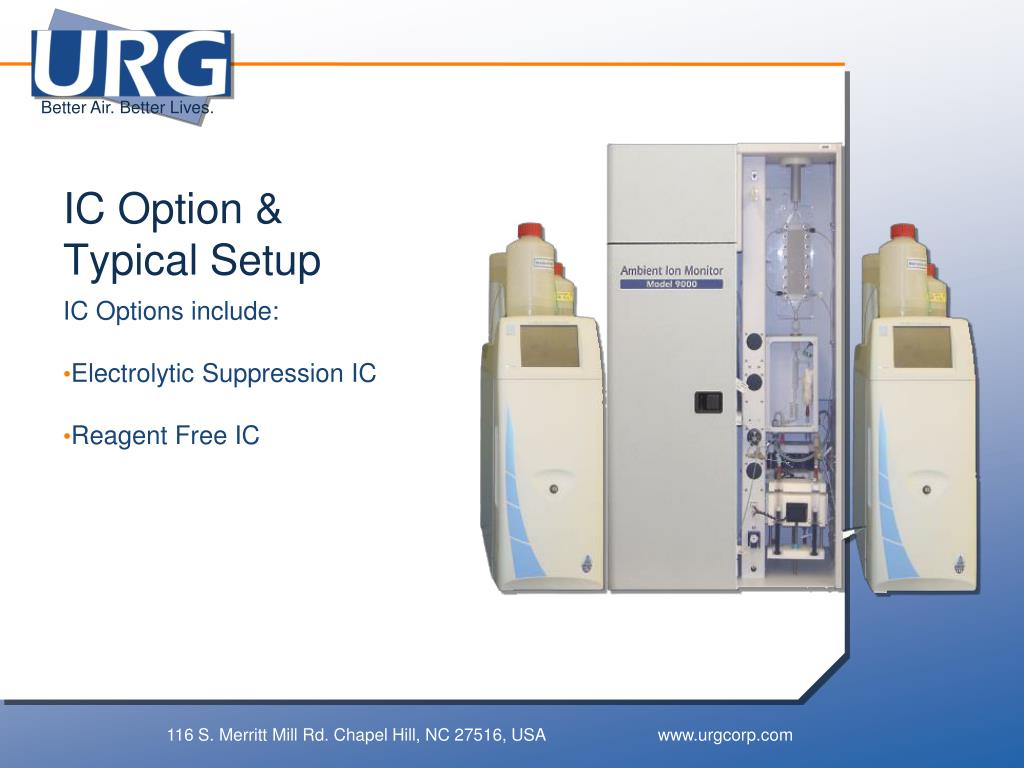

  7. Better Air. Better Lives. IC Option &Typical Setup IC Options include: • Electrolytic Suppression IC • Reagent Free IC 116 S. Merritt Mill Rd. Chapel Hill, NC 27516, USA www.urgcorp.com

  8. Better Air. Better Lives. Parallel Plate Denuder The principal components of the URG-9000D AIM are as follows: • Parallel Plate Denuder • Super-Saturation Chamber • Sample Collection Syringe Pump Super-Saturation Chamber Sample Collection Syringe Pump 116 S. Merritt Mill Rd. Chapel Hill, NC 27516, USA www.urgcorp.com

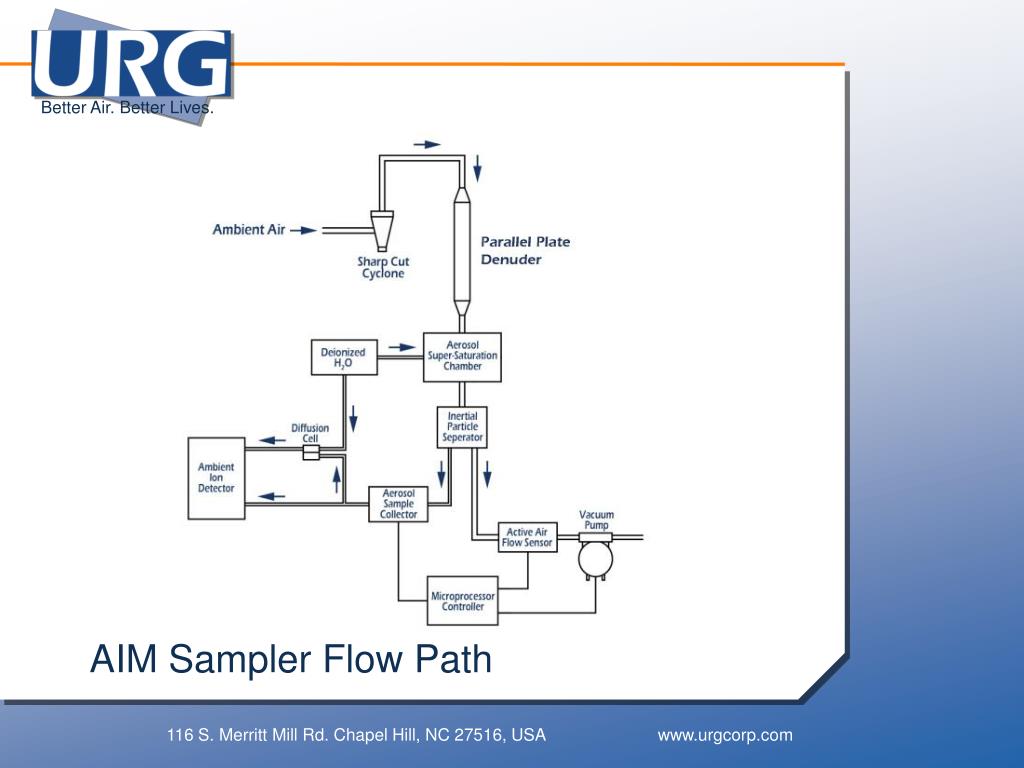

  9. Better Air. Better Lives. AIM Sampler Flow Path 116 S. Merritt Mill Rd. Chapel Hill, NC 27516, USA www.urgcorp.com

  10. Better Air. Better Lives. How Analysis Data is DisplayedData Collected in Chapel Hill, NC, July 2005 116 S. Merritt Mill Rd. Chapel Hill, NC 27516, USA www.urgcorp.com

  11. Better Air. Better Lives. Main Control Screen for AIM Software 116 S. Merritt Mill Rd. Chapel Hill, NC 27516, USA www.urgcorp.com

  12. Better Air. Better Lives. Sampler Performance Specifications for the AIM • Sampler simultaneously quantifies anions, cations and gases • Sampler air collection volume is 3 liters to ensure adequate particulate matter • Sampler components are constructed of highly cross linked Teflon-coated aluminum to minimize loss of reactive gaseous species 116 S. Merritt Mill Rd. Chapel Hill, NC 27516, USA www.urgcorp.com

  13. Better Air. Better Lives. Sampler Performance Specifications for the AIM • Sampler stores all operational parameters (e.g. sample date, sample time, temperature, barometric pressure, volumetric flowrate) on electronic media • Sampler stores all analytical information (raw chromatographs, peak identification, peak retention times, final analysis data, calibration regressions) on electronic media 116 S. Merritt Mill Rd. Chapel Hill, NC 27516, USA www.urgcorp.com

  14. Better Air. Better Lives. Ambient Ion Monitor Specifications 116 S. Merritt Mill Rd. Chapel Hill, NC 27516, USA www.urgcorp.com

  15. Better Air. Better Lives. URG-9000 Ambient Ion Monitor Recent End-Users include: • USEPA • Florida Department of Environmental Protection • National Institute of Environmental Research, Korea • LGGE, France • Alberta Research, Canada The Ambient Ion Monitor is also being used by numerous research Universities both in the US and internationally. 116 S. Merritt Mill Rd. Chapel Hill, NC 27516, USA www.urgcorp.com

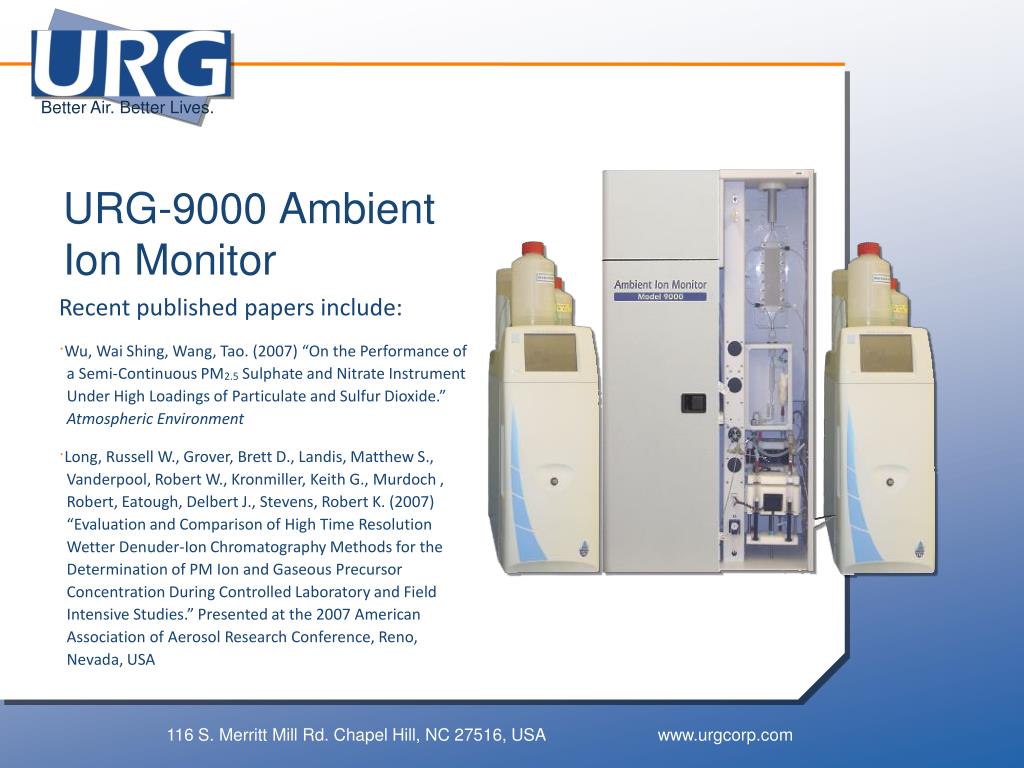

  16. Better Air. Better Lives. URG-9000 Ambient Ion Monitor • Recent published papers include: • Wu, Wai Shing, Wang, Tao. (2007) “On the Performance of a Semi-Continuous PM2.5 Sulphate and Nitrate Instrument Under High Loadings of Particulate and Sulfur Dioxide.”Atmospheric Environment • Long, Russell W., Grover, Brett D., Landis, Matthew S., Vanderpool, Robert W., Kronmiller, Keith G., Murdoch , Robert, Eatough, Delbert J., Stevens, Robert K. (2007) “Evaluation and Comparison of High Time Resolution Wetter Denuder-Ion Chromatography Methods for the Determination of PM Ion and Gaseous Precursor Concentration During Controlled Laboratory and Field Intensive Studies.” Presented at the 2007 American Association of Aerosol Research Conference, Reno, Nevada, USA 116 S. Merritt Mill Rd. Chapel Hill, NC 27516, USA www.urgcorp.com

  17. Better Air. Better Lives. URG-9000 Ambient Ion Monitor • Recent published papers include: • Han, Jin-Seok, Moon, Kwang-Joo, Jung, Il-Rok, Kondo, Yutaka, Miyazaki, Yuzo. (2006) “Evaluation of a URG Ambient Ion Monitoring System (AIM) for Measuring Water-Soluble Ion Components of Ambient PM2.5”. Presented at the 2006 International Aerosol Conference, St. Paul, Minnesota, USA • Han, Jin-Seok, Moon, Kwang-Joo, Kong, Boo-Joo. (2006) “Characterization of Physical, Chemical and Optical Properties of AMbient Aerosol as a Function of Relative Humidity at Gosan, Korea During ABC EAREX 2005.” Presented at the 2006 International Aerosol Conference, St. Paul, Minnesota, USA 116 S. Merritt Mill Rd. Chapel Hill, NC 27516, USA www.urgcorp.com
