Mid-term Exam

1. Mid-term Exam • January 13, 2010 • 1 hour: starting 11:40  don’t be late! • no help material allowed • easy! (from slides’ material only)

2. Tanenbaum, ch. 3 p.81 - 100 Silberschatz, ch. 2.2 p.127 - 146 Wikipedia, search: “Thread (Computer Science)” Processes (and Threads) • (Processes) • (Inter-process interactions) • (Inter-process communication) • Threads • Thread/IPC Problems+Solutions

3. Processes: Modes of Operation • Monolithic/Sequential Abstractions: Processes (+children) • Divide and Conquer (Client-Server): Overall processes actions executed by parallel sub-process activities: “threads” • Allows distinct threads (i.e., only • part of a process to be blocked while • other threads can proceed) • Concurrency & resource control at • a finer granularity (multi-processor •  discrete threads per processor for • a single process) • …value mainly if concurrency (esp • for 1 CPU) allows spread across • CPU, I/O, mem. etc tasks  Processes are used to group resources together; threads are the entities scheduled for execution on the CPU

4. Threads: Flow Control within a Process • Process Model (1 Thread Model) (Unix/Windows) • Each process is discrete + distinct (sequential) control flow • Each process/child has its unique PC, SP, registers + address space • Processes interact via IPC • Thread Model (mini/“lightweight” processes, N Threads) • Each thread runs independently though sequentially (like a process) • Each thread has its own PC, SP (like a process) • A thread can spawn sub-threads (like a process) • A thread can request services (like a process) • A thread has “state” ready:running:blocked (like a process)

5. But, all threads share exactly the same address space • access to all global variables within the process • access to all files within the shared address space concurrency!!! • can read, write, delete files and stacks shared address space

6. Threading Benefits • Responsiveness • Allows a program to continue even if parts of it are blocked • Ex: Tabs in Firefox, IE7 etc. • Resource Sharing • Threads share memory and process resources • Allows application to perform several different activities onto same data • Economy • More economical to context-switch threads then processes • Solaris: process creation = 30 times thread creation; context switch 5 times faster for threads vs. processes • Utilization of multiprocessor architectures • A multithreaded (CPU bound) application executes faster than the same, single-threaded version of it, when multiple processors are available

7. Thread Models work workers dispatcher • Dispatcher/Worker Model • Pipeline Model • Team Model File servers: eg. client wants a file replicated on multiple servers: one thread per server work producer  consumer model; not useful for file servers etc, great for database servers work

8. Thread Usage multi-process/child model would also work but entails much higher overhead: process creation, context switching, scheduling, discrete address spaces, discrete resource allocation etc Dispatcher while(TRUE){ get_next_request(&buf); hand_off_work(&buf);} A multi-threaded Web server Worker while(TRUE){ wait_for_work(&buf); look_for_page_in_cache(&buf,&page); if(page_not_in_cache)(&page)){ read_page_from_disk(&buf,&page); } return_page(&page)} ** can handle multiple read access requests

9. Implementations: User-level Kernel-level User-level threads package each u.process defines its own thread policies! flexible mgt, scheduling etc…kernel has NO knowledge  no support for any problems Threads package managed by the kernel

10. Hybrid Implementations Multiplexing user-level threads onto kernel- level threads (each kernel thread possesses limited sphere of user-thread control)

11. Many-to-One Model • Many user-level threads mapped to single kernel thread • Solaris Green Threads • GNU Portable Threads • + Flexible: thd. mgmt in user space • Process blocks if thd. blocks • Only 1 thread can access kernel • at a time: no multi-proc support

12. One-to-One Model • Each user-level thread maps (bound) to a kernel thread • Windows 95/98/NT/2000/XP • Linux • Solaris v9+ • + Max. concurrency • Each u.thd needs k.thd • (expensive!)

13. Multiplexed: Many-to-Many Model • Many user level threads to be mapped to many kernel threads • Allows OS to create/manage limited kernel threads • Solaris (prior to v9); v9+  one-to-one • Windows NT/2000/XP with the ThreadFiber package + large # of thds + u.thd blocks, kernel schedules another for execution - lesser concurrency than 1-1

14. Two-level Model • Similar to M:M, except that it also allows a user thread to be bound to a kernel thread • HP-UX • 64bit UNIX • Solaris 8 and earlier

15. Windows XP Threads • Implements one-to-one mapping • Each thread contains • A unique thread id • Processor register set • Separate user and kernel stacks • Private data storage area • The register set, stacks, and private storage area are known as the context of the threads • The primary data structures of a thread include: • ETHREAD (executive thread block) Kernel Space • KTHREAD (kernel thread block) Kernel Space • TEB (thread environment block) User space

16. XP Thread Data Structures ETHREAD thd start addr K THREAD ptr to parent proc scheduling & sync. info TEB (User Space) kernel stack thd identifier user stack thd local storage

17. Linux Threads • Linux refers to them as tasks rather than threads • Linux does not distinguish between process/threads • Thread creation is done through clone() system call with flags indicating sharing across parent/children • clone()allows a child task to share the address/file/signal space of the parent task (process)

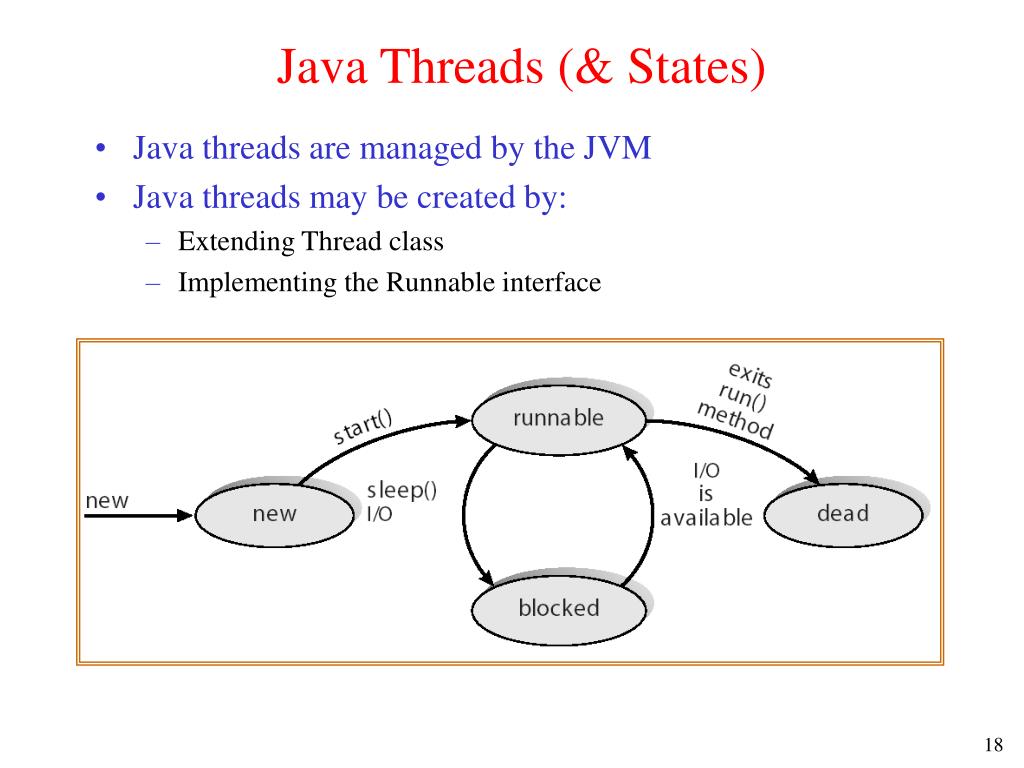

18. Java Threads (& States) • Java threads are managed by the JVM • Java threads may be created by: • Extending Thread class • Implementing the Runnable interface

19. Thread Types • LWP (Lightweight Processes) • Kernel Threads • User Threads

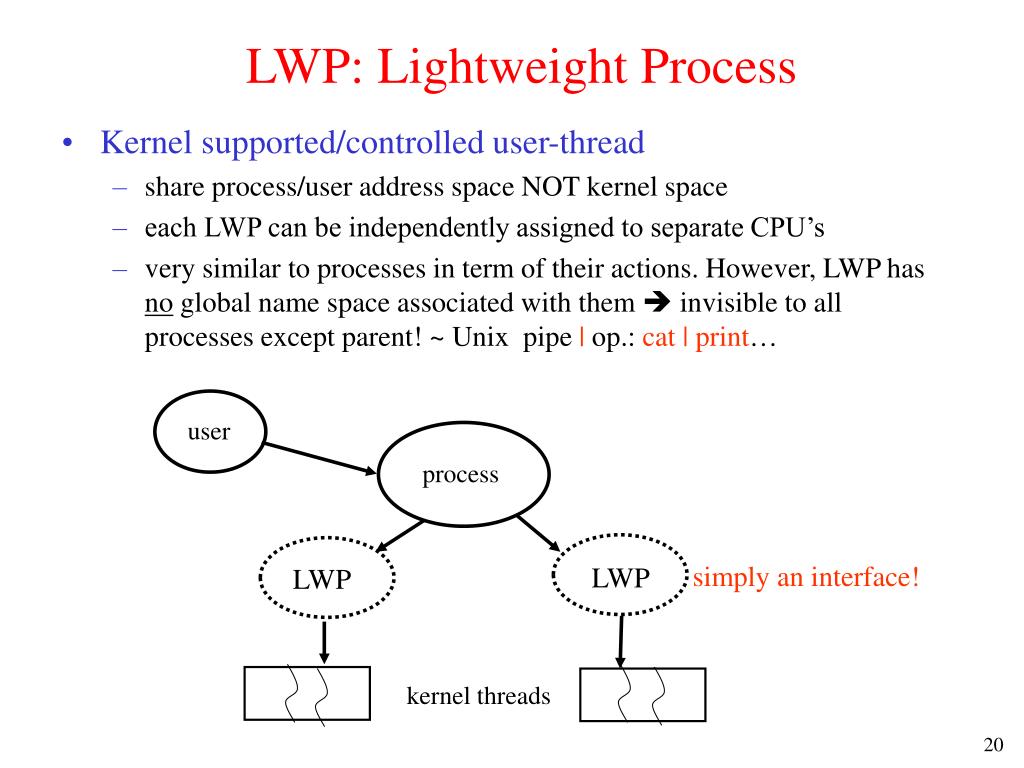

20. LWP: Lightweight Process • Kernel supported/controlled user-thread • share process/user address space NOT kernel space • each LWP can be independently assigned to separate CPU’s • very similar to processes in term of their actions. However, LWP has no global name space associated with them  invisible to all processes except parent! ~ Unix pipe | op.: cat | print… user process simply an interface! LWP LWP kernel threads

21. Solaris 2.x task 2 task 1 task 3 user thd LWP (bound) LWP (unbound) kernel thd Scheduler KERNEL CPU CPU

22. Kernel Threads • Windows XP, Solaris, Linux, Mac OS X • created/destroyed by kernel (not user) • shares kernel text, global data, kernel stack • independently schedulable by kernel without belonging inside a process • started similar to a process: fork(), exec(), sleep(), wakeup() • very useful for handling asynchronous I/O or interrupts • Data Structure • saved copy of kernel registers • priority and scheduling info • pointers for scheduler queues • pointers to kernel stack • pointers to LWP

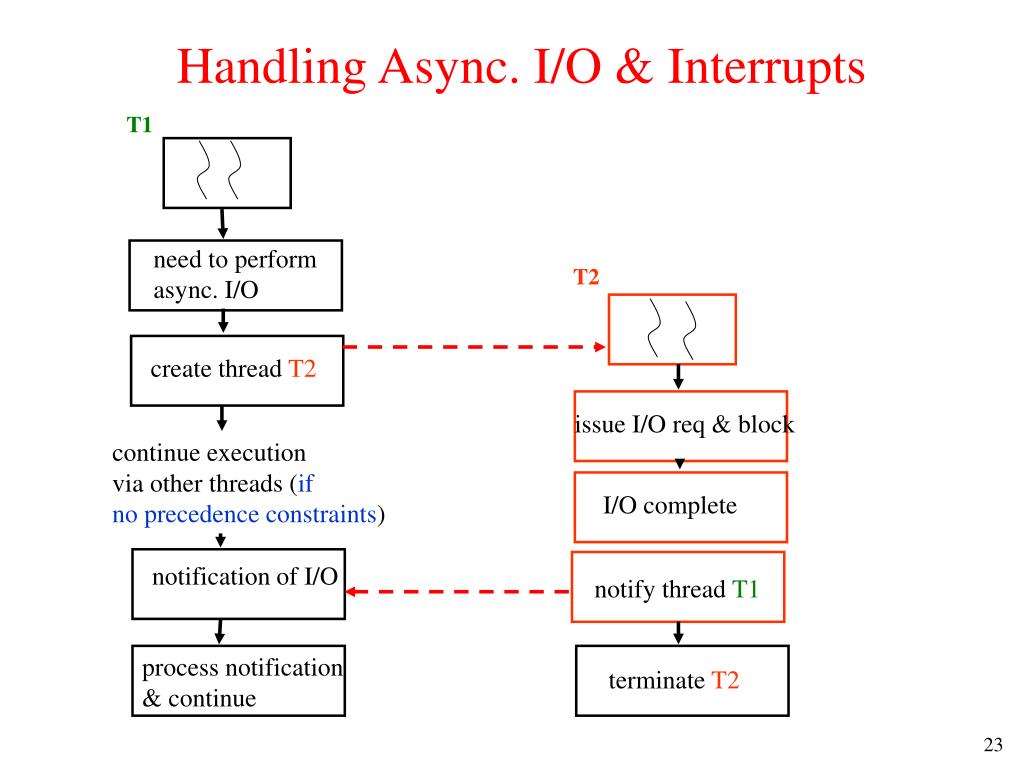

23. Handling Async. I/O & Interrupts T1 need to perform async. I/O T2 create thread T2 issue I/O req & block continue execution via other threads (if no precedence constraints) I/O complete notification of I/O notify thread T1 process notification & continue terminate T2

24. Pop-Up Threads (no wait blocking – sync) • Creation of a new thread only when message arrives (async, demand based responses without process being blocked waiting)

25. User Threads • Thread mgmt. done by user-level thread libraries (POSIX, Win32, Java Threads) • at user level (kernel can be totally unaware of thread creation) • user libraries (MACH: c-threads, POSIX: p-threads) provide all sync., scheduling and resource mgmt. functions and NOT the kernel! • consumes no kernel resources; fast! • usually bound to LWP processes user threads kernel thread LWP LWP CPU’s

26. Thread Libraries: POSIX– p-threads • Strictly guidelines: specifications not implementations • API for thread creation and synchronization • API specifies behavior of the thread library, implementation is up to development of the library • Common in UNIX OS’s (Solaris, Linux, Mac OS X)

27. Thread Libraries: Windows and Java Threads • Windows: Win32 thread library • Implemented in the user space • User application calls CreateThread() function • This traps to kernel; a kernel thread is created • Java: JVM • Threads are created in user space • But JVM implementation depends on the particular OS thread model • So different binding to kernel threads depending on thread model of the OS: one-to-one / one-to-many / etc.

28. Thread Management • How to make threads react like threads and not processes? • After a process is created by the OS, it can spawn threads without kernel knowledge – so how does the kernel control them, say termination? • Static threads: • # of threads determined at program compile • each thread assigned a specific stack • very simple, very inflexible • Dynamic threads: • on demand creation • thread creation calls (pointer to procedures, stack size allocation, scheduling, …) • Access Condition Issues?

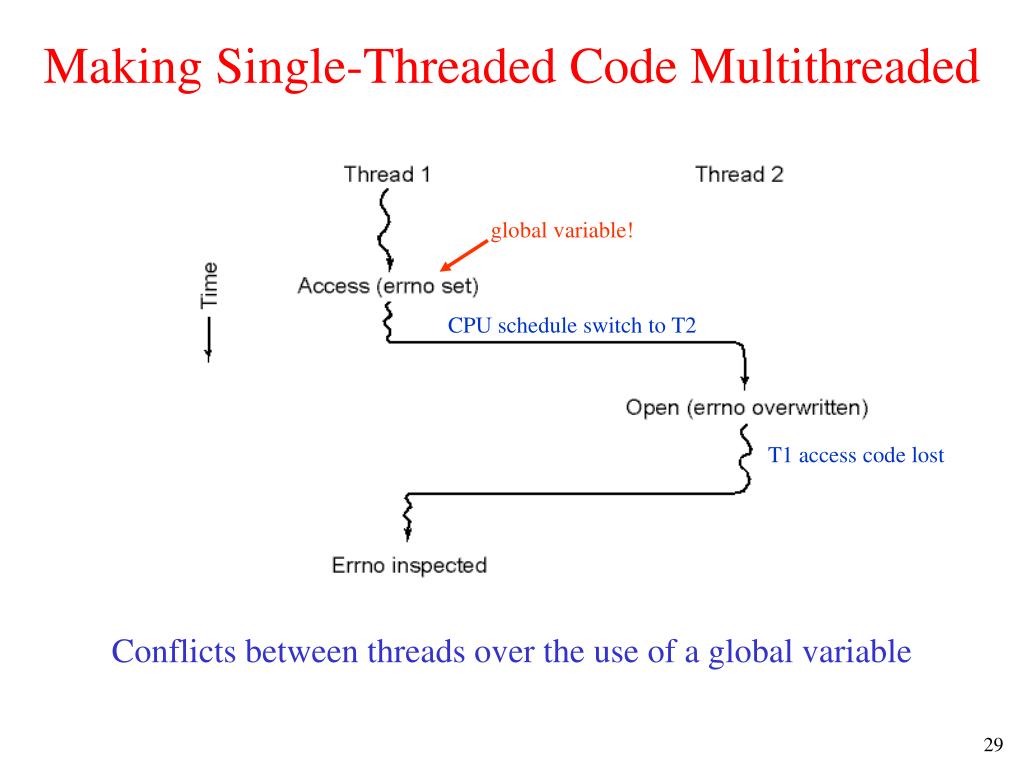

29. Making Single-Threaded Code Multithreaded global variable! Conflicts between threads over the use of a global variable CPU schedule switch to T2 T1 access code lost

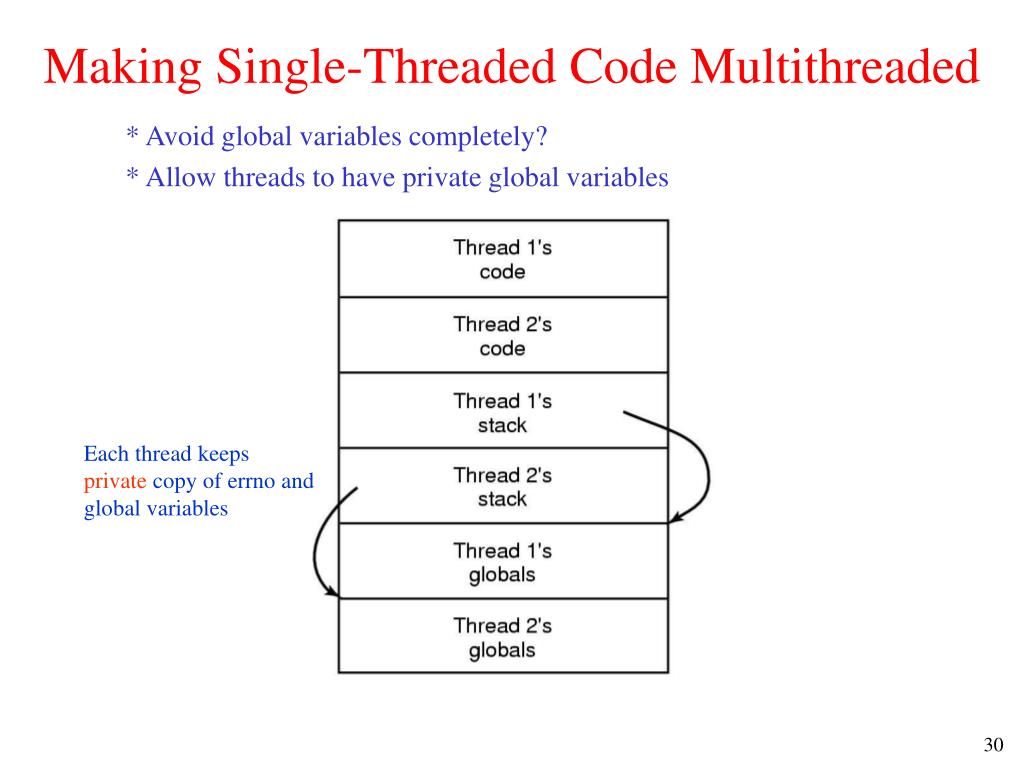

30. Making Single-Threaded Code Multithreaded * Avoid global variables completely? * Allow threads to have private global variables Each thread keeps private copy of errno and global variables

31. Thread Mgmt: Processes Threads  ? • # of resources in a system: finite • Traditional Unix (life was easy!) • single thread of control • multiprogramming: 1 process actually executing • non-preemptive processes • Distributed systems, multi-threading etc. • How do we handle issues of: • resource constraints • ordering of processes/threads • precedence relations • access control for global parameters • shared memory • IPC • Scheduling etc. such that the solutions are: fair, efficient, deadlock and race-free?

32. Race Conditions/Mutual Exclusion • Segment of code of a process where a shared resource is accessed (changing global variables, writing files etc) is called theCritical Section (CS) • If several processes access and modify shared data concurrently, the outcome can depend solely on the order of accesses (sans ordered control): Race Condition • In a situation involving shared memory, shared files, shared address spaces and IPC, how do we find ways of prohibiting more than 1 process from accessing shared data at the same time and providing ordered access? Mutual Exclusion (ME) [Generalization of the Race Condition Problems]
