  2. Chapter 7-Upgrading Memory • Learn • About the different kinds of physical memory and how they work • How to upgrade Memory • How to troubleshoot Memory Problems Pg 255

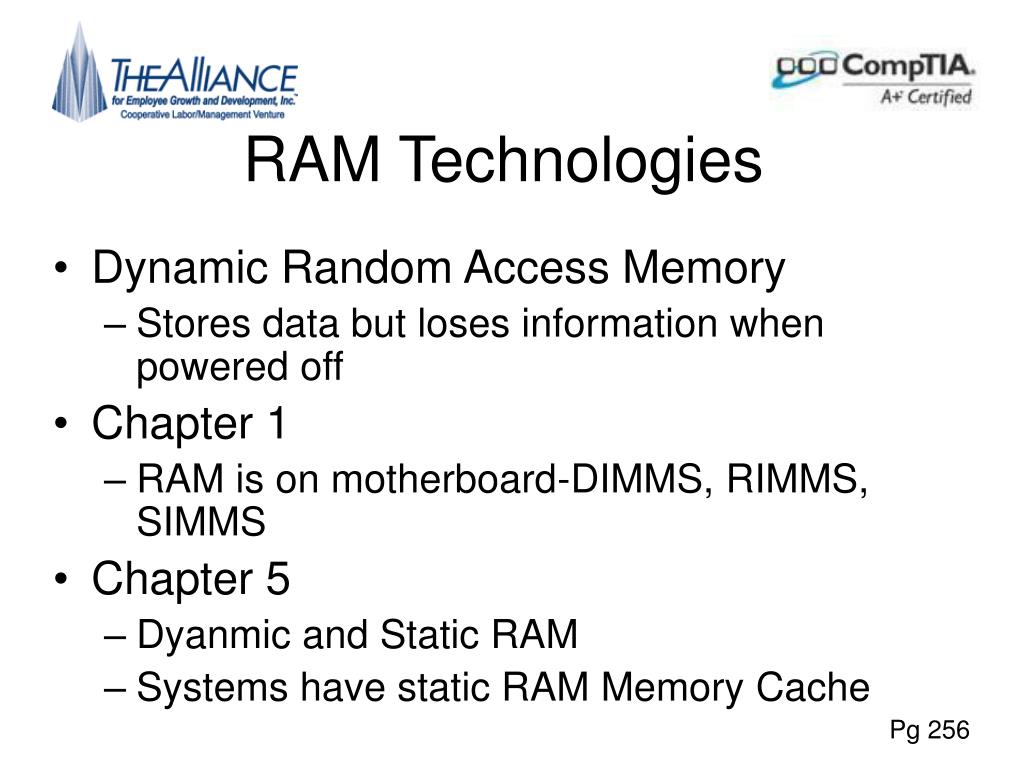

  3. RAM Technologies • Dynamic Random Access Memory • Stores data but loses information when powered off • Chapter 1 • RAM is on motherboard-DIMMS, RIMMS, SIMMS • Chapter 5 • Dyanmic and Static RAM • Systems have static RAM Memory Cache Pg 256

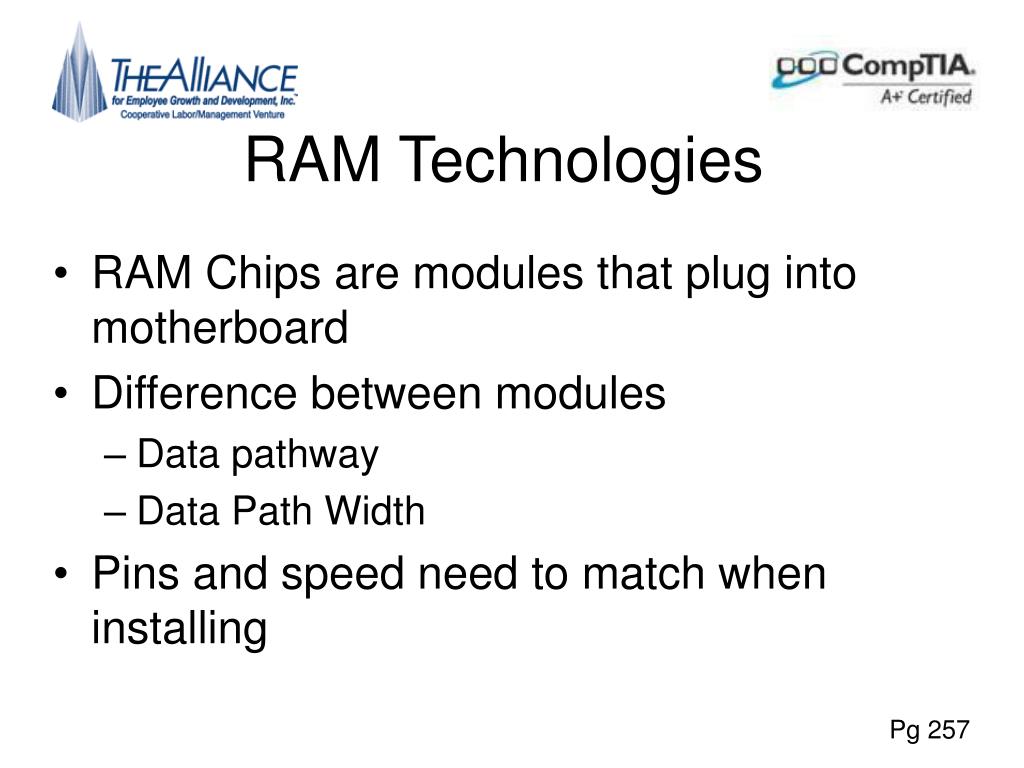

  4. RAM Technologies • RAM Chips are modules that plug into motherboard • Difference between modules • Data pathway • Data Path Width • Pins and speed need to match when installing Pg 257

  5. Chip speed vs. Motherboard Speed • Chips used to run asynchronously • Out of sync with motherboard • Newer DRAM chips are synchronous Pg 258

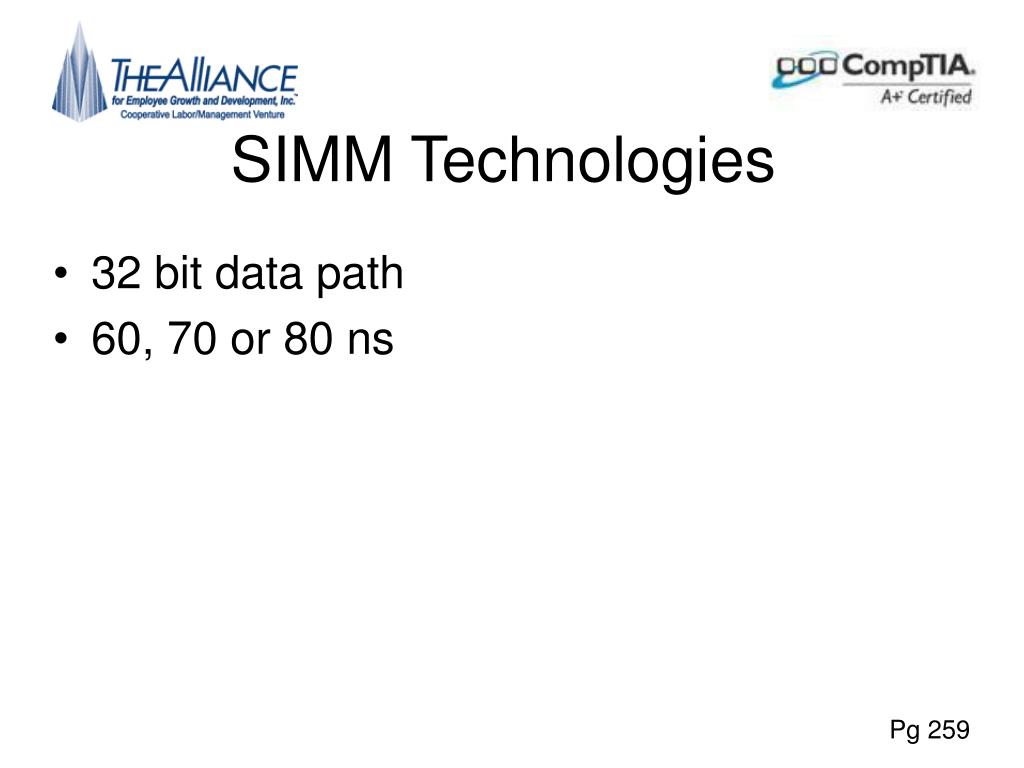

  6. SIMM Technologies • 32 bit data path • 60, 70 or 80 ns Pg 259

  7. DIMM Technologies • 64 bit data path • 168, 184, 240 pin • DDR and DDR2 • Runs twice as fast • Two cycles, one on up swing and one on down • Buffered and Registered • Location of notch will specify • Dual Channeling • Controller can deal with two DIMMS at once Pg 259-262

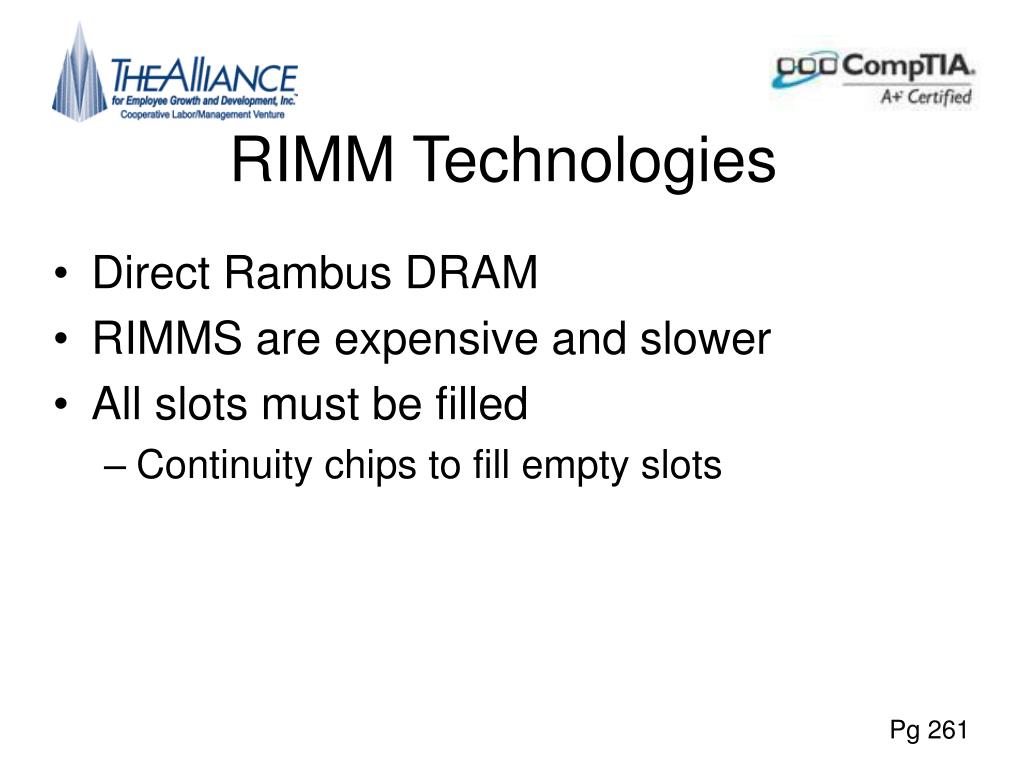

  8. RIMM Technologies • Direct Rambus DRAM • RIMMS are expensive and slower • All slots must be filled • Continuity chips to fill empty slots Pg 261

  9. Error Checking and Parity • Test the integrity of the signal • Set the final bit to 1 or 0 to make the total odd or even • Makes sure that memory has not been flipped Pg 263

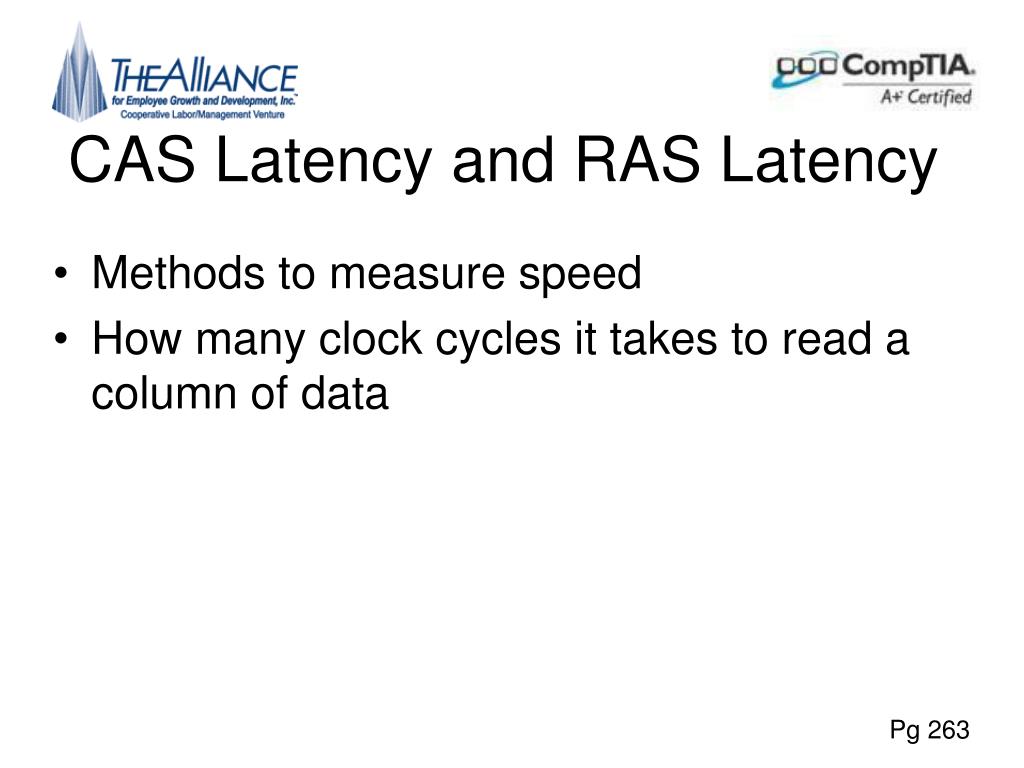

  10. CAS Latency and RAS Latency • Methods to measure speed • How many clock cycles it takes to read a column of data Pg 263

  11. Tin or Gold • Try to match the motherboard to the module Pg 264

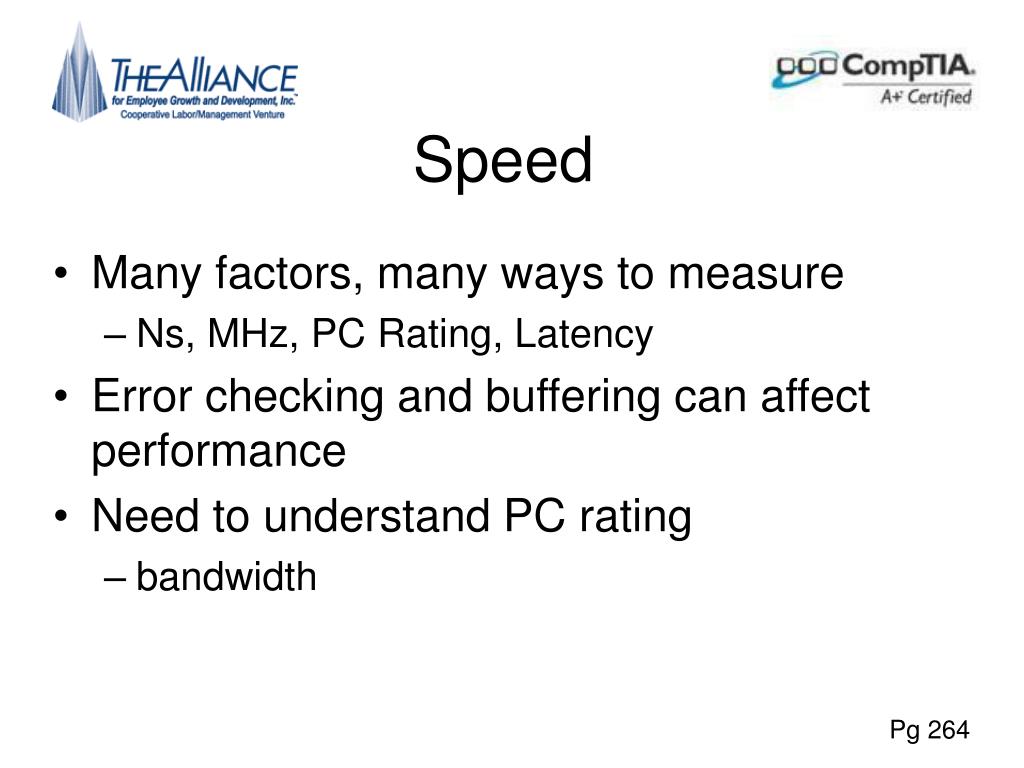

  12. Speed • Many factors, many ways to measure • Ns, MHz, PC Rating, Latency • Error checking and buffering can affect performance • Need to understand PC rating • bandwidth Pg 264

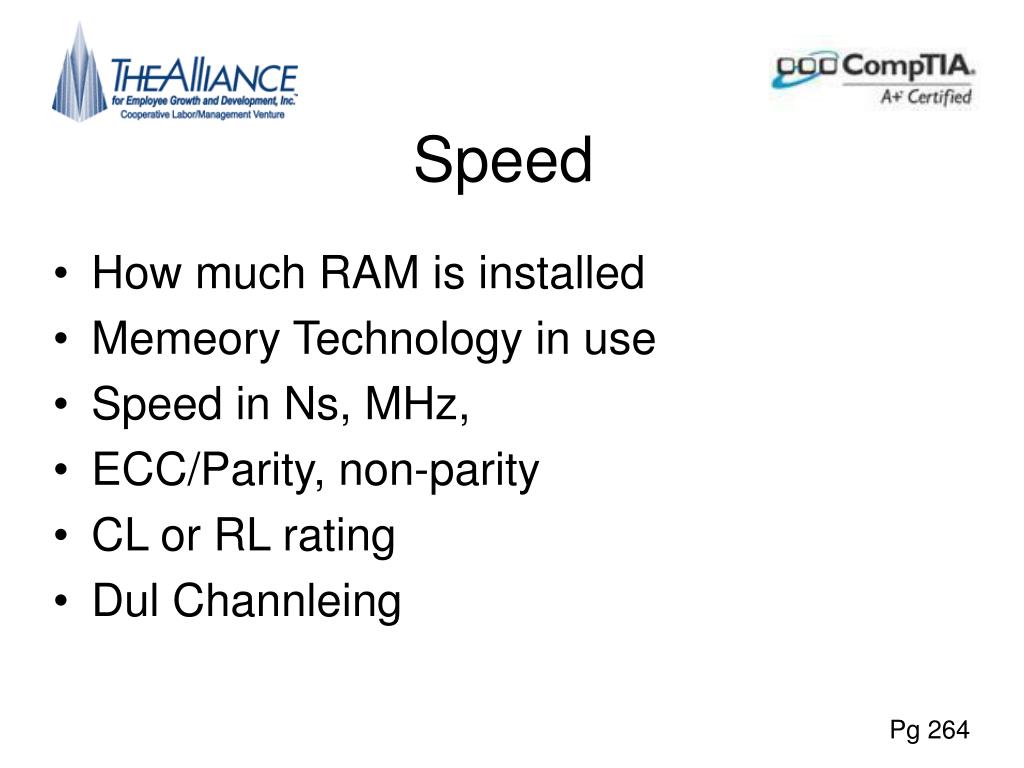

  13. Speed • How much RAM is installed • Memeory Technology in use • Speed in Ns, MHz, • ECC/Parity, non-parity • CL or RL rating • Dul Channleing Pg 264

  14. Upgrading Memory • Physically Add RAM chips • How much do you need • Depends on OS an usage • What is installed • How many slots are there • How many are full • What kind of memory can I get • Depends on Motherboard Pg 265-267

  15. Installing Memory • Watch out for static • SIMMS • Install at angle and then straighten • RIMMS • Begin with bank 0 and go up • If a C-RIMM (continuity Chip) is in place, remove it • DIMMS • Check the nocthes and pull arms back. Pg 275

  16. Installing Memory • Watch Video Pg 275

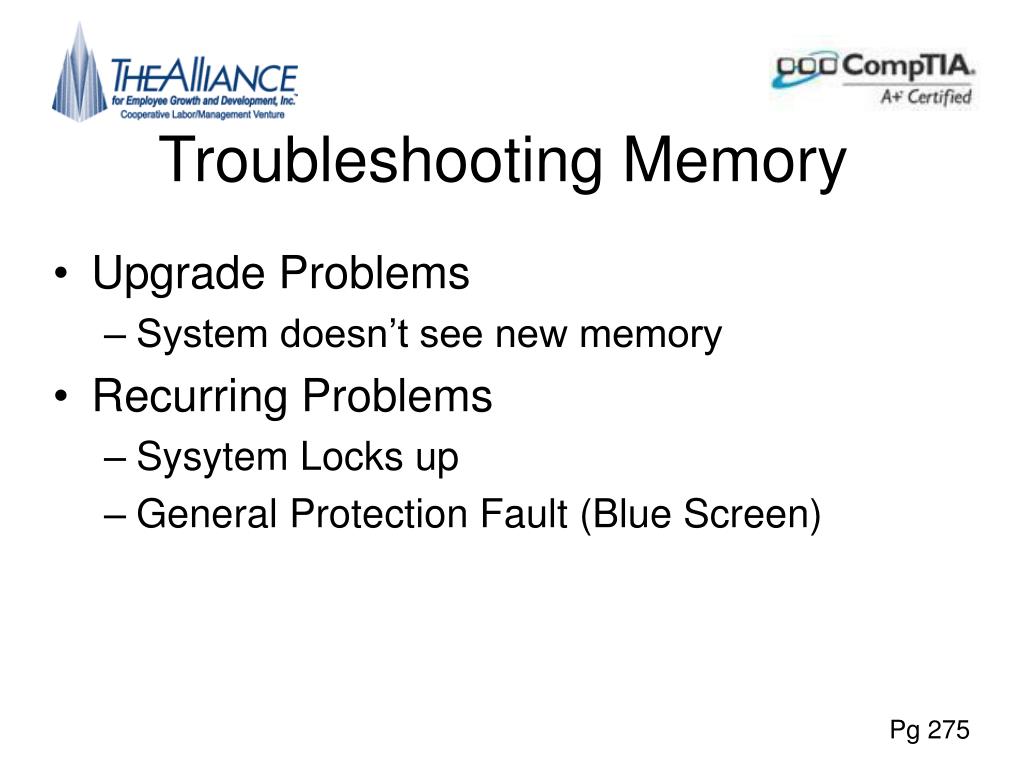

  17. Troubleshooting Memory • Upgrade Problems • System doesn’t see new memory • Recurring Problems • Sysytem Locks up • General Protection Fault (Blue Screen) Pg 275
