  1. Radiation-Hydrodynamic Analysis of Doped Underdense Targets for HED Studies M. S. Tillack 8 February 2005 Mechanical and Aerospace Engineering Department and the Center for Energy Research, Jacobs School of Engineering

  2. “Non-LTE”: energy content and radiation emission depend on the full time-dependent set of rate equations for atomic processes• Collisional ionization, recombination, excitation, and deexcitation• Photoionization and stimulated recombination• Photoexcitation and stimulated emission• Spontaneous decay• Radiative recombination• Dielectronic recombination, autoionization, and electron capture We are collaborating with LLNL on a 3-year study of non-LTE laser plasmas Overall goal is to develop absolutely calibrated spectroscopic diagnostics and benchmark data from well-characterized “non-LTE” plasmas• Address a class of problems in which temperature can not be uniquely related to energy • Establish credibility in non-LTE calculations • Resolve long-standing problems in the literature concerning emission from low density plasmas TGS

  3. Low density targets (gas bags or foams) can provide more uniform density and temperature: 1. mass limited so that all of the target mass heats 2. optical thickness comparable to target thickness at desired Te 3. larger than the hydrodynamic expansion length during the pulse >1 mm thick, 1-10 mg/cm3 for 4 ns laser pulse A generic problem with laser plasmas is the large gradients and transient nature, which complicate analysis and data interpretation Te and ne in 100 mm DT film at 1 ns, 5x1014 W/cm2

  4. 40 shots (7 days) were obtained at Nike in 2004; Future experiments are planned at Janus Obtained absolutely calibrated Ti L-shell emission from aerogel targets – Measured time-resolved spectra in 470-3000 keV region covering Ti L-shell Determined accessible plasma conditions by variation of laser parameters – Able to heat plasma to threshold of K-shell emission (He-like Ti emission) – Determined experimental conditions for creating L-shell emission (135 J, 4 ns, 940 µm spot) – Time-integrated measurements of plasma Te via Si and Ti K-shell line ratios Examined plasma uniformity with x-ray imaging diagnostics Nike chamber (5 kJ)

  5. Model predictions often disagree with data, and with each other Non-LTE plasma simulations are computationally expensive and often not self-consistent To model realistic plasmas, simulations must implement approximations in the atomic physics data and radiation algorithm – A relatively complete model of a Ti ion can have up to 20,000 levels – An approximate model of the same ion may be reduced to ~100 levels in order to run simulations

  6. This project is an element of the growing field of High Energy Density (HED) physics The topic of HED on NNSA facilities is divided into 4 thrust areas: * 1. Material Properties2. Compressible Dynamics 3. Radiative Hydrodynamics4. Inertial Confinement Fusion * HED in NNSA Facilities, “Bruce Remington (LLNL), Chris Deeney (SNLA), David Hammer (Cornell), Dick Lee (LLNL), David Meyerhofer (LLE), Dieter Schneider (LLNL), Isaac Silvera (Harvard), Bernie Wilde (LANL),” A presentation to the High Energy Density Physics Workshop, May 24-26, 2004, Gaithersburg, Maryland. http://www.ofes.fusion.doe.gov/More_HTML/HEDPWorkshop5-04.html Our work addresses two of these “Compelling question” for material properties thrust area: Can matter in the difficult warm dense matter (WDM) regime be isolated, defining its state while measuring the material properties of interest? “Compelling question” for radiation hydrodynamics area:Can HED experimental facilities become a routine tool for testing rad-hydro models and simulations of powerful astronomical phenomena in a scaled laboratory setting?

  7. The methodology involves two steps: 1. Prepare the state (at desired density, temperature, etc.) – verify that gradients are small, time-dependent effects are unimportant 2. Measure the material property of interest – opacity, ionization state, EOS, conductivity, etc. The goal of the material properties thrust is to map material properties across the WDM regime Hot Dense Matter occurs in:• stellar interiors, accretion disks•laser plasmas, z-pinches•radiatively heated foams• ICF capsule impoded coresWarm Dense Matter occurs in:• cores of giant planets• strongly shocked solids•radiatively heated solid foils

  8. The Radiative Hydrodynamics thrust focuses on “hot flowing matter”, where the radiation and material flows are coupled • Quantitative modeling of such flows is difficult; benchmark data is needed • Examples: radiative shocks & jets, supersonic radiation flow, photoionized plasmas, radiation-dominated dynamics • Radiative hydrodynamics abounds in astrophysical plasmas Radiative shock in Janus Radiative shocks in the Cygnus loop SNR

  9. At UCSD we are contributing to both experiments and modeling activities • 1D LTE rad-hydro simulations using Hyades and Helios – gray and spectrally resolved simulations – purpose is to explore and verify ne and Te behavior, and determine whether spectral detail affects hydro • Non-LTE simulations using Cretin and Helios-CR• Experimental support of Te diagnostics – Single-channel calibrated PCD detector – Multi-channel filtered diode detector

  10. During 2004 we acquired several new modeling tools Standard 1D rad-hydro codes • Lagrangian grid, flux limited, diffusion approximation 1. Hyades • Cascade Applied Sciences (Jon Larsen), history of use at LLNL • Limited capabilities for spectrally resolved opacities, LTE only 2. Helios • Prism Computational Sciences (MacFarlane/Golovkin), used a lot at SNLA • Propaceos code provides spectral data, Helios-CR for non-LTE Cretin • 3D non-LTE collisional-radiative rate equation solver (Howard Scott) HULLAC • Parametric potential method to generate atomic data (Klapisch/Busquet)

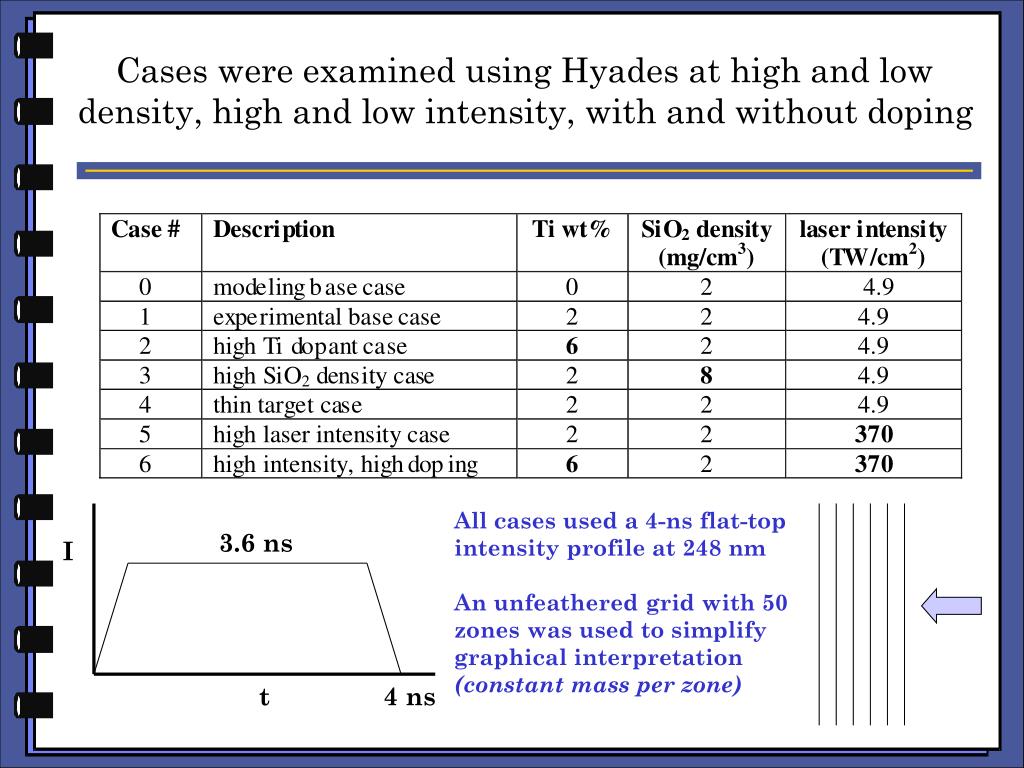

  11. 3.6 ns I t 4 ns Cases were examined using Hyades at high and low density, high and low intensity, with and without doping All cases used a 4-ns flat-top intensity profile at 248 nmAn unfeathered grid with 50 zones was used to simplify graphical interpretation (constant mass per zone)

  12. Base case temperature evolution (5x1012 W/cm2, SiO2, 2 mg/cm3 ) Spatial profile at 2.5 ns ~50 eV ~1/2 ns

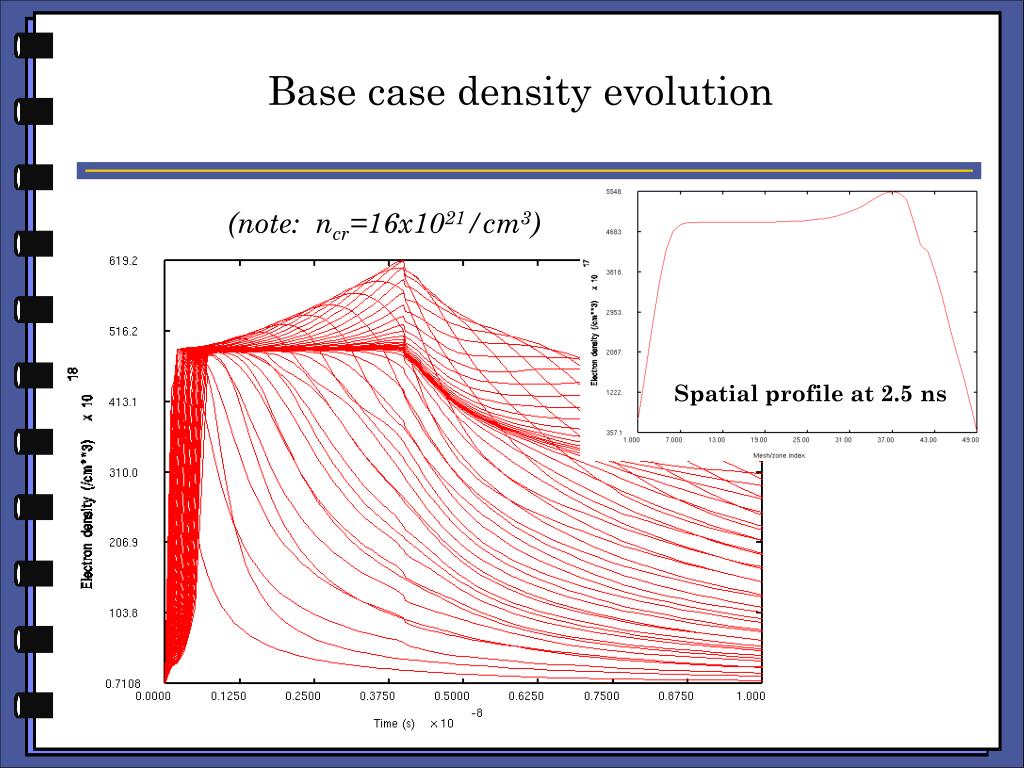

  13. Base case density evolution (note: ncr=16x1021/cm3) Spatial profile at 2.5 ns

  14. Charge state, target expansion, laser absorption (100 nodes) (nodes 25-50) (Denavit, PoP 1994)

  15. Two key physical processes are involved in underdense laser plasma energy transfer 1. Laser absorption in underdense plasma (inverse bremsstrahlung)  = 10–16 Te–3/2 Z ln (ne2/ncr) L = 1 mm 2. Emission and absorption of thermal radiation

  16. The radiation absorption wave propagates more slowly at higher density (8 mg/cm3) ~50 eV Scaling depends on opacity rather than inverse bremsstrahlung ... but the final temperature, density and charge state are remarkably similar

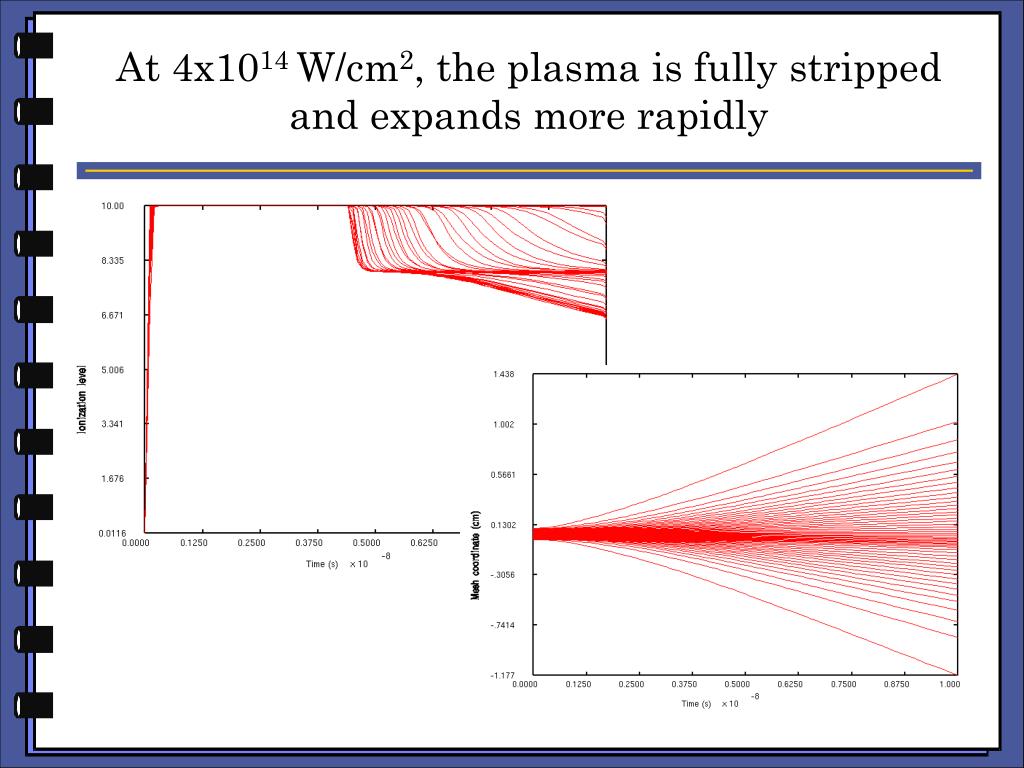

  17. At 4x1014 W/cm2, the plasma is fully stripped and expands more rapidly

  18. This plasma becomes transparent; the density is initially uniform, but is quickly lost due to expansion

  19. Properly modeling opacities is challenging Planck averaging: Rosseland averaging: SiO2

  20. We tried several variations to explore the influence of opacity models on the results • Sesame data in Hyades • Built-in multi-group model in Hyades • Propaceos (spectral) data averaged and imported into Hyades • Propaceos (spectral) data used in Helios • Sesame data used in Helios • Reduced frequency group (averaged) modeling with Helios Due to problems implementing multi-group radiation transport in Hyades, we relied upon Helios to study the effect of doping

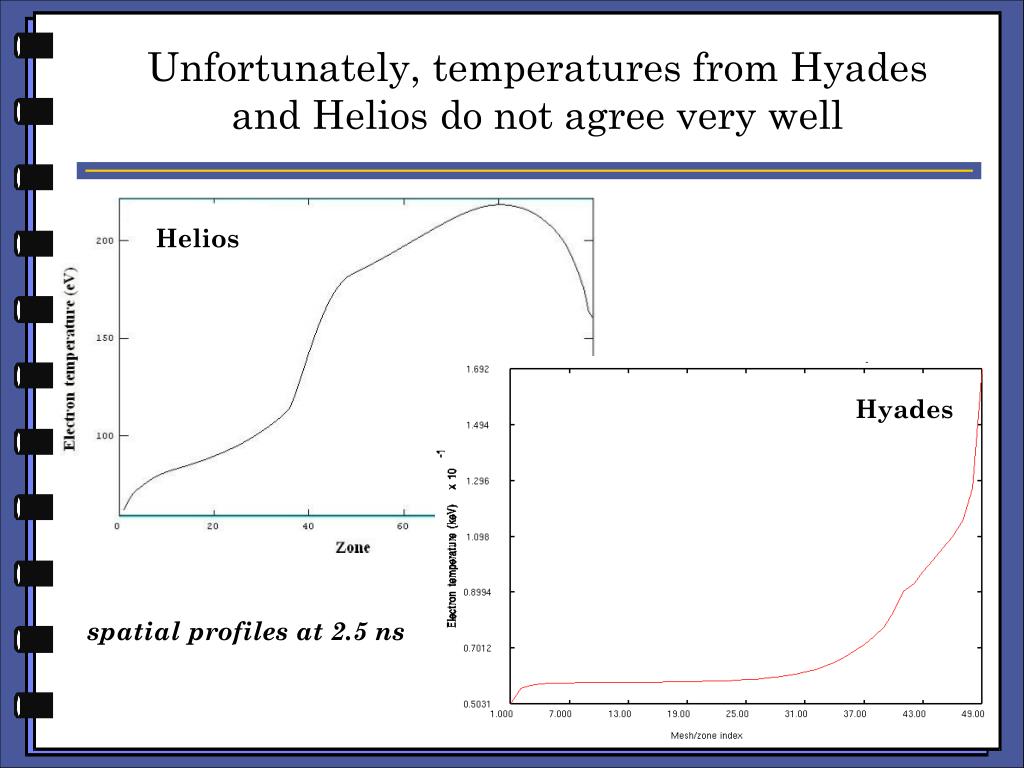

  21. Unfortunately, temperatures from Hyades and Helios do not agree very well Helios Hyades spatial profiles at 2.5 ns

  22. range of interest Opacity data is surely part of the reason Comparison of spectrally averaged opacities • Helios plasmas are much more opaque• Which is correct?

  23. The energy balance looks completely different 16 kJ/cm2 7 kJ/cm2 2 kJ/cm2 8 kJ/cm2 Helios stores ~50% of the energy, whereas Hyades promptly radiates 90%. Helios plasma is far more opaque.

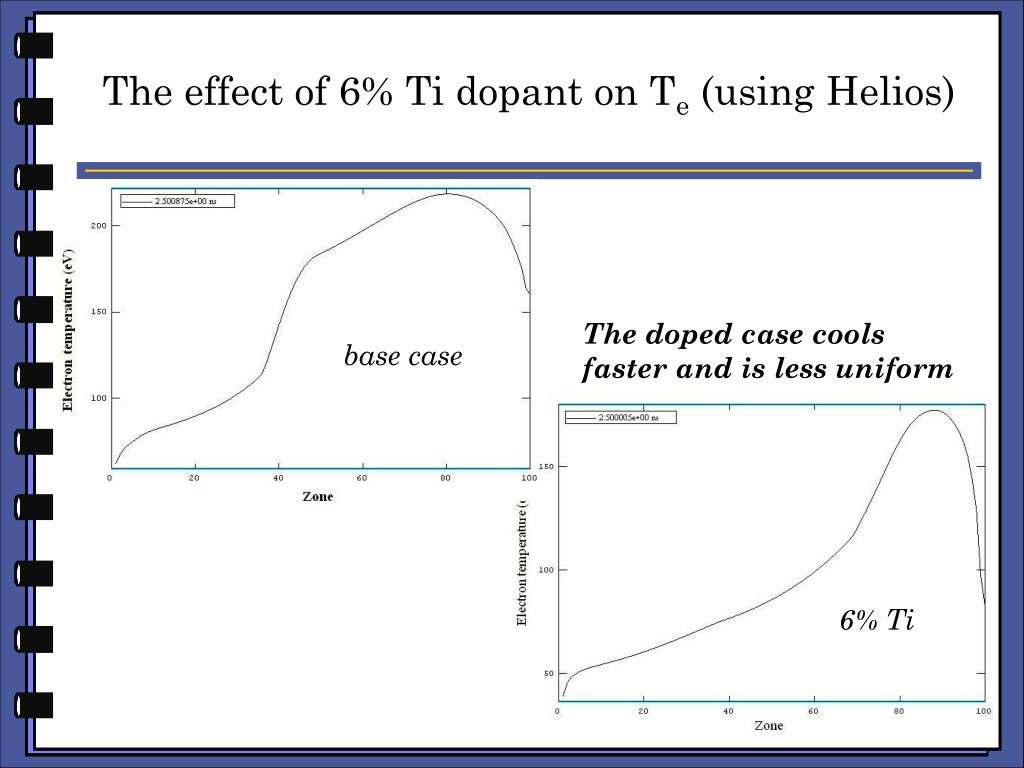

  24. The effect of 6% Ti dopant on Te (using Helios) The doped case cools faster and is less uniform base case 6% Ti

  25. The effect of 6% Ti dopant on ne (using Helios) base case The lower temperature leads to slightly lower density 6% Ti

  26. Summary • Plasmas with uniform ne and “relatively” uniform Te were obtained and parametrically studied in the range 5x1012–5x1014 W/cm2; not quite good enough yet• Thebest results seem to occur when the target is optically thick to the laser• Codes disagree, even with single-group opacities. Hyades needs more work to produce accurate spectrally resolved results• Doping significantly affects temperatures (based on Helios simulations); makes them worse!

  27. Our plans in 2005-06 include more modeling and experimental collaborations • Further optimization of rad hydro• Increased use of Cretin to study non-LTE emissions• Explore atomic data for non-LTE workHullac, Propaceos, new averaging schemes, ...• Development of PCD detectors for Te measurements – single, calibrated diamond diode – filtered diode array• Experiments at Janus
