  1. Vorticity Structures Accompanying Eyewall Replacement in Hurricane Rita (2005) R.A. Houze, Jr., and B.F. Smull Department of Atmospheric Sciences University of Washington AMS 28th Conf. on Hurricanes & Tropical Meteorology Orlando, Florida - 29 April 2007 Photo within Rita (CAT 4-->5) on 21 Sept 2005 courtesy M. Black, NOAA/AOML/HRD

  2. Period of ELDORA Observations Documenting Concentric Eyewall Structure on 22 September 2005 Multi-day Intensity Trends for Hurricane Rita Best-track Central Pressure & Max Sustained Surface Winds

  3. 22 September 2005 - GOES Visible + P-3 TracksEyewall Replacement Phase

  4. n o d c a e r S o a y M t m a i r r P y Concentric Eyewall Reflectivity Structure2.0 km MSL1801-1820 UTC NRL P-3/ELDORA Circumnavigation (Units: dBZ)

  5. n o d c a e r S o a y M t m a i r r P y Double Wind Maximum - Horizontal Wind Speed2.5 km MSL1801-1820 UTC NRL P-3/ELDORA Circumnavigation (Units: m/s)

  6. n o d c a e r S o a y M t m a i r r P y Double Wind Maximum - Horizontal Wind Speed0.5 km MSL1801-1820 UTC NRL P-3/ELDORA Circumnavigation (Units: m/s)

  7. Patterns of Vertical Vorticity Accompanying Eyewall Replacement

  8. Location of NW & SE Quadrant Analysis Domains NW Quadrant 80 x 80 km2 SE Quadrant 80 x 80 km2 ~Axisymmetrized Primary Eyewall z vs. High Wavenumber Secondary Eyewall Structures ( Units: 10-4 s-1)

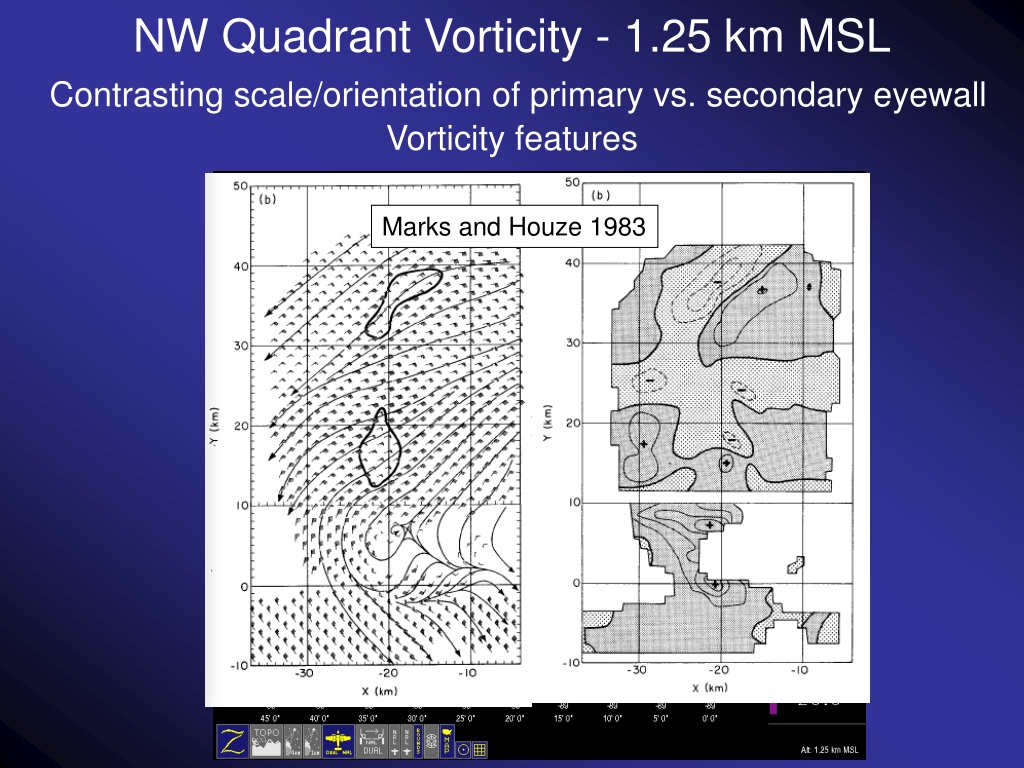

  9. NW Quadrant Marks and Houze 1983 Evidence of vorticity dipoles in region of secondary eyewall formation W E NW Quadrant Vorticity - 1.25 km MSLContrasting scale/orientation of primary vs. secondary eyewall Vorticity features ( Units: 10-4 s-1)

  10. NW Quadrant Radial Section Eye Moat E W Radial Section - Reflectivity:Vertically coherent concentric eyewall/moat structure -Contrasting depth/tilt of primary & secondary eyewall features (Units: dBZ)

  11. E W Radial Section - Horizontal Wind SpeedContrasting depth/slope of isotach patterns - Comparatively shallow, sloped secondary eyewall wind maxima (Units: m/s) NW Quadrant Radial Section Eye Moat

  12. E W Radial Section - Vertical VorticityCorresponding contrasts in primary vs. secondary eyewall Tremendous vertical coherence of secondary eyewall dipoles ( Units: 10-4 s-1) NW Quadrant Radial Section Eye Moat

  13. E W Radial Section - Vertical Vorticity& Doppler-Derived Air Motion VectorsTendency for  & w to be correlated ( Units: 10-4 s-1) NW Quadrant Radial Section Eye Moat

  14. Reproducibility of Observed Structures In Other Quadrants

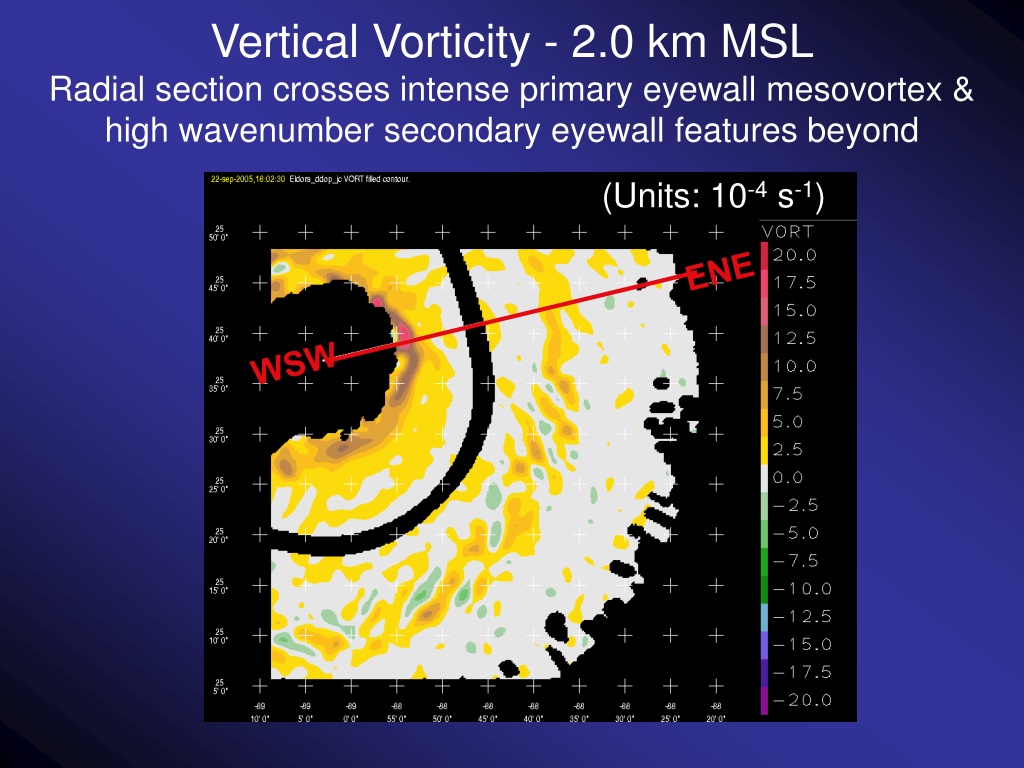

  15. WSW ENE Vertical Vorticity - 2.0 km MSLRadial section crosses intense primary eyewall mesovortex &high wavenumber secondary eyewall features beyond (Units: 10-4 s-1)

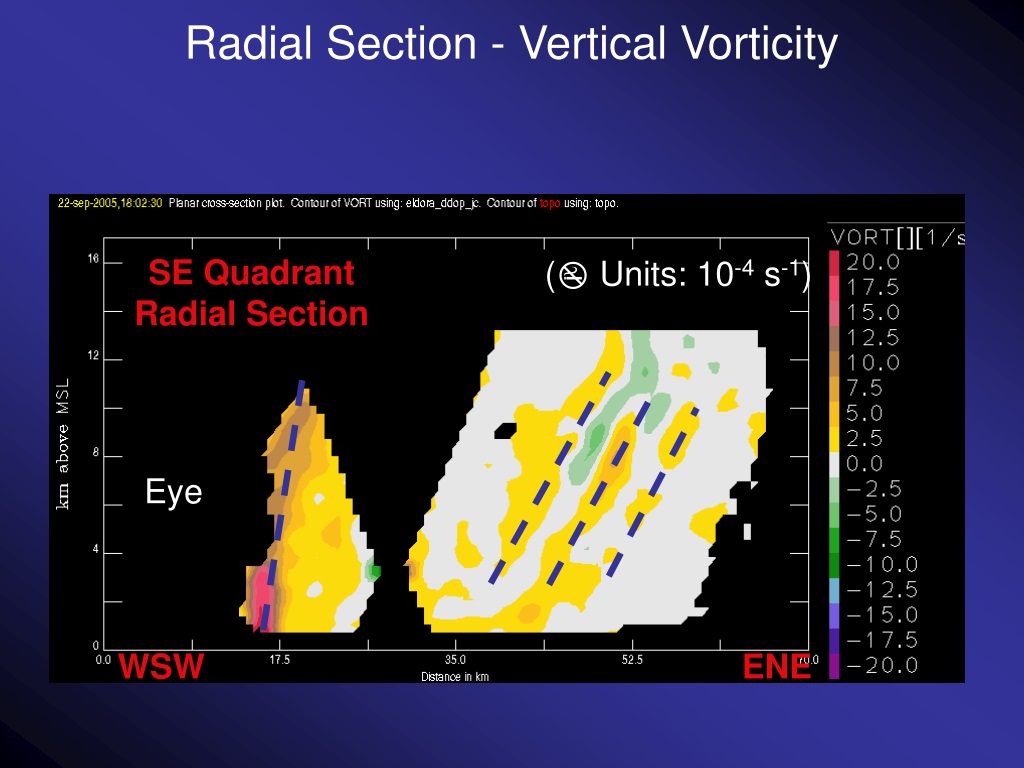

  16. Radial Section - Vertical Vorticity SE Quadrant Radial Section ( Units: 10-4 s-1) Eye WSW ENE

  17. Tangential SectionVorticity @ 2.0 km - Evidence of high wavenumber structures ( Units: 10-4 s-1) NE SW

  18. Shear Flow x x x x x Corresponding Tilted VorticityStructures Structures within Secondary Eyewall SE Quadrant Tangential Section (Units: 10-4 s-1) SW NE

  19. Shear Wind Speed in Secondary EyewallNear-sfc wind maxima at ~5 km spacingStructures within elevated (2-5 km) layer tilt downshear SE Quadrant Tangential Section (Units: m/s) x x x x x SW NE

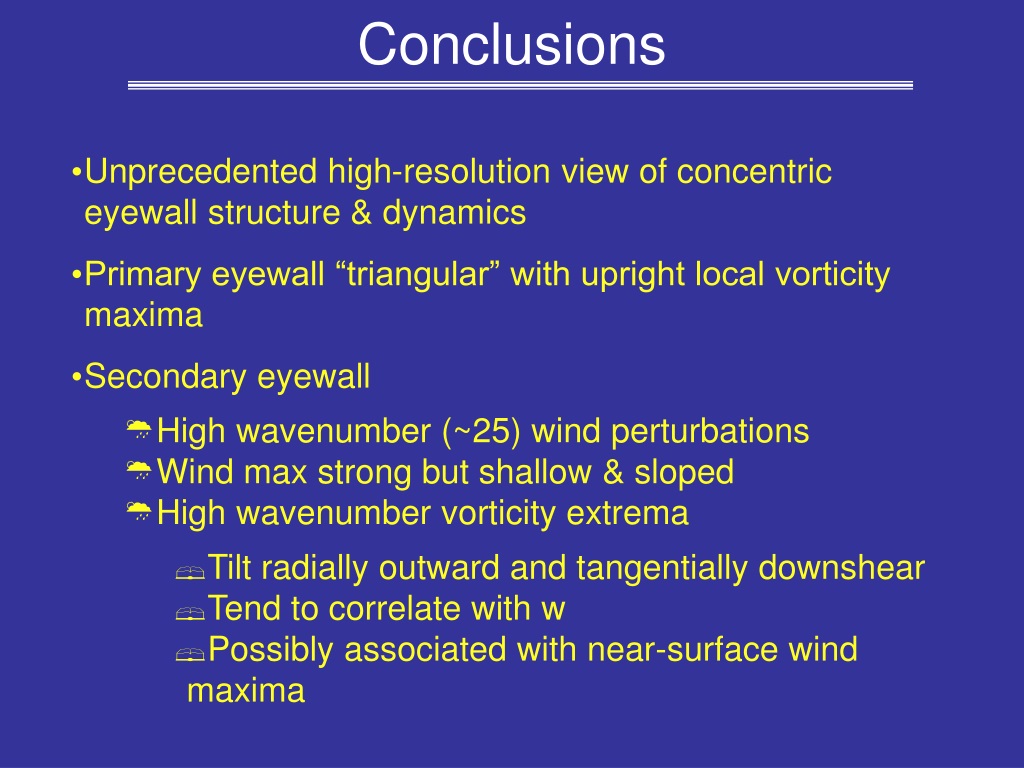

  20. Conclusions • Unprecedented high-resolution view of concentric eyewall structure & dynamics • Primary eyewall “triangular” with upright local vorticity maxima • Secondary eyewall • High wavenumber (~25) wind perturbations • Wind max strong but shallow & sloped • High wavenumber vorticity extrema • Tilt radially outward and tangentially downshear • Tend to correlate with w • Possibly associated with near-surface wind maxima

  21. Thanks for your attention…

  22. 21 Sept 2005 - GOES Visible + P-3 Tracks

  23. 21 Sept 2005 - LF/WSR-88D CompositeIntense Cat-5 Phase

  24. 22 September 2005 - GOES Visible + P-3 TracksEyewall Replacement Phase

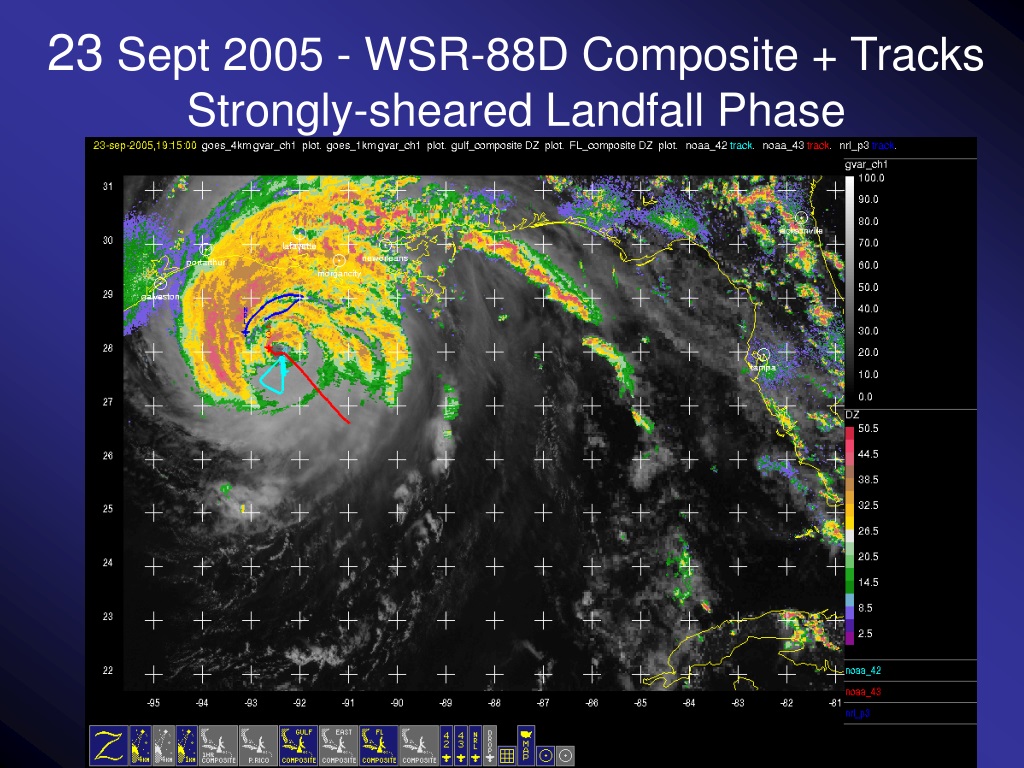

  25. 23 Sept 2005 - WSR-88D Composite + TracksStrongly-sheared Landfall Phase

  26. Mesovortex along Primary Eyewall of RitaAssociated Reflectivity @ 0.5 km MSL (Units: dBZ)

  27. Mesovortex along Primary Eyewall of RitaWind Speed @ 0.5 km MSL (Units: m/s)

  28. Mesovortex Along Primary Eyewall of RitaVertical Vorticity @ 0.5 km MSL (Units: 10-4 s-1)

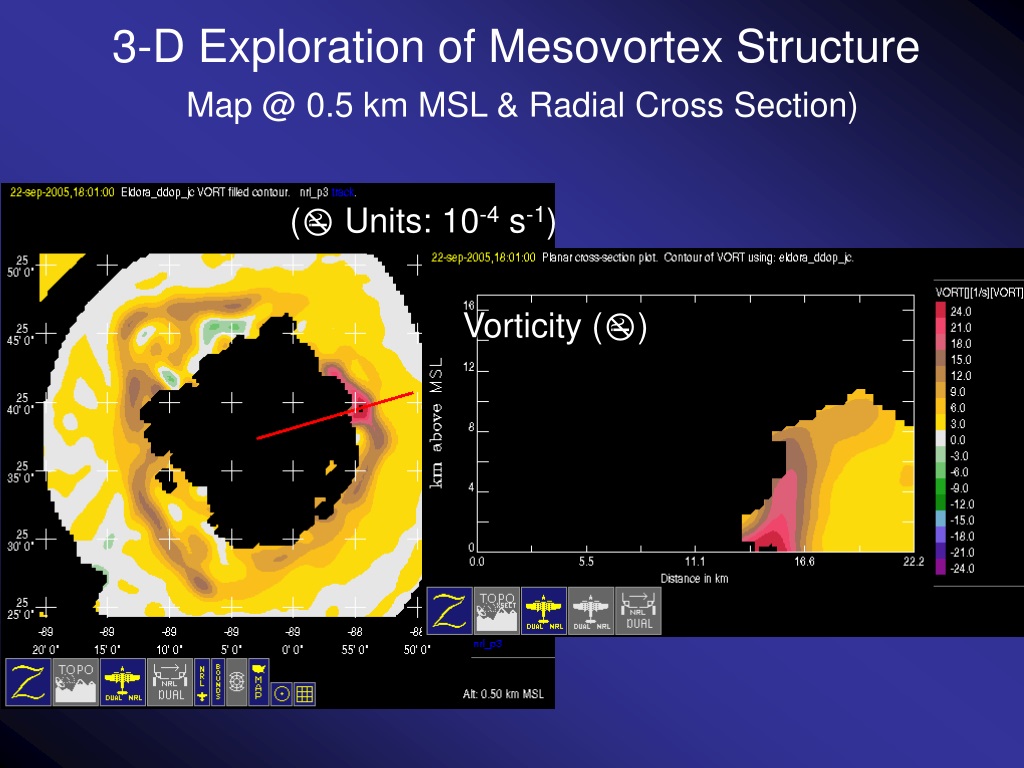

  29. dBZ Vorticity () 3-D Exploration of Mesovortex StructureMap @ 0.5 km MSL & Radial Cross Section) ( Units: 10-4 s-1)

  30. x x x x x Possible Convective Origins Suggested byAccompanying Precipitation Structures SE Quadrant Tangential Section (Units: dBZ)

  31. Radial Section - Reflectivity SE Quadrant Radial Section (Units: dBZ) Eye Moat WSW ENE
