place recognition and lifelong mapping

Place Recognition and Lifelong Mapping

Kurt Konolige, James Bowman, JD Chen, Patrick Mihelich

Willow Garage

Michael Colander, Vincent Lepetit, Pascal Fua

Ecole Polytechnique Federal de Lausanne

Konolige et al. View-Based Maps, RSS, 2009

Konolige and Bowman, Lefelong Visual Maps, IROS 2009

Konolige et al. Mapping, Navigation and Learning for Off-road Traversal, JFR, 2008

Konolige and Agrawal, FrameSLAM: from Bundle Adjustment to Realtime Visual Mapping, TRO, 2008

willow garage
Willow Garage
  • PR2 Mobile Manipulation Platform
  • Open-source robotics software
    • ROS
    • OpenCV
    • Robotics and vision algorithms
from 2d laser maps to view maps

p2

p1

p3

From 2D laser maps to VIEW MAPS

Locally metric

Global manifold

vslam by view maps

p2

p1

p3

[Grisetti et al.]

Toro

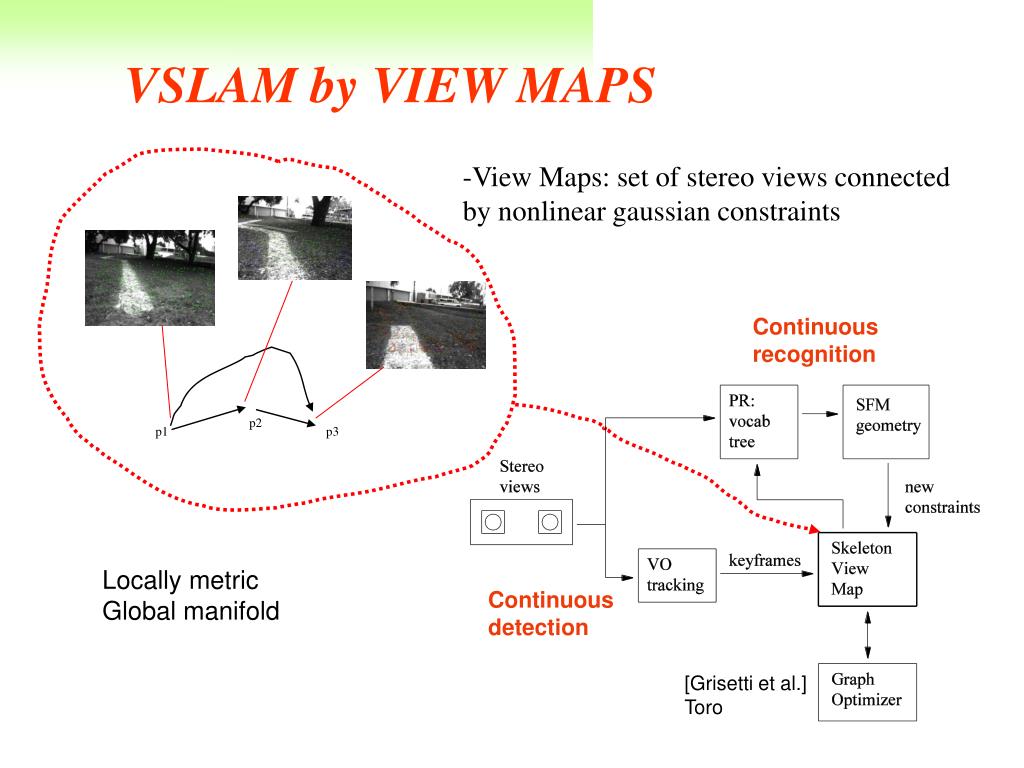

VSLAM by VIEW MAPS
  • View Maps: set of stereo views connected by nonlinear gaussian constraints

Continuous

recognition

Locally metric

Global manifold

Continuous

detection

crusher visual odometry
Crusher Visual Odometry

Stereo: [Matthies, Lacroix, Agrawal, Comport, …]

Monocular: [Nister05, …]

Multi-frame: [Engels06, Mourignon06, …]

CRUSHER

Carnegie Mellon NREC Vehicle

5 km autonomous traverse

Rough terrain

Log file data

place recognition vocabulary trees nister and stewenius cvpr06
Place Recognition: Vocabulary Trees[Nister and Stewenius CVPR06]
  • “Bag of words” retrieval
  • Vocab tree created offline
  • For recognition:
    • Image keypoints extracted
    • Tree encodes approximate NN search
    • Inverted index of images at leaves

[Cummins and Newman ICRA07

Cullmer et al. ACRA08

Fraundorfer et al. IROS07

Eade and Drummond BMVC08

Williams et al. ICCV07]

[Image from Nister and Stewenius CVPR06]

place recognition vocabulary trees nister and stewenius
Place Recognition: Vocabulary Trees[Nister and Stewenius]
  • “Bag of words”
  • Vocab tree created offline
  • New images queried and added online

Performance on Indoor dataset

geometric check

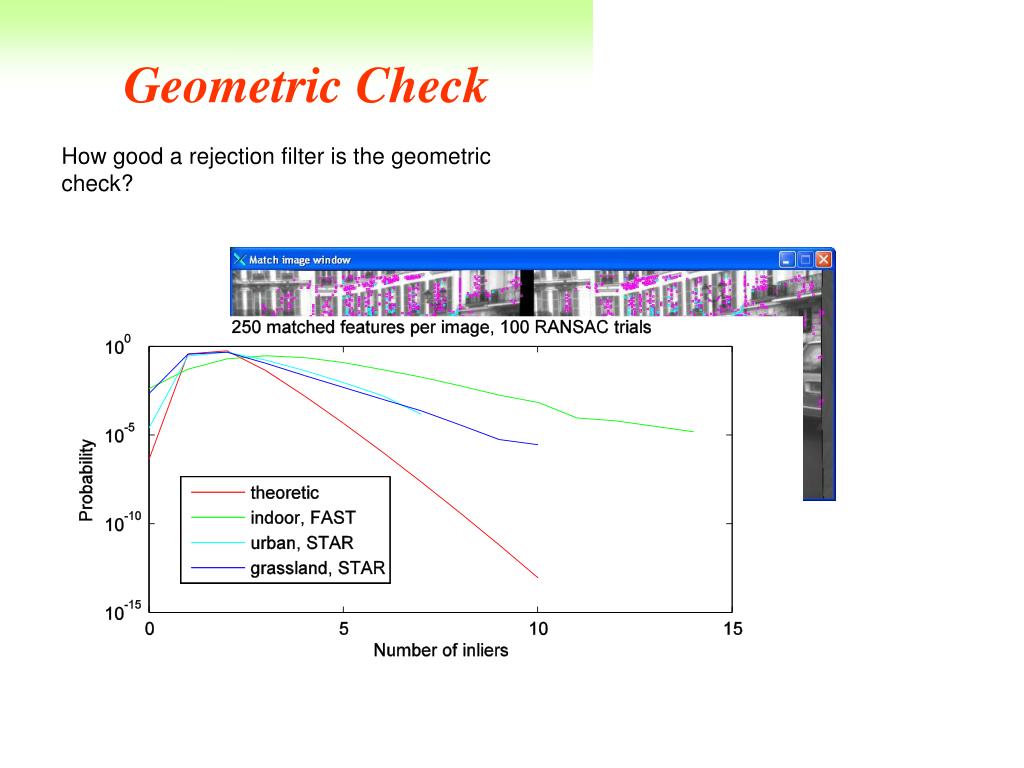

Geometric Check

How good a rejection filter is the geometric check?

challenges

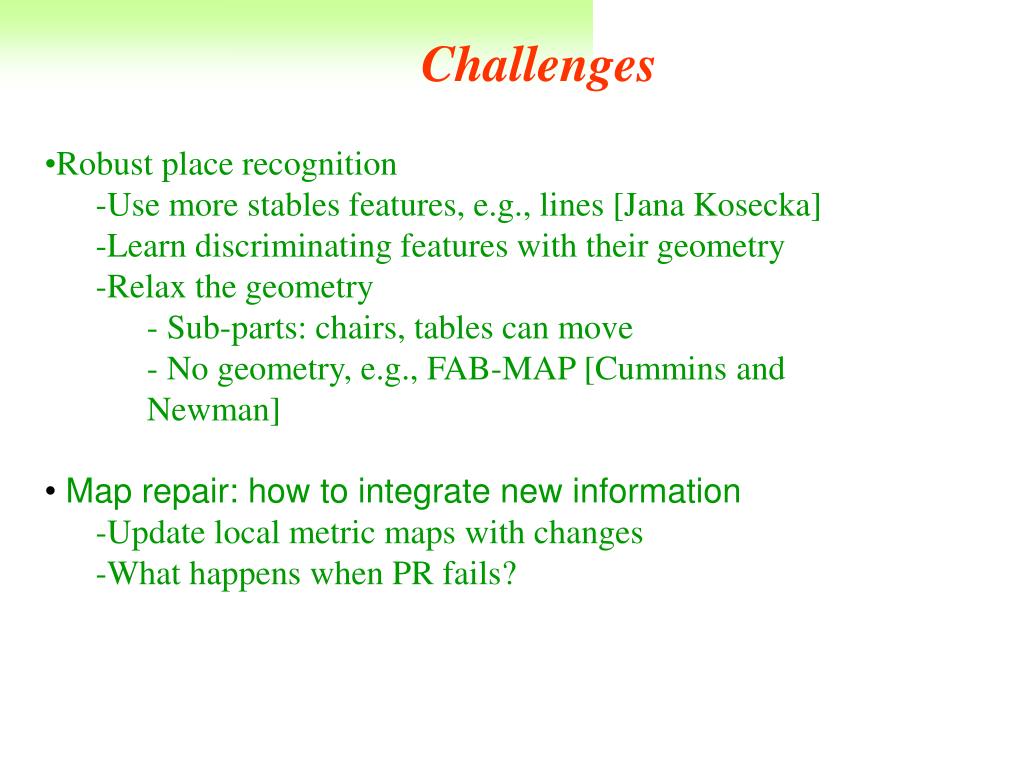

Challenges
  • Robust place recognition
    • Use more stables features, e.g., lines [Jana Kosecka]
    • Learn discriminating features with their geometry
    • Relax the geometry
      • Sub-parts: chairs, tables can move
      • No geometry, e.g., FAB-MAP [Cummins and Newman]
  • Map repair: how to integrate new information
    • Update local metric maps with changes
    • What happens when PR fails?
visual environment change

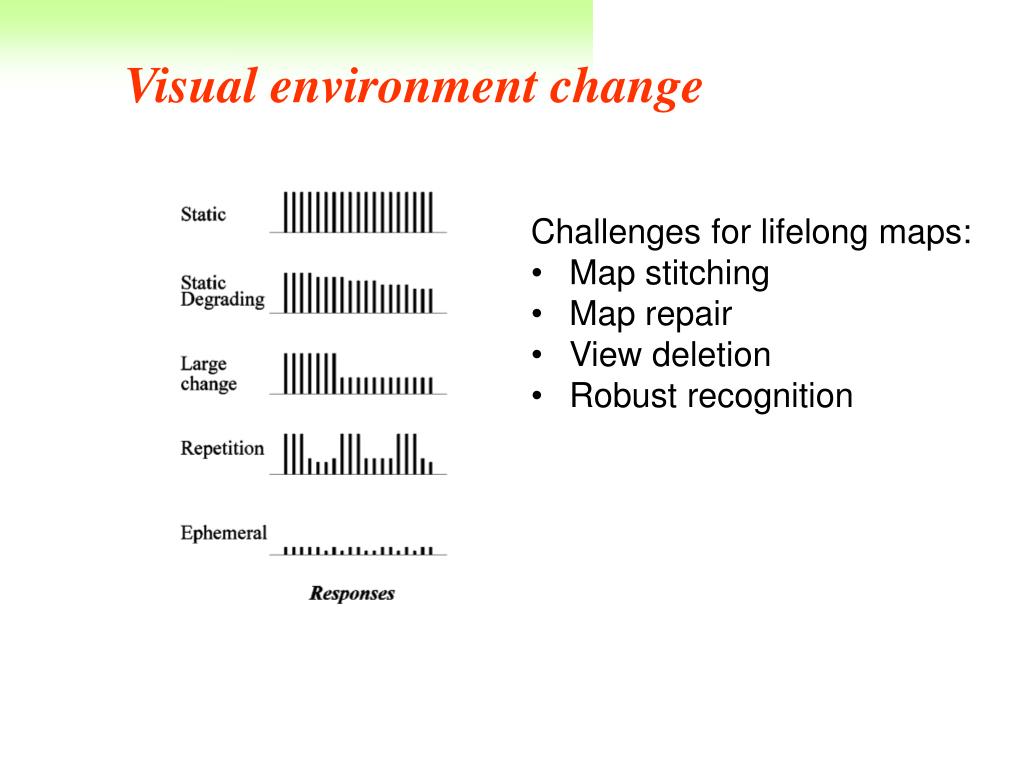

Visual environment change
  • Challenges for lifelong maps:
  • Map stitching
  • Map repair
  • View deletion
  • Robust recognition
view deletion strategy

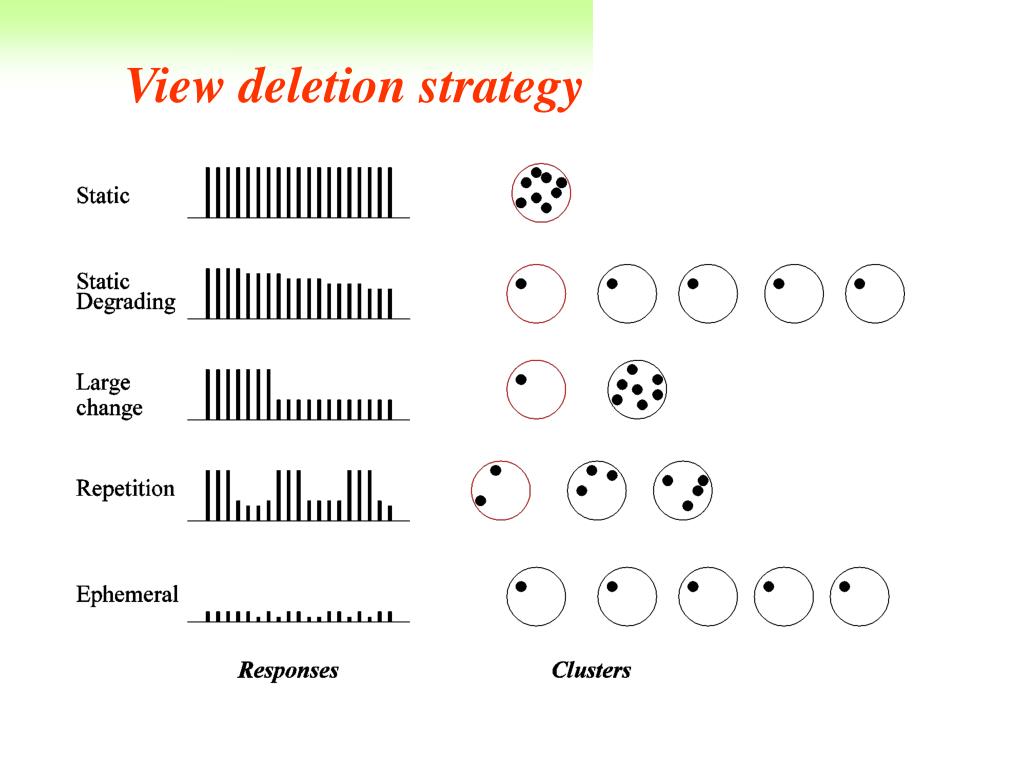

View deletion strategy
  • View clusters
    • Distance measure between views
      • c(v,v’) = k/m – 1, k inliers in m matches
    • A cluster of set S is a maximally connected subset of S
    • Neighborhood of v is a set S reachable from v within a distance ndand angle na
  • LRU algorithm
    • Max size Q for any neighborhood
    • Preferentially thin clusters
    • Delete oldest clusters if necessary
visual odometry
Visual Odometry

Stereo: [Matthies, Lacroix, Agrawal, Comport, …]

Monocular: [Nister05, …]

Multi-frame: [Engels06, Mourignon06, …]

- no registration

- high precision

Indoor

Willow Garage PR2

1km indoor trajectories

Online

urban scenes images courtesy andrew comport inria

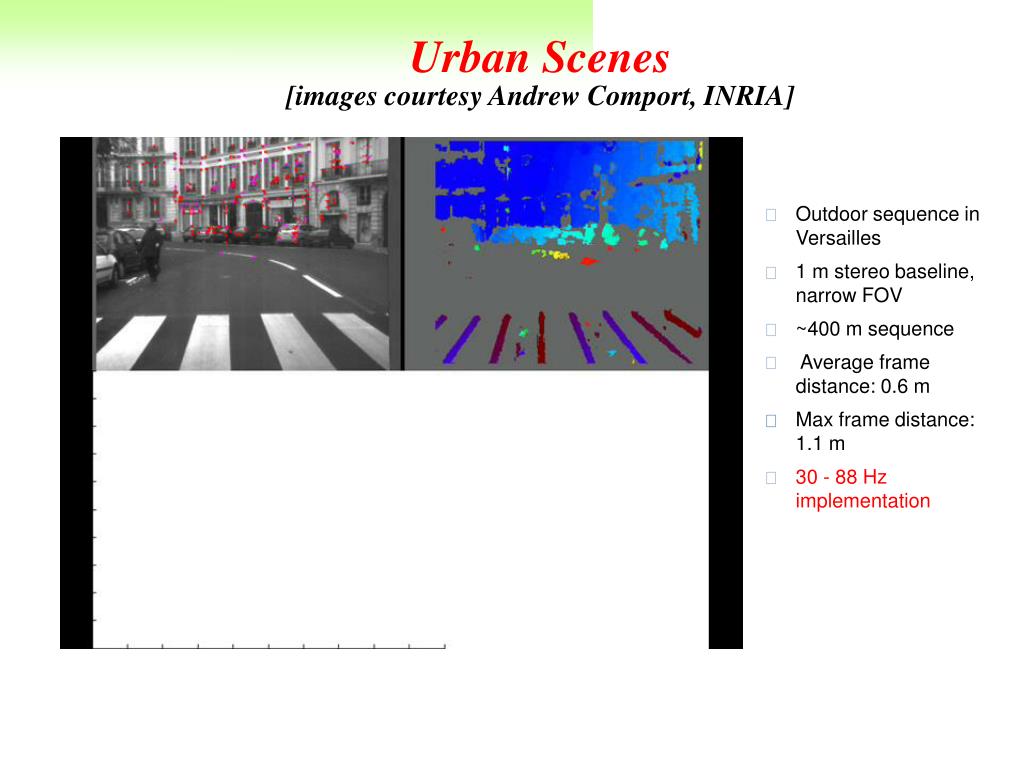

Urban Scenes[images courtesy Andrew Comport, INRIA]
  • Outdoor sequence in Versailles
  • 1 m stereo baseline, narrow FOV
  • ~400 m sequence
  • Average frame distance: 0.6 m
  • Max frame distance: 1.1 m
  • 30 - 88 Hz implementation
autonomous off road terrain traversal

LAGR [Learning Applied to Ground Robotics]

200 m autonomous traverse

Off-road terrain

15 Hz implementation

Autonomous Off-Road Terrain Traversal
visual slam
Visual SLAM

Optimal solution:

Bundle Adjustment

  • ~1000 camera poses
  • ~1M 3D points
  • Several days to solve
  • NxN image matching
visual slam20
Visual SLAM

Landmarks

EKF Visual SLAM [Davison02, Sim03, Solá05, …]

- small-scale (On2)

- robustness?

FastSLAM

[Se03, Eade07, Howard07]

- large-scale (O log(n))

Hybrid (PTAM, Submaps, SWF)

[Klein07, Eade07, Sibley07]

- small scale

Frames

Frame-based SLAM [Lu+Milios97, Gutmann99, Grisetti07, Konolige07/08]

- large-scale (On)

- robustness

  • ~1000 camera poses
  • ~1M 3D points
  • Several days to solve
  • NxN image matching
vision tasks realtime
Vision Tasksrealtime

Local Maps

Long-range motion estimation

Global Maps – Place recognition and local mapre-use

[Andrew Comport ICRA 2007]

visual odometry for motion estimation

q2

q1

p3

p2

p1

q3

p3

p2

p1

Visual Odometry for Motion Estimation

Stereo: [Matthies, Lacroix, Agrawal, Comport, …]

Monocular: [Nister05, …]

Multi-frame: [Engels06, Mourignon06, …]

- no registration

- precision?

Local Maps

no registration

Long-range motion estimation

GPS-less estimation

visual odometry24

left

right

T

T+1

Visual Odometry
  • Extract features
  • - Harris, FAST, SIFT, CenSurE
  • Match features
    • DETECTION, not TRACKING
    • Across successive left images
    • Stereo: Across left/right stereo images
  • Find largest consistent subset of matches
    • Stereo: 3 non-collinear matches yield motion estimate
    • Monocular: 5 matches yield motion estimate*
    • RANSAC method
  • Bundle adjust last N frames and their feature tracks
challenge of outdoor environments
Challenge of Outdoor Environments

5 Datasets

- 3 km to 6 km trajectories (autonomous)

- 10 Hz stereo, 1 m baseline

- Max movement typically 0.8 m

- RTK GPS for ground truth

solutions

5 Km

5 m

1 mrad ~ 0.06 deg

Solutions

Goal: 5 m error in 5 Km (0.1%)

  • 1. Minimize local drift
    • - Center-surround features for detection stability
    • - Incremental BA
    • - Calibration (remove bias)
  • 2. Minimize global angular drift
  • - Lever-arm problem
  • - IMU accelerometers give global tilt/roll
  • - Low-drift IMU for yaw drift
  • - Visual SLAM for loop closure
stable feature detection
Stable Feature Detection

Corners vs. Center-surround

Harris, FAST

~8 ms

scaled

SIFT, SURF CenSurE

~15 ms

~300 ms, ~150 ms

Agrawal, Blas, Konolige

CenSurE: Center-surround extrema for realtime feature detection and matching

ECCV 2008

error and calibration
Error and Calibration

camera

T

vehicle

trajectory, m

Camera to vehicle transform T misalignment

Stereo system miscalibration

=> bias

trajectory, m

results vo 5 km runs
Results, VO 5 km runs

RTK GPS Ground Truth

Run 1

Run 2

imu vs vo
IMU vs. VO
  • IMU:
    • High XYZ drift from accelerometers (t2)
    • Global gravity normal (noisy) – correct tilt/roll
    • Low drift yaw angle (~ 1 deg/hr, tactical grade IMU)
vo imu ekf

Dataset

Length

RMS error

MAX error

course1-DTED4-run2

3129 m

5.70 m (0.18%)

10.06 m (0.32%)

course2B-DTED4-run4

6440 m

5.10 m (0.08%)

8.19 m (0.13%)

course2B-DTED5-run1

4712 m

6.09 m (0.13%)

10.70 m (0.23%)

course3-DTED5-run1

5293 m

4.85 m (0.09%)

8.58 m (0.16%)

course3-DTED4-run1

4920 m

9.16 m (0.19%)

15.30 m (0.31%)

VO + IMU EKF

predict

VO Filter

EKF

IMU Filter

update

movieIMU.mov

vo conclusion
VO Conclusion
  • 1. Visual Odometry can provide precise trajectories in GPS-less environments
    • - Good features have high frame match rates
    • - Incremental bundle adjustment improves accuracy
    • ~ 5 cm / √m, ~0.15 deg / √m
  • 2. Integration with IMU is necessary for large-scale precision
  • - Noisy gravity normal corrects tilt/roll
  • - High-quality IMU for yaw correction
visual slam using skeletons
Visual SLAM using Skeletons
  • Local registration is a small optimization problem (VO)
  • Loop closure is a larger but reducible optimization problem
long baseline matching
Long-Baseline Matching
  • Match using CenSure features
  • Good matches up to 10 m baseline
    • High sensitivity
    • High selectivity
    • High accuracy
  • Not invariant to Z-axis rotation

6.42 m distance

866 features

315 matched

101 inliers

Frame 9

Frame 463

frameslam results versaille rond
FrameSLAM Results, Versaille Rond

133 frames, 29 links

35 ms PCG

VO result

FrameSLAM result

frameslam results indoor lab courtesy robert sim
FrameSLAM Results, Indoor Lab [courtesy Robert Sim]
  • Indoor lab sequence
  • 12 cm stereo baseline, wide FOV
  • ~100 m sequence, ~8200 key frames
  • 17 tack points in the VSLAM graph
frameslam results indoor lab courtesy robert sim38
FrameSLAM Results, Indoor Lab [courtesy Robert Sim]
  • Indoor lab sequence
  • 12 cm stereo baseline, wide FOV
  • ~100 m sequence, ~8200 key frames
  • Green crosses are uncorrected VO; cyan environment points
  • Red segments are VSLAM-corrected poses; blue environment points
challenge of outdoor environments39
Challenge of Outdoor Environments

5 Datasets

- 3 km to 6 km trajectories (autonomous)

- 10 Hz stereo, 1 m baseline

- Max movement typically 0.8 m

- RTK GPS for ground truth

frameslam results crusher 5k x 2
FrameSLAM Results, Crusher 5K x 2

VO run 1

VO run 2

RTK GPS run 1

42K key frames2.2K link frames286 links

3.3 s PCG

frameslam results crusher 5k x 241
FrameSLAM Results, Crusher 5K x 2

VO run 1

VO run 2

RTK GPS run 1

42K key frames2.2K link frames286 links

3.3 s PCG

small area 3d reconstruction
Small-area 3D Reconstruction

Leaving Flatland

Morisset, Subramanian [SRI]

Rusu [TUM]

3d reconstruction pipeline

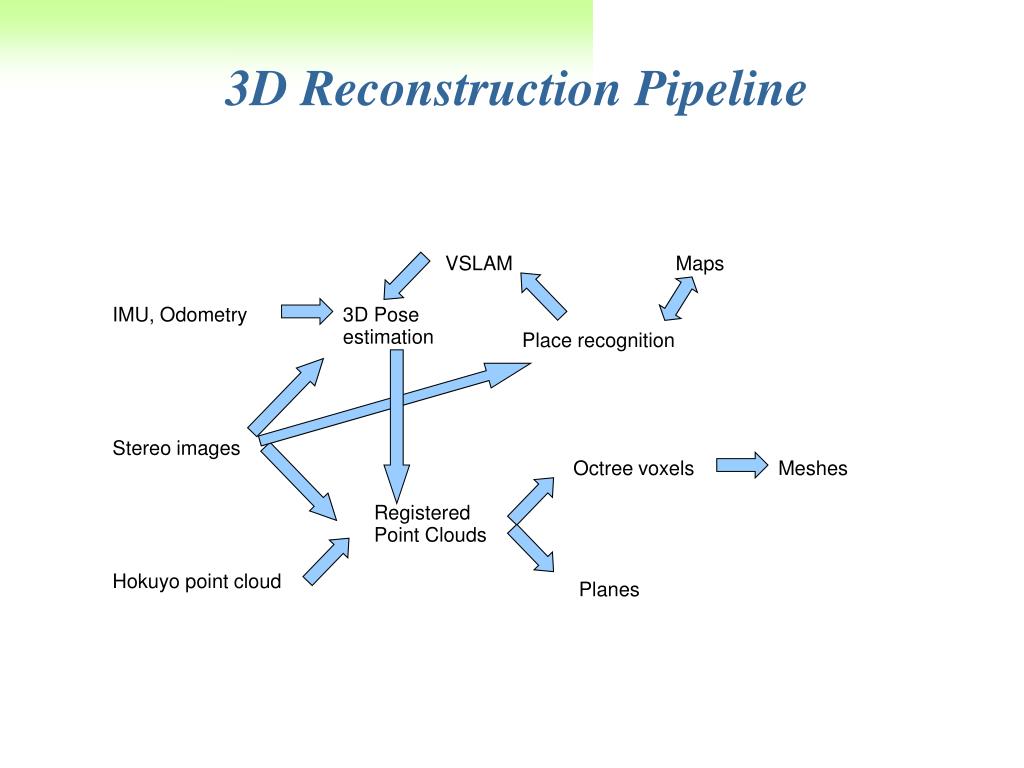

3D Reconstruction Pipeline

VSLAM

Maps

IMU, Odometry

Stereo images

Hokuyo point cloud

3D Pose

estimation

Place recognition

Octree voxels

Meshes

Registered

Point Clouds

Planes

frameslam conclusion

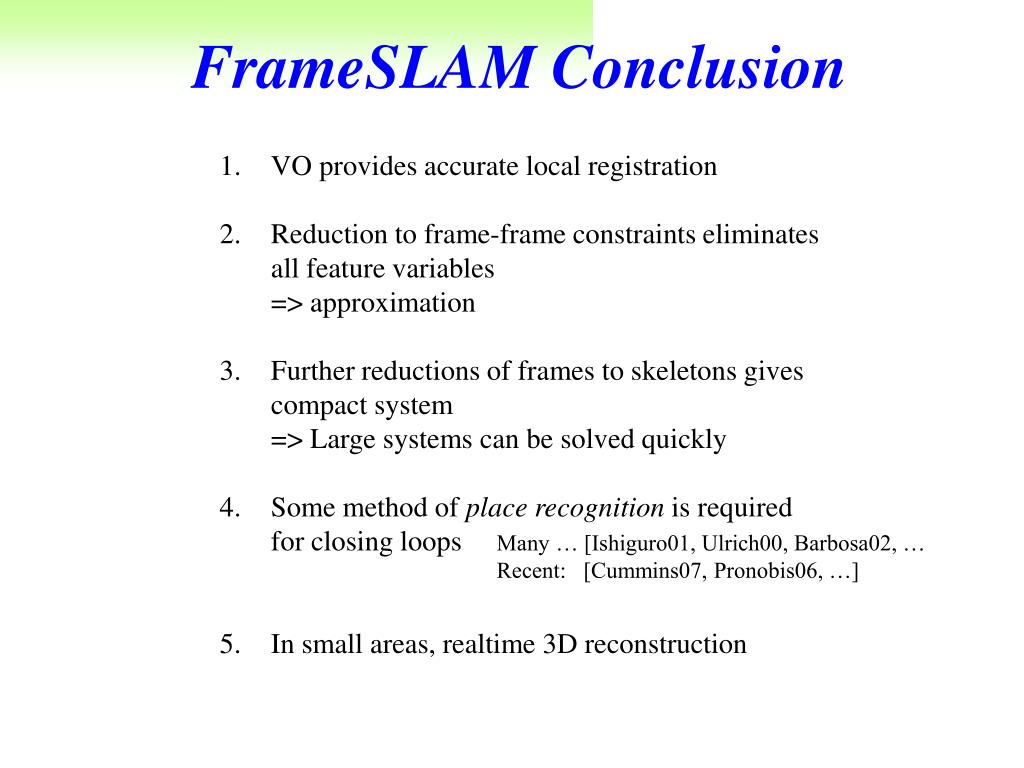

FrameSLAM Conclusion
  • VO provides accurate local registration
  • Reduction to frame-frame constraints eliminates all feature variables
    • => approximation
  • Further reductions of frames to skeletons gives compact system
    • => Large systems can be solved quickly
  • Some method of place recognition is required for closing loops
  • In small areas, realtime 3D reconstruction

Many … [Ishiguro01, Ulrich00, Barbosa02, …

Recent: [Cummins07, Pronobis06, …]
