Teeth that heal themselves … Durable biocompatible restorations utilizing Glass C arbomer ® Tech

1. Teeththathealthemselves…DurablebiocompatiblerestorationsutilizingGlassCarbomer® Tech enamel Hexagonal FAP crystal formation (12 months in GCP Seal) January 2014

2. Glass Carbomer®What is it exactly? Apatite & liquid silica enforcednano-glass • Glass Carbomer® is not to be confused with Glass Ionomer • Glass Carbomer® is a nano base Fluoride Aluminium-Silicate Glass with mineral additions giving it unique characteristics • Glass Carbomer® has a liquid silica supplement for high flexural and compressive strength and low solubility • Glass Carbomer® contains fluor/hydroxy apatite particles to start and aid the remineralisationproces • With Glass Carbomer® Tech, utilizing the natural processes of mineralization, we are able to create an entirely biological structure that has properties (such as hardness, durability, strength and acid resistance) equivalent to natural dentition. GCP Dental / For Internal Use Only

3. Glass Carbomer®Tech • Biocompatibel materialfor permanent use • Biofusiondue to enhancedremineralisation • Active cariesrepair • Processablewhenmoist • No etchingandbonding agent needed • Command set withThermocure GCP CarboLED • Patentedtechnologyworldwide • First developed 2004, 10 years of clinicaluse! GCP Dental / For Internal Use Only

4. Preparecavity • Bulk fill cavity with Glass Carbomer® Cavity in tooth • (Re)mineralization starts immediately due to ion exchange with the natural tooth, saliva and pulp • Ion exchange will grow the Fluor Apatite and Hydroxy Apatite (FAP/HAP) crystals Glass Carbomer®, dentin and enamel will form a durable new structure which is completely integrated with the natural tooth • At the occlusal surface this mineralization will lead to an enamel-like material (FAP) • The fully mineralized tooth has comparable composition and properties to a natural tooth

5. Glass Carbomer®Tech Biofusionbondingdue to ion-exchange GCP Dental / For Internal Use Only

6. GCP Fill 122.3 Mpa 35 Mpa 250 Mpa 260 Mpa 13.7 Mpa 6.7 Mpa 0.13% 0.03% * Prof. D. Glavina. Department of Paediatric and Preventive Dentistry, School of Dental Medicine, University of Zagreb, Croatia. ** (ANSI/ADA) Specification 27 for permanent restoratives: Flexural Strength > 50Mpa GCP Dental / For Internal Use Only

7. GCP Fill GCP GLASS FILL • no shrinkage(pains), no leakage • reduced chair time • apply in one single layer • no etching (contra-indicated) • no bonding • no underlining • no rubber dam GCP Dental / For Internal Use Only

8. GCP Fill GCP GLASS FILL THE IDEAL CORE BUILD-UP MATERIAL • No shrink or expansion after setting • Natural biofusion bonding withdentin • No interaction with impression materials • Same strength as natural dentition • After setting it is possible to immediately continue work or impressions GCP Dental / For Internal Use Only

9. GCP FillGCP GlassFillin vivo. Mineralisation is clearlyvisible. From 2007 to 2009 the patient received orthodontic treatment. A large cavity developed. In 2009 a class II restoration was made with GCP Glass Fill. In a second stage the top layer was replaced with composite (cosmetic reasons). (delayed sandwich) Clearly visible is the ongoing mineralization of the dentin. The dentin is mineralized into fluor-hydroxy apatite. The nerve reacted normal during treatment and is still vital. Photographscourtesy of Malou van Duinen, dentist in The Hague, NL GCP Dental / For Internal Use Only

10. GCP Seal GCP GLASS SEAL • utilizes Glass Carbomer® Tech to aid remineralisation. Restoration of beginning caries is not always necessary due to the remineralisation process (active caries repair). • differs from Glass Fill as it contains less nano-glass and more Fluor/Hydroxy Apatite • is fast (command set) and water tolerant for easy use with young children. enamel Hexagonal FAP crystal formation (12 months in GCP Seal) GCP Dental / For Internal Use Only

11. GCP Seal GCP Glass Seal in vivo. Mineralisation is clearlyvisible. GCP Dental / For Internal Use Only

12. GCP Seal GCP Dental / For Internal Use Only

13. GCP Seal capillary effect GCP Dental / For Internal Use Only

14. GCP Seal GCP Glass Seal in vivo. Mineralisation is clearlyvisible. GCP Dental / For Internal Use Only

15. GCP Gloss • always to be used with GCP Fill and GCP Seal • safe, biocompatible and BPA & monomer free, does not contain resins, solvents or heavy metals. • facilitates separation • facilitates modeling and polishing • protects the material from desiccation • creates a smooth surface GCP Dental / For Internal Use Only

16. GCP Crown & Bridge Cement GCP CROWN & BRIDGE CEMENT • utilizes Glass Carbomer® Tech to achieve a natural, chemical fusion bond with the dentin and enamel. • natural biofusion bonding characteristic is established fluorapatitebasedglass-ceramicsliked.SIGN • less sensitivity for a happier patient & dentist • have different working times to facilitate handling GCP Dental / For Internal Use Only

17. GCP CarboLED CL-01LED heat-cure lamp for ‘Command Set’’ • Theheat-cure lamp is an essential part of the Glass Carbomer® Tech. • Our new GCP CarboLED CL-01 is perfectly suited for ‘command set’ heat-curing of GCP Glass Fill and Glass Seal products • The CarboLEDCL-01 canalsobeusedforcuringcomposite. • The GCP Glass Fill and Glass Seal products should be heat-cured using the heat of a high-energy LED lamp with a tip temperature of 60°C or 140F GCP Dental / For Internal Use Only

18. GCP CarboMIX CM-02controllable and consistent capsule mixing Universal high-speed mixer forall types of capsules GCP Dental / For Internal Use Only

19. GCP CarboCAPApplicator Gun Our CarboCAP Applicator Gun is used for activating and applicating GCP Dental capsules, but is also suitable for many other brands of capsules like GC and 3M. If the dentist owns a 3M or GC forceps he can use it to applicate the GCP capsules. GCP Dental / For Internal Use Only

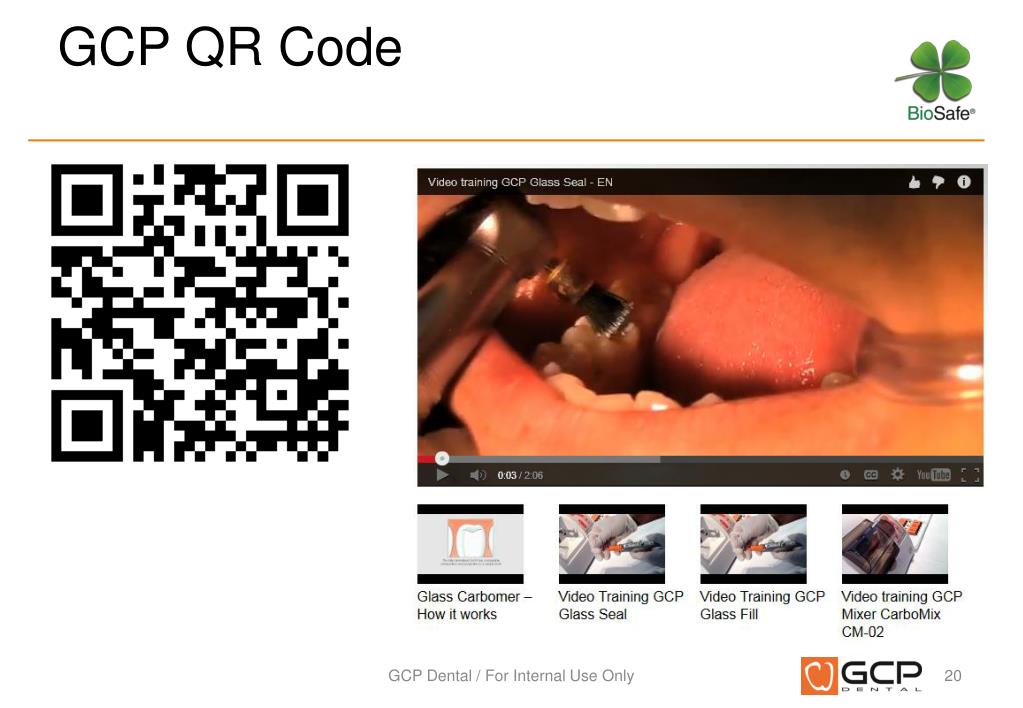

20. GCP QR Code GCP Dental / For Internal Use Only
