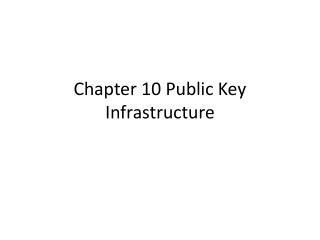

  1. Chapter 10 Public Key Infrastructure

  2. Overview • Using public key cryptography • Certificates • Certifying authorities • Key recovery and key escrow • Chains of trust • Revocation • X.509

  3. Uses of Public Key Crypto • Without sharing secrets (p. 249) • Alice can sign statements that Bob can verify • Bob can encrypt things for Alice • Alice and Bob can authenticate each other • Alice and Bob may never meet and may belong to different enterprises

  4. PKI • Public key infrastructure – everything that needs to be in place in order for public-key crypto to work • How to establish trust • How to establish chains of trust

  5. The Players • Principal – has a public key • Relying party – uses the public key • Trust anchor or trust root – a trusted party who provides or certifies the public key of a third party • Certifying authority – issues a certificate • See figure 10.1, p. 251

  6. Certificate • A signed statement which binds a name to a public key • Does not contain a private key • A certificate is useful only when combined with a matching private key

  7. A Basic PKI Model • Alice generates her own key pair • She submits her public key to a certifying authority • With a signed request that shows she knows her own private key • The CA verifies Alice is who she says she is • The CA verifies that Alice knows the private key that matches the public key • The CA signs the certificate (with its private key)

  8. Remaining Design Choices • Where does the certificate reside? • How do other folks discover it? • This assumes that the private key of the CA remains private and secure

  9. Hardware Security Modules • HSMs • Specialized hardware devices for storing cryptographic keys

  10. Key Recovery • Alice forgets the passphrase which unlocks her private key • Alice keeps her health information on an encrypted smart card. But she is unconscious • Alice encrypts her source code. But her boss fires her. • The police or government want to look at Alice’s data • Alice’s computer is infected and her data, including the private key, is corrupted

  11. Key Escrow • A technology that allows someone other than the key owner to access a key • Supposedly only in emergencies • Dangers of key escrow? • Government monitoring • Forged digital signatures

  12. Chains of Trust • One central CA – not performant • Multiple CA’s – how do they coordinate? • Hierarchy of CA’s – Fig 10.3, p. 260 • Bridging model – Fig 10.4, p. 261 • Path discovery is still a challenge

  13. Revocation • A certificate binds a property (usually a name) to a public key. • It may be necessary to revoke a certificate • Alice quits her job • The private key is compromised • Alice forgets her pass phrase

  14. Certificate Revocation Lists • CA maintains a certificate revocation list (CRL) • Users download the CRL • Problems • Download time for large CRL’s • Innocent people who forget their pass phrase get placed on the CRL • Race conditions – CRL not yet updated and attacker uses revoked certificate

  15. Online Certificate Status Protocol • OCSP – relying party checks the status of the certificate online • OCSP responders are connected to the CA’s certificate database

  16. Other Approaches • Certificate expiration - good for small, disconnected, mobile devices since downloads and lookups are not required frequently • Pretty Good Privacy (PGP) – there are no CA’s, only a web of trust, each party maintains a private list of certificates

  17. X.509 • The most common certificate standard in use • International Telecommunication Union (ITU-T) standard • Started as part of X.500 – a standard for naming hierarchies • X.509 is based on a strictly hierarchical view of CA’s • Defines standard formats for • public key certificates • revocation lists • attribute certificates

  18. Alternatives to X.509 • Pretty Good Privacy (PGP) • Simple Distributed Security Infrastructure and Simple PKI (SDSI/SPKI)

  19. Pretty Good Privacy (PGP) • Users are equals • Users sign statements asserting a belief that a public matches a friend • Users exchange assertions • Users draw conclusions based on their web of trust

  20. SDSI/SPKI • ‘sudsy spooky’ • Simple • Principals are their public keys • No global names • Based on assumption that security decisions and identify management should be based on local knowledge

  21. Key Storage – A Problem • Private keys are needed for desktop/laptop applications • Desktops/laptops are inherently insecure • End users move from computer to computer – keys need to be portable • Drivers for USB hardware security modules are not universally available

  22. Summary • Using public key cryptography • Certificates • Certifying authorities • Key recovery and key escrow • Chains of trust • Revocation • X.509

  23. References • Smith and Marchesini, The Craft of System Security, Addison-Wesley, 2008. • http://en.wikipedia.org/wiki/X.509 • http://world.std.com/~cme/html/spki.html
