  1. PRESENTED BY NAYYAR ABBAS SHAH

  2. FEATURES TMP91C016F comes in a 100-pin flat package. JTMP91C016S is a 100-pad chip product. Listed below are the features. (1) High-speed 16-bit CPU (900/L1 CPU) • Instruction mnemonics are upward compatible with TLCS-90/900 • 16 Mbytes of linear address space • General-purpose registers and register banks • 16-bit multiplication and division instructions; bit transfer and arithmetic instructions (2) Minimum instruction execution time: 148 ns (at 27 MHz) (3) Built-in RAM: None Built-in ROM: None (4) External memory expansion • Expandable up to 105 Mbytes (Shared program/data area) • Can simultaneously support 8-/16-bit width external data bus: Dynamic data bus sizing • Separate bus system

  3. (5) 8-bit timers (6) General-purpose serial interface: 2 channels Channel 0 • UART mode • IrDA Ver.1.0 (115.2 kbps) mode selectable Channel 1 • UART mode • Synchronous mode selectable (7) LCD controller • Adapt to both Shift register type and Built-in RAM type LCD driver (8) Timer for real time clock (RTC) (9) Key-on wakeup (Interrupt key input) (10) Watchdog timer (11) Melody/alarm generator • Melody: Output of clock 4 to 5461 Hz • Alarm: Output of the 8 kinds of alarm pattern • Output of the 5 kinds of interval interrupt

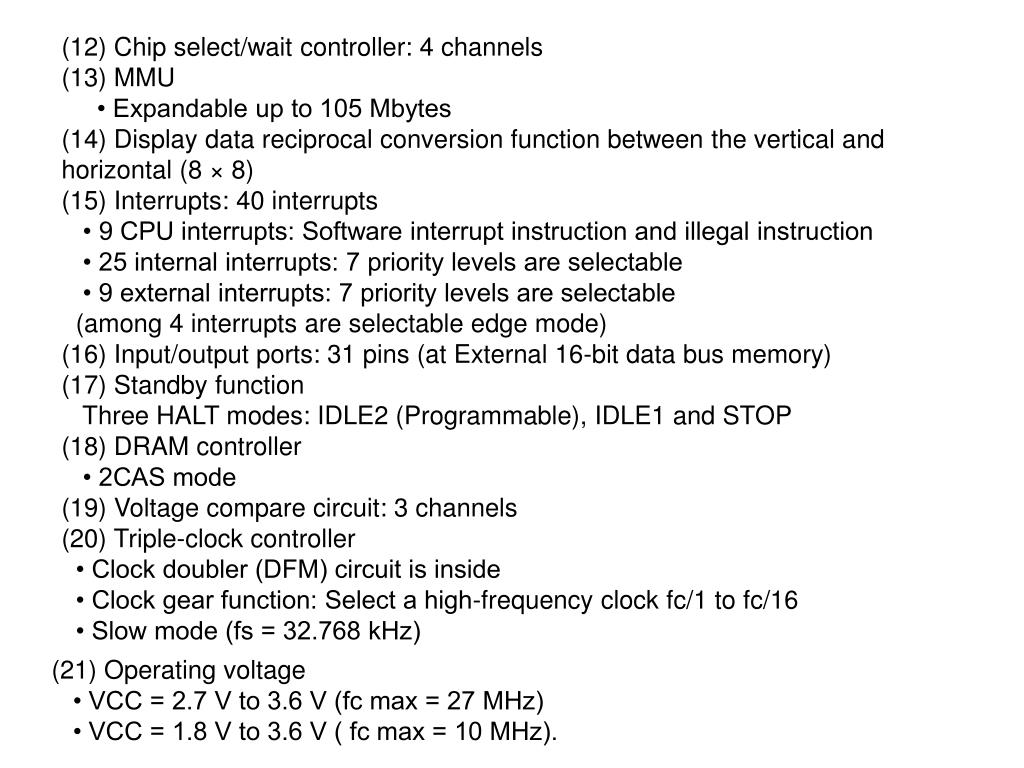

  4. (12) Chip select/wait controller: 4 channels (13) MMU • Expandable up to 105 Mbytes (14) Display data reciprocal conversion function between the vertical and horizontal (8 × 8) (15) Interrupts: 40 interrupts • 9 CPU interrupts: Software interrupt instruction and illegal instruction • 25 internal interrupts: 7 priority levels are selectable • 9 external interrupts: 7 priority levels are selectable (among 4 interrupts are selectable edge mode) (16) Input/output ports: 31 pins (at External 16-bit data bus memory) (17) Standby function Three HALT modes: IDLE2 (Programmable), IDLE1 and STOP (18) DRAM controller • 2CAS mode (19) Voltage compare circuit: 3 channels (20) Triple-clock controller • Clock doubler (DFM) circuit is inside • Clock gear function: Select a high-frequency clock fc/1 to fc/16 • Slow mode (fs = 32.768 kHz) (21) Operating voltage • VCC = 2.7 V to 3.6 V (fc max = 27 MHz) • VCC = 1.8 V to 3.6 V ( fc max = 10 MHz).

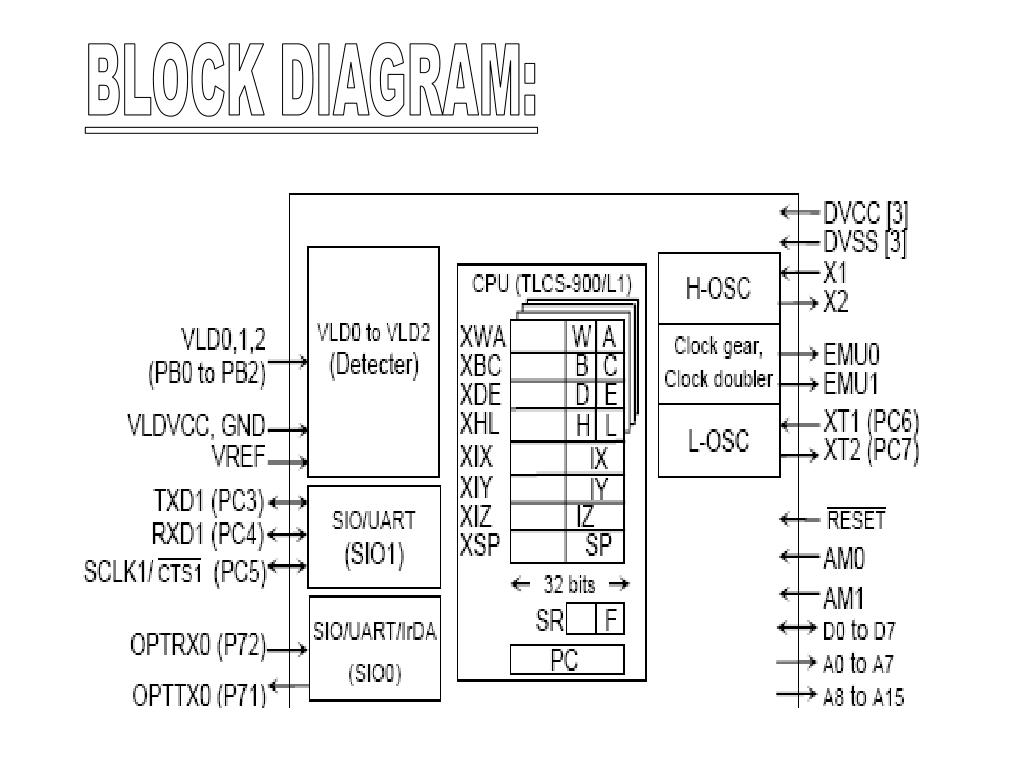

  5. BLOCK DIAGRAM:

  6. MEMORY MAP

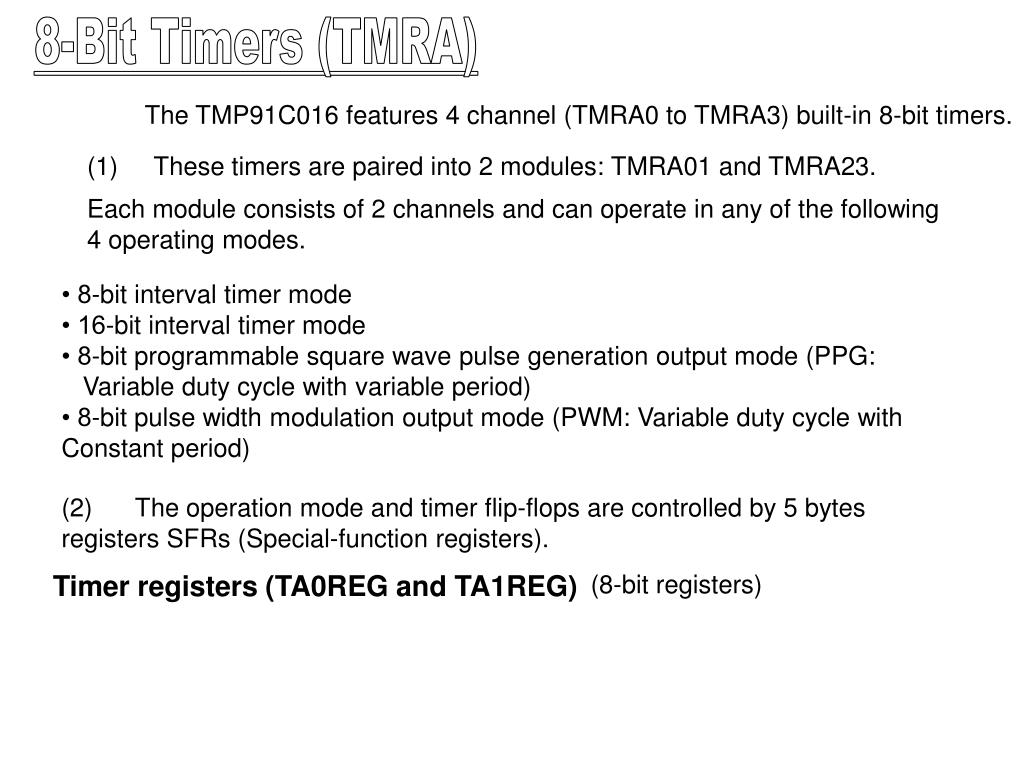

  7. 8-Bit Timers (TMRA) The TMP91C016 features 4 channel (TMRA0 to TMRA3) built-in 8-bit timers. (1) These timers are paired into 2 modules: TMRA01 and TMRA23. Each module consists of 2 channels and can operate in any of the following 4 operating modes. • 8-bit interval timer mode • 16-bit interval timer mode • 8-bit programmable square wave pulse generation output mode (PPG: Variable duty cycle with variable period) • 8-bit pulse width modulation output mode (PWM: Variable duty cycle with Constant period) (2) The operation mode and timer flip-flops are controlled by 5 bytes registers SFRs (Special-function registers). Timer registers (TA0REG and TA1REG) (8-bit registers)

  8. Serial Channels 2.SIO1. 1.(SIO0) (1) TMP91C016 includes 2 serial I/O channels. THERE ARE 4 MODES OF SERIAL COMMUNICATION Mode 0: I/O interface mode Mode 0: For transmitting and receiving I/O data using the synchronizing signal SCLK for extending I/O. • UART mode Mode 1: 7-bit data Mode 2: 8-bit data Mode 3: 9-bit data In mode 1 and mode 2 a parity bit can be added. Mode 3 has a wake-up function for making the master controller start slave controllers via a serial link (A multi-controller system). (2) SIO0 channel can selected either UART mode (Asynchronous transmission) or IrDA mode (Infrared rays transmission). (3) SIO1 channel can selected either UART mode (Asynchronous transmission) or I/O interface mode (Synchronous transmission).

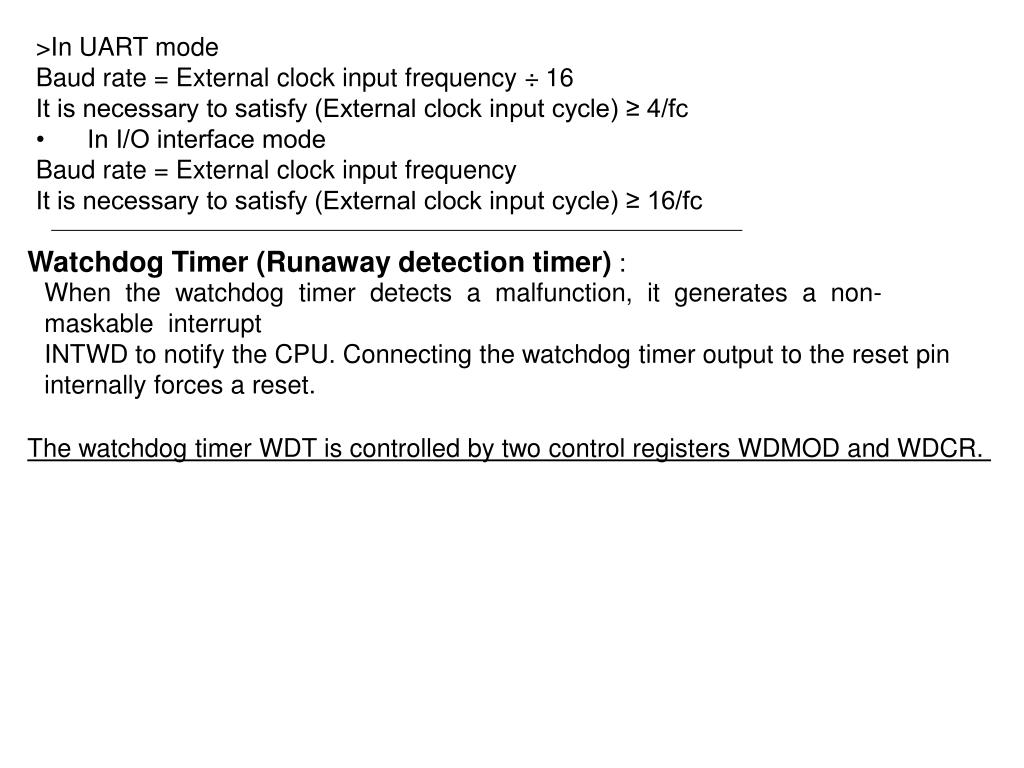

  9. >In UART mode Baud rate = External clock input frequency ÷ 16 It is necessary to satisfy (External clock input cycle) ≥ 4/fc • In I/O interface mode Baud rate = External clock input frequency It is necessary to satisfy (External clock input cycle) ≥ 16/fc Watchdog Timer (Runaway detection timer) : When the watchdog timer detects a malfunction, it generates a non-maskable interrupt INTWD to notify the CPU. Connecting the watchdog timer output to the reset pin internally forces a reset. The watchdog timer WDT is controlled by two control registers WDMOD and WDCR.

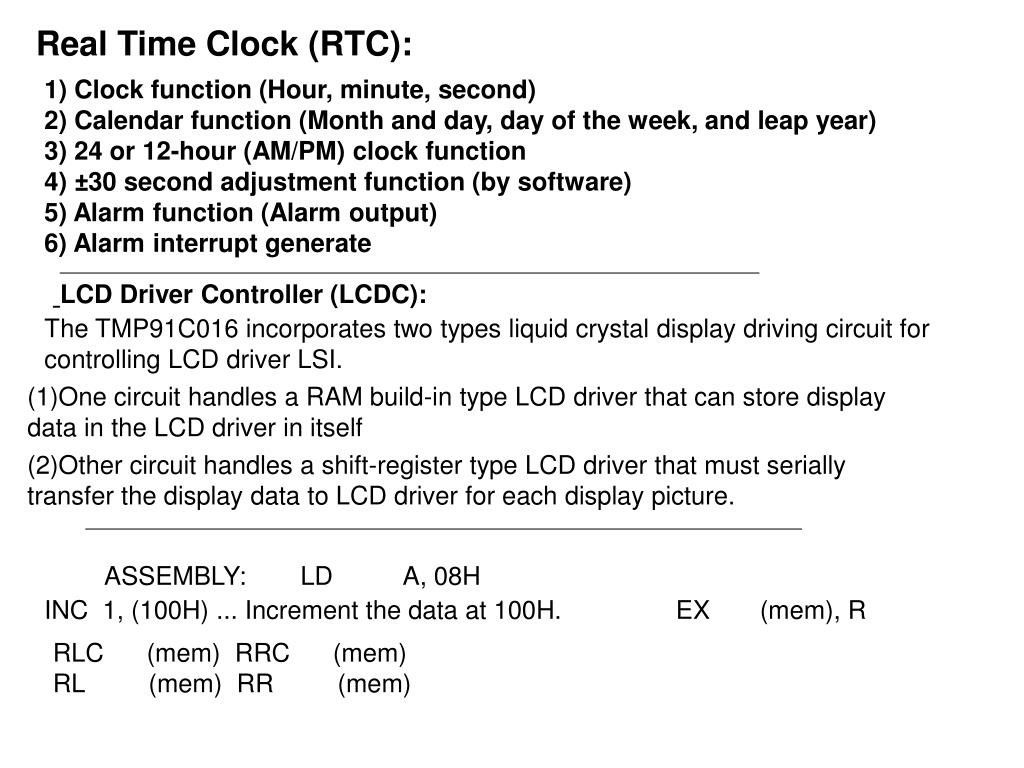

  10. Real Time Clock (RTC): 1) Clock function (Hour, minute, second) 2) Calendar function (Month and day, day of the week, and leap year) 3) 24 or 12-hour (AM/PM) clock function 4) ±30 second adjustment function (by software) 5) Alarm function (Alarm output) 6) Alarm interrupt generate LCD Driver Controller (LCDC): The TMP91C016 incorporates two types liquid crystal display driving circuit for controlling LCD driver LSI. (1)One circuit handles a RAM build-in type LCD driver that can store display data in the LCD driver in itself (2)Other circuit handles a shift-register type LCD driver that must serially transfer the display data to LCD driver for each display picture. ASSEMBLY: LD A, 08H INC 1, (100H) ... Increment the data at 100H. EX (mem), R RLC (mem) RRC (mem) RL (mem) RR (mem)

  11. The SFRs (Special function registers) include the I/O ports and peripheral control registers allocated to the 4-Kbyte address space from 000000H to 000FFFH. (1) I/O ports (2) I/O port control (3) Interrupt control (4) Chip select/wait control (5) Clock gear (6) DFM control (7) 8-bit timer (8) UART/SIO channel (9) DRAM controller (10) Watchdog timer (11) RTC (Real time clock) (12) Melody/alarm generator (13) MMU (14) LCD control

  12. General-purpose bank registers Four 32-bit registers (XWA, XBC, XDE, and XHL) are general-purpose registers and can be used as an accumulators and index registers. They can also be used as 16-bit registers (WA, BC, DE, and HL), in which case, the lower 16 bits of the 32- bit registers are assigned. 16-bit registers can be used as accumulators, index registers in index addressing mode, and displacement registers. They can also be used as two 8-bit general-purpose registers (W, A, B, C, D, E, H, and L) to function for example as accumulators.
