Drive IT cast iron motors, M2000 range

Drive IT cast iron motors, M2000 range. Low voltage motors. Drive IT low voltage cast iron motors, M2000 range. Frame sizes 71 to 355 Output power 0.18 to 250 kW Available 2-, 4-, 6- and 8 poles Voltage 220 - 690 V, 50/60 Hz Enclosure IP 55 Temperature rise class B Efficiency class eff2.

geneva
Download Presentation

Drive IT cast iron motors, M2000 range

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

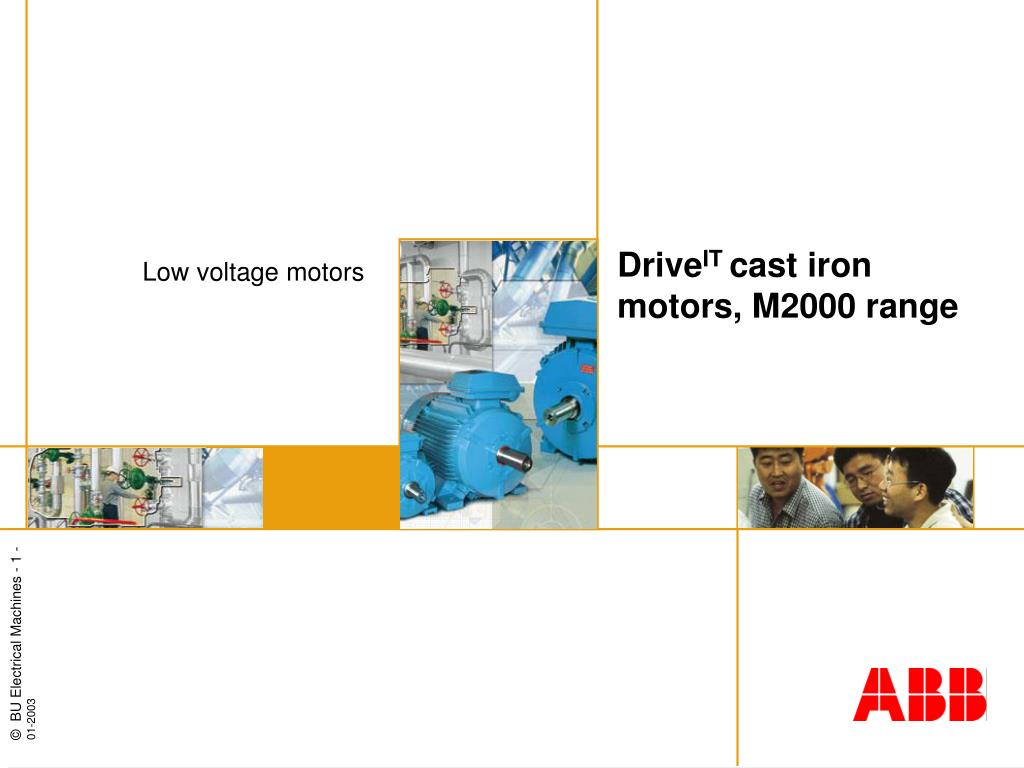

  1. DriveIT cast iron motors, M2000 range Low voltage motors

  2. DriveIT low voltage cast iron motors, M2000 range • Frame sizes 71 to 355 • Output power 0.18 to 250 kW • Available 2-, 4-, 6- and 8 poles • Voltage 220 - 690 V, 50/60 Hz • Enclosure IP 55 • Temperature rise class B • Efficiency class eff2

  3. Low voltage M2000 cast iron motors Terminal box Half key balancing Frame Bearings Cooling Lifting lugs Protection IP 55

  4. Safe and easy connection Sizes 71 to 132 Terminal box • Mounted on the top of motor • Degree of protection of standard terminal box IP 55 • Terminations suitable for cu- and al-cables • Sizes 71 to 250 with terminal box can on the right hand side • Terminal box can be turned • Sizes 71 to 132; 4 x 90° • Sizes 160 to 355; 2 x 180° • Cable glands included in sizes 280-355 Sizes 160 to 250 Sizes 280 to 355

  5. Reliability Bearings • High quality ball bearings • 2RS1 bearings in sizes 71 to 132 • 2Z-bearings in sizes160 to 225 • Regreasable bearings size250 to 355 • locked bearing in D-end • 63 size bearing in sizes 280 to 355

  6. Axial seal Radial seal Axial seal Axial seal Radial seal as option Motor sizes 280 to 355 Motor sizes 160 to 225 Motor sizes 71 to 132 Motor size 250 Reliability Bearing seals

  7. High mechanical strength • Colour: “ABB blue”,Munsell 8B 4.5/3.25 • Stator frame and bearing end shields • Sizes 71-250: two-pack acid polyurethane lacquer enamel • Sizes 280-400: two-pack epoxy paint • Fan cover (steel) • Sizes 71-250: two-pack acid polyurethane lacquer enamel • Sizes 280-400: two-pack epoxy paint

  8. ABB Motors 3 motor M2QA 90 S2 A IEC 34-1 3GQA 091101- ASA EFF2 Ins.cl. F 6205/C3 6205/C3 IP 55 A cos kW V r/min Hz j 1.5 50 2850 0.87 5.58 D 220-240 380-420Y 2850 50 1.5 3.23 0.87 440-480 1.73 3420 0.87 3.30 60 D No 329 11117711 21 kg High mechanical strength Abb Rating plate examples • Stainless steel • Fixed on the motor frame • For motor sizes 160 to 355 rating plate in table form

  9. Stock availability • Frame sizes 71 to 250 • 2-,4- and 6 pole motors. Foot- mounted and flange mounted. • Sizes 100-250 with terminal box right hand side (2- and 4-pole). • 8-pole motors and other variants as production order. • Frame sizes 280 to 315 • all 2-, 4– and 6-pole, foot- and flange-motors in stock • 8-pole motors as production order • Frame size 355 • available second quarter 2003

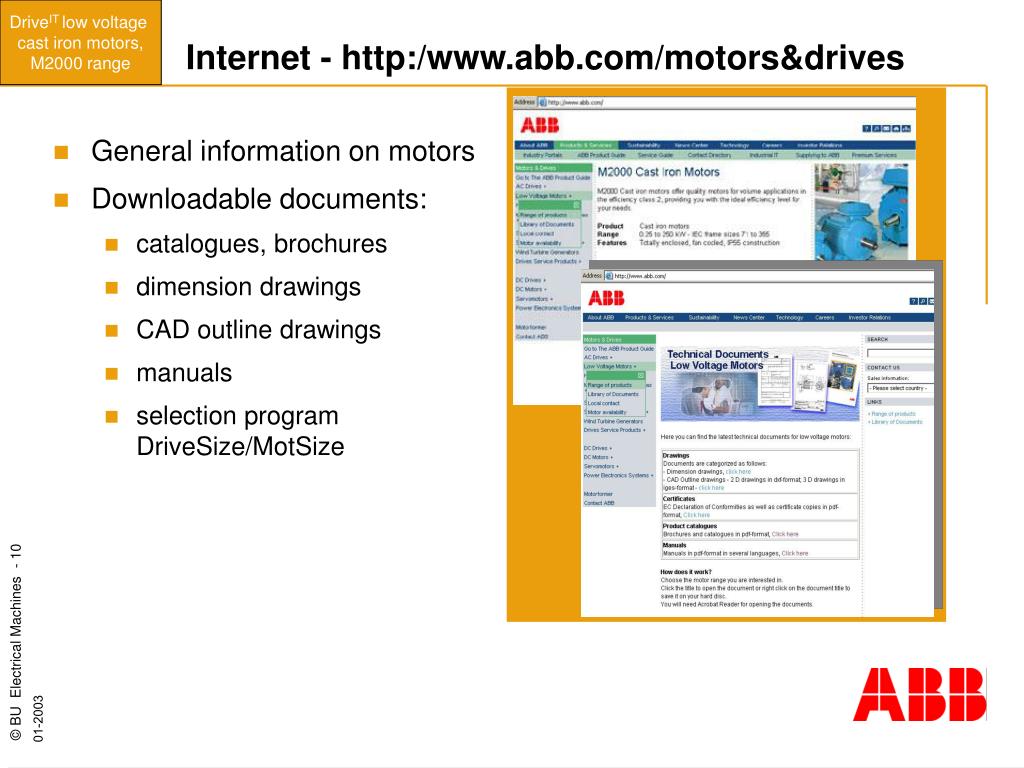

  10. Internet - http:/www.abb.com/motors&drives • General information on motors • Downloadable documents: • catalogues, brochures • dimension drawings • CAD outline drawings • manuals • selection program DriveSize/MotSize
