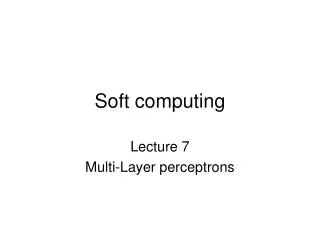

soft computing

Soft computing

Lecture 7

Multi-Layer perceptrons

problem of xor for simple perceptron
Problem of XOR for simple perceptron

X2

(0,1)

(1,1)

Class 1

Class 2

Class 1

Class 2

(0,0)

(1,0)

X1

In this case it is not possible to draw descriminant line

slide10

Kinds of sigmoid used in perceptrons

Exponential

Rational

Hyperbolic tangent

formulas for error back propagation algorithm
Formulas for error back propagation algorithm

(1)

Modification of weights of synapses

of jthneuron connected with ith ones,

xj – state of jthneuron (output)

(2)

For output layer

(3)

For hidden layers

k – number of neuron in next layer

connected with jth neuron

slide12

(2), (1)

(1)

(3), (1)

(1)

example of implementation
Example of implementation

TNN=Class(TObject)

public

State:integer;

N,NR,NOut,NH:integer;

a:real;

Step:real;

NL:integer; // ъюы-тю шЄхЁрЎшщ яЁш юсєўхэшш

S1:array[1..10000] of integer;

S2:array[1..200] of real;

S3:array[1..5] of real;

G3:array[1..5] of real;

LX,LY:array[1..10000] of integer;

W1:array[1..10000,1..200] of real;

W2:array[1..200,1..5] of real;

W1n:array[1..10000,1..200] of real;

W2n:array[1..200,1..5] of real;

SymOut:array[1..5] of string[32];

procedure FormStr;

procedure Learn;

procedure Work;

procedure Neuron(i,j:integer);

end;

slide14

Procedure of simulation of neuron;

procedure TNN.Neuron(i,j:integer);

var

k:integer; Sum:real;

begin

case i of

1: begin

if Form1.PaintBox1.Canvas.Pixels[LX[j],LY[j]]= clRed

then S1[j]:=1

else S1[j]:=0;

end;

2: begin

Sum:=0.0;

for k:=1 to NR do

Sum:=Sum + S1[k]*W1[k,j];

if Sum> 0 then S2[j]:=Sum/(abs(Sum)+Net.a)

else S2[j]:=0;

end;

3: begin

Sum:=0.0;

for k:=1 to NH do

Sum:=Sum + S2[k]*W2[k,j];

if Sum> 0 then S3[j]:=Sum/(abs(Sum)+Net.a)

else S3[j]:=0;

end;

end;

end;

slide15

Fragment of procedure of learning

For i:=1 to NR do

for j:=1 to NH do

begin

S:=0;

for k:=1 to NOut do

begin

if (S3[k]>0) and (S3[k]<1) then

D:=S3[k]*(1-S3[k])

else

D:=1;

W2n[j,k]:=W2[j,k]+Step*S2[j]*(G3[k]-S3[k])*D;

S:=S+D*(G3[k]-S3[k])*W2[j,k]

end;

if (S2[j]>0) and (S2[j]<1) then

D:=S2[j]*(1-S2[j])

else

D:=1;

S:=S*D;

W1n[i,j]:=W1[i,j]+Step*S*S1[i];

end;

end;

slide17

Some of the test data are now misclassified. The problem is that the network, with two hidden units, now has too much freedom and has fitted a decision surface to the training data which follows its intricacies in pattern space without extracting the underlying trends.

two tasks solved by mlp
Two tasks solved by MLP
  • Classification (recognition)
    • Usually binary outputs
  • Regression (approximation)
    • Analog outputs
theorem of kolmogorov
Theorem of Kolmogorov

“Any continuous function from input to output can be implemented in a three-layer net, given sufficient number of hidden units nH, proper nonlinearities, and weights.”

advantages and disadvantages of mlp with back propagation
Advantages and disadvantages of MLPwith back propagation
  • Advantages:
    • Guarantee of possibility of solving of tasks
  • Disadvantages:
    • Low speed of learning
    • Possibility of overfitting
    • Impossible to relearning
    • Selection of structure needed for solving of concrete task is unknown
increase of speed of learning
Increase of speed of learning
  • Preliminary processing of features before getting to inputs of percepton
  • Dynamical step of learning (in begin one is large, than one is decreasing)
  • Using of second derivative in formulas for modification of weights
  • Using hardware implementation
fight against of overfitting
Fight against of overfitting
  • Don’t select too small error for learning or too large number of iteration
choice of structure
Choice of structure
  • Using of constructive learning algorithms
    • Deleting of nodes (neurons) and links corresponding to one
    • Appending new neurons if it is needed
  • Using of genetic algorithms for selection of suboptimal structure
impossible to relearning
Impossible to relearning
  • Using of constructive learning algorithms
    • Deleting of nodes (neurons) and links corresponding to one
    • Appending new neurons if it is needed
