Soft computing methods

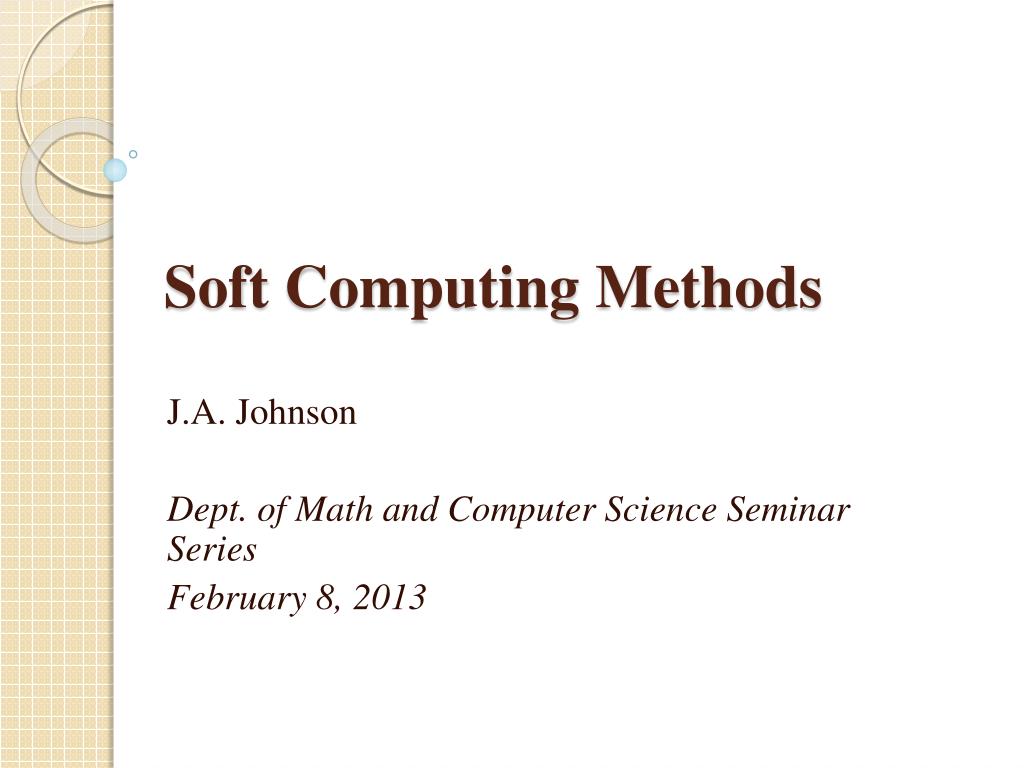

Soft Computing Methods

J.A. Johnson

Dept. of Math and Computer Science Seminar Series

February 8, 2013


Outline
Outline

  • Fuzzy Sets

  • Neural Nets

  • Rough Sets

  • Bayesian Nets

  • Genetic Algorithms

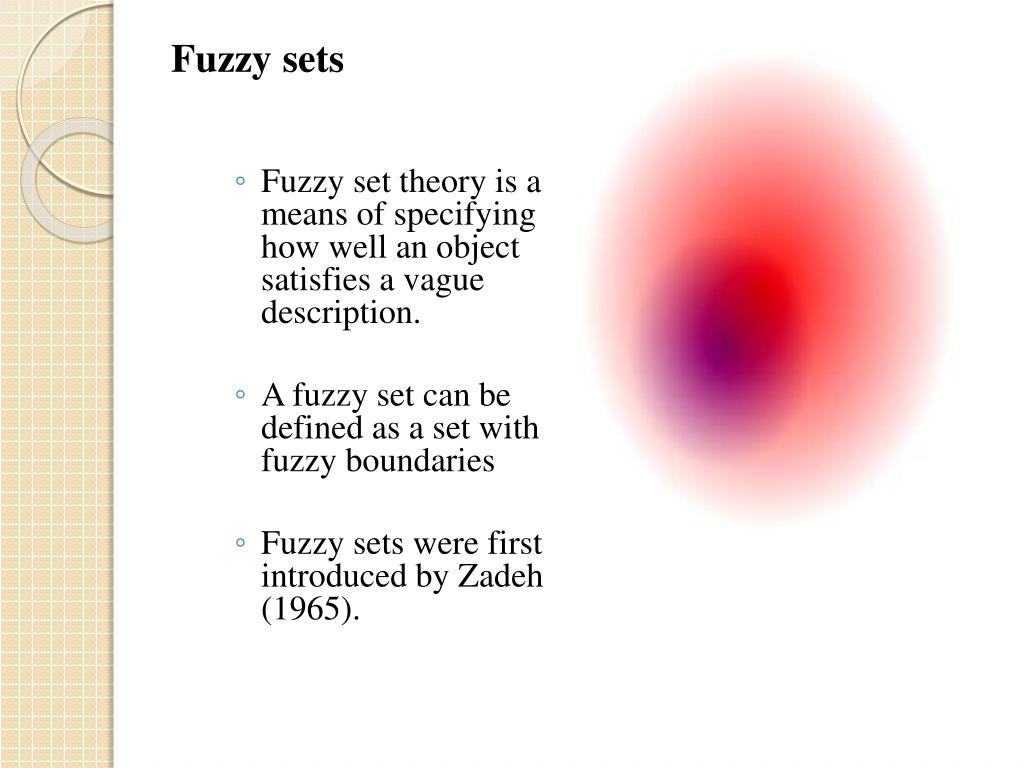

Fuzzy sets
Fuzzy sets

  • Fuzzy set theory is a means of specifying how well an object satisfies a vague description.

  • A fuzzy set can be defined as a set with fuzzy boundaries

  • Fuzzy sets were first introduced by Zadeh (1965).


How do we represent a fuzzy set in a computer

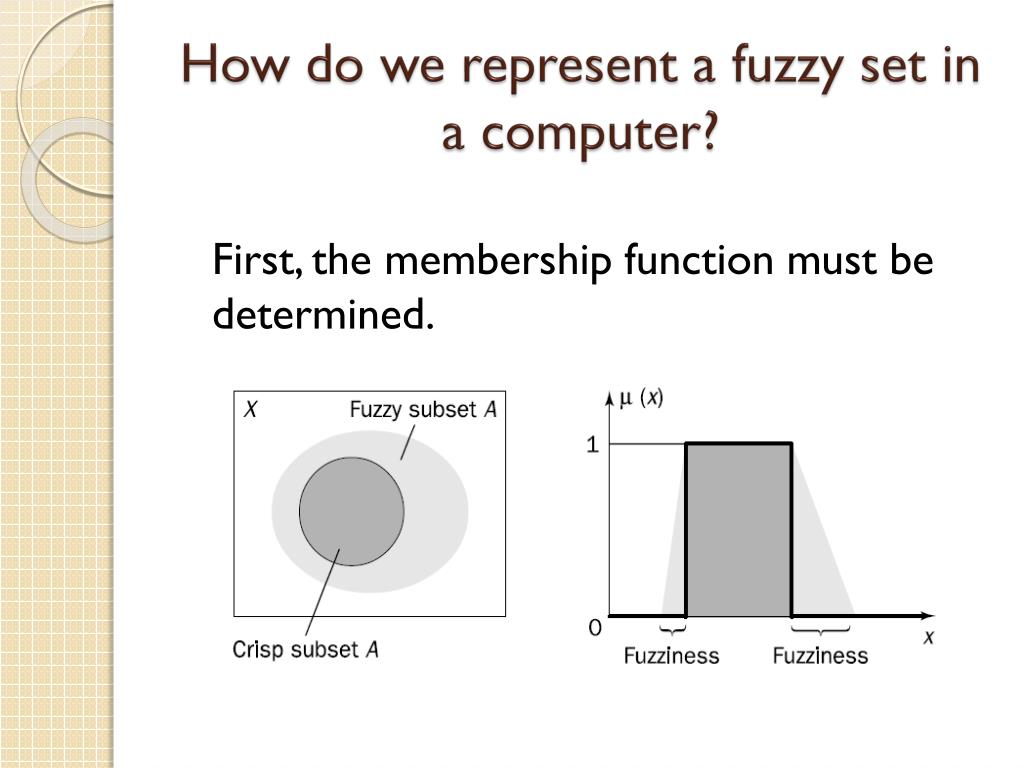

How do we represent a fuzzy set in a computer?

First, the membership function must be determined.

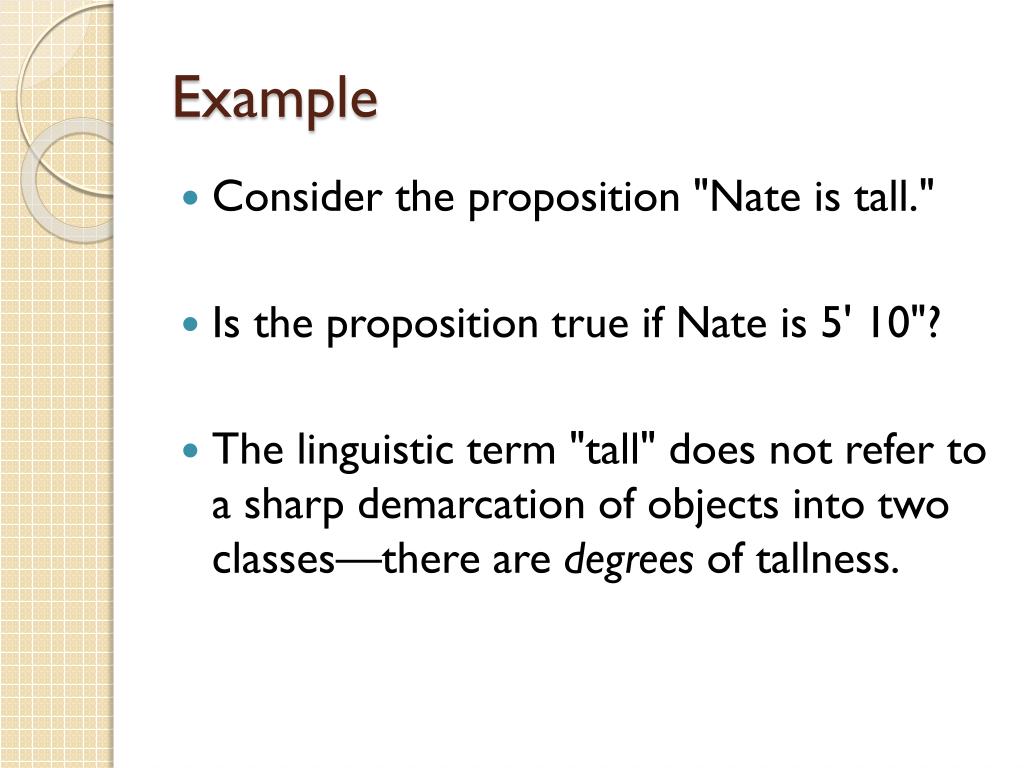

Example
Example

  • Consider the proposition "Nate is tall."

  • Is the proposition true if Nate is 5' 10"?

  • The linguistic term "tall" does not refer to a sharp demarcation of objects into two classes—there are degrees of tallness.


Soft computing methods

Fuzzy set theory treats Tall as a fuzzy predicate and says that the truth value of Tall(Nate) is a number between 0 and 1, rather than being either true or false.


Soft computing methods

Let A denote the fuzzy set of all tall employees and x be a member of the universe X of all employees. What would the function μA(x) look like


Soft computing methods

  • μA(x) = 1 if x is definitely tall

  • μA(x) = 0 if x is definitely not tall

  • 0 <μA(x) <1 for borderline cases


Soft computing methods

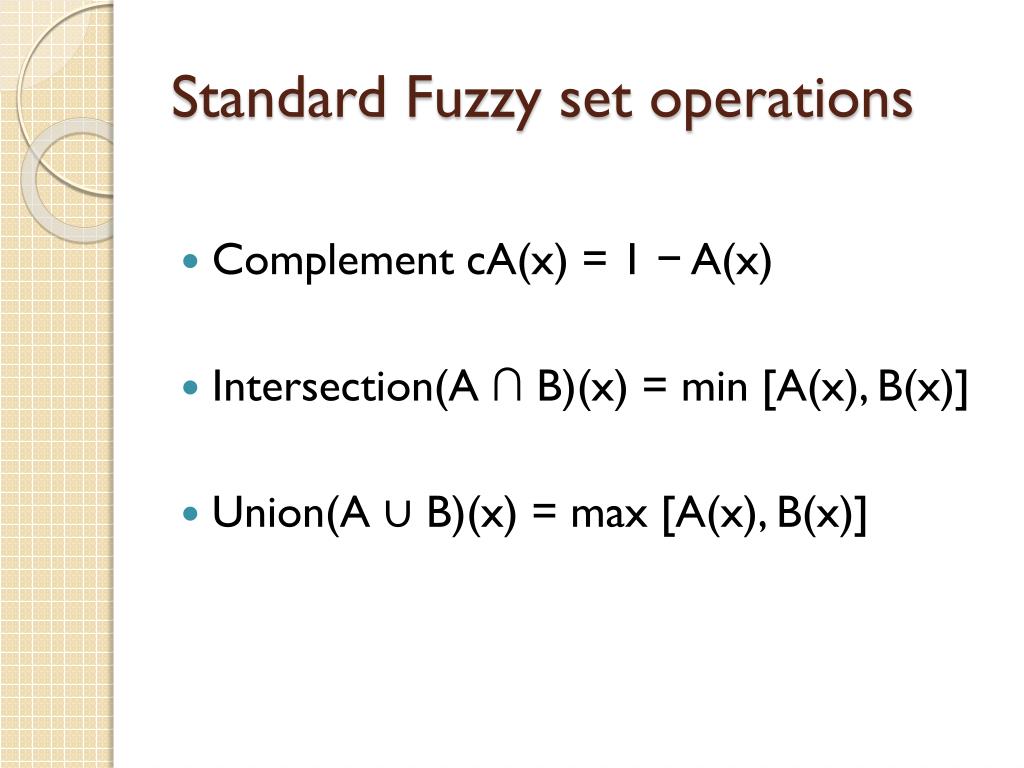

Standard f uzzy set operations
Standard Fuzzy set operations

  • Complement cA(x) = 1 − A(x)

  • Intersection(A ∩ B)(x) = min [A(x), B(x)]

  • Union(A ∪ B)(x) = max [A(x), B(x)]


Linguistic variables and hedges
Linguistic variables and hedges

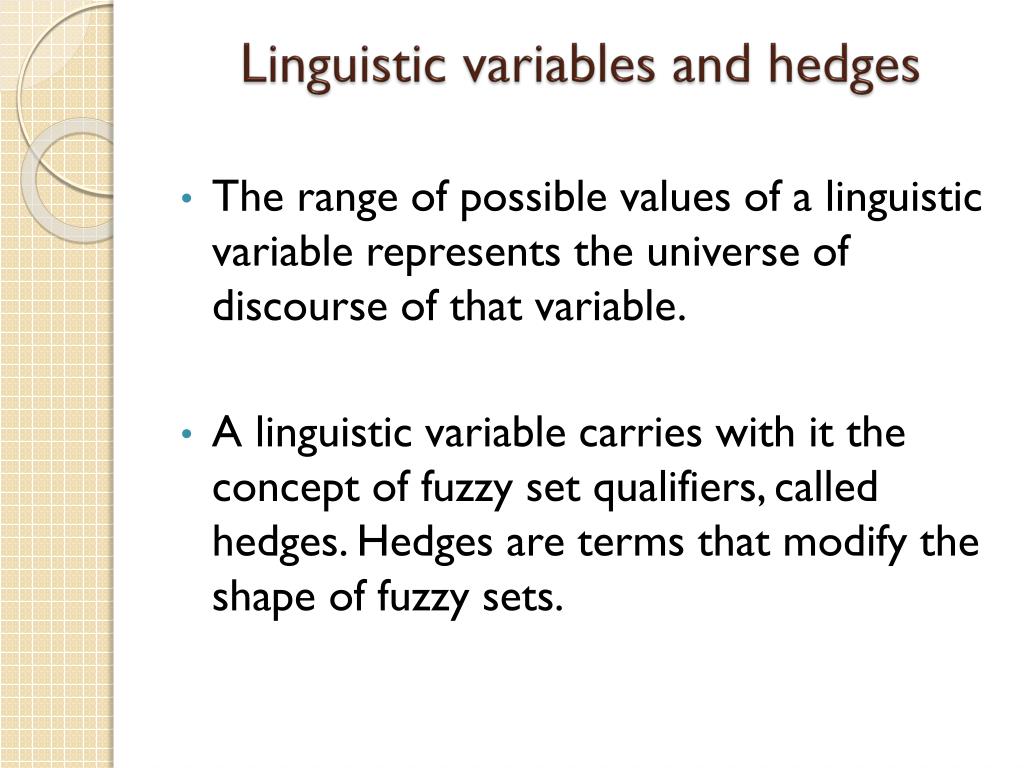

  • The range of possible values of a linguistic variable represents the universe of discourse of that variable.

  • A linguistic variable carries with it the concept of fuzzy set qualifiers, called hedges. Hedges are terms that modify the shape of fuzzy sets.


Soft computing methods


Representation of hedges
Representation of hedges concentration and creates a new subset.(very, extremely)


Representation of hedges1
Representation of hedges concentration and creates a new subset.(very, extremely)

Hedge Mathematical Expression Graphical representation


Soft computing methods

  • Fuzzy logic concentration and creates a new subset.(very, extremely) is not logic that is fuzzy, but logic that is used to describe fuzziness.

  • Fuzzy logic deals with degrees of truth.

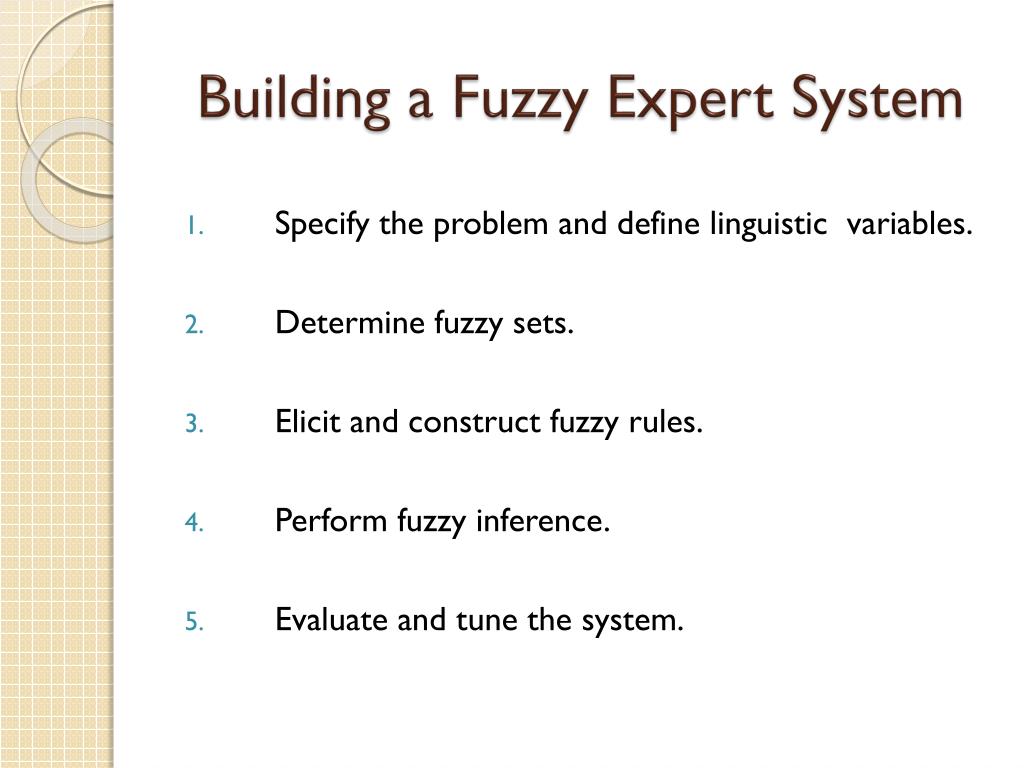

Building a fuzzy expert system
Building a Fuzzy Expert System concentration and creates a new subset.(very, extremely)

  • Specify the problem and define linguistic variables.

  • Determine fuzzy sets.

  • Elicit and construct fuzzy rules.

  • Perform fuzzy inference.

  • Evaluate and tune the system.


References
References concentration and creates a new subset.(very, extremely)

[1]Artificial Intelligence (A Guide to Intelligent Systems) 2nd Edition by MICHAEL NEGNEVITSKY

[2]An Introduction to Fuzzy Sets by WitoldPedrycz and Fernando Gomide

[3]Fuzzy Sets and Fuzzy Logic: Theory and Applications by Bo Yuan and George J.

[4]ELEMENTARY FUZZY MATRIX THEORY AND FUZZY MODELS FOR SOCIAL SCIENTISTS by W. B. VasanthaKandasamy

[5]Wikipedia: http://en.wikipedia.org/wiki/Fuzzy_logic

[6] Wikipedia: http://en.wikipedia.org/wiki/Fuzzy


References1
References concentration and creates a new subset.(very, extremely)

  • http://www.softcomputing.net/fuzzy_chapter.pdf

  • http://www.cs.cmu.edu/Groups/AI/html/faqs/ai/fuzzy/part1/faq-doc-18.html

  • http://www.mv.helsinki.fi/home/niskanen/zimmermann_review.pdf

  • http://sawaal.ibibo.com/computers-and-technology/what-limits-fuzzy-logic-241157.html

  • http://my.safaribooksonline.com/book/software-engineering-and-development/9780763776473/fuzzy-logic/limitations_of_fuzzy_systems#X2ludGVybmFsX0ZsYXNoUmVhZGVyP3htbGlkPTk3ODA3NjM3NzY0NzMvMTUy


Thanks to
Thanks to concentration and creates a new subset.(very, extremely)

  • Ding Xu

  • EdwigeNounangNgnadjo

    For help with researching content and preparation of overheads on Fuzzy Sets


Artificial neural networks
Artificial Neural Networks concentration and creates a new subset.(very, extremely)

Neuron:basic information-processing units

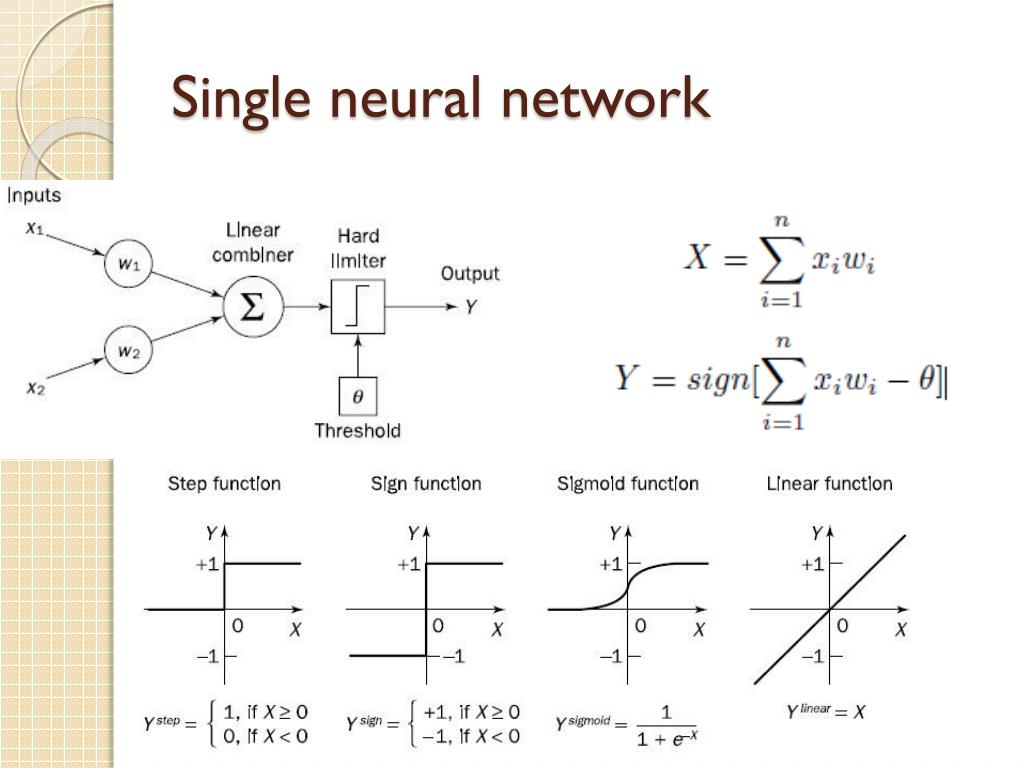

Single neural network
Single concentration and creates a new subset.(very, extremely)neural network

basic information-processing units


Single neural network1
Single concentration and creates a new subset.(very, extremely)neural network

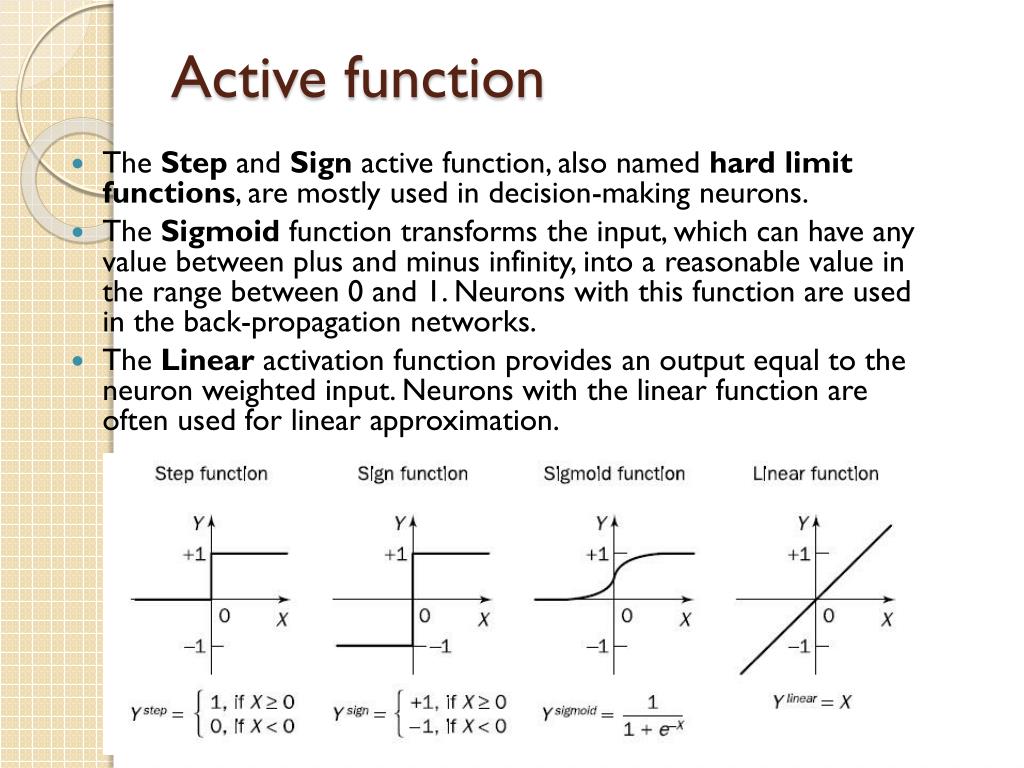

Active function
Active function concentration and creates a new subset.(very, extremely)

  • The Step and Sign active function, also named hard limit functions, are mostly used in decision-making neurons.

  • The Sigmoid function transforms the input, which can have any value between plus and minus infinity, into a reasonable value in the range between 0 and 1. Neurons with this function are used in the back-propagation networks.

  • The Linear activation function provides an output equal to the neuron weighted input. Neurons with the linear function are often used for linear approximation.


How the machine learns p erceptron neuron weight training

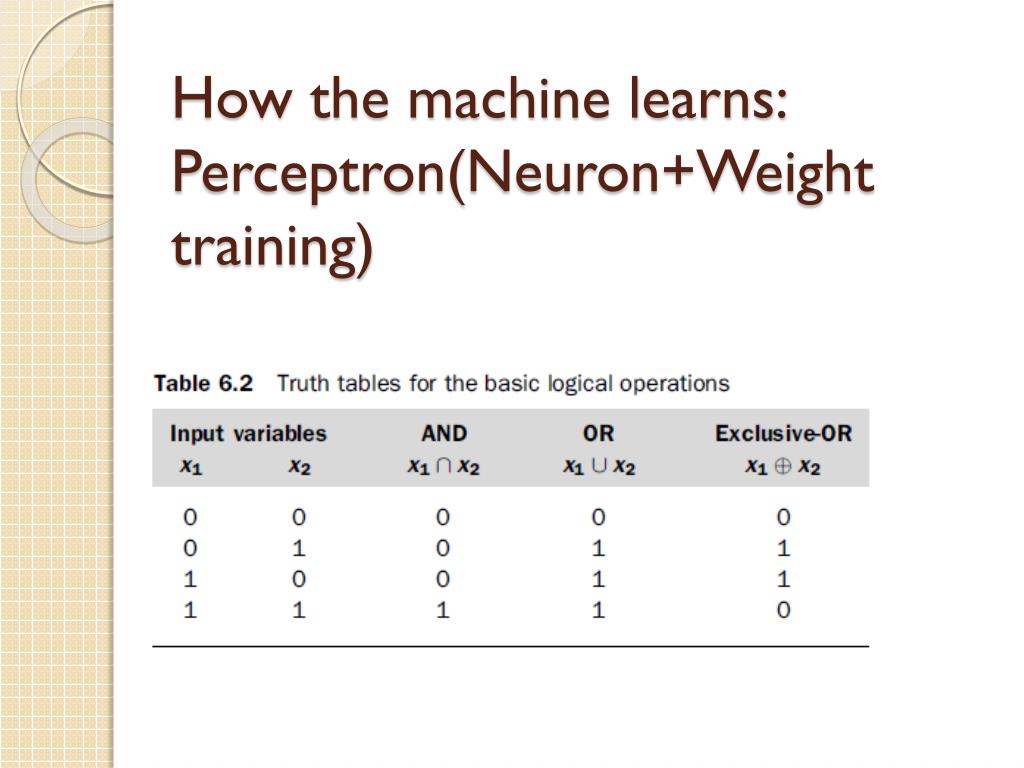

How the machine learns: concentration and creates a new subset.(very, extremely)Perceptron(Neuron+Weight training)


The algorithm of single neural network
The Algorithm of single neural network concentration and creates a new subset.(very, extremely)

  • Step 1: Initialization

    Set initial weights w1,w2, . . . ,wnand threshold to random numbers in the range [-0.5,0.5]。

  • Step 2: Activation

  • Step 3: Weight training

  • Step 4: Iteration

    Increase iteration p by one, go back to Step 2 and repeat the process until convergence.


How the machine learns

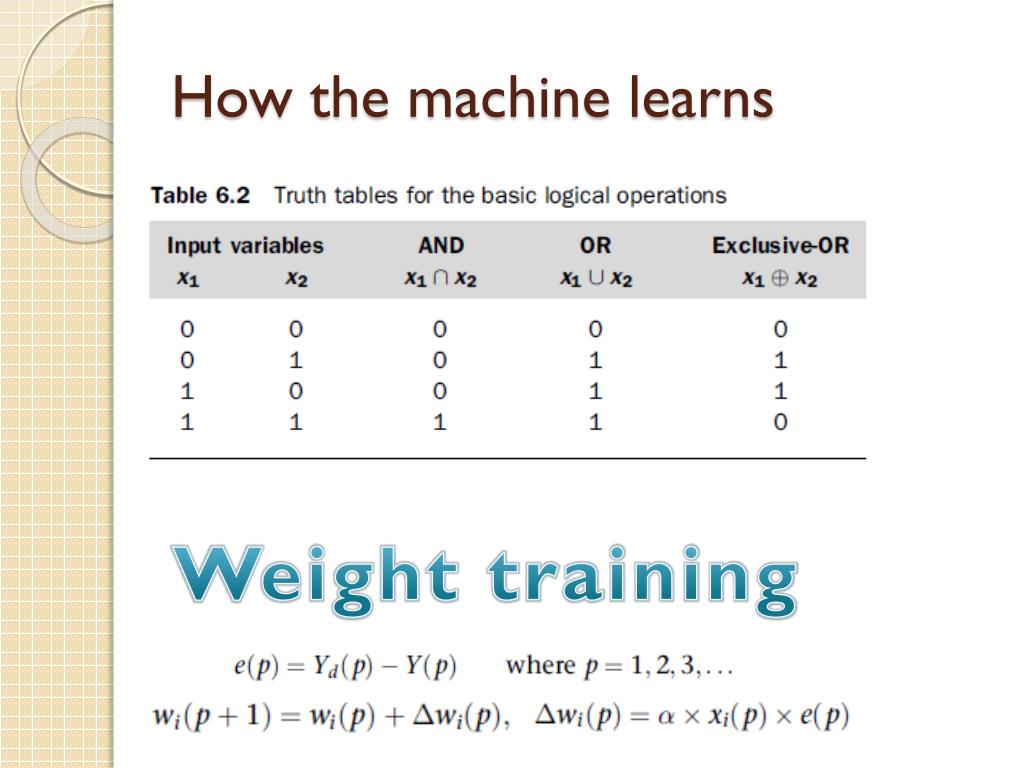

How the machine learns concentration and creates a new subset.(very, extremely)

Weight training

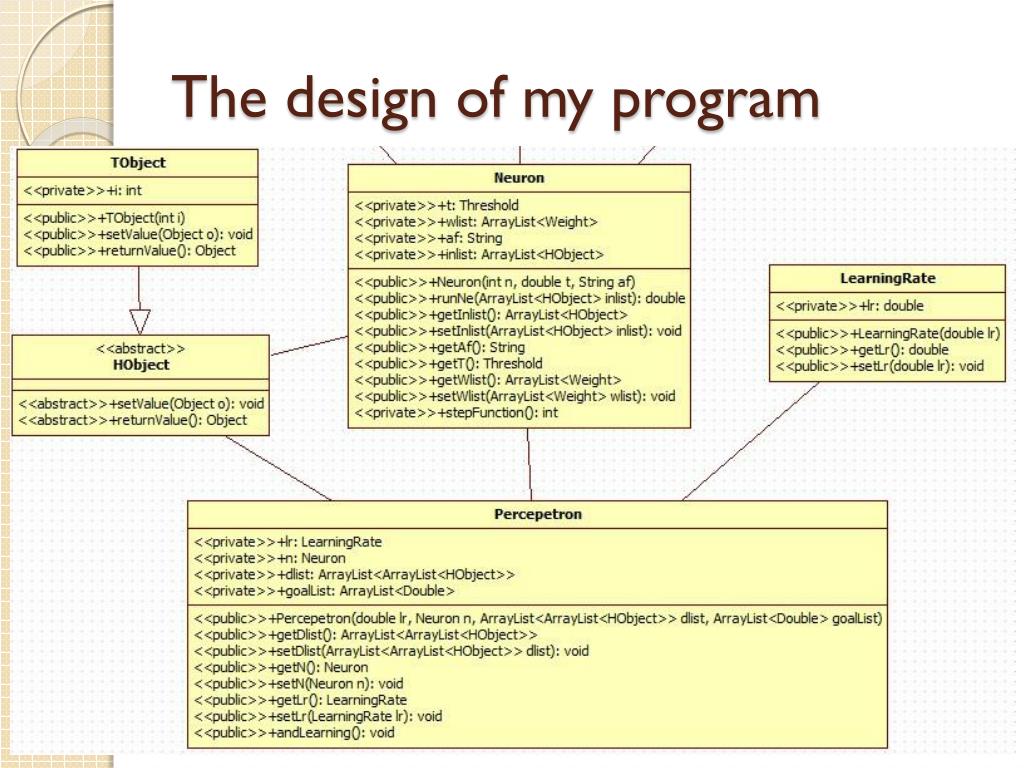

The design of my program
The design of my program concentration and creates a new subset.(very, extremely)


The design of my program1
The design of my program concentration and creates a new subset.(very, extremely)


The result
The result concentration and creates a new subset.(very, extremely)


Problem

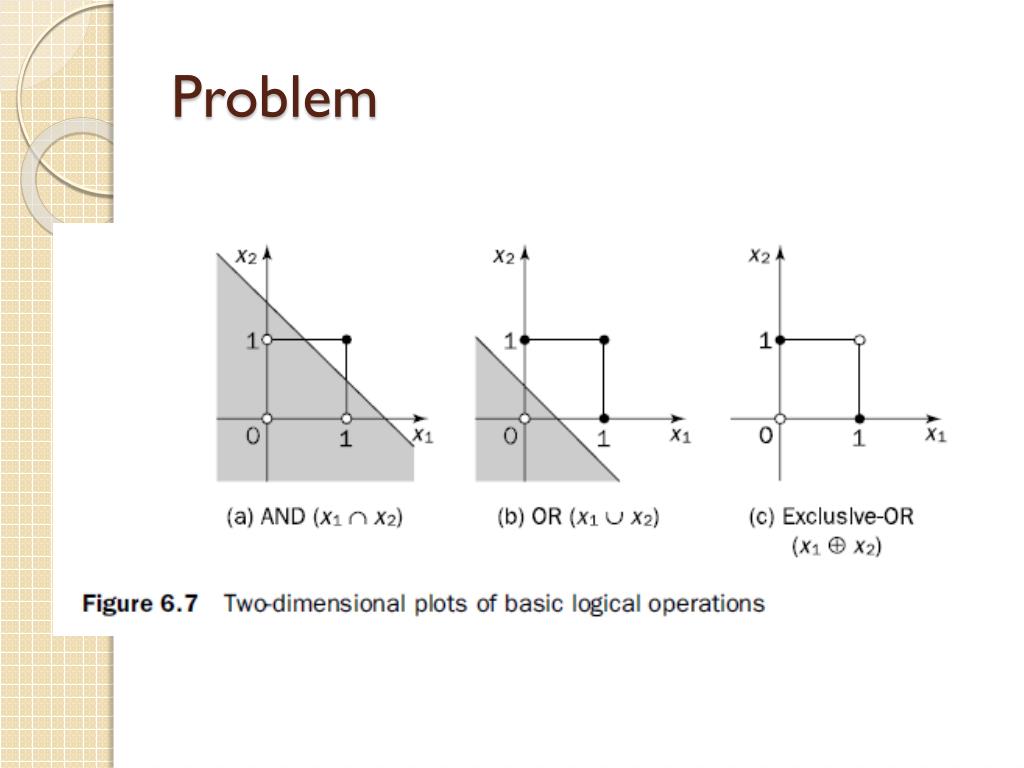

Problem concentration and creates a new subset.(very, extremely)

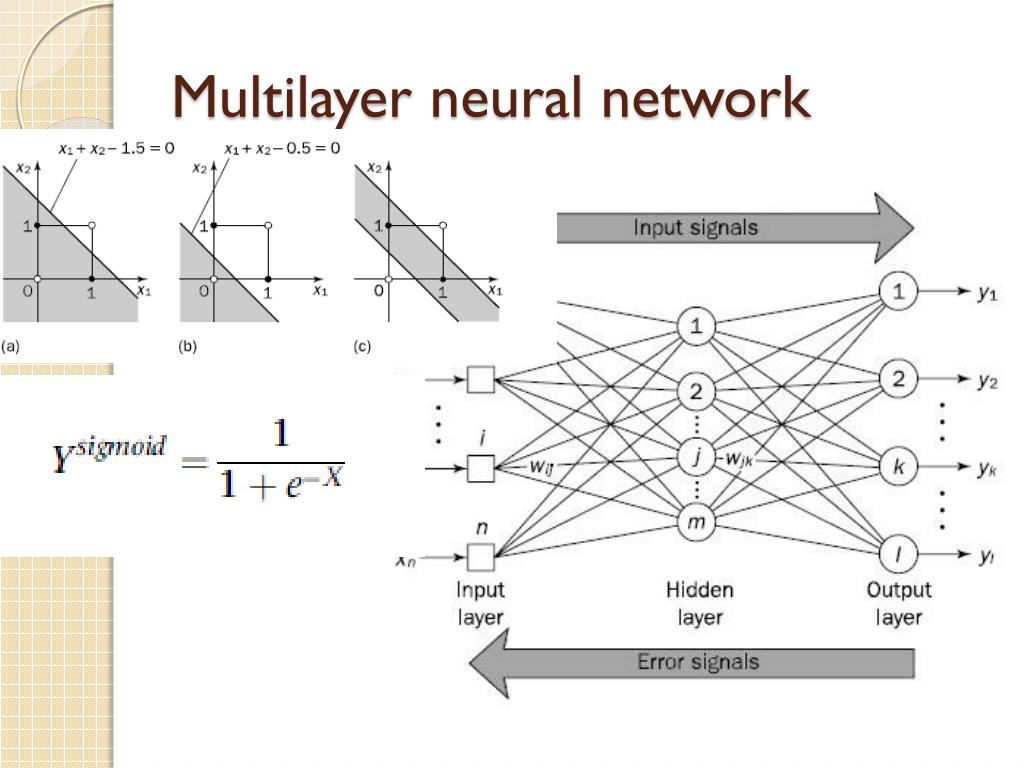

Multilayer neural network
Multilayer neural network concentration and creates a new subset.(very, extremely)


References2
References concentration and creates a new subset.(very, extremely)

  • http://pages.cs.wisc.edu/~bolo/shipyard/neural/local.html.

    2. Stuart J. Russell and Peter Norvig. Artificial Intelligence: A Modern Approach. Prentice Hall, 2009.

    3. http://www.roguewave.com/Portals/0/products/imsl-numerical-libraries/c-library/docs/6.0/stat/default.htm?turl=multilayerfeedforwardneuralnetworks.htm

    4. Notes on Multilayer, Feedforward Neural Networks , Lynne E. Parker.

    5.http://www.doc.ic.ac.uk/~nd/surprise_96/journal/vol4/cs11/report.html#Why use neural networks


Thanks to1
Thanks to concentration and creates a new subset.(very, extremely)

  • Hongming(Homer) Zuo

  • Danni Ren

    For help with researching content and preparation of overheads on Neural Nets


Rough sets
Rough Sets concentration and creates a new subset.(very, extremely)

  • Introduced by ZdzislawPawlak in the early 1980’s.

  • Formal framework for the automated transformation of data into knowledge.

  • Simplifies the search for dominant attributesin an inconsistent information table leading to derivation of shorter if-then rules.


Inconsistent information table

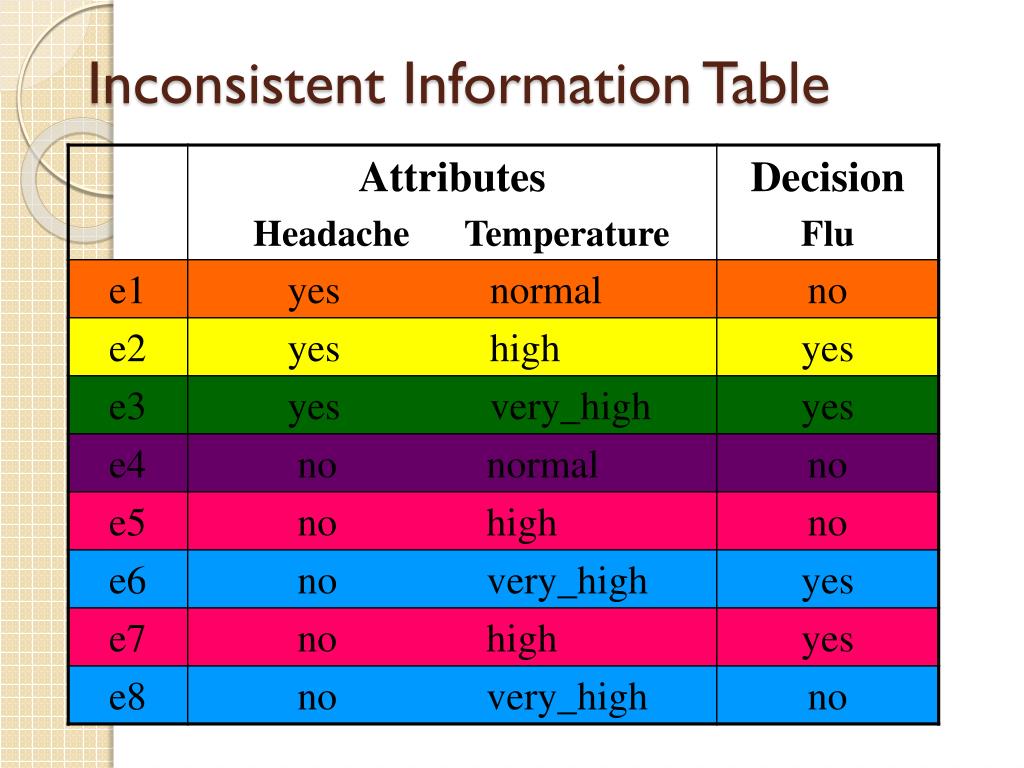

Inconsistent Information Table concentration and creates a new subset.(very, extremely)


Soft computing methods

Certain rules for examples are: concentration and creates a new subset.(very, extremely)

(Temperature, normal)  (Flu, no),

(Headache, yes) and (Temperature, high)  (Flu, yes),

(Headache, yes) and (Temperature, very_high)  (Flu, yes).

Uncertain (or possible) rules are:

(Headache, no)  (Flu, no),

(Temperature, high)  (Flu, yes),

(Temperature, very_high)  (Flu, yes).


Strength of a rule
Strength of a Rule concentration and creates a new subset.(very, extremely)

  • Weights

    • Coverage:

      # elements covered by rule

      # elements in universe

    • Support:

      # positive elements covered by rule

      # elements in universe

    • Degree of certainty:

      support x 100

      coverage


Attribute reduction

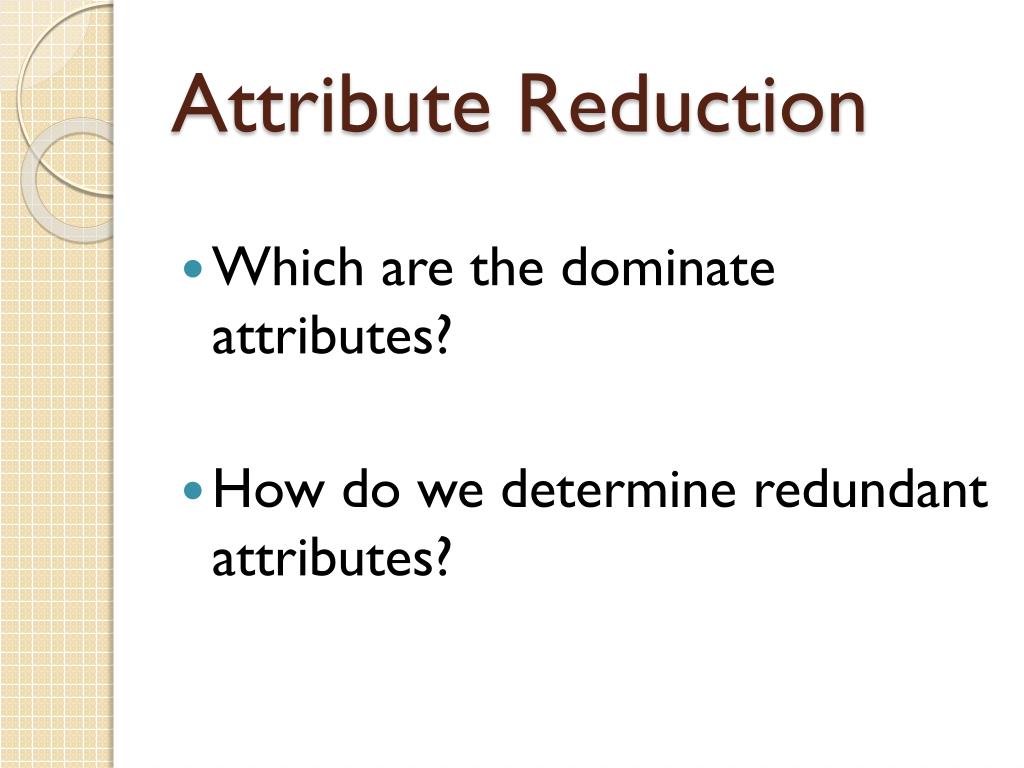

Attribute Reduction concentration and creates a new subset.(very, extremely)

  • Which are the dominate attributes?

  • How do we determine redundant attributes?


Indiscernibility classes
Indiscernibility Classes concentration and creates a new subset.(very, extremely)

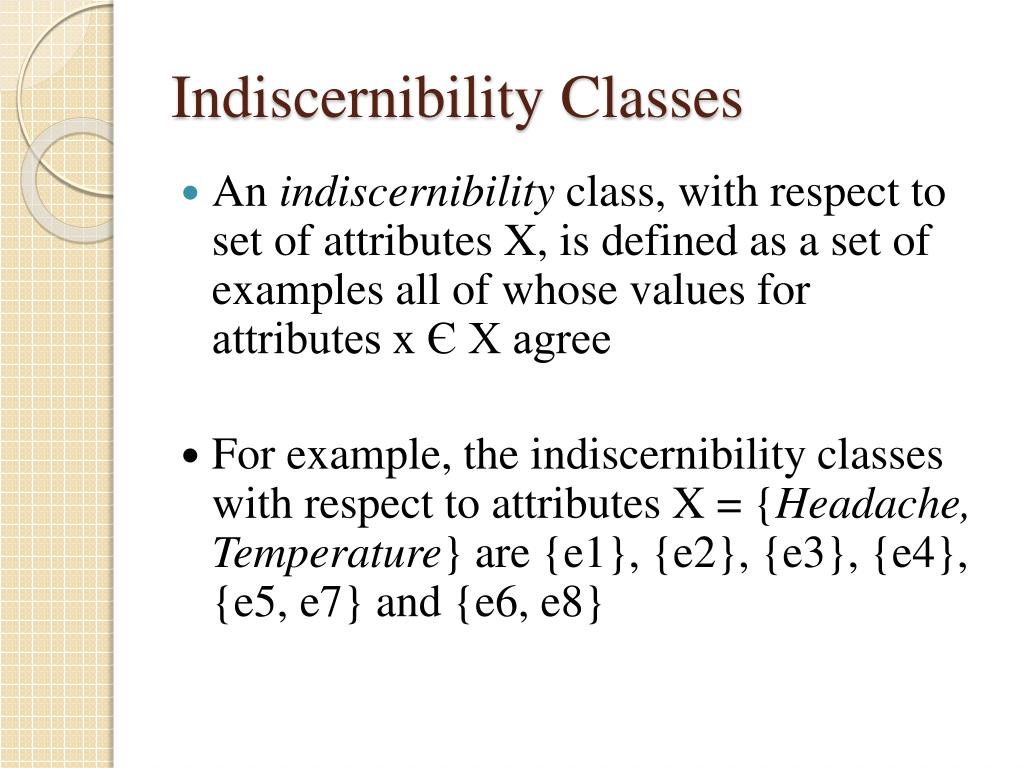

  • An indiscernibility class, with respect to set of attributes X, is defined as a set of examples all of whose values for attributes x Є X agree

  • For example, the indiscernibility classes with respect to attributes X = {Headache, Temperature} are {e1}, {e2}, {e3}, {e4}, {e5, e7} and {e6, e8}


Soft computing methods

Defined by a lower approximation and an upper approximation concentration and creates a new subset.(very, extremely)

The lower approximation is

X = i xi

The upper approximation is

X= (i x) i


Soft computing methods

e5 concentration and creates a new subset.(very, extremely)

e8

Lower and upper

approximations

of set X

upper approximation of X

Set X

lower approximation of X

e4

e7

e6

e1

e2

e3


Soft computing methods

If the concentration and creates a new subset.(very, extremely)indiscernibility classes with and without attribute A are identical then attribute A is redundant.


Inconsistent information table1
Inconsistent Information Table concentration and creates a new subset.(very, extremely)


Inconsistent information table2

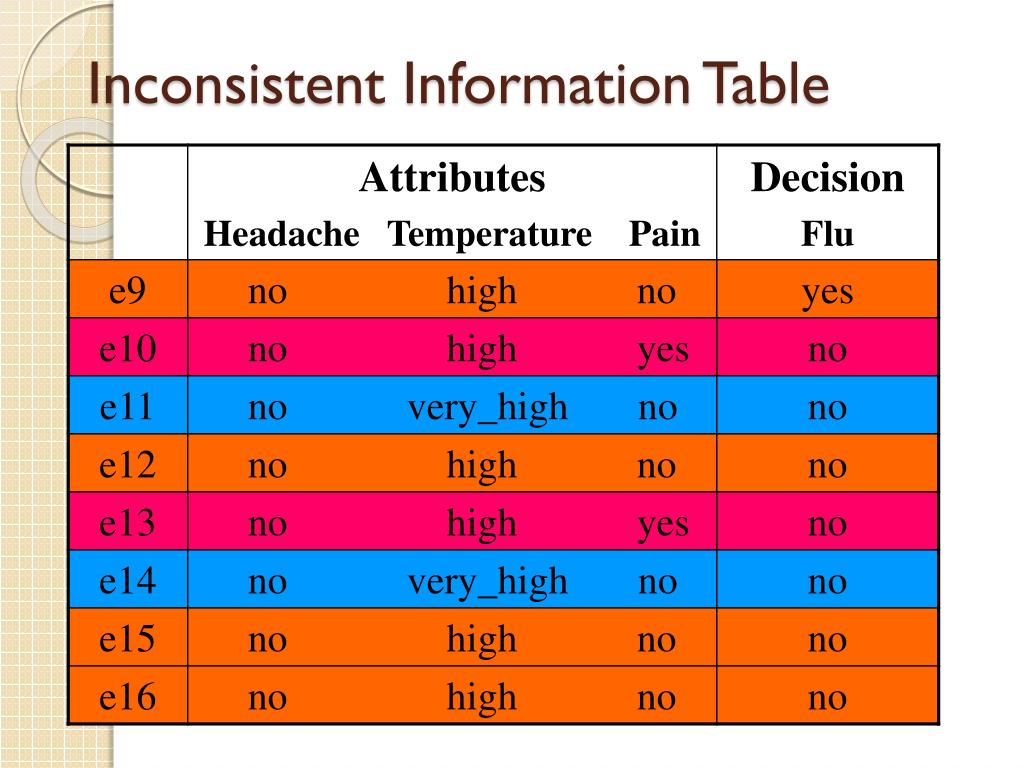

Inconsistent Information Table concentration and creates a new subset.(very, extremely)


Set x

Set X concentration and creates a new subset.(very, extremely)


Example identifying edible mushrooms with ila algorithm

Example: concentration and creates a new subset.(very, extremely)Identifying Edible Mushrooms with ILA Algorithm


Mushrooms
Mushrooms concentration and creates a new subset.(very, extremely)


Mushroom dataset
Mushroom Dataset concentration and creates a new subset.(very, extremely)

Dataset contains 8124 entries of different mushrooms

Each entry (mushroom) has 22 different attributes


22 different attributes

Cap-shape concentration and creates a new subset.(very, extremely)

Cap-surface

Cap-color

Bruises

Odor

Gill-attachment

Gill-spacing

Gill-size

Gill-color

Stalk-shape

Stalk-root

Stalk-surface-above-ring

Stalk-surface-below-ring

Stalk-color-above-ring

Stalk-color-below-ring

Veil-type

Veil-color

Ring-number

Ring-type

Spore-print-color

Population

Habitat

22 different attributes


Soft values for attributes

almond concentration and creates a new subset.(very, extremely)

anise

creosote

fishy

foul

musty

none

pungent

spicy

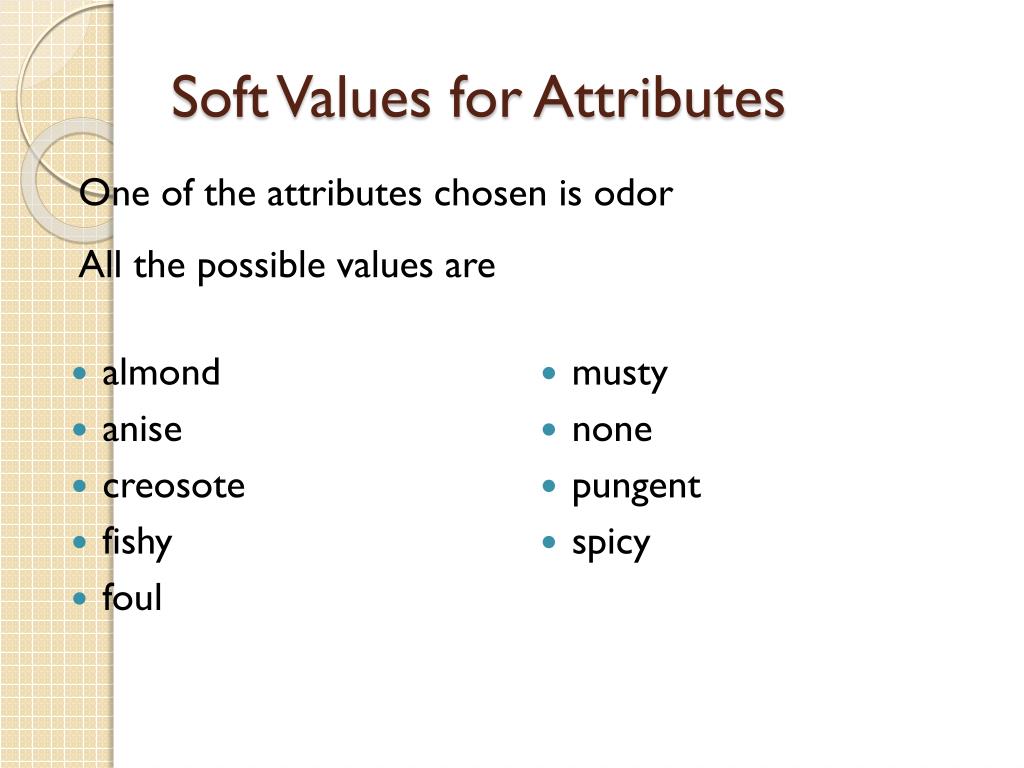

Soft Values for Attributes

One of the attributes chosen is odor

All the possible values are


Example of the dataset
Example of the dataset concentration and creates a new subset.(very, extremely)

  • p,x,s,n,t,p,f,c,n,k,e,e,s,s,w,w,p,w,o,p,k,s,u

  • e,x,s,y,t,a,f,c,b,k,e,c,s,s,w,w,p,w,o,p,n,n,g

  • e,b,s,w,t,l,f,c,b,n,e,c,s,s,w,w,p,w,o,p,n,n,m

  • p,x,y,w,t,p,f,c,n,n,e,e,s,s,w,w,p,w,o,p,k,s,u

  • e,x,s,g,f,n,f,w,b,k,t,e,s,s,w,w,p,w,o,e,n,a,g


Ila algorithm
ILA Algorithm concentration and creates a new subset.(very, extremely)

  • Was invented by Mehmed R. Tolun and Saleh M. Abu-Soud

  • It is used for data mining

  • Runs in a stepwise forward iteration

  • Searches for a description that covers a relatively large number of data

  • Outputs IF-THEN rules


General requirements
General Requirements: concentration and creates a new subset.(very, extremely)

  • Examples are listed in a tabular form where each row corresponds to an example and each column contains attribute values.

  • A set of m training examples each example composed of k attributes and a class attribute with n possible decisions.

  • A rule set R with an initial value of Ø

  • All rows in the table are initially unmarked


Ila algorithm steps
ILA Algorithm Steps concentration and creates a new subset.(very, extremely)

  • Step 1: Partition the table containing m examples into n sub-tables. One table for each possible value of the class attribute.

    ( Steps 2 through 8 are repeated for each sub-table )

  • Step 2: Initialize attribute combination count j as j = 1.

  • Step 3: For the sub-table under consideration, divide the attribute list into distinct combinations, each combination with j distinct attributes.


Ila algorithm steps1
ILA Algorithm Steps concentration and creates a new subset.(very, extremely)

  • Step 4: For each combination of attributes, count the number of occurrences of attribute values that appear under the same combination of attributes in unmarked rows of the sub-table under consideration but at the same time that should not appear under the same combination of attributes of other sub-tables. Call the first combination with the maximum number of occurrences as max-combination.


Ila algorithm steps2
ILA Algorithm Steps concentration and creates a new subset.(very, extremely)

  • Step 5: If max-combination = Ø

  • Step 6: Mark all rows of the sub-table under consideration, in which the values of max-combination appear, as classified.

  • Step 7: Add a rule to R whose left hand side comprise attribute names of max-combination with their values separated by AND operator(s) and its right hand side contains the decision attribute value associated with the sub-table.

  • Step 8: If all rows are marked as classified, then move on to process another sub-table and go to Step 3. Otherwise (i.e., if there are still unmarked rows) go to Step 4. If no sub-tables are available, exit with the set of rules obtained so far.


Output of the ila algoritm

25 Rules (first 12 Rules) concentration and creates a new subset.(very, extremely)

If stalk-color-above-ring=gray then edible.

If odor=almond then edible.

If odor=anise then edible.

If population=abundant then edible.

If stalk-color-below-ring=gray then edible.

If habitat=waste then edible.

If stalk-color-above-ring=orange then edible.

If population=numerous then edible.

If ring-type=flaring then edible.

If cap-shape=sunken then edible.

If spore-print-color=black and odor=none then edible.

If spore-print-color=brown and odor=none then edible.

RuleNo TP FN Error

1- 576 0 0.0

2- 400 0 0.0

3- 400 0 0.0

4- 384 0 0.0

5- 384 0 0.0

6- 192 0 0.0

7- 192 0 0.0

8- 144 0 0.0

9- 48 0 0.0

10- 32 0 0.0

11- 608 0 0.0

12- 608 0 0.0

Output of the ILA algoritm


Output of the ila algorithm 2

25 Rules (Remaining 13 rules) concentration and creates a new subset.(very, extremely)

If stalk-color-below-ring=brown and gill-spacing=crowded then edible.

If spore-print-color=white and ring-number=two then edible.

If odor=foul then poisonous.

If gill-color=buff then poisonous.

If odor=pungent then poisonous.

If odor=creosote then poisonous.

If spore-print-color=green then poisonous.

If odor=musty then poisonous.

If stalk-color-below-ring=yellow then poisonous.

If cap-surface=grooves then poisonous.

If cap-shape=conical then poisonous.

If stalk-surface-above-ring=silky and gill-spacing=close then poisonous.

If population=clustered and cap-color=white then poisonous.

RuleNo TP FN Error

13- 48 0 0.0

14- 192 0 0.0

15- 2160 0 0.0

16- 1152 0 0.0

17- 256 0 0.0

18- 192 0 0.0

19- 72 0 0.0

20- 36 0 0.0

21- 24 0 0.0

22- 4 0 0.0

23- 1 0 0.0

24- 16 0 0.0

25- 3 0 0.0

Output of the ILA algorithm 2


Introduction to bayesian networks
Introduction to Bayesian Networks concentration and creates a new subset.(very, extremely)

  • A probabilistic graphical model that represents a set of random variables and their conditional dependencies via a directed acyclic graph (DAG).

  • Nodes, which are not connected, represent variables which are conditionally independent of each other.


Introduction to bayesian networks1
Introduction to Bayesian Networks concentration and creates a new subset.(very, extremely)

  • Each node is associated with a probability function that takes as input a particular set of values for the node's parent variables and gives the probability of the variable represented by the node.

  • If the parents are m Boolean variables then the probability function could be represented by a table of 2m entries, one entry for each of the 2m possible combinations of its parents being true or false.


Example1
Example concentration and creates a new subset.(very, extremely)

  • Suppose there are two events which could cause grass to be wet: either the sprinkler is on or it's raining. Also, suppose that the rain has a direct effect on the use of the sprinkler (namely that when it rains, the sprinkler is usually not turned on). Then the situation can be modeled with a Bayesian network . All three variables have two possible values, T (for true) and F (for false).


Soft computing methods

The joint probability function is: concentration and creates a new subset.(very, extremely)

P(G,S,R) = P(G | S,R)P(S | R)P(R)

where the names of the variables have been abbreviated to G = Grass wet, S = Sprinkler, and R = Rain.


Soft computing methods


Example continued
Example (continued) that it is raining, given the grass is wet?“


Applications
Applications that it is raining, given the grass is wet?“

  • Biology and bioinformatics (gene regulatory networks, protein structure, gene expression analysis).

  • Medicine.

  • Document classification.

  • Information retrieval.

  • Image processing.

  • Data fusion.

  • Decision support systems.

  • Engineering.

  • Gaming.

  • Law.


Reference
Reference that it is raining, given the grass is wet?“

[1] "Bayesian Probability Theory" in George F. Luger, William A. Stubbleeld, "Artificial Intelligence: Structures and Strategies for Complex Problem Solving", Second Edition, The Benjamin/Cummings Publishing Company, Inc., ISBN 0-8053-4780-1.

[2] "Bayesian Reasoning" in Michael Negnevitsky, "Artificial Intelligence: A Guide to Intelligent Systems", Third Edition, Pearson Education Limited, ISBN 978-1-4082-2574-5.

[3] "Bayesian Network" in http://en.wikipedia.org/wiki/Bayesian_network.

[4] "Probabilistic Graphical Model" in http://en.wikipedia.org/wiki/Graphical_model.

[5] "Random Variables" in http://en.wikipedia.org/wiki/Random_variables.

[6] "Conditional Independence" in http://en.wikipedia.org/wiki/Conditional_independence.


Reference1
Reference that it is raining, given the grass is wet?“

[7] "Directed Acyclic Graph" in http://en.wikipedia.org/wiki/Directed_acyclic_graph.

[8] "Inference" in http://en.wikipedia.org/wiki/Inference.

[9] "Machine Learning" in http://en.wikipedia.org/wiki/Machine_learning.

[10] "History" in http://en.wikipedia.org/wiki/Bayesian_network.

[11] "Example" in http://en.wikipedia.org/wiki/Bayesian_network.

[12] "Applications" in http://en.wikipedia.org/wiki/Bayesian_network.

[13] "A simple Bayesian Network" figure in http://en.wikipedia.org/wiki/File:SimpleBayesNet.svg.


Reference2
Reference that it is raining, given the grass is wet?“

[14] "Representation" in http://www.cs.ubc.ca/ murphyk/Bayes/bnintro.html#repr.

[15] "Conditional Independence in Bayes Nets" in http://www.cs.ubc.ca/ murphyk/Bayes/bnintro.html#repr.

[16] "Representation Example" figure in http://www.cs.ubc.ca/ murphyk/Bayes/bnintro.html#repr.

[17] "Conditional Independence" figure in http://www.cs.ubc.ca/ murphyk/Bayes/bnintro.html#repr.

[18] "Inference and Learning" in http://en.wikipedia.org/wiki/Bayesian_network.

[19] "Decision Theory" in http://www.cs.ubc.ca/ murphyk/Bayes/bnintro.html#repr.


Thanks to2
Thanks to that it is raining, given the grass is wet?“

  • Sheikh ShushmitaJahan

    For help with researching content and preparation of overheads on Bayesean Nets


Genetic algorithms
Genetic Algorithms that it is raining, given the grass is wet?“

  • Use random numbers to search for near-optimal solutions.

  • Use a process similar to the Theory of Evolution by Natural Selection proposed by Charles Darwin in his book On The Origin of Species.

  • Apply the same rules as Natural Selection in order to find near-optimal solutions.


Soft computing methods


Candidate solutions
Candidate Solutions that it is raining, given the grass is wet?“

  • An array of bytes:

    • 00010101 00111010 11110000

  • May be converted to string representation


  • Fitness function
    FITNESS FUNCTION that it is raining, given the grass is wet?“

    • May be an integer representation (or score)

    • There should be a preset maximum or minimum score (to help with termination)

    • One of the bigger challenges of designing a genetic algorithm


    Crossover
    Crossover that it is raining, given the grass is wet?“

    • An operation which is analogous to biological reproduction, in which parts of parent solutions are combined in order to produce offspring solutions.

    • Typically, a single crossover point is chosen and the data beyond it are swapped in the children.


    Crossover1
    crossover that it is raining, given the grass is wet?“


    Mutation
    Mutation that it is raining, given the grass is wet?“

    • An operation aimed at including diversity into successive generations of solutions.

    • A mutation takes an existing solution to a problem and alters it in some way before including it in the next generation.


    Soft computing methods


    Initialization
    Initialization solutions are produced and added to the population.

    • The creation of an initial population of solutions

    • Random bytes or strings are generated:

      solutions = new array(size)

      for (i = 0; i < size; i++)

      new solution

      solution.value = random bytes or strings

      solution.fitness = 0

      endfor


    Selection
    Selection solutions are produced and added to the population.

    Individual solutions are measured against the fitness function, and marked for either reproduction or removal


    Selection cont
    Selection Cont. solutions are produced and added to the population.

    for (i = 0; i < size; i++)

    solutions[i].fitness = fitnessFunction(i)

    endfor

    next = new array(maxSolutionsPerGeneration)

    fittest = solutions[0]

    for (i = 0; i < maxSolutionsPerGeneration; i++)

    for (j = 0; j < size; j++)

    if (fittest.fitness < solutions[j].fitness)

    fittest = solutions[j]

    endif

    endfor

    next[i] = fittest

    endfor

    solutions = next


    Overall algorithm
    Overall Algorithm solutions are produced and added to the population.

    initial population

    fitness function on individual solutions of initial population

    average fitness of all solutions

    loop (until terminating condition)

    select x solutions for reproduction

    combine pairs randomly

    mutate

    evaluate fitness

    determine average fitness

    end loop


    References3
    References solutions are produced and added to the population.


    Thanks to3
    Thanks to solutions are produced and added to the population.

    • Devon Noel de Tilly

    • Tyler Chamberland

      For help with researching content and preparation of overheads on Genetic Algorithms.


    Hybridization fs nn
    Hybridization (FS/NN) solutions are produced and added to the population.

    Fuzzy systems lack the capabilities of machine learning , as well as neural network-type memory and pattern recognition, therefore, hybrid systems(eg, neurofuzzy systems) are becoming more popular for specific applications.


    Hybridization rs nn
    Hybridization (RS/NN) solutions are produced and added to the population.

    Rough sets paradigm permits reduction of the number of inputs for a neural network as well as assists with the assignment of initial weights that are likely to cause the NN to converge more quickly.
