dod live virtual constructive lvc integrating architecture study 9 may 2007

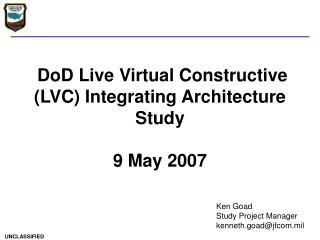

DoD Live Virtual Constructive (LVC) Integrating Architecture Study 9 May 2007

Ken Goad

Study Project Manager

kenneth.goad@jfcom.mil

briefing topics
Briefing Topics
  • LVC Architecture Issue
  • Project Methodology
  • Schedule
  • Status
  • Organization & Implementation Strategy
  • Working Group
  • Summary
the lvc architecture issue
The LVC Architecture Issue
  • Current LVC environments are not inherently interoperable.
    • High Level Architecture (HLA) and Distributed Interactive Simulation (DIS) are most often used for integrating virtual and constructive assets
    • Test & Training Enabling Architecture (TENA) is widely used in testing and to integrate live assets into exercises/events.
    • Common Training Instrumentation Architecture (CTIA) promotes commonality among the U.S. Army's instrumented ranges and home stations; LVC - Integrated Architecture (LVC-IA) is next-generation Army multi-echelon, integrated, joint, training and mission rehearsal environment;
  • Multiple protocols, gateways, and object models are often used to bring an LVC Environment together.
    • Interoperability and efficiency issues arise when bringing disparate protocols and entities together in a common operational environment.
    • Complexity, disconnects, duplication of effort, risk, and costs increase with multiple architectures/protocols/gateways.

Four communities agree; critical review needed to develop way forward for efficient, effective interoperability.

what we are doing
What we are doing
  • Developing a recommended plan (way forward) regarding LVC interoperability across three broad areas of research:
    • Desired future technical architecture(s)
    • Desired business model(s)
    • Manner in which standards should be evolved and compliance evaluated
  • The plan will provide:
    • Rationale for recommendations, citing the findings on which they are based
    • An assessment of how any LVC architecture policy change might impact the user communities, with recommendations on strategies to promote new direction and minimize impact
    • Recommended next steps (e.g., further study/analysis, experiments, prototyping any new architecture)

Develop an LVC Architecture Plan

slide5

May

Jun

Jul

Aug

Sep

Oct

Nov

Dec

Apr

WS

PREP

WS

PREP

WS

PREP

WS

PREP

WS

PREP

T9*: Interim

Report

Expert

Team

Meeting

Expert

Team

Meeting

Expert

Team

Meeting

Expert

Team

Meeting

Expert

Team

Meeting

Expert

Team

Meeting

WG Meet

Hampton

WG Meet

WG Meet

Orlando

WG Meet

WG Meet

DC

Notional Long Term (15-Month) Schedule

Jan 08

Feb

Mar

Apr

May

Jun

Jul

T1:

Scope

T2: Define

Use Cases

Start date

4 April 2007

T3: Define

Requirements

T4: Identify

capabilities

& limitations

T12: Plan

Outreach

T6: Analyze functionality

of middleware

T5: Map

Capabilities by

Requirements

T7: Analyze business model

T8: Analyze standards

management

T10: Perform a systems

engineering AoA

T13:

Final

Report

T11: Develop

Draft Plan

DMSC

SISO

IITSEC

MORS

SISO

DMSC

NATOR&T

NATOR&T

SISO

status
Status
  • Contract actions awarded
    • JFCOM
    • PEO – STRI (Subject Matter Experts)
    • Institute for Defense Analysis (IDA)
  • Major Accomplishments (JFCOM & IDA)
    • Project Execution Plan / Task Statements (Organizational Conflict of Interest Mitigation Plans)
    • Non-Disclosure Agreement (Approved by Contracts)
    • Working Group Roles, Responsibilities and Estimated LOE / Travel
    • Second Order Detail in POA&M
    • Established interfaces with
      • SISO – briefed December, 2006 at I/ITSEC
      • Establish interface with NATO MSG-052
      • JFCOM M&S Board of Directors, December 2006
      • TENA AMT – briefed January, 2007
      • Training Community of Interest - briefed January, 2007
      • Joint Architecture & Technical Standards – briefed January, 2007
    • Study Project Team Pre-Kickoff – 19 March 2007 at Georgia Tech Research Institute
      • Developed Working Group Schedule and Detailed Execution Plan
  • Expected Near-term Milestones
    • Issue Request for Information – April 2007
    • Technical Expert Team Kickoff – 9 May 2007
    • Hold 1st Working Group Meeting - Jul 2007
    • Establish outreach with Experimentation, Acquisition, and Test communities
    • Host 2nd Working Group Meeting in conjunction with 2nd NMSG-052 workshop – September 2007
implementation strategy
Innovative strategy employing Modified Delphi Approach (Community participation)

Strong Leadership structure promoting collaboration and transparency

Planned IPRs for M&S community feedback

Consider all major protocols

HLA, TENA, CTIA, DIS, ALSP, etc.

Leverage ongoing work and past studies

SISO Effort

JMETC Prototype

JFCOM/JATTL HLA Analysis

JDSETES (HLA/TENA)

PEO STRI LVC IA Study

NATO MSG-052 Activity

Implementation Strategy
working group

M&S Steering Committee

USJFCOM J7 Program Manager

Project Support Team

Technical Expert Team

Working Group

Working Group

Balanced Set of Representatives from the User Community

Focus Areas

  • Communities
  • Acquisition, Planning, Analysis, Testing, Experimentation, Training
  • Services, Agencies, Academia, Industry
  • Distributed Simulation
  • Simulation Interoperability

Member Qualifications

  • Knowledge of and Access to Respective LVC User Communities
  • Sufficient Expertise to Judge Findings
  • Necessary Influence to Represent Constituency’s Response to Findings
  • Technical, business model and/or standards experts
working group10

M&S Steering Committee

USJFCOM J7 Program Manager

Level of Effort and Travel Requirements

  • Anticipate 3 Workshops in first 9 months and periodical review of products on portal
  • Associated costs are not reimbursed by LVC Architecture study
  • Telecon available for all WG meetings

Project Support Team

Technical Expert Team

Working Group

Working Group

Work Group Contributions

  • Information Collection and Distribution (Requirements, Use Case Information, …)
  • Participation in Workgroups/Teleconferences
  • Facilitation of Introductions

of Project Support Team to Constituency

  • Review and Provision of Feedback on Products, Findings and Recommendations
  • Provision of Input in Support of Product Development
working group registration
Working Group Registration

Working Group Registration Website

http://www.cie.jfcom.mil

<select Account Request>

Special Instructions for Request Form

Justification / Notes – LVC Arch Study

Sponsor – Ken Goad, kenneth.goad@jfcom.mil, 757-638-4011

slide12

Summary

  • Statement of Relevance: The LVC architecture study will provide a cross community/domain analysis of LVC architecture interoperability requirements and capabilities, and a systems engineering analysis of alternatives with an eye towards developing a strategic vision on how to best organize around the Global Information Grid and Net-Centric Data Strategy.
    • Interoperate with operational IT environments supporting our Warfighters– Provide architecture vision from where we are today toward where we should be at full instantiation of the GIG.
    • Accelerate Adoption of LVC Interoperability – Provide sufficient guidance to allow program managers to make decisions affecting the interoperability and conformance of their architectures and systems.
    • Reduction of Risk – Provide a risk mitigation strategy for programs that have requirements to interoperate in an LVC environment with common architectures
    • Cost & Time Savings– Provide efficient LVC architecture interoperability recommendations to support rapid federation design through best practices.
contact info
Contact Info

Ken Goad (Project Manager) -

kenneth.goad@jfcom.mil, 757-638-4011

Warren Bizub (Project Engineer) -

warren.bizub@jfcom.mil, 757-203-6969

Dr. Amy Henninger (Study Lead) -

ahenning@ida.org, 703-845-6892

m s challenges
M&S Challenges
  • Keep up with accelerating requirements
  • Test, train, experiment and rehearse in a continuously available environment
  • Reduce time and cost to set up exercises / simulations
  • Encompass all real-world environments
  • Provide interoperability across the Unified Action partners, i.e., interagency & multinational
  • Develop a focused enterprise strategy

The World is Transforming but M&S is Evolving

definitions
DEFINITIONS
  • Live Domain – The domain where live participants operate operational systems and platforms (including their full range of mobility) in the physical environment.
  • Virtual Domain – The domain where live participants operate simulators/emulators/operational systems in a synthetic environment.
  • Constructive Domain – The domain where live participants, typically command and staff trainees, conduct activities in an environment constituted by a large scale constructive synthetic environment (simulation). The trainees provide stimulus to simulated forces at all levels and act upon consequences generated by the simulation.
slide17

Constructive

LVC Interoperability

Communities (and Services) depend upon LVC capabilities: Acquisition, Experimentation, Testing, and Training
