    1. Network Printer Server

    2. Contents • Network Card Hardware • Network Printer Software • Network Protocols • FAQ

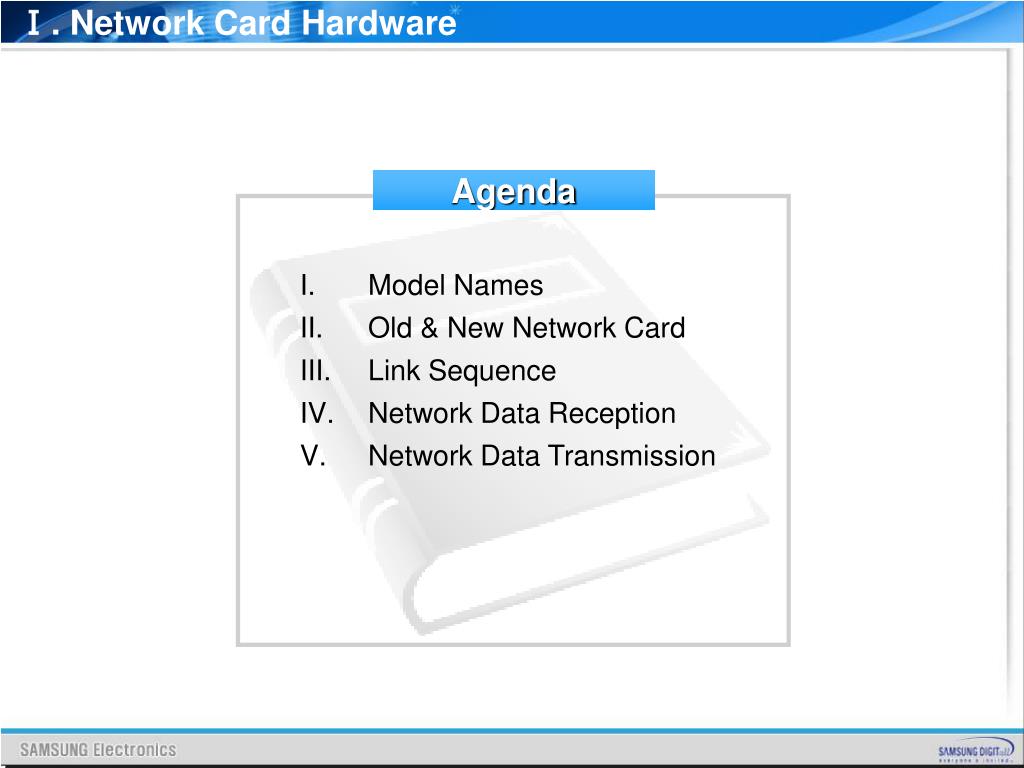

    3. Ⅰ. Network Card Hardware Agenda • Model Names • Old & New Network Card • Link Sequence • Network Data Reception • Network Data Transmission

    4. Ⅰ. Network Card Hardware Objectives • To make you aware of the network card hardware • To show you how the network card works

    5. Ⅰ. Network Card Hardware Model Names Printer Model Names ML-2150, ML-2550, ML-2250: Basic Cardinal ML-2151N, ML-2551N, ML-2251N: Wired networking Cardinal ML-2152W, ML-2552W, ML-2252W: Wired/Wireless networking Cardinal ML-3560 : Basic Kestrel ML-3561N : Wired Networking Kestrel ML-3050 Series : Dove ML-2570 Series : Oriole ML- 4550 Series : Stork CLP-500, CLP-550: Basic BigBang CLP-500G, CLP-500N, CLP-550G, CLP-550N: Wired networking BigBang CLP-600: Basic DaVinci CLP-600N: Wired Networking DaVinci CLP-300 Series: Gogh

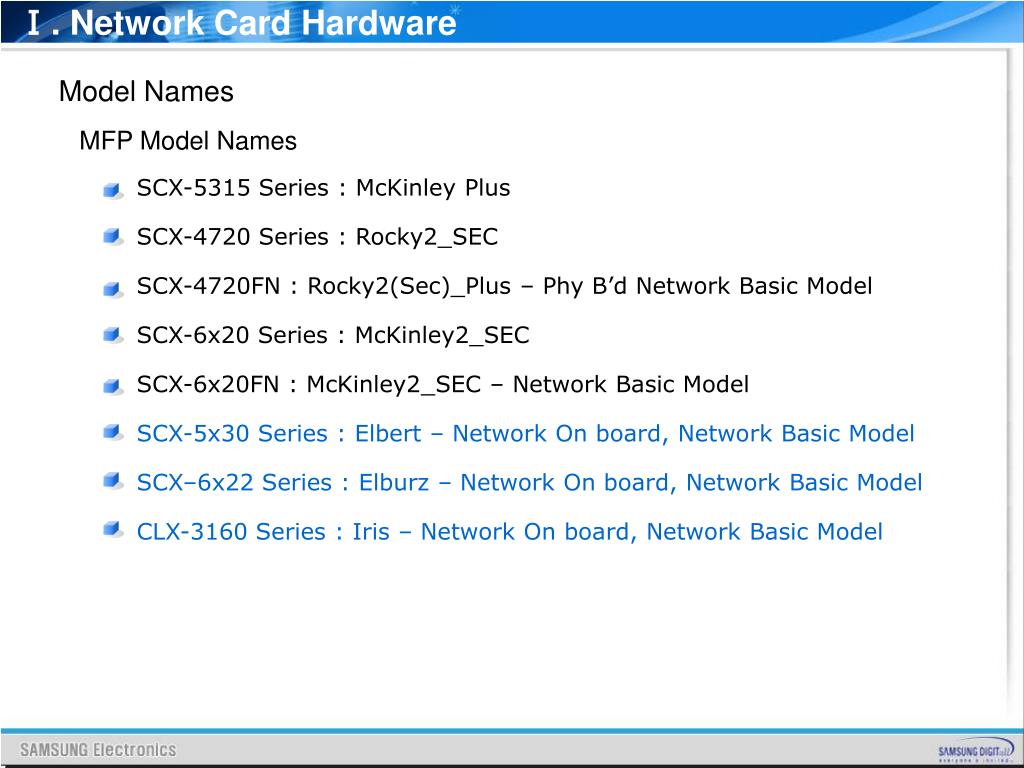

    6. Ⅰ. Network Card Hardware Model Names MFP Model Names SCX-5315 Series : McKinley Plus SCX-4720 Series : Rocky2_SEC SCX-4720FN : Rocky2(Sec)_Plus – Phy B’d Network Basic Model SCX-6x20 Series : McKinley2_SEC SCX-6x20FN : McKinley2_SEC – Network Basic Model SCX-5x30 Series : Elbert – Network On board, Network Basic Model SCX–6x22 Series : Elburz – Network On board, Network Basic Model CLX-3160 Series : Iris – Network On board, Network Basic Model

    7. Ⅰ. Network Card Hardware Model Names Optional Network Card Model Names ML-00NB, ML-00NC, ML-00NE, ML-00NF, CLP-N600A : Optional internal wired network card for PRINTER ML-00LB, ML-00LC, ML-00LE, ML-00LF, CLP-N600B : Optional internal wired/wireless network card for PRINTER ML-00NA : Old optional internal wired network card SCX-00NB : Optional internal wired network card for MFP SCX-00LA : Optional internal wired/wireless network card for MFP SCX-00NA : Optional internal wired network card for Mckinley plus only SCX-6320NA : Optional internal wired network card for Mckinley2 only

    8. Ⅰ. Network Card Hardware Model Names External Network Card Model Names ML-00LA: External wired/wireless network printer server ML-00ND: External wired network printer server

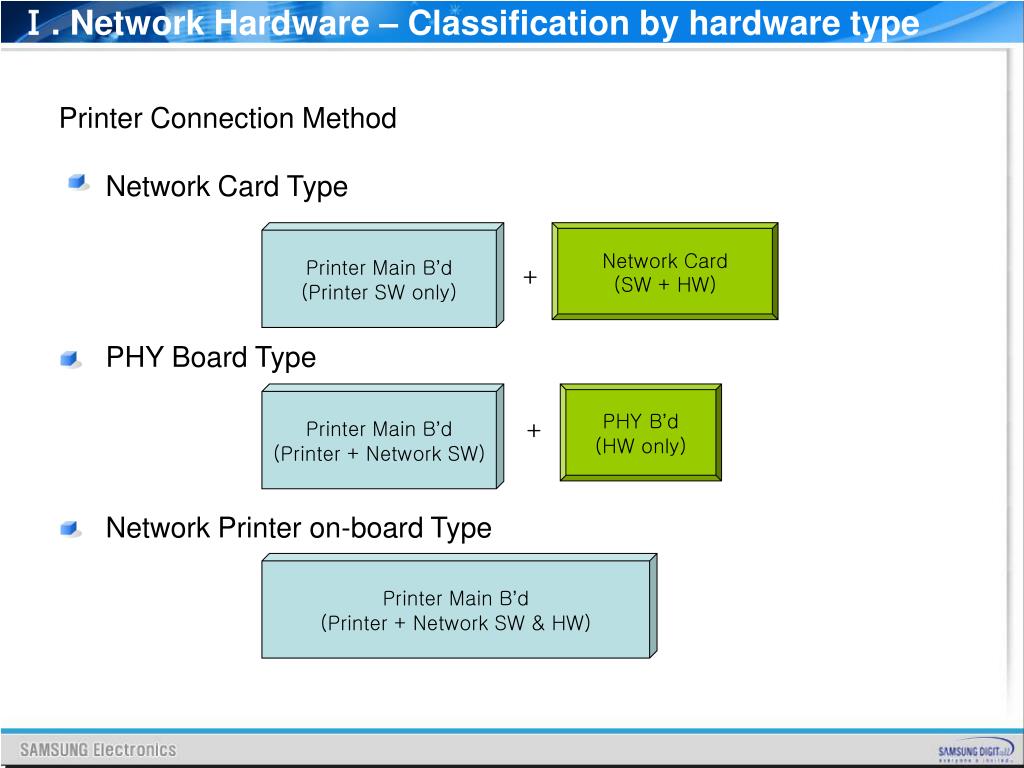

    9. Ⅰ. Network Hardware – Classification by hardware type Printer Connection Method Network Card Type PHY Board Type Network Printer on-board Type Printer Main B’d (Printer SW only) Network Card (SW + HW) + Printer Main B’d (Printer + Network SW) PHY B’d (HW only) + Printer Main B’d (Printer + Network SW & HW)

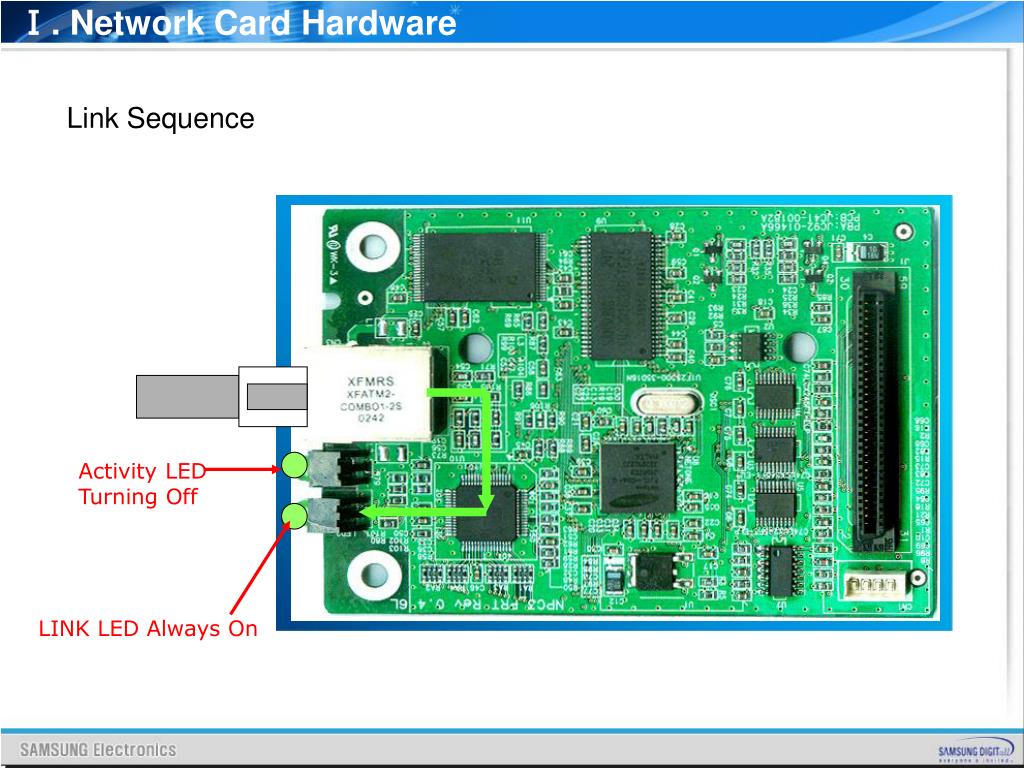

    10. Ⅰ. Network Card Hardware Link Sequence Activity LED Turning Off LINK LED Always On

    11. Ⅰ. Network Card Hardware Network Data Reception 01010011 11001010 10001001 10101100 01010011 11001010 Activity LED Blinking Irregularly 10001001 10101100 LINK LED Always On

    12. Ⅰ. Network Card Hardware 01010011 11001010 10001001 10101100 Network Data Transmission 01010011 11001010 10001001 10101100 Activity LED Blinking Irregularly LINK LED Always On

    13. Ⅰ. Network Card Hardware Review Explain how the network card hardware works What is the difference of the old network card and the new one?

    14. Ⅱ. Network Card Software Objectives • To make you aware of the network card firmware • To make you aware of the features and functions each Samsung network card software has

    15. Ⅱ. Network Card Software Agenda • Network Card Firmware • Network Card Management Software

    16. Ⅱ. Network Card Software Review What are necessary to upgrade the network card? List up all network card management softwares and explain their characteristics

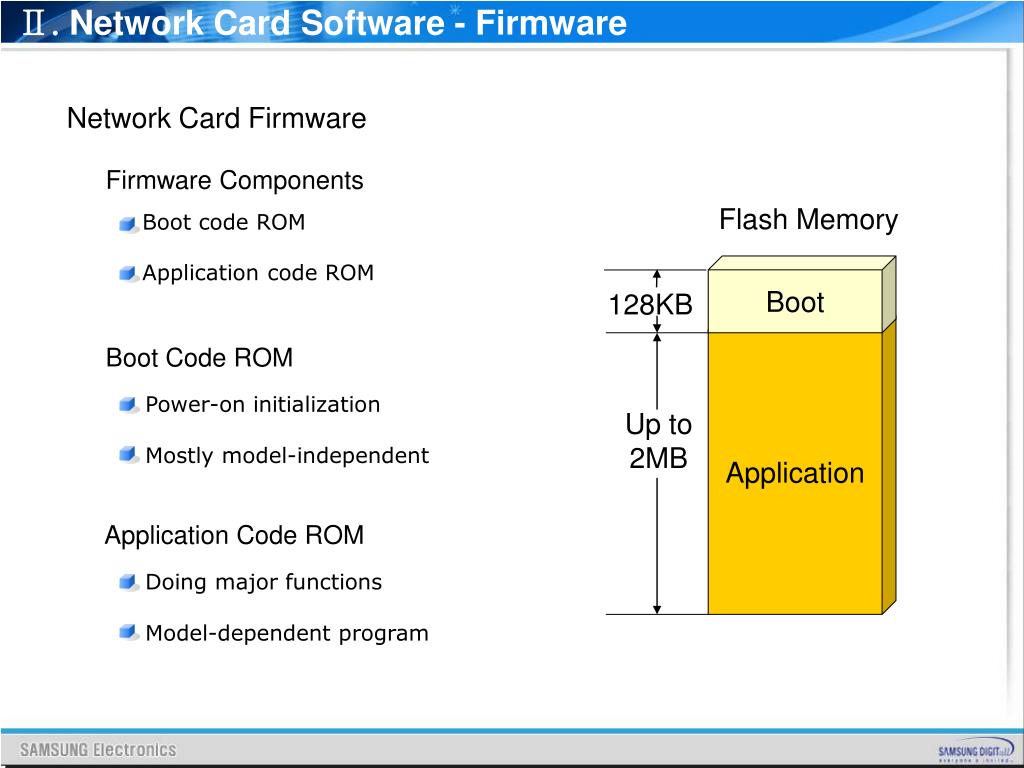

    17. Ⅱ. Network Card Software - Firmware Flash Memory Boot 128KB Application Up to 2MB Network Card Firmware Firmware Components Boot code ROM Application code ROM Boot Code ROM Power-on initialization Mostly model-independent Application Code ROM Doing major functions Model-dependent program

    18. Ⅱ. Network Card Software - Firmware Network Card Firmware : Upgrade Firmware Upgrade To upgrade network card firmware with latest version Use TFTP Protocol Use HTTP Protocol (Embedded Web Server, SWS, SWAS) Requirements Target Network Card • Well Configuration of TCP/IP Protocol • In Local Area Network with Server Computer Server Computer • Well Configuration of TCP/IP Protocol • Samsung SyncThru Application in case of using TFTP. • SyncThru Web Service (SWS) in case HTTP.

    19. Ⅱ. Network Card Software Samsung SyncThru (~2004) Samsung SyncThru Web Admin Service (2005~) Samsung Network Card Embedded Web Server (~2004) Samsung SyncThru Web Service(2004~) Samsung SetIP Samsung IPP Client (~2005 1Q) HP JetAdmin, WebJetAdmin Network Card Management Software Management Software Printing Port Monitor on Client Computer Samsung Port Monitor HP Port Monitor Microsoft Port Monitor

    20. SyncThru Web Admin Service Web based Printer Management Solution Ⅱ. Network Card Software – Management Software MFP NW Printer SNMP SNMP SNMP HTTP MFP Administrator's PC Network Printer Detection Firmware Upgrade Group Management of Network Printers User Management for Controlling User Access SyncThru Web Admin Service Server

    21. Ⅱ. Network Card Software – Management Software Samsung SyncThru Web Admin Service Models Mono Laser Printer ML-3560 Series, ML-3050 Series ML-2570 Series, ML-4550 Series Color Laser Printer CLP-510 Series, CLP-560 Series CLP-300 Series Mono Multi Function Peripheral SCX-4720FN, SCX-5x20 Series, SCX-6x22 Series Color Multi Function Peripheral CLX-3160 Series

    22. Ⅱ. Network Card Software – Management Software Network Printer Detection Device information in the network

    23. Ⅱ. Network Card Software – Management Software General, Consumable, Protocol, Printer Status, Alert and Diagnostics Information Detailed information by double click

    24. Ⅱ. Network Card Software – Management Software Group Management of Network Printers Grouping devices

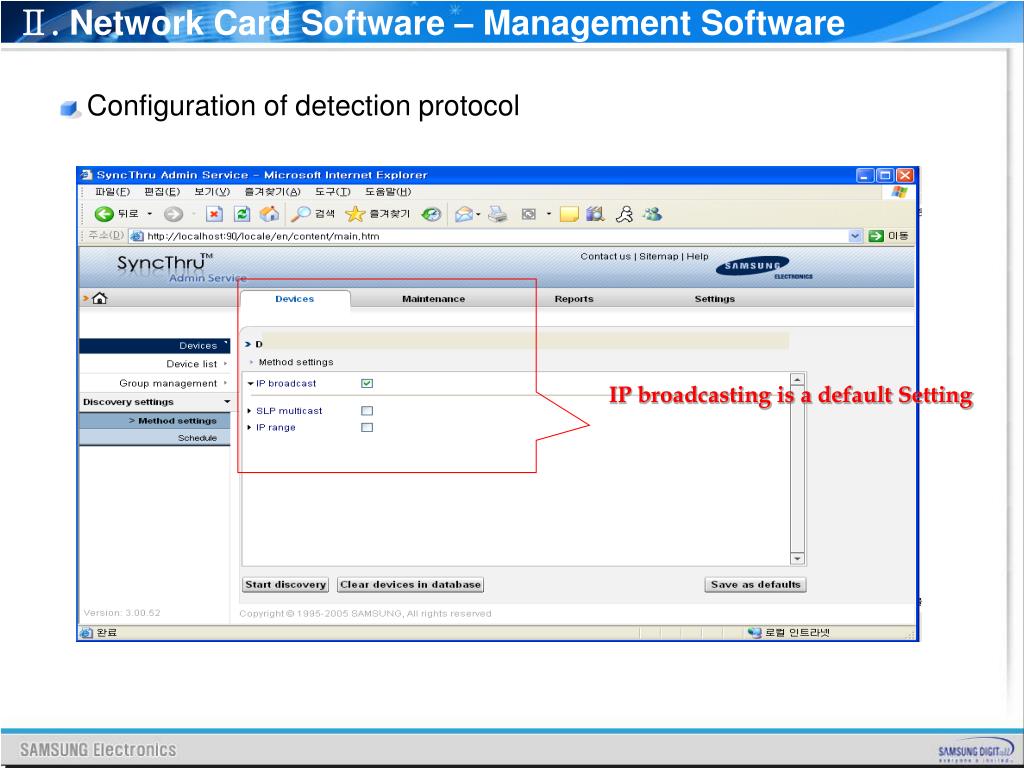

    25. Ⅱ. Network Card Software – Management Software Configuration of detection protocol IP broadcasting is a default Setting

    26. Ⅱ. Network Card Software – Management Software Firmware upgrade using printer group management Upgrading Firmware

    27. Ⅱ. Network Card Software – Management Software Notify alert and consumables information using HTML or E-mail Email and HTML Reporting Alert and Consumables Report

    28. Ⅱ. Network Card Software – Management Software Configuration of SMTP server Configure SMTP

    29. Ⅱ. Network Card Software – Management Software Configuration of administrator information Configure Admin Information

    30. Ⅱ. Network Card Software – Management Software Samsung SyncThru Web Service Features Embedded Web Server Web User Interface http://NPC-IP-Address/ Functionality General Information Machine Settings Network Settings Maintenance Support

    31. Ⅱ. Network Card Software – Management Software Samsung SyncThru Web Service Printer Models Mono Laser Printer ML-3560 Series, ML-3050 Series ML-2570 Series, ML-4550 Series Color Laser Printer CLP-510 Series, CLP-560 Series CLP-300 Series Mono Multi Function Peripheral SCX-4x20 Series, SCX-6x20 Series SCX-5x20 Series, SCX-6x22 Series Color Multi Function Peripheral CLX-3160 Series

    32. Ⅱ. Network Card Software – Management Software Samsung SyncThru Web Service: General Information (Printer) General Information Machine Status Network Information Firmware Version Print Information

    33. Ⅱ. Network Card Software – Management Software Samsung SyncThru Web Service: Machine Settings (Printer) Machine Settings Setup Printer Color Email-Notification Setup …

    34. Ⅱ. Network Card Software – Management Software Samsung SyncThru Web Service: Network Settings Network Settings General NetWare TCP/IP SLP SNMP Raw TCP/IP, LPR, IPP IP Filtering Wireless UPnP Reset

    35. Ⅱ. Network Card Software – Management Software Samsung SyncThru Web Service: Maintenance Maintenance Firmware Upgrade Security

    36. Ⅱ. Network Card Software – Management Software Samsung SyncThru Web Service: Support Support Contact Information Link

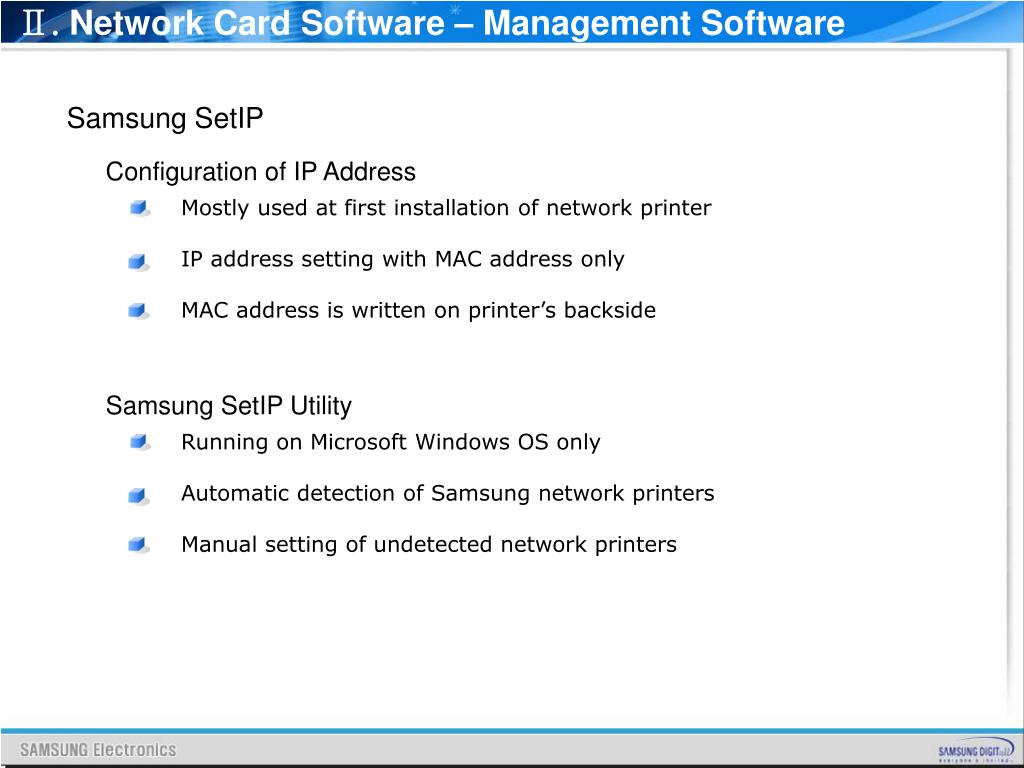

    37. Ⅱ. Network Card Software – Management Software Samsung SetIP Configuration of IP Address • Mostly used at first installation of network printer • IP address setting with MAC address only • MAC address is written on printer’s backside Samsung SetIP Utility • Running on Microsoft Windows OS only • Automatic detection of Samsung network printers • Manual setting of undetected network printers

    38. Ⅱ. Network Card Software – Management Software Press to Set IP Address Samsung SetIP: Application

    39. Ⅲ. Network Protocols Agenda • Supporting Printing Protocols • TCP/IP • Internet Printing Protocols • Management Protocols • SNMP • HTTP

    40. Ⅲ. Network Protocols Objectives • To make you aware of supporting printing protocols

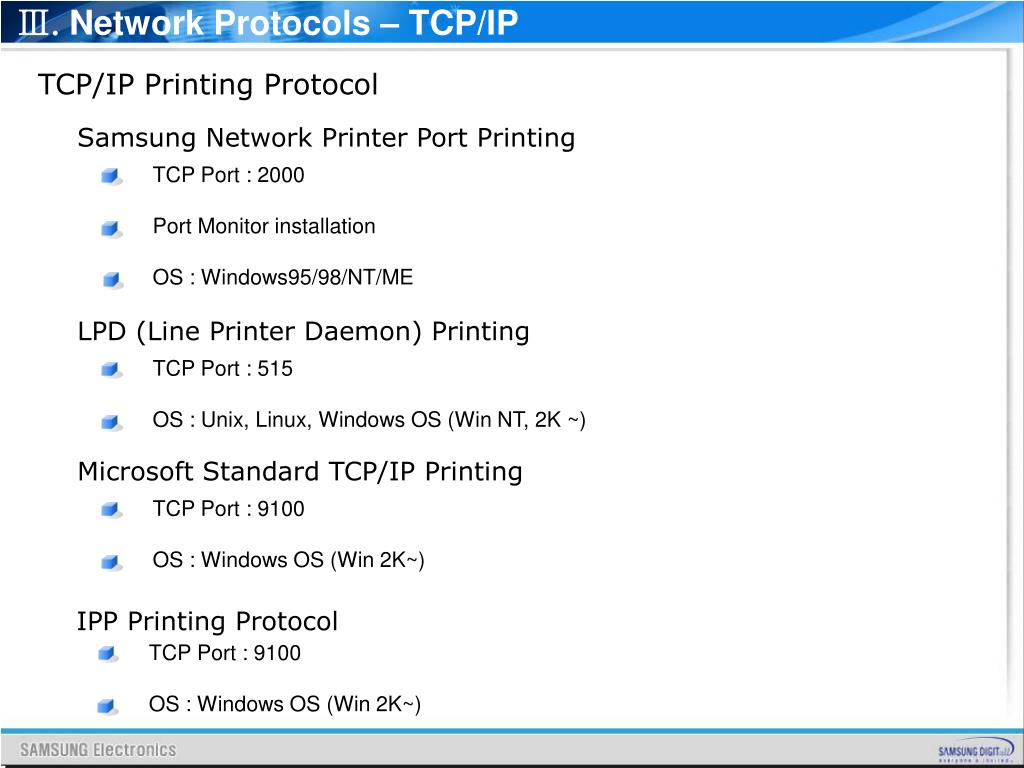

    41. Ⅲ. Network Protocols – TCP/IP TCP/IP Printing Protocol Samsung Network Printer Port Printing • TCP Port : 2000 • Port Monitor installation • OS : Windows95/98/NT/ME LPD (Line Printer Daemon) Printing • TCP Port : 515 • OS : Unix, Linux, Windows OS (Win NT, 2K ~) Microsoft Standard TCP/IP Printing • TCP Port : 9100 • OS : Windows OS (Win 2K~) IPP Printing Protocol • TCP Port : 9100 • OS : Windows OS (Win 2K~)

    42. Ⅲ. Network Protocols – SNMP Management Protocol SNMP means Simple Network Management Protocol

    43. Ⅲ. Network Protocols – HTTP HTTP Web Server Protocol Used in Samsung SyncThru Web Admin Service Used in SyncThru Web Service (Embedded Web Server) Used in IPP 1.1 Protocol

    44. Ⅲ. Network Protocols Review Printing protocols are TCP/IP, internet printing protocols, EtherTalk and etc.

    45. Ⅳ. FAQ What is address of Samsung printer web site? Korean : http://www.sec.co.kr/printer English : http://www.samsungprinter.com You can download the firmware, manual, driver and application programs.

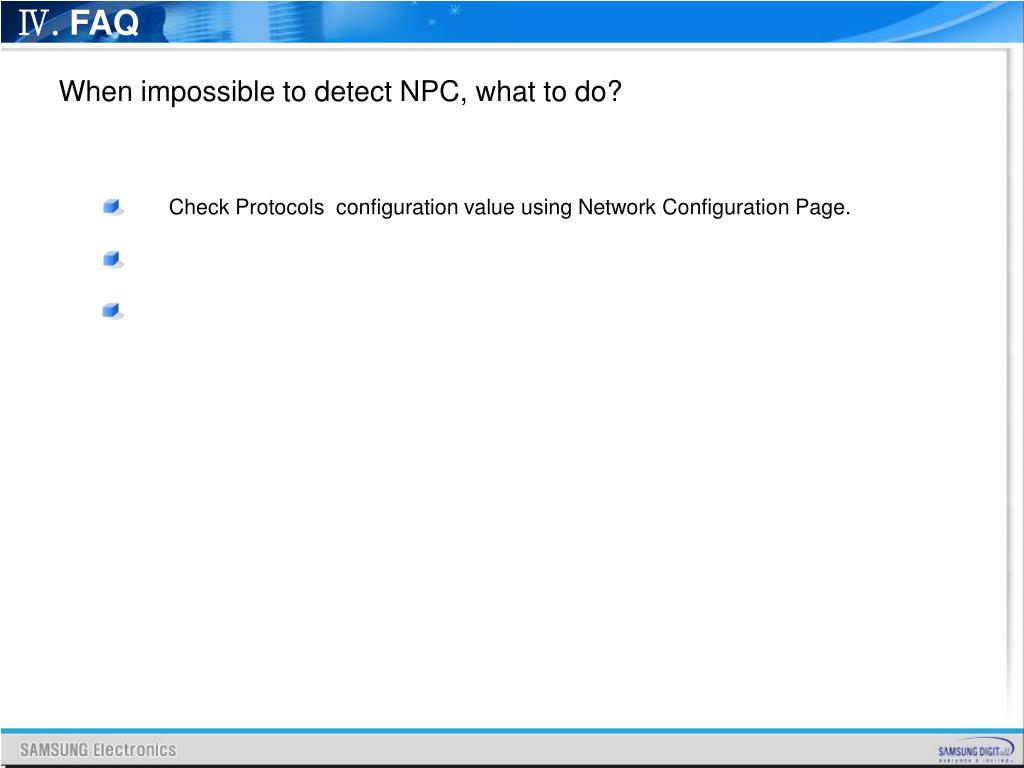

    46. Ⅳ. FAQ When impossible to detect NPC, what to do? Check Protocols configuration value using Network Configuration Page.

    47. Ⅳ. FAQ How to enter IP address when a printer has no front panel? Configure Printer IP address using SetIP Program

    48. Ⅳ. FAQ How can I print on Unix OS? Use TCP/IP LPD protocol.

    49. Ⅳ. FAQ What is the difference of new network models

    50. Thank You!
